RZH105R-BFMRE (1999)

Toyota Hiace Van,Commuter

Production Jul 1999 - Aug 2004
Engine 2RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )1RZ,2RZE

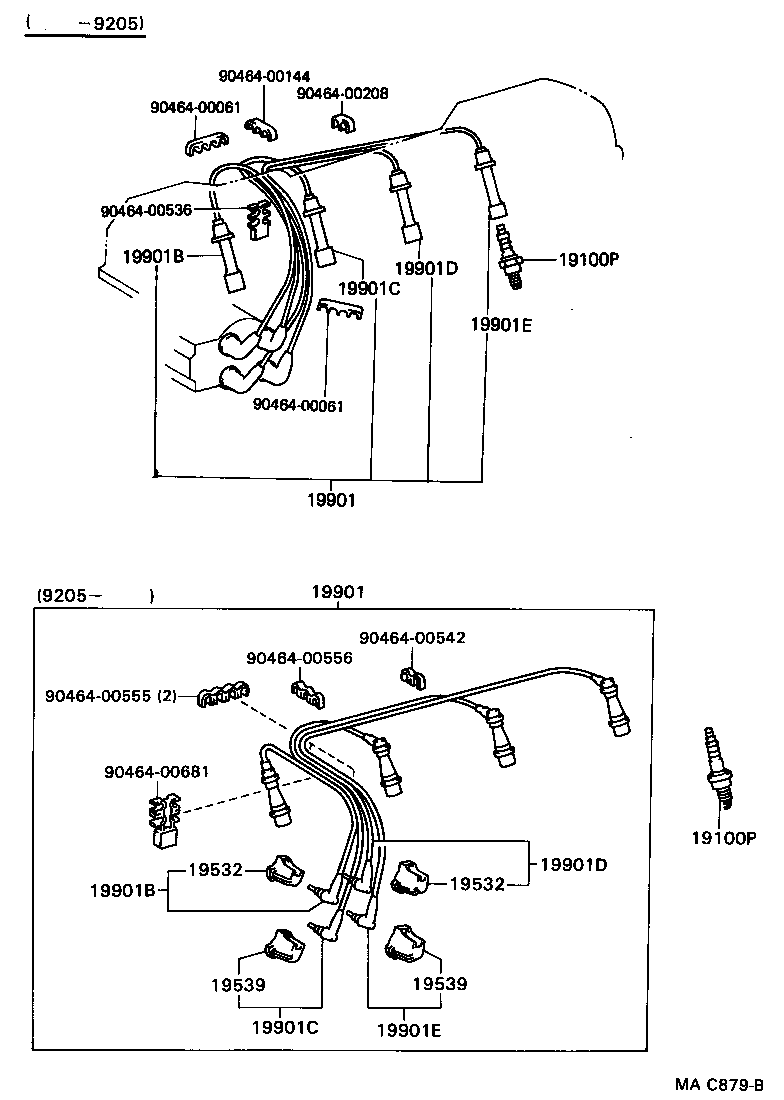

Click highlighted areas on diagram

diagram 19100P 19100P 19532 19532 19539 19539 19901 19901 19901B 19901B 19901C 19901C 19901D 19901D 19901E 19901E 9046400061 9046400061 9046400144 9046400208 9046400536 9046400542 9046400555 9046400556 9046400681
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01059

1RZ..RZH114..15S;1RZ..RZH112..LHD;1RZ..RZH112..RHD..SP;1RZ,2RZ..RZH102,104,105,113,115..03S,06S,12S,15S

W16EX-U

 4
90919-01059

2RZ..RZH115..STD;1RZ..RZH114..15S..GEN;1RZ,2RZ..RZH10#,112,113,125..ARL,GCC,GEN

W16EX-U

 4
19100P - PLUG, SPARK
90919-01059

1RZ..RZH114..15S;1RZ..RZH112..LHD;1RZ..RZH112..RHD..SP;1RZ,2RZ..RZH102,104,105,113,115..03S,06S,12S,15S

W16EX-U

 4
90919-01059

2RZ..RZH115..STD;1RZ..RZH114..15S..GEN;1RZ,2RZ..RZH10#,112,113,125..ARL,GCC,GEN

W16EX-U

 4
19532 - HOLDER, RESISTIVE CODE, NO.2
19532-46010

1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#

 2
19532 - HOLDER, RESISTIVE CODE, NO.2
19532-46010

1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#

 2
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-74020

1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#

 2
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-74020

1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#

 2
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-22371

1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-22371

1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-15412

1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-15412

1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-15413

1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-15413

1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-15414

1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-15414

1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-15415

1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-15415

1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#

 1
Common parts
90464-00061
90464-00144
90464-00208
90464-00536
90464-00542
90464-00555
90464-00556
90464-00681
