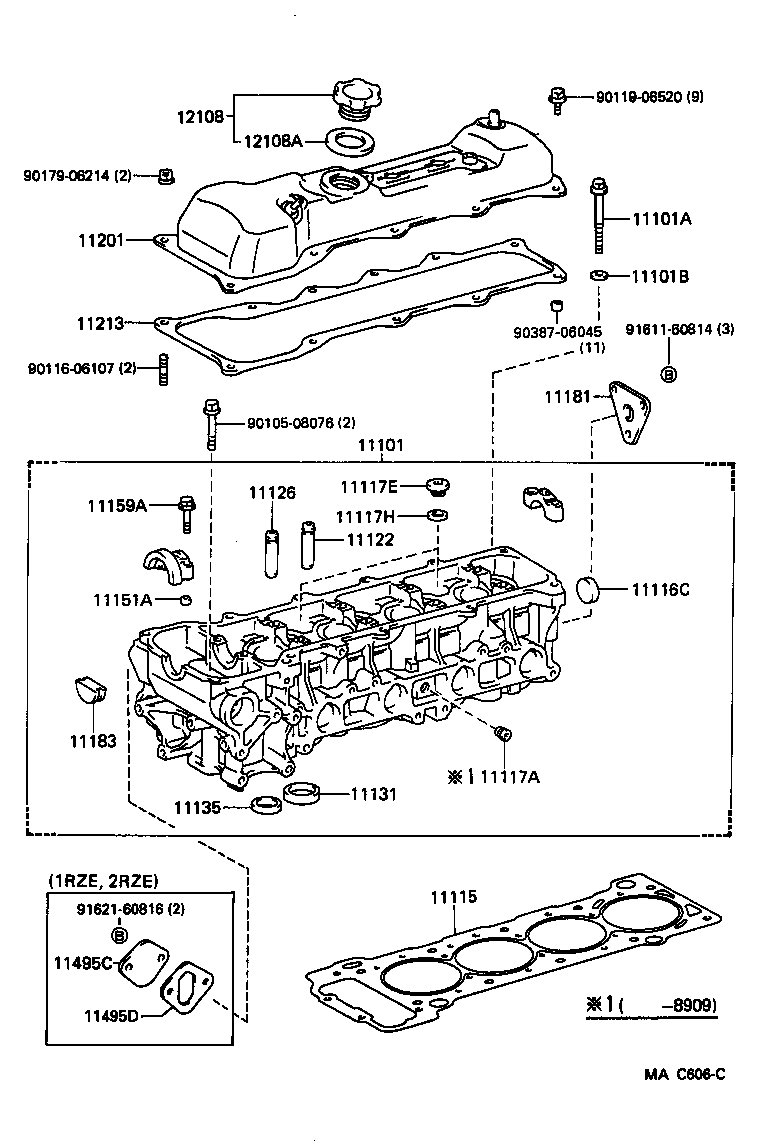

RZH105R-BFMRE (1999)
Toyota Hiace Van,Commuter
(8908- )1RZ#,2RZ#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-75020 |
2RZ#..RZH103,105,113,115,125 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02091 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15# |
10 | ||
| 90910-02091 |
2RZ..RZH115;2RZE..RZH105,115..STD..CIS;1RZ#,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..(03S,06S,09S)..(ARL,GEN);1RZ,2RZ#..RZH103,114,125,135,153..03S,06S,12S,14S,15S |
10 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-12222 |
2RZ..RZH115;2RZE..RZH105,115..STD..CIS;1RZ#,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..(03S,06S,09S)..(ARL,GEN);1RZ,2RZ#..RZH103,114,125,135,153..03S,06S,12S,14S,15S |
10 | ||
| 90201-12222 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15# |
10 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-75020 |
2RZE..RZH105,115..STD..CIS;2RZ..RZH103,105,113,115,125;2RZE..RZH103,125,135,153..RHD;2RZE..RZH113..4D..(03S,06S,09S)..(ARL,GEN) T=1.25 |
1 | ||
| 11116C - PLUG, TIGHT, NO.3 | ||||
| 96411-42800 |
2RZ..RZH115;2RZE..RZH105,115..STD..CIS;1RZ#,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..(03S,06S,09S)..(ARL,GEN);1RZ,2RZ#..RZH103,114,125,135,153..03S,06S,12S,14S,15S |
1 | ||
| 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90344-53011 |
1RZ,2RZ..RZH10#,11#,125 |
1 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-20002 |
1RZ,2RZ..RZH10#,11#,125 |
2 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-20004 |
2RZ..RZH115;2RZE..RZH105,115..STD..CIS;1RZ#,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..(03S,06S,09S)..(ARL,GEN);1RZ,2RZ#..RZH103,114,125,135,153..03S,06S,12S,14S,15S |
2 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-75010 |
1RZ#,2RZ#..RZH10#,11#,125,135,153 STD |
4 | ||
| 11122-75010 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15# STD |
4 | ||
| 11123-75010 |
1RZ#,2RZ#..RZH10#,11#,125,135,153 O/S 0.05 |
4 | ||
| 11123-75010 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15# O/S 0.05 |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-75010 |
1RZ#,2RZ#..RZH10#,11#,125,135,153 STD |
4 | ||
| 11122-75010 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15# STD |
4 | ||
| 11123-75010 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15# O/S 0.05 |
4 | ||
| 11123-75010 |
1RZ#,2RZ#..RZH10#,11#,125,135,153 O/S 0.05 |
4 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11131-75020 |
2RZ#..RZH103,105,113,115,125,135,153 STD |
4 | ||
| 11132-75020 |
2RZ#..RZH103,105,113,115,125,135,153 O/S 0.03 |
4 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-75020 |
2RZE..RZH105,115..STD..CIS;2RZ..RZH103,105,113,115,125;2RZE..RZH103,125,135,153..RHD;2RZE..RZH113..4D..(03S,06S,09S)..(ARL,GEN) STD |
4 | ||
| 11136-75020 |
2RZE..RZH105,115..STD..CIS;2RZ..RZH103,105,113,115,125;2RZE..RZH103,125,135,153..RHD;2RZE..RZH113..4D..(03S,06S,09S)..(ARL,GEN) O/S 0.03 |
4 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-11021 |
2RZ..RZH115;2RZE..RZH105,115..STD..CIS;1RZ#,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..(03S,06S,09S)..(ARL,GEN);1RZ,2RZ#..RZH103,114,125,135,153..03S,06S,12S,14S,15S L=8,OD=11 |
10 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-08772 |
2RZ..RZH115;2RZE..RZH105,115..STD..CIS;1RZ#,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..(03S,06S,09S)..(ARL,GEN);1RZ,2RZ#..RZH103,114,125,135,153..03S,06S,12S,14S,15S |
10 | ||
| 11181 - PLATE, CYLINDER HEAD, REAR | ||||
| 11181-75010 |
2RZ..RZH115;2RZE..RZH105,115..STD..CIS;1RZ#,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..(03S,06S,09S)..(ARL,GEN);1RZ,2RZ#..RZH103,114,125,135,153..03S,06S,12S,14S,15S |
1 | ||
| 11181-75010 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15# |
1 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-62010 |
2RZ..RZH115;2RZE..RZH105,115..STD..CIS;1RZ#,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..(03S,06S,09S)..(ARL,GEN);1RZ,2RZ#..RZH103,114,125,135,153..03S,06S,12S,14S,15S |
1 | ||
| 11183-62010 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15# |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-75010 |
2RZ..RZH115;2RZE..RZH105,115..STD..CIS;1RZ#,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..(03S,06S,09S)..(ARL,GEN);1RZ,2RZ#..RZH103,114,125,135,153..03S,06S,12S,14S,15S |
1 | ||
| 11201-75010 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15# |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-75020 |
2RZ..RZH115;2RZE..RZH105,115..STD..CIS;1RZ#,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..(03S,06S,09S)..(ARL,GEN);1RZ,2RZ#..RZH103,114,125,135,153..03S,06S,12S,14S,15S |
1 | ||
| 11213-75020 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15# |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-75010 |
1RZ,2RZ..RZH10#,11#,125 |
1 | ||
| 12180-73011 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15# |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 12195-73010 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15# |
1 | ||
| 12195-70010 |
1RZ,2RZ..RZH10#,11#,125 |
1 | ||
| Common parts | ||||
| 90105-08076 | ||||
| 90116-06107 | ||||
| 90119-06520 | ||||
| 90179-06214 | ||||
| 90387-06045 | ||||
| 91611-60814 | ||||
| 91641-K0816 | ||||
(8908- )1RZ,2RZE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-08076 | ||||
| 90116-06107 | ||||
| 90119-06520 | ||||
| 90179-06214 | ||||
| 90387-06045 | ||||
| 91611-60814 | ||||
| 91621-60816 | ||||
