RZH105L-BFMRSV (1993)
Toyota Hiace Van,Commuter
(9808- )RZH113,153..DX,GL ; (0008- )LH174,RZH105,115..GCC ; (0108- )LH114.

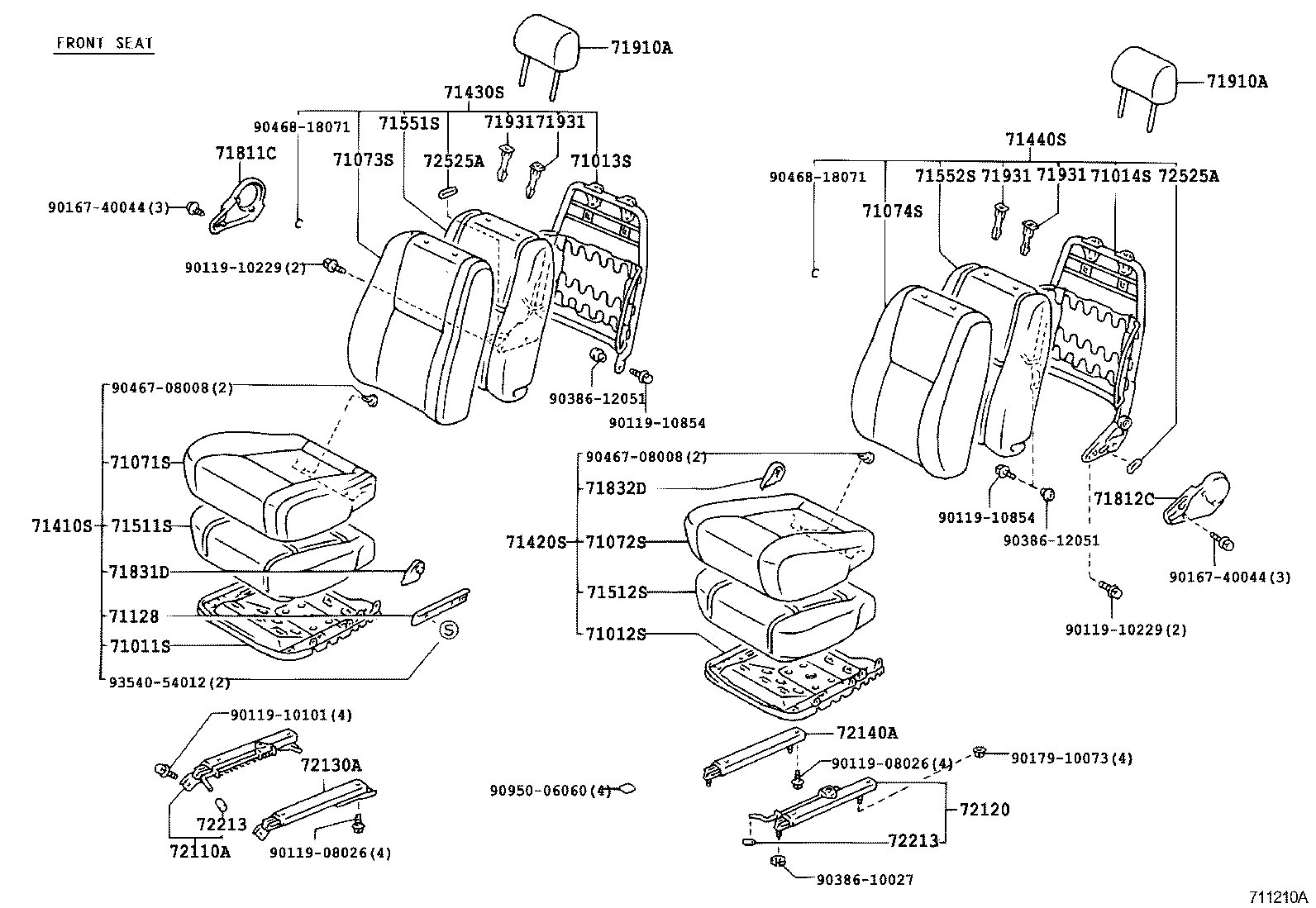

FRONT SEAT(CENTER SEAT LESS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-95J09 |
LH102,104,105,11#,166,176,RZH102,104,105,11#..LHD..(03S,06S,12S,15S) W(*ELR) |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-2609003 |
LH102,104,105,11#,RZH10#,11#..LHD W(*ELR),GRAY,TRIM1# |
1 | ||
| 71012-95J15 |
RZH105,115..STD..CIS;LH174,RZH113..LHD..(03S,06S,10S);LH102,104,105,11#,166,176,RZH10#,112,114,115..LHD..(CBR,DSL) |
1 | ||
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-26030B0 |
LH102,104,105,11#,RZH102,104,105,11#..LHD..STD W(*ELR),BLUISH GRAY,TRIM1# |
1 | ||
| 71013-26030B0 |
LH115,RZH113,114..LHD..STD..(GCC,GEN);LH102,104,112,113,114,RZH102,104,105,112,115..LHD..SRF..STD..(CBR,DSL) W(*ELR),BLUISH GRAY,TRIM1# |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-26030 |
LH102,104,11#,RZH10#,11#..LHD |
1 | ||
| 71014-26030 |
LH102,104,105,11#,RZH10#,11#..LHD W(HEADREST) |
1 | ||
| 71014-26031 |
RZH105,115..STD..CIS;LH174,RZH113..LHD..(03S,06S,10S);LH102,104,105,11#,166,176,RZH10#,112,114,115..LHD..(CBR,DSL) |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-95N00B1 |
LH105,113,115,RZH105,113,115..GCC BLUISH GRAY,TRIM1# |
1 | ||
| 71071-26520B0 |
LH113,115,RZH105,113,115..GCC SEAT = TYPE B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-95N07B1 |
RZH114..LHD..STD;LH112,113,RZH105,112,113..CIS,GCC;LH102,104,105,112,114,115,RZH103,104,113,115..LHD..(09S,12S,15S) W(*ELR & FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71072-26460B0 |
RZH114,115..LHD..15S;LH113,RZH113..CIS,GCC;LH104,105,114,115,166,176,RZH10#..LHD..(09S,10S,12S,15S) W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-95N52B1 |
RZH113..LHD..SG;LH112,RZH112..CIS;LH104,105,112,114,115,RZH104,105,114,115..LHD..(09S,12S,15S) W(FABRIC SEAT & HEADREST),BLUISH GRAY,TRIM1# |
1 | ||
| 71073-95N52B1 |
RZH114..LHD..STD;LH113,RZH105,113..GCC;LH102,104,114,115,RZH103,104,115..LHD..(09S,12S,15S) W(FABRIC SEAT & HEADREST),BLUISH GRAY,TRIM1# |
1 | ||
| 71073-26620B0 |
RZH114,115..LHD..15S;LH113,RZH113..CIS,GCC;LH104,105,114,115,166,176,RZH10#..LHD..(09S,10S,12S,15S) FABRIC SEAT,BLUISH GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-95N68B1 |
RZH114..LHD..STD;LH112,113,RZH105,112,113..CIS,GCC;LH102,104,105,112,114,115,RZH103,104,113,115..LHD..(09S,12S,15S) W(FABRIC SEAT & HEADREST),BLUISH GRAY,TRIM1# |
1 | ||
| 71074-26580B0 |
RZH114,115..LHD..15S;LH113,RZH113..CIS,GCC;LH104,105,114,115,166,176,RZH10#..LHD..(09S,10S,12S,15S) W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-95N02B4 |
LH105,113,115,RZH105,113,115..GCC BLUISH GRAY,TRIM1# |
1 | ||
| 71410-95N02P2 |
LH113,115,RZH105,113,115..GCC BLUISH GRAY,TRIM1# |
1 | ||
| 71410-95N02P6 |
LH113,115,RZH105,113,115..GCC BLUISH GRAY,TRIM1# |
1 | ||
| 71410-26530B0 |
LH113,115,RZH105,113,115..GCC BLUISH GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-95N11B3 |
LH105,113,115,RZH105,113,115..GCC BLUISH GRAY,TRIM1# |
1 | ||
| 71420-95N11P4 |
LH113,RZH113..GCC;LH104,114,115,RZH103,104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71420-95N11P9 |
RZH104,114..GL;LH104,113,RZH104,113,114..CIS,GCC;LH102,115,RZH103,105,115..LHD..(09S,12S,15S) W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71420-26450B0 |
RZH114,115..LHD..15S;LH113,RZH113..CIS,GCC;LH104,105,114,115,166,176,RZH10#..LHD..(09S,10S,12S,15S) W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71401-26210B6 |
LH113,115,RZH105,113,115..GCC BLUISH GRAY,TRIM1# |
1 | ||
| 71401-26210B2 |
LH105,113,115,RZH105,113,115..GCC BLUISH GRAY,TRIM1# |
1 | ||
| 71401-26211P0 |
LH113,115,RZH105,113,115..GCC BLUISH GRAY,TRIM1# |
1 | ||
| 71401-26210B8 |
LH113,115,RZH105,113,115..GCC BLUISH GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71402-26150P3 |
LH113,RZH113..GCC;LH104,114,115,RZH103,104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71402-26150P6 |
LH113,RZH113..GCC;LH102,104,114,115,RZH103,104,105,114,115..LHD..(09S,12S,15S) BLUISH GRAY,TRIM1# |
1 | ||
| 71402-26150B3 |
LH105,113,115,RZH105,113,115..GCC BLUISH GRAY,TRIM1# |
1 | ||
| 71402-26151S0 |
RZH114,115..LHD..15S;LH113,RZH113..CIS,GCC;LH104,105,114,115,166,176,RZH10#..LHD..(09S,10S,12S,15S) W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-95J09 |
RZH114..LHD..STD;LH105,115,RZH113..LHD..STD..(GCC,GEN);LH102,104,112,113,114,RZH102,104,105,112,115..LHD..SRF..STD..(CBR,DSL) W(*ELR) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-95J03 |
RZH114..LHD..STD;LH105,115,RZH113..LHD..(GCC,GEN);LH102,104,112,113,114,RZH10#,112,115..LHD..SRF..(DX,SGL,STD)..(CBR,DSL) W(*ELR) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-95J20 |
RZH105,115..STD..CIS;RZH103,105,115..LHD..CBR;LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-95J18 |
RZH103..4D..SG..CBR;LH102,104,105,11#,166,174,176,RZH102,104,105,11#..LHD |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-95J0003 |
LH10#,11#,RZH10#,11# GRAY,TRIM1# |
1 | ||
| 71831-95J00B0 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 BLUISH GRAY,TRIM1# |
1 | ||
| 71831-95J00B0 |
RZH115..CBR;RZH105,115..STD..CIS;LH172,RZH103..RHD..(DSL,EFI);LH174,RZH103,105..(03S,06S,09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,184,RZH102,104,112,113,114,125,135,153..03S,06S,09S,10S,12S,14S,15S BLUISH GRAY,TRIM1# |
1 | ||
| 71831-95J00B0 |
RZH114..15S;LH154,174..11S,12S,15S;LH10#,11#,125,16#,172,176,184,RZH10#,112,113,115,125,135,155..DX,GL,STD BLUISH GRAY,TRIM1# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-95J01B0 |
LH102,104,105,11#,RZH10#,11#..LHD BLUISH GRAY,TRIM1# |
1 | ||
| 71832-95J01B0 |
RZH153;RZH105,115..STD..CIS;LH174,RZH113..LHD..(03S,06S,10S);LH102,104,105,11#,166,176,RZH10#,112,114,115..LHD..(CBR,DSL) BLUISH GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-95J34B0 |
RZH114,115..LHD..15S;LH102,104,105,11#,166,176,RZH10#,112,113..LHD BLUISH GRAY,TRIM1#,RH & LH |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-95J34B0 |
RZH114,115..LHD..15S;LH102,104,105,11#,166,176,RZH10#,112,113..LHD BLUISH GRAY,TRIM1#,RH & LH |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71990-3002033 |
RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71956-3002033 |
RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-26010B0 |
LH125..ARL;LH105,113,115,RZH105,113,115..CBR,DSL;LH102,103,112,114,RZH102,103,104,112,114,125..RHD W/O(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71930-26010B0 |
LH125..ARL;LH105,113,115,RZH105,113,115..CBR,DSL;LH102,103,112,114,RZH102,103,104,112,114,125..RHD W(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71930-26010B0 |
LH105,174..GCC,GEN;LH113,115,RZH105,113,115..GCC;LH102,103,11#,125,172,184,RZH102,103,104,11#,125,135,153..RHD W(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71931-26010B0 |
LH105,174..GCC,GEN;LH113,115,RZH105,113,115..GCC;LH102,103,11#,125,172,184,RZH102,103,104,11#,125,135,153..RHD W/O(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71930-26010B1 |
RZH113..ARL,GCC;RZH112..RHD..03S;RZH113..RHD..STD..GEN;LH115,172,174,RZH115..GCC;LH113,154,RZH155..SRF..(03S,06S,11S);LH114,RZH105..(10S,12S)..STD..(GCC,GEN);LH103,112,114,115,125,162,172,174,184,RZH103,104,114,125,135..RHD W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-26010B1 |
RZH113..ARL,GCC;RZH112..RHD..03S;RZH113..RHD..STD..GEN;LH115,172,174,RZH115..GCC;LH113,154,RZH155..SRF..(03S,06S,11S);LH114,RZH105..(10S,12S)..STD..(GCC,GEN);LH103,112,114,115,125,162,172,174,184,RZH103,104,114,125,135..RHD W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71990-3002033 |
RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71956-3002033 |
RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-26010B0 |
LH125..ARL;LH105,113,115,RZH105,113,115..CBR,DSL;LH102,103,112,114,RZH102,103,104,112,114,125..RHD W/O(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71930-26010B0 |
LH125..ARL;LH105,113,115,RZH105,113,115..CBR,DSL;LH102,103,112,114,RZH102,103,104,112,114,125..RHD W(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71930-26010B0 |
LH105,174..GCC,GEN;LH113,115,RZH105,113,115..GCC;LH102,103,11#,125,172,184,RZH102,103,104,11#,125,135,153..RHD W(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71931-26010B0 |
LH105,174..GCC,GEN;LH113,115,RZH105,113,115..GCC;LH102,103,11#,125,172,184,RZH102,103,104,11#,125,135,153..RHD W/O(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71930-26010B1 |
RZH113..ARL,GCC;RZH112..RHD..03S;RZH113..RHD..STD..GEN;LH115,172,174,RZH115..GCC;LH113,154,RZH155..SRF..(03S,06S,11S);LH114,RZH105..(10S,12S)..STD..(GCC,GEN);LH103,112,114,115,125,162,172,174,184,RZH103,104,114,125,135..RHD W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-26010B1 |
RZH113..ARL,GCC;RZH112..RHD..03S;RZH113..RHD..STD..GEN;LH115,172,174,RZH115..GCC;LH113,154,RZH155..SRF..(03S,06S,11S);LH114,RZH105..(10S,12S)..STD..(GCC,GEN);LH103,112,114,115,125,162,172,174,184,RZH103,104,114,125,135..RHD W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71990-3002033 |
RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71956-3002033 |
RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-26010B0 |
LH125..ARL;LH105,113,115,RZH105,113,115..CBR,DSL;LH102,103,112,114,RZH102,103,104,112,114,125..RHD W/O(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71930-26010B0 |
LH125..ARL;LH105,113,115,RZH105,113,115..CBR,DSL;LH102,103,112,114,RZH102,103,104,112,114,125..RHD W(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71930-26010B0 |
LH105,174..GCC,GEN;LH113,115,RZH105,113,115..GCC;LH102,103,11#,125,172,184,RZH102,103,104,11#,125,135,153..RHD W(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71931-26010B0 |
LH105,174..GCC,GEN;LH113,115,RZH105,113,115..GCC;LH102,103,11#,125,172,184,RZH102,103,104,11#,125,135,153..RHD W/O(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71930-26010B1 |
RZH113..ARL,GCC;RZH112..RHD..03S;RZH113..RHD..STD..GEN;LH115,172,174,RZH115..GCC;LH113,154,RZH155..SRF..(03S,06S,11S);LH114,RZH105..(10S,12S)..STD..(GCC,GEN);LH103,112,114,115,125,162,172,174,184,RZH103,104,114,125,135..RHD W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-26010B1 |
RZH113..ARL,GCC;RZH112..RHD..03S;RZH113..RHD..STD..GEN;LH115,172,174,RZH115..GCC;LH113,154,RZH155..SRF..(03S,06S,11S);LH114,RZH105..(10S,12S)..STD..(GCC,GEN);LH103,112,114,115,125,162,172,174,184,RZH103,104,114,125,135..RHD W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71990-3002033 |
RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71956-3002033 |
RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-26010B0 |
LH125..ARL;LH105,113,115,RZH105,113,115..CBR,DSL;LH102,103,112,114,RZH102,103,104,112,114,125..RHD W/O(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71930-26010B0 |
LH125..ARL;LH105,113,115,RZH105,113,115..CBR,DSL;LH102,103,112,114,RZH102,103,104,112,114,125..RHD W(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71930-26010B0 |
LH105,174..GCC,GEN;LH113,115,RZH105,113,115..GCC;LH102,103,11#,125,172,184,RZH102,103,104,11#,125,135,153..RHD W(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71931-26010B0 |
LH105,174..GCC,GEN;LH113,115,RZH105,113,115..GCC;LH102,103,11#,125,172,184,RZH102,103,104,11#,125,135,153..RHD W/O(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71930-26010B1 |
RZH113..ARL,GCC;RZH112..RHD..03S;RZH113..RHD..STD..GEN;LH115,172,174,RZH115..GCC;LH113,154,RZH155..SRF..(03S,06S,11S);LH114,RZH105..(10S,12S)..STD..(GCC,GEN);LH103,112,114,115,125,162,172,174,184,RZH103,104,114,125,135..RHD W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-26010B1 |
RZH113..ARL,GCC;RZH112..RHD..03S;RZH113..RHD..STD..GEN;LH115,172,174,RZH115..GCC;LH113,154,RZH155..SRF..(03S,06S,11S);LH114,RZH105..(10S,12S)..STD..(GCC,GEN);LH103,112,114,115,125,162,172,174,184,RZH103,104,114,125,135..RHD W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-95J05 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(05S,09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-95J02 |
RZH103..4D..SG..CBR;LH102,104,105,11#,RZH102,104,105,11#..LHD |
1 | ||
| 72140-95J02 |
RZH153;RZH105,115..STD..CIS;LH174,RZH113..LHD..(03S,06S,10S);LH102,104,105,11#,166,176,RZH10#,112,114,115..LHD..(CBR,DSL) |
1 | ||
| 72213 - KNOB, SEAT TRACK ADJUSTING HANDLE | ||||
| 72213-12040 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 72213-12040 |
LH10#,11#,125,RZH10#,11#,125,135,153 |
1 | ||
| 72213-12040 |
RZH112..5D;LH174,RZH102..STD;RZH112,114,115..03S,15S;LH10#,11#,125,16#,172,176,184,RZH103,104,105,113,125,135,153..03S,06S,10S,12S,14S,15S |
1 | ||
| 72213 - KNOB, SEAT TRACK ADJUSTING HANDLE | ||||
| 72213-12040 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 72213-12040 |
LH10#,11#,125,RZH10#,11#,125,135,153 |
1 | ||
| 72213-12040 |
RZH112..5D;LH174,RZH102..STD;RZH112,114,115..03S,15S;LH10#,11#,125,16#,172,176,184,RZH103,104,105,113,125,135,153..03S,06S,10S,12S,14S,15S |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95J01B0 |
LH10#,11#,125,RZH10#,11#,125 BLUISH GRAY,TRIM1# |
1 | ||
| 72525-95J01B0 |
LH10#,11#,125,166,172,176,184,RZH10#,11#,125,153..03S,06S,12S,14S,15S BLUISH GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95J01B0 |
LH10#,11#,125,RZH10#,11#,125 BLUISH GRAY,TRIM1# |
1 | ||
| 72525-95J01B0 |
LH10#,11#,125,166,172,176,184,RZH10#,11#,125,153..03S,06S,12S,14S,15S BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-08026 | ||||
| 90119-10101 | ||||
| 90119-10229 | ||||
| 90119-10854 | ||||
| 90167-40044 | ||||
| 90179-10073 | ||||
| 90386-10027 | ||||
| 90386-12051 | ||||
| 90467-08008 | ||||
| 90468-18071 | ||||
| 90950-06060 | ||||
| 93540-54012 | ||||
ILLUST NO. 7 OF 7(8908-9907)LH104,105,114,115,125,166,174,176,184,RZH104,105,114,115,125 ; (9907-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71333 - LEG, REAR SEAT CUSHION, NO.1 | ||||
| 71333-95J30 |
LH104,105,RZH104,105 FRONT |
1 | ||
| 71333-95J30 |
LH104,105,RZH104,105 FRONT |
1 | ||
| 71333-95J23 |
LH104,105,RZH104,105 REAR |
1 | ||
| 71333-95J23 |
LH104,105,RZH104,105 REAR |
1 | ||
| 71333-95J30 |
LH104,105,166,RZH104,105..LHD FRONT |
1 | ||
| 71333-95J30 |
LH104,105,166,RZH104,105..LHD FRONT |
1 | ||
| 71333-95J23 |
LH104,105,166,RZH104,105..LHD REAR |
1 | ||
| 71333-95J23 |
LH104,105,166,RZH104,105..LHD REAR |
1 | ||
| 71333 - LEG, REAR SEAT CUSHION, NO.1 | ||||
| 71333-95J30 |
LH104,105,RZH104,105 FRONT |
1 | ||
| 71333-95J30 |
LH104,105,RZH104,105 FRONT |
1 | ||
| 71333-95J23 |
LH104,105,RZH104,105 REAR |
1 | ||
| 71333-95J23 |
LH104,105,RZH104,105 REAR |
1 | ||
| 71333-95J30 |
LH104,105,166,RZH104,105..LHD FRONT |
1 | ||
| 71333-95J30 |
LH104,105,166,RZH104,105..LHD FRONT |
1 | ||
| 71333-95J23 |
LH104,105,166,RZH104,105..LHD REAR |
1 | ||
| 71333-95J23 |
LH104,105,166,RZH104,105..LHD REAR |
1 | ||
| 71333A - LEG, REAR SEAT CUSHION, NO.2 | ||||
| 71333-95J25 |
LH104,105,166,RZH104,105 REAR |
1 | ||
| 71333-95J25 |
LH104,105,166,RZH104,105 REAR |
1 | ||
| 71333-95J15 |
LH104,105,166,RZH104,105..LHD FRONT |
1 | ||
| 71333-95J15 |
LH104,105,166,RZH104,105..LHD FRONT |
1 | ||
| 71333A - LEG, REAR SEAT CUSHION, NO.2 | ||||
| 71333-95J25 |
LH104,105,166,RZH104,105 REAR |
1 | ||
| 71333-95J25 |
LH104,105,166,RZH104,105 REAR |
1 | ||
| 71333-95J15 |
LH104,105,166,RZH104,105..LHD FRONT |
1 | ||
| 71333-95J15 |
LH104,105,166,RZH104,105..LHD FRONT |
1 | ||
| 71333A - LEG, REAR SEAT CUSHION, NO.2 | ||||
| 71333-95J25 |
LH104,105,166,RZH104,105 REAR |
1 | ||
| 71333-95J25 |
LH104,105,166,RZH104,105 REAR |
1 | ||
| 71333-95J15 |
LH104,105,166,RZH104,105..LHD FRONT |
1 | ||
| 71333-95J15 |
LH104,105,166,RZH104,105..LHD FRONT |
1 | ||
| 71333A - LEG, REAR SEAT CUSHION, NO.2 | ||||
| 71333-95J25 |
LH104,105,166,RZH104,105 REAR |
1 | ||
| 71333-95J25 |
LH104,105,166,RZH104,105 REAR |
1 | ||
| 71333-95J15 |
LH104,105,166,RZH104,105..LHD FRONT |
1 | ||
| 71333-95J15 |
LH104,105,166,RZH104,105..LHD FRONT |
1 | ||
| 71333B - LEG, REAR SEAT CUSHION, NO.3 | ||||
| 79096-26010 |
RZH105..GCC FRONT |
1 | ||
| 79096-26010 |
RZH105..GCC FRONT |
1 | ||
| 79036-26010 |
RZH105..GCC REAR |
1 | ||
| 79036-26010 |
RZH105..GCC REAR |
1 | ||
| 71333B - LEG, REAR SEAT CUSHION, NO.3 | ||||
| 79096-26010 |
RZH105..GCC FRONT |
1 | ||
| 79096-26010 |
RZH105..GCC FRONT |
1 | ||
| 79036-26010 |
RZH105..GCC REAR |
1 | ||
| 79036-26010 |
RZH105..GCC REAR |
1 | ||
| 71333B - LEG, REAR SEAT CUSHION, NO.3 | ||||
| 79096-26010 |
RZH105..GCC FRONT |
1 | ||
| 79096-26010 |
RZH105..GCC FRONT |
1 | ||
| 79036-26010 |
RZH105..GCC REAR |
1 | ||
| 79036-26010 |
RZH105..GCC REAR |
1 | ||
| 71333B - LEG, REAR SEAT CUSHION, NO.3 | ||||
| 79096-26010 |
RZH105..GCC FRONT |
1 | ||
| 79096-26010 |
RZH105..GCC FRONT |
1 | ||
| 79036-26010 |
RZH105..GCC REAR |
1 | ||
| 79036-26010 |
RZH105..GCC REAR |
1 | ||
| 79105 - LEG SUB-ASSY, NO.1 SEAT, RH | ||||
| 79105-26360 |
LH104,105,166,RZH104,105..LHD |
1 | ||
| 79105-26360 |
LH104,105,166,RZH104,105..LHD |
1 | ||
| 79105A - LEG SUB-ASSY, NO.1 SEAT | ||||
| 79105-95J10 |
LH104,105,RZH104,105..LHD |
1 | ||
| 79105-95J10 |
LH104,105,RZH104,105..LHD |
1 | ||
| 79205 - LEG SUB-ASSY, NO.2 SEAT | ||||
| 79205-26120 |
LH104,105,166,RZH104,105..LHD |
1 | ||
| 79205-26120 |
LH104,105,166,RZH104,105..LHD |
1 | ||
| 79105-95J15 |
LH104,105,RZH104,105..LHD |
1 | ||
| 79105-95J15 |
LH104,105,RZH104,105..LHD |
1 | ||
| 79205 - LEG SUB-ASSY, NO.2 SEAT | ||||
| 79205-26120 |
LH104,105,166,RZH104,105..LHD |
1 | ||
| 79205-26120 |
LH104,105,166,RZH104,105..LHD |
1 | ||
| 79105-95J15 |
LH104,105,RZH104,105..LHD |
1 | ||
| 79105-95J15 |
LH104,105,RZH104,105..LHD |
1 | ||
| 79305 - LEG SUB-ASSY, NO.3 SEAT | ||||
| 79305-26161 |
RZH105..GCC |
1 | ||
| 79305-26161 |
RZH105..GCC |
1 | ||
| 79305-26160 |
RZH105..GCC |
1 | ||
| 79305-26160 |
RZH105..GCC |
1 | ||
| 79305 - LEG SUB-ASSY, NO.3 SEAT | ||||
| 79305-26161 |
RZH105..GCC |
1 | ||
| 79305-26161 |
RZH105..GCC |
1 | ||
| 79305-26160 |
RZH105..GCC |
1 | ||
| 79305-26160 |
RZH105..GCC |
1 | ||
ILLUST NO. 7 OF 7(9907- )LH104,105,114,115,125,164,166,174,176,RZH125..STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71333 - LEG, REAR SEAT CUSHION, NO.1 | ||||
| 71333-95J30 |
LH104,105,RZH104,105 FRONT |
1 | ||
| 71333-95J30 |
LH104,105,RZH104,105 FRONT |
1 | ||
| 71333-95J23 |
LH104,105,RZH104,105 REAR |
1 | ||
| 71333-95J23 |
LH104,105,RZH104,105 REAR |
1 | ||
| 71333-95J30 |
LH104,105,166,RZH104,105..LHD FRONT |
1 | ||
| 71333-95J30 |
LH104,105,166,RZH104,105..LHD FRONT |
1 | ||
| 71333-95J23 |
LH104,105,166,RZH104,105..LHD REAR |
1 | ||
| 71333-95J23 |
LH104,105,166,RZH104,105..LHD REAR |
1 | ||
| 71333 - LEG, REAR SEAT CUSHION, NO.1 | ||||
| 71333-95J30 |
LH104,105,RZH104,105 FRONT |
1 | ||
| 71333-95J30 |
LH104,105,RZH104,105 FRONT |
1 | ||
| 71333-95J23 |
LH104,105,RZH104,105 REAR |
1 | ||
| 71333-95J23 |
LH104,105,RZH104,105 REAR |
1 | ||
| 71333-95J30 |
LH104,105,166,RZH104,105..LHD FRONT |
1 | ||
| 71333-95J30 |
LH104,105,166,RZH104,105..LHD FRONT |
1 | ||
| 71333-95J23 |
LH104,105,166,RZH104,105..LHD REAR |
1 | ||
| 71333-95J23 |
LH104,105,166,RZH104,105..LHD REAR |
1 | ||
| 71333A - LEG, REAR SEAT CUSHION, NO.2 | ||||
| 71333-95J25 |
LH104,105,166,RZH104,105 REAR |
1 | ||
| 71333-95J25 |
LH104,105,166,RZH104,105 REAR |
1 | ||
| 71333-95J15 |
LH104,105,166,RZH104,105..LHD FRONT |
1 | ||
| 71333-95J15 |
LH104,105,166,RZH104,105..LHD FRONT |
1 | ||
| 71333A - LEG, REAR SEAT CUSHION, NO.2 | ||||
| 71333-95J25 |
LH104,105,166,RZH104,105 REAR |
1 | ||
| 71333-95J25 |
LH104,105,166,RZH104,105 REAR |
1 | ||
| 71333-95J15 |
LH104,105,166,RZH104,105..LHD FRONT |
1 | ||
| 71333-95J15 |
LH104,105,166,RZH104,105..LHD FRONT |
1 | ||
| 71333A - LEG, REAR SEAT CUSHION, NO.2 | ||||
| 71333-95J25 |
LH104,105,166,RZH104,105 REAR |
1 | ||
| 71333-95J25 |
LH104,105,166,RZH104,105 REAR |
1 | ||
| 71333-95J15 |
LH104,105,166,RZH104,105..LHD FRONT |
1 | ||
| 71333-95J15 |
LH104,105,166,RZH104,105..LHD FRONT |
1 | ||
| 71333A - LEG, REAR SEAT CUSHION, NO.2 | ||||
| 71333-95J25 |
LH104,105,166,RZH104,105 REAR |
1 | ||
| 71333-95J25 |
LH104,105,166,RZH104,105 REAR |
1 | ||
| 71333-95J15 |
LH104,105,166,RZH104,105..LHD FRONT |
1 | ||
| 71333-95J15 |
LH104,105,166,RZH104,105..LHD FRONT |
1 | ||
| 71333B - LEG, REAR SEAT CUSHION, NO.3 | ||||
| 79096-26010 |
RZH105..GCC FRONT |
1 | ||
| 79096-26010 |
RZH105..GCC FRONT |
1 | ||
| 79036-26010 |
RZH105..GCC REAR |
1 | ||
| 79036-26010 |
RZH105..GCC REAR |
1 | ||
| 71333B - LEG, REAR SEAT CUSHION, NO.3 | ||||
| 79096-26010 |
RZH105..GCC FRONT |
1 | ||
| 79096-26010 |
RZH105..GCC FRONT |
1 | ||
| 79036-26010 |
RZH105..GCC REAR |
1 | ||
| 79036-26010 |
RZH105..GCC REAR |
1 | ||
| 71333B - LEG, REAR SEAT CUSHION, NO.3 | ||||
| 79096-26010 |
RZH105..GCC FRONT |
1 | ||
| 79096-26010 |
RZH105..GCC FRONT |
1 | ||
| 79036-26010 |
RZH105..GCC REAR |
1 | ||
| 79036-26010 |
RZH105..GCC REAR |
1 | ||
| 71333B - LEG, REAR SEAT CUSHION, NO.3 | ||||
| 79096-26010 |
RZH105..GCC FRONT |
1 | ||
| 79096-26010 |
RZH105..GCC FRONT |
1 | ||
| 79036-26010 |
RZH105..GCC REAR |
1 | ||
| 79036-26010 |
RZH105..GCC REAR |
1 | ||
| 79105 - LEG SUB-ASSY, NO.1 SEAT, RH | ||||
| 79105-26360 |
LH104,105,166,RZH104,105..LHD |
1 | ||
| 79105-26360 |
LH104,105,166,RZH104,105..LHD |
1 | ||
| 79105A - LEG SUB-ASSY, NO.1 SEAT | ||||
| 79105-95J10 |
LH104,105,RZH104,105..LHD |
1 | ||
| 79105-95J10 |
LH104,105,RZH104,105..LHD |
1 | ||
| 79205 - LEG SUB-ASSY, NO.2 SEAT | ||||
| 79205-26120 |
LH104,105,166,RZH104,105..LHD |
1 | ||
| 79205-26120 |
LH104,105,166,RZH104,105..LHD |
1 | ||
| 79105-95J15 |
LH104,105,RZH104,105..LHD |
1 | ||
| 79105-95J15 |
LH104,105,RZH104,105..LHD |
1 | ||
| 79205 - LEG SUB-ASSY, NO.2 SEAT | ||||
| 79205-26120 |
LH104,105,166,RZH104,105..LHD |
1 | ||
| 79205-26120 |
LH104,105,166,RZH104,105..LHD |
1 | ||
| 79105-95J15 |
LH104,105,RZH104,105..LHD |
1 | ||
| 79105-95J15 |
LH104,105,RZH104,105..LHD |
1 | ||
| 79305 - LEG SUB-ASSY, NO.3 SEAT | ||||
| 79305-26161 |
RZH105..GCC |
1 | ||
| 79305-26161 |
RZH105..GCC |
1 | ||
| 79305-26160 |
RZH105..GCC |
1 | ||
| 79305-26160 |
RZH105..GCC |
1 | ||
| 79305 - LEG SUB-ASSY, NO.3 SEAT | ||||
| 79305-26161 |
RZH105..GCC |
1 | ||
| 79305-26161 |
RZH105..GCC |
1 | ||
| 79305-26160 |
RZH105..GCC |
1 | ||
| 79305-26160 |
RZH105..GCC |
1 | ||
ILLUST NO. 1 OF 7(8908-9411)LH104,105,114,115,125,RZH104,114..RHD..GEN ; (9411- )LH114,115,174,RZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72329 - COVER, SEAT ADJUSTER BOLT | ||||
| 72329-87001 |
LH104,105,RZH104,105 |
4 | ||
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79011-95N0803 |
LH104,105,114,115,RZH104,114 GRAY,TRIM1# |
1 | ||
| 79011-95N22B1 |
LH104,105,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79011-26690B0 |
RZH114,115..LHD..15S;LH104,105,114,115,166,176,RZH104,105..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79013A - COVER SUB-ASSY, NO.1 SEAT BACK | ||||
| 79014-95J20B2 |
LH104,105,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79014-26230B0 |
RZH114,115..LHD..15S;LH114,115,176,RZH105..LHD..STD..(CBR,DSL) W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79120A - CUSHION ASSY, NO.1 SEAT | ||||
| 79120-95N1803 |
LH104,105,114,115,RZH104,114 GRAY,TRIM1# |
1 | ||
| 79120-95N33B2 |
LH104,105,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79120-95N33P1 |
LH104,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79120-95N33P2 |
RZH115..GCC;LH104,114,115,RZH104,105,114..LHD SEAT = TYPE J-*104,GRAY,TRIM1# |
1 | ||
| 79120-26790B0 |
RZH114,115..LHD..15S;LH104,105,114,115,166,176,RZH104,105..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79135 - PAD, NO.1 SEAT CUSHION | ||||
| 79015-95J00 |
RZH114,115..15S;LH104,105,114,115,166,176,RZH104,105 |
1 | ||
| 79140A - BACK ASSY, NO.1 SEAT | ||||
| 79150-95J20B1 |
LH104,105,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79150-95J20B3 |
LH104,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79150-26150B0 |
RZH115..GCC;LH104,114,115,RZH104,105,114..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79150-26151B2 |
RZH114,115..LHD..15S;LH104,105,114,115,166,176,RZH104,105..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79175 - PAD, NO.1 SEAT BACK | ||||
| 79017-95J00 |
RZH114,115..15S;LH104,105,114,115,166,176,RZH104,105 |
1 | ||
| 79961 - COVER, NO.1 SEAT BACK | ||||
| 79961-95J02B0 |
LH104,105,RZH104 BLUISH GRAY,TRIM1#,RH |
2 | ||
| 79961-95J03B0 |
LH104,105,RZH104 BLUISH GRAY,TRIM1#,LH |
2 | ||
| 79961-95J03B0 |
LH104,RZH104,105 BLUISH GRAY,TRIM1#,LH |
2 | ||
| 79961-95J0203 |
LH104,105,RZH104 GRAY,TRIM1#,RH |
2 | ||
| 79961-95J0303 |
LH104,105,RZH104 GRAY,TRIM1#,LH |
2 | ||
| 79961-95J02B0 |
LH104,RZH104,105 BLUISH GRAY,TRIM1#,RH |
2 | ||
| 79961-95J03B0 |
RZH105..GCC;RZH115..15S..GL;LH115,176,RZH115..CIS BLUISH GRAY,TRIM1#,LH |
3 | ||
| 79961-95J02B0 |
RZH105..GCC;RZH115..15S..GL;LH115,176,RZH115..CIS BLUISH GRAY,TRIM1#,RH |
3 | ||
| 79961 - COVER, NO.1 SEAT BACK | ||||
| 79961-95J02B0 |
LH104,105,RZH104 BLUISH GRAY,TRIM1#,RH |
2 | ||
| 79961-95J03B0 |
LH104,105,RZH104 BLUISH GRAY,TRIM1#,LH |
2 | ||
| 79961-95J03B0 |
LH104,RZH104,105 BLUISH GRAY,TRIM1#,LH |
2 | ||
| 79961-95J0203 |
LH104,105,RZH104 GRAY,TRIM1#,RH |
2 | ||
| 79961-95J0303 |
LH104,105,RZH104 GRAY,TRIM1#,LH |
2 | ||
| 79961-95J02B0 |
LH104,RZH104,105 BLUISH GRAY,TRIM1#,RH |
2 | ||
| 79961-95J03B0 |
RZH105..GCC;RZH115..15S..GL;LH115,176,RZH115..CIS BLUISH GRAY,TRIM1#,LH |
3 | ||
| 79961-95J02B0 |
RZH105..GCC;RZH115..15S..GL;LH115,176,RZH115..CIS BLUISH GRAY,TRIM1#,RH |
3 | ||
| Common parts | ||||
| 90468-18071 | ||||
| 91611-61025 | ||||
| 93560-15014 | ||||
| Linked diagrams | ||||
| 7451 | ||||
| 7456 | ||||
ILLUST NO. 1 OF 7(8908-9411)LH104,105,114,115,125,RZH104,114..RHD..GEN ; (9411- )LH114,115,174,RZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72065 - BELT SUB-ASSY, REAR SEAT HOOK, RH | ||||
| 72065-95J04 |
LH104,105,114,115,125,RZH104,105,114,115,125 NO.1 SEAT |
1 | ||
| 72065-95J0103 |
LH104,105,RZH104 GRAY,TRIM1#,NO.4 SEAT |
1 | ||
| Common parts | ||||
| 90119-10035 | ||||
| 90333-30002 | ||||
| 91611-61025 | ||||
ILLUST NO. 2 OF 7(8908-9411)LH104,105,114,115,125,RZH104,114..RHD..GEN ; (9411- )LH114,115,174,RZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72329 - COVER, SEAT ADJUSTER BOLT | ||||
| 72329-87001 |
LH104,105,RZH104,105 |
4 | ||
| 79021A - COVER SUB-ASSY, NO.2 SEAT CUSHION | ||||
| 79011-26690B0 |
RZH105..GCC FABRIC SEAT,BLUISH GRAY,TRIM1# |
1 | ||
| 79021-95J61B1 |
RZH105..GCC;LH104,105,RZH104..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79023A - COVER SUB-ASSY, NO.2 SEAT BACK | ||||
| 79014-95J20B2 |
LH104,105,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79014-26230B0 |
RZH114,115..LHD..15S;LH114,115,176,RZH105..LHD..STD..(CBR,DSL) W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79014-26230B2 |
RZH105..CBR BLUISH GRAY,TRIM16 |
2 | ||
| 79220A - CUSHION ASSY, NO.2 SEAT | ||||
| 79120-95N33P2 |
RZH115..GCC;LH104,114,115,RZH104,105,114..LHD SEAT = TYPE J-*104,GRAY,TRIM1# |
1 | ||
| 79220-95J74B1 |
LH104,105,RZH104,105..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79220-95J74B4 |
LH104,RZH104,105..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79220-95J74B6 |
LH104,RZH104,105..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79235 - PAD, NO.2 SEAT CUSHION | ||||
| 79025-95J00 |
LH104,105,RZH104,105..LHD |
1 | ||
| 79015-95J00 |
RZH104..LHD;LH104,114,115,RZH105,114,115 NO.1 SEAT |
1 | ||
| 79015-95J00 |
RZH114,115..15S;LH114,115,176,RZH105..STD..(CBR,DSL) NO.1 SEAT |
1 | ||
| 79025-95J00 |
RZH114,115..LHD..15S;LH104,105,114,115,166,176,RZH104,105..LHD NO.2 SEAT |
1 | ||
| 79240A - BACK ASSY, NO.2 SEAT | ||||
| 79150-95J20B3 |
LH104,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79150-95J20B1 |
LH104,105,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79150-26150B0 |
RZH115..GCC;LH104,114,115,RZH104,105,114..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79275 - PAD, NO.2 SEAT BACK | ||||
| 79017-95J00 |
RZH114,115..15S;LH104,105,114,115,166,176,RZH104,105 |
1 | ||
| 79961 - COVER, NO.1 SEAT BACK | ||||
| 79961-95J02B0 |
LH104,105,RZH104 BLUISH GRAY,TRIM1#,RH |
2 | ||
| 79961-95J03B0 |
LH104,105,RZH104 BLUISH GRAY,TRIM1#,LH |
2 | ||
| 79961-95J03B0 |
LH104,RZH104,105 BLUISH GRAY,TRIM1#,LH |
2 | ||
| 79961-95J0203 |
LH104,105,RZH104 GRAY,TRIM1#,RH |
2 | ||
| 79961-95J0303 |
LH104,105,RZH104 GRAY,TRIM1#,LH |
2 | ||
| 79961-95J02B0 |
LH104,RZH104,105 BLUISH GRAY,TRIM1#,RH |
2 | ||
| 79961-95J03B0 |
RZH105..GCC;RZH115..15S..GL;LH115,176,RZH115..CIS BLUISH GRAY,TRIM1#,LH |
3 | ||
| 79961-95J02B0 |
RZH105..GCC;RZH115..15S..GL;LH115,176,RZH115..CIS BLUISH GRAY,TRIM1#,RH |
3 | ||
| 79961 - COVER, NO.1 SEAT BACK | ||||
| 79961-95J02B0 |
LH104,105,RZH104 BLUISH GRAY,TRIM1#,RH |
2 | ||
| 79961-95J03B0 |
LH104,105,RZH104 BLUISH GRAY,TRIM1#,LH |
2 | ||
| 79961-95J03B0 |
LH104,RZH104,105 BLUISH GRAY,TRIM1#,LH |
2 | ||
| 79961-95J0203 |
LH104,105,RZH104 GRAY,TRIM1#,RH |
2 | ||
| 79961-95J0303 |
LH104,105,RZH104 GRAY,TRIM1#,LH |
2 | ||
| 79961-95J02B0 |
LH104,RZH104,105 BLUISH GRAY,TRIM1#,RH |
2 | ||
| 79961-95J03B0 |
RZH105..GCC;RZH115..15S..GL;LH115,176,RZH115..CIS BLUISH GRAY,TRIM1#,LH |
3 | ||
| 79961-95J02B0 |
RZH105..GCC;RZH115..15S..GL;LH115,176,RZH115..CIS BLUISH GRAY,TRIM1#,RH |
3 | ||
| Common parts | ||||
| 90468-18071 | ||||
| 91611-61025 | ||||
| 93560-15014 | ||||
| Linked diagrams | ||||
| 7451 | ||||
| 7456 | ||||
ILLUST NO. 2 OF 7(8908-9411)LH104,105,114,115,125,RZH104,114..RHD..GEN ; (9411- )LH114,115,174,RZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72065 - BELT SUB-ASSY, REAR SEAT HOOK, RH | ||||
| 72065-95J04 |
LH104,105,114,115,125,RZH104,105,114,115,125 NO.1 SEAT |
1 | ||
| 72065-95J0103 |
LH104,105,RZH104 GRAY,TRIM1#,NO.4 SEAT |
1 | ||
| Common parts | ||||
| 90119-10035 | ||||
| 90333-30002 | ||||
| 91611-61025 | ||||
ILLUST NO. 3 OF 7(8908-9411)LH104,105,114,115,125,RZH104,114..RHD..GEN ; (9411- )LH114,115,174,RZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72329 - COVER, SEAT ADJUSTER BOLT | ||||
| 72329-87001 |
LH104,105,RZH104,105 |
4 | ||
| 79031A - COVER SUB-ASSY, NO.3 SEAT CUSHION | ||||
| 79011-26690B0 |
RZH105..CBR W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79033A - COVER SUB-ASSY, NO.3 SEAT BACK | ||||
| 79014-95J20B2 |
RZH105..GCC BLUISH GRAY,TRIM1# |
1 | ||
| 79014-26230B0 |
RZH114,115..LHD..15S;LH114,115,176,RZH105..LHD..STD..(CBR,DSL) W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79320A - CUSHION ASSY, NO.3 SEAT | ||||
| 79120-95N33P2 |
RZH105..GCC GRAY,TRIM1# |
1 | ||
| 79120-26790B0 |
RZH105..GCC BLUISH GRAY,TRIM1# |
1 | ||
| 79340A - BACK ASSY, NO.3 SEAT | ||||
| 79350-26050B0 |
RZH105..GCC BLUISH GRAY,TRIM1# |
1 | ||
| 79350-26051B2 |
RZH105..CBR SEAT = TYPE B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79350-26051B1 |
RZH105..GCC BLUISH GRAY,TRIM1# |
1 | ||
| 79375 - PAD, NO.3 SEAT BACK | ||||
| 79017-95J00 |
RZH114,115..15S;LH114,115,176,RZH105..STD..(CBR,DSL) |
1 | ||
| 79961 - COVER, NO.1 SEAT BACK | ||||
| 79961-95J02B0 |
LH104,105,RZH104 BLUISH GRAY,TRIM1#,RH |
2 | ||
| 79961-95J03B0 |
LH104,105,RZH104 BLUISH GRAY,TRIM1#,LH |
2 | ||
| 79961-95J03B0 |
LH104,RZH104,105 BLUISH GRAY,TRIM1#,LH |
2 | ||
| 79961-95J0203 |
LH104,105,RZH104 GRAY,TRIM1#,RH |
2 | ||
| 79961-95J0303 |
LH104,105,RZH104 GRAY,TRIM1#,LH |
2 | ||
| 79961-95J02B0 |
LH104,RZH104,105 BLUISH GRAY,TRIM1#,RH |
2 | ||
| 79961-95J03B0 |
RZH105..GCC;RZH115..15S..GL;LH115,176,RZH115..CIS BLUISH GRAY,TRIM1#,LH |
3 | ||
| 79961-95J02B0 |
RZH105..GCC;RZH115..15S..GL;LH115,176,RZH115..CIS BLUISH GRAY,TRIM1#,RH |
3 | ||
| 79961 - COVER, NO.1 SEAT BACK | ||||
| 79961-95J02B0 |
LH104,105,RZH104 BLUISH GRAY,TRIM1#,RH |
2 | ||
| 79961-95J03B0 |
LH104,105,RZH104 BLUISH GRAY,TRIM1#,LH |
2 | ||
| 79961-95J03B0 |
LH104,RZH104,105 BLUISH GRAY,TRIM1#,LH |
2 | ||
| 79961-95J0203 |
LH104,105,RZH104 GRAY,TRIM1#,RH |
2 | ||
| 79961-95J0303 |
LH104,105,RZH104 GRAY,TRIM1#,LH |
2 | ||
| 79961-95J02B0 |
LH104,RZH104,105 BLUISH GRAY,TRIM1#,RH |
2 | ||
| 79961-95J03B0 |
RZH105..GCC;RZH115..15S..GL;LH115,176,RZH115..CIS BLUISH GRAY,TRIM1#,LH |
3 | ||
| 79961-95J02B0 |
RZH105..GCC;RZH115..15S..GL;LH115,176,RZH115..CIS BLUISH GRAY,TRIM1#,RH |
3 | ||
| Common parts | ||||
| 90468-18071 | ||||
| 91611-61025 | ||||
| 93560-15014 | ||||
| Linked diagrams | ||||
| 7451 | ||||
| 7456 | ||||
ILLUST NO. 3 OF 7(8908-9411)LH104,105,114,115,125,RZH104,114..RHD..GEN ; (9411- )LH114,115,174,RZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72065 - BELT SUB-ASSY, REAR SEAT HOOK, RH | ||||
| 72065-95J04 |
LH104,105,114,115,125,RZH104,105,114,115,125 NO.1 SEAT |
1 | ||
| 72065-95J0103 |
LH104,105,RZH104 GRAY,TRIM1#,NO.4 SEAT |
1 | ||
| Common parts | ||||
| 90119-10035 | ||||
| 90119-10415 | ||||
| 90119-10595 | ||||
| 90333-30002 | ||||
| 91611-61025 | ||||
| 91616-61025 | ||||
ILLUST NO. 4 OF 7(8908-9411)LH104,105,114,115,125,RZH104,114..RHD..GEN ; (9411- )LH114,115,174,RZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78703 - FRAME SUB-ASSY, SUB SEAT BACK | ||||
| 78703-95J01 |
LH104,105,166,RZH104,105,114,115..12S |
2 | ||
| 78705 - BRACKET SUB-ASSY, SUB SEAT CUSHION | ||||
| 78705-95J03 |
RZH114,115..LHD..15S;LH104,105,114,115,166,176,RZH104,105..LHD |
2 | ||
| 78726 - CUSHION, SUB SEAT CUSHION FRAME | ||||
| 78726-95J01 |
LH105,115..LHD..(GCC,GEN);LH104,114,RZH104,105,114,115..LHD..STD..(CBR,DSL) LH SEAT LEG |
2 | ||
| 78726-95J00 |
RZH114,115..15S;LH104,105,114,115,125,166,176,184,RZH104,105..12S,15S W/BRACKET |
2 | ||
| 78726-95J01 |
LH104,105,114,115,164,166,174,176,RZH104,105,114,115..LHD..(12S,15S) LH SEAT LEG |
2 | ||
| 78726-95J01 |
RZH105..GCC RH SEAT LEG |
3 | ||
| 78726-95J00 |
LH104,105,114,115,RZH104,105,114,115 W/BRACKET |
2 | ||
| 78727 - BOARD, SUB SEAT CUSHION | ||||
| 78727-26010 |
LH104,105,125,RZH104,105..12S,15S |
2 | ||
| 78727-26010 |
LH104,114,115,125,RZH104,105,114,115..12S,15S |
2 | ||
| 78727-26010 |
LH104,105,166,RZH104,105,114,115..12S |
2 | ||
| 78735 - PAD, SUB SEAT CUSHION | ||||
| 78735-95J02 |
LH105,RZH105..GCC |
2 | ||
| 78735-95J02 |
RZH105..GCC LH |
3 | ||
| 78775 - PAD, SUB SEAT BACK | ||||
| 78775-95J00 |
LH104,105,166,RZH104,105,114,115..12S |
2 | ||
| 78791 - SPRING, SUB SEAT LINK, NO.1 | ||||
| 78791-95J00 |
RZH104;LH104,114,115,RZH105,114,115..LHD |
2 | ||
| 78791-95J00 |
LH104,105,RZH104,105 |
2 | ||
| 78791-95J00 |
LH104,105,166,RZH104,105 |
2 | ||
| 78792 - SPRING, SUB SEAT LINK, NO.2 | ||||
| 78792-95J00 |
LH104,105,114,115,RZH104,105,114,115 |
2 | ||
| 78792-95J00 |
RZH114,115..15S;LH104,105,114,115,125,166,176,184,RZH104,105..12S,15S |
2 | ||
| 78792-95J00 |
LH174,RZH114,115..15S;LH104,105,114,115,164,166,176,184,RZH104,105..12S,15S |
2 | ||
| 78797 - COVER, SUB SEAT | ||||
| 78797-95J0003 |
LH104,105,RZH104 GRAY,TRIM1# |
4 | ||
| 78797-95J00B0 |
LH104,105,125,RZH104,105..12S,15S BLUISH GRAY,TRIM1# |
4 | ||
| 78797-95J00B0 |
LH104,105,RZH104,105 BLUISH GRAY,TRIM1# |
4 | ||
| 78797-95J00B0 |
LH104,114,115,125,RZH104,105,114,115..12S,15S BLUISH GRAY,TRIM1# |
4 | ||
| 78797-95J00B0 |
LH104,105,166,RZH104,105,114,115..12S BLUISH GRAY,TRIM1# |
4 | ||
| Common parts | ||||
| 90109-06196 | ||||
| 90109-08137 | ||||
| 90119-08079 | ||||
| 90206-08016 | ||||
| 90206-12035 | ||||
| 90468-18071 | ||||
| 90523-06017 | ||||
| 93560-15012 | ||||
| 94541-01000 | ||||
| 94612-10800 | ||||
ILLUST NO. 4 OF 7(8908-9411)LH104,105,114,115,125,RZH104,114..RHD..GEN ; (9411- )LH114,115,174,RZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71315B - PIN, REAR SEAT HINGE | ||||
| 71315-95J02 |
LH104,105,RZH104,105 |
4 | ||
| 71315-95J02 |
LH104,105,166,RZH104,105,114,115..12S |
4 | ||
| 71315-95J02 |
LH104,114,115,125,RZH104,105,114,115..12S,15S |
4 | ||
| 71315-95J02 |
LH104,105,125,RZH104,105..12S,15S |
4 | ||
| 71485 - COVER, REAR SEAT HINGE | ||||
| 71485-95J02B0 |
LH104,105,RZH104,105 BLUISH GRAY,TRIM1#,SUB SEAT HINGE |
4 | ||
| 71485-95J0103 |
LH104,105,114,115,125,RZH104,114,125 GRAY,TRIM1#,NO.4 SEAT |
1 | ||
| 71485-95J0203 |
LH104,105,RZH104 GRAY,TRIM1#,SUB SEAT HINGE |
4 | ||
| 71485-95J02B0 |
LH104,105,125,RZH104,105..12S,15S BLUISH GRAY,TRIM1#,SUB SEAT HINGE |
4 | ||
| 71485-95J02B0 |
LH104,105,166,RZH104,105,114,115..12S BLUISH GRAY,TRIM1#,SUB SEAT HINGE |
4 | ||
| 71485-95J02B0 |
LH104,114,115,125,RZH104,105,114,115 BLUISH GRAY,TRIM1#,SUB SEAT HINGE |
4 | ||
| 78726 - CUSHION, SUB SEAT CUSHION FRAME | ||||
| 78726-95J01 |
LH105,115..LHD..(GCC,GEN);LH104,114,RZH104,105,114,115..LHD..STD..(CBR,DSL) LH SEAT LEG |
2 | ||
| 78726-95J00 |
RZH114,115..15S;LH104,105,114,115,125,166,176,184,RZH104,105..12S,15S W/BRACKET |
2 | ||
| 78726-95J01 |
LH104,105,114,115,164,166,174,176,RZH104,105,114,115..LHD..(12S,15S) LH SEAT LEG |
2 | ||
| 78726-95J01 |
RZH105..GCC RH SEAT LEG |
3 | ||
| 78726-95J00 |
LH104,105,114,115,RZH104,105,114,115 W/BRACKET |
2 | ||
| 78731 - ARM, SUB SEAT LINK, NO.1 | ||||
| 78731-95J04 |
LH104,105,166,RZH104,105..LHD |
2 | ||
| 78731-95J04 |
RZH105..GCC LH |
3 | ||
| Common parts | ||||
| 90176-08044 | ||||
| 90206-08016 | ||||
| 90206-12035 | ||||
| 90523-06017 | ||||
| 93560-15012 | ||||
| 93560-55010 | ||||
ILLUST NO. 5 OF 7(8908-9411)LH104,105,114,115,125,RZH104,114..RHD..GEN ; (9411- )LH114,115,174,RZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78072 - COVER SUB-ASSY, SUB SEAT CUSHION, LH | ||||
| 78072-95J18B1 |
LH104,105,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 78072-26040B0 |
RZH115..GCC;LH104,114,115,RZH104,105,114..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 78072-26041B1 |
RZH114,115..LHD..15S;LH104,105,114,115,166,176,RZH104,105..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 78072-26041B1 |
RZH105..CBR BLUISH GRAY,TRIM1# |
3 | ||
| 78074 - COVER SUB-ASSY, SUB SEAT BACK, LH | ||||
| 78073-95J14B1 |
RZH105..GCC BLUISH GRAY,TRIM1# |
3 | ||
| 78073-26070B0 |
RZH114,115..LHD..15S;LH104,105,114,115,166,176,RZH104,105..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 78073-95J14B1 |
LH104,105,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 78073-26070B0 |
RZH105..CBR BLUISH GRAY,TRIM1# |
3 | ||
| 78703 - FRAME SUB-ASSY, SUB SEAT BACK | ||||
| 78703-95J01 |
LH104,105,166,RZH104,105,114,115..12S |
2 | ||
| 78727 - BOARD, SUB SEAT CUSHION | ||||
| 78727-26010 |
LH104,105,125,RZH104,105..12S,15S |
2 | ||
| 78727-26010 |
LH104,114,115,125,RZH104,105,114,115..12S,15S |
2 | ||
| 78727-26010 |
LH104,105,166,RZH104,105,114,115..12S |
2 | ||
| 78730 - CUSHION ASSY, SUB SEAT, LH | ||||
| 78730-95J18B1 |
LH104,105,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 78730-95J18B7 |
LH104,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 78730-26071B2 |
RZH114,115..LHD..15S;LH104,105,114,115,166,176,RZH104,105..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 78730-26070B0 |
RZH115..GCC;LH104,114,115,RZH104,105,114..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 78735 - PAD, SUB SEAT CUSHION | ||||
| 78735-95J02 |
LH105,RZH105..GCC |
2 | ||
| 78735-95J02 |
RZH105..GCC LH |
3 | ||
| 78750A - BACK ASSY, SUB SEAT, LH | ||||
| 78740-95J14B5 |
LH104,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 78740-95J14B5 |
RZH105..GCC BLUISH GRAY,TRIM1# |
3 | ||
| 78740-95J14B4 |
LH104,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 78740-95J14B1 |
LH104,105,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 78740-26080B0 |
RZH114,115..LHD..15S;LH104,105,114,115,166,176,RZH104,105..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 78775 - PAD, SUB SEAT BACK | ||||
| 78775-95J00 |
LH104,105,166,RZH104,105,114,115..12S |
2 | ||
| 78791 - SPRING, SUB SEAT LINK, NO.1 | ||||
| 78791-95J00 |
RZH104;LH104,114,115,RZH105,114,115..LHD |
2 | ||
| 78791-95J00 |
LH104,105,RZH104,105 |
2 | ||
| 78791-95J00 |
LH104,105,166,RZH104,105 |
2 | ||
| 78797 - COVER, SUB SEAT | ||||
| 78797-95J0003 |
LH104,105,RZH104 GRAY,TRIM1# |
4 | ||
| 78797-95J00B0 |
LH104,105,125,RZH104,105..12S,15S BLUISH GRAY,TRIM1# |
4 | ||
| 78797-95J00B0 |
LH104,105,RZH104,105 BLUISH GRAY,TRIM1# |
4 | ||
| 78797-95J00B0 |
LH104,114,115,125,RZH104,105,114,115..12S,15S BLUISH GRAY,TRIM1# |
4 | ||
| 78797-95J00B0 |
LH104,105,166,RZH104,105,114,115..12S BLUISH GRAY,TRIM1# |
4 | ||
| Common parts | ||||
| 90109-08133 | ||||
| 90119-10415 | ||||
| 90119-10579 | ||||
| 90206-12050 | ||||
| 90389-10026 | ||||
| 90468-18071 | ||||
| 93560-15012 | ||||
| 94542-01400 | ||||
ILLUST NO. 5 OF 7(8908-9411)LH104,105,114,115,125,RZH104,114..RHD..GEN ; (9411- )LH114,115,174,RZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71315B - PIN, REAR SEAT HINGE | ||||
| 71315-95J02 |
LH104,105,RZH104,105 |
4 | ||
| 71315-95J02 |
LH104,105,166,RZH104,105,114,115..12S |
4 | ||
| 71315-95J02 |
LH104,114,115,125,RZH104,105,114,115..12S,15S |
4 | ||
| 71315-95J02 |
LH104,105,125,RZH104,105..12S,15S |
4 | ||
| 71485 - COVER, REAR SEAT HINGE | ||||
| 71485-95J02B0 |
LH104,105,RZH104,105 BLUISH GRAY,TRIM1#,SUB SEAT HINGE |
4 | ||
| 71485-95J0103 |
LH104,105,114,115,125,RZH104,114,125 GRAY,TRIM1#,NO.4 SEAT |
1 | ||
| 71485-95J0203 |
LH104,105,RZH104 GRAY,TRIM1#,SUB SEAT HINGE |
4 | ||
| 71485-95J02B0 |
LH104,105,125,RZH104,105..12S,15S BLUISH GRAY,TRIM1#,SUB SEAT HINGE |
4 | ||
| 71485-95J02B0 |
LH104,105,166,RZH104,105,114,115..12S BLUISH GRAY,TRIM1#,SUB SEAT HINGE |
4 | ||
| 71485-95J02B0 |
LH104,114,115,125,RZH104,105,114,115 BLUISH GRAY,TRIM1#,SUB SEAT HINGE |
4 | ||
| 78726 - CUSHION, SUB SEAT CUSHION FRAME | ||||
| 78726-95J01 |
LH105,115..LHD..(GCC,GEN);LH104,114,RZH104,105,114,115..LHD..STD..(CBR,DSL) LH SEAT LEG |
2 | ||
| 78726-95J00 |
RZH114,115..15S;LH104,105,114,115,125,166,176,184,RZH104,105..12S,15S W/BRACKET |
2 | ||
| 78726-95J01 |
LH104,105,114,115,164,166,174,176,RZH104,105,114,115..LHD..(12S,15S) LH SEAT LEG |
2 | ||
| 78726-95J01 |
RZH105..GCC RH SEAT LEG |
3 | ||
| 78726-95J00 |
LH104,105,114,115,RZH104,105,114,115 W/BRACKET |
2 | ||
| 78731 - ARM, SUB SEAT LINK, NO.1 | ||||
| 78731-95J04 |
LH104,105,166,RZH104,105..LHD |
2 | ||
| 78731-95J04 |
RZH105..GCC LH |
3 | ||
| 78804B - LEG SUB-ASSY, SUB SEAT, LH | ||||
| 78803-95J05 |
LH104,105,114,115,RZH104,105,114,115..LHD |
2 | ||
| 78803-95J05 |
LH104,105,166,RZH104,105..LHD RH |
2 | ||
| Common parts | ||||
| 90109-08137 | ||||
| 90119-10035 | ||||
| 90119-10271 | ||||
| 90176-08044 | ||||
| 90206-08016 | ||||
| 90206-12035 | ||||
| 90389-10012 | ||||
| 90523-06017 | ||||
| 93560-15012 | ||||
| 93560-55010 | ||||
ILLUST NO. 7 OF 7(9907- )LH104,105,164,166,RZH104,105,114,115..12S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71333 - LEG, REAR SEAT CUSHION, NO.1 | ||||
| 71333-95J30 |
LH104,105,RZH104,105 FRONT |
1 | ||
| 71333-95J23 |
LH104,105,RZH104,105 REAR |
1 | ||
| 71333-95J30 |
LH104,105,166,RZH104,105..LHD FRONT |
1 | ||
| 71333-95J23 |
LH104,105,166,RZH104,105..LHD REAR |
1 | ||
| 71333 - LEG, REAR SEAT CUSHION, NO.1 | ||||
| 71333-95J30 |
LH104,105,RZH104,105 FRONT |
1 | ||
| 71333-95J23 |
LH104,105,RZH104,105 REAR |
1 | ||
| 71333-95J30 |
LH104,105,166,RZH104,105..LHD FRONT |
1 | ||
| 71333-95J23 |
LH104,105,166,RZH104,105..LHD REAR |
1 | ||
| 71333A - LEG, REAR SEAT CUSHION, NO.2 | ||||
| 71333-95J25 |
LH104,105,166,RZH104,105 REAR |
1 | ||
| 71333-95J15 |
LH104,105,166,RZH104,105..LHD FRONT |
1 | ||
| 71333A - LEG, REAR SEAT CUSHION, NO.2 | ||||
| 71333-95J25 |
LH104,105,166,RZH104,105 REAR |
1 | ||
| 71333-95J15 |
LH104,105,166,RZH104,105..LHD FRONT |
1 | ||
| 79105 - LEG SUB-ASSY, NO.1 SEAT, RH | ||||
| 79105-26360 |
LH104,105,166,RZH104,105..LHD |
1 | ||
ILLUST NO. 1 OF 7(9808- )LH104,105,114,115,164,166,174,176,RZH104,105,114,115..LHD
SEAT BACK=SEPARATE TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79011-95N0803 |
LH104,105,114,115,RZH104,114 GRAY,TRIM1# |
1 | ||
| 79011-95N22B1 |
LH104,105,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79011-26690B0 |
RZH114,115..LHD..15S;LH104,105,114,115,166,176,RZH104,105..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79013A - COVER SUB-ASSY, NO.1 SEAT BACK | ||||
| 79014-95J20B2 |
LH104,105,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79014-26230B0 |
RZH114,115..LHD..15S;LH114,115,176,RZH105..LHD..STD..(CBR,DSL) W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79014-26230B0 |
LH104,105,166,RZH104,105..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79120A - CUSHION ASSY, NO.1 SEAT | ||||
| 79120-95N1803 |
LH104,105,114,115,RZH104,114 GRAY,TRIM1# |
1 | ||
| 79120-95N33B2 |
LH104,105,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79120-95N33P1 |
LH104,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79120-95N33P2 |
RZH115..GCC;LH104,114,115,RZH104,105,114..LHD SEAT = TYPE J-*104,GRAY,TRIM1# |
1 | ||
| 79120-26790B0 |
RZH114,115..LHD..15S;LH104,105,114,115,166,176,RZH104,105..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79140A - BACK ASSY, NO.1 SEAT | ||||
| 79150-95J20B1 |
LH104,105,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79150-95J20B3 |
LH104,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79150-26150B0 |
RZH115..GCC;LH104,114,115,RZH104,105,114..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79150-26151B2 |
RZH114,115..LHD..15S;LH104,105,114,115,166,176,RZH104,105..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79175 - PAD, NO.1 SEAT BACK | ||||
| 79017-95J00 |
RZH114,115..15S;LH104,105,114,115,166,176,RZH104,105 |
1 | ||
| 79961 - COVER, NO.1 SEAT BACK | ||||
| 79961-95J02B0 |
LH104,105,RZH104 BLUISH GRAY,TRIM1#,RH |
2 | ||
| 79961-95J03B0 |
LH104,105,RZH104 BLUISH GRAY,TRIM1#,LH |
2 | ||
| 79961-95J03B0 |
LH104,RZH104,105 BLUISH GRAY,TRIM1#,LH |
2 | ||
| 79961-95J0203 |
LH104,105,RZH104 GRAY,TRIM1#,RH |
2 | ||
| 79961-95J0303 |
LH104,105,RZH104 GRAY,TRIM1#,LH |
2 | ||
| 79961-95J02B0 |
LH104,RZH104,105 BLUISH GRAY,TRIM1#,RH |
2 | ||
| 79961-95J03B0 |
RZH105..GCC;RZH115..15S..GL;LH115,176,RZH115..CIS BLUISH GRAY,TRIM1#,LH |
3 | ||
| 79961-95J02B0 |
RZH105..GCC;RZH115..15S..GL;LH115,176,RZH115..CIS BLUISH GRAY,TRIM1#,RH |
3 | ||
| Common parts | ||||
| 90167-40044 | ||||
| 90386-12051 | ||||
| 90468-18071 | ||||
| 90523-08001 | ||||
| 91612-B1020 | ||||
| Linked diagrams | ||||
| 7451 | ||||
| 7456 | ||||
ILLUST NO. 2 OF 7(9808- )LH104,105,114,115,164,166,174,176,RZH104,105,114,115..LHD
SEAT BACK=SEPARATE TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 79021A - COVER SUB-ASSY, NO.2 SEAT CUSHION | ||||
| 79011-26690B0 |
RZH105..GCC FABRIC SEAT,BLUISH GRAY,TRIM1# |
1 | ||
| 79021-95J61B1 |
RZH105..GCC;LH104,105,RZH104..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79023A - COVER SUB-ASSY, NO.2 SEAT BACK | ||||
| 79014-95J20B2 |
LH104,105,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79014-26230B0 |
RZH114,115..LHD..15S;LH114,115,176,RZH105..LHD..STD..(CBR,DSL) W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79014-26230B2 |
RZH105..CBR BLUISH GRAY,TRIM16 |
2 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79014-26230B0 |
LH104,105,166,RZH104,105..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79014-26230B2 |
LH104,105,166,RZH104,105..LHD SEAT = TYPE B-*104,BLUISH GRAY,TRIM16 |
1 | ||
| 79220A - CUSHION ASSY, NO.2 SEAT | ||||
| 79120-95N33P2 |
RZH115..GCC;LH104,114,115,RZH104,105,114..LHD SEAT = TYPE J-*104,GRAY,TRIM1# |
1 | ||
| 79220-95J74B1 |
LH104,105,RZH104,105..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79220-95J74B4 |
LH104,RZH104,105..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79220-95J74B6 |
LH104,RZH104,105..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79240A - BACK ASSY, NO.2 SEAT | ||||
| 79150-95J20B3 |
LH104,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79150-95J20B1 |
LH104,105,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79150-26150B0 |
RZH115..GCC;LH104,114,115,RZH104,105,114..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79275 - PAD, NO.2 SEAT BACK | ||||
| 79017-95J00 |
RZH114,115..15S;LH104,105,114,115,166,176,RZH104,105 |
1 | ||
| 79961 - COVER, NO.1 SEAT BACK | ||||
| 79961-95J02B0 |
LH104,105,RZH104 BLUISH GRAY,TRIM1#,RH |
2 | ||
| 79961-95J03B0 |
LH104,105,RZH104 BLUISH GRAY,TRIM1#,LH |
2 | ||
| 79961-95J03B0 |
LH104,RZH104,105 BLUISH GRAY,TRIM1#,LH |
2 | ||
| 79961-95J0203 |
LH104,105,RZH104 GRAY,TRIM1#,RH |
2 | ||
| 79961-95J0303 |
LH104,105,RZH104 GRAY,TRIM1#,LH |
2 | ||
| 79961-95J02B0 |
LH104,RZH104,105 BLUISH GRAY,TRIM1#,RH |
2 | ||
| 79961-95J03B0 |
RZH105..GCC;RZH115..15S..GL;LH115,176,RZH115..CIS BLUISH GRAY,TRIM1#,LH |
3 | ||
| 79961-95J02B0 |
RZH105..GCC;RZH115..15S..GL;LH115,176,RZH115..CIS BLUISH GRAY,TRIM1#,RH |
3 | ||
| Common parts | ||||
| 90167-40044 | ||||
| 90386-12051 | ||||
| 90468-18071 | ||||
| 90523-08001 | ||||
| 91612-B1020 | ||||
| Linked diagrams | ||||
| 7451 | ||||
| 7456 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
