RZH105L-BFMREX (1998)
Toyota Hiace Van,Commuter
ILLUST NO. 1 OF 2(8908-9907)RZH102,103,104,11#,125,135,153..RHD ;(8908- )RZH10#,11#,155..LHD
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-95J48 |
RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH102,104,112,114,125;RZH103,105,113,115..CBR;RZH113..4D..(03S,06S,09S)..EFI |
1 | ||
| 87245-95J48 |
RZH112..LHD;RZH112..RHD..SP;RZH10#,113,114,115,125,155 |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 99556-30300 |
RZH10#,11#,125 *H,L=220 |
1 | ||
| 87245C - HOSE, HEATER WATER ,INLET C | ||||
| 87245-95J60 |
RZH105,115..STD..CIS;RZH103,105,115..LHD..CBR;LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
1 | ||
| 87245C - HOSE, HEATER WATER ,INLET C | ||||
| 87245-95J60 |
RZH105,115..STD..CIS;RZH103,105,115..LHD..CBR;LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 99556-30100 |
RZH105,115..STD..CIS;RZH103,105,115..LHD..CBR;LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD *H,L=95 |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 99556-30100 |
RZH105,115..STD..CIS;RZH103,105,115..LHD..CBR;LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD *H,L=95 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-95J45 |
RZH105,115..STD..CIS;RZH103,105,115..LHD..CBR;LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-95J45 |
RZH105,115..STD..CIS;RZH103,105,115..LHD..CBR;LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 99556-30300 |
RZH10#,11#,125 L=300 |
1 | ||
| 99556-30300 |
RZH113..LHD;RZH103,105,115..CBR;RZH105,115..STD..CIS;RZH113..RHD..4D..STD;RZH102,103,104,112,114,125..03S,06S,10S,12S,14S,15S *H,L=260 |
1 | ||
| 99556-30300 |
RZH112..LHD;RZH112..RHD..SP;RZH10#,113,114,115,125,155 *H,L=270 |
1 | ||
| 99556-30300 |
RZH10#,11#,125,155 *H,L=260 |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87208-95J52 |
RZH10#,11#,125 |
1 | ||
| 87208-26700 |
RZH10#,114,115..SG..(03S,09S,10S,12S,15S) W(REAR HEATER) |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87208-95J52 |
RZH10#,11#,125 |
1 | ||
| 87208-26700 |
RZH10#,114,115..SG..(03S,09S,10S,12S,15S) W(REAR HEATER) |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87208-26800 |
RZH10#,114,115..LHD..(09S,10S,12S,15S) W(REAR HEATER) |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87208-26800 |
RZH10#,114,115..LHD..(09S,10S,12S,15S) W(REAR HEATER) |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87208-26800 |
RZH10#,114,115..LHD..(09S,10S,12S,15S) W(REAR HEATER) |
1 | ||
| 87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE) | ||||
| 99556-20200 |
LH104,105,114,115 *H,L=180 |
1 | ||
| Common parts | ||||
| 87124-95J14 | ||||
| 90467-22011 | ||||
| 91651-40816 | ||||
| 96112-30250 | ||||
| 96134-42100 | ||||
ILLUST NO. 2 OF 2(9808- )LH114,115,174..RHD..15S ; (0108- )RZH104,105,115,155..LHD
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-95J49 |
LH102,104,105,112,114,115..09S,12S,15S W(REAR HEATER) |
1 | ||
| 87208-26770 |
LH104,105,114,115,166,176 W(REAR HEATER) |
1 | ||
| 87208A - PIPE SUB-ASSY, HEATER WATER, A | ||||
| 87208-95J58 |
LH102,104,105,112,114,115..LHD..(09S,12S,15S) |
1 | ||
| 87208-26830 |
LH104,105,114,115,166,176..LHD |
1 | ||
| 87208B - PIPE SUB-ASSY, HEATER WATER, B | ||||
| 87208-26860 |
RZH10#,114,115..LHD..(09S,10S,12S,15S) |
1 | ||
| 87208C - PIPE SUB-ASSY, HEATER WATER, C | ||||
| 87208-95J68 |
LH104,105,RZH104,105..LHD |
1 | ||
| 87208-2F050 |
LH104,105,166,RZH104,105..LHD |
1 | ||
| 87208-2F050 |
LH104,105,164,166,RZH104,105..LHD |
1 | ||
| 87240A - VALVE ASSY, REAR HEATER WATER | ||||
| 87240-95J09 |
LH102,104,105,112,114,115,166,176,RZH10#,113,114,115..LHD..(09S,10S,12S,15S) |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 99556-20200 |
RZH10#,113,114,115,155..08S,09S,10S,11S,12S,15S *H,L=180 |
1 | ||
| 99556-20200 |
LH102,104,105,112,114,115,166,176..LHD..(09S,12S,15S) *H,L=130 |
1 | ||
| 87245-2F790 |
RZH104,105,113,114,115,155..08S,11S,12S,15S |
1 | ||
| 87255B - HOSE, REAR HEATER WATER INLET, B | ||||
| 99556-20200 |
RZH115..CBR;RZH104,105,113,114,115,155..(08S,11S,12S,15S)..(CIS,GEN) *H,L=130 |
1 | ||
| 99556-20200 |
RZH10#,113,114,115,155..08S,09S,10S,11S,12S,15S *H,L=140 |
1 | ||
| 87255C - HOSE, REAR HEATER WATER INLET, C | ||||
| 99556-20300 |
LH102,104,105,114,115,166,176,RZH10#,114,115..LHD..(09S,10S,12S,15S) *H,L=240 |
1 | ||
| 87255D - HOSE, REAR HEATER WATER INLET, D | ||||
| 99556-20200 |
LH104,105,114,115,RZH104,105,114,115..LHD *H,L=145 |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 87245-26070 |
LH104,105,164,166,RZH104,105..LHD |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 87245-26080 |
LH104,105,164,166,RZH104,105..LHD |
1 | ||
| 87256B - HOSE, REAR HEATER WATER OUTLET, B | ||||
| 99556-20300 |
LH102,104,105,114,115,166,176,RZH10#,114,115..LHD..(09S,10S,12S,15S) *H,L=240 |
1 | ||
| 87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE) | ||||
| 99556-20200 |
LH104,105,114,115 *H,L=180 |
1 | ||
| Common parts | ||||
| 90467-19022 | ||||
| 91651-40816 | ||||

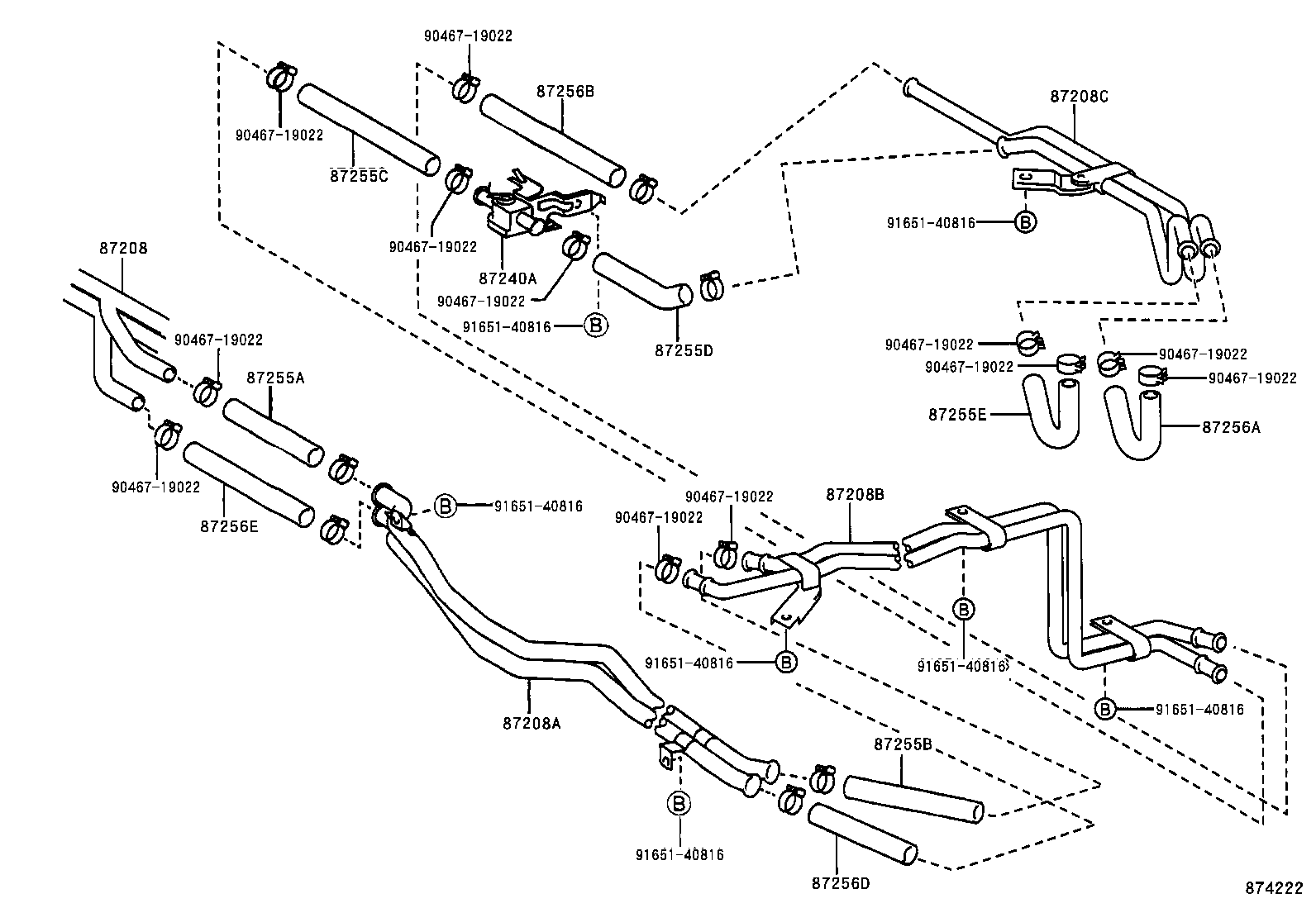

ILLUST NO. 2 OF 2(9808- )LH104,105,114,115,164,166,174,176..LHD..STD
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-95J49 |
LH102,104,105,112,114,115..09S,12S,15S W(REAR HEATER) |
1 | ||
| 87208-26770 |
LH104,105,114,115,166,176 W(REAR HEATER) |
1 | ||
| 87208A - PIPE SUB-ASSY, HEATER WATER, A | ||||
| 87208-95J58 |
LH102,104,105,112,114,115..LHD..(09S,12S,15S) |
1 | ||
| 87208-26830 |
LH104,105,114,115,166,176..LHD |
1 | ||
| 87208C - PIPE SUB-ASSY, HEATER WATER, C | ||||
| 87208-95J68 |
LH104,105,RZH104,105..LHD |
1 | ||
| 87208-2F050 |
LH104,105,166,RZH104,105..LHD |
1 | ||
| 87208-2F050 |
LH104,105,164,166,RZH104,105..LHD |
1 | ||
| 87208C - PIPE SUB-ASSY, HEATER WATER, C | ||||
| 87208-95J68 |
LH104,105,RZH104,105..LHD |
1 | ||
| 87208-2F050 |
LH104,105,166,RZH104,105..LHD |
1 | ||
| 87208-2F050 |
LH104,105,164,166,RZH104,105..LHD |
1 | ||
| 87240A - VALVE ASSY, REAR HEATER WATER | ||||
| 87240-95J09 |
LH102,104,105,112,114,115,166,176,RZH10#,113,114,115..LHD..(09S,10S,12S,15S) |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 99556-20200 |
RZH10#,113,114,115,155..08S,09S,10S,11S,12S,15S *H,L=180 |
1 | ||
| 99556-20200 |
LH102,104,105,112,114,115,166,176..LHD..(09S,12S,15S) *H,L=130 |
1 | ||
| 87245-2F790 |
RZH104,105,113,114,115,155..08S,11S,12S,15S |
1 | ||
| 87255C - HOSE, REAR HEATER WATER INLET, C | ||||
| 99556-20300 |
LH102,104,105,114,115,166,176,RZH10#,114,115..LHD..(09S,10S,12S,15S) *H,L=240 |
1 | ||
| 87255D - HOSE, REAR HEATER WATER INLET, D | ||||
| 99556-20200 |
LH104,105,114,115,RZH104,105,114,115..LHD *H,L=145 |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 87245-26070 |
LH104,105,164,166,RZH104,105..LHD |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 87245-26070 |
LH104,105,164,166,RZH104,105..LHD |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 87245-26080 |
LH104,105,164,166,RZH104,105..LHD |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 87245-26080 |
LH104,105,164,166,RZH104,105..LHD |
1 | ||
| 87256B - HOSE, REAR HEATER WATER OUTLET, B | ||||
| 99556-20300 |
LH102,104,105,114,115,166,176,RZH10#,114,115..LHD..(09S,10S,12S,15S) *H,L=240 |
1 | ||
| 87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE) | ||||
| 99556-20200 |
LH104,105,114,115 *H,L=180 |
1 | ||
| Common parts | ||||
| 90467-19022 | ||||
| 91651-40816 | ||||
ILLUST NO. 2 OF 2(9808- )RZH102,103,114,115,155..09S,10S,11S,12S ; (0108- )RZH104,105,113,114,
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208B - PIPE SUB-ASSY, HEATER WATER, B | ||||
| 87208-26860 |
RZH10#,114,115..LHD..(09S,10S,12S,15S) |
1 | ||
| 87208C - PIPE SUB-ASSY, HEATER WATER, C | ||||
| 87208-95J68 |
LH104,105,RZH104,105..LHD |
1 | ||
| 87208-2F050 |
LH104,105,166,RZH104,105..LHD |
1 | ||
| 87208-2F050 |
LH104,105,164,166,RZH104,105..LHD |
1 | ||
| 87240A - VALVE ASSY, REAR HEATER WATER | ||||
| 87240-95J09 |
LH102,104,105,112,114,115,166,176,RZH10#,113,114,115..LHD..(09S,10S,12S,15S) |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87208-95J52 |
RZH10#,11#,125 |
1 | ||
| 87208-26700 |
RZH10#,114,115..SG..(03S,09S,10S,12S,15S) W(REAR HEATER) |
1 | ||
| 87248B - PIPE, HEATER WATER INLET, B | ||||
| 87208-95J61 |
RZH10#,113,114,115..SG..(03S,09S,12S,15S) |
1 | ||
| 87208-26840 |
RZH103,104,105,113,114,115,155..08S,09S,10S,11S,12S,15S |
1 | ||
| 87208-26840 |
RZH10#,114,115..SG..(03S,09S,10S,12S,15S) |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 99556-20200 |
RZH10#,113,114,115,155..08S,09S,10S,11S,12S,15S *H,L=180 |
1 | ||
| 99556-20200 |
LH102,104,105,112,114,115,166,176..LHD..(09S,12S,15S) *H,L=130 |
1 | ||
| 87245-2F790 |
RZH104,105,113,114,115,155..08S,11S,12S,15S |
1 | ||
| 87255B - HOSE, REAR HEATER WATER INLET, B | ||||
| 99556-20200 |
RZH115..CBR;RZH104,105,113,114,115,155..(08S,11S,12S,15S)..(CIS,GEN) *H,L=130 |
1 | ||
| 99556-20200 |
RZH10#,113,114,115,155..08S,09S,10S,11S,12S,15S *H,L=140 |
1 | ||
| 87255C - HOSE, REAR HEATER WATER INLET, C | ||||
| 99556-20300 |
LH102,104,105,114,115,166,176,RZH10#,114,115..LHD..(09S,10S,12S,15S) *H,L=240 |
1 | ||
| 87255D - HOSE, REAR HEATER WATER INLET, D | ||||
| 99556-20200 |
LH104,105,114,115,RZH104,105,114,115..LHD *H,L=145 |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 87245-26070 |
LH104,105,164,166,RZH104,105..LHD |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 87245-26080 |
LH104,105,164,166,RZH104,105..LHD |
1 | ||
| 87256B - HOSE, REAR HEATER WATER OUTLET, B | ||||
| 99556-20300 |
LH102,104,105,114,115,166,176,RZH10#,114,115..LHD..(09S,10S,12S,15S) *H,L=240 |
1 | ||
| Common parts | ||||
| 90467-19022 | ||||
| 91651-40816 | ||||
ILLUST NO. 2 OF 2(9808- )RZH104,105..LHD
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208B - PIPE SUB-ASSY, HEATER WATER, B | ||||
| 87208-26860 |
RZH10#,114,115..LHD..(09S,10S,12S,15S) |
1 | ||
| 87208C - PIPE SUB-ASSY, HEATER WATER, C | ||||
| 87208-95J68 |
LH104,105,RZH104,105..LHD |
1 | ||
| 87208-2F050 |
LH104,105,166,RZH104,105..LHD |
1 | ||
| 87208-2F050 |
LH104,105,164,166,RZH104,105..LHD |
1 | ||
| 87240A - VALVE ASSY, REAR HEATER WATER | ||||
| 87240-95J09 |
LH102,104,105,112,114,115,166,176,RZH10#,113,114,115..LHD..(09S,10S,12S,15S) |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87208-95J52 |
RZH10#,11#,125 |
1 | ||
| 87208-26700 |
RZH10#,114,115..SG..(03S,09S,10S,12S,15S) W(REAR HEATER) |
1 | ||
| 87248B - PIPE, HEATER WATER INLET, B | ||||
| 87208-95J61 |
RZH10#,113,114,115..SG..(03S,09S,12S,15S) |
1 | ||
| 87208-26840 |
RZH103,104,105,113,114,115,155..08S,09S,10S,11S,12S,15S |
1 | ||
| 87208-26840 |
RZH10#,114,115..SG..(03S,09S,10S,12S,15S) |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 99556-20200 |
RZH10#,113,114,115,155..08S,09S,10S,11S,12S,15S *H,L=180 |
1 | ||
| 99556-20200 |
LH102,104,105,112,114,115,166,176..LHD..(09S,12S,15S) *H,L=130 |
1 | ||
| 87245-2F790 |
RZH104,105,113,114,115,155..08S,11S,12S,15S |
1 | ||
| 87255B - HOSE, REAR HEATER WATER INLET, B | ||||
| 99556-20200 |
RZH115..CBR;RZH104,105,113,114,115,155..(08S,11S,12S,15S)..(CIS,GEN) *H,L=130 |
1 | ||
| 99556-20200 |
RZH10#,113,114,115,155..08S,09S,10S,11S,12S,15S *H,L=140 |
1 | ||
| 87255C - HOSE, REAR HEATER WATER INLET, C | ||||
| 99556-20300 |
LH102,104,105,114,115,166,176,RZH10#,114,115..LHD..(09S,10S,12S,15S) *H,L=240 |
1 | ||
| 87255D - HOSE, REAR HEATER WATER INLET, D | ||||
| 99556-20200 |
LH104,105,114,115,RZH104,105,114,115..LHD *H,L=145 |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 87245-26070 |
LH104,105,164,166,RZH104,105..LHD |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 87245-26080 |
LH104,105,164,166,RZH104,105..LHD |
1 | ||
| 87256B - HOSE, REAR HEATER WATER OUTLET, B | ||||
| 99556-20300 |
LH102,104,105,114,115,166,176,RZH10#,114,115..LHD..(09S,10S,12S,15S) *H,L=240 |
1 | ||
| Common parts | ||||
| 90467-19022 | ||||
| 91651-40816 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
