RZH105L-BFMREX (1998)
Toyota Hiace Van,Commuter
ILLUST NO. 2 OF 2(9808- )5L#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17764 - DUCT, AIR CLEANER | ||||
| 52811-95J00 |
1RZ#,2RZ..RZH10#,11#,125;2RZE..RZH105,115..STD..CIS;2RZE..RZH103,125,135,153..RHD;2RZE..RZH113..4D..(03S,06S,09S)..(ARL,GEN) |
1 | ||
| 52811-95J00 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15# |
1 | ||
| 17911 - DUCT, COOL AIR INTAKE, NO.1 | ||||
| 52814-95J00 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15# |
1 | ||
| 52814-95J00 |
1RZ#,2RZ..RZH10#,11#,125;2RZE..RZH105,115..STD..CIS;2RZE..RZH103,125,135,153..RHD;2RZE..RZH113..4D..(03S,06S,09S)..(ARL,GEN) |
1 | ||
| 17912 - DUCT, COOL AIR INTAKE, NO.2 | ||||
| 52815-95J00 |
1RZ#,2RZ..RZH10#,11#,125;2RZE..RZH105,115..STD..CIS;2RZE..RZH103,125,135,153..RHD;2RZE..RZH113..4D..(03S,06S,09S)..(ARL,GEN) NO.1 |
1 | ||
| 52820-95J00 |
1RZ#,2RZ..RZH10#,11#,125;2RZE..RZH105,115..STD..CIS;2RZE..RZH103,125,135,153..RHD;2RZE..RZH113..4D..(03S,06S,09S)..(ARL,GEN) NO.2 |
1 | ||
| 52820-95J00 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15# NO.2 |
1 | ||
| 52815-95J00 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15# NO.1 |
1 | ||
| 17912 - DUCT, COOL AIR INTAKE, NO.2 | ||||
| 52815-95J00 |
1RZ#,2RZ..RZH10#,11#,125;2RZE..RZH105,115..STD..CIS;2RZE..RZH103,125,135,153..RHD;2RZE..RZH113..4D..(03S,06S,09S)..(ARL,GEN) NO.1 |
1 | ||
| 52820-95J00 |
1RZ#,2RZ..RZH10#,11#,125;2RZE..RZH105,115..STD..CIS;2RZE..RZH103,125,135,153..RHD;2RZE..RZH113..4D..(03S,06S,09S)..(ARL,GEN) NO.2 |
1 | ||
| 52820-95J00 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15# NO.2 |
1 | ||
| 52815-95J00 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15# NO.1 |
1 | ||
| 17913 - DUCT, COOL AIR INTAKE, NO.3 | ||||
| 52830-95J00 |
1RZ#,2RZ#..RZH10#,11#,125,135,153 |
1 | ||
| 52813-95J00 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15# |
1 | ||
| 52829 - GRILLE, COOL AIR INTAKE | ||||
| 52829-95J0001 |
RZH10#,11#..SRF..STD BLACK,045 ,3H7 ,4L2 ,541 ,6K9 ,8E2 ,8E8 ,8G8 |
1 | ||
| 52829-95J0001 |
RZH10#,11#,125,135,153 BLACK,TRIM1# |
1 | ||
| 52829-95J0001 |
RZH112..5D;RZH112..03S;RZH10#,113,114,115,125,135,155 BLACK,TRIM1# |
1 | ||
| 53955A - CUSHION, AIR CLEANER INLET NO.1 | ||||
| 53955-95402 |
RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH102,104,112,114,125,135,153;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI |
1 | ||
| 53955-95402 |
RZH112..5D;RZH112..03S;RZH10#,113,114,115,125,135,15# |
1 | ||
| Common parts | ||||
| 90101-06013 | ||||
| 90109-06364 | ||||
| 90109-08131 | ||||
| 90119-06302 | ||||
| 90159-60250 | ||||
| 90164-40072 | ||||
| 90189-04085 | ||||
| 90201-12044 | ||||
| 90460-01061 | ||||
| 90461-12438 | ||||
| 90480-16027 | ||||
| 90560-10064 | ||||
| 91651-60614 | ||||
| 93568-54512 | ||||
| 96111-10800 | ||||
| 96111-10850 | ||||

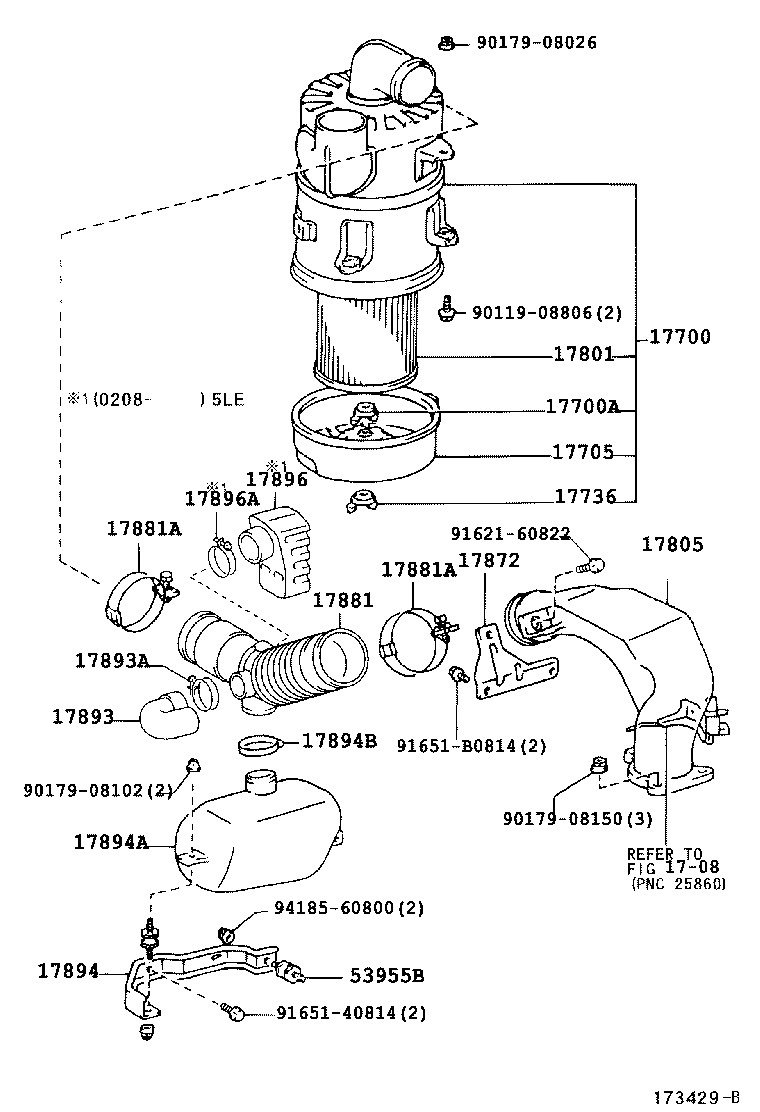

ILLUST NO. 1 OF 2(9808- )3L,5L..LH103,113,125,162,172,184..ARL; (0008- )5L..LH154 ; (0108-020
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-75022 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ..RZH102,104,105,113,114,115 |
1 | ||
| 17700-75041 |
1RZ..RZH114..15S;1RZ..RZH112..LHD;1RZ..RZH112..RHD..SP;1RZ,2RZ..RZH102,104,105,113,115..03S,06S,12S,15S W(HOT AIR INTAKE) |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
1RZ#,2RZ#..RZH10#,11#,125 |
1 | ||
| 90175-08008 |
3L..LH103,113,115,125;2L,3L,5L..LH102,105,112,174..LHD..(06S,10S,12S) |
1 | ||
| 90175-08008 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH113..4D..STD;2RZE..RZH105,115..STD..CIS;2RZE..RZH103,125,135,153..RHD |
1 | ||
| 90175-08008 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15# |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-75020 |
1RZ..RZH112;2RZ..RZH113..ARL,GCC;1RZ..RZH102..5D..03S;1RZ..RZH102..LHD..06S;1RZ,2RZ..RZH10#,114,115,125..4D |
1 | ||
| 17705-75020 |
2RZ..RZH113,115;1RZ..RZH112..RHD..SP;2RZE..RZH115..STD..CIS;1RZ,2RZ#..RZH105,112..LHD..STD;2RZE..RZH113..4D..STD..(ARL,GEN);1RZ,2RZE..RZH102,103,104,114,125,135,153..03S,06S,10S,12S,14S,15S CYCLONE TYPE |
1 | ||
| 17705-75020 |
3L..LH103,113,115,125;2L,3L,5L..LH102,105,112,174..LHD..(06S,10S,12S) |
1 | ||
| 17736 - NUT, AIR CLEANER CASE | ||||
| 90175-06003 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15# |
1 | ||
| 90175-06003 |
1RZ#,2RZ#..RZH10#,11#,125 |
1 | ||
| 90175-06003 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH113..4D..STD;2RZE..RZH105,115..STD..CIS;2RZE..RZH103,125,135,153..RHD |
1 | ||
| 90175-06003 |
3L..LH103,113,115,125;2L,3L,5L..LH102,105,112,174..LHD..(06S,10S,12S) |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-75010 |
1RZ..RZH112;2RZ..RZH113..ARL,GCC;1RZ..RZH102..5D..03S;1RZ..RZH102..LHD..06S;1RZ,2RZ..RZH10#,114,115,125..4D CYCLONE TYPE |
1 | ||
| 17801-75010 |
2RZ..RZH113,115;1RZ..RZH112..RHD..SP;2RZE..RZH115..STD..CIS;1RZ,2RZ#..RZH105,112..LHD..STD;2RZE..RZH113..4D..STD..(ARL,GEN);1RZ,2RZE..RZH102,103,104,114,125,135,153..03S,06S,10S,12S,14S,15S CYCLONE TYPE |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17805-75010 |
1RZ,2RZ..RZH10#,11#,125 |
1 | ||
| 17805-54180 |
3L..LH103,113,115,125;2L,3L,5L..LH102,105,112,174..LHD..(06S,10S,12S) |
1 | ||
| 17805-75090 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ..RZH102,104,105,113,114,115 |
1 | ||
| 17872 - BRACKET, INTAKE AIR CONNECTOR | ||||
| 17872-54030 |
3L..LH103,113,115,125;2L,3L,5L..LH102,105,112,174..LHD..(06S,10S,12S) |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-75010 |
1RZ,2RZ#..RZH10#,11#,125 |
1 | ||
| 17881-75070 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15# |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10900 |
1RZ,2RZ#..RZH10#,11#,125 AIR CLEANER SIDE |
1 | ||
| 96111-10780 |
5L..LH172..5D;3L..LH103,113,115,125;2L,3L,5L..LH102,105,112,174..LHD..(06S,10S,12S) AIR CLEANER SIDE |
1 | ||
| 96111-10800 |
5L..LH172..5D;3L..LH103,113,115,125;2L,3L,5L..LH102,105,112,174..LHD..(06S,10S,12S) AIR CONNECTOR SIDE |
1 | ||
| 96111-10880 |
1RZ#,2RZ..RZH10#,11#,125;2RZE..RZH105,115..STD..CIS;2RZE..RZH103,125,135,153..RHD;2RZE..RZH113..4D..(03S,06S,09S) CONNECTOR SIDE |
1 | ||
| 96111-10850 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15# AIR CLEANER SIDE |
1 | ||
| 96111-10880 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15# CONNECTOR SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10900 |
1RZ,2RZ#..RZH10#,11#,125 AIR CLEANER SIDE |
1 | ||
| 96111-10780 |
5L..LH172..5D;3L..LH103,113,115,125;2L,3L,5L..LH102,105,112,174..LHD..(06S,10S,12S) AIR CLEANER SIDE |
1 | ||
| 96111-10800 |
5L..LH172..5D;3L..LH103,113,115,125;2L,3L,5L..LH102,105,112,174..LHD..(06S,10S,12S) AIR CONNECTOR SIDE |
1 | ||
| 96111-10880 |
1RZ#,2RZ..RZH10#,11#,125;2RZE..RZH105,115..STD..CIS;2RZE..RZH103,125,135,153..RHD;2RZE..RZH113..4D..(03S,06S,09S) CONNECTOR SIDE |
1 | ||
| 96111-10850 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15# AIR CLEANER SIDE |
1 | ||
| 96111-10880 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15# CONNECTOR SIDE |
1 | ||
| Common parts | ||||
| 90119-08806 | ||||
| 90179-08026 | ||||
| 90179-08102 | ||||
| 90179-08150 | ||||
| 91621-60822 | ||||
| 91651-40814 | ||||
| 91651-B0814 | ||||
| 94185-60800 | ||||
| Linked diagrams | ||||
| 1708 | ||||
