RZH104R-BFMRS (1991)
Toyota Hiace Van,Commuter
ILLUST NO. 6 OF 7(9411- )GEN
W(HEADREST)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71344A - PLATE, REAR SEAT CUSHION HINGE | ||||
| 71344-95J01 |
LH104,114,115,RZH104,114 |
1 | ||
| 71344-95J01 |
LH104,105,114,115,125,RZH104,114,125 |
1 | ||
| 71350B - HINGE ASSY, REAR SEAT, RH | ||||
| 71350-95J44 |
LH104,114,115,RZH104,114 |
1 | ||
| 71350-95J44 |
LH104,105,114,115,125,RZH104,114,125 |
1 | ||
| 71360A - HINGE ASSY, REAR SEAT, LH | ||||
| 71360-95J17 |
LH104,105,114,115,125,RZH104,114,125 |
1 | ||
| 71360-95J17 |
LH104,114,115,RZH104,114 |
1 | ||
| 71434 - PIN, REAR SEAT CUSHION LEG, REAR | ||||
| 71434-95701 |
LH125..ARL;LH103,104,105,11#,RZH104,105,112,114,115,125..SG |
2 | ||
| 71434-95701 |
LH104,105,114,115,125,166,176,184,RZH104,105,114,115,125 |
2 | ||
| 71434-95701 |
LH10#,11#,125,RZH10#,11#,125..06S,12S,14S,15S |
2 | ||
| 71434-95701 |
LH103,104,105,11#,125,RZH104,105,112,114,115,125..SG |
2 | ||
| 71434-95701 |
RZH114..15S;LH184,RZH104,105,115..GL,STD;LH104,105,114,115,125,164,166,174,176,RZH125..STD |
2 | ||
| 71485 - COVER, REAR SEAT HINGE | ||||
| 71485-95J0103 |
LH104,114,115,RZH104,114 GRAY,TRIM1#,NO.4 SEAT |
1 | ||
| 71485-95J02B0 |
LH104,105,RZH104,105 BLUISH GRAY,TRIM1#,SUB SEAT HINGE |
4 | ||
| 71485-95J0103 |
LH104,105,114,115,125,RZH104,114,125 GRAY,TRIM1#,NO.4 SEAT |
1 | ||
| 71485-95J0203 |
LH104,105,RZH104 GRAY,TRIM1#,SUB SEAT HINGE |
4 | ||
| 71485-95J02B0 |
LH104,105,125,RZH104,105..12S,15S BLUISH GRAY,TRIM1#,SUB SEAT HINGE |
4 | ||
| 71485-95J02B0 |
LH104,105,166,RZH104,105,114,115..12S BLUISH GRAY,TRIM1#,SUB SEAT HINGE |
4 | ||
| 71485-95J02B0 |
LH104,114,115,125,RZH104,105,114,115 BLUISH GRAY,TRIM1#,SUB SEAT HINGE |
4 | ||
| 71486C - COVER, REAR SEAT HINGE, LH | ||||
| 71486-95J0003 |
LH104,105,114,115,125,RZH104,114,125 GRAY,TRIM1# |
1 | ||
| 71486-95J0003 |
LH104,114,115,RZH104,114 GRAY,TRIM1# |
1 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-95J02 |
LH103,104,105,113,114,115,125,RZH102,104,112,114,125..4D..SG 30 X 45 |
1 | ||
| 71621-95J02 |
LH104,113,114,115,RZH104,112,114..4D..SG 30 X 45 |
1 | ||
| 71621-95701 |
LH104,RZH10#,114,115..(09S,10S,12S)..GEN 20 X 30 |
4 | ||
| 71691A - COVER, REAR NO.3 SEAT LOCK, RH | ||||
| 71692-9570313 |
LH104,105,114,115,125,RZH104,114,125 GRAY,TRIM1#,INNER |
1 | ||
| 71692-9570313 |
LH104,114,115,RZH104,114 GRAY,TRIM1#,INNER |
1 | ||
| 71691-9570313 |
RZH102..RHD..06S..5F;LH104,105,114,115,125,RZH103,104,113,114,125..SG GRAY,TRIM1#,OUTER |
1 | ||
| 71691-9570313 |
LH104,114,115,RZH103,104,113,114..GEN GRAY,TRIM1#,OUTER |
1 | ||
| 71691A - COVER, REAR NO.3 SEAT LOCK, RH | ||||
| 71692-9570313 |
LH104,105,114,115,125,RZH104,114,125 GRAY,TRIM1#,INNER |
1 | ||
| 71692-9570313 |
LH104,114,115,RZH104,114 GRAY,TRIM1#,INNER |
1 | ||
| 71691-9570313 |
RZH102..RHD..06S..5F;LH104,105,114,115,125,RZH103,104,113,114,125..SG GRAY,TRIM1#,OUTER |
1 | ||
| 71691-9570313 |
LH104,114,115,RZH103,104,113,114..GEN GRAY,TRIM1#,OUTER |
1 | ||
| 71692A - COVER, REAR NO.3 SEAT LOCK, LH | ||||
| 71692-9570213 |
LH104,114,115,RZH103,104,113,114..GEN GRAY,TRIM1#,OUTER |
1 | ||
| 71691-9570213 |
LH104,114,115,RZH104,114 GRAY,TRIM1#,INNER |
1 | ||
| 71692-9570213 |
RZH102..RHD..06S..5F;LH104,105,114,115,125,RZH103,104,113,114,125..SG GRAY,TRIM1#,OUTER |
1 | ||
| 71691-9570213 |
LH104,105,114,115,125,RZH104,114,125 GRAY,TRIM1#,INNER |
1 | ||
| 71692A - COVER, REAR NO.3 SEAT LOCK, LH | ||||
| 71692-9570213 |
LH104,114,115,RZH103,104,113,114..GEN GRAY,TRIM1#,OUTER |
1 | ||
| 71691-9570213 |
LH104,114,115,RZH104,114 GRAY,TRIM1#,INNER |
1 | ||
| 71692-9570213 |
RZH102..RHD..06S..5F;LH104,105,114,115,125,RZH103,104,113,114,125..SG GRAY,TRIM1#,OUTER |
1 | ||
| 71691-9570213 |
LH104,105,114,115,125,RZH104,114,125 GRAY,TRIM1#,INNER |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-26010B0 |
LH104,RZH104,105,114,115..12S..GEN W(LOCK),BLUISH GRAY,TRIM1# |
3 | ||
| 71931-26010B0 |
LH104,RZH104,105,114,115..12S..GEN W/O(LOCK),BLUISH GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-26010B0 |
LH104,RZH104,105,114,115..12S..GEN W(LOCK),BLUISH GRAY,TRIM1# |
3 | ||
| 71931-26010B0 |
LH104,RZH104,105,114,115..12S..GEN W/O(LOCK),BLUISH GRAY,TRIM1# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-26060B0 |
LH104,RZH104,105..GEN BLUISH GRAY,TRIM1# |
2 | ||
| 71910-95J35B0 |
LH104,184,RZH104,105..GEN BLUISH GRAY,TRIM1#,NO.4 SEAT |
1 | ||
| 72065 - BELT SUB-ASSY, REAR SEAT HOOK, RH | ||||
| 72065-95J04 |
LH104,105,114,115,125,RZH104,105,114,115,125 NO.1 SEAT |
1 | ||
| 72065-95J0103 |
LH104,105,RZH104 GRAY,TRIM1#,NO.4 SEAT |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72525-95J0103 |
RZH102..RHD..06S..5F;LH104,105,114,115,RZH103,104,113,114..SG GRAY,TRIM1# |
1 | ||
| 72613A - STRIKER, FRONT SEAT LOCK | ||||
| 72613-95J02 |
LH104,105,114,115,125,RZH104,114,125 |
2 | ||
| 72613-95J02 |
LH104,114,115,RZH104,114 |
2 | ||
| 72613A - STRIKER, FRONT SEAT LOCK | ||||
| 72613-95J02 |
LH104,105,114,115,125,RZH104,114,125 |
2 | ||
| 72613-95J02 |
LH104,114,115,RZH104,114 |
2 | ||
| 72650F - LOCK ASSY, REAR SEAT, RH | ||||
| 72650-95J04 |
LH104,105,114,115,125,RZH104,114,125 |
1 | ||
| 72650-95J04 |
LH104,114,115,RZH104,114 |
1 | ||
| 72658B - KNOB, REAR SEAT LOCK HANDLE | ||||
| 72658-9570113 |
RZH102..RHD..06S..5F;LH104,105,114,115,125,RZH103,104,113,114,125..SG GRAY,TRIM1# |
2 | ||
| 72658-9570113 |
LH104,114,115,RZH103,104,113,114..GEN GRAY,TRIM1# |
2 | ||
| 72658B - KNOB, REAR SEAT LOCK HANDLE | ||||
| 72658-9570113 |
RZH102..RHD..06S..5F;LH104,105,114,115,125,RZH103,104,113,114,125..SG GRAY,TRIM1# |
2 | ||
| 72658-9570113 |
LH104,114,115,RZH103,104,113,114..GEN GRAY,TRIM1# |
2 | ||
| 72660F - LOCK ASSY, REAR SEAT, LH | ||||
| 72660-95J04 |
LH104,105,114,115,125,RZH104,114,125 |
1 | ||
| 72660-95J04 |
LH104,114,115,RZH104,114 |
1 | ||
| 79041A - COVER SUB-ASSY, NO.4 SEAT CUSHION | ||||
| 79041-95J11B2 |
LH104,114,115,RZH104,114..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79041-95J1103 |
LH104,105,114,115,RZH104,114 GRAY,TRIM1# |
1 | ||
| 79041-95J11B6 |
LH104,114,115,RZH104,114,115..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79041-95J11B4 |
LH104,114,115,RZH104,105,114,115..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79041-95J11B7 |
RZH114,115..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..CIS,GEN W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79041-26170B0 |
RZH104;RZH114,115..LHD..15S;LH104,105,114,115,166,176,RZH105..LHD FABRIC SEAT,BLUISH GRAY,TRIM1# |
1 | ||
| 79041-26160B0 |
RZH114,115..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79041-26160B0 |
LH174,RZH114..15S..(CIS,GEN);RZH115..(10S,15S)..(CIS,GEN);LH104,105,114,115,164,166,176,RZH104,105..(12S,15S)..(CIS,GEN) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79041-95J11B7 |
RZH104,105..RHD SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79043A - COVER SUB-ASSY, NO.4 SEAT BACK | ||||
| 79043-95J1703 |
LH104,105,114,115,RZH104,114 GRAY,TRIM1# |
1 | ||
| 79043-95J11B3 |
LH104,114,115,RZH104,114..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79043-95J1103 |
LH104,105,114,115,RZH104,114 W(FOLDING REAR SEAT),GRAY,TRIM1# |
1 | ||
| 79043-95J11B5 |
LH104,114,115,RZH104,114,115..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79043-95J11B3 |
RZH114,115..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..CIS,GEN W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79043-26060B0 |
LH104,RZH104,105..GEN W(FABRIC SEAT & HEADREST),BLUISH GRAY,TRIM1# |
1 | ||
| 79043-26050B0 |
RZH114,115..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79043-95J11B3 |
RZH104,105..RHD SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79043-26050B2 |
RZH104,105..RHD SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79169 - ROD, REAR SEAT HINGE CONNECTOR | ||||
| 79019-95J00 |
LH104,105,114,115,125,RZH104,114,125 |
1 | ||
| 79019-95J00 |
LH104,114,115,RZH104,114 |
1 | ||
| 79189 - STOPPER, NO.1 SEAT LEG | ||||
| 79189-95J00 |
LH103,104,105,113,114,115,125,RZH10#,11#,125..SG |
2 | ||
| 71334-26020 |
LH125..ARL;LH104,105,114,115,RZH104,105,114,115,125 |
2 | ||
| 71334-95703 |
LH104,113,114,115,RZH10#,11#..SG L=25 |
2 | ||
| 71334-26020 |
LH104,105,114,115,125,166,176,184,RZH104,105,114,115,125 |
2 | ||
| 79199 - HOLDER, NO.1 SEAT LEG STOPPER | ||||
| 79199-95J00 |
LH103,104,105,113,114,115,125,RZH10#,11#,125..SG L=38 |
2 | ||
| 79199-95J00 |
RZH112..EFI;LH112,RZH112..5D;LH10#,113,114,115,125,RZH10#,113,114,115,125..SG..STD L=38 |
2 | ||
| 79199-95J00 |
LH125..ARL;LH113,114,115,RZH104,112,114,125..SG;LH104,105,112,RZH105,113,115..LHD..SG..STD L=38 |
2 | ||
| 79199-95J00 |
LH113,114,115,125,RZH104,112,114,125..SG;LH104,105,112,RZH105,113,115..LHD..SG..STD L=38 |
2 | ||
| 79199-95J00 |
RZH113..06S..CBR;LH10#,11#,125,166,172,176,184,RZH10#,112,114,115,125..06S,12S,14S,15S |
2 | ||
| 79199-95J00 |
RZH104..STD;RZH112..EFI;LH112,RZH112,114..LHD..SG..GEN;LH10#,113,114,115,125,RZH102,103,105,113,115..(SMRF,SRF)..(06S,12S,15S)..(CBR,DSL) L=38 |
2 | ||
| 79199-95J00 |
RZH112,113..5D..06S;RZH113,114..08S,15S;LH174,RZH102..SG..STD;LH10#,11#,125,16#,172,176,184,RZH103,104,105,115,125..(06S,10S,12S,14S,15S)..(GL,STD) |
2 | ||
| 79378 - COVER, NO.3 SEAT CUSHION HINGE | ||||
| 79378-95J0003 |
LH104,105,114,115,125,RZH104,114,125 GRAY,TRIM1# |
2 | ||
| 79378-26010B0 |
LH125..ARL;LH104,105,114,115,RZH104,105,114,115,125 GRAY,TRIM1# |
2 | ||
| 79378-26010B0 |
LH104,105,114,115,125,RZH104,105,114,115,125 GRAY,TRIM1# |
2 | ||
| 79405 - LEG SUB-ASSY, NO.4 SEAT, FRONT | ||||
| 79405-26010 |
LH125..ARL;LH104,105,114,115,RZH104,105,114,115,125 LH |
1 | ||
| 79405-26010 |
LH104,105,114,115,125,RZH104,105,114,115,125 LH |
1 | ||
| 79405-95J03 |
LH104,105,114,115,125,RZH104,114,125 RH |
1 | ||
| 79433-26010 |
LH104,105,166,RZH104,105 LH |
1 | ||
| 79405-95J01 |
LH104,105,114,115,125,RZH104,114,125 LH |
1 | ||
| 79405-26020 |
LH104,105,114,115,125,RZH104,105,114,115,125 RH |
1 | ||
| 79432-26030 |
LH104,105,166,RZH104,105 RH |
1 | ||
| 79405-26020 |
LH125..ARL;LH104,105,114,115,RZH104,105,114,115,125 RH |
1 | ||
| 79405 - LEG SUB-ASSY, NO.4 SEAT, FRONT | ||||
| 79405-26010 |
LH125..ARL;LH104,105,114,115,RZH104,105,114,115,125 LH |
1 | ||
| 79405-26010 |
LH104,105,114,115,125,RZH104,105,114,115,125 LH |
1 | ||
| 79405-95J03 |
LH104,105,114,115,125,RZH104,114,125 RH |
1 | ||
| 79433-26010 |
LH104,105,166,RZH104,105 LH |
1 | ||
| 79405-95J01 |
LH104,105,114,115,125,RZH104,114,125 LH |
1 | ||
| 79405-26020 |
LH104,105,114,115,125,RZH104,105,114,115,125 RH |
1 | ||
| 79432-26030 |
LH104,105,166,RZH104,105 RH |
1 | ||
| 79405-26020 |
LH125..ARL;LH104,105,114,115,RZH104,105,114,115,125 RH |
1 | ||
| 79406 - LEG SUB-ASSY, NO.4 SEAT, REAR | ||||
| 79406-95J00 |
LH104,105,RZH104 W(FOLDING REAR SEAT) |
1 | ||
| 79406-95J03 |
LH104,105,166,RZH104,105 |
1 | ||
| 79420A - CUSHION ASSY, NO.4 SEAT | ||||
| 79420-95J21B0 |
LH104,114,115,RZH104,114..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79420-95J2103 |
LH104,105,114,115,RZH104,114 GRAY,TRIM1# |
1 | ||
| 79420-95J21B7 |
LH104,114,115,RZH104,114,115..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79420-26170B0 |
RZH104;RZH114,115..LHD..15S;LH104,105,114,115,166,176,RZH105..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79420-95J21P4 |
RZH114,115..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..CIS,GEN W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79420-95J21P1 |
LH104,114,115,RZH104,105,114,115..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79420-26160B0 |
RZH114,115..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79420-26160B3 |
LH174..15S..(CIS,GEN);LH104,105,114,115,164,166,176,RZH104,105,114,115..(12S,15S)..STD..(CIS,GEN) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79420-95J21P7 |
RZH104,105..RHD SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79435 - PAD, NO.4 SEAT CUSHION | ||||
| 79045-95J01 |
RZH114,115..15S..(CIS,GEN);LH104,105,114,115,125,166,176,184,RZH104,105..CIS,GEN |
1 | ||
| 79045-95J02 |
RZH104;RZH114,115..LHD..15S;LH104,105,114,115,166,176,RZH105..LHD W(FOLDING REAR SEAT) |
1 | ||
| 79045-95J01 |
LH104,105,114,115,RZH104,114..CIS,GEN |
1 | ||
| 79045-95J01 |
LH174,RZH114,115..15S..(CIS,GEN);LH104,105,114,115,164,166,176,184,RZH104,105..(12S,15S)..(CIS,GEN) |
1 | ||
| 79440A - BACK ASSY, NO.4 SEAT | ||||
| 79440-95J1503 |
LH104,105,RZH104 W(FOLDING REAR SEAT),GRAY,TRIM1# |
1 | ||
| 79440-95J2203 |
LH104,105,114,115,RZH104,114 GRAY,TRIM1# |
1 | ||
| 79440-95J22B6 |
LH104,114,115,RZH104,114,115..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79440-95J22B0 |
LH104,114,115,RZH104,114..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79440-95J22B8 |
LH104,114,115,RZH104,105,114,115..CIS,GEN FOAMED LEATHER SEAT,BLUISH GRAY,TRIM1# |
1 | ||
| 79440-26060B0 |
RZH114,115..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79440-26110B0 |
LH104,RZH104,105..GEN W(FABRIC SEAT & HEADREST),BLUISH GRAY,TRIM1# |
1 | ||
| 79440-95J22P1 |
RZH114,115..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..CIS,GEN FOAMED LEATHER SEAT,BLUISH GRAY,TRIM1# |
1 | ||
| 79440-26060B5 |
LH174..15S..(CIS,GEN);LH104,105,114,115,164,166,176,RZH104,105,114,115..(12S,15S)..STD..(CIS,GEN) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79440-95J22P4 |
RZH104,105..RHD SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79475 - PAD, NO.4 SEAT BACK | ||||
| 79047-95J02 |
RZH114,115..12S;LH104,184,RZH104,105..GEN W(FABRIC SEAT) |
1 | ||
| 79047-95J00 |
RZH114,115..15S;LH104,105,114,115,166,176,RZH104,105 |
1 | ||
| 79047-95J00 |
LH174,RZH114,115..15S;LH104,105,114,115,164,166,176,RZH104,105 |
1 | ||
| Common parts | ||||
| 90105-10161 | ||||
| 90119-10315 | ||||
| 90119-10409 | ||||
| 90119-11008 | ||||
| 90159-60280 | ||||
| 90164-50020 | ||||
| 90167-40044 | ||||
| 90168-40078 | ||||
| 90386-13016 | ||||
| 90468-18071 | ||||
| 90506-23023 | ||||
| 90523-06017 | ||||
| 91612-B1020 | ||||
| 93530-54016 | ||||
| 96160-00600 | ||||

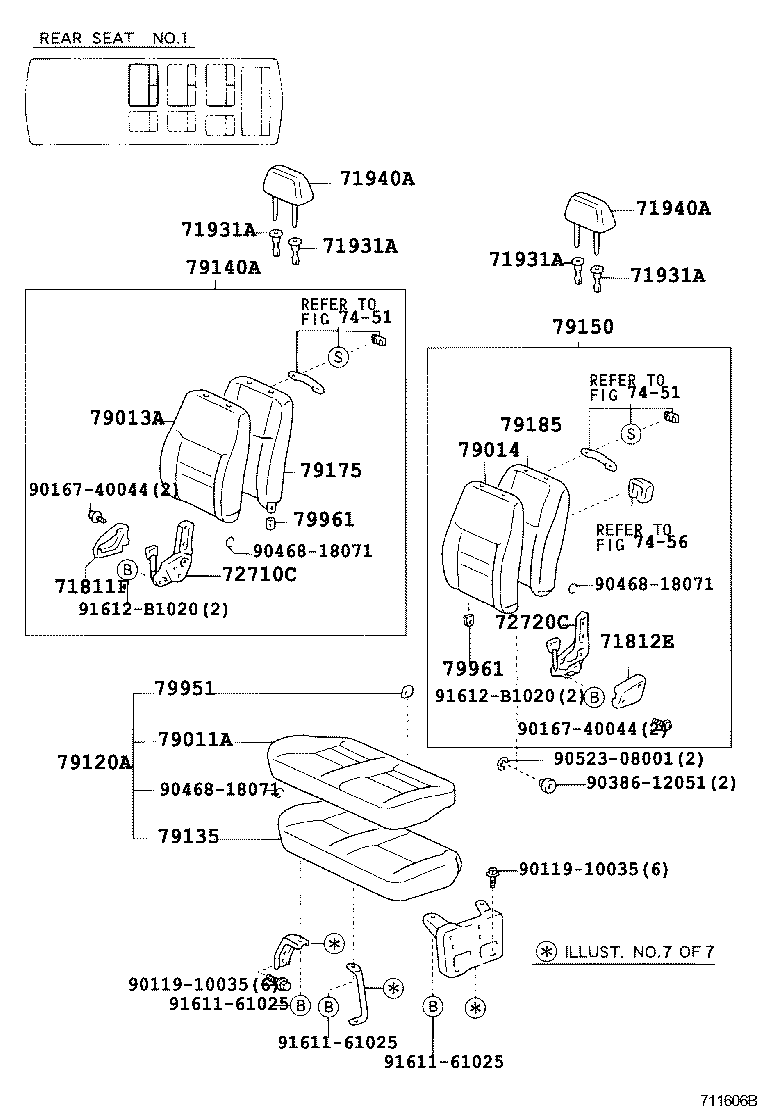

ILLUST NO. 1 OF 7(9411- )LH125,184..GEN ; (9808- )RZH104,105..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811F - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-95J01B0 |
RZH114,115..12S;LH104,184,RZH104,105..GEN GRAY,TRIM1#,NO.1,3 SEAT |
2 | ||
| 71812E - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-95400B0 |
LH104,RZH104,105,114,115..12S..GEN GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-26010B0 |
LH104,RZH104,105,114,115..12S..GEN W(LOCK),BLUISH GRAY,TRIM1# |
3 | ||
| 71931-26010B0 |
LH104,RZH104,105,114,115..12S..GEN W/O(LOCK),BLUISH GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-26010B0 |
LH104,RZH104,105,114,115..12S..GEN W(LOCK),BLUISH GRAY,TRIM1# |
3 | ||
| 71931-26010B0 |
LH104,RZH104,105,114,115..12S..GEN W/O(LOCK),BLUISH GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-26010B0 |
LH104,RZH104,105,114,115..12S..GEN W(LOCK),BLUISH GRAY,TRIM1# |
3 | ||
| 71931-26010B0 |
LH104,RZH104,105,114,115..12S..GEN W/O(LOCK),BLUISH GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-26010B0 |
LH104,RZH104,105,114,115..12S..GEN W(LOCK),BLUISH GRAY,TRIM1# |
3 | ||
| 71931-26010B0 |
LH104,RZH104,105,114,115..12S..GEN W/O(LOCK),BLUISH GRAY,TRIM1# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-26060B0 |
LH104,RZH104,105..GEN BLUISH GRAY,TRIM1# |
2 | ||
| 71910-95J35B0 |
LH104,184,RZH104,105..GEN BLUISH GRAY,TRIM1#,NO.4 SEAT |
1 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-26060B0 |
LH104,RZH104,105..GEN BLUISH GRAY,TRIM1# |
2 | ||
| 71910-95J35B0 |
LH104,184,RZH104,105..GEN BLUISH GRAY,TRIM1#,NO.4 SEAT |
1 | ||
| 72710C - ADJUSTER ASSY, NO.1 SEAT RECLINING, RH | ||||
| 72710-95J02B0 |
LH104,RZH104,105,114,115..12S..GEN BLUISH GRAY,TRIM1# |
2 | ||
| 72720C - ADJUSTER ASSY, NO.1 SEAT RECLINING, LH | ||||
| 72720-95J0511 |
LH104,RZH104,105,114,115..12S..GEN BLUISH GRAY,TRIM1# |
2 | ||
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79011-95N0803 |
LH104,105,114,115,RZH104,114 GRAY,TRIM1# |
1 | ||
| 79011-95N08B2 |
LH104,114,115,RZH104,114..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79011-95N08B0 |
LH104,114,115,RZH104,114,115..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79011-95N08B2 |
LH104,114,115,RZH104,105,114,115..CIS,GEN W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79011-26620B0 |
LH104,RZH104,105..GEN W(FABRIC SEAT & HEADREST),BLUISH GRAY,TRIM1# |
1 | ||
| 79011-26610B0 |
LH114..RHD;RZH114,115..15S..(CIS,GEN);LH104,105,115,166,176,RZH104,105..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79011-95N08B3 |
RZH114,115..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..CIS,GEN W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79011-26610B0 |
RZH104,105..RHD SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79013A - COVER SUB-ASSY, NO.1 SEAT BACK | ||||
| 79013-95J8903 |
LH104,105,114,115,RZH104,114..RHD GRAY,TRIM1# |
1 | ||
| 79013-95J89B3 |
LH114,115,RZH104,114,115..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 79013-95J89B2 |
LH114,115,RZH104,114..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26580B0 |
LH114,115,RZH104,114..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 79013-95J89B2 |
LH114,115,RZH104,114,115..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26321B1 |
LH104,RZH104,105..GEN W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26660B0 |
LH114,115,RZH104,114..RHD W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26580B2 |
RZH104,105..RHD SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79014-26131B1 |
LH104,RZH104,105..GEN W(FABRIC SEAT & HEADREST),BLUISH GRAY,TRIM1# |
1 | ||
| 79120A - CUSHION ASSY, NO.1 SEAT | ||||
| 79120-95N1803 |
LH104,105,114,115,RZH104,114 GRAY,TRIM1# |
1 | ||
| 79120-95N18B0 |
LH104,114,115,RZH104,114..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79120-95N18B4 |
LH104,114,115,RZH104,114,115..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79120-95N18B6 |
LH104,114,115,RZH104,105,114,115..CIS,GEN SEAT = TYPE N-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79120-26680B0 |
RZH114,115..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79120-95N18B8 |
RZH114,115..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..CIS,GEN W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79120-26690B0 |
RZH104..RHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79135 - PAD, NO.1 SEAT CUSHION | ||||
| 79015-95J00 |
RZH114,115..15S;LH104,105,114,115,166,176,RZH104,105 |
1 | ||
| 79015-95J01 |
LH184,RZH104..RHD W(HEADREST) |
1 | ||
| 79140A - BACK ASSY, NO.1 SEAT | ||||
| 79140-95N1503 |
LH104,105,114,115,RZH104,114..RHD GRAY,TRIM1# |
1 | ||
| 79140-95N15B0 |
LH114,115,RZH104,114..RHD BLUEISH GRAY,TRIM1# |
1 | ||
| 79140-95N15B4 |
LH114,115,RZH104,114,115..RHD BLUEISH GRAY,TRIM1# |
1 | ||
| 79140-26360B0 |
LH114,115,RZH104,114,115..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 79140-26371B1 |
LH114,115,RZH104,114..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 79140-26361B1 |
LH114,115,RZH104,114..RHD W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79140-26371 |
LH115,RZH104,105..RHD |
1 | ||
| 79140-26800B0 |
RZH104..RHD W(FABRIC SEAT & HEADREST),BLUISH GRAY,TRIM1# |
2 | ||
| 79150 - BACK ASSY, NO.1 SEAT, LH | ||||
| 79150-26082B2 |
LH104,RZH104,105..GEN W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79175 - PAD, NO.1 SEAT BACK | ||||
| 79017-26031 |
RZH114,115..12S;LH184,RZH104..RHD W(FABRIC SEAT) |
1 | ||
| 79017-95J00 |
RZH114,115..15S;LH104,105,114,115,166,176,RZH104,105 |
1 | ||
| 79185 - PAD, NO.1 SEAT BACK, LH | ||||
| 79018-26011 |
RZH114,115..12S;LH184,RZH104..RHD |
1 | ||
| 79951 - COVER, NO.1 SEAT CUSHION | ||||
| 79951-95J01B0 |
LH104,RZH104,105,114,115..12S..GEN BLUISH GRAY,TRIM1# |
4 | ||
| 79961 - COVER, NO.1 SEAT BACK | ||||
| 79961-95J02B0 |
LH104,105,RZH104 BLUISH GRAY,TRIM1#,RH |
2 | ||
| 79961-95J03B0 |
LH104,105,RZH104 BLUISH GRAY,TRIM1#,LH |
2 | ||
| 79961-95J03B0 |
LH104,RZH104,105 BLUISH GRAY,TRIM1#,LH |
2 | ||
| 79961-95J0203 |
LH104,105,RZH104 GRAY,TRIM1#,RH |
2 | ||
| 79961-95J0303 |
LH104,105,RZH104 GRAY,TRIM1#,LH |
2 | ||
| 79961-95J02B0 |
LH104,RZH104,105 BLUISH GRAY,TRIM1#,RH |
2 | ||
| 79961-95J04B0 |
LH104,RZH104,105,114,115..12S..GEN BLUISH GRAY,TRIM1# |
4 | ||
| 79961 - COVER, NO.1 SEAT BACK | ||||
| 79961-95J02B0 |
LH104,105,RZH104 BLUISH GRAY,TRIM1#,RH |
2 | ||
| 79961-95J03B0 |
LH104,105,RZH104 BLUISH GRAY,TRIM1#,LH |
2 | ||
| 79961-95J03B0 |
LH104,RZH104,105 BLUISH GRAY,TRIM1#,LH |
2 | ||
| 79961-95J0203 |
LH104,105,RZH104 GRAY,TRIM1#,RH |
2 | ||
| 79961-95J0303 |
LH104,105,RZH104 GRAY,TRIM1#,LH |
2 | ||
| 79961-95J02B0 |
LH104,RZH104,105 BLUISH GRAY,TRIM1#,RH |
2 | ||
| 79961-95J04B0 |
LH104,RZH104,105,114,115..12S..GEN BLUISH GRAY,TRIM1# |
4 | ||
| Common parts | ||||
| 90119-10035 | ||||
| 90167-40044 | ||||
| 90386-12051 | ||||
| 90468-18071 | ||||
| 90523-08001 | ||||
| 91611-61025 | ||||
| 91612-B1020 | ||||
| Linked diagrams | ||||
| 7451 | ||||
| 7456 | ||||
ILLUST NO. 2 OF 7(9411- )LH125,184..GEN ; (9808- )RZH104,105..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811F - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-95J01B0 |
RZH114,115..12S;LH104,184,RZH104,105..GEN GRAY,TRIM1#,NO.1,3 SEAT |
2 | ||
| 71812E - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-95400B0 |
LH104,RZH104,105,114,115..12S..GEN GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-26010B0 |
LH104,RZH104,105,114,115..12S..GEN W(LOCK),BLUISH GRAY,TRIM1# |
3 | ||
| 71931-26010B0 |
LH104,RZH104,105,114,115..12S..GEN W/O(LOCK),BLUISH GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-26010B0 |
LH104,RZH104,105,114,115..12S..GEN W(LOCK),BLUISH GRAY,TRIM1# |
3 | ||
| 71931-26010B0 |
LH104,RZH104,105,114,115..12S..GEN W/O(LOCK),BLUISH GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-26010B0 |
LH104,RZH104,105,114,115..12S..GEN W(LOCK),BLUISH GRAY,TRIM1# |
3 | ||
| 71931-26010B0 |
LH104,RZH104,105,114,115..12S..GEN W/O(LOCK),BLUISH GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-26010B0 |
LH104,RZH104,105,114,115..12S..GEN W(LOCK),BLUISH GRAY,TRIM1# |
3 | ||
| 71931-26010B0 |
LH104,RZH104,105,114,115..12S..GEN W/O(LOCK),BLUISH GRAY,TRIM1# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-26060B0 |
LH104,RZH104,105..GEN BLUISH GRAY,TRIM1# |
2 | ||
| 71910-95J35B0 |
LH104,184,RZH104,105..GEN BLUISH GRAY,TRIM1#,NO.4 SEAT |
1 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-26060B0 |
LH104,RZH104,105..GEN BLUISH GRAY,TRIM1# |
2 | ||
| 71910-95J35B0 |
LH104,184,RZH104,105..GEN BLUISH GRAY,TRIM1#,NO.4 SEAT |
1 | ||
| 72710C - ADJUSTER ASSY, NO.1 SEAT RECLINING, RH | ||||
| 72710-95J02B0 |
LH104,RZH104,105,114,115..12S..GEN BLUISH GRAY,TRIM1# |
2 | ||
| 72720C - ADJUSTER ASSY, NO.1 SEAT RECLINING, LH | ||||
| 72720-95J0511 |
LH104,RZH104,105,114,115..12S..GEN BLUISH GRAY,TRIM1# |
2 | ||

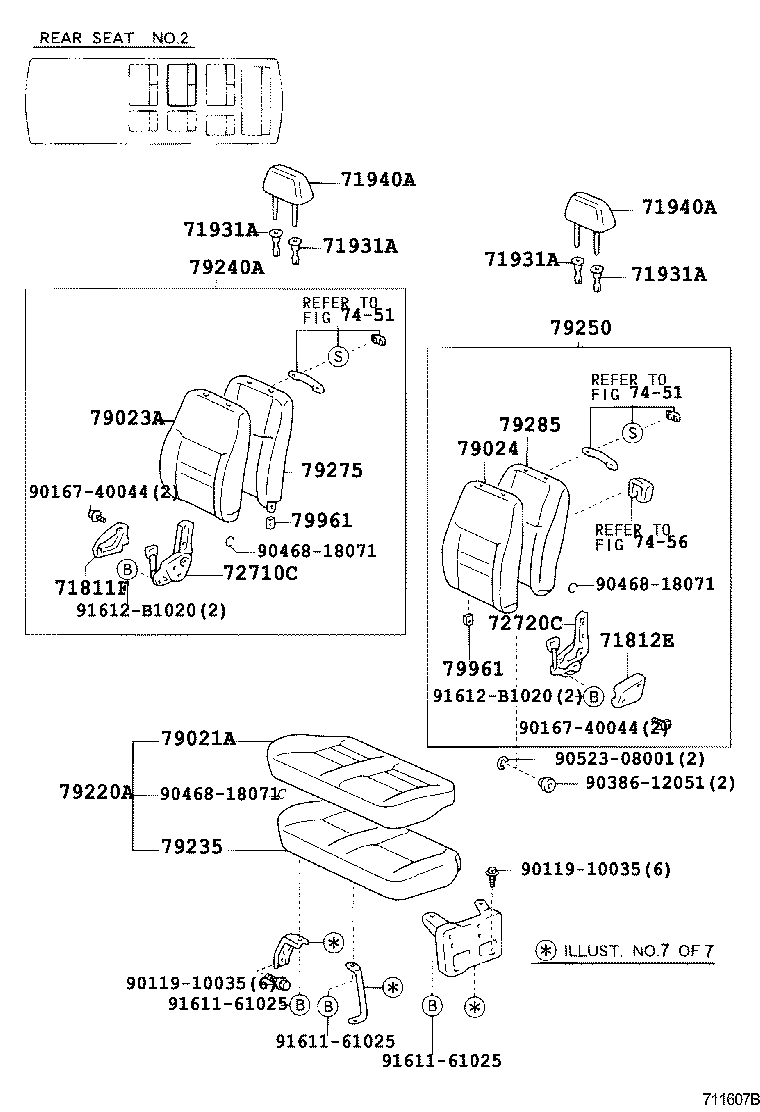

| 79021A - COVER SUB-ASSY, NO.2 SEAT CUSHION | ||||
| 79021-95J5503 |
LH104,105,RZH104..RHD GRAY,TRIM1# |
1 | ||
| 79021-95J55B3 |
RZH104..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 79021-95J55B3 |
RZH104..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 79021-95J55B0 |
RZH104..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 79031-26390B0 |
RZH104,105..RHD SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79023A - COVER SUB-ASSY, NO.2 SEAT BACK | ||||
| 79013-95J8903 |
LH104,105,114,115,RZH104,114..RHD GRAY,TRIM1# |
1 | ||
| 79013-95J89B2 |
LH114,115,RZH104,114..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 79013-95J89B3 |
LH114,115,RZH104,114,115..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 79013-95J89B2 |
LH114,115,RZH104,114,115..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26321B1 |
LH104,RZH104,105..GEN W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26580B0 |
LH114,115,RZH104,114..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26660B0 |
LH114,115,RZH104,114..RHD W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26580B2 |
RZH104,105..RHD SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79014-26131B1 |
LH104,RZH104,105..GEN W(FABRIC SEAT & HEADREST),BLUISH GRAY,TRIM1# |
1 | ||
| 79220A - CUSHION ASSY, NO.2 SEAT | ||||
| 79220-95J6903 |
LH104,105,RZH104..RHD GRAY,TRIM1# |
1 | ||
| 79220-95J69B1 |
RZH104..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 79220-95J69B6 |
RZH104..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 79220-95J69B8 |
LH114,115,RZH104,115..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 79220-95J69P1 |
RZH104..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 79235 - PAD, NO.2 SEAT CUSHION | ||||
| 79025-95J01 |
LH104,105,RZH104..RHD |
1 | ||
| 79240A - BACK ASSY, NO.2 SEAT | ||||
| 79140-95N1503 |
LH104,105,114,115,RZH104,114..RHD GRAY,TRIM1# |
1 | ||
| 79140-95N15B0 |
LH114,115,RZH104,114..RHD BLUEISH GRAY,TRIM1# |
1 | ||
| 79140-95N15B4 |
LH114,115,RZH104,114,115..RHD BLUEISH GRAY,TRIM1# |
1 | ||
| 79140-26360B0 |
LH114,115,RZH104,114,115..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 79140-26371B1 |
LH114,115,RZH104,114..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 79140-26371 |
LH115,RZH104,105..RHD |
1 | ||
| 79250 - BACK ASSY, NO.2 SEAT, LH | ||||
| 79150-26082B2 |
LH104,RZH104,105..GEN W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79275 - PAD, NO.2 SEAT BACK | ||||
| 79017-95J00 |
RZH114,115..15S;LH104,105,114,115,166,176,RZH104,105 |
1 | ||
| 79017-26031 |
RZH114,115..12S;LH104,184,RZH104,105..GEN W(HEADREST) |
1 | ||
| 79285 - PAD, NO.2 SEAT BACK, LH | ||||
| 79018-26011 |
RZH114,115..12S;LH104,184,RZH104,105..GEN |
1 | ||
| 79961 - COVER, NO.1 SEAT BACK | ||||
| 79961-95J02B0 |
LH104,105,RZH104 BLUISH GRAY,TRIM1#,RH |
2 | ||
| 79961-95J03B0 |
LH104,105,RZH104 BLUISH GRAY,TRIM1#,LH |
2 | ||
| 79961-95J03B0 |
LH104,RZH104,105 BLUISH GRAY,TRIM1#,LH |
2 | ||
| 79961-95J0203 |
LH104,105,RZH104 GRAY,TRIM1#,RH |
2 | ||
| 79961-95J0303 |
LH104,105,RZH104 GRAY,TRIM1#,LH |
2 | ||
| 79961-95J02B0 |
LH104,RZH104,105 BLUISH GRAY,TRIM1#,RH |
2 | ||
| 79961-95J04B0 |
LH104,RZH104,105,114,115..12S..GEN BLUISH GRAY,TRIM1# |
4 | ||
| 79961 - COVER, NO.1 SEAT BACK | ||||
| 79961-95J02B0 |
LH104,105,RZH104 BLUISH GRAY,TRIM1#,RH |
2 | ||
| 79961-95J03B0 |
LH104,105,RZH104 BLUISH GRAY,TRIM1#,LH |
2 | ||
| 79961-95J03B0 |
LH104,RZH104,105 BLUISH GRAY,TRIM1#,LH |
2 | ||
| 79961-95J0203 |
LH104,105,RZH104 GRAY,TRIM1#,RH |
2 | ||
| 79961-95J0303 |
LH104,105,RZH104 GRAY,TRIM1#,LH |
2 | ||
| 79961-95J02B0 |
LH104,RZH104,105 BLUISH GRAY,TRIM1#,RH |
2 | ||
| 79961-95J04B0 |
LH104,RZH104,105,114,115..12S..GEN BLUISH GRAY,TRIM1# |
4 | ||
| Common parts | ||||
| 90119-10035 | ||||
| 90167-40044 | ||||
| 90386-12051 | ||||
| 90468-18071 | ||||
| 90523-08001 | ||||
| 91611-61025 | ||||
| 91612-B1020 | ||||
| Linked diagrams | ||||
| 7451 | ||||
| 7456 | ||||

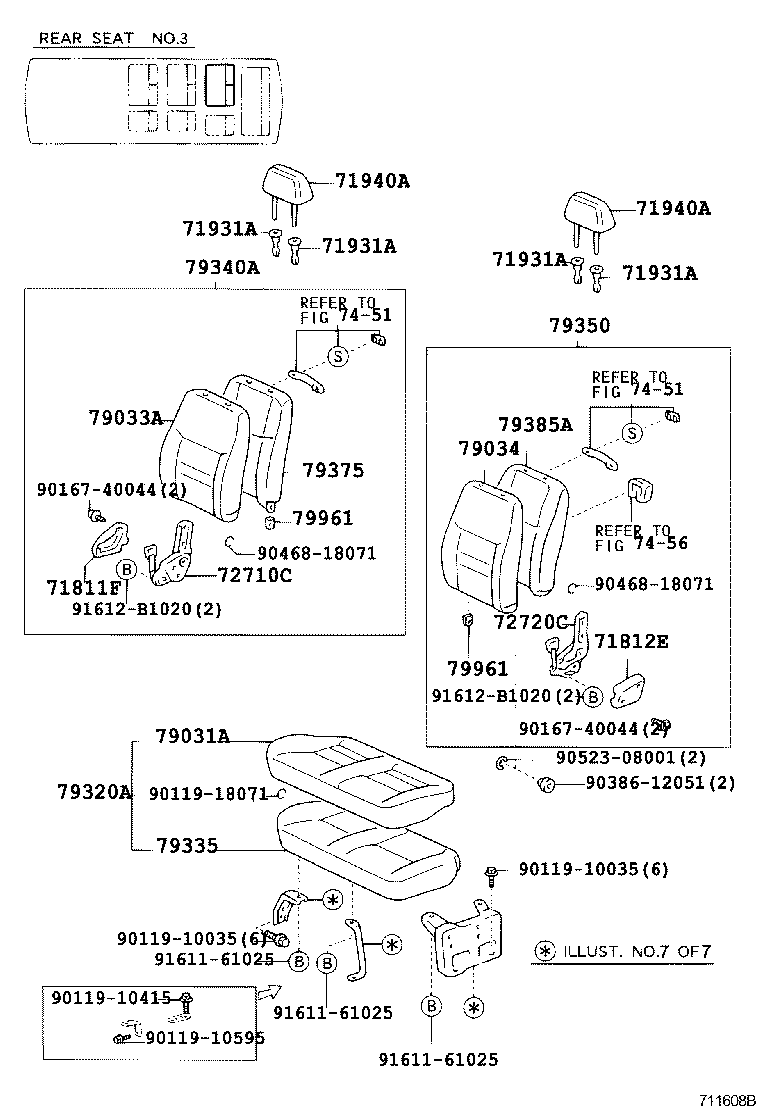

ILLUST NO. 3 OF 7(9411- )LH125,184..GEN ; (9808- )RZH104,105..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811F - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-95J01B0 |
RZH114,115..12S;LH104,184,RZH104,105..GEN GRAY,TRIM1#,NO.1,3 SEAT |
2 | ||
| 71812E - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-95400B0 |
LH104,RZH104,105,114,115..12S..GEN GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-26010B0 |
LH104,RZH104,105,114,115..12S..GEN W(LOCK),BLUISH GRAY,TRIM1# |
3 | ||
| 71931-26010B0 |
LH104,RZH104,105,114,115..12S..GEN W/O(LOCK),BLUISH GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-26010B0 |
LH104,RZH104,105,114,115..12S..GEN W(LOCK),BLUISH GRAY,TRIM1# |
3 | ||
| 71931-26010B0 |
LH104,RZH104,105,114,115..12S..GEN W/O(LOCK),BLUISH GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-26010B0 |
LH104,RZH104,105,114,115..12S..GEN W(LOCK),BLUISH GRAY,TRIM1# |
3 | ||
| 71931-26010B0 |
LH104,RZH104,105,114,115..12S..GEN W/O(LOCK),BLUISH GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-26010B0 |
LH104,RZH104,105,114,115..12S..GEN W(LOCK),BLUISH GRAY,TRIM1# |
3 | ||
| 71931-26010B0 |
LH104,RZH104,105,114,115..12S..GEN W/O(LOCK),BLUISH GRAY,TRIM1# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-26060B0 |
LH104,RZH104,105..GEN BLUISH GRAY,TRIM1# |
2 | ||
| 71910-95J35B0 |
LH104,184,RZH104,105..GEN BLUISH GRAY,TRIM1#,NO.4 SEAT |
1 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-26060B0 |
LH104,RZH104,105..GEN BLUISH GRAY,TRIM1# |
2 | ||
| 71910-95J35B0 |
LH104,184,RZH104,105..GEN BLUISH GRAY,TRIM1#,NO.4 SEAT |
1 | ||
| 72710C - ADJUSTER ASSY, NO.1 SEAT RECLINING, RH | ||||
| 72710-95J02B0 |
LH104,RZH104,105,114,115..12S..GEN BLUISH GRAY,TRIM1# |
2 | ||
| 72720C - ADJUSTER ASSY, NO.1 SEAT RECLINING, LH | ||||
| 72720-95J0511 |
LH104,RZH104,105,114,115..12S..GEN BLUISH GRAY,TRIM1# |
2 | ||
| 79031A - COVER SUB-ASSY, NO.3 SEAT CUSHION | ||||
| 79021-95J55B4 |
LH114,115,RZH104,114..RHD W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79031-26400B0 |
RZH104..RHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79320A - CUSHION ASSY, NO.3 SEAT | ||||
| 79320-26430B0 |
RZH104..RHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79320-26420B0 |
LH114,115,RZH104,114..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 79335 - PAD, NO.3 SEAT CUSHION | ||||
| 79035-95J02 |
RZH104..RHD W(HEADREST) |
1 | ||
| 79025-95J01 |
LH114,115,RZH104,114..RHD |
1 | ||
| 79961 - COVER, NO.1 SEAT BACK | ||||
| 79961-95J02B0 |
LH104,105,RZH104 BLUISH GRAY,TRIM1#,RH |
2 | ||
| 79961-95J03B0 |
LH104,105,RZH104 BLUISH GRAY,TRIM1#,LH |
2 | ||
| 79961-95J03B0 |
LH104,RZH104,105 BLUISH GRAY,TRIM1#,LH |
2 | ||
| 79961-95J0203 |
LH104,105,RZH104 GRAY,TRIM1#,RH |
2 | ||
| 79961-95J0303 |
LH104,105,RZH104 GRAY,TRIM1#,LH |
2 | ||
| 79961-95J02B0 |
LH104,RZH104,105 BLUISH GRAY,TRIM1#,RH |
2 | ||
| 79961-95J04B0 |
LH104,RZH104,105,114,115..12S..GEN BLUISH GRAY,TRIM1# |
4 | ||
| 79961 - COVER, NO.1 SEAT BACK | ||||
| 79961-95J02B0 |
LH104,105,RZH104 BLUISH GRAY,TRIM1#,RH |
2 | ||
| 79961-95J03B0 |
LH104,105,RZH104 BLUISH GRAY,TRIM1#,LH |
2 | ||
| 79961-95J03B0 |
LH104,RZH104,105 BLUISH GRAY,TRIM1#,LH |
2 | ||
| 79961-95J0203 |
LH104,105,RZH104 GRAY,TRIM1#,RH |
2 | ||
| 79961-95J0303 |
LH104,105,RZH104 GRAY,TRIM1#,LH |
2 | ||
| 79961-95J02B0 |
LH104,RZH104,105 BLUISH GRAY,TRIM1#,RH |
2 | ||
| 79961-95J04B0 |
LH104,RZH104,105,114,115..12S..GEN BLUISH GRAY,TRIM1# |
4 | ||
| Common parts | ||||
| 90119-10035 | ||||
| 90119-10415 | ||||
| 90119-10595 | ||||
| 90119-18071 | ||||
| 90167-40044 | ||||
| 90386-12051 | ||||
| 90468-18071 | ||||
| 90523-08001 | ||||
| 91611-61025 | ||||
| 91612-B1020 | ||||
| Linked diagrams | ||||
| 7451 | ||||
| 7456 | ||||

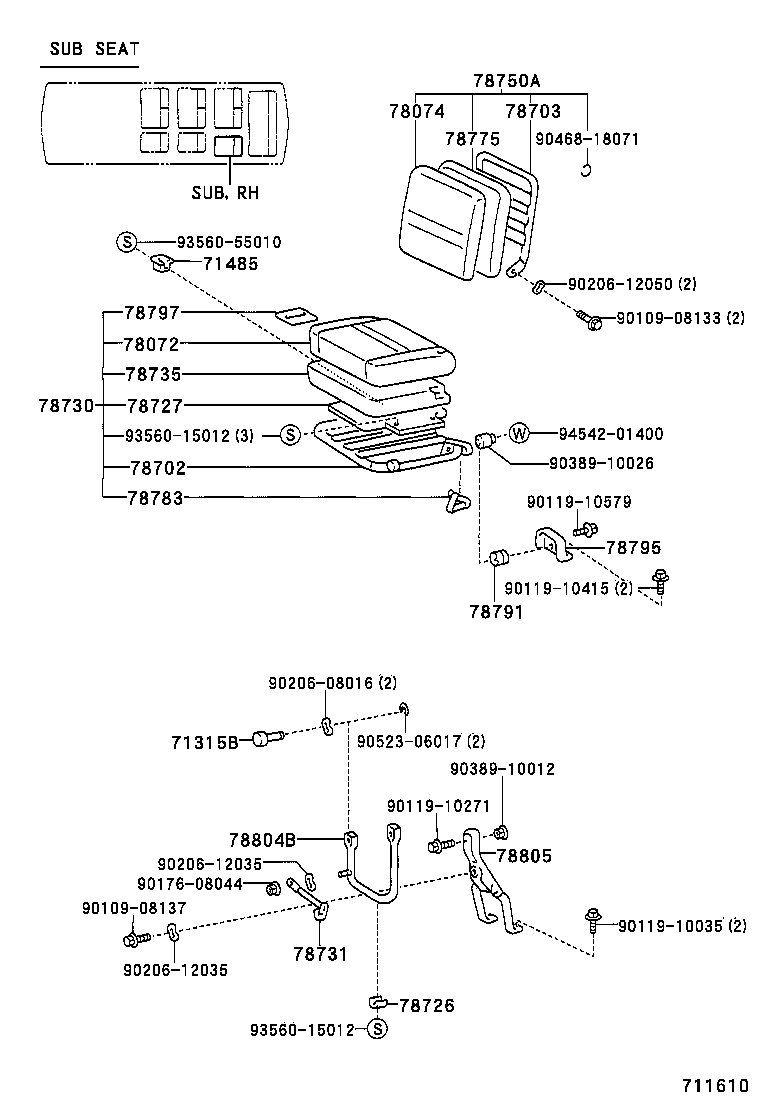

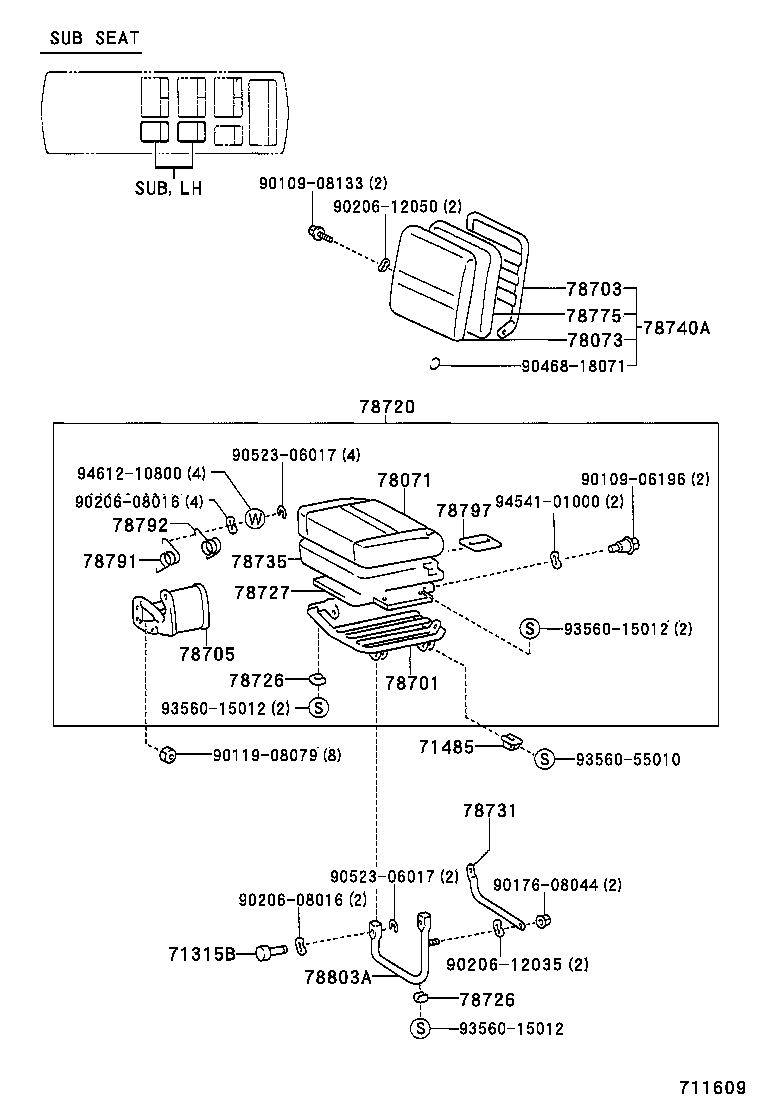

ILLUST NO. 4 OF 7(9411- )LH125,184..GEN ; (9808- )RZH104,105..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71315B - PIN, REAR SEAT HINGE | ||||
| 71315-95J02 |
LH104,105,RZH104,105 |
4 | ||
| 71315-95J02 |
LH104,105,166,RZH104,105,114,115..12S |
4 | ||
| 71315-95J02 |
LH104,114,115,125,RZH104,105,114,115..12S,15S |
4 | ||
| 71315-95J02 |
LH104,105,125,RZH104,105..12S,15S |
4 | ||
| 71485 - COVER, REAR SEAT HINGE | ||||
| 71485-95J0103 |
LH104,114,115,RZH104,114 GRAY,TRIM1#,NO.4 SEAT |
1 | ||
| 71485-95J02B0 |
LH104,105,RZH104,105 BLUISH GRAY,TRIM1#,SUB SEAT HINGE |
4 | ||
| 71485-95J0103 |
LH104,105,114,115,125,RZH104,114,125 GRAY,TRIM1#,NO.4 SEAT |
1 | ||
| 71485-95J0203 |
LH104,105,RZH104 GRAY,TRIM1#,SUB SEAT HINGE |
4 | ||
| 71485-95J02B0 |
LH104,105,125,RZH104,105..12S,15S BLUISH GRAY,TRIM1#,SUB SEAT HINGE |
4 | ||
| 71485-95J02B0 |
LH104,105,166,RZH104,105,114,115..12S BLUISH GRAY,TRIM1#,SUB SEAT HINGE |
4 | ||
| 71485-95J02B0 |
LH104,114,115,125,RZH104,105,114,115 BLUISH GRAY,TRIM1#,SUB SEAT HINGE |
4 | ||
| 78071 - COVER SUB-ASSY, SUB SEAT CUSHION, RH | ||||
| 78071-95J08B2 |
LH114,115,RZH104,114..RHD BLUISH GRAY,TRIM1# |
2 | ||
| 78071-95J08B2 |
LH114,115,125,RZH104,114,115..RHD..GEN BLUISH GRAY,TRIM1# |
2 | ||
| 78071-26020B1 |
LH114,115,125,RZH104,114,115..RHD..GEN BLUISH GRAY,TRIM1# |
2 | ||
| 78071-95J0803 |
LH104,105,114,115,RZH104,114..RHD GRAY,TRIM1# |
2 | ||
| 78071-26020B2 |
LH114,115,184,RZH104,114..RHD W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 78071-26051B1 |
LH114,115,184,RZH104,114..RHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 78071-26061B1 |
RZH104..RHD BLUISH GRAY,TRIM1# |
2 | ||
| 78071-26051B1 |
RZH104,105..RHD SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
2 | ||
| 78071-26020B2 |
RZH104,105..RHD SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
2 | ||
| 78073 - COVER SUB-ASSY, SUB SEAT BACK, RH | ||||
| 78073-95J08B2 |
LH114,115,RZH104,114..RHD BLUISH GRAY,TRIM1# |
2 | ||
| 78073-95J0803 |
LH104,105,114,115,RZH104,114..RHD GRAY,TRIM1# |
2 | ||
| 78073-95J08B0 |
LH114,115,125,RZH104,114,115..RHD..GEN BLUISH GRAY,TRIM1# |
2 | ||
| 78073-95J08B2 |
LH114,115,125,RZH104,114,115..RHD..GEN BLUISH GRAY,TRIM1# |
2 | ||
| 78073-95J08B2 |
LH114,115,125,RZH104,114..RHD..GEN BLUISH GRAY,TRIM1# |
2 | ||
| 78073-26060B0 |
LH114,115,184,RZH104,114..RHD BLUISH GRAY,TRIM1# |
2 | ||
| 78073-26060B0 |
RZH104,105..RHD SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
2 | ||
| 78073-26070B0 |
RZH104..RHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 78073-26090B1 |
LH114,115,184,RZH104,114..RHD W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 78073-26090B1 |
RZH104,105..RHD SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
2 | ||
| 78701 - FRAME SUB-ASSY, SUB SEAT CUSHION, RH | ||||
| 78701-26030 |
LH104,114,115,RZH104,114..RHD |
2 | ||
| 78701-95J03 |
LH104,105,114,115,RZH104,114..RHD |
2 | ||
| 78701-26030 |
LH114,115,125,184,RZH104,114,115..RHD..GEN |
2 | ||
| 78701-26030 |
LH174..RHD..15S;LH114,115,184,RZH104,105,114..RHD..GEN |
2 | ||
| 78703 - FRAME SUB-ASSY, SUB SEAT BACK | ||||
| 78703-95J01 |
LH104,105,166,RZH104,105,114,115..12S |
2 | ||
| 78705 - BRACKET SUB-ASSY, SUB SEAT CUSHION | ||||
| 78705-95J04 |
LH104,105,114,115,125,RZH104,114,125..RHD |
2 | ||
| 78705-95J04 |
LH114,115,125,184,RZH104,114,115..RHD..GEN |
2 | ||
| 78705-95J04 |
LH174..RHD..15S;LH114,115,184,RZH104,105,114..RHD..GEN |
2 | ||
| 78720 - CUSHION ASSY, SUB SEAT, RH | ||||
| 78720-95J0803 |
LH104,105,114,115,RZH104,114..RHD GRAY,TRIM1# |
2 | ||
| 78720-95J08B0 |
LH114,115,RZH104,114..RHD BLUISH GRAY,TRIM1# |
2 | ||
| 78720-95J08B5 |
LH114,115,125,RZH104,114,115..RHD..GEN BLUISH GRAY,TRIM1# |
2 | ||
| 78720-95J08B0 |
LH114,115,125,RZH104,114..RHD..GEN BLUISH GRAY,TRIM1# |
2 | ||
| 78720-26050B0 |
LH114,115,125,RZH104,114,115..RHD..GEN BLUISH GRAY,TRIM1# |
2 | ||
| 78720-26081B1 |
LH114,115,184,RZH104,114..RHD BLUISH GRAY,TRIM1# |
2 | ||
| 78720-26012B2 |
RZH104..RHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 78720-26050B2 |
LH114,115,184,RZH104,114..RHD W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 78720-26050B5 |
LH174..RHD..15S;LH114,115,RZH104,105,114..RHD SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
2 | ||
| 78720-26081B6 |
LH174..RHD..15S;LH114,115,RZH104,105,114..RHD SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
2 | ||
| 78726 - CUSHION, SUB SEAT CUSHION FRAME | ||||
| 78726-95J01 |
LH104,105,114,115,RZH104,114..RHD RH SEAT LEG |
2 | ||
| 78726-95J00 |
RZH114,115..15S;LH104,105,114,115,125,166,176,184,RZH104,105..12S,15S W/BRACKET |
2 | ||
| 78726-95J01 |
LH115,RZH115..CIS;RZH114,115..15S..GL;LH125,RZH104..(SMRF,SRF)..GL;LH105,166,176,184,RZH105..CIS,GEN;LH114,115,125,RZH104,114,115..RHD..STD..GEN RH SEAT LEG |
2 | ||
| 78726-95J01 |
LH114,115,174,184,RZH104,105,114..RHD..GEN RH SEAT LEG |
2 | ||
| 78726-95J00 |
LH104,105,114,115,RZH104,105,114,115 W/BRACKET |
2 | ||
| 78726 - CUSHION, SUB SEAT CUSHION FRAME | ||||
| 78726-95J01 |
LH104,105,114,115,RZH104,114..RHD RH SEAT LEG |
2 | ||
| 78726-95J00 |
RZH114,115..15S;LH104,105,114,115,125,166,176,184,RZH104,105..12S,15S W/BRACKET |
2 | ||
| 78726-95J01 |
LH115,RZH115..CIS;RZH114,115..15S..GL;LH125,RZH104..(SMRF,SRF)..GL;LH105,166,176,184,RZH105..CIS,GEN;LH114,115,125,RZH104,114,115..RHD..STD..GEN RH SEAT LEG |
2 | ||
| 78726-95J01 |
LH114,115,174,184,RZH104,105,114..RHD..GEN RH SEAT LEG |
2 | ||
| 78726-95J00 |
LH104,105,114,115,RZH104,105,114,115 W/BRACKET |
2 | ||
| 78727 - BOARD, SUB SEAT CUSHION | ||||
| 78727-26010 |
LH104,105,RZH104,105 |
2 | ||
| 78727-26010 |
LH104,105,125,RZH104,105..12S,15S |
2 | ||
| 78727-26010 |
LH104,114,115,125,RZH104,105,114,115..12S,15S |
2 | ||
| 78727-26010 |
LH104,105,166,RZH104,105,114,115..12S |
2 | ||
| 78731 - ARM, SUB SEAT LINK, NO.1 | ||||
| 78731-95J02 |
LH104,105,RZH104..RHD |
2 | ||
| 78735 - PAD, SUB SEAT CUSHION | ||||
| 78735-95J01 |
LH104,105,114,115,RZH104,114..RHD RH |
2 | ||
| 78735-95J01 |
LH114,115,125,184,RZH104,114,115..RHD..GEN RH |
2 | ||
| 78740A - BACK ASSY, SUB SEAT, RH | ||||
| 78740-95J0803 |
LH104,105,114,115,RZH104,114..RHD GRAY,TRIM1# |
2 | ||
| 78740-95J08B6 |
LH114,115,125,RZH104,114,115..RHD..GEN BLUISH GRAY,TRIM1# |
2 | ||
| 78740-95J08B0 |
LH114,115,RZH104,114..RHD BLUISH GRAY,TRIM1# |
2 | ||
| 78740-95J08P0 |
LH114,115,125,RZH104,114,115..RHD..GEN BLUISH GRAY,TRIM1# |
2 | ||
| 78740-95J08B0 |
LH114,115,125,RZH104,114..RHD..GEN BLUISH GRAY,TRIM1# |
2 | ||
| 78740-26080B0 |
RZH104..RHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 78740-26070B1 |
LH114,115,184,RZH104,114..RHD BLUISH GRAY,TRIM1# |
2 | ||
| 78740-26100B0 |
LH114,115,184,RZH104,114..RHD W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 78740-26070B8 |
LH174..RHD..15S;LH114,115,RZH104,105,114..RHD SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
2 | ||
| 78775 - PAD, SUB SEAT BACK | ||||
| 78775-95J00 |
LH104,105,166,RZH104,105,114,115..12S |
2 | ||
| 78791 - SPRING, SUB SEAT LINK, NO.1 | ||||
| 78791-95J00 |
RZH104;LH104,114,115,RZH105,114,115..LHD |
2 | ||
| 78791-95J00 |
LH104,105,RZH104,105 |
2 | ||
| 78791-95J00 |
LH104,105,166,RZH104,105 |
2 | ||
| 78792 - SPRING, SUB SEAT LINK, NO.2 | ||||
| 78792-95J00 |
LH104,105,114,115,RZH104,105,114,115 |
2 | ||
| 78792-95J00 |
RZH114,115..15S;LH104,105,114,115,125,166,176,184,RZH104,105..12S,15S |
2 | ||
| 78792-95J00 |
LH174,RZH114,115..15S;LH104,105,114,115,164,166,176,184,RZH104,105..12S,15S |
2 | ||
| 78797 - COVER, SUB SEAT | ||||
| 78797-95J0003 |
LH104,105,RZH104 GRAY,TRIM1# |
4 | ||
| 78797-95J00B0 |
LH104,105,125,RZH104,105..12S,15S BLUISH GRAY,TRIM1# |
4 | ||
| 78797-95J00B0 |
LH104,105,RZH104,105 BLUISH GRAY,TRIM1# |
4 | ||
| 78797-95J00B0 |
LH104,114,115,125,RZH104,105,114,115..12S,15S BLUISH GRAY,TRIM1# |
4 | ||
| 78797-95J00B0 |
LH104,105,166,RZH104,105,114,115..12S BLUISH GRAY,TRIM1# |
4 | ||
| 78803A - LEG SUB-ASSY, SUB SEAT, RH | ||||
| 78803-95J05 |
LH114,115,RZH104,114..RHD |
2 | ||
| 78803-95J05 |
RZH104;LH104,114,115,RZH114..RHD |
2 | ||
| 78803-95J05 |
LH114,115,125,184,RZH104,114,115..RHD..GEN |
2 | ||
| 78803-95J05 |
LH174..RHD..15S;LH114,115,184,RZH104,105,114..RHD..GEN |
2 | ||
| 78803-95J05 |
LH104,105,114,115,RZH104,114..RHD |
2 | ||
| Common parts | ||||
| 90109-06196 | ||||
| 90109-08133 | ||||
| 90119-08079 | ||||
| 90176-08044 | ||||
| 90206-08016 | ||||
| 90206-12050 | ||||
| 90468-18071 | ||||
| 90523-06017 | ||||
| 93560-15012 | ||||
| 93560-55010 | ||||
| 94541-01000 | ||||
| 94612-10800 | ||||
ILLUST NO. 5 OF 7(9411- )LH125,184..GEN ; (9808- )RZH104,105..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71315B - PIN, REAR SEAT HINGE | ||||
| 71315-95J02 |
LH104,105,RZH104,105 |
4 | ||
| 71315-95J02 |
LH104,105,166,RZH104,105,114,115..12S |
4 | ||
| 71315-95J02 |
LH104,114,115,125,RZH104,105,114,115..12S,15S |
4 | ||
| 71315-95J02 |
LH104,105,125,RZH104,105..12S,15S |
4 | ||
| 71485 - COVER, REAR SEAT HINGE | ||||
| 71485-95J0103 |
LH104,114,115,RZH104,114 GRAY,TRIM1#,NO.4 SEAT |
1 | ||
| 71485-95J02B0 |
LH104,105,RZH104,105 BLUISH GRAY,TRIM1#,SUB SEAT HINGE |
4 | ||
| 71485-95J0103 |
LH104,105,114,115,125,RZH104,114,125 GRAY,TRIM1#,NO.4 SEAT |
1 | ||
| 71485-95J0203 |
LH104,105,RZH104 GRAY,TRIM1#,SUB SEAT HINGE |
4 | ||
| 71485-95J02B0 |
LH104,105,125,RZH104,105..12S,15S BLUISH GRAY,TRIM1#,SUB SEAT HINGE |
4 | ||
| 71485-95J02B0 |
LH104,105,166,RZH104,105,114,115..12S BLUISH GRAY,TRIM1#,SUB SEAT HINGE |
4 | ||
| 71485-95J02B0 |
LH104,114,115,125,RZH104,105,114,115 BLUISH GRAY,TRIM1#,SUB SEAT HINGE |
4 | ||
| 78703 - FRAME SUB-ASSY, SUB SEAT BACK | ||||
| 78703-95J01 |
LH104,105,166,RZH104,105,114,115..12S |
2 | ||
| 78726 - CUSHION, SUB SEAT CUSHION FRAME | ||||
| 78726-95J01 |
LH104,105,114,115,RZH104,114..RHD RH SEAT LEG |
2 | ||
| 78726-95J00 |
RZH114,115..15S;LH104,105,114,115,125,166,176,184,RZH104,105..12S,15S W/BRACKET |
2 | ||
| 78726-95J01 |
LH115,RZH115..CIS;RZH114,115..15S..GL;LH125,RZH104..(SMRF,SRF)..GL;LH105,166,176,184,RZH105..CIS,GEN;LH114,115,125,RZH104,114,115..RHD..STD..GEN RH SEAT LEG |
2 | ||
| 78726-95J01 |
LH114,115,174,184,RZH104,105,114..RHD..GEN RH SEAT LEG |
2 | ||
| 78726-95J00 |
LH104,105,114,115,RZH104,105,114,115 W/BRACKET |
2 | ||
| 78727 - BOARD, SUB SEAT CUSHION | ||||
| 78727-26010 |
LH104,105,RZH104,105 |
2 | ||
| 78727-26010 |
LH104,105,125,RZH104,105..12S,15S |
2 | ||
| 78727-26010 |
LH104,114,115,125,RZH104,105,114,115..12S,15S |
2 | ||
| 78727-26010 |
LH104,105,166,RZH104,105,114,115..12S |
2 | ||
| 78731 - ARM, SUB SEAT LINK, NO.1 | ||||
| 78731-95J02 |
LH104,105,RZH104..RHD |
2 | ||
| 78735 - PAD, SUB SEAT CUSHION | ||||
| 78735-95J01 |
LH104,105,114,115,RZH104,114..RHD RH |
2 | ||
| 78735-95J01 |
LH114,115,125,184,RZH104,114,115..RHD..GEN RH |
2 | ||
| 78775 - PAD, SUB SEAT BACK | ||||
| 78775-95J00 |
LH104,105,166,RZH104,105,114,115..12S |
2 | ||
| 78791 - SPRING, SUB SEAT LINK, NO.1 | ||||
| 78791-95J00 |
RZH104;LH104,114,115,RZH105,114,115..LHD |
2 | ||
| 78791-95J00 |
LH104,105,RZH104,105 |
2 | ||
| 78791-95J00 |
LH104,105,166,RZH104,105 |
2 | ||
| 78797 - COVER, SUB SEAT | ||||
| 78797-95J0003 |
LH104,105,RZH104 GRAY,TRIM1# |
4 | ||
| 78797-95J00B0 |
LH104,105,125,RZH104,105..12S,15S BLUISH GRAY,TRIM1# |
4 | ||
| 78797-95J00B0 |
LH104,105,RZH104,105 BLUISH GRAY,TRIM1# |
4 | ||
| 78797-95J00B0 |
LH104,114,115,125,RZH104,105,114,115..12S,15S BLUISH GRAY,TRIM1# |
4 | ||
| 78797-95J00B0 |
LH104,105,166,RZH104,105,114,115..12S BLUISH GRAY,TRIM1# |
4 | ||
| Common parts | ||||
| 90109-08133 | ||||
| 90109-08137 | ||||
| 90119-10035 | ||||
| 90119-10271 | ||||
| 90119-10415 | ||||
| 90119-10579 | ||||
| 90176-08044 | ||||
| 90206-08016 | ||||
| 90206-12035 | ||||
| 90206-12050 | ||||
| 90389-10012 | ||||
| 90389-10026 | ||||
| 90468-18071 | ||||
| 90523-06017 | ||||
| 93560-15012 | ||||
| 93560-55010 | ||||
| 94542-01400 | ||||
ILLUST NO. 7 OF 7(8908-9907)LH104,105,114,115,125,166,174,176,184,RZH104,105,114,115,125 ; (9907-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71333 - LEG, REAR SEAT CUSHION, NO.1 | ||||
| 71333-95J30 |
LH104,105,RZH104,105 FRONT |
1 | ||
| 71333-95J30 |
LH104,105,RZH104,105 FRONT |
1 | ||
| 71333-95J23 |
LH104,105,RZH104,105 REAR |
1 | ||
| 71333-95J23 |
LH104,105,RZH104,105 REAR |
1 | ||
| 71333 - LEG, REAR SEAT CUSHION, NO.1 | ||||
| 71333-95J30 |
LH104,105,RZH104,105 FRONT |
1 | ||
| 71333-95J30 |
LH104,105,RZH104,105 FRONT |
1 | ||
| 71333-95J23 |
LH104,105,RZH104,105 REAR |
1 | ||
| 71333-95J23 |
LH104,105,RZH104,105 REAR |
1 | ||
| 71333A - LEG, REAR SEAT CUSHION, NO.2 | ||||
| 71333-95J16 |
LH104,105,RZH104..RHD FRONT |
1 | ||
| 71333-95J16 |
LH104,105,RZH104..RHD FRONT |
1 | ||
| 71333-95J25 |
LH104,105,166,RZH104,105 REAR |
1 | ||
| 71333-95J25 |
LH104,105,166,RZH104,105 REAR |
1 | ||
| 71333-95J23 |
RZH104..RHD FRONT RH |
1 | ||
| 71333-95J23 |
RZH104..RHD FRONT RH |
1 | ||
| 71333A - LEG, REAR SEAT CUSHION, NO.2 | ||||
| 71333-95J16 |
LH104,105,RZH104..RHD FRONT |
1 | ||
| 71333-95J16 |
LH104,105,RZH104..RHD FRONT |
1 | ||
| 71333-95J25 |
LH104,105,166,RZH104,105 REAR |
1 | ||
| 71333-95J25 |
LH104,105,166,RZH104,105 REAR |
1 | ||
| 71333-95J23 |
RZH104..RHD FRONT RH |
1 | ||
| 71333-95J23 |
RZH104..RHD FRONT RH |
1 | ||
| 71333A - LEG, REAR SEAT CUSHION, NO.2 | ||||
| 71333-95J16 |
LH104,105,RZH104..RHD FRONT |
1 | ||
| 71333-95J16 |
LH104,105,RZH104..RHD FRONT |
1 | ||
| 71333-95J25 |
LH104,105,166,RZH104,105 REAR |
1 | ||
| 71333-95J25 |
LH104,105,166,RZH104,105 REAR |
1 | ||
| 71333-95J23 |
RZH104..RHD FRONT RH |
1 | ||
| 71333-95J23 |
RZH104..RHD FRONT RH |
1 | ||
| 71333A - LEG, REAR SEAT CUSHION, NO.2 | ||||
| 71333-95J16 |
LH104,105,RZH104..RHD FRONT |
1 | ||
| 71333-95J16 |
LH104,105,RZH104..RHD FRONT |
1 | ||
| 71333-95J25 |
LH104,105,166,RZH104,105 REAR |
1 | ||
| 71333-95J25 |
LH104,105,166,RZH104,105 REAR |
1 | ||
| 71333-95J23 |
RZH104..RHD FRONT RH |
1 | ||
| 71333-95J23 |
RZH104..RHD FRONT RH |
1 | ||
| 79105A - LEG SUB-ASSY, NO.1 SEAT | ||||
| 79106-95J10 |
LH104,105,RZH104..RHD |
1 | ||
| 79106-95J10 |
LH104,105,RZH104..RHD |
1 | ||
| 79106-95J11 |
LH104,105,RZH104..RHD W/O(SUB SEAT) |
1 | ||
| 79106-95J11 |
LH104,105,RZH104..RHD W/O(SUB SEAT) |
1 | ||
| 79205 - LEG SUB-ASSY, NO.2 SEAT | ||||
| 79106-95J18 |
LH104,105,RZH104..RHD W/O(SUB SEAT) |
1 | ||
| 79106-95J18 |
LH104,105,RZH104..RHD W/O(SUB SEAT) |
1 | ||
| 79106-95J17 |
LH104,105,RZH104..RHD |
1 | ||
| 79106-95J17 |
LH104,105,RZH104..RHD |
1 | ||
| 79205 - LEG SUB-ASSY, NO.2 SEAT | ||||
| 79106-95J18 |
LH104,105,RZH104..RHD W/O(SUB SEAT) |
1 | ||
| 79106-95J18 |
LH104,105,RZH104..RHD W/O(SUB SEAT) |
1 | ||
| 79106-95J17 |
LH104,105,RZH104..RHD |
1 | ||
| 79106-95J17 |
LH104,105,RZH104..RHD |
1 | ||
| 79206B - LEG SUB-ASSY, NO.2 SEAT, LH | ||||
| 79206-26060 |
RZH104..RHD |
1 | ||
| 79206-26060 |
RZH104..RHD |
1 | ||
ILLUST NO. 1 OF 7(8908-9411)LH104,105,114,115,125,RZH104,114..RHD..GEN ; (9411- )LH114,115,174,RZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72329 - COVER, SEAT ADJUSTER BOLT | ||||
| 72329-87001 |
LH104,105,RZH104,105 |
4 | ||
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79011-95N0803 |
LH104,105,114,115,RZH104,114 GRAY,TRIM1# |
1 | ||
| 79011-95N08B2 |
LH104,114,115,RZH104,114..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79011-95N08B0 |
LH104,114,115,RZH104,114,115..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79011-95N08B2 |
LH104,114,115,RZH104,105,114,115..CIS,GEN W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79011-26620B0 |
LH104,RZH104,105..GEN W(FABRIC SEAT & HEADREST),BLUISH GRAY,TRIM1# |
1 | ||
| 79011-26610B0 |
LH114..RHD;RZH114,115..15S..(CIS,GEN);LH104,105,115,166,176,RZH104,105..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79011-95N08B3 |
RZH114,115..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..CIS,GEN W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79011-26610B0 |
RZH104,105..RHD SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79013A - COVER SUB-ASSY, NO.1 SEAT BACK | ||||
| 79013-95J8903 |
LH104,105,114,115,RZH104,114..RHD GRAY,TRIM1# |
1 | ||
| 79013-95J89B3 |
LH114,115,RZH104,114,115..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 79013-95J89B2 |
LH114,115,RZH104,114..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26580B0 |
LH114,115,RZH104,114..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 79013-95J89B2 |
LH114,115,RZH104,114,115..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26321B1 |
LH104,RZH104,105..GEN W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26660B0 |
LH114,115,RZH104,114..RHD W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26580B2 |
RZH104,105..RHD SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79014-26131B1 |
LH104,RZH104,105..GEN W(FABRIC SEAT & HEADREST),BLUISH GRAY,TRIM1# |
1 | ||
| 79120A - CUSHION ASSY, NO.1 SEAT | ||||
| 79120-95N1803 |
LH104,105,114,115,RZH104,114 GRAY,TRIM1# |
1 | ||
| 79120-95N18B0 |
LH104,114,115,RZH104,114..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79120-95N18B4 |
LH104,114,115,RZH104,114,115..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79120-95N18B6 |
LH104,114,115,RZH104,105,114,115..CIS,GEN SEAT = TYPE N-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79120-26680B0 |
RZH114,115..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79120-95N18B8 |
RZH114,115..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..CIS,GEN W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79120-26690B0 |
RZH104..RHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79135 - PAD, NO.1 SEAT CUSHION | ||||
| 79015-95J00 |
RZH114,115..15S;LH104,105,114,115,166,176,RZH104,105 |
1 | ||
| 79015-95J01 |
LH184,RZH104..RHD W(HEADREST) |
1 | ||
| 79140A - BACK ASSY, NO.1 SEAT | ||||
| 79140-95N1503 |
LH104,105,114,115,RZH104,114..RHD GRAY,TRIM1# |
1 | ||
| 79140-95N15B0 |
LH114,115,RZH104,114..RHD BLUEISH GRAY,TRIM1# |
1 | ||
| 79140-95N15B4 |
LH114,115,RZH104,114,115..RHD BLUEISH GRAY,TRIM1# |
1 | ||
| 79140-26360B0 |
LH114,115,RZH104,114,115..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 79140-26371B1 |
LH114,115,RZH104,114..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 79140-26361B1 |
LH114,115,RZH104,114..RHD W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79140-26371 |
LH115,RZH104,105..RHD |
1 | ||
| 79140-26800B0 |
RZH104..RHD W(FABRIC SEAT & HEADREST),BLUISH GRAY,TRIM1# |
2 | ||
| 79175 - PAD, NO.1 SEAT BACK | ||||
| 79017-26031 |
RZH114,115..12S;LH184,RZH104..RHD W(FABRIC SEAT) |
1 | ||
| 79017-95J00 |
RZH114,115..15S;LH104,105,114,115,166,176,RZH104,105 |
1 | ||
| 79961 - COVER, NO.1 SEAT BACK | ||||
| 79961-95J02B0 |
LH104,105,RZH104 BLUISH GRAY,TRIM1#,RH |
2 | ||
| 79961-95J03B0 |
LH104,105,RZH104 BLUISH GRAY,TRIM1#,LH |
2 | ||
| 79961-95J03B0 |
LH104,RZH104,105 BLUISH GRAY,TRIM1#,LH |
2 | ||
| 79961-95J0203 |
LH104,105,RZH104 GRAY,TRIM1#,RH |
2 | ||
| 79961-95J0303 |
LH104,105,RZH104 GRAY,TRIM1#,LH |
2 | ||
| 79961-95J02B0 |
LH104,RZH104,105 BLUISH GRAY,TRIM1#,RH |
2 | ||
| 79961-95J04B0 |
LH104,RZH104,105,114,115..12S..GEN BLUISH GRAY,TRIM1# |
4 | ||
| 79961 - COVER, NO.1 SEAT BACK | ||||
| 79961-95J02B0 |
LH104,105,RZH104 BLUISH GRAY,TRIM1#,RH |
2 | ||
| 79961-95J03B0 |
LH104,105,RZH104 BLUISH GRAY,TRIM1#,LH |
2 | ||
| 79961-95J03B0 |
LH104,RZH104,105 BLUISH GRAY,TRIM1#,LH |
2 | ||
| 79961-95J0203 |
LH104,105,RZH104 GRAY,TRIM1#,RH |
2 | ||
| 79961-95J0303 |
LH104,105,RZH104 GRAY,TRIM1#,LH |
2 | ||
| 79961-95J02B0 |
LH104,RZH104,105 BLUISH GRAY,TRIM1#,RH |
2 | ||
| 79961-95J04B0 |
LH104,RZH104,105,114,115..12S..GEN BLUISH GRAY,TRIM1# |
4 | ||
| Common parts | ||||
| 90468-18071 | ||||
| 91611-61025 | ||||
| 93560-15014 | ||||
| Linked diagrams | ||||
| 7451 | ||||
| 7456 | ||||
ILLUST NO. 1 OF 7(8908-9411)LH104,105,114,115,125,RZH104,114..RHD..GEN ; (9411- )LH114,115,174,RZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72065 - BELT SUB-ASSY, REAR SEAT HOOK, RH | ||||
| 72065-95J04 |
LH104,105,114,115,125,RZH104,105,114,115,125 NO.1 SEAT |
1 | ||
| 72065-95J0103 |
LH104,105,RZH104 GRAY,TRIM1#,NO.4 SEAT |
1 | ||
| Common parts | ||||
| 90119-10035 | ||||
| 90333-30002 | ||||
| 91611-61025 | ||||
ILLUST NO. 2 OF 7(8908-9411)LH104,105,114,115,125,RZH104,114..RHD..GEN ; (9411- )LH114,115,174,RZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72329 - COVER, SEAT ADJUSTER BOLT | ||||
| 72329-87001 |
LH104,105,RZH104,105 |
4 | ||
| 79021A - COVER SUB-ASSY, NO.2 SEAT CUSHION | ||||
| 79021-95J5503 |
LH104,105,RZH104..RHD GRAY,TRIM1# |
1 | ||
| 79021-95J55B3 |
RZH104..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 79021-95J55B3 |
RZH104..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 79021-95J55B0 |
RZH104..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 79031-26390B0 |
RZH104,105..RHD SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79023A - COVER SUB-ASSY, NO.2 SEAT BACK | ||||
| 79013-95J8903 |
LH104,105,114,115,RZH104,114..RHD GRAY,TRIM1# |
1 | ||
| 79013-95J89B2 |
LH114,115,RZH104,114..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 79013-95J89B3 |
LH114,115,RZH104,114,115..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 79013-95J89B2 |
LH114,115,RZH104,114,115..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26321B1 |
LH104,RZH104,105..GEN W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26580B0 |
LH114,115,RZH104,114..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26660B0 |
LH114,115,RZH104,114..RHD W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26580B2 |
RZH104,105..RHD SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79220A - CUSHION ASSY, NO.2 SEAT | ||||
| 79220-95J6903 |
LH104,105,RZH104..RHD GRAY,TRIM1# |
1 | ||
| 79220-95J69B1 |
RZH104..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 79220-95J69B6 |
RZH104..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 79220-95J69B8 |
LH114,115,RZH104,115..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 79220-95J69P1 |
RZH104..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 79235 - PAD, NO.2 SEAT CUSHION | ||||
| 79025-95J01 |
LH104,105,RZH104..RHD |
1 | ||
| 79240A - BACK ASSY, NO.2 SEAT | ||||
| 79140-95N1503 |
LH104,105,114,115,RZH104,114..RHD GRAY,TRIM1# |
1 | ||
| 79140-95N15B0 |
LH114,115,RZH104,114..RHD BLUEISH GRAY,TRIM1# |
1 | ||
| 79140-95N15B4 |
LH114,115,RZH104,114,115..RHD BLUEISH GRAY,TRIM1# |
1 | ||
| 79140-26360B0 |
LH114,115,RZH104,114,115..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 79140-26371B1 |
LH114,115,RZH104,114..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 79140-26371 |
LH115,RZH104,105..RHD |
1 | ||
| 79275 - PAD, NO.2 SEAT BACK | ||||
| 79017-95J00 |
RZH114,115..15S;LH104,105,114,115,166,176,RZH104,105 |
1 | ||
| 79017-26031 |
RZH114,115..12S;LH104,184,RZH104,105..GEN W(HEADREST) |
1 | ||
| 79961 - COVER, NO.1 SEAT BACK | ||||
| 79961-95J02B0 |
LH104,105,RZH104 BLUISH GRAY,TRIM1#,RH |
2 | ||
| 79961-95J03B0 |
LH104,105,RZH104 BLUISH GRAY,TRIM1#,LH |
2 | ||
| 79961-95J03B0 |
LH104,RZH104,105 BLUISH GRAY,TRIM1#,LH |
2 | ||
| 79961-95J0203 |
LH104,105,RZH104 GRAY,TRIM1#,RH |
2 | ||
| 79961-95J0303 |
LH104,105,RZH104 GRAY,TRIM1#,LH |
2 | ||
| 79961-95J02B0 |
LH104,RZH104,105 BLUISH GRAY,TRIM1#,RH |
2 | ||
| 79961-95J04B0 |
LH104,RZH104,105,114,115..12S..GEN BLUISH GRAY,TRIM1# |
4 | ||
| 79961 - COVER, NO.1 SEAT BACK | ||||
| 79961-95J02B0 |
LH104,105,RZH104 BLUISH GRAY,TRIM1#,RH |
2 | ||
| 79961-95J03B0 |
LH104,105,RZH104 BLUISH GRAY,TRIM1#,LH |
2 | ||
| 79961-95J03B0 |
LH104,RZH104,105 BLUISH GRAY,TRIM1#,LH |
2 | ||
| 79961-95J0203 |
LH104,105,RZH104 GRAY,TRIM1#,RH |
2 | ||
| 79961-95J0303 |
LH104,105,RZH104 GRAY,TRIM1#,LH |
2 | ||
| 79961-95J02B0 |
LH104,RZH104,105 BLUISH GRAY,TRIM1#,RH |
2 | ||
| 79961-95J04B0 |
LH104,RZH104,105,114,115..12S..GEN BLUISH GRAY,TRIM1# |
4 | ||
| Common parts | ||||
| 90468-18071 | ||||
| 91611-61025 | ||||
| 93560-15014 | ||||
| Linked diagrams | ||||
| 7451 | ||||
| 7456 | ||||
ILLUST NO. 2 OF 7(8908-9411)LH104,105,114,115,125,RZH104,114..RHD..GEN ; (9411- )LH114,115,174,RZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72065 - BELT SUB-ASSY, REAR SEAT HOOK, RH | ||||
| 72065-95J04 |
LH104,105,114,115,125,RZH104,105,114,115,125 NO.1 SEAT |
1 | ||
| 72065-95J0103 |
LH104,105,RZH104 GRAY,TRIM1#,NO.4 SEAT |
1 | ||
| Common parts | ||||
| 90119-10035 | ||||
| 90333-30002 | ||||
| 91611-61025 | ||||
ILLUST NO. 3 OF 7(8908-9411)LH104,105,114,115,125,RZH104,114..RHD..GEN ; (9411- )LH114,115,174,RZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72329 - COVER, SEAT ADJUSTER BOLT | ||||
| 72329-87001 |
LH104,105,RZH104,105 |
4 | ||
| 79031A - COVER SUB-ASSY, NO.3 SEAT CUSHION | ||||
| 79021-95J55B4 |
LH114,115,RZH104,114..RHD W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79031-26400B0 |
RZH104..RHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79320A - CUSHION ASSY, NO.3 SEAT | ||||
| 79320-26430B0 |
RZH104..RHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79320-26420B0 |
LH114,115,RZH104,114..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 79335 - PAD, NO.3 SEAT CUSHION | ||||
| 79035-95J02 |
RZH104..RHD W(HEADREST) |
1 | ||
| 79025-95J01 |
LH114,115,RZH104,114..RHD |
1 | ||
| 79961 - COVER, NO.1 SEAT BACK | ||||
| 79961-95J02B0 |
LH104,105,RZH104 BLUISH GRAY,TRIM1#,RH |
2 | ||
| 79961-95J03B0 |
LH104,105,RZH104 BLUISH GRAY,TRIM1#,LH |
2 | ||
| 79961-95J03B0 |
LH104,RZH104,105 BLUISH GRAY,TRIM1#,LH |
2 | ||
| 79961-95J0203 |
LH104,105,RZH104 GRAY,TRIM1#,RH |
2 | ||
| 79961-95J0303 |
LH104,105,RZH104 GRAY,TRIM1#,LH |
2 | ||
| 79961-95J02B0 |
LH104,RZH104,105 BLUISH GRAY,TRIM1#,RH |
2 | ||
| 79961-95J04B0 |
LH104,RZH104,105,114,115..12S..GEN BLUISH GRAY,TRIM1# |
4 | ||
| 79961 - COVER, NO.1 SEAT BACK | ||||
| 79961-95J02B0 |
LH104,105,RZH104 BLUISH GRAY,TRIM1#,RH |
2 | ||
| 79961-95J03B0 |
LH104,105,RZH104 BLUISH GRAY,TRIM1#,LH |
2 | ||
| 79961-95J03B0 |
LH104,RZH104,105 BLUISH GRAY,TRIM1#,LH |
2 | ||
| 79961-95J0203 |
LH104,105,RZH104 GRAY,TRIM1#,RH |
2 | ||
| 79961-95J0303 |
LH104,105,RZH104 GRAY,TRIM1#,LH |
2 | ||
| 79961-95J02B0 |
LH104,RZH104,105 BLUISH GRAY,TRIM1#,RH |
2 | ||
| 79961-95J04B0 |
LH104,RZH104,105,114,115..12S..GEN BLUISH GRAY,TRIM1# |
4 | ||
| Common parts | ||||
| 90468-18071 | ||||
| 91611-61025 | ||||
| 93560-15014 | ||||
| Linked diagrams | ||||
| 7451 | ||||
| 7456 | ||||
ILLUST NO. 3 OF 7(8908-9411)LH104,105,114,115,125,RZH104,114..RHD..GEN ; (9411- )LH114,115,174,RZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72065 - BELT SUB-ASSY, REAR SEAT HOOK, RH | ||||
| 72065-95J04 |
LH104,105,114,115,125,RZH104,105,114,115,125 NO.1 SEAT |
1 | ||
| 72065-95J0103 |
LH104,105,RZH104 GRAY,TRIM1#,NO.4 SEAT |
1 | ||
| Common parts | ||||
| 90119-10035 | ||||
| 90119-10415 | ||||
| 90119-10595 | ||||
| 90333-30002 | ||||
| 91611-61025 | ||||
| 91616-61025 | ||||
ILLUST NO. 4 OF 7(8908-9411)LH104,105,114,115,125,RZH104,114..RHD..GEN ; (9411- )LH114,115,174,RZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78071 - COVER SUB-ASSY, SUB SEAT CUSHION, RH | ||||
| 78071-95J08B2 |
LH114,115,RZH104,114..RHD BLUISH GRAY,TRIM1# |
2 | ||
| 78071-95J08B2 |
LH114,115,125,RZH104,114,115..RHD..GEN BLUISH GRAY,TRIM1# |
2 | ||
| 78071-26020B1 |
LH114,115,125,RZH104,114,115..RHD..GEN BLUISH GRAY,TRIM1# |
2 | ||
| 78071-95J0803 |
LH104,105,114,115,RZH104,114..RHD GRAY,TRIM1# |
2 | ||
| 78071-26020B2 |
LH114,115,184,RZH104,114..RHD W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 78071-26051B1 |
LH114,115,184,RZH104,114..RHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 78071-26061B1 |
RZH104..RHD BLUISH GRAY,TRIM1# |
2 | ||
| 78071-26051B1 |
RZH104,105..RHD SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
2 | ||
| 78071-26020B2 |
RZH104,105..RHD SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
2 | ||
| 78073 - COVER SUB-ASSY, SUB SEAT BACK, RH | ||||
| 78073-95J08B2 |
LH114,115,RZH104,114..RHD BLUISH GRAY,TRIM1# |
2 | ||
| 78073-95J0803 |
LH104,105,114,115,RZH104,114..RHD GRAY,TRIM1# |
2 | ||
| 78073-95J08B0 |
LH114,115,125,RZH104,114,115..RHD..GEN BLUISH GRAY,TRIM1# |
2 | ||
| 78073-95J08B2 |
LH114,115,125,RZH104,114,115..RHD..GEN BLUISH GRAY,TRIM1# |
2 | ||
| 78073-95J08B2 |
LH114,115,125,RZH104,114..RHD..GEN BLUISH GRAY,TRIM1# |
2 | ||
| 78073-26060B0 |
LH114,115,184,RZH104,114..RHD BLUISH GRAY,TRIM1# |
2 | ||
| 78073-26060B0 |
RZH104,105..RHD SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
2 | ||
| 78073-26070B0 |
RZH104..RHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 78073-26090B1 |
LH114,115,184,RZH104,114..RHD W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 78073-26090B1 |
RZH104,105..RHD SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
2 | ||
| 78701 - FRAME SUB-ASSY, SUB SEAT CUSHION, RH | ||||
| 78701-26030 |
LH104,114,115,RZH104,114..RHD |
2 | ||
| 78701-95J03 |
LH104,105,114,115,RZH104,114..RHD |
2 | ||
| 78701-26030 |
LH114,115,125,184,RZH104,114,115..RHD..GEN |
2 | ||
| 78701-26030 |
LH174..RHD..15S;LH114,115,184,RZH104,105,114..RHD..GEN |
2 | ||
| 78703 - FRAME SUB-ASSY, SUB SEAT BACK | ||||
| 78703-95J01 |
LH104,105,166,RZH104,105,114,115..12S |
2 | ||
| 78705 - BRACKET SUB-ASSY, SUB SEAT CUSHION | ||||
| 78705-95J04 |
LH104,105,114,115,125,RZH104,114,125..RHD |
2 | ||
| 78705-95J04 |
LH114,115,125,184,RZH104,114,115..RHD..GEN |
2 | ||
| 78705-95J04 |
LH174..RHD..15S;LH114,115,184,RZH104,105,114..RHD..GEN |
2 | ||
| 78720 - CUSHION ASSY, SUB SEAT, RH | ||||
| 78720-95J0803 |
LH104,105,114,115,RZH104,114..RHD GRAY,TRIM1# |
2 | ||
| 78720-95J08B0 |
LH114,115,RZH104,114..RHD BLUISH GRAY,TRIM1# |
2 | ||
| 78720-95J08B5 |
LH114,115,125,RZH104,114,115..RHD..GEN BLUISH GRAY,TRIM1# |
2 | ||
| 78720-95J08B0 |
LH114,115,125,RZH104,114..RHD..GEN BLUISH GRAY,TRIM1# |
2 | ||
| 78720-26050B0 |
LH114,115,125,RZH104,114,115..RHD..GEN BLUISH GRAY,TRIM1# |
2 | ||
| 78720-26081B1 |
LH114,115,184,RZH104,114..RHD BLUISH GRAY,TRIM1# |
2 | ||
| 78720-26012B2 |
RZH104..RHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 78720-26050B2 |
LH114,115,184,RZH104,114..RHD W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 78720-26050B5 |
LH174..RHD..15S;LH114,115,RZH104,105,114..RHD SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
2 | ||
| 78720-26081B6 |
LH174..RHD..15S;LH114,115,RZH104,105,114..RHD SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
2 | ||
| 78726 - CUSHION, SUB SEAT CUSHION FRAME | ||||
| 78726-95J01 |
LH104,105,114,115,RZH104,114..RHD RH SEAT LEG |
2 | ||
| 78726-95J00 |
RZH114,115..15S;LH104,105,114,115,125,166,176,184,RZH104,105..12S,15S W/BRACKET |
2 | ||
| 78726-95J01 |
LH115,RZH115..CIS;RZH114,115..15S..GL;LH125,RZH104..(SMRF,SRF)..GL;LH105,166,176,184,RZH105..CIS,GEN;LH114,115,125,RZH104,114,115..RHD..STD..GEN RH SEAT LEG |
2 | ||
| 78726-95J01 |
LH114,115,174,184,RZH104,105,114..RHD..GEN RH SEAT LEG |
2 | ||
| 78726-95J00 |
LH104,105,114,115,RZH104,105,114,115 W/BRACKET |
2 | ||
| 78727 - BOARD, SUB SEAT CUSHION | ||||
| 78727-26010 |
LH104,105,RZH104,105 |
2 | ||
| 78727-26010 |
LH104,105,125,RZH104,105..12S,15S |
2 | ||
| 78727-26010 |
LH104,114,115,125,RZH104,105,114,115..12S,15S |
2 | ||
| 78727-26010 |
LH104,105,166,RZH104,105,114,115..12S |
2 | ||
| 78735 - PAD, SUB SEAT CUSHION | ||||
| 78735-95J01 |
LH104,105,114,115,RZH104,114..RHD RH |
2 | ||
| 78735-95J01 |
LH114,115,125,184,RZH104,114,115..RHD..GEN RH |
2 | ||
| 78740A - BACK ASSY, SUB SEAT, RH | ||||
| 78740-95J0803 |
LH104,105,114,115,RZH104,114..RHD GRAY,TRIM1# |
2 | ||
| 78740-95J08B6 |
LH114,115,125,RZH104,114,115..RHD..GEN BLUISH GRAY,TRIM1# |
2 | ||
| 78740-95J08B0 |
LH114,115,RZH104,114..RHD BLUISH GRAY,TRIM1# |
2 | ||
| 78740-95J08P0 |
LH114,115,125,RZH104,114,115..RHD..GEN BLUISH GRAY,TRIM1# |
2 | ||
| 78740-95J08B0 |
LH114,115,125,RZH104,114..RHD..GEN BLUISH GRAY,TRIM1# |
2 | ||
| 78740-26080B0 |
RZH104..RHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 78740-26070B1 |
LH114,115,184,RZH104,114..RHD BLUISH GRAY,TRIM1# |
2 | ||
| 78740-26100B0 |
LH114,115,184,RZH104,114..RHD W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 78740-26070B8 |
LH174..RHD..15S;LH114,115,RZH104,105,114..RHD SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
2 | ||
| 78775 - PAD, SUB SEAT BACK | ||||
| 78775-95J00 |
LH104,105,166,RZH104,105,114,115..12S |
2 | ||
| 78791 - SPRING, SUB SEAT LINK, NO.1 | ||||
| 78791-95J00 |
RZH104;LH104,114,115,RZH105,114,115..LHD |
2 | ||
| 78791-95J00 |
LH104,105,RZH104,105 |
2 | ||
| 78791-95J00 |
LH104,105,166,RZH104,105 |
2 | ||
| 78792 - SPRING, SUB SEAT LINK, NO.2 | ||||
| 78792-95J00 |
LH104,105,114,115,RZH104,105,114,115 |
2 | ||
| 78792-95J00 |
RZH114,115..15S;LH104,105,114,115,125,166,176,184,RZH104,105..12S,15S |
2 | ||
| 78792-95J00 |
LH174,RZH114,115..15S;LH104,105,114,115,164,166,176,184,RZH104,105..12S,15S |
2 | ||
| 78797 - COVER, SUB SEAT | ||||
| 78797-95J0003 |
LH104,105,RZH104 GRAY,TRIM1# |
4 | ||
| 78797-95J00B0 |
LH104,105,125,RZH104,105..12S,15S BLUISH GRAY,TRIM1# |
4 | ||
| 78797-95J00B0 |
LH104,105,RZH104,105 BLUISH GRAY,TRIM1# |
4 | ||
| 78797-95J00B0 |
LH104,114,115,125,RZH104,105,114,115..12S,15S BLUISH GRAY,TRIM1# |
4 | ||
| 78797-95J00B0 |
LH104,105,166,RZH104,105,114,115..12S BLUISH GRAY,TRIM1# |
4 | ||
| Common parts | ||||
| 90109-06196 | ||||
| 90109-08137 | ||||
| 90119-08079 | ||||
| 90206-08016 | ||||
| 90206-12035 | ||||
| 90468-18071 | ||||
| 90523-06017 | ||||
| 93560-15012 | ||||
| 94541-01000 | ||||
| 94612-10800 | ||||
ILLUST NO. 4 OF 7(8908-9411)LH104,105,114,115,125,RZH104,114..RHD..GEN ; (9411- )LH114,115,174,RZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71315B - PIN, REAR SEAT HINGE | ||||
| 71315-95J02 |
LH104,105,RZH104,105 |
4 | ||
| 71315-95J02 |
LH104,105,166,RZH104,105,114,115..12S |
4 | ||
| 71315-95J02 |
LH104,114,115,125,RZH104,105,114,115..12S,15S |
4 | ||
| 71315-95J02 |
LH104,105,125,RZH104,105..12S,15S |
4 | ||
| 71485 - COVER, REAR SEAT HINGE | ||||
| 71485-95J0103 |
LH104,114,115,RZH104,114 GRAY,TRIM1#,NO.4 SEAT |
1 | ||
| 71485-95J02B0 |
LH104,105,RZH104,105 BLUISH GRAY,TRIM1#,SUB SEAT HINGE |
4 | ||
| 71485-95J0103 |
LH104,105,114,115,125,RZH104,114,125 GRAY,TRIM1#,NO.4 SEAT |
1 | ||
| 71485-95J0203 |
LH104,105,RZH104 GRAY,TRIM1#,SUB SEAT HINGE |
4 | ||
| 71485-95J02B0 |
LH104,105,125,RZH104,105..12S,15S BLUISH GRAY,TRIM1#,SUB SEAT HINGE |
4 | ||
| 71485-95J02B0 |
LH104,105,166,RZH104,105,114,115..12S BLUISH GRAY,TRIM1#,SUB SEAT HINGE |
4 | ||
| 71485-95J02B0 |
LH104,114,115,125,RZH104,105,114,115 BLUISH GRAY,TRIM1#,SUB SEAT HINGE |
4 | ||
| 78726 - CUSHION, SUB SEAT CUSHION FRAME | ||||
| 78726-95J01 |
LH104,105,114,115,RZH104,114..RHD RH SEAT LEG |
2 | ||
| 78726-95J00 |
RZH114,115..15S;LH104,105,114,115,125,166,176,184,RZH104,105..12S,15S W/BRACKET |
2 | ||
| 78726-95J01 |
LH115,RZH115..CIS;RZH114,115..15S..GL;LH125,RZH104..(SMRF,SRF)..GL;LH105,166,176,184,RZH105..CIS,GEN;LH114,115,125,RZH104,114,115..RHD..STD..GEN RH SEAT LEG |
2 | ||
| 78726-95J01 |
LH114,115,174,184,RZH104,105,114..RHD..GEN RH SEAT LEG |
2 | ||
| 78726-95J00 |
LH104,105,114,115,RZH104,105,114,115 W/BRACKET |
2 | ||
| 78731 - ARM, SUB SEAT LINK, NO.1 | ||||
| 78731-95J02 |
LH104,105,RZH104..RHD |
2 | ||
| 78803A - LEG SUB-ASSY, SUB SEAT, RH | ||||
| 78803-95J05 |
LH114,115,RZH104,114..RHD |
2 | ||
| 78803-95J05 |
RZH104;LH104,114,115,RZH114..RHD |
2 | ||
| 78803-95J05 |
LH114,115,125,184,RZH104,114,115..RHD..GEN |
2 | ||
| 78803-95J05 |
LH174..RHD..15S;LH114,115,184,RZH104,105,114..RHD..GEN |
2 | ||
| 78803-95J05 |
LH104,105,114,115,RZH104,114..RHD |
2 | ||
| Common parts | ||||
| 90176-08044 | ||||
| 90206-08016 | ||||
| 90206-12035 | ||||
| 90523-06017 | ||||
| 93560-15012 | ||||
| 93560-55010 | ||||
ILLUST NO. 5 OF 7(8908-9411)LH104,105,114,115,125,RZH104,114..RHD..GEN ; (9411- )LH114,115,174,RZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78703 - FRAME SUB-ASSY, SUB SEAT BACK | ||||
| 78703-95J01 |
LH104,105,166,RZH104,105,114,115..12S |
2 | ||
| 78727 - BOARD, SUB SEAT CUSHION | ||||
| 78727-26010 |
LH104,105,RZH104,105 |
2 | ||
| 78727-26010 |
LH104,105,125,RZH104,105..12S,15S |
2 | ||
| 78727-26010 |
LH104,114,115,125,RZH104,105,114,115..12S,15S |
2 | ||
| 78727-26010 |
LH104,105,166,RZH104,105,114,115..12S |
2 | ||
| 78735 - PAD, SUB SEAT CUSHION | ||||
| 78735-95J01 |
LH104,105,114,115,RZH104,114..RHD RH |
2 | ||
| 78735-95J01 |
LH114,115,125,184,RZH104,114,115..RHD..GEN RH |
2 | ||
| 78775 - PAD, SUB SEAT BACK | ||||
| 78775-95J00 |
LH104,105,166,RZH104,105,114,115..12S |
2 | ||
| 78791 - SPRING, SUB SEAT LINK, NO.1 | ||||
| 78791-95J00 |
RZH104;LH104,114,115,RZH105,114,115..LHD |
2 | ||
| 78791-95J00 |
LH104,105,RZH104,105 |
2 | ||
| 78791-95J00 |
LH104,105,166,RZH104,105 |
2 | ||
| 78797 - COVER, SUB SEAT | ||||
| 78797-95J0003 |
LH104,105,RZH104 GRAY,TRIM1# |
4 | ||
| 78797-95J00B0 |
LH104,105,125,RZH104,105..12S,15S BLUISH GRAY,TRIM1# |
4 | ||
| 78797-95J00B0 |
LH104,105,RZH104,105 BLUISH GRAY,TRIM1# |
4 | ||
| 78797-95J00B0 |
LH104,114,115,125,RZH104,105,114,115..12S,15S BLUISH GRAY,TRIM1# |
4 | ||
| 78797-95J00B0 |
LH104,105,166,RZH104,105,114,115..12S BLUISH GRAY,TRIM1# |
4 | ||
| Common parts | ||||
| 90109-08133 | ||||
| 90119-10415 | ||||
| 90119-10579 | ||||
| 90206-12050 | ||||
| 90389-10026 | ||||
| 90468-18071 | ||||
| 93560-15012 | ||||
| 94542-01400 | ||||
ILLUST NO. 5 OF 7(8908-9411)LH104,105,114,115,125,RZH104,114..RHD..GEN ; (9411- )LH114,115,174,RZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71315B - PIN, REAR SEAT HINGE | ||||
| 71315-95J02 |
LH104,105,RZH104,105 |
4 | ||
| 71315-95J02 |
LH104,105,166,RZH104,105,114,115..12S |
4 | ||
| 71315-95J02 |
LH104,114,115,125,RZH104,105,114,115..12S,15S |
4 | ||
| 71315-95J02 |
LH104,105,125,RZH104,105..12S,15S |
4 | ||
| 71485 - COVER, REAR SEAT HINGE | ||||
| 71485-95J0103 |
LH104,114,115,RZH104,114 GRAY,TRIM1#,NO.4 SEAT |
1 | ||
| 71485-95J02B0 |
LH104,105,RZH104,105 BLUISH GRAY,TRIM1#,SUB SEAT HINGE |
4 | ||
| 71485-95J0103 |
LH104,105,114,115,125,RZH104,114,125 GRAY,TRIM1#,NO.4 SEAT |
1 | ||
| 71485-95J0203 |
LH104,105,RZH104 GRAY,TRIM1#,SUB SEAT HINGE |
4 | ||
| 71485-95J02B0 |
LH104,105,125,RZH104,105..12S,15S BLUISH GRAY,TRIM1#,SUB SEAT HINGE |
4 | ||
| 71485-95J02B0 |
LH104,105,166,RZH104,105,114,115..12S BLUISH GRAY,TRIM1#,SUB SEAT HINGE |
4 | ||
| 71485-95J02B0 |
LH104,114,115,125,RZH104,105,114,115 BLUISH GRAY,TRIM1#,SUB SEAT HINGE |
4 | ||
| 78726 - CUSHION, SUB SEAT CUSHION FRAME | ||||
| 78726-95J01 |
LH104,105,114,115,RZH104,114..RHD RH SEAT LEG |
2 | ||
| 78726-95J00 |
RZH114,115..15S;LH104,105,114,115,125,166,176,184,RZH104,105..12S,15S W/BRACKET |
2 | ||
| 78726-95J01 |
LH115,RZH115..CIS;RZH114,115..15S..GL;LH125,RZH104..(SMRF,SRF)..GL;LH105,166,176,184,RZH105..CIS,GEN;LH114,115,125,RZH104,114,115..RHD..STD..GEN RH SEAT LEG |
2 | ||
| 78726-95J01 |
LH114,115,174,184,RZH104,105,114..RHD..GEN RH SEAT LEG |
2 | ||
| 78726-95J00 |
LH104,105,114,115,RZH104,105,114,115 W/BRACKET |
2 | ||
| 78731 - ARM, SUB SEAT LINK, NO.1 | ||||
| 78731-95J02 |
LH104,105,RZH104..RHD |
2 | ||
| Common parts | ||||
| 90109-08137 | ||||
| 90119-10035 | ||||
| 90119-10271 | ||||
| 90176-08044 | ||||
| 90206-08016 | ||||
| 90206-12035 | ||||
| 90389-10012 | ||||
| 90523-06017 | ||||
| 93560-15012 | ||||
| 93560-55010 | ||||
ILLUST NO. 7 OF 7(9907- )LH104,105,164,166,RZH104,105,114,115..12S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71333 - LEG, REAR SEAT CUSHION, NO.1 | ||||
| 71333-95J30 |
LH104,105,RZH104,105 FRONT |
1 | ||
| 71333-95J23 |
LH104,105,RZH104,105 REAR |
1 | ||
| 71333 - LEG, REAR SEAT CUSHION, NO.1 | ||||
| 71333-95J30 |
LH104,105,RZH104,105 FRONT |
1 | ||
| 71333-95J23 |
LH104,105,RZH104,105 REAR |
1 | ||
| 71333A - LEG, REAR SEAT CUSHION, NO.2 | ||||
| 71333-95J16 |
LH104,105,RZH104..RHD FRONT |
1 | ||
| 71333-95J25 |
LH104,105,166,RZH104,105 REAR |
1 | ||
| 71333-95J23 |
RZH104..RHD FRONT RH |
1 | ||
| 71333A - LEG, REAR SEAT CUSHION, NO.2 | ||||
| 71333-95J16 |
LH104,105,RZH104..RHD FRONT |
1 | ||
| 71333-95J25 |
LH104,105,166,RZH104,105 REAR |
1 | ||
| 71333-95J23 |
RZH104..RHD FRONT RH |
1 | ||
| 79106 - LEG SUB ASSY, NO.1 SEAT, LH | ||||
| 79106-26130 |
RZH104..RHD |
1 | ||
| 79206B - LEG SUB-ASSY, NO.2 SEAT, LH | ||||
| 79206-26060 |
RZH104..RHD |
1 | ||
ILLUST NO. 1 OF 4(8908-9205)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-08109 | ||||
| 90119-08026 | ||||
| 90119-10101 | ||||
| 90119-10116 | ||||
| 90167-40044 | ||||
| 90168-40043 | ||||
| 90173-10073 | ||||
| 90386-10027 | ||||
| 90386-12051 | ||||
| 90467-08008 | ||||
| 90468-18071 | ||||
| 90523-08001 | ||||
| 91611-61020 | ||||
| 93540-54012 | ||||
ILLUST NO. 1 OF 4(8908-9205)LH112,RZH112..RHD ; (8908- )LHD ;(9205- )RHD
(8908-9205)RHD=UNITED KINGDOM SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-08109 | ||||
| 90105-10261 | ||||
| 90119-08026 | ||||
| 90119-10101 | ||||
| 90119-10116 | ||||
| 90167-40044 | ||||
| 90176-10073 | ||||
| 90179-10073 | ||||
| 90386-10027 | ||||
| 90386-12036 | ||||
| 90386-12051 | ||||
| 90467-08008 | ||||
| 90468-18071 | ||||
| 90950-06060 | ||||
| 91611-61020 | ||||
| 93540-54012 | ||||
| 96160-01200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
