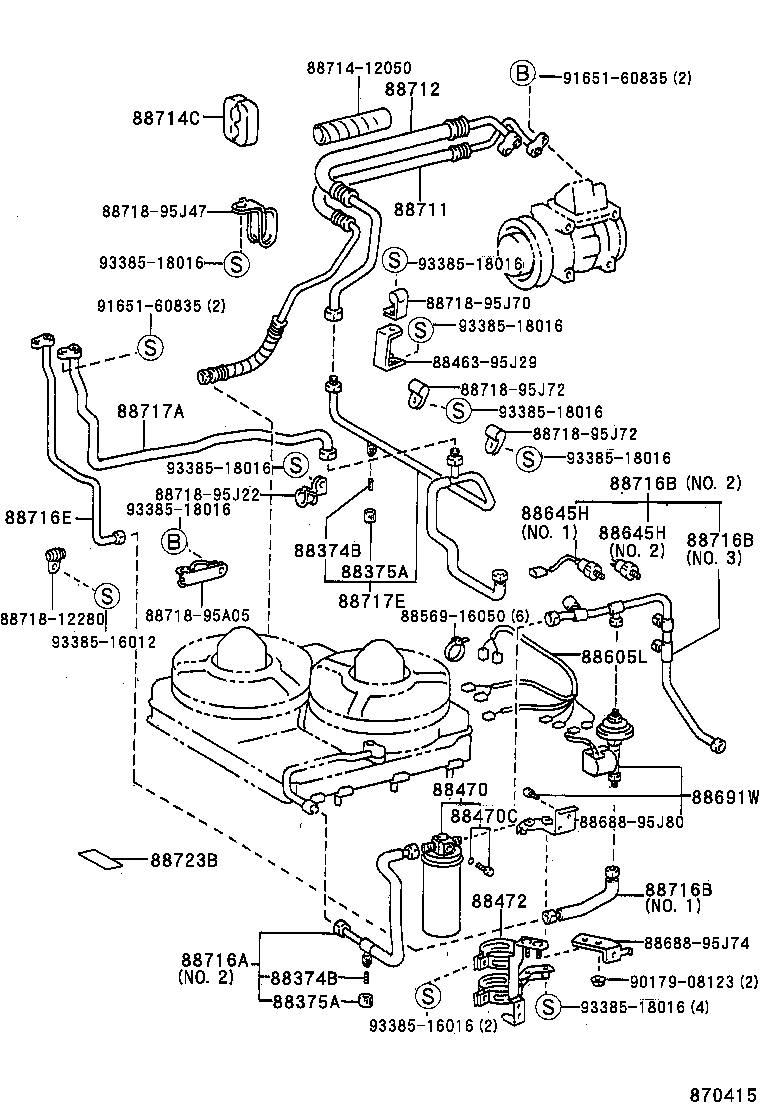

RZH103R-RRMESQ (1989)
Toyota Hiace Van,Commuter
ILLUST NO. 2 OF 5(8908-9308)RZH103,125..SG
FRONT PIPING---DUAL(DEALER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-12020 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
2 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-12020 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
2 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30270 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD SUCTION SIDE |
1 | ||
| 88375-20010 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD LIQUID SIDE |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30270 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD SUCTION SIDE |
1 | ||
| 88375-20010 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD LIQUID SIDE |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-20080 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION |
1 | ||
| 88470C - BOLT, FUSE | ||||
| 88475-20040 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95J02 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
1 | ||
| 88605L - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-26020 |
LH125,RZH103,125..SG..ARL |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-10020 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
1 | ||
| 88645-95J02 |
LH125,RZH103,125..SG..ARL NO.1 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-10020 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
1 | ||
| 88645-95J02 |
LH125,RZH103,125..SG..ARL NO.1 |
1 | ||
| 88691W - VALVE, MAGNET | ||||
| 88690-95J42 |
LH104,105,114,115,125,RZH103,104,114,125..RHD..4D..SG |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95J12 |
RZH103,104,114,125..RHD..4D..SG |
1 | ||
| 88711-95J33 |
LH102,103,112,113 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95J22 |
RZH10#,11#,125..RHD |
1 | ||
| 88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88714-95J13 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-26060 |
LH104,105,114,115,125,RZH103,104,114,125..RHD..4D..SG NO.2 |
1 | ||
| 88716-95J27 |
RZH103,113..GEN;LH102,103,112,113,RZH102,112..RHD NO.1 |
1 | ||
| 88716-95N10 |
LH104,105,114,115,125,RZH103,104,114,125..RHD..4D..SG NO.1 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95N08 |
LH125,RZH103,125..SG..ARL NO.3 |
1 | ||
| 88716-95J80 |
LH104,105,114,115,125,RZH103,104,114,125..4D..SG NO.1 |
1 | ||
| 88716-95N09 |
LH104,105,114,115,125,RZH103,104,114,125..RHD..4D..SG NO.2 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95N08 |
LH125,RZH103,125..SG..ARL NO.3 |
1 | ||
| 88716-95J80 |
LH104,105,114,115,125,RZH103,104,114,125..4D..SG NO.1 |
1 | ||
| 88716-95N09 |
LH104,105,114,115,125,RZH103,104,114,125..RHD..4D..SG NO.2 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95N08 |
LH125,RZH103,125..SG..ARL NO.3 |
1 | ||
| 88716-95J80 |
LH104,105,114,115,125,RZH103,104,114,125..4D..SG NO.1 |
1 | ||
| 88716-95N09 |
LH104,105,114,115,125,RZH103,104,114,125..RHD..4D..SG NO.2 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-26040 |
LH104,105,114,115,125,RZH103,104,114,125..RHD..4D..SG |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-95J40 |
LH10#,11#,125,RZH10#,11#,125..RHD |
1 | ||
| 88717E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-95J57 |
LH125,RZH103,125..SG..ARL |
1 | ||
| Common parts | ||||
| 88463-95J29 | ||||
| 88569-16050 | ||||
| 88688-95J74 | ||||
| 88688-95J80 | ||||
| 88714-12050 | ||||
| 88718-12280 | ||||
| 88718-95A05 | ||||
| 88718-95J22 | ||||
| 88718-95J47 | ||||
| 88718-95J70 | ||||
| 88718-95J72 | ||||
| 90179-08123 | ||||
| 91651-60835 | ||||
| 93385-16012 | ||||
| 93385-16016 | ||||
| 93385-18016 | ||||

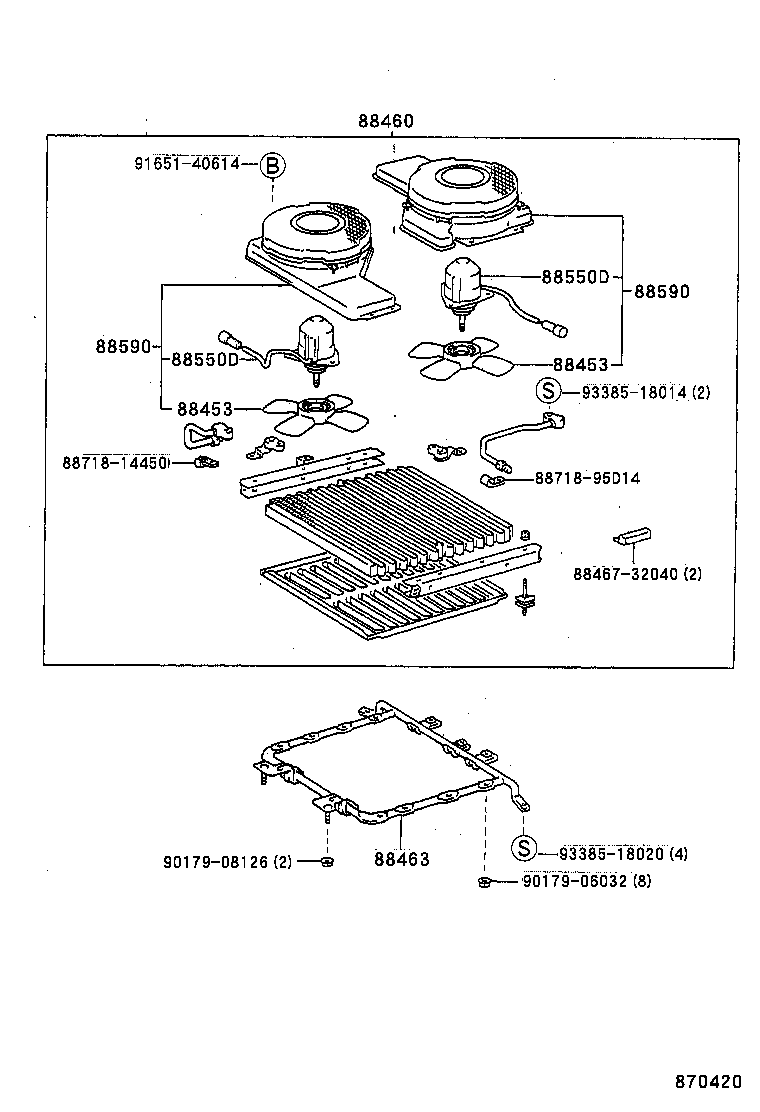

ILLUST NO. 1 OF 5(8908-9308)ARL
CONDENSER---DUAL(DEALER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95J01 |
LH125,RZH103,125..SG..ARL |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-95J22 |
LH104,105,114,115,125,RZH103,104,114,125..RHD..4D..SG |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-95J01 |
LH104,105,114,115,125,RZH103,104,114,125..RHD..SG |
2 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-95J01 |
LH104,105,114,115,125,RZH103,104,114,125..RHD..SG |
2 | ||
| Common parts | ||||
| 88467-32040 | ||||
| 88718-14450 | ||||
| 88718-95D14 | ||||
| 90179-06032 | ||||
| 90179-08126 | ||||
| 91651-40614 | ||||
| 93385-18014 | ||||
| 93385-18020 | ||||

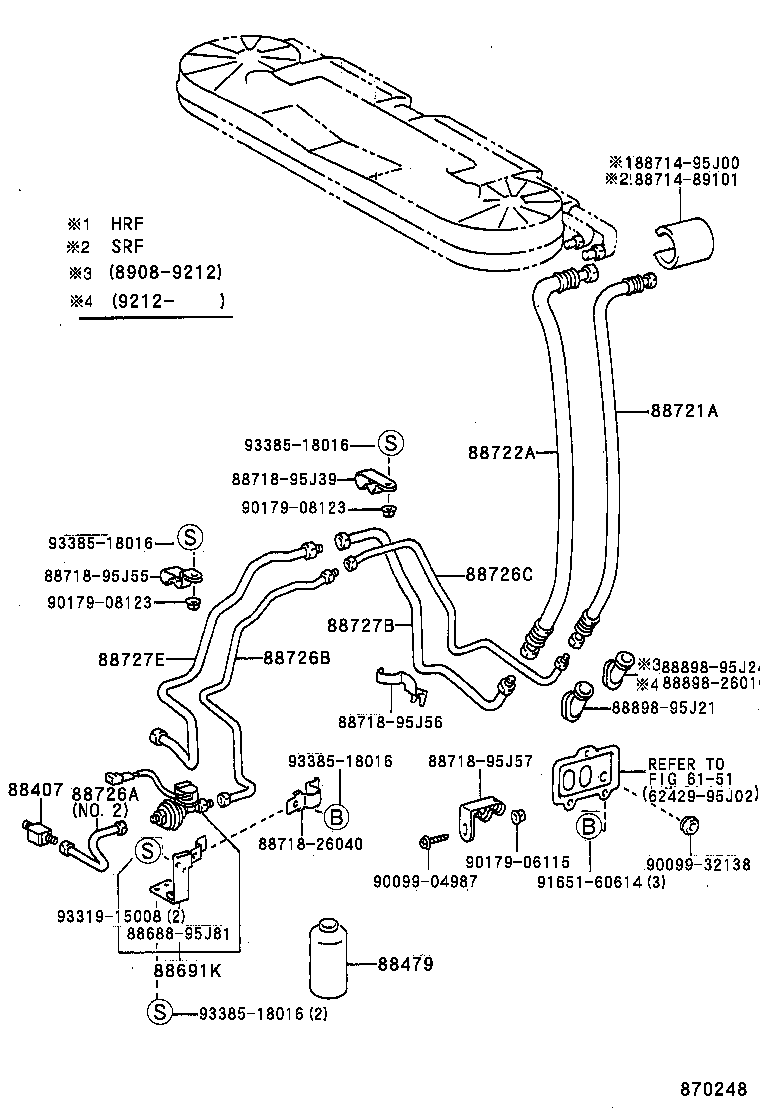

ILLUST NO. 3 OF 5(8908-9308)LH125,RZH103,125..SG
REAR PIPING(DEALER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88407 - GLASS SUB-ASSY, SIGHT | ||||
| 88407-95701 |
LH125,RZH103,125..SG |
1 | ||
| 88691K - VALVE ASSY, MAGNET | ||||
| 88690-95J44 |
LH104,105,114,115,125,RZH103,104,114,125..4D..SG |
1 | ||
| 88721A - HOSE, LIQUID, A | ||||
| 88721-95J05 |
LH104,105,114,115,RZH103,104,114..SRF..4D..SG |
1 | ||
| 88722A - HOSE, SUCTION, A | ||||
| 88712-95J16 |
LH104,105,114,115,RZH103,104,114..SRF..4D..SG |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95J87 |
LH104,105,114,115,125,RZH103,104,114,125..RHD..4D..SG |
1 | ||
| 88726B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95N00 |
LH104,105,114,115,125,RZH103,104,114,125..4D..SG |
1 | ||
| 88726C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-95N01 |
LH104,105,114,115,125,RZH103,104,114,125..4D..SG |
1 | ||
| 88727B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-95J50 |
LH104,105,114,115,125,RZH103,104,114,125..4D..SG |
1 | ||
| 88727E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-95J49 |
LH125,RZH103,125..SG..ARL |
1 | ||
| Common parts | ||||
| 62429-95J02 | ||||
| 88688-95J81 | ||||
| 88714-89101 | ||||
| 88714-95J00 | ||||
| 88718-26040 | ||||
| 88718-95J39 | ||||
| 88718-95J55 | ||||
| 88718-95J56 | ||||
| 88718-95J57 | ||||
| 88898-26010 | ||||
| 88898-95J21 | ||||
| 88898-95J24 | ||||
| 90099-04987 | ||||
| 90099-32138 | ||||
| 90179-06115 | ||||
| 90179-08123 | ||||
| 91651-60614 | ||||
| 93319-15008 | ||||
| 93385-18016 | ||||
| Linked diagrams | ||||
| 6151 | ||||

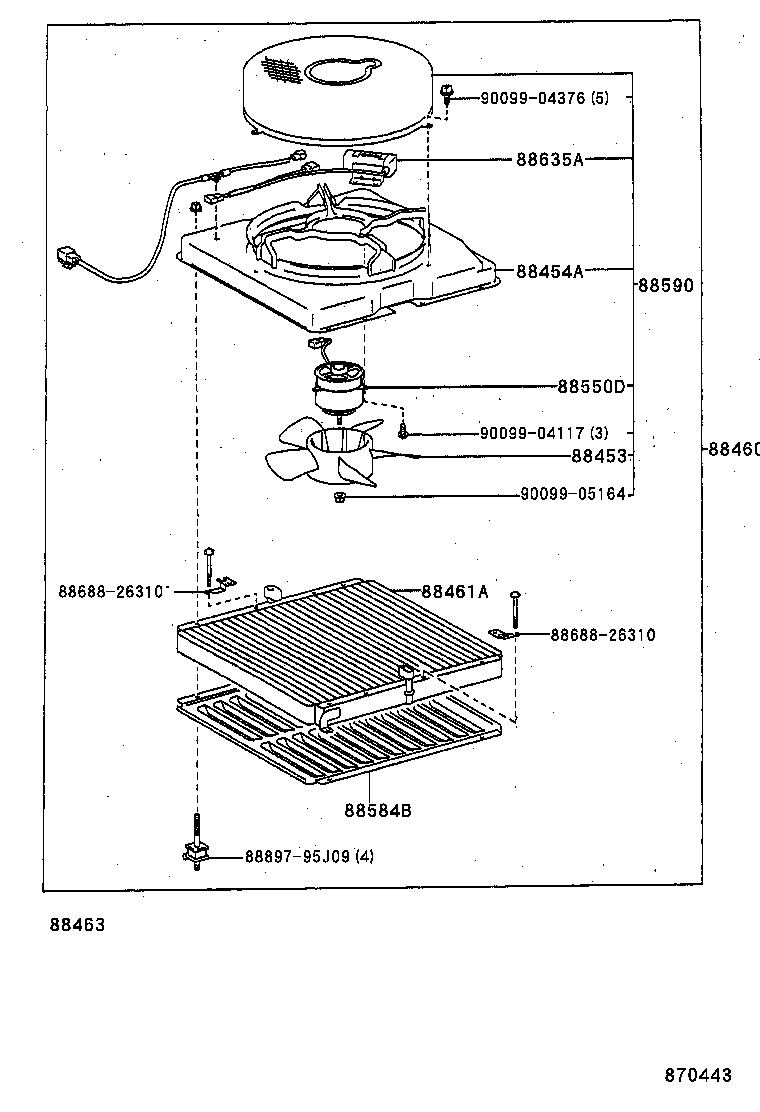

ILLUST NO. 1 OF 5(8908-9808)ARL
CONDENSER---SINGLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95J01 |
LH125,RZH103,125..SG..ARL |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-95J09 |
RZH103,113..GEN;LH102,103,112,113,RZH102,112 |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-95J22 |
LH104,105,114,115,125,RZH103,104,114,125..RHD..4D..SG |
1 | ||
| 88584B - GUIDE, COOLER AIR | ||||
| 88584-95J00 |
RZH103,113..GEN;LH102,103,112,113,RZH102,112 |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-95J01 |
LH104,105,114,115,125,RZH103,104,114,125..RHD..SG |
2 | ||
| Common parts | ||||
| 88688-26310 | ||||
| 88897-95J09 | ||||
| 90099-04117 | ||||
| 90099-04376 | ||||
| 90099-05164 | ||||
ILLUST NO. 4 OF 5(8908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30270 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD SUCTION SIDE |
1 | ||
| 88375-20010 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD LIQUID SIDE |
1 | ||
ILLUST NO. 2 OF 5(8908-9308)RHD
FRONT PIPING---DUAL(MAKER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-20080 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-20080 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95J02 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
1 | ||
| 88691W - VALVE, MAGNET | ||||
| 88690-95J42 |
LH104,105,114,115,125,RZH103,104,114,125..RHD..4D..SG |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95J12 |
RZH103,104,114,125..RHD..4D..SG |
1 | ||
| 88711-95J33 |
LH102,103,112,113 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95J22 |
RZH10#,11#,125..RHD |
1 | ||
| 88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88714-95J13 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-26060 |
LH104,105,114,115,125,RZH103,104,114,125..RHD..4D..SG NO.2 |
1 | ||
| 88716-95J27 |
RZH103,113..GEN;LH102,103,112,113,RZH102,112..RHD NO.1 |
1 | ||
| 88716-95N10 |
LH104,105,114,115,125,RZH103,104,114,125..RHD..4D..SG NO.1 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95N08 |
LH125,RZH103,125..SG..ARL NO.3 |
1 | ||
| 88716-95J80 |
LH104,105,114,115,125,RZH103,104,114,125..4D..SG NO.1 |
1 | ||
| 88716-95N09 |
LH104,105,114,115,125,RZH103,104,114,125..RHD..4D..SG NO.2 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95N08 |
LH125,RZH103,125..SG..ARL NO.3 |
1 | ||
| 88716-95J80 |
LH104,105,114,115,125,RZH103,104,114,125..4D..SG NO.1 |
1 | ||
| 88716-95N09 |
LH104,105,114,115,125,RZH103,104,114,125..RHD..4D..SG NO.2 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-26040 |
LH104,105,114,115,125,RZH103,104,114,125..RHD..4D..SG |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-95J40 |
LH10#,11#,125,RZH10#,11#,125..RHD |
1 | ||
| 88717E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-95J57 |
LH125,RZH103,125..SG..ARL |
1 | ||
| Common parts | ||||
| 88463-95J29 | ||||
| 88688-95J74 | ||||
| 88688-95J77 | ||||
| 88718-12280 | ||||
| 88718-26070 | ||||
| 88718-26120 | ||||
| 88718-95J05 | ||||
| 88718-95J22 | ||||
| 88718-95J37 | ||||
| 88718-95J47 | ||||
| 88718-95J70 | ||||
| 90119-06311 | ||||
| 90179-08123 | ||||
| 90463-12014 | ||||
| 90463-13003 | ||||
| 91651-40816 | ||||
| 91651-60835 | ||||
ILLUST NO. 2 OF 5(8908-9308)RHD
FRONT PIPING---DUAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-20080 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-20080 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95J02 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
1 | ||
| 88691W - VALVE, MAGNET | ||||
| 88690-95J42 |
LH104,105,114,115,125,RZH103,104,114,125..RHD..4D..SG |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95J12 |
RZH103,104,114,125..RHD..4D..SG |
1 | ||
| 88711-95J33 |
LH102,103,112,113 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95J22 |
RZH10#,11#,125..RHD |
1 | ||
| 88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88714-95J13 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-26060 |
LH104,105,114,115,125,RZH103,104,114,125..RHD..4D..SG NO.2 |
1 | ||
| 88716-95J27 |
RZH103,113..GEN;LH102,103,112,113,RZH102,112..RHD NO.1 |
1 | ||
| 88716-95N10 |
LH104,105,114,115,125,RZH103,104,114,125..RHD..4D..SG NO.1 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95N08 |
LH125,RZH103,125..SG..ARL NO.3 |
1 | ||
| 88716-95J80 |
LH104,105,114,115,125,RZH103,104,114,125..4D..SG NO.1 |
1 | ||
| 88716-95N09 |
LH104,105,114,115,125,RZH103,104,114,125..RHD..4D..SG NO.2 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95N08 |
LH125,RZH103,125..SG..ARL NO.3 |
1 | ||
| 88716-95J80 |
LH104,105,114,115,125,RZH103,104,114,125..4D..SG NO.1 |
1 | ||
| 88716-95N09 |
LH104,105,114,115,125,RZH103,104,114,125..RHD..4D..SG NO.2 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-26040 |
LH104,105,114,115,125,RZH103,104,114,125..RHD..4D..SG |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-95J40 |
LH10#,11#,125,RZH10#,11#,125..RHD |
1 | ||
| 88717E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-95J57 |
LH125,RZH103,125..SG..ARL |
1 | ||
| Common parts | ||||
| 88688-95J74 | ||||
| 88718-12280 | ||||
| 88718-95J05 | ||||
| 88718-95J22 | ||||
| 88718-95J37 | ||||
| 88718-95J47 | ||||
| 90119-06311 | ||||
| 90179-08123 | ||||
| 90463-12014 | ||||
| 90463-13003 | ||||
| 91651-40816 | ||||
| 91651-60835 | ||||
ILLUST NO. 2 OF 5(8908-9308)RHD
FRONT PIPING---SINGLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-12020 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
2 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-12020 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
2 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30270 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD SUCTION SIDE |
1 | ||
| 88375-20010 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD LIQUID SIDE |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30270 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD SUCTION SIDE |
1 | ||
| 88375-20010 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD LIQUID SIDE |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-20080 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION |
1 | ||
| 88470C - BOLT, FUSE | ||||
| 88475-20040 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95J02 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-10020 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
1 | ||
| 88645-95J02 |
LH125,RZH103,125..SG..ARL NO.1 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95J12 |
RZH103,104,114,125..RHD..4D..SG |
1 | ||
| 88711-95J33 |
LH102,103,112,113 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95J22 |
RZH10#,11#,125..RHD |
1 | ||
| 88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88714-95J13 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-26060 |
LH104,105,114,115,125,RZH103,104,114,125..RHD..4D..SG NO.2 |
1 | ||
| 88716-95J27 |
RZH103,113..GEN;LH102,103,112,113,RZH102,112..RHD NO.1 |
1 | ||
| 88716-95N10 |
LH104,105,114,115,125,RZH103,104,114,125..RHD..4D..SG NO.1 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95N08 |
LH125,RZH103,125..SG..ARL NO.3 |
1 | ||
| 88716-95J80 |
LH104,105,114,115,125,RZH103,104,114,125..4D..SG NO.1 |
1 | ||
| 88716-95N09 |
LH104,105,114,115,125,RZH103,104,114,125..RHD..4D..SG NO.2 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95N08 |
LH125,RZH103,125..SG..ARL NO.3 |
1 | ||
| 88716-95J80 |
LH104,105,114,115,125,RZH103,104,114,125..4D..SG NO.1 |
1 | ||
| 88716-95N09 |
LH104,105,114,115,125,RZH103,104,114,125..RHD..4D..SG NO.2 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-26040 |
LH104,105,114,115,125,RZH103,104,114,125..RHD..4D..SG |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-95J40 |
LH10#,11#,125,RZH10#,11#,125..RHD |
1 | ||
| 88717E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-95J57 |
LH125,RZH103,125..SG..ARL |
1 | ||
| Common parts | ||||
| 88688-95J74 | ||||
| 88718-95J05 | ||||
| 88718-95J22 | ||||
| 88718-95J47 | ||||
| 88718-95J72 | ||||
| 90179-08123 | ||||
| 91651-60835 | ||||
| 91651-B0820 | ||||
| 93385-16012 | ||||
| 93385-16016 | ||||
| 93385-18016 | ||||
ILLUST NO. 3 OF 5(8908-9308)
REAR PIPING(MAKER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88407 - GLASS SUB-ASSY, SIGHT | ||||
| 88407-95701 |
LH125,RZH103,125..SG |
1 | ||
| 88407 - GLASS SUB-ASSY, SIGHT | ||||
| 88407-95701 |
LH125,RZH103,125..SG |
1 | ||
| 88691K - VALVE ASSY, MAGNET | ||||
| 88690-95J44 |
LH104,105,114,115,125,RZH103,104,114,125..4D..SG |
1 | ||
| 88721A - HOSE, LIQUID, A | ||||
| 88721-95J05 |
LH104,105,114,115,RZH103,104,114..SRF..4D..SG |
1 | ||
| 88722A - HOSE, SUCTION, A | ||||
| 88712-95J16 |
LH104,105,114,115,RZH103,104,114..SRF..4D..SG |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95J87 |
LH104,105,114,115,125,RZH103,104,114,125..RHD..4D..SG |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95J87 |
LH104,105,114,115,125,RZH103,104,114,125..RHD..4D..SG |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95J87 |
LH104,105,114,115,125,RZH103,104,114,125..RHD..4D..SG |
1 | ||
| 88726B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95N00 |
LH104,105,114,115,125,RZH103,104,114,125..4D..SG |
1 | ||
| 88726C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-95N01 |
LH104,105,114,115,125,RZH103,104,114,125..4D..SG |
1 | ||
| 88727B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-95J50 |
LH104,105,114,115,125,RZH103,104,114,125..4D..SG |
1 | ||
| 88727E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-95J49 |
LH125,RZH103,125..SG..ARL |
1 | ||
| Common parts | ||||
| 88718-26040 | ||||
| 88718-95J39 | ||||
| 88718-95J55 | ||||
| 88718-95J56 | ||||
| 88718-95J57 | ||||
| 88718-95J59 | ||||
| 88898-26010 | ||||
| 88898-95J21 | ||||
| 88898-95J24 | ||||
| 90119-06330 | ||||
| 90179-06167 | ||||
| 90179-08123 | ||||
| 90463-12014 | ||||
| 90950-01047 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 91655-40616 | ||||
| Linked diagrams | ||||
| 6151 | ||||
ILLUST NO. 2 OF 5(8908-9308)RHD
FRONT PIPING---SINGLE(DEALER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-12020 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
2 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-12020 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
2 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30270 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD SUCTION SIDE |
1 | ||
| 88375-20010 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD LIQUID SIDE |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30270 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD SUCTION SIDE |
1 | ||
| 88375-20010 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD LIQUID SIDE |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-20080 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION |
1 | ||
| 88470C - BOLT, FUSE | ||||
| 88475-20040 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95J02 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-10020 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
1 | ||
| 88645-95J02 |
LH125,RZH103,125..SG..ARL NO.1 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95J12 |
RZH103,104,114,125..RHD..4D..SG |
1 | ||
| 88711-95J33 |
LH102,103,112,113 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95J22 |
RZH10#,11#,125..RHD |
1 | ||
| 88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88714-95J13 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-26060 |
LH104,105,114,115,125,RZH103,104,114,125..RHD..4D..SG NO.2 |
1 | ||
| 88716-95J27 |
RZH103,113..GEN;LH102,103,112,113,RZH102,112..RHD NO.1 |
1 | ||
| 88716-95N10 |
LH104,105,114,115,125,RZH103,104,114,125..RHD..4D..SG NO.1 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95N08 |
LH125,RZH103,125..SG..ARL NO.3 |
1 | ||
| 88716-95J80 |
LH104,105,114,115,125,RZH103,104,114,125..4D..SG NO.1 |
1 | ||
| 88716-95N09 |
LH104,105,114,115,125,RZH103,104,114,125..RHD..4D..SG NO.2 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95N08 |
LH125,RZH103,125..SG..ARL NO.3 |
1 | ||
| 88716-95J80 |
LH104,105,114,115,125,RZH103,104,114,125..4D..SG NO.1 |
1 | ||
| 88716-95N09 |
LH104,105,114,115,125,RZH103,104,114,125..RHD..4D..SG NO.2 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-26040 |
LH104,105,114,115,125,RZH103,104,114,125..RHD..4D..SG |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-95J40 |
LH10#,11#,125,RZH10#,11#,125..RHD |
1 | ||
| 88717E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-95J57 |
LH125,RZH103,125..SG..ARL |
1 | ||
| Common parts | ||||
| 88688-95J74 | ||||
| 88688-95J77 | ||||
| 88718-95J05 | ||||
| 88718-95J22 | ||||
| 88718-95J47 | ||||
| 88718-95J72 | ||||
| 88718-95J75 | ||||
| 90179-08123 | ||||
| 91651-60835 | ||||
| 93385-16012 | ||||
| 93385-18016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
