RZH103R-RRMESQ (1989)

Toyota Hiace Van,Commuter

Production Aug 1989 - Aug 1991
Engine 2RZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )

Click highlighted areas on diagram

FRONT

diagram 86150 86150 86160 86160 86161 9018305103 9018305103 9356715016 9356855016 9356855016 9356855016 9356855016 9356855016 9356855016
Part # Description Qty Price
86150 - SPEAKER ASSY, W/BOX, NO.1
86150-95J01

RZH103..GL

LH

 1
86150-95J05

RZH103..GL

RH

 1
86150 - SPEAKER ASSY, W/BOX, NO.1
86150-95J01

RZH103..GL

LH

 1
86150-95J05

RZH103..GL

RH

 1
86161 - BRACKET, SPEAKER, FRONT NO.1
86163-95J02

RZH103..GL

 1
Common parts
90183-05103
93567-15016
93568-55016

(8908-9108)GL

Click highlighted areas on diagram

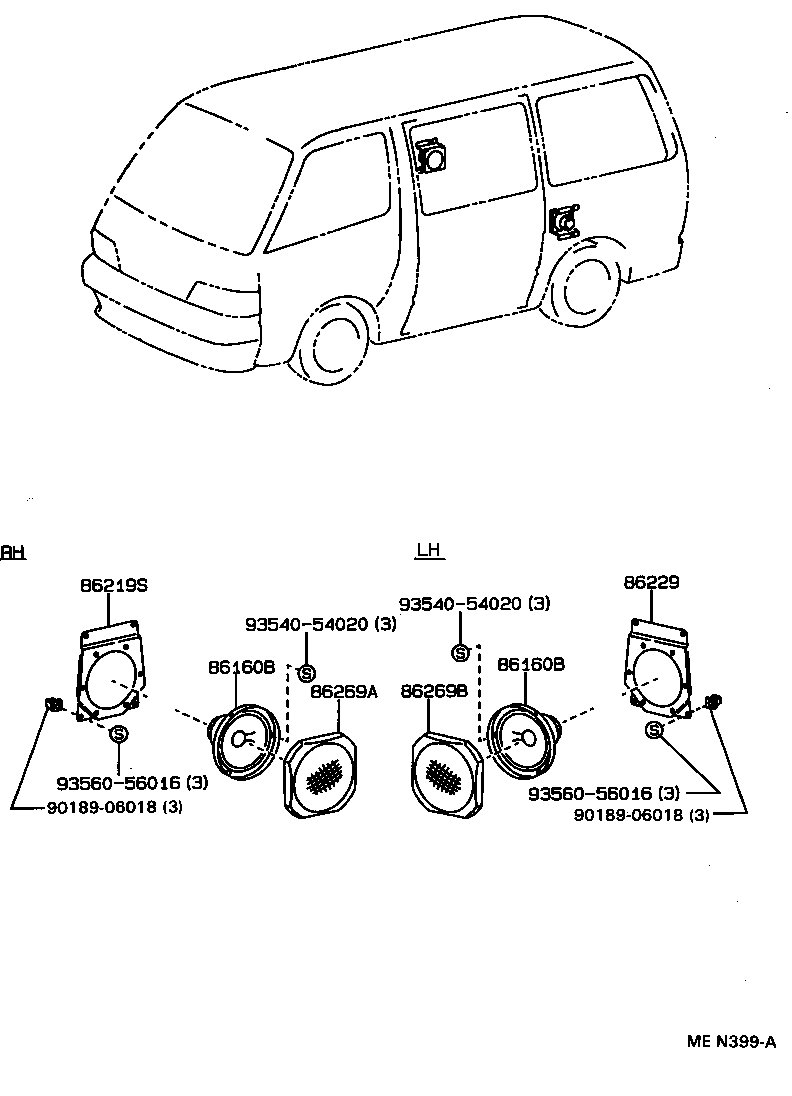

REAR

diagram 86160B 86160B 86219S 86229 86269A 86269B 9018906018 9018906018 9354054020 9354054020 9356056016 9356056016
Part # Description Qty Price
86160B - SPEAKER ASSY, REAR
86160-95J27

RZH103..GL

 2
86160B - SPEAKER ASSY, REAR
86160-95J27

RZH103..GL

 2
86219S - BRACKET, STEREO SPEAKER, RH
86219-95J04

RZH103..GL

 1
86229 - BRACKET, STEREO SPEAKER, LH
86219-95J04

RZH103..GL

 1
86269A - GRILLE, SPEAKER
86269-90K00

RZH103..GL

 1
86269B - GRILLE, SPEAKER
86269-90K00

RZH103..GL

 1
Common parts
90189-06018
93540-54020
93560-56016

(8908- )

Click highlighted areas on diagram

FRONT SPEAKER

diagram 86160 86160 9356715016 9356715016
Part # Description Qty Price
Common parts
93567-15016
