RZH103R-RRMESQ (1989)

Toyota Hiace Van,Commuter

Production Aug 1989 - Aug 1991
Engine 2RZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )RHD

Click highlighted areas on diagram

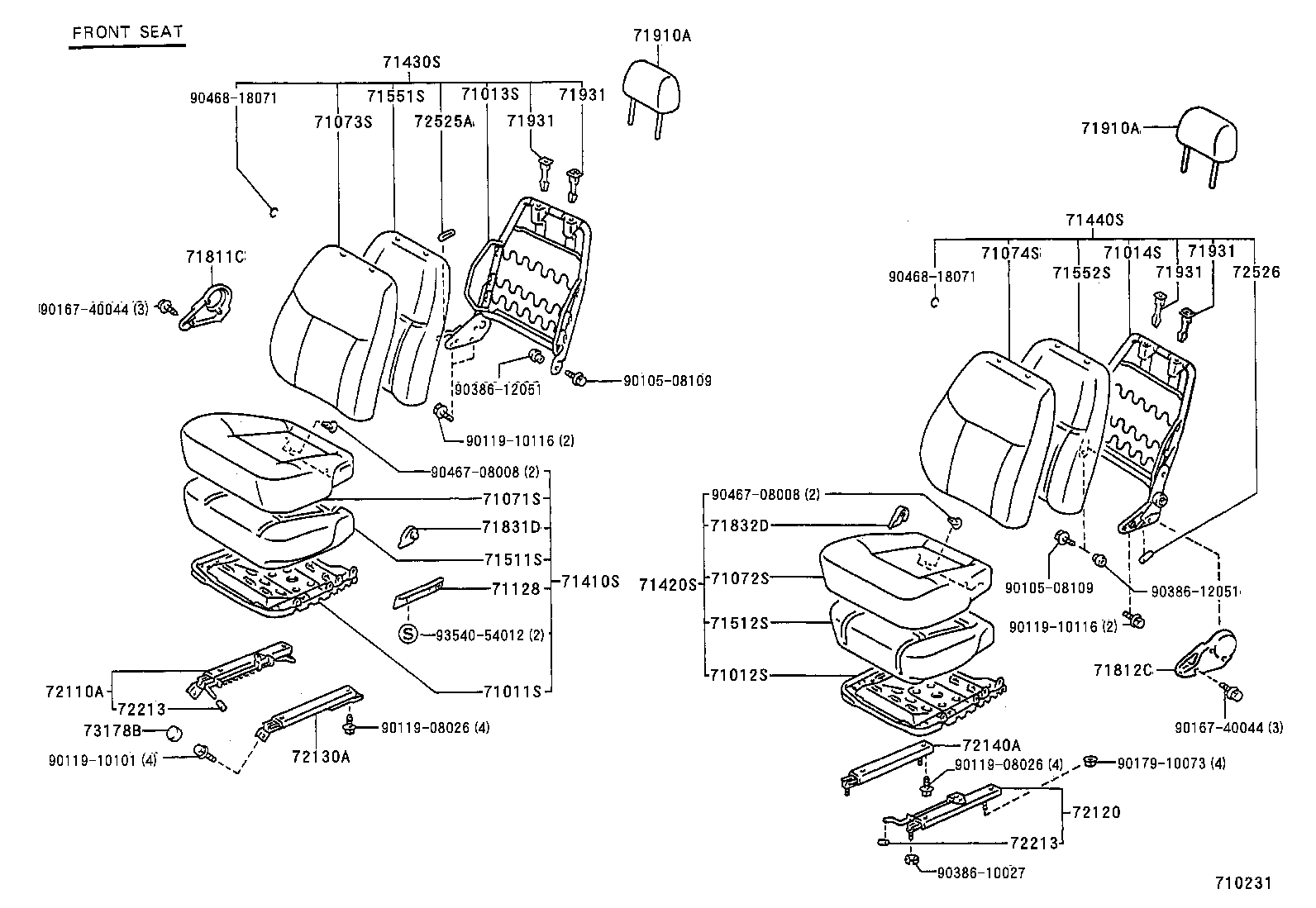

FRONT SEAT

diagram 5855 71011S 71013S 71014S 71035S 71071S 71072S 71073S 71074S 71128 71274 71350S 71358 71368A 71380 71392 71395B 71410S 71420S 71430S 71440S 71511S 71512S 71551S 71552S 71811C 71812C 71831D 71832D 71910A 71910A 71931 71931 71931 71931 72110A 72130A 72213 72525A 72526 72658C 73178B 9010508109 9010508109 9011908026 9011910101 9011910116 9011910116 9011910116 9011910229 9011910229 9011910855 9016140023 9016140023 9016740044 9016740044 9016740044 9016740044 9017910073 9038610027 9038612051 9038612051 9046708008 9046818071 9046818071 9046818071 9046818071 9052308001 9354054012
Part # Description Qty Price
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71011-95J06

LH10#,11#,125,RZH10#,11#,125..RHD

W(*ELR)

 1
71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH
71013-95J04

RZH103..GL;RZH102..RHD..4F;LH10#,11#,RZH104,112,114..RHD..GEN

W(HEADREST)

 1
71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71014-95J04

RZH103..GL

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-95J7703

RZH103..GL

GRAY,TRIM1#

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-95J8303

RZH103..GL

GRAY,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-95N3103

RZH103..GL

GRAY,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-95N4703

RZH103..GL

GRAY,TRIM1#

 1
71128 - PLATE, FRONT SEAT CUSHION COVER SET, OUTSIDE LH
71128-95J0803

LH10#,11#,RZH10#,11#..RHD

GRAY,TRIM1#

 1
71128-95J0803

LH10#,11#,RZH10#,11#..RHD..SRF

GRAY,TRIM1#

 1
71395B - COVER, CENTER SEAT HINGE, RH
71395-95J0203

LH10#,11#,125,RZH10#,11#,125..RHD

GRAY,TRIM1#

 1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-95J7803

RZH103..GL

GRAY,TRIM1#

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-95J8403

RZH103..GL

GRAY,TRIM1#

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71401-95N2803

RZH103..GL

GRAY,TRIM1#

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71402-95N3103

RZH103..GL

GRAY,TRIM1#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-95J11

LH10#,11#,125,RZH10#,11#,125..RHD

W(*ELR)

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-95J04

RZH103..GL

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-95J18

LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-95J18

RZH103..4D..SG..CBR;LH102,104,105,11#,166,174,176,RZH102,104,105,11#..LHD

 1
71811C - COVER, RECLINING ADJUSTER, RH
71811-95J0003

LH10#,11#,125,RZH10#,11#,125..RHD

GRAY,TRIM1#,FRONT SEAT

 1
71812C - COVER, RECLINING ADJUSTER, LH
71812-95J0013

RZH103,113..SG..ARL;LH102,104,112,114,RZH102,104,112,114..LHD

GRAY,TRIM1#

 1
71831D - COVER, FRONT SEAT HINGE, RH
71831-95J0003

LH10#,11#,RZH10#,11#

GRAY,TRIM1#

 1
71832D - COVER, FRONT SEAT HINGE, LH
71832-95J0103

RZH103..GL;LH102,104,112,114,RZH102,104,112,114..LHD

GRAY,TRIM1#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-95J3903

RZH103..GL

GRAY,TRIM1#

 2
71910A - HEADREST ASSY, FRONT SEAT
71910-95J3903

RZH103..GL

GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71990-3002033

RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114

W(LOCK),GRAY,TRIM1#

 2
71956-3002033

RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114

W/O(LOCK),GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71990-3002033

RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114

W(LOCK),GRAY,TRIM1#

 2
71956-3002033

RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114

W/O(LOCK),GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71990-3002033

RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114

W(LOCK),GRAY,TRIM1#

 2
71956-3002033

RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114

W/O(LOCK),GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71990-3002033

RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114

W(LOCK),GRAY,TRIM1#

 2
71956-3002033

RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114

W/O(LOCK),GRAY,TRIM1#

 2
72110A - TRACK ASSY, FRONT SEAT, OUTER RH
72110-95J07

LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD

 1
72130A - TRACK ASSY, FRONT SEAT, INNER RH
72130-95J02

LH10#,11#,125,RZH10#,11#,125..RHD

 1
72213 - KNOB, SEAT TRACK ADJUSTING HANDLE
72213-12040

LH125..ARL;LH10#,11#,RZH10#,11#,125

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-95J0103

LH10#,11#,RZH10#,11#..RHD

GRAY,TRIM1#

 1
72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH
72525-95J0103

RZH103,113..SG..ARL

GRAY,TRIM1#

 1
Common parts
90105-08109
90119-08026
90119-10101
90119-10116
90119-10229
90119-10855
90161-40023
90167-40044
90179-10073
90386-10027
90386-12051
90467-08008
90468-18071
90523-08001
93540-54012
Linked diagrams
5855

(8908-9308)GL

Click highlighted areas on diagram

FRONT SEAT

diagram 71011S 71012S 71013S 71014S 71071S 71072S 71073S 71074S 71128 71410S 71420S 71430S 71440S 71511S 71512S 71551S 71552S 71811C 71812C 71831D 71832D 71910A 71910A 71931 71931 71931 71931 72110A 72120 72130A 72140A 72213 72213 72525A 72526 73178B 9010508109 9010508109 9011908026 9011908026 9011910101 9011910116 9011910116 9016740044 9016740044 9017910073 9038610027 9038612051 9038612051 9046708008 9046708008 9046818071 9046818071 9354054012
Part # Description Qty Price
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71011-95J06

LH10#,11#,125,RZH10#,11#,125..RHD

W(*ELR)

 1
71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH
71012-95J1303

RZH103..GL;LH102,104,112,114,RZH102,104,112,114..LHD

GRAY,TRIM1#

 1
71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH
71013-95J04

RZH103..GL;RZH102..RHD..4F;LH10#,11#,RZH104,112,114..RHD..GEN

W(HEADREST)

 1
71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71014-95J04

RZH103..GL

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-95J7703

RZH103..GL

GRAY,TRIM1#

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-95J8303

RZH103..GL

GRAY,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-95N3103

RZH103..GL

GRAY,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-95N4703

RZH103..GL

GRAY,TRIM1#

 1
71128 - PLATE, FRONT SEAT CUSHION COVER SET, OUTSIDE LH
71128-95J0803

LH10#,11#,RZH10#,11#..RHD

GRAY,TRIM1#

 1
71128-95J0803

LH10#,11#,RZH10#,11#..RHD..SRF

GRAY,TRIM1#

 1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-95J7803

RZH103..GL

GRAY,TRIM1#

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-95J8403

RZH103..GL

GRAY,TRIM1#

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71401-95N2803

RZH103..GL

GRAY,TRIM1#

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71402-95N3103

RZH103..GL

GRAY,TRIM1#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-95J11

LH10#,11#,125,RZH10#,11#,125..RHD

W(*ELR)

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-95J04

RZH103..GL

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-95J18

LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-95J18

RZH103..4D..SG..CBR;LH102,104,105,11#,166,174,176,RZH102,104,105,11#..LHD

 1
71811C - COVER, RECLINING ADJUSTER, RH
71811-95J0003

LH10#,11#,125,RZH10#,11#,125..RHD

GRAY,TRIM1#,FRONT SEAT

 1
71812C - COVER, RECLINING ADJUSTER, LH
71812-95J0013

RZH103,113..SG..ARL;LH102,104,112,114,RZH102,104,112,114..LHD

GRAY,TRIM1#

 1
71831D - COVER, FRONT SEAT HINGE, RH
71831-95J0003

LH10#,11#,RZH10#,11#

GRAY,TRIM1#

 1
71832D - COVER, FRONT SEAT HINGE, LH
71832-95J0103

RZH103..GL;LH102,104,112,114,RZH102,104,112,114..LHD

GRAY,TRIM1#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-95J3903

RZH103..GL

GRAY,TRIM1#

 2
71910A - HEADREST ASSY, FRONT SEAT
71910-95J3903

RZH103..GL

GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71990-3002033

RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114

W(LOCK),GRAY,TRIM1#

 2
71956-3002033

RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114

W/O(LOCK),GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71990-3002033

RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114

W(LOCK),GRAY,TRIM1#

 2
71956-3002033

RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114

W/O(LOCK),GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71990-3002033

RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114

W(LOCK),GRAY,TRIM1#

 2
71956-3002033

RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114

W/O(LOCK),GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71990-3002033

RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114

W(LOCK),GRAY,TRIM1#

 2
71956-3002033

RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114

W/O(LOCK),GRAY,TRIM1#

 2
72110A - TRACK ASSY, FRONT SEAT, OUTER RH
72110-95J07

LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD

 1
72120 - TRACK ASSY, FRONT SEAT, OUTER LH
72120-95J05

RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(05S,09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD

 1
72130A - TRACK ASSY, FRONT SEAT, INNER RH
72130-95J02

LH10#,11#,125,RZH10#,11#,125..RHD

 1
72140A - TRACK ASSY, FRONT SEAT,INNER LH
72140-95J02

RZH103..4D..SG..CBR;LH102,104,105,11#,RZH102,104,105,11#..LHD

 1
72213 - KNOB, SEAT TRACK ADJUSTING HANDLE
72213-12040

LH125..ARL;LH10#,11#,RZH10#,11#,125

 1
72213 - KNOB, SEAT TRACK ADJUSTING HANDLE
72213-12040

LH125..ARL;LH10#,11#,RZH10#,11#,125

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-95J0103

LH10#,11#,RZH10#,11#..RHD

GRAY,TRIM1#

 1
72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH
72525-95J0103

RZH103,113..SG..ARL

GRAY,TRIM1#

 1
Common parts
90105-08109
90119-08026
90119-10101
90119-10116
90167-40044
90179-10073
90386-10027
90386-12051
90467-08008
90468-18071
93540-54012

(8908-9808)LH102,103,112,113,RZH102,103,112,113..SG

Click highlighted areas on diagram

REAR SEAT

diagram 71334A 71409 71434 71448 71617 71621A 71695C 71695C 72050 72050 72050 72050 72066 72213A 79011A 79013A 79120A 79120B 79135 79140A 79160 79175 79180 79189 79199 9010908150 9011910607 9011910607 9014910008 9015960126 9020213066 9020616025 9046818071 9046818071 9052306017 9331516016 9331516016 9353044016 9356014012 9451100800
Part # Description Qty Price
71617 - PROTECTOR, REAR SEAT BACK
71695-95J0203

LH102,103,112,113,RZH102,103,112,113..SG

GRAY,TRIM1#

 1
79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION
79011-95N3203

RZH103..GL

GRAY,TRIM1#

 1
79013A - COVER SUB-ASSY, NO.1 SEAT BACK
79013-95N1503

RZH103..GL

GRAY,TRIM1#

 1
79120A - CUSHION ASSY, NO.1 SEAT
79120-95N4603

RZH103..GL

GRAY,TRIM1#

 1
79135 - PAD, NO.1 SEAT CUSHION
79135-95J16

RZH103,113..SG..ARL

 1
79140A - BACK ASSY, NO.1 SEAT
79140-95N3903

RZH103..GL

GRAY,TRIM1#

 1
79160 - SPRING ASSY, NO.1 SEAT CUSHION
79160-95J53

RZH102,103,113..RHD..SG..(4FC,5F)

 1
79175 - PAD, NO.1 SEAT BACK
79175-95J24

RZH102,103,113..RHD..SG..(4FC,5F)

 1
79180 - SPRING ASSY, NO.1 SEAT BACK
79380-95J20

RZH103..GL

 1
79189 - STOPPER, NO.1 SEAT LEG
71334-95703

LH113,RZH102,103,112,113..SG

L=25

 2
79189-95J00

LH103,113,RZH102,103,112,113..SG

 2
79189-95J00

LH103,104,105,113,114,115,125,RZH10#,11#,125..SG

 2
79199 - HOLDER, NO.1 SEAT LEG STOPPER
79199-95J00

LH103,104,105,113,114,115,125,RZH10#,11#,125..SG

L=38

 2
79199-95J00

LH103,113,RZH102,103,112,113..SG

L=38

 2
Common parts
90109-08150
90119-10607
90149-10008
90159-60126
90202-13066
90206-16025
90468-18071
90523-06017
93315-16016
93530-44016
93560-14012
94511-00800

ILLUST NO. 7 OF 7(8908-9907)LH104,105,114,115,125,166,174,176,184,RZH104,105,114,115,125 ; (9907-

Click highlighted areas on diagram

diagram 71333 71333 71333A 71333A 71333A 71333A 71333B 71333B 71333B 71333B 79105 79105A 79205 79205 79205B 79206B 79305 79305
Part # Description Qty Price

ILLUST NO. 1 OF 7(8908-9411)LH104,105,114,115,125,RZH104,114..RHD..GEN ; (9411- )LH114,115,174,RZ

Click highlighted areas on diagram

diagram 72329 7451 7456 79011A 79013A 79120A 79135 79140A 79175 79961 79961 9046818071 9046818071 9161161025 9356015014
Part # Description Qty Price
79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION
79011-95N3203

RZH103..GL

GRAY,TRIM1#

 1
79013A - COVER SUB-ASSY, NO.1 SEAT BACK
79013-95N1503

RZH103..GL

GRAY,TRIM1#

 1
79120A - CUSHION ASSY, NO.1 SEAT
79120-95N4603

RZH103..GL

GRAY,TRIM1#

 1
79135 - PAD, NO.1 SEAT CUSHION
79135-95J16

RZH103,113..SG..ARL

 1
79140A - BACK ASSY, NO.1 SEAT
79140-95N3903

RZH103..GL

GRAY,TRIM1#

 1
79175 - PAD, NO.1 SEAT BACK
79175-95J24

RZH102,103,113..RHD..SG..(4FC,5F)

 1
Common parts
90468-18071
91611-61025
93560-15014
Linked diagrams
7451
7456

ILLUST NO. 1 OF 7(8908-9411)LH104,105,114,115,125,RZH104,114..RHD..GEN ; (9411- )LH114,115,174,RZ

Click highlighted areas on diagram

diagram 72065 9011910035 9011910035 9033330002 9161161025 9161161025 9161161025 9161161025
Part # Description Qty Price
Common parts
90119-10035
90333-30002
91611-61025

ILLUST NO. 2 OF 7(8908-9411)LH104,105,114,115,125,RZH104,114..RHD..GEN ; (9411- )LH114,115,174,RZ

Click highlighted areas on diagram

diagram 72329 7451 7456 79021A 79023A 79220A 79235 79240A 79275 79961 79961 9046818071 9046818071 9161161025 9356015014
Part # Description Qty Price
Common parts
90468-18071
91611-61025
93560-15014
Linked diagrams
7451
7456

ILLUST NO. 2 OF 7(8908-9411)LH104,105,114,115,125,RZH104,114..RHD..GEN ; (9411- )LH114,115,174,RZ

Click highlighted areas on diagram

diagram 72065 9011910035 9011910035 9033330002 9161161025 9161161025 9161161025 9161161025
Part # Description Qty Price
Common parts
90119-10035
90333-30002
91611-61025

ILLUST NO. 3 OF 7(8908-9411)LH104,105,114,115,125,RZH104,114..RHD..GEN ; (9411- )LH114,115,174,RZ

Click highlighted areas on diagram

diagram 72329 7451 7456 79031A 79033A 79320A 79335 79340A 79375 79961 79961 9046818071 9046818071 9161161025 9356015014
Part # Description Qty Price
Common parts
90468-18071
91611-61025
93560-15014
Linked diagrams
7451
7456

ILLUST NO. 3 OF 7(8908-9411)LH104,105,114,115,125,RZH104,114..RHD..GEN ; (9411- )LH114,115,174,RZ

Click highlighted areas on diagram

diagram 72065 9011910035 9011910035 9011910415 9011910595 9033330002 9161161025 9161161025 9161161025 9161661025
Part # Description Qty Price
Common parts
90119-10035
90119-10415
90119-10595
90333-30002
91611-61025
91616-61025

ILLUST NO. 4 OF 7(8908-9411)LH104,105,114,115,125,RZH104,114..RHD..GEN ; (9411- )LH114,115,174,RZ

Click highlighted areas on diagram

diagram 78071 78073 78701 78703 78705 78720 78726 78727 78735 78740A 78775 78791 78792 78797 9010906196 9010908137 9011908079 9020608016 9020612035 9046818071 9046818071 9052306017 9356015012 9356015012 9454101000 9461210800
Part # Description Qty Price
Common parts
90109-06196
90109-08137
90119-08079
90206-08016
90206-12035
90468-18071
90523-06017
93560-15012
94541-01000
94612-10800

ILLUST NO. 4 OF 7(8908-9411)LH104,105,114,115,125,RZH104,114..RHD..GEN ; (9411- )LH114,115,174,RZ

Click highlighted areas on diagram

diagram 71315B 71485 78726 78731 78803A 9017608044 9020608016 9020612035 9052306017 9356015012 9356055010
Part # Description Qty Price
Common parts
90176-08044
90206-08016
90206-12035
90523-06017
93560-15012
93560-55010

ILLUST NO. 5 OF 7(8908-9411)LH104,105,114,115,125,RZH104,114..RHD..GEN ; (9411- )LH114,115,174,RZ

Click highlighted areas on diagram

diagram 78072 78074 78702 78703 78727 78730 78735 78750A 78775 78783 78791 78795 78797 9010908133 9011910415 9011910579 9020612050 9038910026 9046818071 9046818071 9356015012 9454201400
Part # Description Qty Price
Common parts
90109-08133
90119-10415
90119-10579
90206-12050
90389-10026
90468-18071
93560-15012
94542-01400

ILLUST NO. 5 OF 7(8908-9411)LH104,105,114,115,125,RZH104,114..RHD..GEN ; (9411- )LH114,115,174,RZ

Click highlighted areas on diagram

diagram 71315B 71485 78726 78731 78794 78804B 78805 9010908137 9011910035 9011910035 9011910271 9011910271 9017608044 9020608016 9020612035 9020612035 9038910012 9038910012 9052306017 9356015012 9356055010
Part # Description Qty Price
Common parts
90109-08137
90119-10035
90119-10271
90176-08044
90206-08016
90206-12035
90389-10012
90523-06017
93560-15012
93560-55010

(8908-9907)LH102,103,112,113,172,RZH102,103,112,113..RHD..SG

Click highlighted areas on diagram

diagram 71434 71617 71621A 71691A 71691A 71692A 71692A 71833A 71834A 71837D 71838B 71843A 71844A 71931A 71931A 71940A 72525B 72526A 72613A 72613A 72613A 72630C 72650F 72651 72658B 72658B 72658B 72660F 72665B 72710C 72720C 74790 74790 79011A 79013A 79120A 79135 79140A 79160 79169 79175 79175D 79180 79189 79199 9011910116 9011910116 9011910315 9011910315 9011910409 9011910409 9011910412 9011911029 9016450020 9016450020 9016450020 9016450020 9016450020 9016740044 9016740044 9016740044 9016740044 9016840078 9020208056 9024908204 9038708122 9046803018 9046818071 9046818071 9050726009 9052306017 9161161020 9161161020 9161161020 9331516016 9331516016 9353044016 9454100800
Part # Description Qty Price
71617 - PROTECTOR, REAR SEAT BACK
71695-95J0203

LH102,103,112,113,RZH102,103,112,113..SG

GRAY,TRIM1#

 1
71691A - COVER, REAR NO.3 SEAT LOCK, RH
71691-9570313

RZH102..RHD..06S..5F;LH104,105,114,115,125,RZH103,104,113,114,125..SG

GRAY,TRIM1#,OUTER

 1
71692-95J0003

RZH102,103,113..RHD..SG..(4FC,5F)

GRAY,TRIM1#,INNER

 1
71691A - COVER, REAR NO.3 SEAT LOCK, RH
71691-9570313

RZH102..RHD..06S..5F;LH104,105,114,115,125,RZH103,104,113,114,125..SG

GRAY,TRIM1#,OUTER

 1
71692-95J0003

RZH102,103,113..RHD..SG..(4FC,5F)

GRAY,TRIM1#,INNER

 1
71692A - COVER, REAR NO.3 SEAT LOCK, LH
71691-95J0003

RZH102,103,113..RHD..SG..(4FC,5F)

GRAY,TRIM1#,INNER

 1
71692-9570213

RZH102..RHD..06S..5F;LH104,105,114,115,125,RZH103,104,113,114,125..SG

GRAY,TRIM1#,OUTER

 1
71692A - COVER, REAR NO.3 SEAT LOCK, LH
71691-95J0003

RZH102,103,113..RHD..SG..(4FC,5F)

GRAY,TRIM1#,INNER

 1
71692-9570213

RZH102..RHD..06S..5F;LH104,105,114,115,125,RZH103,104,113,114,125..SG

GRAY,TRIM1#,OUTER

 1
71833A - COVER, REAR SEAT RECLINING, NO.1 RH
71833-95J0103

RZH102,103,113..RHD..SG..(4FC,5F)

GRAY,TRIM1#

 1
71834A - COVER, REAR SEAT RECLINING, NO.1 LH
71834-95J0203

RZH102,103,113..RHD..SG..(4FC,5F)

GRAY,TRIM1#

 1
71837D - COVER, REAR SEAT RECLINING, INNER RH
72708-95J0013

RZH102,103,113..RHD..SG..(4FC,5F)

GRAY,TRIM1#

 1
71838B - COVER, REAR SEAT RECLINING, INNER LH
72709-95J0013

RZH102,103,113..RHD..SG..(4FC,5F)

GRAY,TRIM1#

 1
71843A - COVER, REAR SEAT RECLINING, NO.2 RH
71843-9570013

RZH102,103,113..RHD..SG..(4FC,5F)

GRAY,TRIM1#

 1
71844A - COVER, REAR SEAT RECLINING, NO.2 LH
71844-9570013

RZH102,103,113..RHD..SG..(4FC,5F)

GRAY,TRIM1#

 1
71931A - SUPPORT, REAR SEAT HEADREST
71990-3002033

RZH103..GL

W(LOCK),GRAY,TRIM1#

 2
71956-3002033

RZH103..GL

W/O(LOCK),GRAY,TRIM1#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71990-3002033

RZH103..GL

W(LOCK),GRAY,TRIM1#

 2
71956-3002033

RZH103..GL

W/O(LOCK),GRAY,TRIM1#

 2
71940A - HEADREST ASSY, REAR SEAT
71940-95J2303

RZH103..GL

GRAY,TRIM1#

 2
72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-95J0103

RZH102,103,113..RHD..SG..(4FC,5F)

GRAY,TRIM1#

 1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72525-95J0103

RZH102..RHD..06S..5F;LH104,105,114,115,RZH103,104,113,114..SG

GRAY,TRIM1#

 1
72613A - STRIKER, FRONT SEAT LOCK
72613-95J00

LH103..5D..06S;RZH102,103,113..RHD..SG..(4FC,5F)

 2
72613A - STRIKER, FRONT SEAT LOCK
72613-95J00

LH103..5D..06S;RZH102,103,113..RHD..SG..(4FC,5F)

 2
72613A - STRIKER, FRONT SEAT LOCK
72613-95J00

LH103..5D..06S;RZH102,103,113..RHD..SG..(4FC,5F)

 2
72650F - LOCK ASSY, REAR SEAT, RH
72650-95J03

RZH102,103,113..RHD..SG..(4FC,5F)

 1
72651 - ROD, REAR SEAT BACK LOCK
72651-95J06

RZH102,103,113..RHD..SG..(4FC,5F)

 1
72658B - KNOB, REAR SEAT LOCK HANDLE
72658-9570113

RZH102..RHD..06S..5F;LH104,105,114,115,125,RZH103,104,113,114,125..SG

GRAY,TRIM1#

 2
72658B - KNOB, REAR SEAT LOCK HANDLE
72658-9570113

RZH102..RHD..06S..5F;LH104,105,114,115,125,RZH103,104,113,114,125..SG

GRAY,TRIM1#

 2
72658B - KNOB, REAR SEAT LOCK HANDLE
72658-9570113

RZH102..RHD..06S..5F;LH104,105,114,115,125,RZH103,104,113,114,125..SG

GRAY,TRIM1#

 2
72660F - LOCK ASSY, REAR SEAT, LH
72660-95J02

RZH102,103,113..RHD..SG..(4FC,5F)

 1
72710C - ADJUSTER ASSY, NO.1 SEAT RECLINING, RH
72730-95J0703

RZH103..GL

GRAY,TRIM1#

 1
72720C - ADJUSTER ASSY, NO.1 SEAT RECLINING, LH
72740-95J1103

RZH103..GL

GRAY,TRIM1#

 1
74790 - HOLDER ASSY, WARNING REFLECTOR
74790-95J02

RZH102,103,113..RHD..SG..(4FC,5F)

 2
74790 - HOLDER ASSY, WARNING REFLECTOR
74790-95J02

RZH102,103,113..RHD..SG..(4FC,5F)

 2
79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION
79011-95N3203

RZH103..GL

GRAY,TRIM1#

 1
79013A - COVER SUB-ASSY, NO.1 SEAT BACK
79013-95N1503

RZH103..GL

GRAY,TRIM1#

 1
79120A - CUSHION ASSY, NO.1 SEAT
79120-95N4603

RZH103..GL

GRAY,TRIM1#

 1
79135 - PAD, NO.1 SEAT CUSHION
79135-95J16

RZH103,113..SG..ARL

 1
79140A - BACK ASSY, NO.1 SEAT
79140-95N3903

RZH103..GL

GRAY,TRIM1#

 1
79160 - SPRING ASSY, NO.1 SEAT CUSHION
79160-95J53

RZH102,103,113..RHD..SG..(4FC,5F)

 1
79169 - ROD, REAR SEAT HINGE CONNECTOR
79169-95J05

RZH102,103,113..RHD..SG..(4FC,5F)

 1
79175 - PAD, NO.1 SEAT BACK
79175-95J24

RZH102,103,113..RHD..SG..(4FC,5F)

 1
79175D - PAD, NO.1 SEAT CUSHION, UNDER
79175-95J13

RZH103,113..SG..ARL

 2
79180 - SPRING ASSY, NO.1 SEAT BACK
79380-95J20

RZH103..GL

 1
79189 - STOPPER, NO.1 SEAT LEG
71334-95703

LH113,RZH102,103,112,113..SG

L=25

 2
79189-95J00

LH103,113,RZH102,103,112,113..SG

 2
79189-95J00

LH103,104,105,113,114,115,125,RZH10#,11#,125..SG

 2
79199 - HOLDER, NO.1 SEAT LEG STOPPER
79199-95J00

LH103,104,105,113,114,115,125,RZH10#,11#,125..SG

L=38

 2
79199-95J00

LH103,113,RZH102,103,112,113..SG

L=38

 2
Common parts
90119-10116
90119-10315
90119-10409
90119-10412
90119-11029
90164-50020
90167-40044
90168-40078
90202-08056
90249-08204
90387-08122
90468-03018
90468-18071
90507-26009
90523-06017
91611-61020
93315-16016
93530-44016
94541-00800

ILLUST NO. 1 OF 4(8908-9205)RHD

Click highlighted areas on diagram

diagram 71011S 71013S 71014S 71035S 71071S 71072S 71073S 71074S 71128 71274 71350S 71358 71380 71392 71395B 71410S 71420S 71430S 71440S 71511S 71512S 71551S 71552S 71811C 71831D 71832D 71910A 71910A 71931 71931 71931 71931 72110A 72130A 72213 72525A 72658C 9010508109 9010508109 9011908026 9011910101 9011910116 9011910116 9011910116 9016740044 9016740044 9016840043 9017310073 9038610027 9038612051 9038612051 9046708008 9046818071 9046818071 9046818071 9046818071 9052308001 9161161020 9354054012
Part # Description Qty Price
Common parts
90105-08109
90119-08026
90119-10101
90119-10116
90167-40044
90168-40043
90173-10073
90386-10027
90386-12051
90467-08008
90468-18071
90523-08001
91611-61020
93540-54012

ILLUST NO. 1 OF 4(8908-9205)LH112,RZH112..RHD ; (8908- )LHD ;(9205- )RHD

Click highlighted areas on diagram

(8908-9205)RHD=UNITED KINGDOM SPEC

diagram 71011S 71012S 71013S 71014S 71031S 71035S 71071S 71072S 71073S 71074S 71127 71128 71301S 71305S 71310S 71318 71350S 71358 71363 71366 71380 71392 71395B 71410S 71420S 71430S 71440S 71511S 71512S 71551S 71552S 71587 71811C 71812C 71831D 71832D 71910A 71910A 71910A 71931 71931 71931 71931 71931 71931 72110A 72120 72130A 72140A 72213 72213 72525A 72526 72658C 73178B 9010508109 9010508109 9010508109 9010510261 9011908026 9011908026 9011910101 9011910116 9011910116 9011910116 9016740044 9016740044 9016740044 9017610073 9017910073 9038610027 9038610027 9038612036 9038612051 9038612051 9038612051 9046708008 9046708008 9046818071 9046818071 9046818071 9046818071 9095006060 9161161020 9354054012 9354054012 9616001200
Part # Description Qty Price
Common parts
90105-08109
90105-10261
90119-08026
90119-10101
90119-10116
90167-40044
90176-10073
90179-10073
90386-10027
90386-12036
90386-12051
90467-08008
90468-18071
90950-06060
91611-61020
93540-54012
96160-01200
