Toyota Hiace van,commuter RZH103 REAR DOOR PANEL & GLASS

RZH103R-RRMESQ (1989)

Toyota Hiace Van,Commuter

Production Aug 1989 - Aug 1991

Engine 2RZ

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

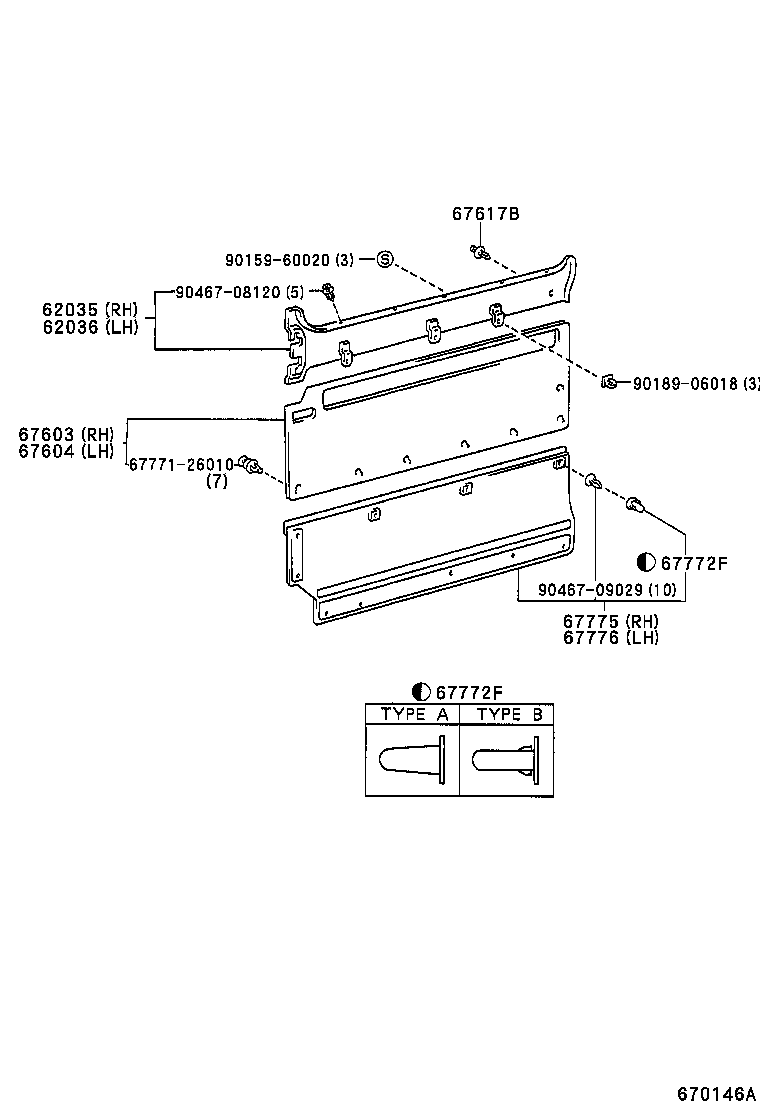

ILLUST NO. 1 OF 2(8908-9108)GL ; (9508- )LH102,154,174,RZH102,103,114,115,135,155..09S,10S,11S,12

Click highlighted areas on diagram

Part #	Description	Period	Qty
62036 - TRIM SUB-ASSY, REAR DOOR TRIM, UPPER LH
62036-95J0003	RZH103..GL GRAY,TRIM1#	08/1989 - 08/1991	1
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-95J2103	RZH103..GL GRAY,TRIM1#	08/1989 - 08/1991	1
67617B - CLIP(FOR SLIDE DOOR TRIM BASE)
90467-0704353	RZH103..GL GRAY,TRIM1#	08/1989 - 08/1991	1
67772F - CAP, REAR DOOR TRIM RETAINER
67772-95J02	RZH103..GL	08/1989 - 09/1989	15
67772-95J02	RZH103..GL	09/1989 - 03/1990	11
67772F - CAP, REAR DOOR TRIM RETAINER
67772-95J02	RZH103..GL	08/1989 - 09/1989	15
67772-95J02	RZH103..GL	09/1989 - 03/1990	11
67776 - COVER, REAR DOOR TRIM, LOWER LH
67776-95J0403	RZH103..GL GRAY,TRIM1#	08/1989 - 08/1991	1
Common parts
67771-26010
90159-60020
90189-06018
90467-08120
90467-09029

ILLUST NO. 2 OF 2(8908- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
67004H - DOOR SUB-ASSY, SLIDE, LH
67004-95J51	RZH103..GL	08/1989 - 08/1991	1
67525 - COVER, SLIDE DOOR PANEL, LOWER
67525-95J00	LH10#,11#,125,RZH10#,11#,125 DUST PROOFING	08/1989 - 08/1993	1
67528A - PACKING, SLIDE DOOR LOWER COVER
67528-95J00	LH10#,11#,125,RZH10#,11#,125 DUST PROOFING	08/1989 - 08/1993	1
67852A - COVER, SLIDE DOOR SERVICE HOLE, NO.2
67852-95J03	RZH115..CBR;RZH105,115..STD..CIS;LH172,RZH103..RHD..4D..(DSL,EFI);LH174,RZH103,105..(03S,05S,09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,184,RZH102,104,112,113,114,125,135,153..4D..(03S,06S,09S,10S,12S,14S,15S)	08/1989 - 08/2000	1
67857C - SEAL, SLIDE DOOR PANEL HOLE
67857-95J00	RZH115..CBR;RZH105,115..STD..CIS;LH172,RZH103..RHD..4D..(DSL,EFI);LH174,RZH103,105..(03S,05S,09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,184,RZH102,104,112,113,114,125,135,153..4D..(03S,06S,09S,10S,12S,14S,15S)	08/1989 - 08/2000	2
67857C - SEAL, SLIDE DOOR PANEL HOLE
67857-95J00	RZH115..CBR;RZH105,115..STD..CIS;LH172,RZH103..RHD..4D..(DSL,EFI);LH174,RZH103,105..(03S,05S,09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,184,RZH102,104,112,113,114,125,135,153..4D..(03S,06S,09S,10S,12S,14S,15S)	08/1989 - 08/2000	2
67857C - SEAL, SLIDE DOOR PANEL HOLE
67857-95J00	RZH115..CBR;RZH105,115..STD..CIS;LH172,RZH103..RHD..4D..(DSL,EFI);LH174,RZH103,105..(03S,05S,09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,184,RZH102,104,112,113,114,125,135,153..4D..(03S,06S,09S,10S,12S,14S,15S)	08/1989 - 08/2000	2
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-95J00	RZH112..06S;RZH112..RHD..SP;RZH112..5D..03S;RZH113..RHD..4D..STD;LH172,184..(03S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;LH112,113,RZH102,113..LHD..5D..(CBR,DSL);LH10#,11#,125,RZH102,103,104,114,115,125,135,153..RHD	08/1989 - 12/2999	1
67888A - WEATHERSTRIP, REAR DOOR, NO.2 LH
67887-95J00	RZH112..06S;RZH112..RHD..SP;RZH112..5D..03S;RZH113..RHD..4D..STD;LH172,184..(03S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;LH112,113,RZH102,113..LHD..5D..(CBR,DSL);LH10#,11#,125,RZH102,103,104,114,115,125,135,153..RHD	08/1989 - 12/2999	1
Common parts
90149-60027
90189-06062
90189-06221
90950-01133
90950-06001
90950-06098

ILLUST NO. 1 OF 2(8908- )DX,GL,STD

Click highlighted areas on diagram

Part #	Description	Period	Qty
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-95J2103	RZH103..GL GRAY,TRIM1#	08/1989 - 08/1991	1
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-95J2103	RZH103..GL GRAY,TRIM1#	08/1989 - 08/1991	1
67772F - CAP, REAR DOOR TRIM RETAINER
67772-95J02	RZH103..GL	08/1989 - 09/1989	15
67772-95J02	RZH103..GL	09/1989 - 03/1990	11
Common parts
67771-16080

ILLUST NO. 1 OF 2(8908- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90149-60027
90189-06062
90950-01133
90950-06098

ILLUST NO. 2 OF 2(8908- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
67771-16080
