RZH103R-RRMESQ (1989)

Toyota Hiace Van,Commuter

Production Aug 1989 - Aug 1991
Engine 2RZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908-9308)GL ; (8908-9308)LH112..RHD..SRF..03S

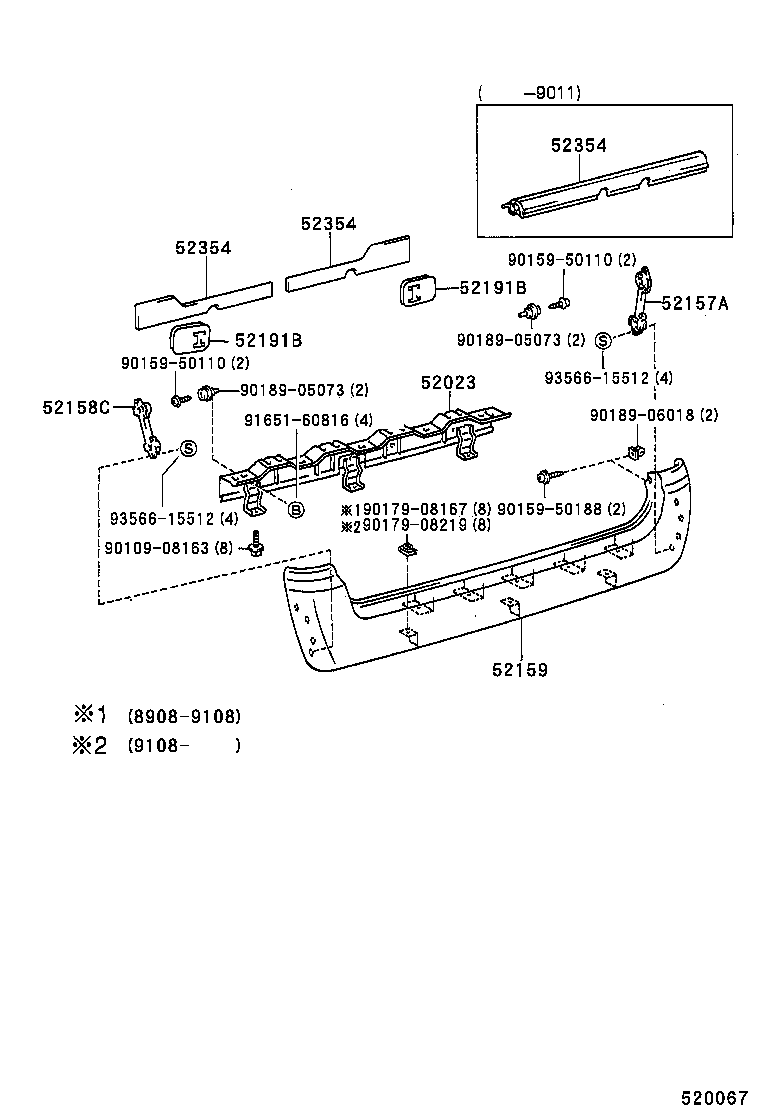

Click highlighted areas on diagram

EXCELLENT PACKAGE

diagram 52023 52157A 52158C 52159 52191B 52191B 52354 52354 52354 9010908163 9015950110 9015950110 9015950188 9017908167 9017908219 9018905073 9018905073 9018906018 9165160816 9356615512 9356615512
Part # Description Qty Price
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-95J01

RZH103..GL;LH112..RHD..SRF..03S

 1
52157A - SUPPORT, REAR BUMPER SIDE, NO.2 RH
52157-95J00

RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172..RHD..SRF..4D..STD..GEN;RZH113..4D..(03S,06S,09S)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH10#,11#,125,166,176,RZH102,104,112,114,125,135,153

 1
52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH
52158-95J00

RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172..RHD..SRF..4D..STD..GEN;RZH113..4D..(03S,06S,09S)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH10#,11#,125,166,176,RZH102,104,112,114,125,135,153

 1
52159 - COVER, REAR BUMPER
52159-95J26

RZH103..GL;LH112..RHD..SRF..03S

BLACK

 1
52159-95J23

LH102,103,112,113,RZH102,103,112,113

W(STEP TYPE REAR BUMPER)

 1
52191B - GROMMET, REAR BUMPER STAY
52191-95J00

LH10#,11#,125,RZH10#,11#,125

 2
52191B - GROMMET, REAR BUMPER STAY
52191-95J00

LH10#,11#,125,RZH10#,11#,125

 2
52354 - SHUTTER, REAR CROSS TO BUMPER
52353-26010

RZH103..GL;LH112..RHD..SRF..03S

RH

 1
52354-95J04

RZH103..GL;LH112..RHD..SRF..03S

 1
52354-95J02

LH102,103,112,113,RZH102,103,112,113

W(STEP TYPE REAR BUMPER)

 2
52354-26010

RZH103..GL;LH112..RHD..SRF..03S

LH

 1
52354 - SHUTTER, REAR CROSS TO BUMPER
52353-26010

RZH103..GL;LH112..RHD..SRF..03S

RH

 1
52354-95J04

RZH103..GL;LH112..RHD..SRF..03S

 1
52354-95J02

LH102,103,112,113,RZH102,103,112,113

W(STEP TYPE REAR BUMPER)

 2
52354-26010

RZH103..GL;LH112..RHD..SRF..03S

LH

 1
52354 - SHUTTER, REAR CROSS TO BUMPER
52353-26010

RZH103..GL;LH112..RHD..SRF..03S

RH

 1
52354-95J04

RZH103..GL;LH112..RHD..SRF..03S

 1
52354-95J02

LH102,103,112,113,RZH102,103,112,113

W(STEP TYPE REAR BUMPER)

 2
52354-26010

RZH103..GL;LH112..RHD..SRF..03S

LH

 1
Common parts
90109-08163
90159-50110
90159-50188
90179-08167
90179-08219
90189-05073
90189-06018
91651-60816
93566-15512

(8908-9308)

Click highlighted areas on diagram

W(STEP)

diagram 52157A 52158C 52159 52191B 52191B 52302 52354 52354 9015950110 9015950110 9015950188 9015950188 9015950188 9018905073 9018905073 9018906018 9018906018 9018906018 9095001695 9165140814 9356615512 9356615512
Part # Description Qty Price
52157A - SUPPORT, REAR BUMPER SIDE, NO.2 RH
52157-95J00

RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172..RHD..SRF..4D..STD..GEN;RZH113..4D..(03S,06S,09S)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH10#,11#,125,166,176,RZH102,104,112,114,125,135,153

 1
52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH
52158-95J00

RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172..RHD..SRF..4D..STD..GEN;RZH113..4D..(03S,06S,09S)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH10#,11#,125,166,176,RZH102,104,112,114,125,135,153

 1
52159 - COVER, REAR BUMPER
52159-95J26

RZH103..GL;LH112..RHD..SRF..03S

BLACK

 1
52159-95J23

LH102,103,112,113,RZH102,103,112,113

W(STEP TYPE REAR BUMPER)

 1
52191B - GROMMET, REAR BUMPER STAY
52191-95J00

LH10#,11#,125,RZH10#,11#,125

 2
52191B - GROMMET, REAR BUMPER STAY
52191-95J00

LH10#,11#,125,RZH10#,11#,125

 2
52302 - STEP SUB-ASSY, BACK
52302-95J00

LH102,103,112,113,RZH102,103,112,113

 1
52354 - SHUTTER, REAR CROSS TO BUMPER
52353-26010

RZH103..GL;LH112..RHD..SRF..03S

RH

 1
52354-95J04

RZH103..GL;LH112..RHD..SRF..03S

 1
52354-95J02

LH102,103,112,113,RZH102,103,112,113

W(STEP TYPE REAR BUMPER)

 2
52354-26010

RZH103..GL;LH112..RHD..SRF..03S

LH

 1
52354 - SHUTTER, REAR CROSS TO BUMPER
52353-26010

RZH103..GL;LH112..RHD..SRF..03S

RH

 1
52354-95J04

RZH103..GL;LH112..RHD..SRF..03S

 1
52354-95J02

LH102,103,112,113,RZH102,103,112,113

W(STEP TYPE REAR BUMPER)

 2
52354-26010

RZH103..GL;LH112..RHD..SRF..03S

LH

 1
Common parts
90159-50110
90159-50188
90189-05073
90189-06018
90950-01695
91651-40814
93566-15512

(8908-9308)LH118..STD ; (8908-9308)LH10#,112,RZH10#,11#

Click highlighted areas on diagram

diagram 52019 52152B 52153B 52157A 52158C 52185A 52186A 52191B 52191B 52354 9015910076 9015950110 9015950110 9015950188 9015950188 9018905073 9018905073 9018906018 9018906018 9046706071 9046706071 9046708038 9046708038 9165540820 9165540820 9356615512 9356615512
Part # Description Qty Price
Common parts
90159-10076
90159-50110
90159-50188
90189-05073
90189-06018
90467-06071
90467-08038
91655-40820
93566-15512

(8908-9308)

Click highlighted areas on diagram

W(STEP)

diagram 52157A 52158C 52159 52191B 52191B 52302 52354 52354 9015950110 9015950110 9015950188 9015950188 9015950188 9018905073 9018905073 9018906018 9018906018 9018906018 9095001695 9165140814 9356615512 9356615512
Part # Description Qty Price
52157A - SUPPORT, REAR BUMPER SIDE, NO.2 RH
52157-95J00

RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172..RHD..SRF..4D..STD..GEN;RZH113..4D..(03S,06S,09S)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH10#,11#,125,166,176,RZH102,104,112,114,125,135,153

 1
52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH
52158-95J00

RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172..RHD..SRF..4D..STD..GEN;RZH113..4D..(03S,06S,09S)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH10#,11#,125,166,176,RZH102,104,112,114,125,135,153

 1
52159 - COVER, REAR BUMPER
52159-95J26

RZH103..GL;LH112..RHD..SRF..03S

BLACK

 1
52159-95J23

LH102,103,112,113,RZH102,103,112,113

W(STEP TYPE REAR BUMPER)

 1
52191B - GROMMET, REAR BUMPER STAY
52191-95J00

LH10#,11#,125,RZH10#,11#,125

 2
52191B - GROMMET, REAR BUMPER STAY
52191-95J00

LH10#,11#,125,RZH10#,11#,125

 2
52302 - STEP SUB-ASSY, BACK
52302-95J00

LH102,103,112,113,RZH102,103,112,113

 1
52354 - SHUTTER, REAR CROSS TO BUMPER
52353-26010

RZH103..GL;LH112..RHD..SRF..03S

RH

 1
52354-95J04

RZH103..GL;LH112..RHD..SRF..03S

 1
52354-95J02

LH102,103,112,113,RZH102,103,112,113

W(STEP TYPE REAR BUMPER)

 2
52354-26010

RZH103..GL;LH112..RHD..SRF..03S

LH

 1
52354 - SHUTTER, REAR CROSS TO BUMPER
52353-26010

RZH103..GL;LH112..RHD..SRF..03S

RH

 1
52354-95J04

RZH103..GL;LH112..RHD..SRF..03S

 1
52354-95J02

LH102,103,112,113,RZH102,103,112,113

W(STEP TYPE REAR BUMPER)

 2
52354-26010

RZH103..GL;LH112..RHD..SRF..03S

LH

 1
Common parts
90159-50110
90159-50188
90189-05073
90189-06018
90950-01695
91651-40814
93566-15512
