RZH103R-RRMESQ (1989)

Toyota Hiace Van,Commuter

Production Aug 1989 - Aug 1991
Engine 2RZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908-9205)

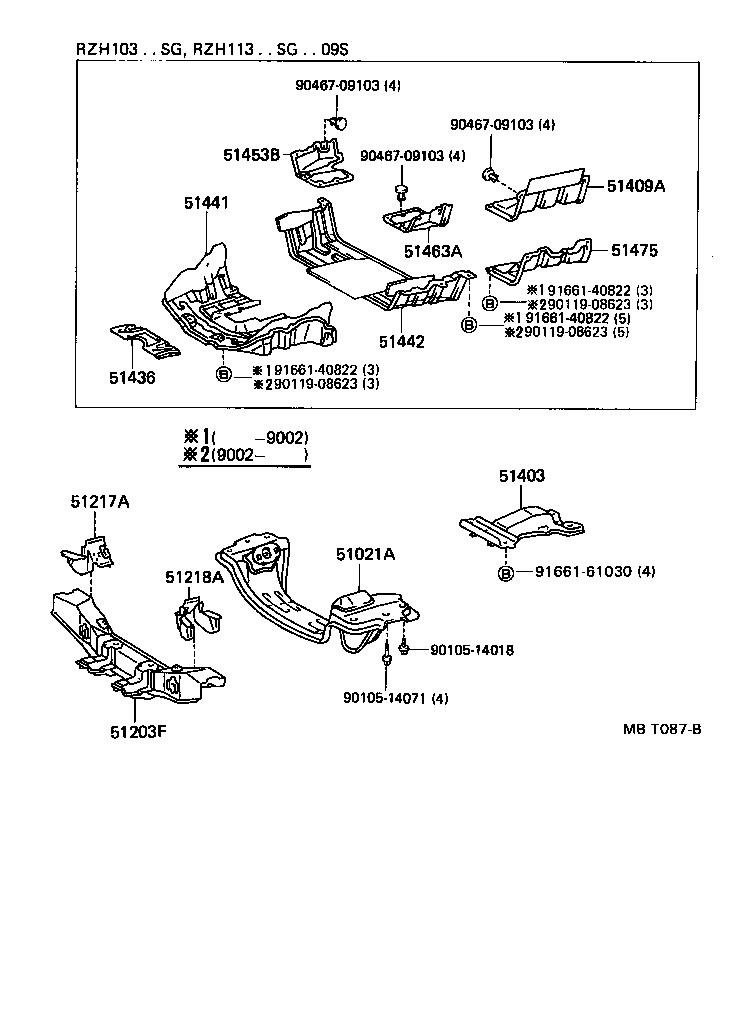

Click highlighted areas on diagram

diagram 51021A 51203F 51217A 51218A 51403 9010514018 9010514071 9166161030
Part # Description Qty Price
51021A - MEMBER SUB-ASSY, ENGINE FRONT SUPPORT
51021-95J09

RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH102,104,112,114,125,135,153;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI

 1
51203F - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51203-95J09

LH10#,11#,125,RZH10#,11#,125..RHD

 1
51217A - REINFORCEMENT, FRONT SUSPENSION MEMBER, RH
51217-95J02

LH10#,11#,125,RZH10#,11#,125

 1
51218A - REINFORCEMENT, FRONT SUSPENSION MEMBER, LH
51218-95J03

LH10#,11#,125,RZH10#,11#,125

 1
51403 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING
51403-95J00

RZH114..4F,5F;LH10#,11#,RZH102,104,105,112,115,125;LH125,RZH103,113..(03S,05S,06S,09S,14S)..5F

 1
Common parts
90105-14018
90105-14071
91661-61030

(8908-9308)RZH102,103,112,113

Click highlighted areas on diagram

diagram 51021A 51203F 51217A 51218A 51403 51409A 51436 51441 51442 51453B 51463A 51475 9010514018 9010514071 9011908623 9011908623 9011908623 9046709103 9046709103 9046709103 9166140822 9166140822 9166140822 9166161030
Part # Description Qty Price
Common parts
90105-14018
90105-14071
90119-08623
90467-09103
91661-40822
91661-61030
