Toyota Hiace van,commuter RZH103 BRAKE BOOSTER & VACUUM TUBE

Manufacturers Home
Toyota
EU
HIACE VAN,COMMUTER
RZH103R-RRMESQ (1989)
4703 - BRAKE BOOSTER & VACUUM TUBE

RZH103R-RRMESQ (1989)

Toyota Hiace Van,Commuter

Production Aug 1989 - Aug 1991

Engine 2RZ

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8908-9808)RZH102,103,104,11#,135,153..RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-24020	RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,114,115..CBR;RZH102,104,112,135,153..SMRF,SRF;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI	08/1989 - 12/2999	1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S	08/1989 - 12/2999	8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S	08/1989 - 12/2999	8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S	08/1989 - 12/2999	8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S	08/1989 - 12/2999	8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S	08/1989 - 12/2999	8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S	08/1989 - 12/2999	8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S	08/1989 - 12/2999	8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S	08/1989 - 12/2999	8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S	08/1989 - 12/2999	8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S	08/1989 - 12/2999	8
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51031	RZH114,125;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH102,104,112,135,153..SMRF,SRF;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI	08/1989 - 12/2999	1
44758 - BRACKET, VACUUM CHECK VALVE
44758-26060	RZH113..RHD..4D..STD;RZH102,103,104,112,114,115,135,153..RHD..(SMRF,SRF)	08/1989 - 12/2999	1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-26170	RZH10#,11#,125..RHD	08/1989 - 08/1993	1
44764G - TUBE, CONNECTOR TO BRAKE BOOSTER
44764-26070	RZH113..RHD..4D..STD;LH172,184..(03S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;LH10#,11#,125,RZH102,103,104,112,114,115,125,135,153..RHD	08/1989 - 08/2002	1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-26090	RZH113..RHD..4D..STD;RZH102,103,104,112,114,115,135,153..RHD..(SMRF,SRF)	08/1989 - 12/2999	1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-26130	RZH113..RHD..4D..STD;RZH102,103,104,112,114,115,135,153..RHD..(SMRF,SRF)	08/1989 - 12/2999	1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-26180	RZH10#,11#,125..CBR	08/1989 - 08/2000	1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-26180	RZH10#,11#,125..CBR	08/1989 - 08/2000	1
44776 - HOSE, BRAKE BOOSTER
44776-26020	RZH115..STD..CBR;RZH103,105,113,125..CBR;RZH113..4D..(03S,06S,09S)..GEN..EFI;RZH103,114..(03S,15S)..(GL,STD)..(CIS,GEN);RZH102,104,112,135,153..(SMRF,SRF)..(03S,06S,09S,12S) W(FRONT DISC BRAKE)	08/1989 - 12/2999	1
Common parts
82711-12200
90461-10734
91611-B0816

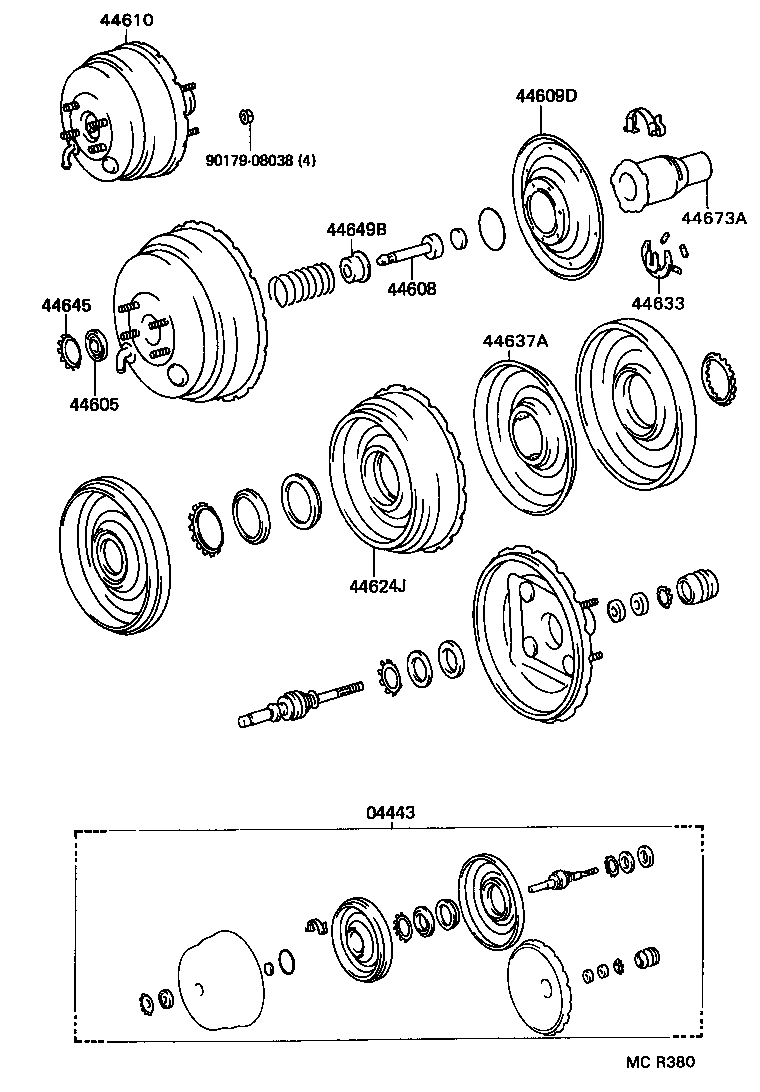

ILLUST NO. 1 OF 2(8908-9808)RZH10#,11#,125

Click highlighted areas on diagram

AISIN

Part #	Description	Period	Qty
04443 - BOOSTER KIT, BRAKE
04443-26450	RZH10#,11#,125 W(FRONT DISC BRAKE)	08/1989 - 08/1993	1
44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON
44606-20800	RZH10#,11#,125 W(FRONT DISC BRAKE)	08/1989 - 08/1993	1
44610 - BOOSTER ASSY, BRAKE
44610-26430	RZH103..GL,SGL,STD;RZH102,104,105,11#,125 W(FRONT DISC BRAKE)	08/1989 - 08/1998	1
44621V - SEAL, BOOSTER BODY
44621-14030	RZH10#,11#,125 W(FRONT DISC BRAKE)	08/1989 - 08/1993	1
44626 - RETAINER, BOOSTER ROD CUP
44626-60010	RZH10#,11#,125	08/1989 - 08/1993	1
44629 - RING, CIRCULAR INTERNAL
44628-60010	RZH10#,11#,125 W(FRONT DISC BRAKE)	08/1989 - 08/1993	1
44635B - KEY, VALVE STOPPER
44635-20800	RZH10#,11#,125 W(FRONT DISC BRAKE)	08/1989 - 08/1990	1
44642 - PISTON, BRAKE BOOSTER
44642-20800	RZH10#,11#,125 W(FRONT DISC BRAKE)	08/1989 - 08/1993	1
44643 - RETAINER, DIAPHRAGM
44643-20800	RZH10#,11#,125	08/1989 - 08/1993	1
44657D - CASE, REACTION DISC
44657-30560	RZH10#,11#,125	08/1989 - 08/1993	1
Common parts
90179-08038

ILLUST NO. 1 OF 2(8908-9308)RZH109,119 ; (9308- )RZH10#,11#

Click highlighted areas on diagram

Part #	Description	Period	Qty
04443 - BOOSTER KIT, BRAKE
04443-26450	RZH10#,11#,125 W(FRONT DISC BRAKE)	08/1989 - 08/1993	1
44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON
44606-20800	RZH10#,11#,125 W(FRONT DISC BRAKE)	08/1989 - 08/1993	1
44610 - BOOSTER ASSY, BRAKE
44610-26430	RZH103..GL,SGL,STD;RZH102,104,105,11#,125 W(FRONT DISC BRAKE)	08/1989 - 08/1998	1
44621V - SEAL, BOOSTER BODY
44621-14030	RZH10#,11#,125 W(FRONT DISC BRAKE)	08/1989 - 08/1993	1
44626 - RETAINER, BOOSTER ROD CUP
44626-60010	RZH10#,11#,125	08/1989 - 08/1993	1
44629 - RING, CIRCULAR INTERNAL
44628-60010	RZH10#,11#,125 W(FRONT DISC BRAKE)	08/1989 - 08/1993	1
44635B - KEY, VALVE STOPPER
44635-20800	RZH10#,11#,125 W(FRONT DISC BRAKE)	08/1989 - 08/1990	1
44642 - PISTON, BRAKE BOOSTER
44642-20800	RZH10#,11#,125 W(FRONT DISC BRAKE)	08/1989 - 08/1993	1
44643 - RETAINER, DIAPHRAGM
44643-20800	RZH10#,11#,125	08/1989 - 08/1993	1
44657D - CASE, REACTION DISC
44657-30560	RZH10#,11#,125	08/1989 - 08/1993	1
Common parts
90179-08038

ILLUST NO. 1 OF 2(8908-9308)RZH102,103,112,113,115

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90179-08038
