RZH103L-SBMREW (1991)
Toyota Hiace Van,Commuter
ILLUST NO. 4 OF 9(8908-9308)LHD
INSTRUMENT PANEL RELAY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91651-40616 | ||||
ILLUST NO. 5 OF 9(8908-9808) ; (9808- )RZH105,155..GL..EFI ; (9808- )RZH114,115..15S..GEN
IGNITION & COMBINATION SWITCHES
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90149-40013 | ||||
| 90464-00551 | ||||
| 91651-40816 | ||||
| 93319-13008 | ||||
| 93319-15012 | ||||

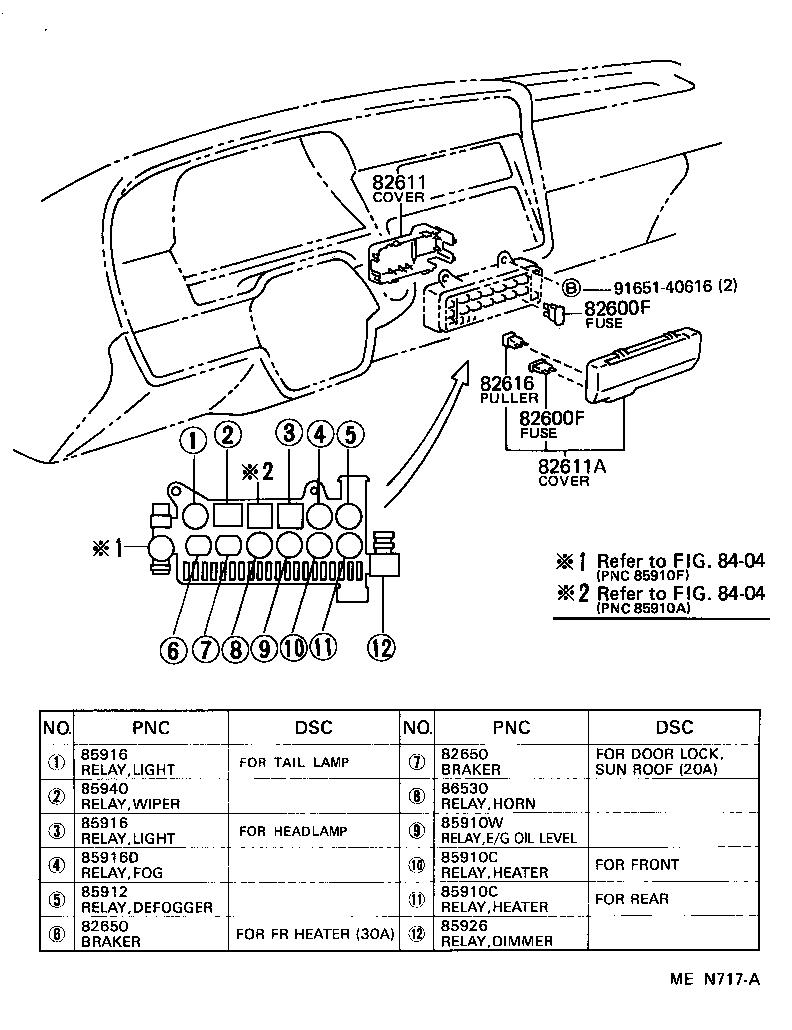

ILLUST NO. 4 OF 8(8908-9308)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
LH10#,11#,RZH10#,11# 7.5A |
1 | ||
| 90982-09003 |
LH10#,11#,RZH10#,11# 15A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
LH10#,11#,RZH10#,11# 7.5A |
1 | ||
| 90982-09003 |
LH10#,11#,RZH10#,11# 15A |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-95J01 |
LH10#,11#,RZH10#,11#..LHD |
1 | ||
| 82611-26140 |
LH10#,11#,RZH10#,11#..LHD |
1 | ||
| 82611-95J01 |
LH10#,11#,RZH10#,11#..LHD |
1 | ||
| 82611A - COVER, FUSE BLOCK, NO.2 | ||||
| 82611-95J06 |
LH10#,11#,RZH10#,11#..LHD |
1 | ||
| 82611-26090 |
LH10#,11#,RZH10#,11#..LHD |
1 | ||
| 82611-26110 |
LH102,RZH103..DX;LH102,11#,RZH103,119..5D..03S NORWAY SPEC OR W(DAYTIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82611-95J07 |
RZH103;LH102..DX;LH102,112..LHD..SP..5F *FRG |
1 | ||
| 82611-26100 |
RZH103;LH102..DX;LH102,112..LHD..SP..5F *FRG |
1 | ||
| 82611-95J08 |
LH102,RZH103..DX;LH102,11#,RZH103,119..5D..03S NORWAY SPEC OR W(DAYTIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82611-26091 |
LH10#,11#,RZH10#,11#..LHD..(DX,STD)..EUR |
1 | ||
| 82611-26111 |
LH10#,11#,RZH10#,11#..LHD..(DX,STD)..EUR W(DAYTIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82611-26190 |
LH10#,11#,RZH103,109,11#..LHD..(DX,STD)..EUR W(DAYTIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
LH10#,11#,RZH10#,11# |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-35010 |
LH10#,11#,RZH10#,11# 20A,W(ELECTRIC DOOR LOCK) |
1 | ||
| 82650-20011 |
LH10#,11#,RZH10#,11# 30A |
1 | ||
| 82650-20011 |
LH10#,11#,RZH10#,11# 30A |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-35010 |
LH10#,11#,RZH10#,11# 20A,W(ELECTRIC DOOR LOCK) |
1 | ||
| 82650-20011 |
LH10#,11#,RZH10#,11# 30A |
1 | ||
| 82650-20011 |
LH10#,11#,RZH10#,11# 30A |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
LH10#,11#,RZH10#,11# FRONT |
1 | ||
| 90987-04002 |
LH10#,11#,RZH10#,11# FRONT |
1 | ||
| 90987-02004 |
LH10#,11#,RZH10#,11# |
2 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
LH10#,11#,RZH10#,11# FRONT |
1 | ||
| 90987-04002 |
LH10#,11#,RZH10#,11# FRONT |
1 | ||
| 90987-02004 |
LH10#,11#,RZH10#,11# |
2 | ||
| 85910W - RELAY, OIL LEVEL | ||||
| 90987-03001 |
LH10#,11#,RZH10#,11# |
1 | ||
| 90987-03001 |
RZH10#,11# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02004 |
RZH112..4D;RZH119..STD;RZH102..4D..STD;LH10#,11#,RZH103,109,113,115 |
1 | ||
| 90987-02009 |
LH10#,11#,RZH10#,11# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02009 |
LH10#,11#,RZH10#,11# TAIL LAMP |
1 | ||
| 90987-02006 |
LH10#,11#,RZH10#,11# HEADLAMP |
1 | ||
| 90987-01003 |
LH10#,11#,RZH10#,11# TAIL LAMP |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02009 |
LH10#,11#,RZH10#,11# TAIL LAMP |
1 | ||
| 90987-02006 |
LH10#,11#,RZH10#,11# HEADLAMP |
1 | ||
| 90987-01003 |
LH10#,11#,RZH10#,11# TAIL LAMP |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02004 |
LH10#,11#,RZH10#,11# |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 85926-30020 |
LH10#,11#,RZH10#,11#..LHD |
1 | ||
| 85926-30020 |
LH102,RZH103..DX;LH102,112,RZH103..5D..03S..5F |
1 | ||
| 85926-30020 |
LH10#,11#,RZH103,109,11#..LHD |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-95J00 |
RZH113..LHD;LH10#,11#,RZH10#,112,115,119..DX,STD |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-01003 |
LH10#,11#,RZH10#,11# |
1 | ||
| 90987-02009 |
LH10#,11#,RZH10#,11# |
1 | ||
| Common parts | ||||
| 91651-40616 | ||||
| Linked diagrams | ||||
| 8404 | ||||

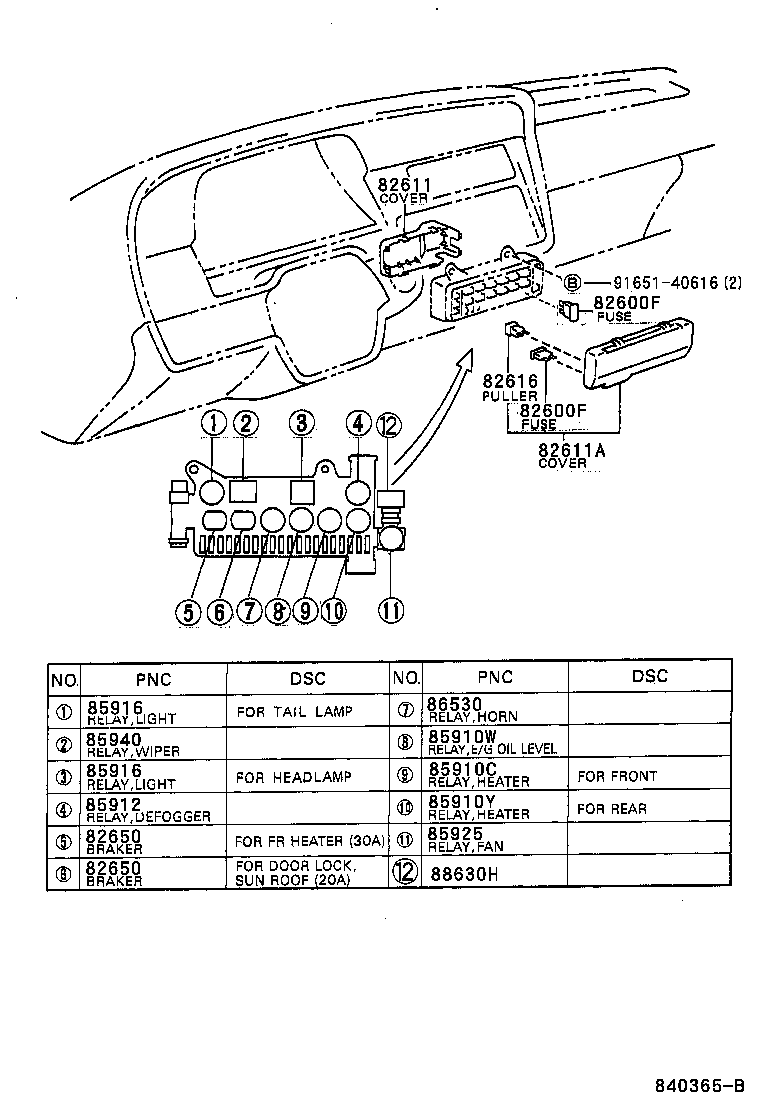

ILLUST NO. 4 OF 8(9308- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
LH10#,11#,RZH10#,11# 7.5A |
1 | ||
| 90982-09003 |
LH10#,11#,RZH10#,11# 15A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
LH10#,11#,RZH10#,11# 7.5A |
1 | ||
| 90982-09003 |
LH10#,11#,RZH10#,11# 15A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
LH10#,11#,RZH10#,11# 7.5A |
1 | ||
| 90982-09003 |
LH10#,11#,RZH10#,11# 15A |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
LH10#,11#,RZH10#,11# 30A,PINK |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-95J01 |
LH10#,11#,RZH10#,11#..LHD |
1 | ||
| 82611-26140 |
LH10#,11#,RZH10#,11#..LHD |
1 | ||
| 82611-95J01 |
LH10#,11#,RZH10#,11#..LHD |
1 | ||
| 82611A - COVER, FUSE BLOCK, NO.2 | ||||
| 82611-95J06 |
LH10#,11#,RZH10#,11#..LHD |
1 | ||
| 82611-26090 |
LH10#,11#,RZH10#,11#..LHD |
1 | ||
| 82611-26110 |
LH102,RZH103..DX;LH102,11#,RZH103,119..5D..03S NORWAY SPEC OR W(DAYTIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82611-95J07 |
RZH103;LH102..DX;LH102,112..LHD..SP..5F *FRG |
1 | ||
| 82611-26100 |
RZH103;LH102..DX;LH102,112..LHD..SP..5F *FRG |
1 | ||
| 82611-95J08 |
LH102,RZH103..DX;LH102,11#,RZH103,119..5D..03S NORWAY SPEC OR W(DAYTIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82611-26091 |
LH10#,11#,RZH10#,11#..LHD..(DX,STD)..EUR |
1 | ||
| 82611-26111 |
LH10#,11#,RZH10#,11#..LHD..(DX,STD)..EUR W(DAYTIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82611-26190 |
LH10#,11#,RZH103,109,11#..LHD..(DX,STD)..EUR W(DAYTIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
LH10#,11#,RZH10#,11# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
LH10#,11#,RZH10#,11# FRONT |
1 | ||
| 90987-04002 |
LH10#,11#,RZH10#,11# FRONT |
1 | ||
| 90987-02004 |
LH10#,11#,RZH10#,11# |
2 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
LH10#,11#,RZH10#,11# FRONT |
1 | ||
| 90987-04002 |
LH10#,11#,RZH10#,11# FRONT |
1 | ||
| 90987-02004 |
LH10#,11#,RZH10#,11# |
2 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02004 |
RZH112..4D;RZH119..STD;RZH102..4D..STD;LH10#,11#,RZH103,109,113,115 |
1 | ||
| 90987-02009 |
LH10#,11#,RZH10#,11# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02009 |
LH10#,11#,RZH10#,11# TAIL LAMP |
1 | ||
| 90987-02006 |
LH10#,11#,RZH10#,11# HEADLAMP |
1 | ||
| 90987-01003 |
LH10#,11#,RZH10#,11# TAIL LAMP |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02009 |
LH10#,11#,RZH10#,11# TAIL LAMP |
1 | ||
| 90987-02006 |
LH10#,11#,RZH10#,11# HEADLAMP |
1 | ||
| 90987-01003 |
LH10#,11#,RZH10#,11# TAIL LAMP |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-02009 |
LH10#,11#,RZH10#,11#..(DX,STD)..(EUR,FRG) |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 85926-30020 |
LH10#,11#,RZH10#,11#..LHD |
1 | ||
| 85926-30020 |
LH102,RZH103..DX;LH102,112,RZH103..5D..03S..5F |
1 | ||
| 85926-30020 |
LH10#,11#,RZH103,109,11#..LHD |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-95J00 |
RZH113..LHD;LH10#,11#,RZH10#,112,115,119..DX,STD |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-01003 |
LH10#,11#,RZH10#,11# |
1 | ||
| 90987-02009 |
LH10#,11#,RZH10#,11# |
1 | ||
| Common parts | ||||
| 91651-60614 | ||||
| Linked diagrams | ||||
| 8404 | ||||
