RZH103L-RRMNEW (1993)

Toyota Hiace Van,Commuter

Production Aug 1993 - Aug 1995
Engine 2RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(8908- )LHD

Click highlighted areas on diagram

BOOST VENTILATOR

diagram 8271595J22 88910 9017908123 91651B0825
Part # Description Qty Price
Common parts
82715-95J22
90179-08123
91651-B0825

ILLUST NO. 3 OF 3(9405- )RZH103..4D..SG ; (9405- )LH102,112,RZH102,113..08S,09S,10S ; (9808-

Click highlighted areas on diagram

REAR HEATER

diagram 87029A 87104R 87105R 87107R 87120 8712795J01 8712895J00 87138R 8716 8716 87239 9015960025 9015960025 9018905019 9018905163
Part # Description Qty Price
Common parts
87127-95J01
87128-95J00
90159-60025
90189-05019
90189-05163
Linked diagrams
8716

ILLUST NO. 1 OF 3(8908- )LHD

Click highlighted areas on diagram

FRONT HEATER RADIATOR

diagram 8271595J22 87107 87150 87174A 87211E 9017908123 9048001529 9095001006 9095001694 9165140825
Part # Description Qty Price
Common parts
82715-95J22
90179-08123
90480-01529
90950-01006
90950-01694
91651-40825

ILLUST NO. 2 OF 3(8908- )LHD

Click highlighted areas on diagram

FRONT HEATER BLOWER

diagram 55076A 55756B 87103 87130 87138 9017906060 9017906060 9017906060 9165160614
Part # Description Qty Price
Common parts
90179-06060
91651-60614

ILLUST NO. 3 OF 3(8908- )RZH102,103,112,113..4D..SG

Click highlighted areas on diagram

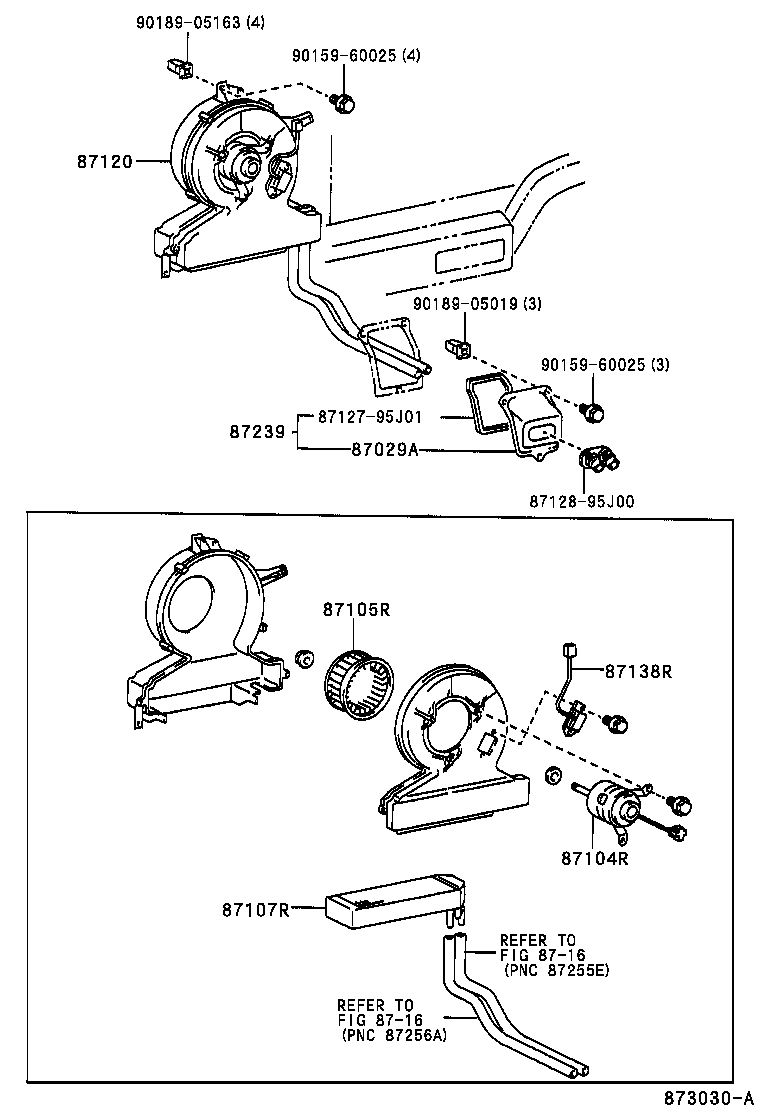

REAR HERTER-TRIM TYPE

diagram 87104R 87105R 87107R 87120 8712795J01 8712895J00 87138R 8716 8716 87239 9015960025 9015960025 9018905019 9018905019
Part # Description Qty Price
87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER
87104-95J06

LH102..LHD..4D..SP..EUR;LH102,118,RZH102,109,11#..05S,09S;LH112,RZH103..LHD..4D..(03S,05S,09S)

 1
87105R - FAN SUB-ASSY, REAR HEATER BLOWER
87105-26020

LH102..LHD..4D..SP..EUR;LH102,118,RZH102,109,11#..05S,09S;LH112,RZH103..LHD..4D..(03S,05S,09S)

 1
87107R - UNIT SUB-ASSY, REAR HEATER
87107-95J16

LH102..LHD..4D..SP..EUR;LH102,118,RZH102,109,11#..05S,09S;LH112,RZH103..LHD..4D..(03S,05S,09S)

 1
87120 - HEATER ASSY, REAR
87110-95J08

LH102..LHD..4D..SP..EUR;LH102,118,RZH102,109,11#..05S,09S;LH112,RZH103..LHD..4D..(03S,05S,09S)

 1
87138R - RESISTOR, REAR HEATER BLOWER
87138-26010

LH102..LHD..4D..SP..EUR;LH102,118,RZH102,109,11#..05S,09S;LH112,RZH103..LHD..4D..(03S,05S,09S)

 1
87239 - COVER, HEATER INLET HOLE
87239-95J05

LH102..LHD..4D..SP..EUR;LH102,118,RZH102,109,11#..05S,09S;LH112,RZH103..LHD..4D..(03S,05S,09S)

 1
Common parts
87127-95J01
87128-95J00
90159-60025
90189-05019
Linked diagrams
8716

ILLUST NO. 1 OF 3(8908- )LHD

Click highlighted areas on diagram

HEATER UNIT(FRONT)

diagram 8271595J22 87107 87150 87174A 87211E 9017908123 9048001529 9165140825
Part # Description Qty Price
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-95J20

LH10#,11#,RZH10#,11#..LHD

 1
87150 - RADIATOR ASSY, HEATER
87150-95J06

LH10#,11#,RZH10#,11#..LHD

 1
87150-26120

LH10#,11#,RZH10#,11#..LHD

 1
87174A - GUIDE, AIR HEATER
87174-95J04

LH10#,11#,RZH10#,11#..LHD

 1
87211E - DUCT, AIR
87211-95J12

LH10#,11#,RZH10#,11#..LHD

 1
Common parts
82715-95J22
90179-08123
90480-01529
91651-40825

ILLUST NO. 2 OF 3(8908- )

Click highlighted areas on diagram

HEATER BLOWER(FRONT)

diagram 87103 87130 87138 9017906060 9165140616
Part # Description Qty Price
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-26020

LH10#,11#,RZH10#,11#..LHD

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-95J02

LH10#,11#,RZH10#,11#..LHD

 1
87138 - RESISTOR, HEATER BLOWER
87138-95J04

LH10#,11#,RZH10#,11#

 1
Common parts
90179-06060
91651-40616
