RZH103L-RRMNEW (1993)

Toyota Hiace Van,Commuter

Production Aug 1993 - Aug 1995
Engine 2RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8908- )LHD

Click highlighted areas on diagram

diagram 72329A 72329A 73013A 73014A 73014A 73146 73148 73148 73160A 73160A 73170 73170 73178A 73178A 73178A 73180 73190 73190 73210 73220 73223B 73224 73230 73230 73240 73240 9010511036 9010511036 9011911008 9015960389 9033340001 9095001126 9354054012 9354054012 9354054012
Part # Description Qty Price
Common parts
90105-11036
90119-11008
90159-60389
90333-40001
90950-01126
93540-54012

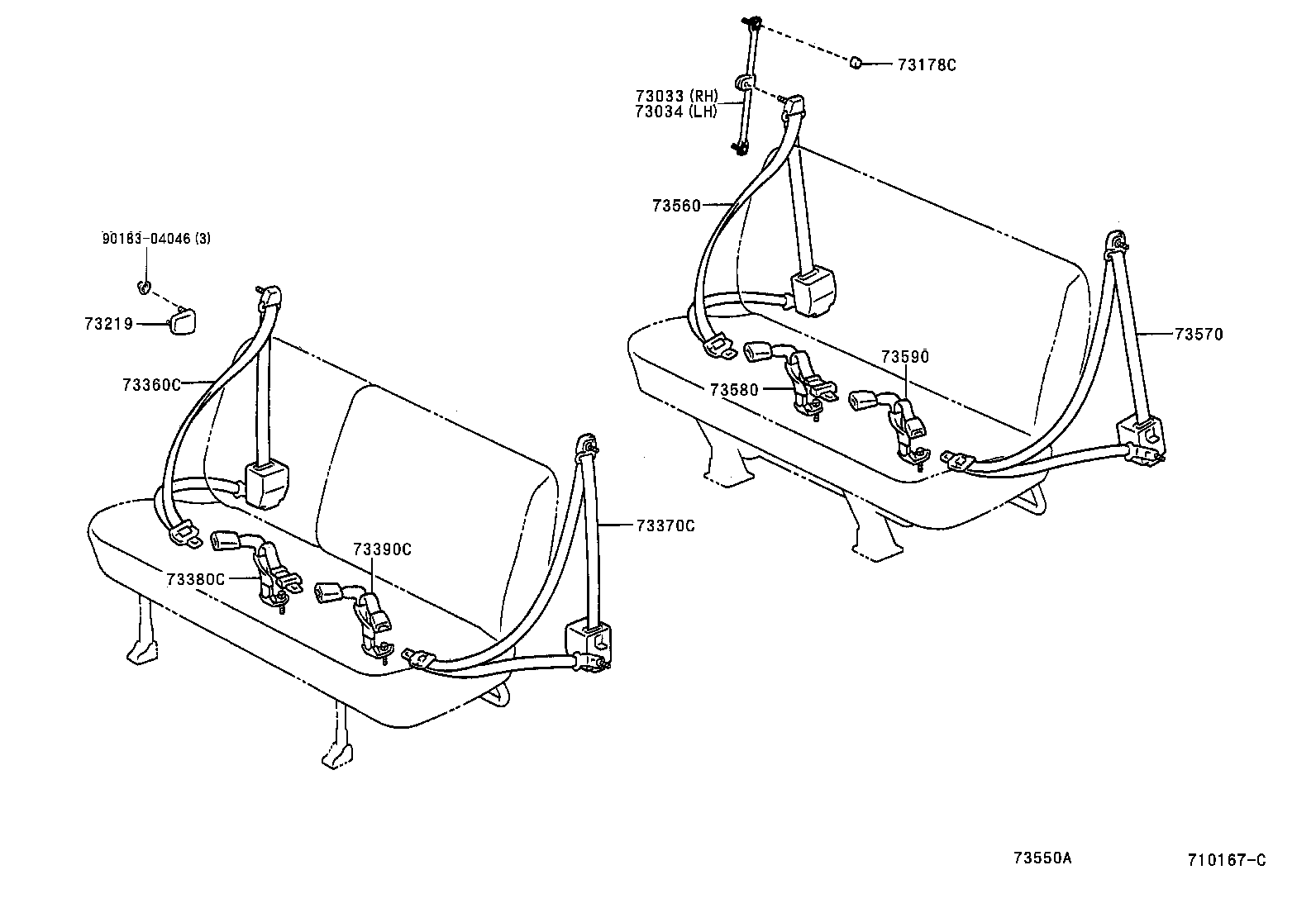

ILLUST NO. 2 OF 2(9405- )RZH103..4D..SG ; (9405- )LH102,112,RZH102,113..09S,10S

Click highlighted areas on diagram

diagram 73033 73034 73178C 73219 73360C 73370C 73380C 73390C 73550A 73560 73570 73580 73590 9018304046
Part # Description Qty Price
Common parts
90183-04046

ILLUST NO. 1 OF 2(8908- )LHD

Click highlighted areas on diagram

diagram 72329A 72329A 73013A 73014A 73014A 73146 73148 73148 73160A 73160A 73170 73170 73178A 73178A 73178A 73178A 73180 73184 73190 73190 73200A 73210 73220 73223B 73224 73230 73230 73240 73240 73252A 9011910492 9011911008 9015960389 9033340001 9095001126 9354054012 9354054012 9354054012
Part # Description Qty Price
72329A - COVER, SEAT ADJUSTER BOLT
72329-87001

LH10#,11#,RZH10#,11#..LHD

 1
72329A - COVER, SEAT ADJUSTER BOLT
72329-87001

LH10#,11#,RZH10#,11#..LHD

 1
73013A - PLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH
73013-95J0303

RZH103..4D;RZH113..DX

GRAY,TRIM1#

 1
73013-95J01C0

LH102,RZH103..GL

BLACK,TRIM1#

 1
73014A - PLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH
73014-95J00C0

LH10#,11#,RZH10#,11#..LHD

BLACK,TRIM1#

 1
73014-95J0003

LH10#,11#,RZH10#,11#..LHD

GRAY,TRIM1#

 1
73014A - PLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH
73014-95J00C0

LH10#,11#,RZH10#,11#..LHD

BLACK,TRIM1#

 1
73014-95J0003

LH10#,11#,RZH10#,11#..LHD

GRAY,TRIM1#

 1
73146 - COVER, FRONT SEAT BELT INNER ANCHOR BRACKET, RH
73146-95J00B0

LH10#,11#,RZH10#,11#

BLUISH GRAY,TRIM1#

 1
73146-95J0003

RZH103..4D;RZH113..DX;LH102,112,RZH112..RHD

GRAY,TRIM1#

 1
73146-95J00B0

LH10#,11#,RZH10#,11#..LHD

BLUISH GRAY,TRIM1#

 1
73146-95J00B0

LH10#,11#,RZH10#,11#

BLUISH GRAY,TRIM1#

 1
73148 - COVER, FRONT SEAT BELT INNER ANCHOR BRACKET, LH
73148-95J0003

LH10#,11#,RZH10#,11#..LHD

GRAY,TRIM1#

 1
73148-95J00B0

LH10#,11#,RZH10#,11#..LHD

BLUISH GRAY,TRIM1#

 1
73148 - COVER, FRONT SEAT BELT INNER ANCHOR BRACKET, LH
73148-95J0003

LH10#,11#,RZH10#,11#..LHD

GRAY,TRIM1#

 1
73148-95J00B0

LH10#,11#,RZH10#,11#..LHD

BLUISH GRAY,TRIM1#

 1
73160A - SEAT BELT ASSY, FRONT CENTER, RH
73160-95J1103

LH10#,11#,RZH10#,112,113,119..LHD

GRAY,TRIM1#

 1
73160A - SEAT BELT ASSY, FRONT CENTER, RH
73160-95J1103

LH10#,11#,RZH10#,112,113,119..LHD

GRAY,TRIM1#

 1
73170 - BELT ASSY, FRONT CENTER, LH
73170-95J1703

LH10#,11#,RZH10#,112,113,119..LHD

GRAY,TRIM1#

 1
73170 - BELT ASSY, FRONT CENTER, LH
73170-95J1703

LH10#,11#,RZH10#,112,113,119..LHD

GRAY,TRIM1#

 1
73178A - CAP, SEAT BELT ANCHOR COVER
73178-95J00

RZH103,115..4D;LH102,112,RZH112..RHD

 1
73178-95J00

RZH113..SDN;LH102,112,RZH113..RHD;LH102,11#,RZH10#,11#..(DX,GL)..(EUR,FRG)

 1
73178A - CAP, SEAT BELT ANCHOR COVER
73178-95J00

RZH103,115..4D;LH102,112,RZH112..RHD

 1
73178-95J00

RZH113..SDN;LH102,112,RZH113..RHD;LH102,11#,RZH10#,11#..(DX,GL)..(EUR,FRG)

 1
73178A - CAP, SEAT BELT ANCHOR COVER
73178-95J00

RZH103,115..4D;LH102,112,RZH112..RHD

 1
73178-95J00

RZH113..SDN;LH102,112,RZH113..RHD;LH102,11#,RZH10#,11#..(DX,GL)..(EUR,FRG)

 1
73178A - CAP, SEAT BELT ANCHOR COVER
73178-95J00

RZH103,115..4D;LH102,112,RZH112..RHD

 1
73178-95J00

RZH113..SDN;LH102,112,RZH113..RHD;LH102,11#,RZH10#,11#..(DX,GL)..(EUR,FRG)

 1
73180 - BRACKET ASSY, SEAT BELT INNER ANCHOR, RH
73011-12040

RZH103..4D;RZH113..DX;LH102,112,RZH112..RHD

 1
73190 - BRACKET ASSY, SEAT BELT INNER ANCHOR, LH
73012-12040

LH10#,11#,RZH10#,11#..LHD

 1
73190 - BRACKET ASSY, SEAT BELT INNER ANCHOR, LH
73012-12040

LH10#,11#,RZH10#,11#..LHD

 1
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-95J0013

LH102..SG;RZH112,119;LH102,112..RHD;RZH103,109..4D;RZH102,115..STD;LH112,RZH113..4FC;LH112,RZH113..06S..5F

GRAY,TRIM1#

 2
73200-95J00B8

LH102,RZH103..GL

LI. GRAY,TRIM1#

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-95J3003

RZH103

GRAY,TRIM1#

 1
73210-26091B0

LH102,RZH103..GL

BLUISH GRAY,TRIM1#

 1
73210-26090B0

LH102,RZH103..GL

BLUISH GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-95J3003

RZH103

GRAY,TRIM1#

 1
73210-26090B0

LH102,RZH103..GL

BLUISH GRAY,TRIM1#

 1
73210-26091B0

LH102,RZH103..GL

BLUISH GRAY,TRIM1#

 1
73223B - COVER, FRONT SEAT BELT RETRACTOR, RH
73223-95J01

LH10#,11#,RZH10#,11#

 1
73224 - COVER, FRONT SEAT BELT RETRACTOR, LH
73224-95J00

LH10#,11#,RZH10#,11#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-95J1603

RZH103..4D;LH102,112,RZH112..RHD

GRAY,TRIM1#

 1
73230-26040B0

RZH113..SDN;LH102,112,RZH113..RHD;LH102,11#,RZH10#,11#..(DX,GL)..(EUR,FRG)

BLUISH GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-95J1603

RZH103..4D;LH102,112,RZH112..RHD

GRAY,TRIM1#

 1
73230-26040B0

RZH113..SDN;LH102,112,RZH113..RHD;LH102,11#,RZH10#,11#..(DX,GL)..(EUR,FRG)

BLUISH GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-95J2603

LH10#,11#,RZH10#,11#..LHD

GRAY,TRIM1#

 1
73240-26050B0

LH10#,11#,RZH10#,11#..LHD

BLUISH GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-95J2603

LH10#,11#,RZH10#,11#..LHD

GRAY,TRIM1#

 1
73240-26050B0

LH10#,11#,RZH10#,11#..LHD

BLUISH GRAY,TRIM1#

 1
73252A - COVER, SHOULDER BELT ANCHOR ADJUST
73252-95J0013

LH102..SG;RZH112,119;LH102,112..RHD;RZH103,109..4D;RZH102,115..STD;LH112,RZH113..4FC;LH112,RZH113..06S..5F

GRAY,TRIM1#

 2
73252-95J00B8

LH102,RZH103..GL

LI. GRAY,TRIM1#

 2
Common parts
90119-10492
90119-11008
90159-60389
90333-40001
90950-01126
93540-54012

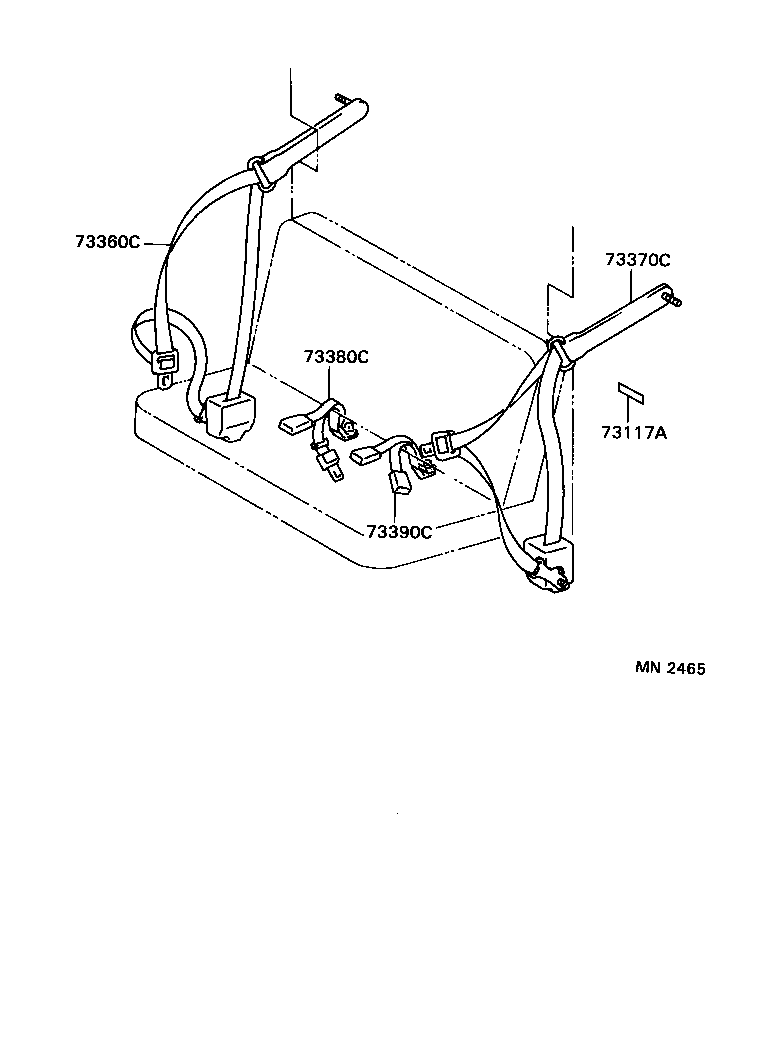

ILLUST NO. 2 OF 2(9308- )LH102,RZH103..EUR

Click highlighted areas on diagram

diagram 73117A 73360C 73370C 73380C 73390C
Part # Description Qty Price
73117A - PROTECTOR, BELT
73117-95J00

LH102,RZH103..GL

 1
73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH
73360-26161B0

LH102,RZH103..GL

BLUISH GRAY,TRIM1#

 1
73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH
73370-26090B0

LH102,RZH103..GL

GRAY,TRIM1#

 1
73380C - BELT ASSY, REAR NO.1 SEAT, INNER RH
73380-26140B0

LH102,RZH103..GL

GRAY,TRIM1#

 1
73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH
73390-26130B0

LH102,RZH103..GL

GRAY,TRIM1#

 1
