RZH103L-RRMNEW (1993)

Toyota Hiace Van,Commuter

Production Aug 1993 - Aug 1995
Engine 2RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9308- )GL ; (9405- )RZH103..4D..SG ; (9405- )LH112,RZH102,113..09S,10S ;

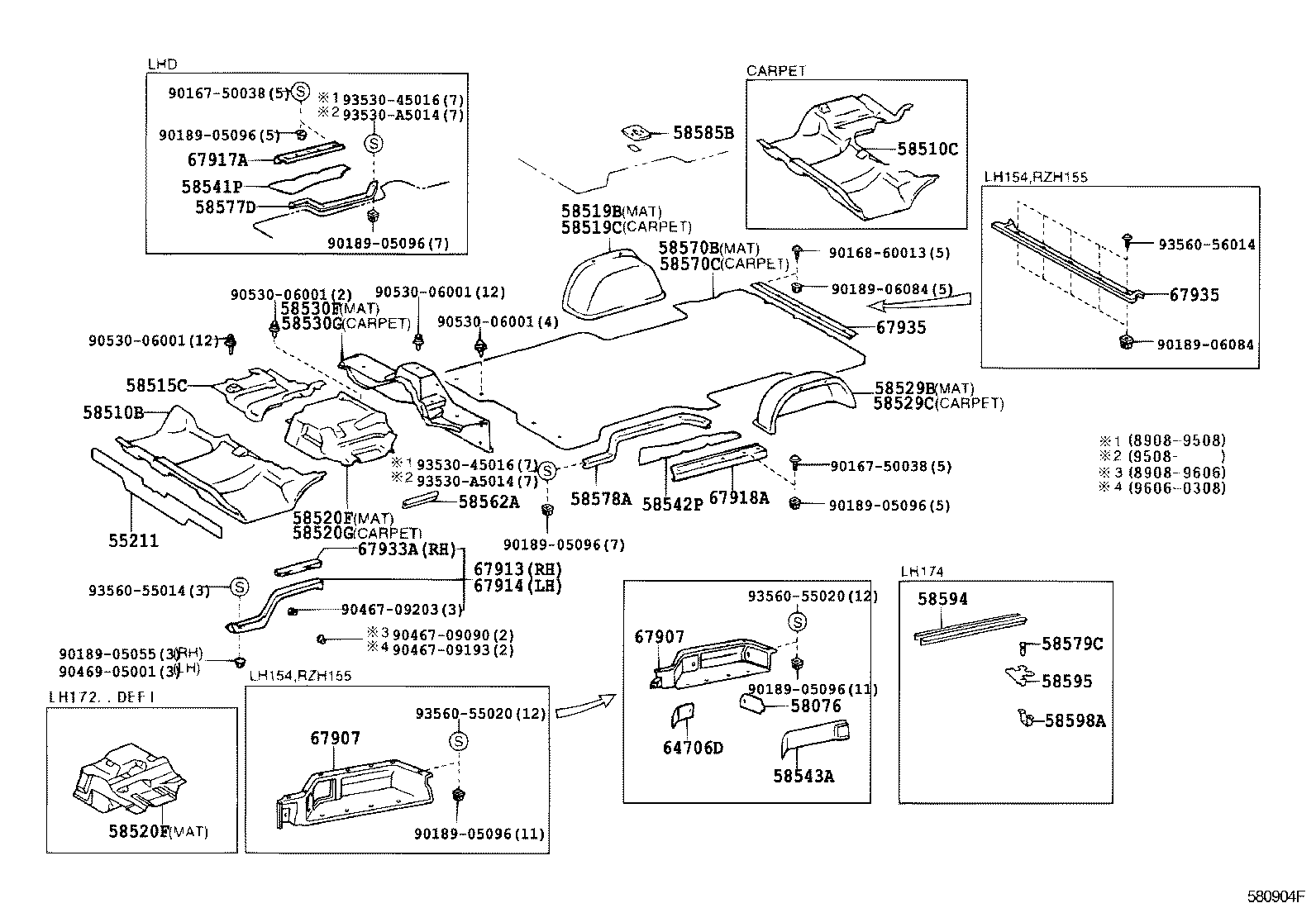

Click highlighted areas on diagram

diagram 55211 58076 58510B 58510C 58515C 58519B 58519C 58520F 58520F 58520G 58529B 58529C 58530F 58530G 58541P 58542P 58543A 58562A 58570B 58570C 58577D 58578A 58579C 58585B 58594 58595 58598A 64706D 67907 67907 67913 67914 67917A 67918A 67933A 67935 67935 9016750038 9016750038 9016860013 9018905055 9018905096 9018905096 9018905096 9018905096 9018905096 9018905096 9018906084 9018906084 9046709090 9046709193 9046709203 9046905001 9053006001 9053006001 9053006001 9053006001 9353045016 9353045016 93530A5014 93530A5014 9356055014 9356055020 9356055020 9356056014
Part # Description Qty Price
Common parts
90167-50038
90168-60013
90189-05055
90189-05096
90189-06084
90467-09090
90467-09193
90467-09203
90469-05001
90530-06001
93530-45016
93530-A5014
93560-55014
93560-55020
93560-56014

(8908- )

Click highlighted areas on diagram

diagram 58033 58442D 58510B 58510C 58515C 58519B 58519C 58520F 58520G 58529B 58529C 58530F 58530G 58541P 58542P 58543A 58545F 58562A 58570B 58570C 58572E 58577D 58578A 67913 67914 67917A 67918A 67933A 67935 67935 9016750038 9016750038 9016860013 9016860013 9018905055 9018905096 9018905096 9018905096 9018905096 9018906084 9018906084 9046709090 9046709105 9046905001 9053006001 9053006001 9053006001 9053006001 9353045016 9353045016 9356055014
Part # Description Qty Price
58442D - COVER, JACK
58442-95J06B0

LH102,RZH103..GL

BLUISH GRAY,TRIM1#

 1
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-95J8016

LH102,RZH103..GL

BLUISH GRAY,TRIM1#

 1
58510-95J80B1

LH102,RZH103..GL

BLUISH GRAY,TRIM1#

 1
58519C - CARPET, REAR WHEEL HOUSE, RH
58519-95J3016

LH102,RZH103..GL

BLUISH GRAY,TRIM1#

 1
58519-95J30B1

LH102,RZH103..GL

BLUISH GRAY,TRIM1#

 1
58520G - CARPET ASSY, ENGINE COVER
58520-95J52B1

LH102,RZH103..GL

BLUISH GRAY,TRIM1#

 1
58520-95J5216

LH102,RZH103..GL

BLUISH GRAY,TRIM1#

 1
58529C - CARPET, REAR WHEEL HOUSE, LH
58519-95J3016

LH102,RZH103..GL

BLUISH GRAY,TRIM1#

 1
58519-95J30B1

LH102,RZH103..GL

BLUISH GRAY,TRIM1#

 1
58530G - CARPET ASSY, HEADER
58530-95N01B0

LH102,RZH103..GL

BLUISH GRAY,TRIM1#

 1
58530-95N0116

LH102,RZH103..GL

BLUISH GRAY,TRIM1#

 1
58541P - MAT, STEP, RH
58541-95J0213

LH102,11#,RZH103,109,11#..05S,06S,09S

BLUISH GRAY,TRIM1#

 1
58543A - CARPET, STEP SIDE, RH
58543-95J0216

LH102,RZH103..GL

BLUISH GRAY,TRIM1#

 1
58543-95J02B0

LH102,RZH103..GL

BLUISH GRAY,TRIM1#

 1
58562A - CARPET, FRONT SEAT SIDE, LH
58562-95J1016

LH102,RZH103..GL

BLUISH GRAY,TRIM1#

 1
58562-95J10B1

LH102,RZH103..GL

BLUISH GRAY,TRIM1#

 1
58570C - CARPET ASSY, REAR FLOOR
58050-95J6716

LH102,RZH103..GL

BLUISH GRAY,TRIM1#

 1
58050-95J67B1

LH102,RZH103..GL

BLUISH GRAY,TRIM1#

 1
58577D - PLATE, REAR FLOOR MAT SUPPORT SIDE, RH
58577-95J03

LH102,RZH103..GL

 1
58577-95J02

LH10#,11#,RZH10#,11#..LHD

 1
67913 - PLATE, FRONT DOOR SCUFF, RH
67910-95J0003

LH10#,11#,RZH10#,11#

GRAY,TRIM1#

 1
67910-95J00B0

LH10#,11#,RZH10#,11#

BLUISH GRAY,TRIM1#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-95J01B0

LH10#,11#,RZH10#,11#

BLUISH GRAY,TRIM1#

 1
67914-95J0103

LH10#,11#,RZH10#,11#

GRAY,TRIM1#

 1
67917A - PLATE, REAR DOOR SCUFF, RH
67917-95J03

LH102,RZH103..GL

 1
67933A - PLATE, FRONT DOOR SCUFF, REAR RH
67933-95J00B0

LH10#,11#,RZH10#,11#

BLUISH GRAY,TRIM1#

 1
67933-95J0003

LH10#,11#,RZH10#,11#

GRAY,TRIM1#

 1
67935 - PLATE, BACK DOOR SCUFF
67904-95J02B0

LH102,RZH103..GL

BLUISH GRAY,TRIM1#

 1
67935 - PLATE, BACK DOOR SCUFF
67904-95J02B0

LH102,RZH103..GL

BLUISH GRAY,TRIM1#

 1
Common parts
90167-50038
90168-60013
90189-05055
90189-05096
90189-06084
90467-09090
90467-09105
90469-05001
90530-06001
93530-45016
93560-55014
