RZH103L-RRMNEW (1993)

Toyota Hiace Van,Commuter

Production Aug 1993 - Aug 1995
Engine 2RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9308- )

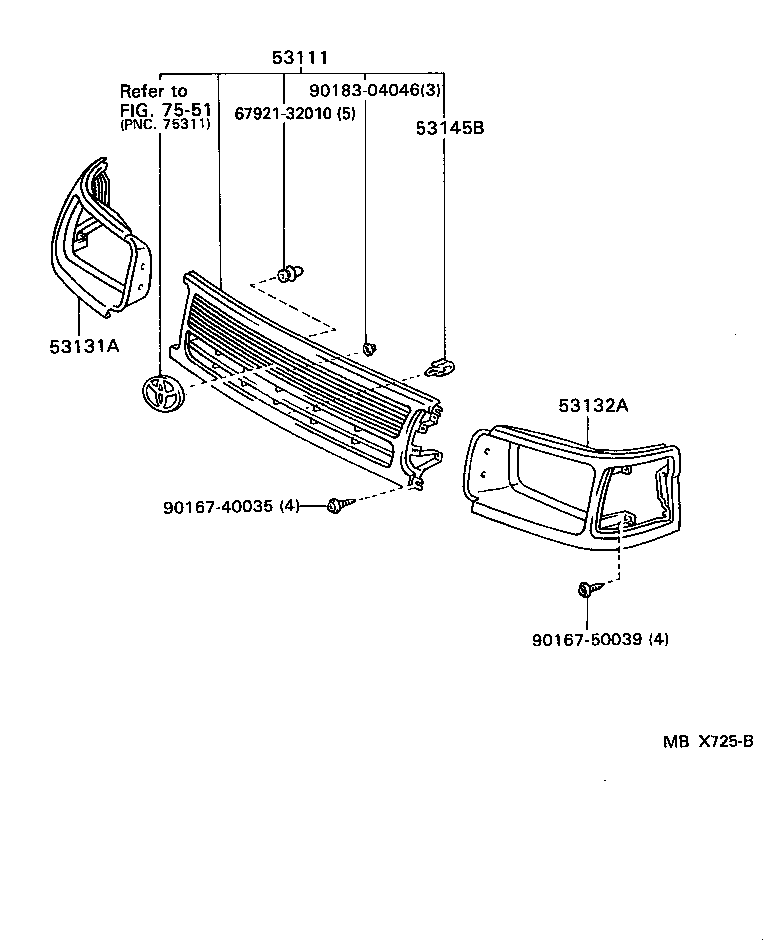

Click highlighted areas on diagram

diagram 53111 53131A 53132A 53145B 6792132010 7551 9016740035 9016750039 9018304046
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53100-95J22

LH10#,11#,RZH10#,11#

 1
53100-26080

LH102,RZH103..GL

 1
53131A - DOOR, HEADLAMP, RH
53131-95J10

LH10#,11#,RZH10#,11#

 1
53131-95J09

LH102,RZH103..GL

 1
53132A - DOOR, HEADLAMP, LH
53132-95J10

LH10#,11#,RZH10#,11#

 1
53132-95J09

LH102,RZH103..GL

 1
53145B - CLIP, RADIATOR GRILLE GARNISH
53145-95J01

LH10#,11#,RZH10#,11#

TYPE A

 3
53145-95J02

LH10#,11#,RZH10#,11#

TYPE B

 2
53145-26010

LH10#,11#,RZH10#,11#

 3
53145-95J01

LH10#,11#,RZH10#,11#

 3
Common parts
67921-32010
90167-40035
90167-50039
90183-04046
Linked diagrams
7551
