RZH103L-RRMNEW (1993)

Toyota Hiace Van,Commuter

Production Aug 1993 - Aug 1995
Engine 2RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9308- )LH102,112,RZH102,103,113

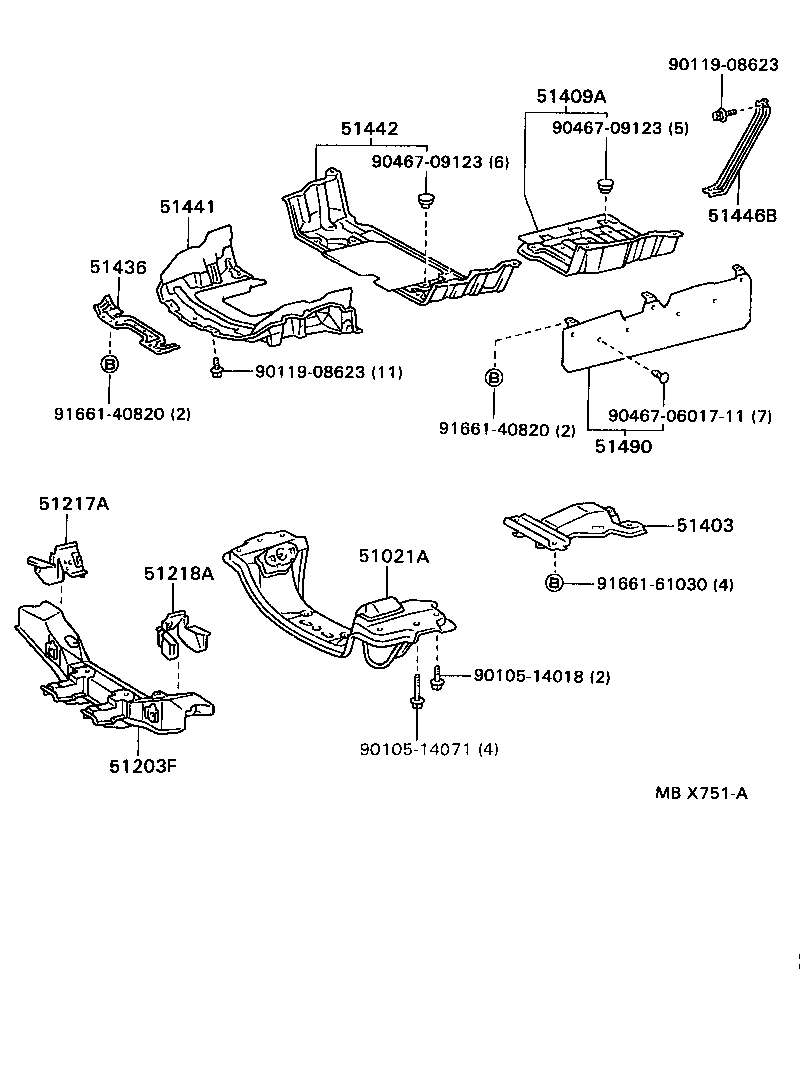

Click highlighted areas on diagram

diagram 51021A 51203F 51217A 51218A 51403 51409A 51436 51441 51442 51446B 51490 9010514018 9010514071 9011908623 9011908623 904670601711 9046709123 9046709123 9166140820 9166140820 9166161030
Part # Description Qty Price
51021A - MEMBER SUB-ASSY, ENGINE FRONT SUPPORT
51021-95J09

RZH102,103,112,113,115

 1
51203F - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51203-95J06

LH102,112,RZH102,103,112,113,115..LHD

 1
51203-26210

LH102,112,RZH102,103,113..LHD

 1
51217A - REINFORCEMENT, FRONT SUSPENSION MEMBER, RH
51217-26060

LH102,112,RZH102,103,113

 1
51217-95J03

LH102,112,RZH102,103,112,113,115

 1
51218A - REINFORCEMENT, FRONT SUSPENSION MEMBER, LH
51218-95J03

LH102,112,RZH102,103,112,113,115

 1
51218-95J02

LH102,112,RZH102,103,113

 1
51403 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING
51403-95J00

RZH112,113..5F;LH102,112,RZH102,103,115

 1
51409A - COVER SUB-ASSY, ENGINE UNDER, NO.4
51409-26050

RZH103,109,11#..DX,GL

 1
51436 - PROTECTOR, ENGINE FRONT SUPPORT
51436-26070

LH102,112,RZH103,113..DX,GL

 1
51441 - COVER, ENGINE UNDER, NO.1
51405-95J03

RZH103,113..DX,GL

 1
51442 - COVER, ENGINE UNDER, NO.2
51406-26020

LH102,112,RZH103,113..DX,GL

 1
Common parts
90105-14018
90105-14071
90119-08623
90467-0601711
90467-09123
91661-40820
91661-61030
