RZH103L-RGMGE (1999)

Toyota Hiace Van,Commuter

Production Jul 1999 - Aug 2000
Engine 2RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 9(8908- )LHD

Click highlighted areas on diagram

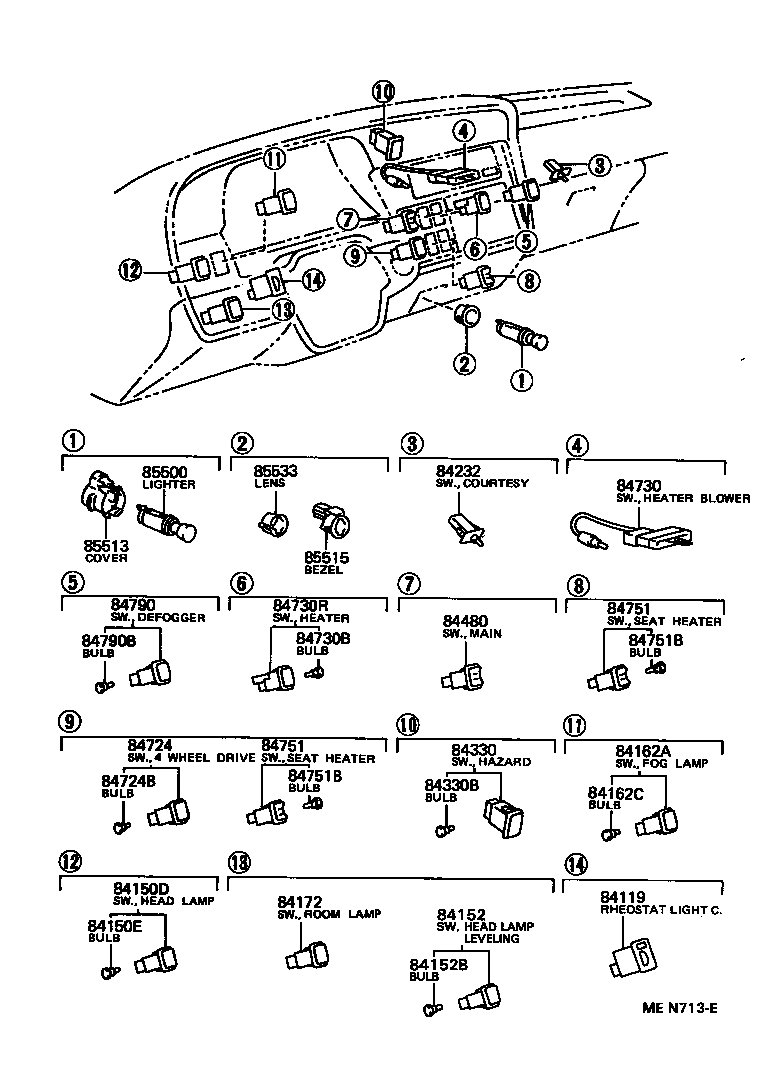

INSTRUMENT PANEL SWITCHES

diagram 84152 84152B 84162 84162A 84162B 84162C 84162E 84172 84330 84330B 84480 84660C 84730 84730B 84730D 84730R 84790 84790B 84870A 85500 85500B 85500F 85513 85515 85520 85530 85533 88607C
Part # Description Qty Price
84152 - SWITCH, HEADLAMP LEVELING
84152-20030

RZH103,115..09S,10S

 1
84152B - BULB (FOR HEADLAMP LEVELING SWITCH)
90010-08100

RZH103,115..09S,10S

14V 40MA, GREEN

 1
84162A - SWITCH, REAR FOG LAMP
84165-26010

LH105,113,115..CIS;RZH103,115..09S,10S

 1
84162C - BULB (FOR REAR FOG LAMP SWITCH)
84999-20120

LH105,113,115..CIS;RZH103,115..09S,10S

14V 0.7W

 1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-95J02

LH10#,11#,125,RZH10#,11#,125

 1
84332-26080

RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#

 1
84330B - BULB, HAZARD WARNING SIGNAL SWITCH
84999-10320

RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#

14V 0.84W

 1
84480 - SWITCH ASSY, MAIN
84480-26030

LH10#,11#,125,RZH10#,11#,125

 1
84660C - SWITCH, COOLER
84660-95J01

LH125..ARL;LH10#,11#,RZH10#,11#,125

 1
84730B - BULB, HEATER BLOWER SWITCH
90981-11014

LH125..ARL;LH10#,11#,RZH10#,11#,125

14V 1.4W

 1
90981-11014

RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#

14V 1.4W

 1
84730D - CAP, HEATER BLOWER SWITCH BULB
84998-10050

LH125..ARL;LH10#,11#,RZH10#,11#,125

 1
84998-10050

RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#

 1
84730R - SWITCH ASSY, HEATER BLOWER
84730-95J03

RZH103..4D..SG..GEN;LH102,104,105,112,114,115,166,176,RZH102,104,105,113,114,115..09S,10S,12S,15S

REAR HEATER CONTROL

 1
84730-26070

RZH115;LH174..15S;LH104,105,114,115,164,166,176,RZH103,104,105,113,114,155..08S,09S,11S,12S,15S

RR

 1
84730-95J05

RZH115;LH174..15S;LH104,105,114,115,164,166,176,RZH103,104,105,113,114,155..08S,09S,11S,12S,15S

INSTRUMENT PANEL

 1
84730-95J05

RZH103..4D..SG..GEN;LH102,104,105,112,114,115,166,176,RZH102,104,105,113,114,115..09S,10S,12S,15S

INSTRUMENT PANEL

 1
84790 - SWITCH ASSY, REAR WINDOW DEFOGGER
84790-95J01

RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#

 1
84790-95J02

RZH103..GL

 1
84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH)
84999-10320

LH125..ARL;LH10#,11#,RZH10#,11#,125..03S,06S,09S,12S,14S,15S

14V 0.84W

 1
85500 - LIGHTER ASSY, CIGARETTE
85500-17060

RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#

 1
85500-12250

LH125..ARL;LH10#,11#,RZH10#,11#,125

 1
85500B - BULB, CIGARETTE LIGHTER
84999-10250

RZH103,115,153..DX,GL,SGL;LH102,112,174,RZH102,113,114,135..09S,10S,12S

14V 1.4W

 1
85500F - CAP, CIGARETTE LIGHTER BULB
84998-10550

RZH103,115,153..DX,GL,SGL;LH102,112,174,RZH102,113,114,135..09S,10S,12S

 1
85513 - COVER, CIGARETTE LIGHTER
85513-28020

RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#

 1
85515 - STAY, CIGARETTE LIGHTER BEZEL
85515-22010

RZH103,115,153..DX,GL,SGL;LH102,112,174,RZH102,113,114,135..09S,10S,12S

 1
85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
85520-20080

LH125..ARL;LH10#,11#,RZH10#,11#,125

 1

ILLUST NO. 7 OF 9(8908- )LH10#,11#,125,16#,17#,184,RZH10#,11#,125,135,153

Click highlighted areas on diagram

ROOF, FRONT FLOOR RELAY & SWITCHES

diagram 28610 8271126120 84730R 84732A 85336 85530B 85959A 9011906171 9356614512
Part # Description Qty Price
84730R - SWITCH ASSY, HEATER BLOWER
84730-95J03

RZH103..4D..SG..GEN;LH102,104,105,112,114,115,166,176,RZH102,104,105,113,114,115..09S,10S,12S,15S

REAR HEATER CONTROL

 1
84730-26070

RZH115;LH174..15S;LH104,105,114,115,164,166,176,RZH103,104,105,113,114,155..08S,09S,11S,12S,15S

RR

 1
84730-95J05

RZH115;LH174..15S;LH104,105,114,115,164,166,176,RZH103,104,105,113,114,155..08S,09S,11S,12S,15S

INSTRUMENT PANEL

 1
84730-95J05

RZH103..4D..SG..GEN;LH102,104,105,112,114,115,166,176,RZH102,104,105,113,114,115..09S,10S,12S,15S

INSTRUMENT PANEL

 1
84732A - SWITCH, REAR HEATER BLOWER
84732-95J05

RZH103..4D..SG..GEN;LH102,104,105,112,114,115,166,176,RZH102,104,105,113,114,115..09S,10S,12S,15S

 1
84732-95J05

RZH115;LH174..15S;LH104,105,114,115,164,166,176,RZH103,104,105,113,114..08S,09S,12S,15S

 1
85336 - SWITCH ASSY, RESERVE TANK LEVEL WARNING
85335-75010

RZH10#,11#,125

 1
Common parts
82711-26120
90119-06171
93566-14512

ILLUST NO. 1 OF 9(8908- )RZH10#,11#,125,135,15#

Click highlighted areas on diagram

ENGINE & TRANSMISSION

diagram 28380A 8271122690 8271126171 83391 83399 83420 83530 84210 84540 89465 89466 89491 89491 89491A 89620 89620 89620 89629 9011908063 9017908101 9043018008 9043027001 9165140814 9165140816 9165160614 91651B0814 9338516025
Part # Description Qty Price
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20020

LH10#,11#,125,RZH10#,11#,125

 1
83420-16040

RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#

 1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-14040

RZH10#,11#,125

 1
83530-28020

RZH112..5D;RZH112..03S;RZH10#,113,114,115,125,135,15#

 1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-12040

LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15#..5F

 1
89491 - SENSOR, ENGINE OIL LEVEL
89491-26040

RZH10#,11#,125

 1
89491-26062

RZH112..5D;RZH112..03S;RZH10#,113,114,115,125,135,15#

 1
89491 - SENSOR, ENGINE OIL LEVEL
89491-26040

RZH10#,11#,125

 1
89491-26062

RZH112..5D;RZH112..03S;RZH10#,113,114,115,125,135,15#

 1
89491A - GASKET, ENGINE OIL LEVEL SENSOR
89493-60010

RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#

 1
Common parts
82711-22690
82711-26171
90119-08063
90179-08101
90430-18008
90430-27001
91651-40814
91651-40816
91651-60614
91651-B0814
93385-16025

ILLUST NO. 3 OF 9(8908- )LHD

Click highlighted areas on diagram

COWL RELAY & SWITCHES

diagram 28300 28300 28317 28610A 28610A 81980 82223F 8271595J00 83390 84340 84340 84461A 84550 85930 85940B 85969 85980 85985 85991 86640 86650C 89701 9011906198 9165140612 9165140814 9165140816 9165160614 9165160614 9165160614 91651B0814 9338516012 9338516012 9354014012 9354014012 9412041000 9412041000
Part # Description Qty Price
28300 - RELAY ASSY, STARTER
28300-75010

1RZ..RZH112..5D;5L,1RZ,2RZ#..LH174,184,RZH112,114,115..03S,10S,12S,14S,15S;3L,5L,2RZE..LH103,105,113,115,125,164,166,176,RZH125..ARL,CIS;2L,5L#,1RZ,2RZ#..LH114,154,162,172,RZH10#,113,135,15#..03S,06S,08S,09S,10S,11S,12S

 1
28300 - RELAY ASSY, STARTER
28300-75010

1RZ..RZH112..5D;5L,1RZ,2RZ#..LH174,184,RZH112,114,115..03S,10S,12S,14S,15S;3L,5L,2RZE..LH103,105,113,115,125,164,166,176,RZH125..ARL,CIS;2L,5L#,1RZ,2RZ#..LH114,154,162,172,RZH10#,113,135,15#..03S,06S,08S,09S,10S,11S,12S

 1
81980 - FLASHER ASSY, TURN SIGNAL
81980-22110

LH10#,11#,125,166,17#,184,RZH10#,11#,125,135,153

 1
81980-32010

RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#

 1
82223F - WIRE, SWITCH
82223-26040

LH172..STD;LH172..03S..GL;LH172..GL..DEFI;RZH115..CIS,GCC;RZH104..LHD..STD;RZH115..GEN..EFI;LH162,RZH114..4D..5F..STD;LH162,RZH105,114..(03S,06S,12S)..(CIS,GEN);LH10#,11#,125,154,164,166,174,176,184,RZH102,103,112,113,125,135,15#

 1
84340 - SWITCH ASSY, STOP LAMP
84340-22072

LH10#,11#,125,RZH10#,11#,125

 1
84340 - SWITCH ASSY, STOP LAMP
84340-22072

LH10#,11#,125,RZH10#,11#,125

 1
84461A - SWITCH, BRAKE RESERVOIR LEVEL WARNING
84461-26040

LH10#,11#,125,RZH10#,11#,125

 1
85940B - RELAY ASSY, REAR WIPER
85940-95J02

LH10#,11#,125,RZH10#,11#,125

 1
85980 - RELAY ASSY, DOOR CONTROL
85980-95J06

LH102,104,105,11#,RZH10#,11#..LHD

 1
Common parts
82715-95J00
90119-06198
91651-40612
91651-40814
91651-40816
91651-60614
91651-B0814
93385-16012
93540-14012
94120-41000

ILLUST NO. 8 OF 9(8908- )

Click highlighted areas on diagram

DOOR CONTROL

diagram 84234 84261B 84261C 84262B 84262C 84535A 84931A 85918A 85975 9010906296 9011906885 9011906885 9011906911 9011906911 9015960025 9015960413 9015960413 9017906274 9018905019 9018905131 9018905131 9353055020 9353055020
Part # Description Qty Price
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84231-95J02

LH125..ARL;LH10#,11#,RZH10#,11#,125..4D

 1
84231-26110

RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#..4D

 1
84261B - JUNCTION, SLIDE DOOR CONTROL,MALE
84261-95J03

LH125..ARL;LH10#,11#,RZH10#,11#,125..4D

 1
84261-26071

RZH112..SP;LH172..ARL;LH172..HRF;LH172..LHD..4D;LH172..03S..GL;LH172,174..4D..(06S,10S,15S);LH10#,11#,125,154,16#,176,184,RZH10#,113,114,115,125,135,15#..4D

 1
84262B - JUNCTION, SLIDE DOOR CONTROL, FEMALE
84262-95J03

LH125..ARL;LH10#,11#,RZH10#,11#,125..4D

 1
84262-95J03

RZH112..SP;LH172..ARL;LH172..HRF;LH172..LHD..4D;LH172..03S..GL;LH172,174..4D..(06S,10S,15S);LH10#,11#,125,154,16#,176,184,RZH10#,113,114,115,125,135,15#..4D

 1
Common parts
90109-06296
90119-06885
90119-06911
90159-60025
90159-60413
90179-06274
90189-05019
90189-05131
93530-55020

ILLUST NO. 9 OF 9(8908- )

Click highlighted areas on diagram

REAR FLOOR, BACK DOOR RELAY & SW.

diagram 83320 83361 84235 84238A 84265 84265 84266 84266 85940B 9011906390 9016150004 9016150004 9016150004 9016150004 9016150004 9018905063 9018905063 9018905063 9018905063 9018905063 9048015194 9048015194 9165160614 93319A4010
Part # Description Qty Price
83320 - GAGE ASSY, FUEL SENDER
83320-80150

RZH10#,11#,125

 1
83361 - GASKET, FUEL SENDER GAGE
83361-20030

RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#

 1
85940B - RELAY ASSY, REAR WIPER
85940-95J02

LH10#,11#,125,RZH10#,11#,125

 1
Common parts
90119-06390
90161-50004
90189-05063
90480-15194
91651-60614
93319-A4010

ILLUST NO. 6 OF 9(8908- )

Click highlighted areas on diagram

FRONT DOOR SWITCHES

diagram 28300 28520 28520 28521 28521 28529 82620B 82622 82623 84233 84233 84550 84739A 84739B 84810 84810 8481926010 8481926010 8481926020 8481926020 84820 84820 84931B 84931B 88610M 89550 89551 8966726090 8966826090 9010906296 9010906296 9016430003 9016430003 9016440100 9165140614 9165160614 9165160614 9331514014 9331915010 9351016012 9351016012 9354016012 9354016012 9354054014 9359016014
Part # Description Qty Price
28300 - RELAY ASSY, STARTER
28300-75010

1RZ..RZH112..5D;5L,1RZ,2RZ#..LH174,184,RZH112,114,115..03S,10S,12S,14S,15S;3L,5L,2RZE..LH103,105,113,115,125,164,166,176,RZH125..ARL,CIS;2L,5L#,1RZ,2RZ#..LH114,154,162,172,RZH10#,113,135,15#..03S,06S,08S,09S,10S,11S,12S

 1
82620B - BLOCK ASSY, FUSIBLE LINK
82620-26320

RZH113..ARL,GCC;RZH113..RHD..GEN;RZH112,155..03S,11S,12S;RZH112,113..LHD..06S..GEN;LH102,103,104,11#,125,154,162,172,174,184,RZH10#,114,115,125,135,153..ARL,GCC,GEN

 1
82622 - COVER, FUSIBLE LINK, UPPER
82622-26020

RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#

 1
82623 - COVER, FUSIBLE LINK, LOWER
82623-26040

RZH112..5D;RZH105,112,115,155..03S,10S,11S,12S,15S;LH102,103,104,11#,125,154,162,172,174,184,RZH102,103,104,113,114,125,135,153..ARL,GCC,GEN

 1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-26100

RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#

 2
84231-95J01

LH125..ARL;LH10#,11#,RZH10#,11#,125

 2
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-26100

RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#

 2
84231-95J01

LH125..ARL;LH10#,11#,RZH10#,11#,125

 2
Common parts
84819-26010
84819-26020
89667-26090
89668-26090
90109-06296
90164-30003
90164-40100
91651-40614
91651-60614
93315-14014
93319-15010
93510-16012
93540-16012
93540-54014
93590-16014

ILLUST NO. 8 OF 8(8908- )

Click highlighted areas on diagram

diagram 83320 83361 84235 84238A 84265 84265 84266 84266 85940B 9011906390 9015940155 9016150004 9016150004 9016150004 9016150004 9016150004 9018905117 9018905117 9018905117 9018905117 9018905117 9165640616
Part # Description Qty Price
Common parts
90119-06390
90159-40155
90161-50004
90189-05117
91656-40616

ILLUST NO. 1 OF 8(8908- )RZH10#,11#

Click highlighted areas on diagram

diagram 8271126040 8271126171 82821B 83391 83399 83420 83530 84210 84222 84540 85440A 89465 89466 89491 89620 89629 9011908063 9017908059 9043018008 9043027001 9046315439 9161160612 9165140814 9165160614 9338516025
Part # Description Qty Price
Common parts
82711-26040
82711-26171
90119-08063
90179-08059
90430-18008
90430-27001
90463-15439
91611-60612
91651-40814
91651-60614
93385-16025

ILLUST NO. 2 OF 8(8908- )LHD

Click highlighted areas on diagram

diagram 84119 84150D 84150E 84152 84152B 84162A 84162C 84172 84232 84330 84330B 84480 84724 84724B 84730 84730B 84730R 84751 84751 84751B 84751B 84790 84790B 85500 85513 85515 85533
Part # Description Qty Price

ILLUST NO. 3 OF 8(8908- )LHD

Click highlighted areas on diagram

diagram 28300 28300 28317 28610A 81980 82642A 8271595J00 83390 84340 84461A 84550 85969 85980 9011906171 9018305007 9165140816 9165160614 9165160614 9165640814 9356755016 9412041000
Part # Description Qty Price
Common parts
82715-95J00
90119-06171
90183-05007
91651-40816
91651-60614
91656-40814
93567-55016
94120-41000

ILLUST NO. 6 OF 8(8908- )

Click highlighted areas on diagram

diagram 28521 28529 84233 84233 84550 84739A 84810 8481926010 84820 84931B 84931B 85276A 85335 85930 89550 9011906390 9011906390 9016430003 9017906070 9165640622 9331514014 9351016012 9351016012
Part # Description Qty Price
Common parts
84819-26010
90119-06390
90164-30003
90179-06070
91656-40622
93315-14014
93510-16012

ILLUST NO. 7 OF 8(8908- )

Click highlighted areas on diagram

diagram 2332264020 2334454010 28610 8271126120 84234 84261B 84262B 84461 84730B 84730R 84730R 84732A 84732A 85336 85959A 9011906198 9011906390 9015960143 9015960143
Part # Description Qty Price
Common parts
23322-64020
23344-54010
82711-26120
90119-06198
90119-06390
90159-60143

ILLUST NO. 5 OF 8(8908- )

Click highlighted areas on diagram

diagram 84110 84140 84310 84312 84450 84650 85432 89435 9014940013 9165140816 9331915012
Part # Description Qty Price
Common parts
90149-40013
91651-40816
93319-15012
