RZH103L-RGMGE (1999)

Toyota Hiace Van,Commuter

Production Jul 1999 - Aug 2000
Engine 2RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8908- )LHD

Click highlighted areas on diagram

diagram 72329A 72329A 73013A 73014A 73014A 73146 73148 73148 73160A 73160A 73170 73170 73178A 73178A 73178A 73180 73190 73190 73210 73220 73223B 73224 73230 73230 73240 73240 9010511036 9010511036 9011911008 9015960389 9033340001 9095001126 9354054012 9354054012 9354054012
Part # Description Qty Price
73013A - PLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH
73013-95J0103

RZH103..GL;RZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..GEN

GRAY,TRIM1#

 1
73146 - COVER, FRONT SEAT BELT INNER ANCHOR BRACKET, RH
73146-95J00B1

RZH114..15S;RZH112..RHD..03S;RZH115..STD..CIS;LH103,112,172,RZH113..RHD;RZH115..(10S,15S)..(GL,SGL);LH174,RZH102,115..(10S,12S,15S)..(CIS,GEN)..(CBR,DSL);LH104,105,113,114,115,125,154,16#,176,184,RZH103,104,105,125,135,155..(03S,06S,09S,11S,12S,14S,15S)..(ARL,CIS,GEN)

SHADOW GRAY,TRIM1#

 1
73178A - CAP, SEAT BELT ANCHOR COVER
73178-95J00

LH125..ARL;LH10#,11#,RZH10#,11#,125

 2
73178-95J00

LH172,RZH105..RHD;RZH112,115..LHD..(06S,10S,12S);RZH112,115..(03S,15S)..GEN..CBR;LH172,RZH102,155..LHD..4D..(03S,10S,11S);LH102,103,104,11#,125,154,162,174,184,RZH103,104,113,114,125,135,153..ARL,GEN

 1
73178A - CAP, SEAT BELT ANCHOR COVER
73178-95J00

LH125..ARL;LH10#,11#,RZH10#,11#,125

 2
73178-95J00

LH172,RZH105..RHD;RZH112,115..LHD..(06S,10S,12S);RZH112,115..(03S,15S)..GEN..CBR;LH172,RZH102,155..LHD..4D..(03S,10S,11S);LH102,103,104,11#,125,154,162,174,184,RZH103,104,113,114,125,135,153..ARL,GEN

 1
73178A - CAP, SEAT BELT ANCHOR COVER
73178-95J00

LH125..ARL;LH10#,11#,RZH10#,11#,125

 2
73178-95J00

LH172,RZH105..RHD;RZH112,115..LHD..(06S,10S,12S);RZH112,115..(03S,15S)..GEN..CBR;LH172,RZH102,155..LHD..4D..(03S,10S,11S);LH102,103,104,11#,125,154,162,174,184,RZH103,104,113,114,125,135,153..ARL,GEN

 1
73180 - BRACKET ASSY, SEAT BELT INNER ANCHOR, RH
73011-12040

RZH114..15S;RZH112..RHD..03S;RZH115..STD..CIS;LH112,172,RZH113..RHD;RZH115..(10S,15S)..(GL,SGL);LH154,174,RZH102,115..(10S,11S,12S,15S)..(CIS,GEN)..(CBR,DSL);LH103,104,105,113,114,115,125,16#,176,184,RZH103,104,105,125,135,15#..(03S,06S,09S,11S,12S,14S,15S)..(ARL,CIS,GEN)

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-95J2703

RZH103..GL

GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-95J2703

RZH103..GL

GRAY,TRIM1#

 1
73223B - COVER, FRONT SEAT BELT RETRACTOR, RH
73223-95J01

LH125..ARL;LH10#,11#,RZH10#,11#,125

 1
73224 - COVER, FRONT SEAT BELT RETRACTOR, LH
73224-95J00

LH125..ARL;LH10#,11#,RZH10#,11#,125

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-95J2903

RZH103..GL

GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-95J2903

RZH103..GL

GRAY,TRIM1#

 1
Common parts
90105-11036
90119-11008
90159-60389
90333-40001
90950-01126
93540-54012

ILLUST NO. 1 OF 2(8908- )LHD

Click highlighted areas on diagram

diagram 72329A 72329A 73013A 73014A 73014A 73146 73148 73148 73160A 73160A 73170 73170 73178A 73178A 73178A 73178A 73180 73184 73190 73190 73200A 73210 73220 73223B 73224 73230 73230 73240 73240 73252A 9011910492 9011911008 9015960389 9033340001 9095001126 9354054012 9354054012 9354054012
Part # Description Qty Price
Common parts
90119-10492
90119-11008
90159-60389
90333-40001
90950-01126
93540-54012

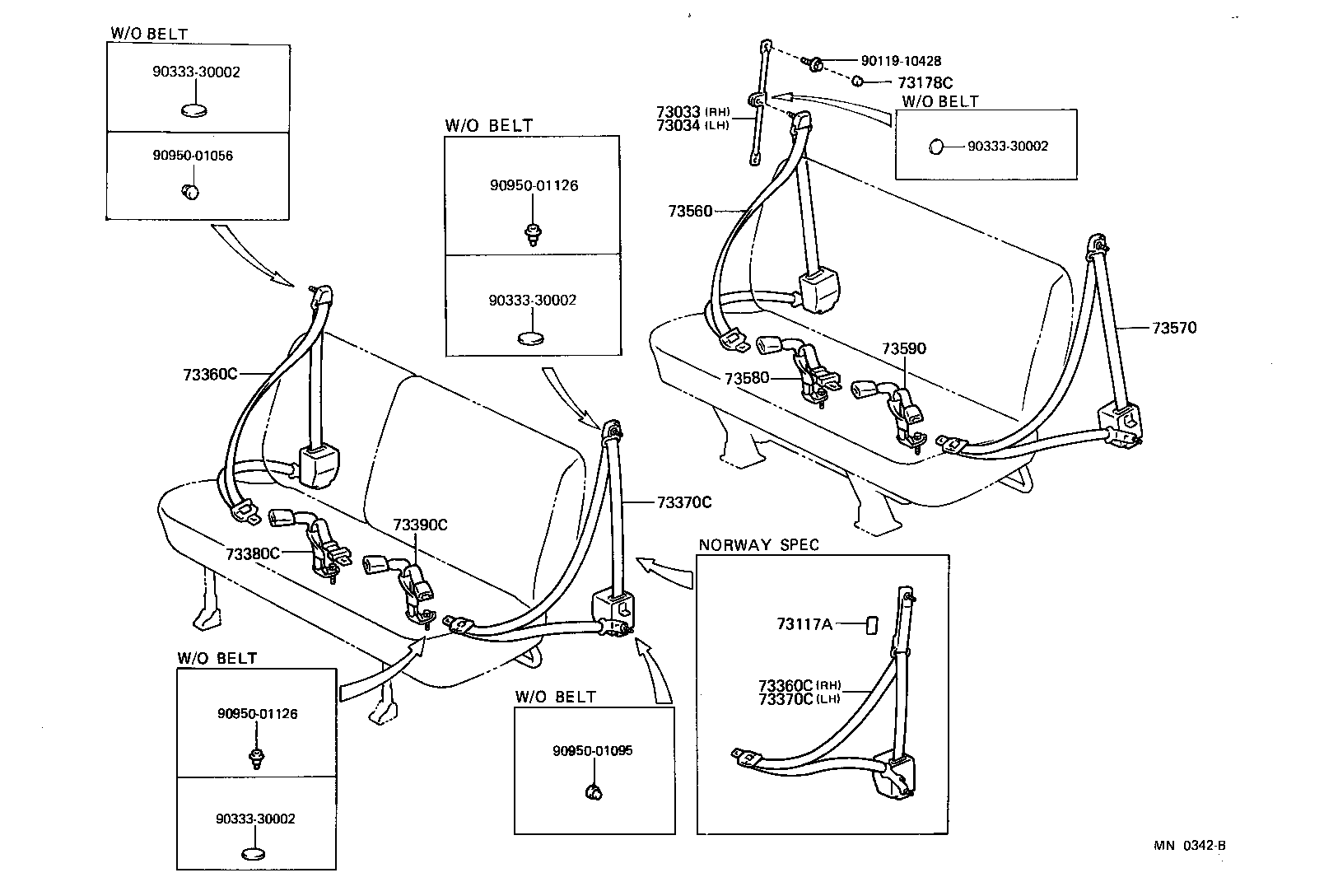

ILLUST NO. 2 OF 2(8908- )09S

Click highlighted areas on diagram

diagram 73033 73034 73117A 73178C 73360C 73360C 73370C 73370C 73380C 73390C 73560 73570 73580 73590 9011910428 9033330002 9033330002 9033330002 9033330002 9095001056 9095001095 9095001126 9095001126
Part # Description Qty Price
Common parts
90119-10428
90333-30002
90950-01056
90950-01095
90950-01126
