RZH102L-RRMRS (1995)
Toyota Hiace Van,Commuter
ILLUST NO. 4 OF 5(8908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30290 |
LH174,RZH10#,114,115..CIS,GCC,GEN;LH10#,11#,166,172,176,RZH112,113..STD..(CIS,GCC,GEN) SUCTION SIDE |
1 | ||
| 88375-30280 |
RZH115..CBR;LH172..RHD..STD;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,RZH102,103,104,112,113,114,125..03S,06S,10S,12S,14S,15S LIQUID SIDE |
1 | ||
ILLUST NO. 2 OF 5(9508- )LHD

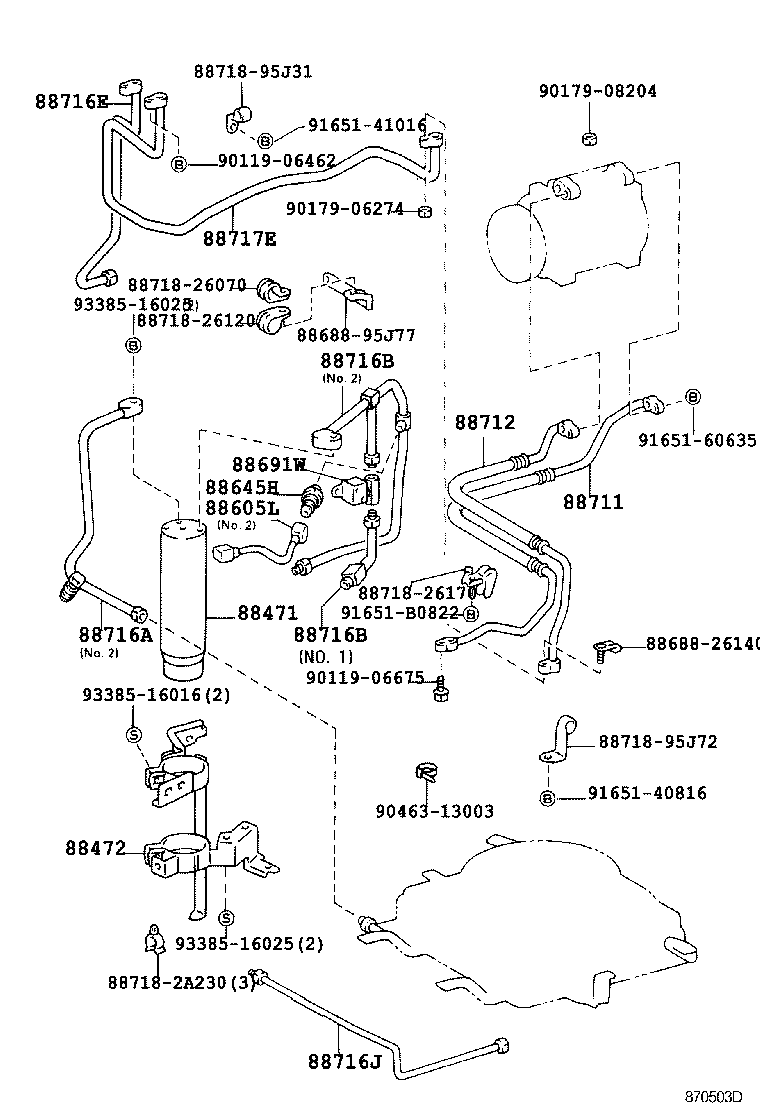

FRONT PIPING---DUAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-26120 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
1 | ||
| 88605L - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-26570 |
LH102,103,112,113,RZH102,103,112,113..(GL,SGL,STD)..(GCC,GEN) NO.1 |
1 | ||
| 88605-26190 |
LH113..STD..(GCC,GEN);LH102,103,112,RZH102,103,112,113..(GL,SGL,STD)..(GCC,GEN) DEALER OPTION,NO.2 |
1 | ||
| 88605-26570 |
LH113..STD;LH102,103,112,RZH102,103,112,113..GL,SGL,STD NO.1 |
1 | ||
| 88605-26190 |
RZH102,103..(GL,STD)..GEN;LH102,103,112,113,172,RZH112,113..STD..(CIS,GCC,GEN) SINGLE AIR CONDITIONER |
1 | ||
| 88605-26190 |
RZH102,103..GEN;LH102,103,112,113,162,172,RZH112,113..STD..(CIS,GCC,GEN) SINGLE AIR CONDITIONER |
1 | ||
| 88605-2F520 |
LH102,112,113,172,RZH102,103,112,113..LHD SINGLE AIR CONDITIONER |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-34010 |
RZH113..LHD;RZH103..4D..(GL,STD);LH102,112,113,RZH102,112..LHD..GEN;LH103,113,RZH113..(ARL,CIS,GCC)..(DSL,EFI) SINGLE AIR CONDITIONER |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95J35 |
RZH102,103,112,113..STD |
1 | ||
| 88711-26890 |
RZH113..LHD;RZH105,115..STD..CIS;RZH10#,112,114,115..LHD..CBR |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95J26 |
RZH102,104,112,114..LHD |
1 | ||
| 88712-2F040 |
RZH113..LHD;RZH105,115..STD..CIS;RZH10#,112,114,115..LHD..CBR |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95J76 |
LH102,112,RZH102,112..LHD NO.2 |
1 | ||
| 88716-95J01 |
LH102,112,RZH102,112..LHD NO.1 |
1 | ||
| 88716-2F490 |
RZH105,115..STD..CIS;LH174,RZH113..LHD..(03S,06S,10S);LH102,104,105,11#,166,176,RZH10#,112,114,115..LHD..(CBR,DSL) NO.1 |
1 | ||
| 88716-26840 |
RZH102..LHD..STD;LH102,104,105,11#,166,174,176,RZH104,105,11#..LHD..(03S,06S,10S,12S,15S) NO.2 |
1 | ||
| 88716-26750 |
LH102,104,11#,RZH10#,11#..LHD NO.1 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95J83 |
LH102,112,RZH102,112..LHD NO.2 |
1 | ||
| 88716-2F090 |
RZH103..09S..CBR;LH102,112,113,RZH102,112,113..LHD NO.2 |
1 | ||
| 88716-2F090 |
LH102,112,113,172,RZH102,103,112,113..LHD NO.2 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95J83 |
LH102,112,RZH102,112..LHD NO.2 |
1 | ||
| 88716-2F090 |
RZH103..09S..CBR;LH102,112,113,RZH102,112,113..LHD NO.2 |
1 | ||
| 88716-2F090 |
LH102,112,113,172,RZH102,103,112,113..LHD NO.2 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-95J86 |
LH102,112,RZH102,112..LHD |
1 | ||
| 88716-26770 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
1 | ||
| 88717E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-95J45 |
LH102,112,RZH102,112..LHD |
1 | ||
| 88717-26560 |
LH102,112,113,RZH102,103,112,113..LHD |
1 | ||
| 88717-26560 |
LH102,112,113,RZH102,112,113..LHD |
1 | ||
| 88717-2F200 |
RZH113..LHD;LH102,112,113,RZH102,103,112..LHD..(CBR,DSL) SINGLE AIR CONDITIONER |
1 | ||
| Common parts | ||||
| 88688-26140 | ||||
| 88688-95J77 | ||||
| 88718-26070 | ||||
| 88718-26120 | ||||
| 88718-26170 | ||||
| 88718-2A230 | ||||
| 88718-95J31 | ||||
| 88718-95J72 | ||||
| 90119-06462 | ||||
| 90119-06675 | ||||
| 90179-06274 | ||||
| 90179-08204 | ||||
| 90463-13003 | ||||
| 91651-40816 | ||||
| 91651-41016 | ||||
| 91651-60635 | ||||
| 91651-B0822 | ||||
| 93385-16016 | ||||
| 93385-16025 | ||||
ILLUST NO. 1 OF 5(9808- )LHD
CONDENSER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-95J00 |
LH102,103,112,113,RZH102,112,113..GEN |
1 | ||
| 88453-26020 |
LH174,RZH10#,114,115..CIS,GCC,GEN;LH10#,11#,166,172,176,RZH112,113..STD..(CIS,GCC,GEN) |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-95J05 |
LH102,103,112,113,RZH102,112,113..GEN |
1 | ||
| 88454-26100 |
LH174,RZH10#,114,115..CIS,GCC,GEN;LH10#,11#,166,172,176,RZH112,113..STD..(CIS,GCC,GEN) |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95J16 |
LH102,112,RZH102,112..LHD |
1 | ||
| 88460-26300 |
LH102,112,113,RZH102,103,112,113..LHD |
1 | ||
| 88460-26540 |
RZH113..LHD;LH102,112,113,RZH102,103,112..LHD..(CBR,DSL) SINGLE AIR CONDITIONER |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-26050 |
LH113,125..(03S,06S,14S)..STD;LH10#,112,114,115,RZH10#,11#,125 |
1 | ||
| 88461-95J09 |
RZH103,113..GEN;LH102,103,112,113,RZH102,112 |
1 | ||
| 88550D - MOTOR ASSY, BLOWER | ||||
| 88550-95J07 |
LH102,103,112,113,RZH102,112,113..GEN |
1 | ||
| 88584B - GUIDE, COOLER AIR | ||||
| 88584-26060 |
RZH105,115..STD..CIS;LH174,RZH113..LHD..(03S,06S,10S);LH102,104,105,11#,166,176,RZH10#,112,114,115..LHD..(CBR,DSL) |
1 | ||
| 88584-95J00 |
RZH103,113..GEN;LH102,103,112,113,RZH102,112 |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-95J00 |
LH102,103,112,113,RZH102,103,112,113..STD |
1 | ||
| 88590-26100 |
LH113..STD;LH102,103,112,RZH102,103,112,113..GL,SGL,STD |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-26220 |
LH102,104,11#,RZH10#,11#..LHD |
1 | ||
| 88715-26340 |
RZH105,115..STD..CIS;LH174,RZH113..LHD..(03S,06S,10S);LH102,104,105,11#,166,176,RZH10#,112,114,115..LHD..(CBR,DSL) |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95J76 |
LH102,112,RZH102,112..LHD NO.2 |
1 | ||
| 88716-95J01 |
LH102,112,RZH102,112..LHD NO.1 |
1 | ||
| 88716-2F490 |
RZH105,115..STD..CIS;LH174,RZH113..LHD..(03S,06S,10S);LH102,104,105,11#,166,176,RZH10#,112,114,115..LHD..(CBR,DSL) NO.1 |
1 | ||
| 88716-26840 |
RZH102..LHD..STD;LH102,104,105,11#,166,174,176,RZH104,105,11#..LHD..(03S,06S,10S,12S,15S) NO.2 |
1 | ||
| 88716-26750 |
LH102,104,11#,RZH10#,11#..LHD NO.1 |
1 | ||
| Common parts | ||||
| 82711-10380 | ||||
| 88463-26330 | ||||
| 88463-26340 | ||||
| 88463-26390 | ||||
| 88463-26400 | ||||
| 88463-26410 | ||||
| 88463-26420 | ||||
| 88463-35120 | ||||
| 88467-30270 | ||||
| 88718-26810 | ||||
| 88892-26020 | ||||
| 90091-20609 | ||||
| 90099-04117 | ||||
| 90099-04376 | ||||
| 90099-05164 | ||||
| 90119-06088 | ||||
| 90119-08354 | ||||
| 90179-06274 | ||||
| 91651-40820 | ||||
| 93385-56025 | ||||
ILLUST NO. 2 OF 5(9808- )
FRONT PIPING---DUAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
LH174,RZH10#,114,115;LH10#,11#,125,166,172,176,RZH112,113,125..STD |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
LH174,RZH10#,114,115;LH10#,11#,125,166,172,176,RZH112,113,125..STD |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30290 |
LH174,RZH10#,114,115..CIS,GCC,GEN;LH10#,11#,166,172,176,RZH112,113..STD..(CIS,GCC,GEN) SUCTION SIDE |
1 | ||
| 88375-30280 |
RZH115..CBR;LH172..RHD..STD;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,RZH102,103,104,112,113,114,125..03S,06S,10S,12S,14S,15S LIQUID SIDE |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-26120 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
1 | ||
| 88605L - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-26570 |
LH102,103,112,113,RZH102,103,112,113..(GL,SGL,STD)..(GCC,GEN) NO.1 |
1 | ||
| 88605-26190 |
LH113..STD..(GCC,GEN);LH102,103,112,RZH102,103,112,113..(GL,SGL,STD)..(GCC,GEN) DEALER OPTION,NO.2 |
1 | ||
| 88605-26570 |
LH113..STD;LH102,103,112,RZH102,103,112,113..GL,SGL,STD NO.1 |
1 | ||
| 88605-26190 |
RZH102,103..(GL,STD)..GEN;LH102,103,112,113,172,RZH112,113..STD..(CIS,GCC,GEN) SINGLE AIR CONDITIONER |
1 | ||
| 88605-26190 |
RZH102,103..GEN;LH102,103,112,113,162,172,RZH112,113..STD..(CIS,GCC,GEN) SINGLE AIR CONDITIONER |
1 | ||
| 88605-2F520 |
LH102,112,113,172,RZH102,103,112,113..LHD SINGLE AIR CONDITIONER |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-34010 |
RZH113..LHD;RZH103..4D..(GL,STD);LH102,112,113,RZH102,112..LHD..GEN;LH103,113,RZH113..(ARL,CIS,GCC)..(DSL,EFI) SINGLE AIR CONDITIONER |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95J35 |
RZH102,103,112,113..STD |
1 | ||
| 88711-26890 |
RZH113..LHD;RZH105,115..STD..CIS;RZH10#,112,114,115..LHD..CBR |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95J26 |
RZH102,104,112,114..LHD |
1 | ||
| 88712-2F040 |
RZH113..LHD;RZH105,115..STD..CIS;RZH10#,112,114,115..LHD..CBR |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95J83 |
LH102,112,RZH102,112..LHD NO.2 |
1 | ||
| 88716-2F090 |
RZH103..09S..CBR;LH102,112,113,RZH102,112,113..LHD NO.2 |
1 | ||
| 88716-2F090 |
LH102,112,113,172,RZH102,103,112,113..LHD NO.2 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95J83 |
LH102,112,RZH102,112..LHD NO.2 |
1 | ||
| 88716-2F090 |
RZH103..09S..CBR;LH102,112,113,RZH102,112,113..LHD NO.2 |
1 | ||
| 88716-2F090 |
LH102,112,113,172,RZH102,103,112,113..LHD NO.2 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-95J86 |
LH102,112,RZH102,112..LHD |
1 | ||
| 88716-26770 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-95J43 |
LH102,104,112,114,RZH102,104,112,114..LHD |
1 | ||
| 88717E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-95J45 |
LH102,112,RZH102,112..LHD |
1 | ||
| 88717-26560 |
LH102,112,113,RZH102,103,112,113..LHD |
1 | ||
| 88717-26560 |
LH102,112,113,RZH102,112,113..LHD |
1 | ||
| 88717-2F200 |
RZH113..LHD;LH102,112,113,RZH102,103,112..LHD..(CBR,DSL) SINGLE AIR CONDITIONER |
1 | ||
| Common parts | ||||
| 88688-26140 | ||||
| 88688-2F080 | ||||
| 88688-2F140 | ||||
| 88688-95J77 | ||||
| 88718-26070 | ||||
| 88718-26150 | ||||
| 88718-26170 | ||||
| 88718-26830 | ||||
| 88718-26840 | ||||
| 88718-2A230 | ||||
| 88718-32220 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90119-06462 | ||||
| 90119-06675 | ||||
| 90179-06274 | ||||
| 90179-08204 | ||||
| 90463-13003 | ||||
| 91651-40816 | ||||
| 91651-60635 | ||||
| 91651-B0822 | ||||
| 93385-16016 | ||||
| 93385-16025 | ||||
ILLUST NO. 3 OF 5(9808- )
REAR PIPING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88688-26130 | ||||
| 88688-2F120 | ||||
| 88688-2F150 | ||||
| 88688-2F170 | ||||
| 88714-95J00 | ||||
| 88718-26040 | ||||
| 88718-26210 | ||||
| 88718-26230 | ||||
| 88718-26310 | ||||
| 88718-26730 | ||||
| 88718-95J39 | ||||
| 88897-87401 | ||||
| 88898-26010 | ||||
| 88898-95J21 | ||||
| 90099-05192 | ||||
| 90480-30015 | ||||
| 91651-60614 | ||||
| 91651-B0822 | ||||
| 93315-14012 | ||||
| Linked diagrams | ||||
| 6151 | ||||
ILLUST NO. 3 OF 5(9508- )
REAR PIPING(MAKER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88714-95J00 | ||||
| 88718-26040 | ||||
| 88718-26210 | ||||
| 88718-26230 | ||||
| 88718-26730 | ||||
| 88718-95A39 | ||||
| 88718-95J26 | ||||
| 88718-95J39 | ||||
| 88718-95J72 | ||||
| 88898-26010 | ||||
| 88898-95J21 | ||||
| 90950-01047 | ||||
| 91651-40816 | ||||
| 91651-60614 | ||||
| 91651-B0820 | ||||
| 93315-14012 | ||||
| 93319-15008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
