Toyota Hiace van,commuter RZH102 SWITCH & RELAY & COMPUTER

RZH102L-RRMRS (1995)

Toyota Hiace Van,Commuter

Production Aug 1995 - Aug 2000

Engine 1RZ

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 9(8908- )LHD

Click highlighted areas on diagram

INSTRUMENT PANEL SWITCHES

Part #	Description	Period	Qty
84162 - SWITCH, FRONT FOG LAMP
84160-95J05	LH102,104,105,11#,166,174,176,RZH10#,11#..LHD	08/1998 - 07/1999	1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-95J02	LH10#,11#,125,RZH10#,11#,125	08/1989 - 10/1990	1
84332-26080	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S	10/1996 - 12/2999	1
84332-26080	RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#	07/1999 - 12/2999	1
84330B - BULB, HAZARD WARNING SIGNAL SWITCH
84999-10320	RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# 14V 0.84W	07/1999 - 12/2999	1
84480 - SWITCH ASSY, MAIN
84480-26030	LH10#,11#,125,RZH10#,11#,125	08/1989 - 05/1992	1
84660C - SWITCH, COOLER
84660-95J01	LH125..ARL;LH10#,11#,RZH10#,11#,125	08/1989 - 08/1995	1
84730 - SWITCH ASSY, HEATER BLOWER
84732-22140	RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD	08/1989 - 08/2000	1
84730B - BULB, HEATER BLOWER SWITCH
90981-11014	LH125..ARL;LH10#,11#,RZH10#,11#,125 14V 1.4W	08/1989 - 11/1994	1
90981-11014	RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# 14V 1.4W	07/1999 - 12/2999	1
84730D - CAP, HEATER BLOWER SWITCH BULB
84998-10050	LH125..ARL;LH10#,11#,RZH10#,11#,125	08/1989 - 11/1994	1
84998-10050	RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#	07/1999 - 12/2999	1
84790 - SWITCH ASSY, REAR WINDOW DEFOGGER
84790-95J01	RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH113,125,RZH102,114,125;RZH113..4D..STD..(ARL,GEN)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;LH10#,112,114,115,166,176,RZH104,112,135,153..(SMRF,SRF)..(03S,06S,09S,12S,15S)	08/1995 - 12/2999	1
84790-95J01	RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#	07/1999 - 12/2999	1
84790-95J01	LH125..ARL;LH10#,11#,RZH10#,11#,125..03S,06S,12S,14S,15S	08/1989 - 11/1994	1
84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH)
84999-10320	RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH113,125,RZH102,114,125;RZH113..4D..STD..(ARL,GEN)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;LH10#,112,114,115,166,176,RZH104,112,135,153..(SMRF,SRF)..(03S,06S,09S,12S,15S) 14V 0.84W	08/1995 - 12/2999	1
84999-10320	LH125..ARL;LH10#,11#,RZH10#,11#,125..03S,06S,09S,12S,14S,15S 14V 0.84W	08/1989 - 11/1994	1
85500 - LIGHTER ASSY, CIGARETTE
85500-17060	RZH115..CBR;RZH105,115..STD..CIS;RZH113..4D..STD..(ARL,GEN);RZH102,105,112,113..SRF..CBR;LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH103,104,114,125,135,153..03S,06S,12S,14S,15S	05/1999 - 12/2999	1
85500-17060	RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#	07/1999 - 12/2999	1
85500-12250	LH125..ARL;LH10#,11#,RZH10#,11#,125	08/1989 - 08/1994	1
85513 - COVER, CIGARETTE LIGHTER
85513-28020	RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#	07/1999 - 12/2999	1
85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
85520-20080	LH125..ARL;LH10#,11#,RZH10#,11#,125	08/1989 - 08/1994	1
85533 - LENS, CIGARETTE LIGHTER INDICATOR
85533-30040	LH10#,11#,125,RZH10#,11#,125..STD	08/1989 - 05/1990	1
85533-28020	RZH112..5D;RZH112,114..03S,15S;LH174,RZH102,115..STD;LH10#,11#,125,16#,172,176,184,RZH103,104,105,113,125..03S,06S,10S,12S,14S,15S	07/1999 - 12/2999	1

ILLUST NO. 7 OF 9(8908- )LH10#,11#,125,16#,17#,184,RZH10#,11#,125,135,153

Click highlighted areas on diagram

ROOF, FRONT FLOOR RELAY & SWITCHES

Part #	Description	Period	Qty
85336 - SWITCH ASSY, RESERVE TANK LEVEL WARNING
85335-75010	RZH10#,11#,125	08/1989 - 07/1991	1
Common parts
82711-26120
90119-06171
93566-14512

ILLUST NO. 1 OF 9(8908- )RZH10#,11#,125,135,15#

Click highlighted areas on diagram

ENGINE & TRANSMISSION

Part #	Description	Period	Qty
83391 - SWITCH, VACUUM
83391-27060	RZH10#,11#,125..CBR	08/1989 - 08/2000	1
83391-27060	RZH102..STD	07/1999 - 08/2000	1
83399 - BRACKET, VACUUM SWITCH
83399-26050	RZH10#,11#,125..CBR	08/1989 - 08/2000	1
83399-26050	RZH102..STD	07/1999 - 08/2000	1
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20020	LH10#,11#,125,RZH10#,11#,125	08/1989 - 05/1992	1
83420-16040	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S	08/1996 - 12/2999	1
83420-16040	RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#	07/1999 - 12/2999	1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-28020	RZH10#,11#,125,135,153 DENSO	03/1998 - 08/1998	1
83530-28020	RZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH113,114,125..4D..(GL,STD)..(ARL,GEN);RZH102,103,104,112,135,153..(SMRF,SRF)..(03S,06S,10S,12S)	08/1998 - 12/2999	1
83530-14040	RZH10#,11#,125	08/1989 - 05/1992	1
83530-28020	RZH112..5D;RZH112..03S;RZH10#,113,114,115,125,135,15#	07/1999 - 12/2999	1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-12040	LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15#..5F	07/1999 - 12/2999	1
84210-12040	RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F)	08/1989 - 12/2999	1
89491 - SENSOR, ENGINE OIL LEVEL
89491-26040	RZH10#,11#,125	08/1989 - 01/1991	1
89491-26062	RZH114,125;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN)..EFI;RZH102,104,112,135,153..SMRF,SRF	11/1997 - 12/2999	1
89491-26062	RZH112..5D;RZH112..03S;RZH10#,113,114,115,125,135,15#	07/1999 - 12/2999	1
89491 - SENSOR, ENGINE OIL LEVEL
89491-26040	RZH10#,11#,125	08/1989 - 01/1991	1
89491-26062	RZH114,125;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN)..EFI;RZH102,104,112,135,153..SMRF,SRF	11/1997 - 12/2999	1
89491-26062	RZH112..5D;RZH112..03S;RZH10#,113,114,115,125,135,15#	07/1999 - 12/2999	1
89491A - GASKET, ENGINE OIL LEVEL SENSOR
89493-60010	RZH115..CBR;RZH105,115..STD..CIS;RZH113..4D..STD..(ARL,GEN)..EFI;LH125,RZH103..(DX,STD)..(DSL,EFI);LH172..RHD..SRF..4D..STD..GEN..DSL;LH125,172..(SMRF,SRF)..(03S,15S)..GL;LH105,113,115,166,176,RZH102,104,114,125;LH174,RZH103,105,112,113..SRF..(03S,06S,09S,10S,12S)..(CBR,DSL);LH102,103,104,112,114,184,RZH135,153..(03S,06S,09S,12S,15S)..(ARL,GEN)	11/1997 - 12/2999	1
89493-60010	RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#	07/1999 - 12/2999	1
Common parts
82711-22690
82711-26171
90119-08063
90179-08101
90430-18008
90430-27001
91651-40814
91651-40816
91651-60614
91651-B0814
93385-16025

ILLUST NO. 3 OF 9(8908- )LHD

Click highlighted areas on diagram

COWL RELAY & SWITCHES

Part #	Description	Period	Qty
28300 - RELAY ASSY, STARTER
28300-46010	1RZ..RZH104,114;2L,3L,1RZ,2RZ#..LH10#,11#,125,RZH102,103,105,112,113,115,125,135,153..ARL,GCC,GEN	05/1997 - 05/1998	1
28300-75010	2RZ..RZH115;1RZ,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..STD..(ARL,GEN);5L..LH172..RHD..SRF..4D..STD..GEN;1RZ,2RZE..RZH103,114..03S,06S,12S,15S;5L,2RZE..LH172,174,184,RZH135,153..(03S,10S,12S,15S)..GL;3L,5L,2RZ#..LH103,105,113,115,125,166,176,RZH105,115,125..STD..(ARL,CIS)	05/1998 - 12/2999	1
28300-46010	2L,3L,1RZ#,2RZ#..LH10#,11#,125,RZH10#,11#,125,135,153	08/1995 - 05/1997	1
28300-75010	1RZ..RZH112..5D;5L,1RZ,2RZ#..LH174,184,RZH112,114,115..03S,10S,12S,14S,15S;3L,5L,2RZE..LH103,105,113,115,125,164,166,176,RZH125..ARL,CIS;2L,5L#,1RZ,2RZ#..LH114,154,162,172,RZH10#,113,135,15#..03S,06S,08S,09S,10S,11S,12S	07/1999 - 12/2999	1
28300 - RELAY ASSY, STARTER
28300-46010	1RZ..RZH104,114;2L,3L,1RZ,2RZ#..LH10#,11#,125,RZH102,103,105,112,113,115,125,135,153..ARL,GCC,GEN	05/1997 - 05/1998	1
28300-75010	2RZ..RZH115;1RZ,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..STD..(ARL,GEN);5L..LH172..RHD..SRF..4D..STD..GEN;1RZ,2RZE..RZH103,114..03S,06S,12S,15S;5L,2RZE..LH172,174,184,RZH135,153..(03S,10S,12S,15S)..GL;3L,5L,2RZ#..LH103,105,113,115,125,166,176,RZH105,115,125..STD..(ARL,CIS)	05/1998 - 12/2999	1
28300-46010	2L,3L,1RZ#,2RZ#..LH10#,11#,125,RZH10#,11#,125,135,153	08/1995 - 05/1997	1
28300-75010	1RZ..RZH112..5D;5L,1RZ,2RZ#..LH174,184,RZH112,114,115..03S,10S,12S,14S,15S;3L,5L,2RZE..LH103,105,113,115,125,164,166,176,RZH125..ARL,CIS;2L,5L#,1RZ,2RZ#..LH114,154,162,172,RZH10#,113,135,15#..03S,06S,08S,09S,10S,11S,12S	07/1999 - 12/2999	1
81980 - FLASHER ASSY, TURN SIGNAL
81980-22110	LH10#,11#,125,166,17#,184,RZH10#,11#,125,135,153	08/1989 - 07/1999	1
81980-32010	RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#	07/1999 - 12/2999	1
82223F - WIRE, SWITCH
82223-26040	LH172..STD;LH172..03S..GL;LH172..GL..DEFI;RZH115..CIS,GCC;RZH104..LHD..STD;RZH115..GEN..EFI;LH162,RZH114..4D..5F..STD;LH162,RZH105,114..(03S,06S,12S)..(CIS,GEN);LH10#,11#,125,154,164,166,174,176,184,RZH102,103,112,113,125,135,15#	07/1999 - 12/2999	1
84340 - SWITCH ASSY, STOP LAMP
84340-22072	LH10#,11#,125,RZH10#,11#,125	08/1989 - 10/1990	1
84340 - SWITCH ASSY, STOP LAMP
84340-22072	LH10#,11#,125,RZH10#,11#,125	08/1989 - 10/1990	1
84461A - SWITCH, BRAKE RESERVOIR LEVEL WARNING
84461-26040	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	1
84550 - SWITCH ASSY, PARKING BRAKE
84550-20030	RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD	08/1989 - 08/2000	1
85930 - RELAY ASSY, POWER WINDOW
85930-26010	LH10#,11#,125,RZH10#,11#,125,135,153	08/1995 - 08/1998	1
85940B - RELAY ASSY, REAR WIPER
85940-26020	LH125,RZH114,125;LH10#,11#,RZH10#,112,113,115..SRF	08/1995 - 08/1996	1
85940-95J02	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	1
85940-26020	RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD	08/1996 - 08/2000	1
85980 - RELAY ASSY, DOOR CONTROL
85980-95J06	LH102,104,105,11#,RZH10#,11#..LHD	08/1989 - 08/1996	1
85980-26060	LH102,104,105,11#,166,174,176,RZH10#,11#..LHD	08/1996 - 07/1999	1
Common parts
82715-95J00
90119-06198
91651-40612
91651-40814
91651-40816
91651-60614
91651-B0814
93385-16012
93540-14012
94120-41000

ILLUST NO. 8 OF 9(8908- )

Click highlighted areas on diagram

DOOR CONTROL

Part #	Description	Period	Qty
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84231-26031	LH10#,11#,125,166,17#,184,RZH10#,11#,125,135,153..4D	08/1998 - 07/1999	1
84231-95J02	LH125..ARL;LH10#,11#,RZH10#,11#,125..4D	08/1989 - 11/1994	1
84231-26110	RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#..4D	07/1999 - 12/2999	1
84261B - JUNCTION, SLIDE DOOR CONTROL,MALE
84261-26070	LH10#,11#,125,166,17#,184,RZH10#,11#,125,135,153..4D	08/1998 - 07/1999	1
84261-95J03	LH125..ARL;LH10#,11#,RZH10#,11#,125..4D	08/1989 - 11/1994	1
84261-26071	RZH112..SP;LH172..ARL;LH172..HRF;LH172..LHD..4D;LH172..03S..GL;LH172,174..4D..(06S,10S,15S);LH10#,11#,125,154,16#,176,184,RZH10#,113,114,115,125,135,15#..4D	07/1999 - 12/2999	1
84262B - JUNCTION, SLIDE DOOR CONTROL, FEMALE
84262-95J03	LH125..ARL;LH10#,11#,RZH10#,11#,125..4D	08/1989 - 11/1994	1
84262-95J03	RZH112..SP;LH172..ARL;LH172..HRF;LH172..LHD..4D;LH172..03S..GL;LH172,174..4D..(06S,10S,15S);LH10#,11#,125,154,16#,176,184,RZH10#,113,114,115,125,135,15#..4D	07/1999 - 12/2999	1
Common parts
90109-06296
90119-06885
90119-06911
90159-60025
90159-60413
90179-06274
90189-05019
90189-05131
93530-55020

ILLUST NO. 9 OF 9(8908- )

Click highlighted areas on diagram

REAR FLOOR, BACK DOOR RELAY & SW.

Part #	Description	Period	Qty
83320 - GAGE ASSY, FUEL SENDER
83320-80342	RZH105,115..STD..CIS;RZH103..RHD..GEN..EFI;RZH113..4D..STD..GEN..EFI;RZH102,104,112,135,153..SMRF,SRF;RZH103,105,113,114,115..(CIS,GCC,GEN)..CBR	08/1996 - 12/2999	1
83320-80150	RZH10#,11#..CIS,GCC,GEN	08/1995 - 08/1996	1
83320-80150	RZH10#,11#,125	08/1989 - 08/1995	1
83361 - GASKET, FUEL SENDER GAGE
83361-20030	RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#	07/1999 - 12/2999	1
83361-20030	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S	08/1989 - 12/2999	1
85940B - RELAY ASSY, REAR WIPER
85940-26020	LH125,RZH114,125;LH10#,11#,RZH10#,112,113,115..SRF	08/1995 - 08/1996	1
85940-95J02	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	1
85940-26020	RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD	08/1996 - 08/2000	1
Common parts
90119-06390
90161-50004
90189-05063
90480-15194
91651-60614
93319-A4010

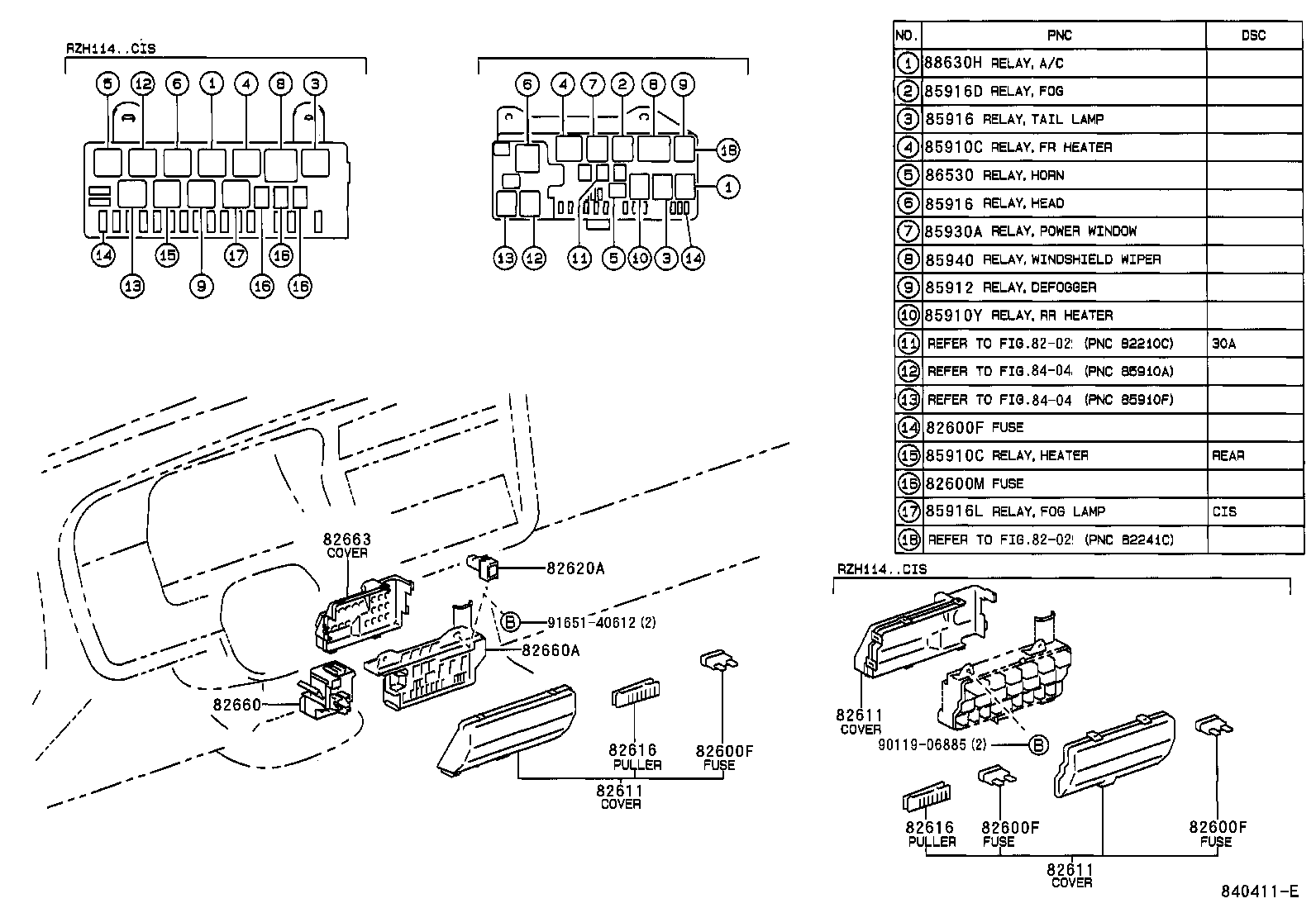

ILLUST NO. 4 OF 9(9608- )LHD

Click highlighted areas on diagram

INSTRUMENT PANEL RELAY

Part #	Description	Period	Qty
82600F - FUSE, FUSE BLOCK
90982-09003	LH10#,11#,125,RZH10#,11#,125 15A	08/1989 - 08/1996	1
90982-09005	LH10#,11#,125,166,17#,184,RZH10#,11#,125,135,153 7.5A	08/1989 - 07/1999	1
90982-09008	LH102,104,105,11#,166,17#,RZH10#,11#..LHD 7.5A,MINI FUSE,BRN	07/1999 - 08/2000	1
90982-09008	RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD 7.5A,MINI FUSE,BRN	08/1996 - 08/2000	1
90982-09011	LH102,104,105,11#,166,17#,RZH10#,11#..LHD 20A,MINI FUSE,YELLOW	07/1999 - 08/2000	1
90982-09010	LH102,104,105,11#,166,17#,RZH10#,11#..LHD 15A,MINI FUSE,BLUE	07/1999 - 08/2000	1
82600F - FUSE, FUSE BLOCK
90982-09003	LH10#,11#,125,RZH10#,11#,125 15A	08/1989 - 08/1996	1
90982-09005	LH10#,11#,125,166,17#,184,RZH10#,11#,125,135,153 7.5A	08/1989 - 07/1999	1
90982-09008	LH102,104,105,11#,166,17#,RZH10#,11#..LHD 7.5A,MINI FUSE,BRN	07/1999 - 08/2000	1
90982-09008	RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD 7.5A,MINI FUSE,BRN	08/1996 - 08/2000	1
90982-09011	LH102,104,105,11#,166,17#,RZH10#,11#..LHD 20A,MINI FUSE,YELLOW	07/1999 - 08/2000	1
90982-09010	LH102,104,105,11#,166,17#,RZH10#,11#..LHD 15A,MINI FUSE,BLUE	07/1999 - 08/2000	1
82600F - FUSE, FUSE BLOCK
90982-09003	LH10#,11#,125,RZH10#,11#,125 15A	08/1989 - 08/1996	1
90982-09005	LH10#,11#,125,166,17#,184,RZH10#,11#,125,135,153 7.5A	08/1989 - 07/1999	1
90982-09008	LH102,104,105,11#,166,17#,RZH10#,11#..LHD 7.5A,MINI FUSE,BRN	07/1999 - 08/2000	1
90982-09008	RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD 7.5A,MINI FUSE,BRN	08/1996 - 08/2000	1
90982-09011	LH102,104,105,11#,166,17#,RZH10#,11#..LHD 20A,MINI FUSE,YELLOW	07/1999 - 08/2000	1
90982-09010	LH102,104,105,11#,166,17#,RZH10#,11#..LHD 15A,MINI FUSE,BLUE	07/1999 - 08/2000	1
82600F - FUSE, FUSE BLOCK
90982-09003	LH10#,11#,125,RZH10#,11#,125 15A	08/1989 - 08/1996	1
90982-09005	LH10#,11#,125,166,17#,184,RZH10#,11#,125,135,153 7.5A	08/1989 - 07/1999	1
90982-09008	LH102,104,105,11#,166,17#,RZH10#,11#..LHD 7.5A,MINI FUSE,BRN	07/1999 - 08/2000	1
90982-09008	RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD 7.5A,MINI FUSE,BRN	08/1996 - 08/2000	1
90982-09011	LH102,104,105,11#,166,17#,RZH10#,11#..LHD 20A,MINI FUSE,YELLOW	07/1999 - 08/2000	1
90982-09010	LH102,104,105,11#,166,17#,RZH10#,11#..LHD 15A,MINI FUSE,BLUE	07/1999 - 08/2000	1
82600M - FUSE, MEDIUM CURRENT
90982-10002	LH102,104,11#,RZH10#,11#..LHD 40A,GREEN	08/1996 - 08/1998	1
90982-10001	LH102,104,11#,RZH10#,11#..LHD 30A,PINK	08/1996 - 08/1998	3
90982-10001	LH102,104,105,11#,166,174,176,RZH10#,11#..LHD 30A,PINK	08/1998 - 07/1999	1
90982-10002	LH102,104,105,11#,166,174,176,RZH10#,11#..LHD 40A,GREEN	08/1998 - 07/1999	1
82611 - COVER, FUSE BLOCK
82611-26093	RZH104..LHD..STD;RZH114..LHD..GEN;LH102,104,11#,RZH102,103,105,112,113,115..LHD	08/1996 - 08/1998	1
82611-95J01	LH102,104,112,114,RZH102,104,112,114..LHD	08/1989 - 08/1993	1
82611-26094	RZH105,115..STD..CIS;LH174,RZH113..LHD..(03S,06S,10S);LH102,104,105,11#,166,176,RZH10#,112,114,115..LHD..(CBR,DSL)	08/1998 - 08/2000	1
82611-26094	LH102,104,105,11#,166,17#,RZH10#,11#..LHD	07/1999 - 08/2000	1
82611 - COVER, FUSE BLOCK
82611-26093	RZH104..LHD..STD;RZH114..LHD..GEN;LH102,104,11#,RZH102,103,105,112,113,115..LHD	08/1996 - 08/1998	1
82611-95J01	LH102,104,112,114,RZH102,104,112,114..LHD	08/1989 - 08/1993	1
82611-26094	RZH105,115..STD..CIS;LH174,RZH113..LHD..(03S,06S,10S);LH102,104,105,11#,166,176,RZH10#,112,114,115..LHD..(CBR,DSL)	08/1998 - 08/2000	1
82611-26094	LH102,104,105,11#,166,17#,RZH10#,11#..LHD	07/1999 - 08/2000	1
82611 - COVER, FUSE BLOCK
82611-26093	RZH104..LHD..STD;RZH114..LHD..GEN;LH102,104,11#,RZH102,103,105,112,113,115..LHD	08/1996 - 08/1998	1
82611-95J01	LH102,104,112,114,RZH102,104,112,114..LHD	08/1989 - 08/1993	1
82611-26094	RZH105,115..STD..CIS;LH174,RZH113..LHD..(03S,06S,10S);LH102,104,105,11#,166,176,RZH10#,112,114,115..LHD..(CBR,DSL)	08/1998 - 08/2000	1
82611-26094	LH102,104,105,11#,166,17#,RZH10#,11#..LHD	07/1999 - 08/2000	1
82616 - PULLER, FUSE
82616-12010	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1996	1
82616-20010	RZH112,115..LHD..(06S,12S);RZH112,115..(03S,10S,15S)..(SGL,STD);LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,125,135,15#	07/1999 - 12/2999	1
82616 - PULLER, FUSE
82616-12010	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1996	1
82616-20010	RZH112,115..LHD..(06S,12S);RZH112,115..(03S,10S,15S)..(SGL,STD);LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,125,135,15#	07/1999 - 12/2999	1
82660A - BLOCK ASSY, RELAY, COWL SIDE
82660-26181	RZH105,115..STD..CIS;LH174,RZH113..LHD..(03S,06S,10S);LH102,104,105,11#,166,176,RZH10#,112,114,115..LHD..(CBR,DSL)	08/1998 - 08/2000	1
82663 - COVER, RELAY BLOCK, LOWER
82663-26060	RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD	08/1996 - 08/2000	1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-02004	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	1
90987-04002	RZH115..CBR;RZH105,115..STD..CIS;RZH113..4D..STD..(ARL,GEN);RZH102,105,112,113..SRF..CBR;LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH103,104,114,125,135,153..03S,06S,12S,14S,15S	08/1998 - 12/2999	1
90987-04002	RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#	07/1999 - 12/2999	1
90987-04002	RZH114..LHD;LH10#,11#,125,RZH10#,112,113,115,125,135,153	08/1996 - 08/1998	1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-02004	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	1
90987-04002	RZH115..CBR;RZH105,115..STD..CIS;RZH113..4D..STD..(ARL,GEN);RZH102,105,112,113..SRF..CBR;LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH103,104,114,125,135,153..03S,06S,12S,14S,15S	08/1998 - 12/2999	1
90987-04002	RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#	07/1999 - 12/2999	1
90987-04002	RZH114..LHD;LH10#,11#,125,RZH10#,112,113,115,125,135,153	08/1996 - 08/1998	1
85912 - RELAY, DEFOGGER
90987-02004	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	1
85915-26010	LH125,RZH114,125;LH10#,11#,RZH10#,112,113,115..SRF	09/1995 - 08/1996	1
90987-02009	LH125,RZH114,125;LH10#,11#,RZH10#,112,113,115..SRF	08/1995 - 09/1995	1
90987-02012	RZH114..LHD;LH10#,11#,125,RZH10#,112,113,115,125,135,153	08/1996 - 08/1998	1
85916 - RELAY, LIGHT CONTROL
90987-01003	LH10#,11#,125,RZH10#,11#,125 TAIL LAMP	08/1989 - 08/1993	1
90987-02012	RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD TAIL LAMP	08/1996 - 08/2000	1
85915-26010	LH10#,11#,125,RZH10#,11#,125 TAIL LAMP	09/1995 - 08/1996	1
90987-02006	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S HEAD LAMP	08/1989 - 12/2999	1
85916 - RELAY, LIGHT CONTROL
90987-01003	LH10#,11#,125,RZH10#,11#,125 TAIL LAMP	08/1989 - 08/1993	1
90987-02012	RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD TAIL LAMP	08/1996 - 08/2000	1
85915-26010	LH10#,11#,125,RZH10#,11#,125 TAIL LAMP	09/1995 - 08/1996	1
90987-02006	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S HEAD LAMP	08/1989 - 12/2999	1
85930A - RELAY ASSY, POWER WINDOW, NO.1
90987-02012	RZH114..LHD;LH10#,11#,125,RZH10#,112,113,115,125,135,153	08/1996 - 08/1998	1
85940 - RELAY ASSY, WINDSHIELD WIPER
85940-95J00	LH10#,114,115,RZH10#,11#,125;LH112,113,125..(03S,06S,14S)..STD	08/1995 - 08/1998	1
85940-95J00	LH112..(DX,STD)..GEN;LH10#,113,114,115,125,RZH10#,11#,125..ARL,GCC,GEN	08/1989 - 11/1994	1
86530 - RELAY ASSY, HORN
86530-20070	RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD	08/1996 - 08/2000	1
85915-26010	LH10#,11#,125,RZH10#,11#,125	09/1995 - 08/1996	1
90987-01003	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	1
88630H - RELAY ASSY, COOLER
90987-04002	LH10#,11#,RZH10#,11#..CIS,GCC,GEN	08/1995 - 08/1996	1
90987-04004	RZH105,115..STD..CIS;RZH113..4D..STD..GEN..EFI;LH174,RZH102..03S,06S,09S,10S;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH103,105,113,114,115..(CIS,GCC,GEN)..CBR;LH113,RZH103..(DX,STD)..(CIS,GCC,GEN)..(DSL,EFI);LH10#,112,114,115,166,176,RZH104,112..SRF..(03S,06S,09S,12S,15S)..(CIS,GCC,GEN)	08/1996 - 12/2999	1
Common parts
90119-06885
91651-40612
Linked diagrams
8202
8404

ILLUST NO. 5 OF 9(9808- )

Click highlighted areas on diagram

IGNITION & COMBINATION SWITCHES

Part #	Description	Period	Qty
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-26100	LH102..LHD..STD;LH104,105,11#,RZH102,104,105,11#..LHD	08/1989 - 08/1998	1
84140-26140	RZH115..STD..CBR;RZH115..12S..CBR;RZH105,115..STD..CIS;LH174,RZH113..LHD..(03S,06S,10S);LH102,104,105,11#,166,176,RZH10#,112,114..LHD..(CBR,DSL)	08/1998 - 08/2000	1
84310 - SWITCH ASSY, TURN SIGNAL
84310-26450	LH102,104,105,11#,RZH102,104,105,11#..LHD..(GCC,GEN) W(INTERMITTENT WIPER & REAR WIPER)	08/1989 - 08/1995	1
84310-26410	RZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..STD..GEN W(REAR WIPER)	08/1989 - 08/1995	1
84310-26430	LH102,104,105,11#,RZH102,104,105,11#..LHD..(GCC,GEN) W(INTERMITTENT WIPER)	08/1989 - 08/1995	1
84310-26500	LH102,104,105,11#,RZH102,104,105,11#..LHD..STD..(GCC,GEN)	08/1989 - 08/1995	1
84310-26440	LH102,104,11#,RZH10#,11#..LHD W(TILT STEERING & INTERMITTENT WIPER)	08/1995 - 08/1997	1
84310-26430	LH102,104,11#,RZH102,104,105,11#..LHD..(03S,06S,12S,15S) W(INTERMITTENT WIPER)	08/1995 - 08/1998	1
84310-26490	LH102,104,11#,RZH10#,11#..LHD W(TILT STEERING & INTERMITTENT WIPER & REAR WIPER)	08/1995 - 08/1998	1
84310-26460	LH102,104,105,11#,RZH102,104,105,11#..LHD..(03S,06S,12S,15S) W(REAR WIPER)	08/1989 - 08/1998	1
84310-26500	LH102,104,11#,RZH102,104,105,11#..LHD..(03S,06S,12S,15S)	08/1995 - 08/1998	1
84310-26450	LH102,104,11#,RZH102,104,105,11#..LHD..(03S,06S,12S,15S) W(INTERMITTENT WIPER & REAR WIPER)	08/1995 - 08/1998	1
84310-26440	LH102,104,11#,RZH102,104,105,11#..LHD..(03S,06S,12S,15S) W(TILT STEERING & INTERMITTENT WIPER)	08/1997 - 08/1998	1
84310-26740	RZH115..STD;RZH115..12S;LH102,104,105,11#,166,174,176,RZH10#,112,113,114..LHD W(INTERMITTENT WIPER & REAR WIPER)	08/1998 - 07/1999	1
84310-35620	RZH105..CBR;RZH114..LHD..15S;RZH115..STD..CBR;RZH105,115..STD..CIS;LH102,104,105,11#,166,176,RZH102,104,112,113..LHD..(03S,06S,12S,15S) W(REAR WINDOW DEFOGGER)	08/1998 - 08/2000	1
84310-35830	RZH115..STD;RZH114..LHD..15S;LH102,104,105,11#,166,176,RZH102,104,105,112,113..LHD..(03S,06S,12S,15S) W(DOUBLE SWING BACK DOOR & REAR WINDOW DEFFOGGER)	08/1998 - 07/1999	1
84310-6A370	RZH115..STD;RZH114..LHD..15S;LH102,104,105,11#,166,176,RZH102,104,105,112,113..LHD..(03S,06S,12S,15S) W(INTERMITTENT WIPER)	08/1998 - 07/1999	1
84312 - PLATE, HORN CONTACT
84312-12040	LH10#,11#,125,RZH10#,11#,125,135,153	08/1989 - 08/1998	1
84312-26010	RZH115..STD..CBR;RZH105,115..STD..CIS;RZH113..4D..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;RZH102,105,112,113,115..SRF..(03S,06S,10S,12S)..CBR;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH103,104,114,125,135,153..03S,06S,12S,14S,15S	08/1998 - 12/2999	1
84312-26010	RZH115..CBR;RZH115..12S;RZH115..(CIS,GCC)..EFI;LH10#,11#,125,154,16#,17#,184,RZH10#,112,113,114,125,135,15#	07/1999 - 12/2999	1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-26050	LH10#,11#,125,RZH10#,11#,125	08/1989 - 05/1992	1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-26270	RZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..STD..GEN W(REAR WIPER)	08/1989 - 08/1995	1
84652-26210	RZH102..4D;RZH103,113..STD..ARL;RZH102..RHD..5D..03S;LH10#,11#,125,RZH104,112,114,125..RHD..STD W(INTERMITTENT WIPER)	08/1989 - 08/1995	1
84652-26300	LH102,104,105,11#,RZH102,104,105,11#..LHD..(GCC,GEN) W(INTERMITTENT WIPER & REAR WIPER)	08/1989 - 08/1995	1
84652-26350	LH102,104,105,11#,RZH102,104,105,11#..LHD..STD..(GCC,GEN)	08/1989 - 08/1995	1
84652-26280	LH102,104,105,11#,RZH102,104,105,11#..LHD..(GCC,GEN) W(INTERMITTENT WIPER)	08/1989 - 08/1995	1
84652-26170	RZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..STD..GEN	08/1989 - 08/1995	1
84652-26310	LH102,104,105,11#,RZH102,104,105,11#..LHD..(03S,06S,12S,15S) W(REAR WIPER)	08/1989 - 08/1998	1
84652-26290	LH102,104,11#,RZH10#,11#..LHD W(TILT STEERING & INTERMITTENT WIPER)	08/1995 - 08/1997	1
84652-26280	LH102,104,11#,RZH102,104,105,11#..LHD..(03S,06S,12S,15S) W(INTERMITTENT WIPER)	08/1995 - 08/1998	1
84652-26300	LH102,104,11#,RZH102,104,105,11#..LHD..(03S,06S,12S,15S) W(INTERMITTENT WIPER & REAR WIPER)	08/1995 - 08/1998	1
84652-26350	LH102,104,11#,RZH102,104,105,11#..LHD..(03S,06S,12S,15S)	08/1995 - 08/1998	1
84652-26340	LH102,104,11#,RZH10#,11#..LHD W(TILT STEERING & INTERMITTENT WIPER & REAR WIPER)	08/1995 - 08/1998	1
84652-26290	LH102,104,11#,RZH102,104,105,11#..LHD..(03S,06S,12S,15S) W(TILT STEERING & INTERMITTENT WIPER)	08/1997 - 08/1998	1
84652-26490	RZH115..STD;RZH115..12S;LH102,104,105,11#,166,174,176,RZH10#,112,113,114..LHD W(INTERMITTENT WIPER & REAR WIPER)	08/1998 - 07/1999	1
84652-35550	RZH115..STD;RZH113,114..LHD..(03S,06S,15S)..CBR;LH102,104,105,11#,166,176,RZH102,104,105,112..LHD..(03S,06S,12S,15S)	08/1998 - 07/1999	1
84652-35510	RZH105..CBR;RZH114..LHD..15S;RZH115..STD..CBR;RZH105,115..STD..CIS;LH102,104,105,11#,166,176,RZH102,104,112,113..LHD..(03S,06S,12S,15S) W(REAR WIPER)	08/1998 - 08/2000	1
84652-60830	RZH115..STD;RZH114..LHD..15S;LH102,104,105,11#,166,176,RZH102,104,105,112,113..LHD..(03S,06S,12S,15S) W(INTERMITTENT WIPER)	08/1998 - 07/1999	1
89435 - BRACKET, CONNECTOR COVER
89435-26090	RZH115..CBR;RZH105,115..STD..CIS;LH172,RZH103..RHD..(DSL,EFI);LH174,RZH103,105..(03S,05S,06S,09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,184,RZH102,104,112,113,114,125,135,153..03S,06S,09S,10S,12S,14S,15S	08/1989 - 08/2000	1
89435-26090	LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15#	07/1999 - 12/2999	1
Common parts
90149-40013
90464-00551
91651-40816
93319-13008
93319-15012

ILLUST NO. 5 OF 9(8908-9808) ; (9808- )RZH105,155..GL..EFI ; (9808- )RZH114,115..15S..GEN

Click highlighted areas on diagram

IGNITION & COMBINATION SWITCHES

Part #	Description	Period	Qty
84110 - SWITCH ASSY, LIGHT CONTROL, NO.1
84112-80032	LH102..LHD..STD;LH104,105,11#,RZH102,104,105,11#..LHD	08/1989 - 08/1998	1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-26100	LH102..LHD..STD;LH104,105,11#,RZH102,104,105,11#..LHD	08/1989 - 08/1998	1
84140-26140	RZH115..STD..CBR;RZH115..12S..CBR;RZH105,115..STD..CIS;LH174,RZH113..LHD..(03S,06S,10S);LH102,104,105,11#,166,176,RZH10#,112,114..LHD..(CBR,DSL)	08/1998 - 08/2000	1
84310 - SWITCH ASSY, TURN SIGNAL
84310-26450	LH102,104,105,11#,RZH102,104,105,11#..LHD..(GCC,GEN) W(INTERMITTENT WIPER & REAR WIPER)	08/1989 - 08/1995	1
84310-26410	RZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..STD..GEN W(REAR WIPER)	08/1989 - 08/1995	1
84310-26430	LH102,104,105,11#,RZH102,104,105,11#..LHD..(GCC,GEN) W(INTERMITTENT WIPER)	08/1989 - 08/1995	1
84310-26500	LH102,104,105,11#,RZH102,104,105,11#..LHD..STD..(GCC,GEN)	08/1989 - 08/1995	1
84310-26440	LH102,104,11#,RZH10#,11#..LHD W(TILT STEERING & INTERMITTENT WIPER)	08/1995 - 08/1997	1
84310-26430	LH102,104,11#,RZH102,104,105,11#..LHD..(03S,06S,12S,15S) W(INTERMITTENT WIPER)	08/1995 - 08/1998	1
84310-26490	LH102,104,11#,RZH10#,11#..LHD W(TILT STEERING & INTERMITTENT WIPER & REAR WIPER)	08/1995 - 08/1998	1
84310-26460	LH102,104,105,11#,RZH102,104,105,11#..LHD..(03S,06S,12S,15S) W(REAR WIPER)	08/1989 - 08/1998	1
84310-26500	LH102,104,11#,RZH102,104,105,11#..LHD..(03S,06S,12S,15S)	08/1995 - 08/1998	1
84310-26450	LH102,104,11#,RZH102,104,105,11#..LHD..(03S,06S,12S,15S) W(INTERMITTENT WIPER & REAR WIPER)	08/1995 - 08/1998	1
84310-26440	LH102,104,11#,RZH102,104,105,11#..LHD..(03S,06S,12S,15S) W(TILT STEERING & INTERMITTENT WIPER)	08/1997 - 08/1998	1
84310-26740	RZH115..STD;RZH115..12S;LH102,104,105,11#,166,174,176,RZH10#,112,113,114..LHD W(INTERMITTENT WIPER & REAR WIPER)	08/1998 - 07/1999	1
84310-35620	RZH105..CBR;RZH114..LHD..15S;RZH115..STD..CBR;RZH105,115..STD..CIS;LH102,104,105,11#,166,176,RZH102,104,112,113..LHD..(03S,06S,12S,15S) W(REAR WINDOW DEFOGGER)	08/1998 - 08/2000	1
84310-35830	RZH115..STD;RZH114..LHD..15S;LH102,104,105,11#,166,176,RZH102,104,105,112,113..LHD..(03S,06S,12S,15S) W(DOUBLE SWING BACK DOOR & REAR WINDOW DEFFOGGER)	08/1998 - 07/1999	1
84310-6A370	RZH115..STD;RZH114..LHD..15S;LH102,104,105,11#,166,176,RZH102,104,105,112,113..LHD..(03S,06S,12S,15S) W(INTERMITTENT WIPER)	08/1998 - 07/1999	1
84312 - PLATE, HORN CONTACT
84312-12040	LH10#,11#,125,RZH10#,11#,125,135,153	08/1989 - 08/1998	1
84312-26010	RZH115..STD..CBR;RZH105,115..STD..CIS;RZH113..4D..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;RZH102,105,112,113,115..SRF..(03S,06S,10S,12S)..CBR;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH103,104,114,125,135,153..03S,06S,12S,14S,15S	08/1998 - 12/2999	1
84312-26010	RZH115..CBR;RZH115..12S;RZH115..(CIS,GCC)..EFI;LH10#,11#,125,154,16#,17#,184,RZH10#,112,113,114,125,135,15#	07/1999 - 12/2999	1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-26050	LH10#,11#,125,RZH10#,11#,125	08/1989 - 05/1992	1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-26050	LH10#,11#,125,RZH10#,11#,125	08/1989 - 05/1992	1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-26270	RZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..STD..GEN W(REAR WIPER)	08/1989 - 08/1995	1
84652-26210	RZH102..4D;RZH103,113..STD..ARL;RZH102..RHD..5D..03S;LH10#,11#,125,RZH104,112,114,125..RHD..STD W(INTERMITTENT WIPER)	08/1989 - 08/1995	1
84652-26300	LH102,104,105,11#,RZH102,104,105,11#..LHD..(GCC,GEN) W(INTERMITTENT WIPER & REAR WIPER)	08/1989 - 08/1995	1
84652-26350	LH102,104,105,11#,RZH102,104,105,11#..LHD..STD..(GCC,GEN)	08/1989 - 08/1995	1
84652-26280	LH102,104,105,11#,RZH102,104,105,11#..LHD..(GCC,GEN) W(INTERMITTENT WIPER)	08/1989 - 08/1995	1
84652-26170	RZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..STD..GEN	08/1989 - 08/1995	1
84652-26310	LH102,104,105,11#,RZH102,104,105,11#..LHD..(03S,06S,12S,15S) W(REAR WIPER)	08/1989 - 08/1998	1
84652-26290	LH102,104,11#,RZH10#,11#..LHD W(TILT STEERING & INTERMITTENT WIPER)	08/1995 - 08/1997	1
84652-26280	LH102,104,11#,RZH102,104,105,11#..LHD..(03S,06S,12S,15S) W(INTERMITTENT WIPER)	08/1995 - 08/1998	1
84652-26300	LH102,104,11#,RZH102,104,105,11#..LHD..(03S,06S,12S,15S) W(INTERMITTENT WIPER & REAR WIPER)	08/1995 - 08/1998	1
84652-26350	LH102,104,11#,RZH102,104,105,11#..LHD..(03S,06S,12S,15S)	08/1995 - 08/1998	1
84652-26340	LH102,104,11#,RZH10#,11#..LHD W(TILT STEERING & INTERMITTENT WIPER & REAR WIPER)	08/1995 - 08/1998	1
84652-26290	LH102,104,11#,RZH102,104,105,11#..LHD..(03S,06S,12S,15S) W(TILT STEERING & INTERMITTENT WIPER)	08/1997 - 08/1998	1
84652-26490	RZH115..STD;RZH115..12S;LH102,104,105,11#,166,174,176,RZH10#,112,113,114..LHD W(INTERMITTENT WIPER & REAR WIPER)	08/1998 - 07/1999	1
84652-35550	RZH115..STD;RZH113,114..LHD..(03S,06S,15S)..CBR;LH102,104,105,11#,166,176,RZH102,104,105,112..LHD..(03S,06S,12S,15S)	08/1998 - 07/1999	1
84652-35510	RZH105..CBR;RZH114..LHD..15S;RZH115..STD..CBR;RZH105,115..STD..CIS;LH102,104,105,11#,166,176,RZH102,104,112,113..LHD..(03S,06S,12S,15S) W(REAR WIPER)	08/1998 - 08/2000	1
84652-60830	RZH115..STD;RZH114..LHD..15S;LH102,104,105,11#,166,176,RZH102,104,105,112,113..LHD..(03S,06S,12S,15S) W(INTERMITTENT WIPER)	08/1998 - 07/1999	1
89435 - BRACKET, CONNECTOR COVER
89435-26090	RZH115..CBR;RZH105,115..STD..CIS;LH172,RZH103..RHD..(DSL,EFI);LH174,RZH103,105..(03S,05S,06S,09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,184,RZH102,104,112,113,114,125,135,153..03S,06S,09S,10S,12S,14S,15S	08/1989 - 08/2000	1
89435-26090	LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15#	07/1999 - 12/2999	1
Common parts
90149-40013
90464-00551
91651-40816
93319-13008
93319-15012

ILLUST NO. 6 OF 9(8908- )

Click highlighted areas on diagram

FRONT DOOR SWITCHES

Part #	Description	Period	Qty
28300 - RELAY ASSY, STARTER
28300-46010	1RZ..RZH104,114;2L,3L,1RZ,2RZ#..LH10#,11#,125,RZH102,103,105,112,113,115,125,135,153..ARL,GCC,GEN	05/1997 - 05/1998	1
28300-75010	2RZ..RZH115;1RZ,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..STD..(ARL,GEN);5L..LH172..RHD..SRF..4D..STD..GEN;1RZ,2RZE..RZH103,114..03S,06S,12S,15S;5L,2RZE..LH172,174,184,RZH135,153..(03S,10S,12S,15S)..GL;3L,5L,2RZ#..LH103,105,113,115,125,166,176,RZH105,115,125..STD..(ARL,CIS)	05/1998 - 12/2999	1
28300-46010	2L,3L,1RZ#,2RZ#..LH10#,11#,125,RZH10#,11#,125,135,153	08/1995 - 05/1997	1
28300-75010	1RZ..RZH112..5D;5L,1RZ,2RZ#..LH174,184,RZH112,114,115..03S,10S,12S,14S,15S;3L,5L,2RZE..LH103,105,113,115,125,164,166,176,RZH125..ARL,CIS;2L,5L#,1RZ,2RZ#..LH114,154,162,172,RZH10#,113,135,15#..03S,06S,08S,09S,10S,11S,12S	07/1999 - 12/2999	1
82620B - BLOCK ASSY, FUSIBLE LINK
82620-26320	RZH113..ARL,GCC;RZH113..RHD..GEN;RZH112,155..03S,11S,12S;RZH112,113..LHD..06S..GEN;LH102,103,104,11#,125,154,162,172,174,184,RZH10#,114,115,125,135,153..ARL,GCC,GEN	07/1999 - 12/2999	1
82622 - COVER, FUSIBLE LINK, UPPER
82622-26020	RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S	08/1996 - 12/2999	1
82622-26010	RZH10#,11#,125	08/1995 - 08/1996	1
82622-26020	RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#	07/1999 - 12/2999	1
82623 - COVER, FUSIBLE LINK, LOWER
82623-26040	RZH112..5D;RZH105,112,115,155..03S,10S,11S,12S,15S;LH102,103,104,11#,125,154,162,172,174,184,RZH102,103,104,113,114,125,135,153..ARL,GCC,GEN	07/1999 - 12/2999	1
82623-26040	RZH114,115..CBR;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH10#,112,113..SRF..CBR;RZH113..4D..STD..(ARL,GEN)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;LH102,103,104,11#,125,RZH125,135,153..(03S,06S,09S,12S,14S,15S)..(ARL,GCC,GEN)	09/1997 - 12/2999	1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-26080	LH10#,11#,125,RZH10#,11#,125,135,153	08/1996 - 08/1998	2
84231-26081	LH10#,11#,125,166,17#,184,RZH10#,11#,125,135,153	08/1998 - 07/1999	2
84231-26100	RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#	07/1999 - 12/2999	2
84231-95J01	LH125..ARL;LH10#,11#,RZH10#,11#,125	08/1989 - 11/1994	2
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-26080	LH10#,11#,125,RZH10#,11#,125,135,153	08/1996 - 08/1998	2
84231-26081	LH10#,11#,125,166,17#,184,RZH10#,11#,125,135,153	08/1998 - 07/1999	2
84231-26100	RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#	07/1999 - 12/2999	2
84231-95J01	LH125..ARL;LH10#,11#,RZH10#,11#,125	08/1989 - 11/1994	2
84550 - SWITCH ASSY, PARKING BRAKE
84550-20030	RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD	08/1989 - 08/2000	1
84739A - RETAINER, SWITCH
84739-26010B0	LH10#,11#,125,RZH10#,11#,125,135,153 BLUISH GRAY,TRIM1#	08/1995 - 08/1998	1
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-12080	LH10#,11#,125,166,17#,184,RZH10#,11#,125	08/1998 - 07/1999	1
84810-20060B3	LH10#,11#,125,RZH10#,11#,125,135,153 BLUEISH GRAY,TRIM1#	08/1995 - 08/1998	1
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-12080	LH10#,11#,125,166,17#,184,RZH10#,11#,125	08/1998 - 07/1999	1
84810-20060B3	LH10#,11#,125,RZH10#,11#,125,135,153 BLUEISH GRAY,TRIM1#	08/1995 - 08/1998	1
84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84820-26021B0	LH102,104,11#,RZH10#,11#..LHD BLUISH GRAY,TRIM1#	08/1995 - 12/1995	1
84820-26022B0	LH102,104,11#,RZH10#,11#..LHD BLUISH GRAY,TRIM1#	12/1995 - 08/1998	1
84820-26023	RZH105,115..STD..CIS;RZH113,114..LHD..(03S,06S,15S);LH102,104,105,11#,166,176,RZH10#,112,115..LHD..(03S,06S,09S,12S,15S)..(CBR,DSL) W(POWER WINDOW)	08/1998 - 08/2000	1
84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84820-26021B0	LH102,104,11#,RZH10#,11#..LHD BLUISH GRAY,TRIM1#	08/1995 - 12/1995	1
84820-26022B0	LH102,104,11#,RZH10#,11#..LHD BLUISH GRAY,TRIM1#	12/1995 - 08/1998	1
84820-26023	RZH105,115..STD..CIS;RZH113,114..LHD..(03S,06S,15S);LH102,104,105,11#,166,176,RZH10#,112,115..LHD..(03S,06S,09S,12S,15S)..(CBR,DSL) W(POWER WINDOW)	08/1998 - 08/2000	1
84931B - SWITCH, DOOR CONTROL
84931-95J05	LH102,104,112,114,RZH102,104,112,114..LHD LH	08/1989 - 05/1992	1
84931-26020	RZH113..LHD..03S;LH103,113,RZH103,113..SG..(CBR,DSL);LH102,104,11#,RZH102,104,105,112,114,115..LHD LH	08/1997 - 08/1998	1
84931-26020	LH102,104,105,11#,166,174,176,RZH10#,11#..LHD LH	08/1998 - 07/1999	1
84931B - SWITCH, DOOR CONTROL
84931-95J05	LH102,104,112,114,RZH102,104,112,114..LHD LH	08/1989 - 05/1992	1
84931-26020	RZH113..LHD..03S;LH103,113,RZH103,113..SG..(CBR,DSL);LH102,104,11#,RZH102,104,105,112,114,115..LHD LH	08/1997 - 08/1998	1
84931-26020	LH102,104,105,11#,166,174,176,RZH10#,11#..LHD LH	08/1998 - 07/1999	1
89550 - COMPUTER ASSY, EMISSION CONTROL
89550-26170	RZH102,103,104,112,113,114..(CIS,GEN)..CBR	08/1989 - 08/1995	1
89550-26170	RZH102,104,112,114..CBR	08/1995 - 08/1998	1
89550-26320	RZH102..STD	07/1999 - 08/2000	1
89550-26320	RZH102,104,112,114	08/1998 - 08/2000	1
Common parts
84819-26010
84819-26020
89667-26090
89668-26090
90109-06296
90164-30003
90164-40100
91651-40614
91651-60614
93315-14014
93319-15010
93510-16012
93540-16012
93540-54014
93590-16014

ILLUST NO. 8 OF 8(8908- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90119-06390
90159-40155
90161-50004
90189-05117
91656-40616

ILLUST NO. 1 OF 8(8908- )RZH10#,11#

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82711-26040
82711-26171
90119-08063
90179-08059
90430-18008
90430-27001
90463-15439
91611-60612
91651-40814
91651-60614
93385-16025

ILLUST NO. 2 OF 8(8908- )LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price

ILLUST NO. 3 OF 8(8908- )LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82715-95J00
90119-06171
90183-05007
91651-40816
91651-60614
91656-40814
93567-55016
94120-41000

ILLUST NO. 6 OF 8(8908- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
84819-26010
90119-06390
90164-30003
90179-06070
91656-40622
93315-14014
93510-16012

ILLUST NO. 7 OF 8(8908- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
23322-64020
23344-54010
82711-26120
90119-06198
90119-06390
90159-60143

ILLUST NO. 5 OF 8(8908- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90149-40013
91651-40816
93319-15012

RZH102L-RRMRS (1995)

ILLUST NO. 2 OF 9(8908- )LHD

ILLUST NO. 7 OF 9(8908- )LH10#,11#,125,16#,17#,184,RZH10#,11#,125,135,153

ILLUST NO. 1 OF 9(8908- )RZH10#,11#,125,135,15#

ILLUST NO. 3 OF 9(8908- )LHD

ILLUST NO. 8 OF 9(8908- )

ILLUST NO. 9 OF 9(8908- )

ILLUST NO. 4 OF 9(9608- )LHD

ILLUST NO. 5 OF 9(9808- )

ILLUST NO. 5 OF 9(8908-9808) ; (9808- )RZH105,155..GL..EFI ; (9808- )RZH114,115..15S..GEN

ILLUST NO. 6 OF 9(8908- )

ILLUST NO. 8 OF 8(8908- )

ILLUST NO. 1 OF 8(8908- )RZH10#,11#

ILLUST NO. 2 OF 8(8908- )LHD

ILLUST NO. 3 OF 8(8908- )LHD

ILLUST NO. 6 OF 8(8908- )

ILLUST NO. 7 OF 8(8908- )

ILLUST NO. 5 OF 8(8908- )

Part Price Details
