RZH102L-RRMRS (1995)
Toyota Hiace Van,Commuter
(8908-9808)LH102,112,RZH102,112,113..LHD..SG

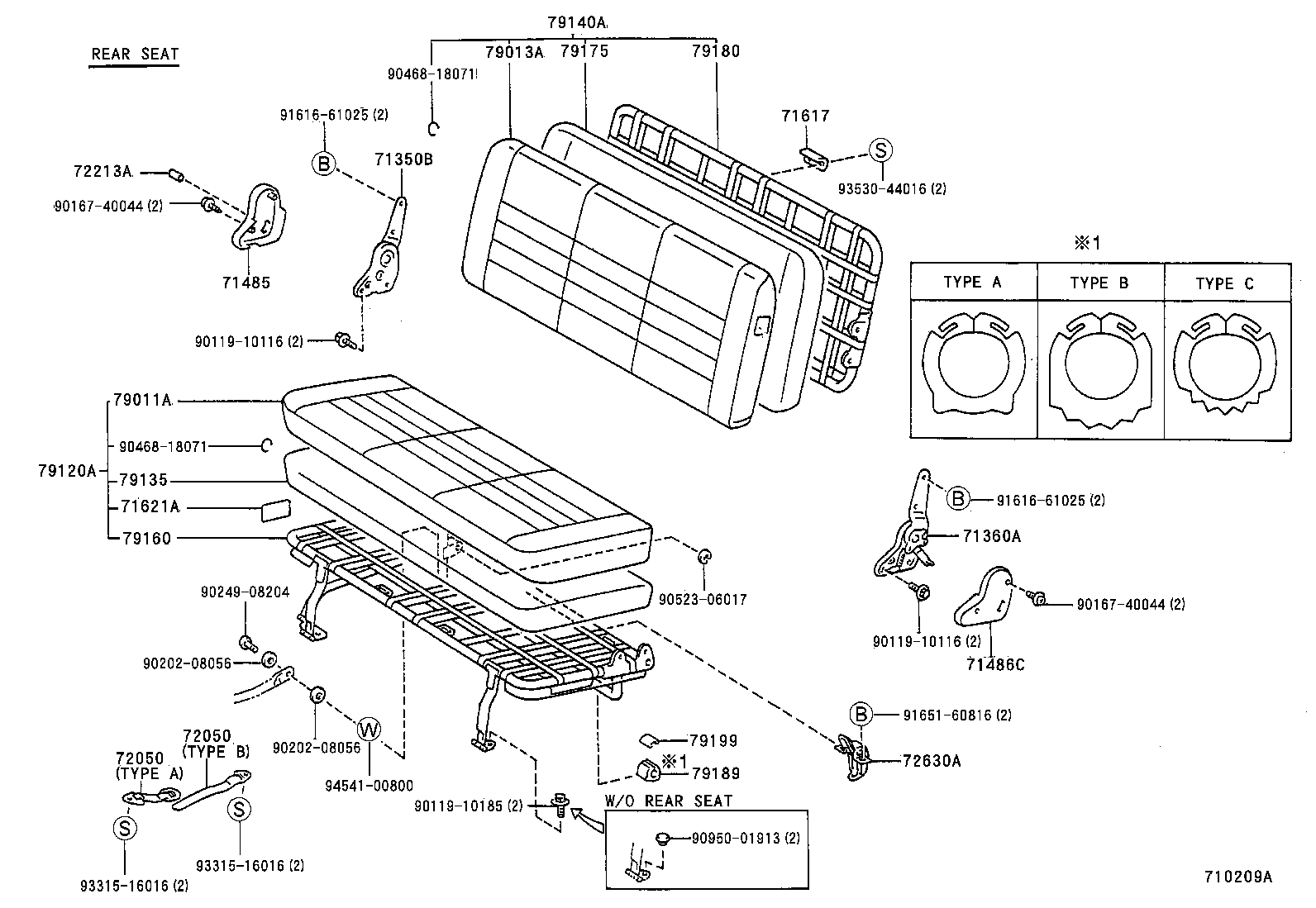

REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71350B - HINGE ASSY, REAR SEAT, RH | ||||
| 71350-95J48 |
LH103,113,RZH102,112..4D..06S |
1 | ||
| 71350-95J47 |
LH102,112,RZH102,112,113..LHD..06S |
1 | ||
| 71360A - HINGE ASSY, REAR SEAT, LH | ||||
| 71360-95J20 |
LH102,112,RZH102,112,113..LHD..06S |
1 | ||
| 71360-95J21 |
LH103,113,RZH102,112..4D..06S |
1 | ||
| 71485 - COVER, REAR SEAT HINGE | ||||
| 71485-95J0003 |
RZH102,112..LHD..06S GRAY,TRIM1# |
1 | ||
| 71485-95J0103 |
LH103,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 71486C - COVER, REAR SEAT HINGE, LH | ||||
| 71486-95J0203 |
RZH102..06S..4F;RZH102..LHD..06S..5F;LH103,113,RZH112..06S GRAY,TRIM1# |
1 | ||
| 71486-95J02B0 |
LH102,112,RZH102,112,113..LHD..06S BLUISH GRAY,TRIM1# |
1 | ||
| 71486-95J02B0 |
LH113,RZH112,113..06S..(DSL,EFI);LH102,112,RZH102,112,113..LHD..06S BLUISH GRAY,TRIM1# |
1 | ||
| 71617 - PROTECTOR, REAR SEAT BACK | ||||
| 71695-95J0203 |
LH102,103,112,113,RZH102,103,112,113..SG GRAY,TRIM1# |
1 | ||
| 71695-95J02B0 |
LH102,103,112,113,RZH102,103,112,113..06S BLUISH GRAY,TRIM1# |
1 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-95J02 |
LH103,104,105,113,114,115,125,RZH102,104,112,114,125..4D..SG 30 X 45 |
1 | ||
| 71621-95701 |
RZH102..06S..4F;RZH102,113..LHD..06S..5F;LH102,103,112,113,RZH112..06S 20 X 30 |
6 | ||
| 71621-95701 |
LH102,103,112,113,RZH102,103,112,113..SG..(SGL,STD) 20 X 30 |
6 | ||
| 71621-95701 |
LH102,103,112,113,125,172,184,RZH102,103,112,113..06S,15S 20 X 30 |
6 | ||
| 72050 - BELT ASSY, REAR SEAT HOOK | ||||
| 72050-95J01 |
LH102,103,112,113,RZH102,103,112,113..06S TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 72050-95J00 |
RZH102..06S..4F;RZH102..LHD..06S..5F;LH102,103,112,113,RZH112..06S TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 72050-95J01 |
RZH102..06S..4F;RZH102..LHD..06S..5F;LH102,103,112,113,RZH112..06S TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 72050-95J00 |
LH102,103,112,113,RZH102,103,112,113..06S TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 72050 - BELT ASSY, REAR SEAT HOOK | ||||
| 72050-95J01 |
LH102,103,112,113,RZH102,103,112,113..06S TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 72050-95J00 |
RZH102..06S..4F;RZH102..LHD..06S..5F;LH102,103,112,113,RZH112..06S TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 72050-95J01 |
RZH102..06S..4F;RZH102..LHD..06S..5F;LH102,103,112,113,RZH112..06S TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 72050-95J00 |
LH102,103,112,113,RZH102,103,112,113..06S TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 72213A - KNOB, SEAT TRACK ADJUSTING HANDLE | ||||
| 72213-95J0003 |
RZH102,112..LHD..06S GRAY,TRIM1# |
1 | ||
| 72213-95J00B0 |
LH102,103,112,113,172,RZH102,103,112,113..06S BLUISH GRAY,TRIM1# |
1 | ||
| 72213-12040 |
RZH102..4D..06S;LH102,103,112,113,RZH112..RHD..06S |
1 | ||
| 72630A - LOCK ASSY, REAR NO.1 SEAT | ||||
| 72630-95J00 |
LH102,112,RZH102,112,113..LHD..06S |
1 | ||
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79011-95N3703 |
LH102,103,112,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 79011-95N4003 |
LH103,113,RZH102,112..4D..06S HONG KONG SPEC,GRAY,TRIM1# |
1 | ||
| 79011-95N1803 |
RZH102,112..LHD..06S GRAY,TRIM1# |
1 | ||
| 79011-26012B1 |
LH102,103,112,113,172,RZH102,103,112,113..06S..GEN SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79011-26022B0 |
LH102,103,112,113,172,RZH102,103,112,113..06S..GEN W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79013A - COVER SUB-ASSY, NO.1 SEAT BACK | ||||
| 79013-95N1103 |
RZH102,112..LHD..06S GRAY,TRIM1# |
1 | ||
| 79013-95N2003 |
LH102,103,112,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 79013-95N1103 |
LH103,113,RZH102,112..4D..06S HONG KONG SPEC,GRAY,TRIM1# |
1 | ||
| 79013-26052B1 |
LH102,103,112,113,172,RZH102,103,112,113..06S..GEN W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26042B1 |
LH102,103,112,113,172,RZH102,103,112,113..06S..GEN SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79120A - CUSHION ASSY, NO.1 SEAT | ||||
| 79120-95N5003 |
LH103,113,RZH102,112..4D..06S HONG KONG SPEC,GRAY,TRIM1# |
1 | ||
| 79120-95N2903 |
RZH102,112..LHD..06S GRAY,TRIM1# |
1 | ||
| 79120-26250B8 |
LH102,112,RZH102,112..LHD..06S BLUISH GRAY,TRIM1# |
1 | ||
| 79120-95N4703 |
LH102,103,112,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 79120-26250B9 |
LH102,112,RZH102,112..LHD..06S BLUISH GRAY,TRIM1# |
1 | ||
| 79120-26231B6 |
LH102,103,112,113,172,RZH102,103,112,113..06S..GEN W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79120-26371B2 |
LH102,103,112,113,172,RZH102,103,112,113..06S..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79135 - PAD, NO.1 SEAT CUSHION | ||||
| 79135-95J03 |
RZH102..06S..4F;RZH102..LHD..5F;LH102,103,112,113,RZH112..06S |
1 | ||
| 79135-26011 |
LH102,103,112,113,172,RZH102,103,112,113..06S |
1 | ||
| 79140A - BACK ASSY, NO.1 SEAT | ||||
| 79140-95N4303 |
LH102,103,112,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 79140-95N2303 |
LH103,113,RZH102,112..4D..06S HONG KONG SPEC,GRAY,TRIM1# |
1 | ||
| 79140-95N2303 |
RZH102,112..LHD..06S GRAY,TRIM1# |
1 | ||
| 79140-26230B8 |
LH102,112,RZH102,112..LHD..06S BLUISH GRAY,TRIM1# |
1 | ||
| 79140-26230B9 |
RZH112..GL;LH102,112,RZH102..LHD..06S BLUISH GRAY,TRIM1# |
1 | ||
| 79140-26201B6 |
LH102,103,112,113,172,RZH102,103,112,113..06S..GEN W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79140-26341B2 |
LH102,103,112,113,172,RZH102,103,112,113..06S..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79160 - SPRING ASSY, NO.1 SEAT CUSHION | ||||
| 79160-95J55B1 |
LH103,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 79160-95J45 |
LH102,112,RZH102,112,113..LHD..06S |
1 | ||
| 79160-95J44 |
RZH102..4D..06S;LH102,103,112,113,RZH112..RHD..06S |
1 | ||
| 79160-26160 |
LH102,103,112,113,172,RZH102,103,112,113..06S |
1 | ||
| 79175 - PAD, NO.1 SEAT BACK | ||||
| 79175-95J02 |
LH102,103,112,113,RZH102,112..4D..06S |
1 | ||
| 79175-95J26 |
LH112,RZH102,112,113..LHD..06S |
1 | ||
| 79175-95J26 |
LH103,113,RZH102,112..4D..06S HONG KONG SPEC |
1 | ||
| 79175-26021 |
LH102,112,RZH102,112,113..LHD..06S |
1 | ||
| 79175-95J26 |
LH102,112,RZH102,112,113..LHD..06S |
1 | ||
| 79180 - SPRING ASSY, NO.1 SEAT BACK | ||||
| 79180-95J20 |
LH103,113,RZH102,112..4D..06S HONG KONG SPEC |
1 | ||
| 79180-95J21 |
RZH102..4D..06S;LH102,103,112,113,RZH112..RHD..06S |
1 | ||
| 79180-95J20 |
LH102,112,RZH102,112,113..LHD..06S |
1 | ||
| 79180-95J20 |
LH112,RZH102,112,113..LHD..06S |
1 | ||
| 79103-26150 |
LH102,103,112,113,172,RZH102,103,112,113..06S |
1 | ||
| 79189 - STOPPER, NO.1 SEAT LEG | ||||
| 71334-95J01 |
LH102,103,112,113,RZH102,112..4D..06S L=40 |
2 | ||
| 71334-95703 |
RZH112..EFI;LH112,RZH112..5D;LH102,103,113,RZH102,103,113..06S L=25 |
2 | ||
| 71334-95703 |
LH113,RZH112..06S..(DSL,EFI);LH102,112,RZH102,112,113..LHD..06S L=25 |
2 | ||
| 79189-95J00 |
LH103,104,105,113,114,115,125,RZH10#,11#,125..SG |
2 | ||
| 71334-26050 |
LH102,103,112,113,172,RZH102,103,112,113..06S |
2 | ||
| 79199 - HOLDER, NO.1 SEAT LEG STOPPER | ||||
| 79199-95J00 |
LH103,104,105,113,114,115,125,RZH10#,11#,125..SG L=38 |
2 | ||
| 79199-95J00 |
RZH112..EFI;LH112,RZH112..5D;LH10#,113,114,115,125,RZH10#,113,114,115,125..SG..STD L=38 |
2 | ||
| 79199-95J01 |
LH102,103,112,113,RZH102,112..4D..06S L=23 |
2 | ||
| 79199-95J00 |
RZH113..06S..CBR;LH10#,11#,125,166,172,176,184,RZH10#,112,114,115,125..06S,12S,14S,15S |
2 | ||
| 79199-95J00 |
RZH104..STD;RZH112..EFI;LH112,RZH112,114..LHD..SG..GEN;LH10#,113,114,115,125,RZH102,103,105,113,115..(SMRF,SRF)..(06S,12S,15S)..(CBR,DSL) L=38 |
2 | ||
| 79199-95J00 |
RZH112,113..5D..06S;RZH113,114..08S,15S;LH174,RZH102..SG..STD;LH10#,11#,125,16#,172,176,184,RZH103,104,105,115,125..(06S,10S,12S,14S,15S)..(GL,STD) |
2 | ||
| Common parts | ||||
| 90119-10116 | ||||
| 90119-10185 | ||||
| 90167-40044 | ||||
| 90202-08056 | ||||
| 90249-08204 | ||||
| 90468-18071 | ||||
| 90523-06017 | ||||
| 90950-01913 | ||||
| 91616-61025 | ||||
| 91651-60816 | ||||
| 93315-16016 | ||||
| 93530-44016 | ||||
| 94541-00800 | ||||
(8908-9808)LH103,113,RZH102,112..4D..06S ; (9611-9808)RZH113..06S..EFI
REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71344A - PLATE, REAR SEAT CUSHION HINGE | ||||
| 71344-95J00 |
LH103,113,RZH102,112..4D..06S |
1 | ||
| 71350B - HINGE ASSY, REAR SEAT, RH | ||||
| 71350-95J48 |
LH103,113,RZH102,112..4D..06S |
1 | ||
| 71350-95J47 |
LH102,112,RZH102,112,113..LHD..06S |
1 | ||
| 71351 - KNOB, SEAT HINGE LEVER | ||||
| 71351-95J0303 |
LH103,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 71360A - HINGE ASSY, REAR SEAT, LH | ||||
| 71360-95J20 |
LH102,112,RZH102,112,113..LHD..06S |
1 | ||
| 71360-95J21 |
LH103,113,RZH102,112..4D..06S |
1 | ||
| 71485 - COVER, REAR SEAT HINGE | ||||
| 71485-95J0003 |
RZH102,112..LHD..06S GRAY,TRIM1# |
1 | ||
| 71485-95J0103 |
LH103,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 71486C - COVER, REAR SEAT HINGE, LH | ||||
| 71486-95J0203 |
RZH102..06S..4F;RZH102..LHD..06S..5F;LH103,113,RZH112..06S GRAY,TRIM1# |
1 | ||
| 71486-95J02B0 |
LH102,112,RZH102,112,113..LHD..06S BLUISH GRAY,TRIM1# |
1 | ||
| 71486-95J02B0 |
LH113,RZH112,113..06S..(DSL,EFI);LH102,112,RZH102,112,113..LHD..06S BLUISH GRAY,TRIM1# |
1 | ||
| 71617 - PROTECTOR, REAR SEAT BACK | ||||
| 71695-95J0203 |
LH102,103,112,113,RZH102,103,112,113..SG GRAY,TRIM1# |
1 | ||
| 71695-95J02B0 |
LH102,103,112,113,RZH102,103,112,113..06S BLUISH GRAY,TRIM1# |
1 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-95J02 |
LH103,104,105,113,114,115,125,RZH102,104,112,114,125..4D..SG 30 X 45 |
1 | ||
| 71621-95701 |
RZH102..06S..4F;RZH102,113..LHD..06S..5F;LH102,103,112,113,RZH112..06S 20 X 30 |
6 | ||
| 71621-95701 |
LH102,103,112,113,RZH102,103,112,113..SG..(SGL,STD) 20 X 30 |
6 | ||
| 71621-95701 |
LH102,103,112,113,125,172,184,RZH102,103,112,113..06S,15S 20 X 30 |
6 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-95J02 |
LH103,104,105,113,114,115,125,RZH102,104,112,114,125..4D..SG 30 X 45 |
1 | ||
| 71621-95701 |
RZH102..06S..4F;RZH102,113..LHD..06S..5F;LH102,103,112,113,RZH112..06S 20 X 30 |
6 | ||
| 71621-95701 |
LH102,103,112,113,RZH102,103,112,113..SG..(SGL,STD) 20 X 30 |
6 | ||
| 71621-95701 |
LH102,103,112,113,125,172,184,RZH102,103,112,113..06S,15S 20 X 30 |
6 | ||
| 72050 - BELT ASSY, REAR SEAT HOOK | ||||
| 72050-95J01 |
LH102,103,112,113,RZH102,103,112,113..06S TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 72050-95J00 |
RZH102..06S..4F;RZH102..LHD..06S..5F;LH102,103,112,113,RZH112..06S TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 72050-95J01 |
RZH102..06S..4F;RZH102..LHD..06S..5F;LH102,103,112,113,RZH112..06S TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 72050-95J00 |
LH102,103,112,113,RZH102,103,112,113..06S TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 72050 - BELT ASSY, REAR SEAT HOOK | ||||
| 72050-95J01 |
LH102,103,112,113,RZH102,103,112,113..06S TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 72050-95J00 |
RZH102..06S..4F;RZH102..LHD..06S..5F;LH102,103,112,113,RZH112..06S TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 72050-95J01 |
RZH102..06S..4F;RZH102..LHD..06S..5F;LH102,103,112,113,RZH112..06S TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 72050-95J00 |
LH102,103,112,113,RZH102,103,112,113..06S TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79011-95N3703 |
LH102,103,112,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 79011-95N4003 |
LH103,113,RZH102,112..4D..06S HONG KONG SPEC,GRAY,TRIM1# |
1 | ||
| 79011-95N1803 |
RZH102,112..LHD..06S GRAY,TRIM1# |
1 | ||
| 79011-26012B1 |
LH102,103,112,113,172,RZH102,103,112,113..06S..GEN SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79011-26022B0 |
LH102,103,112,113,172,RZH102,103,112,113..06S..GEN W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79013A - COVER SUB-ASSY, NO.1 SEAT BACK | ||||
| 79013-95N1103 |
RZH102,112..LHD..06S GRAY,TRIM1# |
1 | ||
| 79013-95N2003 |
LH102,103,112,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 79013-95N1103 |
LH103,113,RZH102,112..4D..06S HONG KONG SPEC,GRAY,TRIM1# |
1 | ||
| 79013-26052B1 |
LH102,103,112,113,172,RZH102,103,112,113..06S..GEN W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26042B1 |
LH102,103,112,113,172,RZH102,103,112,113..06S..GEN SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79120A - CUSHION ASSY, NO.1 SEAT | ||||
| 79120-95N5003 |
LH103,113,RZH102,112..4D..06S HONG KONG SPEC,GRAY,TRIM1# |
1 | ||
| 79120-95N2903 |
RZH102,112..LHD..06S GRAY,TRIM1# |
1 | ||
| 79120-26250B8 |
LH102,112,RZH102,112..LHD..06S BLUISH GRAY,TRIM1# |
1 | ||
| 79120-95N4703 |
LH102,103,112,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 79120-26250B9 |
LH102,112,RZH102,112..LHD..06S BLUISH GRAY,TRIM1# |
1 | ||
| 79120-26231B6 |
LH102,103,112,113,172,RZH102,103,112,113..06S..GEN W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79120-26371B2 |
LH102,103,112,113,172,RZH102,103,112,113..06S..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79135 - PAD, NO.1 SEAT CUSHION | ||||
| 79135-95J03 |
RZH102..06S..4F;RZH102..LHD..5F;LH102,103,112,113,RZH112..06S |
1 | ||
| 79135-26011 |
LH102,103,112,113,172,RZH102,103,112,113..06S |
1 | ||
| 79140A - BACK ASSY, NO.1 SEAT | ||||
| 79140-95N4303 |
LH102,103,112,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 79140-95N2303 |
LH103,113,RZH102,112..4D..06S HONG KONG SPEC,GRAY,TRIM1# |
1 | ||
| 79140-95N2303 |
RZH102,112..LHD..06S GRAY,TRIM1# |
1 | ||
| 79140-26230B8 |
LH102,112,RZH102,112..LHD..06S BLUISH GRAY,TRIM1# |
1 | ||
| 79140-26230B9 |
RZH112..GL;LH102,112,RZH102..LHD..06S BLUISH GRAY,TRIM1# |
1 | ||
| 79140-26201B6 |
LH102,103,112,113,172,RZH102,103,112,113..06S..GEN W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79140-26341B2 |
LH102,103,112,113,172,RZH102,103,112,113..06S..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79160 - SPRING ASSY, NO.1 SEAT CUSHION | ||||
| 79160-95J55B1 |
LH103,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 79160-95J45 |
LH102,112,RZH102,112,113..LHD..06S |
1 | ||
| 79160-95J44 |
RZH102..4D..06S;LH102,103,112,113,RZH112..RHD..06S |
1 | ||
| 79160-26160 |
LH102,103,112,113,172,RZH102,103,112,113..06S |
1 | ||
| 79169 - ROD, REAR SEAT HINGE CONNECTOR | ||||
| 79019-95J03 |
LH103,113,RZH102,112..4D..06S |
1 | ||
| 79175 - PAD, NO.1 SEAT BACK | ||||
| 79175-95J02 |
LH102,103,112,113,RZH102,112..4D..06S |
1 | ||
| 79175-95J26 |
LH112,RZH102,112,113..LHD..06S |
1 | ||
| 79175-95J26 |
LH103,113,RZH102,112..4D..06S HONG KONG SPEC |
1 | ||
| 79175-26021 |
LH102,112,RZH102,112,113..LHD..06S |
1 | ||
| 79175-95J26 |
LH102,112,RZH102,112,113..LHD..06S |
1 | ||
| 79180 - SPRING ASSY, NO.1 SEAT BACK | ||||
| 79180-95J20 |
LH103,113,RZH102,112..4D..06S HONG KONG SPEC |
1 | ||
| 79180-95J21 |
RZH102..4D..06S;LH102,103,112,113,RZH112..RHD..06S |
1 | ||
| 79180-95J20 |
LH102,112,RZH102,112,113..LHD..06S |
1 | ||
| 79180-95J20 |
LH112,RZH102,112,113..LHD..06S |
1 | ||
| 79103-26150 |
LH102,103,112,113,172,RZH102,103,112,113..06S |
1 | ||
| 79189 - STOPPER, NO.1 SEAT LEG | ||||
| 71334-95J01 |
LH102,103,112,113,RZH102,112..4D..06S L=40 |
2 | ||
| 71334-95703 |
RZH112..EFI;LH112,RZH112..5D;LH102,103,113,RZH102,103,113..06S L=25 |
2 | ||
| 71334-95703 |
LH113,RZH112..06S..(DSL,EFI);LH102,112,RZH102,112,113..LHD..06S L=25 |
2 | ||
| 79189-95J00 |
LH103,104,105,113,114,115,125,RZH10#,11#,125..SG |
2 | ||
| 71334-26050 |
LH102,103,112,113,172,RZH102,103,112,113..06S |
2 | ||
| 79199 - HOLDER, NO.1 SEAT LEG STOPPER | ||||
| 79199-95J00 |
LH103,104,105,113,114,115,125,RZH10#,11#,125..SG L=38 |
2 | ||
| 79199-95J00 |
RZH112..EFI;LH112,RZH112..5D;LH10#,113,114,115,125,RZH10#,113,114,115,125..SG..STD L=38 |
2 | ||
| 79199-95J01 |
LH102,103,112,113,RZH102,112..4D..06S L=23 |
2 | ||
| 79199-95J00 |
RZH113..06S..CBR;LH10#,11#,125,166,172,176,184,RZH10#,112,114,115,125..06S,12S,14S,15S |
2 | ||
| 79199-95J00 |
RZH104..STD;RZH112..EFI;LH112,RZH112,114..LHD..SG..GEN;LH10#,113,114,115,125,RZH102,103,105,113,115..(SMRF,SRF)..(06S,12S,15S)..(CBR,DSL) L=38 |
2 | ||
| 79199-95J00 |
RZH112,113..5D..06S;RZH113,114..08S,15S;LH174,RZH102..SG..STD;LH10#,11#,125,16#,172,176,184,RZH103,104,105,115,125..(06S,10S,12S,14S,15S)..(GL,STD) |
2 | ||
| Common parts | ||||
| 90119-10116 | ||||
| 90119-10185 | ||||
| 90167-40044 | ||||
| 90168-40078 | ||||
| 90202-08056 | ||||
| 90249-08204 | ||||
| 90386-13016 | ||||
| 90468-18071 | ||||
| 90523-06017 | ||||
| 90950-01913 | ||||
| 91616-61025 | ||||
| 93315-16016 | ||||
| 93530-44016 | ||||
| 94511-00800 | ||||
| 96160-00600 | ||||
(8908- )LHD
FRONT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-95J09 |
LH102,104,105,11#,166,176,RZH102,104,105,11#..LHD..(03S,06S,12S,15S) W(*ELR) |
1 | ||
| 71011-95J13 |
RZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..STD..GEN |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-95J1303 |
RZH103..GL;LH102,104,112,114,RZH102,104,112,114..LHD GRAY,TRIM1# |
1 | ||
| 71012-95J15 |
RZH102,104,112,114..LHD GULF SPEC & W(FABRIC SEAT) |
1 | ||
| 71012-2609003 |
LH102,104,105,11#,RZH10#,11#..LHD W(*ELR),GRAY,TRIM1# |
1 | ||
| 71012-95J15 |
RZH105,115..STD..CIS;LH174,RZH113..LHD..(03S,06S,10S);LH102,104,105,11#,166,176,RZH10#,112,114,115..LHD..(CBR,DSL) |
1 | ||
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-95J08B0 |
LH102,104,112,114,RZH102,104,112,114..LHD GRAY,TRIM1# |
1 | ||
| 71013-26030B0 |
LH115,RZH113,114..LHD..STD..(GCC,GEN);LH102,104,112,113,114,RZH102,104,105,112,115..LHD..SRF..STD..(CBR,DSL) W(*ELR),BLUISH GRAY,TRIM1# |
1 | ||
| 71013-95J10B0 |
LH102,104,112,114,RZH102,104,112,114..LHD W(HEADREST),GRAY,TRIM1# |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-95J15 |
LH102,104,112,114,RZH102,104,112,114..LHD W(HEADREST) |
1 | ||
| 71014-26030 |
LH102,104,11#,RZH10#,11#..LHD |
1 | ||
| 71014-26031 |
RZH105,115..STD..CIS;LH174,RZH113..LHD..(03S,06S,10S);LH102,104,105,11#,166,176,RZH10#,112,114,115..LHD..(CBR,DSL) |
1 | ||
| 71014-95J06 |
LH102,104,112,114,RZH102,104,112,114..LHD |
1 | ||
| 71031S - COVER SUB-ASSY, CENTER SEAT CUSHION | ||||
| 71097-95J0803 |
LH102,104,112,114,RZH102,104,112,114..LHD W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 71097-26020B0 |
RZH115..STD..CIS;RZH105,113..LHD..STD..EFI;RZH114,115..LHD..15S..GEN..CBR;LH102,104,105,11#,166,176,RZH102,104,105,112..LHD..(03S,06S,12S,15S)..(CIS,GEN)..(CBR,DSL) BLUISH GRAY,TRIM1# |
1 | ||
| 71035S - COVER, FRONT SEAT BACK, CENTER | ||||
| 71095-95J1303 |
LH102,104,112,114,RZH102,104,112,114..LHD W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 71095-26130B0 |
RZH115..STD..CIS;RZH105,113..LHD..STD..EFI;RZH114,115..LHD..15S..GEN..CBR;LH102,104,105,11#,166,176,RZH102,104,105,112..LHD..(03S,06S,12S,15S)..(CIS,GEN)..(CBR,DSL) BLUISH GRAY,TRIM1# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-95J8903 |
LH102,104,112,114,RZH102,104,112,114..LHD W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 71071-95N1303 |
RZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..GEN W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 71071-26510B0 |
RZH115..STD..CIS;RZH105,113..LHD..STD..EFI;RZH114,115..LHD..15S..GEN..CBR;LH102,104,105,11#,166,176,RZH102,104,105,112..LHD..(03S,06S,12S,15S)..(CIS,GEN)..(CBR,DSL) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-95N0903 |
LH102,104,112,114,RZH102,104,112,114..LHD W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 71072-95N0603 |
LH102,104,112,114,RZH102,104,112,114..LHD W(*ELR & VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 71072-26450B0 |
RZH115..STD..CIS;RZH105,113..LHD..STD..EFI;RZH114,115..LHD..15S..GEN..CBR;LH102,104,105,11#,166,176,RZH102,104,105,112..LHD..(03S,06S,12S,15S)..(CIS,GEN)..(CBR,DSL) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71072-26470B0 |
RZH115..STD..CIS;RZH105,113..LHD..STD..EFI;RZH114,115..LHD..15S..GEN..CBR;LH102,104,105,11#,166,176,RZH102,104,105,112..LHD..(03S,06S,12S,15S)..(CIS,GEN)..(CBR,DSL) W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-95N4503 |
LH102,104,112,114,RZH102,104,112,114..LHD W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 71073-95N4703 |
LH102,104,112,114,RZH102,104,112,114..LHD W(HEADREST & VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 71073-26610B0 |
RZH115..STD..CIS;RZH105,113..LHD..STD..EFI;RZH114,115..LHD..15S..GEN..CBR;LH102,104,105,11#,166,176,RZH102,104,105,112..LHD..(03S,06S,12S,15S)..(CIS,GEN)..(CBR,DSL) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-95N6303 |
LH102,104,112,114,RZH102,104,112,114..LHD W(HEADREST & VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 71074-95N6103 |
LH102,104,112,114,RZH102,104,112,114..LHD W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 71074-26570B0 |
RZH115..STD..CIS;RZH105,113..LHD..STD..EFI;RZH114,115..LHD..15S..GEN..CBR;LH102,104,105,11#,166,176,RZH102,104,105,112..LHD..(03S,06S,12S,15S)..(CIS,GEN)..(CBR,DSL) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71127 - PLATE, FRONT SEAT CUSHION COVER SET, OUTSIDE RH | ||||
| 71127-95J0603 |
LH102,104,112,114,RZH102,104,112,114..LHD GRAY,TRIM1# |
1 | ||
| 71301S - FRAME SUB-ASSY, CENTER SEAT CUSHION | ||||
| 71031-95J2103 |
LH102,104,112,114,RZH102,104,112,114..LHD GRAY,TRIM1# |
1 | ||
| 71305S - FRAME SUB-ASSY, CENTER SEAT BACK | ||||
| 71305-95J0703 |
LH102,104,112,114,RZH102,104,112,114..LHD GRAY,TRIM1# |
1 | ||
| 71305-26010B0 |
RZH115..STD..CIS;RZH105,113..LHD..STD..(CIS,GEN);LH102,104,105,11#,166,176,RZH10#,112,114,115..LHD..(CIS,GEN)..(CBR,DSL) BLUISH GRAY,TRIM1# |
1 | ||
| 71310S - CUSHION ASSY, FRONT SEAT, CENTER | ||||
| 71310-95J2903 |
LH102,104,112,114,RZH102,104,112,114..LHD W(HEADREST),GRAY,TRIM1# |
1 | ||
| 71310-95J29P3 |
LH102,104,11#,RZH102,104,11#..LHD..(CIS,GEN) W(HEADREST),BLUISH GRAY,TRIM1# |
1 | ||
| 71310-95J29P6 |
LH102,104,11#,RZH102,104,105,11#..LHD..(03S,06S,12S,15S)..(CIS,GEN) W(HEADREST),BLUISH GRAY,TRIM1# |
1 | ||
| 71310-95J29S0 |
RZH114,115..LHD..15S..(CIS,GEN);LH102,104,105,11#,166,176,RZH102,104,105,112,113..LHD..(03S,06S,12S,15S)..(CIS,GEN) W(HEADREST),BLUISH GRAY,TRIM1# |
1 | ||
| 71310-26050B0 |
RZH114,115..LHD..15S..(CIS,GEN);LH102,104,105,11#,166,176,RZH102,104,105,112,113..LHD..(03S,06S,12S,15S)..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 71318 - PAD, CENTER SEAT CUSHION | ||||
| 71316-95J00 |
RZH105,115..STD..CIS;RZH103,105,115..LHD..CBR;LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
1 | ||
| 71350S - BACK ASSY, FRONT SEAT, CENTER | ||||
| 71350-95J3603 |
LH102,104,112,114,RZH102,104,112,114..LHD JORDAN SPEC & W(HEADREST),GRAY,TRIM1# |
1 | ||
| 71350-26100B6 |
LH102,112,113,RZH102,112,113..LHD..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 71350-26060P3 |
LH102,104,11#,RZH102,104,11#..LHD..(CIS,GEN) W(HEADREST),BLUISH GRAY,TRIM1# |
1 | ||
| 71350-26060S0 |
LH102,104,11#,RZH102,104,11#..LHD..STD..GEN W(HEADREST),BLUISH GRAY,TRIM1# |
1 | ||
| 71350-26060P6 |
LH102,104,11#,RZH102,104,11#..LHD..STD..(CIS,GEN) W(HEADREST),BLUISH GRAY,TRIM1# |
1 | ||
| 71350-26230B0 |
RZH114,115..LHD..15S..(CIS,GEN);LH102,104,105,11#,166,176,RZH102,104,105,112,113..LHD..(03S,06S,12S,15S)..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 71358 - PAD, CENTER SEAT BACK | ||||
| 71365-95J02 |
RZH105,115..STD..CIS;RZH103,105,115..LHD..CBR;LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
1 | ||
| 71363 - BRACKET, FRONT SEAT SET, NO.3 | ||||
| 71363-95J01 |
RZH113..LHD..STD;RZH105,115..STD..CIS;LH102,104,105,11#,166,176,RZH102,104,105,112,114,115..LHD..(03S,06S,12S,15S)..(CBR,DSL) |
1 | ||
| 71366 - BRACKET, FRONT SEAT SET, NO.6 | ||||
| 71366-95J02 |
RZH113..LHD..STD;RZH105,115..STD..CIS;LH102,104,105,11#,166,176,RZH102,104,105,112,114,115..LHD..(03S,06S,12S,15S)..(CBR,DSL) |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-95N1303 |
RZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..GEN GRAY,TRIM1# |
1 | ||
| 71410-95N0103 |
LH102,104,112,114,RZH102,104,112,114..LHD JORDAN SPEC & W(FABRIC SEAT),GRAY,TRIM1# |
1 | ||
| 71410-95N01P3 |
LH102,104,11#,RZH102,104,11#..LHD..(CIS,GEN) W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71410-95N01P7 |
LH102,104,11#,RZH102,104,105,11#..LHD..(03S,06S,12S,15S)..(CIS,GEN) W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71410-26520B0 |
RZH114,115..LHD..15S..(CIS,GEN);LH102,104,105,11#,166,176,RZH102,104,105,112,113..LHD..(03S,06S,12S,15S)..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 71410-95N01S2 |
RZH114,115..LHD..15S..(CIS,GEN);LH102,104,105,11#,166,176,RZH102,104,105,112,113..LHD..(03S,06S,12S,15S)..(CIS,GEN) W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-95N1303 |
LH102,104,112,114,RZH102,104,112,114..LHD JORDAN SPEC,GRAY,TRIM1# |
1 | ||
| 71420-95N1003 |
LH102,104,112,114,RZH102,104,112,114..LHD W(*ELR),GRAY,TRIM1# |
1 | ||
| 71420-95N10S1 |
LH102,104,11#,RZH102,104,11#..LHD..STD..(CIS,GEN) W(*ELR),BLUISH GRAY,TRIM1# |
1 | ||
| 71420-95N13P6 |
LH102,104,11#,RZH102,104,11#..LHD..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 71420-95N10P6 |
LH102,104,11#,RZH102,104,11#..LHD..(CIS,GEN) W(*ELR),BLUISH GRAY,TRIM1# |
1 | ||
| 71420-26460B0 |
RZH114,115..LHD..15S..(CIS,GEN);LH102,104,105,11#,166,176,RZH102,104,105,112,113..LHD..(03S,06S,12S,15S)..(CIS,GEN) W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71420-26440B0 |
RZH114,115..LHD..15S..(CIS,GEN);LH102,104,105,11#,166,176,RZH102,104,105,112,113..LHD..(03S,06S,12S,15S)..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71401-95N4503 |
LH102,104,112,114,RZH102,104,112,114..LHD W(HEADREST),GRAY,TRIM1# |
1 | ||
| 71401-95N4203 |
LH102,104,112,114,RZH102,104,112,114..LHD GRAY,TRIM1# |
1 | ||
| 71401-26130P2 |
LH102,104,11#,RZH102,104,11#..LHD..(CIS,GEN) W(HEADREST),BLUISH GRAY,TRIM1# |
1 | ||
| 71401-26200B6 |
LH102,104,11#,RZH102,104,11#..LHD..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 71401-26130P5 |
LH102,104,11#,RZH102,104,11#..LHD..STD..(CIS,GEN) W(HEADREST),BLUISH GRAY,TRIM1# |
1 | ||
| 71401-26330B0 |
RZH114,115..LHD..15S..(CIS,GEN);LH102,104,105,11#,166,176,RZH102,104,105,112,113..LHD..(03S,06S,12S,15S)..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 71401-26130P9 |
RZH114,115..LHD..15S..(CIS,GEN);LH102,104,105,11#,166,176,RZH102,104,105,112,113..LHD..(03S,06S,12S,15S)..(CIS,GEN) W(HEADREST),BLUISH GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71402-95N4903 |
LH102,104,112,114,RZH102,104,112,114..LHD GRAY,TRIM1# |
1 | ||
| 71402-95N5103 |
LH102,104,112,114,RZH102,104,112,114..LHD W(HEADREST),GRAY,TRIM1# |
1 | ||
| 71402-26140P6 |
LH102,104,11#,RZH102,104,105,114,115..LHD..4D..(03S,06S,12S,15S)..(CIS,GEN) GRAY,TRIM13 |
1 | ||
| 71402-26140P3 |
LH102,104,11#,RZH102,104,11#..LHD..(CIS,GEN) W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71402-26141S0 |
RZH114,115..LHD..15S..(CIS,GEN);LH102,104,105,11#,166,176,RZH102,104,105,112,113..LHD..(03S,06S,12S,15S)..(CIS,GEN) W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71402-26180B6 |
LH102,104,11#,RZH102,104,11#..LHD..GEN CHINA SPEC,IVORY COAST SPEC & TURKEY SPEC,BLUISH GRAY,TRIM1# |
1 | ||
| 71402-26270B0 |
RZH114,115..LHD..15S..(CIS,GEN);LH102,104,105,11#,166,176,RZH102,104,105,112,113..LHD..(03S,06S,12S,15S)..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-95J13 |
RZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..STD..GEN |
1 | ||
| 71511-95J09 |
RZH114..LHD..STD;LH105,115,RZH113..LHD..STD..(GCC,GEN);LH102,104,112,113,114,RZH102,104,105,112,115..LHD..SRF..STD..(CBR,DSL) W(*ELR) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-95J07 |
LH102,104,11#,RZH102,104,11#..LHD..STD..GEN JORDAN SPEC |
1 | ||
| 71512-95J03 |
RZH114..LHD..STD;LH105,115,RZH113..LHD..(GCC,GEN);LH102,104,112,113,114,RZH10#,112,115..LHD..SRF..(DX,SGL,STD)..(CBR,DSL) W(*ELR) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-95J20 |
RZH105,115..STD..CIS;RZH103,105,115..LHD..CBR;LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-95J18 |
RZH103..4D..SG..CBR;LH102,104,105,11#,166,174,176,RZH102,104,105,11#..LHD |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-95J0013 |
RZH103,113..SG..ARL;LH102,104,112,114,RZH102,104,112,114..LHD GRAY,TRIM1# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-95J0003 |
LH10#,11#,RZH10#,11# GRAY,TRIM1# |
1 | ||
| 71831-95J00B0 |
RZH114..15S;LH154,174..11S,12S,15S;LH10#,11#,125,16#,172,176,184,RZH10#,112,113,115,125,135,155..DX,GL,STD BLUISH GRAY,TRIM1# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-95J0103 |
RZH103..GL;LH102,104,112,114,RZH102,104,112,114..LHD GRAY,TRIM1# |
1 | ||
| 71832-95J01B0 |
RZH153;RZH105,115..STD..CIS;LH174,RZH113..LHD..(03S,06S,10S);LH102,104,105,11#,166,176,RZH10#,112,114,115..LHD..(CBR,DSL) BLUISH GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-95J3403 |
LH102,104,112,114,RZH102,104,112,114..LHD GRAY,TRIM1#,RH & LH |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-95J3403 |
LH102,104,112,114,RZH102,104,112,114..LHD GRAY,TRIM1#,RH & LH |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-95J3403 |
LH102,104,112,114,RZH102,104,112,114..LHD GRAY,TRIM1#,RH & LH |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71990-3002033 |
RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71956-3002033 |
RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71990-3002033 |
RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71956-3002033 |
RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71990-3002033 |
RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71956-3002033 |
RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71990-3002033 |
RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71956-3002033 |
RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71990-3002033 |
RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71956-3002033 |
RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71990-3002033 |
RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71956-3002033 |
RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-95J05 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(05S,09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-95J02 |
RZH103..4D..SG..CBR;LH102,104,105,11#,RZH102,104,105,11#..LHD |
1 | ||
| 72140-95J02 |
RZH153;RZH105,115..STD..CIS;LH174,RZH113..LHD..(03S,06S,10S);LH102,104,105,11#,166,176,RZH10#,112,114,115..LHD..(CBR,DSL) |
1 | ||
| 72213 - KNOB, SEAT TRACK ADJUSTING HANDLE | ||||
| 72213-12040 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 72213-12040 |
RZH112..5D;LH174,RZH102..STD;RZH112,114,115..03S,15S;LH10#,11#,125,16#,172,176,184,RZH103,104,105,113,125,135,153..03S,06S,10S,12S,14S,15S |
1 | ||
| 72213 - KNOB, SEAT TRACK ADJUSTING HANDLE | ||||
| 72213-12040 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 72213-12040 |
RZH112..5D;LH174,RZH102..STD;RZH112,114,115..03S,15S;LH10#,11#,125,16#,172,176,184,RZH103,104,105,113,125,135,153..03S,06S,10S,12S,14S,15S |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95J01B0 |
LH10#,11#,125,RZH10#,11#,125 BLUISH GRAY,TRIM1# |
1 | ||
| 72525-95J01B0 |
LH10#,11#,125,166,172,176,184,RZH10#,11#,125,153..03S,06S,12S,14S,15S BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-08109 | ||||
| 90105-10261 | ||||
| 90119-08026 | ||||
| 90119-10101 | ||||
| 90119-10229 | ||||
| 90167-40044 | ||||
| 90179-10073 | ||||
| 90386-10027 | ||||
| 90386-12036 | ||||
| 90386-12051 | ||||
| 90467-08008 | ||||
| 90468-18071 | ||||
| 93540-54012 | ||||
(8908-9808)LH102,103,112,113,RZH102,103,112,113..SG
REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71334A - STOPPER, REAR SEAT LEG | ||||
| 71334-95J00 |
RZH102..4D..06S;LH102,103,112,113,RZH112..RHD..06S |
2 | ||
| 71409 - STOPPER SUB-ASSY, REAR SEAT BACK | ||||
| 71409-95J04 |
LH102,103,112,113,RZH102,112..4D..06S |
1 | ||
| 71434 - PIN, REAR SEAT CUSHION LEG, REAR | ||||
| 71434-95701 |
LH102,103,112,113,RZH102,112..4D..06S |
2 | ||
| 71434-95701 |
LH10#,11#,125,RZH10#,11#,125..06S,12S,14S,15S |
2 | ||
| 71448 - STOPPER, REAR SEAT BACK | ||||
| 71448-9570313 |
LH102,103,112,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 71617 - PROTECTOR, REAR SEAT BACK | ||||
| 71695-95J0203 |
LH102,103,112,113,RZH102,103,112,113..SG GRAY,TRIM1# |
1 | ||
| 71695-95J02B0 |
LH102,103,112,113,RZH102,103,112,113..06S BLUISH GRAY,TRIM1# |
1 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-95J02 |
LH103,104,105,113,114,115,125,RZH102,104,112,114,125..4D..SG 30 X 45 |
1 | ||
| 71621-95701 |
RZH102..06S..4F;RZH102,113..LHD..06S..5F;LH102,103,112,113,RZH112..06S 20 X 30 |
6 | ||
| 71621-95701 |
LH102,103,112,113,RZH102,103,112,113..SG..(SGL,STD) 20 X 30 |
6 | ||
| 71621-95701 |
LH102,103,112,113,125,172,184,RZH102,103,112,113..06S,15S 20 X 30 |
6 | ||
| 72050 - BELT ASSY, REAR SEAT HOOK | ||||
| 72050-95J01 |
LH102,103,112,113,RZH102,103,112,113..06S TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 72050-95J00 |
RZH102..06S..4F;RZH102..LHD..06S..5F;LH102,103,112,113,RZH112..06S TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 72050-95J01 |
RZH102..06S..4F;RZH102..LHD..06S..5F;LH102,103,112,113,RZH112..06S TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 72050-95J00 |
LH102,103,112,113,RZH102,103,112,113..06S TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 72050 - BELT ASSY, REAR SEAT HOOK | ||||
| 72050-95J01 |
LH102,103,112,113,RZH102,103,112,113..06S TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 72050-95J00 |
RZH102..06S..4F;RZH102..LHD..06S..5F;LH102,103,112,113,RZH112..06S TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 72050-95J01 |
RZH102..06S..4F;RZH102..LHD..06S..5F;LH102,103,112,113,RZH112..06S TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 72050-95J00 |
LH102,103,112,113,RZH102,103,112,113..06S TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 72050 - BELT ASSY, REAR SEAT HOOK | ||||
| 72050-95J01 |
LH102,103,112,113,RZH102,103,112,113..06S TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 72050-95J00 |
RZH102..06S..4F;RZH102..LHD..06S..5F;LH102,103,112,113,RZH112..06S TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 72050-95J01 |
RZH102..06S..4F;RZH102..LHD..06S..5F;LH102,103,112,113,RZH112..06S TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 72050-95J00 |
LH102,103,112,113,RZH102,103,112,113..06S TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 72050 - BELT ASSY, REAR SEAT HOOK | ||||
| 72050-95J01 |
LH102,103,112,113,RZH102,103,112,113..06S TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 72050-95J00 |
RZH102..06S..4F;RZH102..LHD..06S..5F;LH102,103,112,113,RZH112..06S TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 72050-95J01 |
RZH102..06S..4F;RZH102..LHD..06S..5F;LH102,103,112,113,RZH112..06S TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 72050-95J00 |
LH102,103,112,113,RZH102,103,112,113..06S TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 72066 - BELT SUB-ASSY, REAR SEAT HOOK, LH | ||||
| 72066-95J03 |
RZH102..4D..06S;LH102,103,112,113,RZH112..RHD..06S |
1 | ||
| 72213A - KNOB, SEAT TRACK ADJUSTING HANDLE | ||||
| 72213-95J0003 |
RZH102,112..LHD..06S GRAY,TRIM1# |
1 | ||
| 72213-95J00B0 |
LH102,103,112,113,172,RZH102,103,112,113..06S BLUISH GRAY,TRIM1# |
1 | ||
| 72213-12040 |
RZH102..4D..06S;LH102,103,112,113,RZH112..RHD..06S |
1 | ||
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79011-95N3703 |
LH102,103,112,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 79011-95N4003 |
LH103,113,RZH102,112..4D..06S HONG KONG SPEC,GRAY,TRIM1# |
1 | ||
| 79011-95N1803 |
RZH102,112..LHD..06S GRAY,TRIM1# |
1 | ||
| 79011-26012B1 |
LH102,103,112,113,172,RZH102,103,112,113..06S..GEN SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79011-26022B0 |
LH102,103,112,113,172,RZH102,103,112,113..06S..GEN W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79013A - COVER SUB-ASSY, NO.1 SEAT BACK | ||||
| 79013-95N1103 |
RZH102,112..LHD..06S GRAY,TRIM1# |
1 | ||
| 79013-95N2003 |
LH102,103,112,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 79013-95N1103 |
LH103,113,RZH102,112..4D..06S HONG KONG SPEC,GRAY,TRIM1# |
1 | ||
| 79013-26052B1 |
LH102,103,112,113,172,RZH102,103,112,113..06S..GEN W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26042B1 |
LH102,103,112,113,172,RZH102,103,112,113..06S..GEN SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79120A - CUSHION ASSY, NO.1 SEAT | ||||
| 79120-95N5003 |
LH103,113,RZH102,112..4D..06S HONG KONG SPEC,GRAY,TRIM1# |
1 | ||
| 79120-95N2903 |
RZH102,112..LHD..06S GRAY,TRIM1# |
1 | ||
| 79120-26250B8 |
LH102,112,RZH102,112..LHD..06S BLUISH GRAY,TRIM1# |
1 | ||
| 79120-95N4703 |
LH102,103,112,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 79120-26250B9 |
LH102,112,RZH102,112..LHD..06S BLUISH GRAY,TRIM1# |
1 | ||
| 79120-26231B6 |
LH102,103,112,113,172,RZH102,103,112,113..06S..GEN W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79120-26371B2 |
LH102,103,112,113,172,RZH102,103,112,113..06S..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79120B - LEG ASSY, NO.1 SEAT, LH | ||||
| 79120-95N28 |
RZH102..4D..06S;LH102,103,112,113,RZH112..RHD..06S |
1 | ||
| 79135 - PAD, NO.1 SEAT CUSHION | ||||
| 79135-95J03 |
RZH102..06S..4F;RZH102..LHD..5F;LH102,103,112,113,RZH112..06S |
1 | ||
| 79135-26011 |
LH102,103,112,113,172,RZH102,103,112,113..06S |
1 | ||
| 79140A - BACK ASSY, NO.1 SEAT | ||||
| 79140-95N4303 |
LH102,103,112,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 79140-95N2303 |
LH103,113,RZH102,112..4D..06S HONG KONG SPEC,GRAY,TRIM1# |
1 | ||
| 79140-95N2303 |
RZH102,112..LHD..06S GRAY,TRIM1# |
1 | ||
| 79140-26230B8 |
LH102,112,RZH102,112..LHD..06S BLUISH GRAY,TRIM1# |
1 | ||
| 79140-26230B9 |
RZH112..GL;LH102,112,RZH102..LHD..06S BLUISH GRAY,TRIM1# |
1 | ||
| 79140-26201B6 |
LH102,103,112,113,172,RZH102,103,112,113..06S..GEN W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79140-26341B2 |
LH102,103,112,113,172,RZH102,103,112,113..06S..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79160 - SPRING ASSY, NO.1 SEAT CUSHION | ||||
| 79160-95J55B1 |
LH103,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 79160-95J45 |
LH102,112,RZH102,112,113..LHD..06S |
1 | ||
| 79160-95J44 |
RZH102..4D..06S;LH102,103,112,113,RZH112..RHD..06S |
1 | ||
| 79160-26160 |
LH102,103,112,113,172,RZH102,103,112,113..06S |
1 | ||
| 79175 - PAD, NO.1 SEAT BACK | ||||
| 79175-95J02 |
LH102,103,112,113,RZH102,112..4D..06S |
1 | ||
| 79175-95J26 |
LH112,RZH102,112,113..LHD..06S |
1 | ||
| 79175-95J26 |
LH103,113,RZH102,112..4D..06S HONG KONG SPEC |
1 | ||
| 79175-26021 |
LH102,112,RZH102,112,113..LHD..06S |
1 | ||
| 79175-95J26 |
LH102,112,RZH102,112,113..LHD..06S |
1 | ||
| 79180 - SPRING ASSY, NO.1 SEAT BACK | ||||
| 79180-95J20 |
LH103,113,RZH102,112..4D..06S HONG KONG SPEC |
1 | ||
| 79180-95J21 |
RZH102..4D..06S;LH102,103,112,113,RZH112..RHD..06S |
1 | ||
| 79180-95J20 |
LH102,112,RZH102,112,113..LHD..06S |
1 | ||
| 79180-95J20 |
LH112,RZH102,112,113..LHD..06S |
1 | ||
| 79103-26150 |
LH102,103,112,113,172,RZH102,103,112,113..06S |
1 | ||
| 79189 - STOPPER, NO.1 SEAT LEG | ||||
| 71334-95J01 |
LH102,103,112,113,RZH102,112..4D..06S L=40 |
2 | ||
| 71334-95703 |
RZH112..EFI;LH112,RZH112..5D;LH102,103,113,RZH102,103,113..06S L=25 |
2 | ||
| 71334-95703 |
LH113,RZH112..06S..(DSL,EFI);LH102,112,RZH102,112,113..LHD..06S L=25 |
2 | ||
| 79189-95J00 |
LH103,104,105,113,114,115,125,RZH10#,11#,125..SG |
2 | ||
| 71334-26050 |
LH102,103,112,113,172,RZH102,103,112,113..06S |
2 | ||
| 79199 - HOLDER, NO.1 SEAT LEG STOPPER | ||||
| 79199-95J00 |
LH103,104,105,113,114,115,125,RZH10#,11#,125..SG L=38 |
2 | ||
| 79199-95J00 |
RZH112..EFI;LH112,RZH112..5D;LH10#,113,114,115,125,RZH10#,113,114,115,125..SG..STD L=38 |
2 | ||
| 79199-95J01 |
LH102,103,112,113,RZH102,112..4D..06S L=23 |
2 | ||
| 79199-95J00 |
RZH113..06S..CBR;LH10#,11#,125,166,172,176,184,RZH10#,112,114,115,125..06S,12S,14S,15S |
2 | ||
| 79199-95J00 |
RZH104..STD;RZH112..EFI;LH112,RZH112,114..LHD..SG..GEN;LH10#,113,114,115,125,RZH102,103,105,113,115..(SMRF,SRF)..(06S,12S,15S)..(CBR,DSL) L=38 |
2 | ||
| 79199-95J00 |
RZH112,113..5D..06S;RZH113,114..08S,15S;LH174,RZH102..SG..STD;LH10#,11#,125,16#,172,176,184,RZH103,104,105,115,125..(06S,10S,12S,14S,15S)..(GL,STD) |
2 | ||
| Common parts | ||||
| 90109-08150 | ||||
| 90119-10607 | ||||
| 90149-10008 | ||||
| 90159-60126 | ||||
| 90202-13066 | ||||
| 90206-16025 | ||||
| 90468-18071 | ||||
| 90523-06017 | ||||
| 93315-16016 | ||||
| 93530-44016 | ||||
| 93560-14012 | ||||
| 94511-00800 | ||||
(9808- )06S
REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71350B - HINGE ASSY, REAR SEAT, RH | ||||
| 71350-95J48 |
LH103,113,RZH102,112..4D..06S |
1 | ||
| 71350-95J47 |
LH102,112,RZH102,112,113..LHD..06S |
1 | ||
| 71360A - HINGE ASSY, REAR SEAT, LH | ||||
| 71360-95J20 |
LH102,112,RZH102,112,113..LHD..06S |
1 | ||
| 71360-95J21 |
LH103,113,RZH102,112..4D..06S |
1 | ||
| 71485 - COVER, REAR SEAT HINGE | ||||
| 71485-95J0003 |
RZH102,112..LHD..06S GRAY,TRIM1# |
1 | ||
| 71485-95J0103 |
LH103,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 71486C - COVER, REAR SEAT HINGE, LH | ||||
| 71486-95J0203 |
RZH102..06S..4F;RZH102..LHD..06S..5F;LH103,113,RZH112..06S GRAY,TRIM1# |
1 | ||
| 71486-95J02B0 |
LH102,112,RZH102,112,113..LHD..06S BLUISH GRAY,TRIM1# |
1 | ||
| 71486-95J02B0 |
LH113,RZH112,113..06S..(DSL,EFI);LH102,112,RZH102,112,113..LHD..06S BLUISH GRAY,TRIM1# |
1 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-95J02 |
LH103,104,105,113,114,115,125,RZH102,104,112,114,125..4D..SG 30 X 45 |
1 | ||
| 71621-95701 |
RZH102..06S..4F;RZH102,113..LHD..06S..5F;LH102,103,112,113,RZH112..06S 20 X 30 |
6 | ||
| 71621-95701 |
LH102,103,112,113,RZH102,103,112,113..SG..(SGL,STD) 20 X 30 |
6 | ||
| 71621-95701 |
LH102,103,112,113,125,172,184,RZH102,103,112,113..06S,15S 20 X 30 |
6 | ||
| 72213A - KNOB, SEAT TRACK ADJUSTING HANDLE | ||||
| 72213-95J0003 |
RZH102,112..LHD..06S GRAY,TRIM1# |
1 | ||
| 72213-95J00B0 |
LH102,103,112,113,172,RZH102,103,112,113..06S BLUISH GRAY,TRIM1# |
1 | ||
| 72213-12040 |
RZH102..4D..06S;LH102,103,112,113,RZH112..RHD..06S |
1 | ||
| 72613A - STRIKER, FRONT SEAT LOCK | ||||
| 72613-26060 |
LH102,103,112,113,172,RZH102,103,112,113..06S |
2 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-26030 |
LH102,103,112,113,172,RZH102,103,112,113..06S |
2 | ||
| 72658B - KNOB, REAR SEAT LOCK HANDLE | ||||
| 72658-9570111 |
RZH112..5D;LH154,174,RZH115,155..11S,12S,15S;LH102,103,11#,162,172,176,184,RZH102,103,113,114..06S,09S,10S,15S BLUISH GRAY,TRIM1# |
2 | ||
| 72658-9570111 |
LH102,103,11#,172,176,184,RZH102,103,11#..SG..(GL,STD) BLUISH GRAY,TRIM1# |
2 | ||
| 72665B - COVER, REAR SEAT BACK LOCK | ||||
| 72665-26010B0 |
LH102,103,112,113,172,RZH102,103,112,113..06S BLUISH GRAY,TRIM1# |
2 | ||
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79011-95N3703 |
LH102,103,112,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 79011-95N4003 |
LH103,113,RZH102,112..4D..06S HONG KONG SPEC,GRAY,TRIM1# |
1 | ||
| 79011-95N1803 |
RZH102,112..LHD..06S GRAY,TRIM1# |
1 | ||
| 79011-26012B1 |
LH102,103,112,113,172,RZH102,103,112,113..06S..GEN SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79011-26022B0 |
LH102,103,112,113,172,RZH102,103,112,113..06S..GEN W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79013A - COVER SUB-ASSY, NO.1 SEAT BACK | ||||
| 79013-95N1103 |
RZH102,112..LHD..06S GRAY,TRIM1# |
1 | ||
| 79013-95N2003 |
LH102,103,112,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 79013-95N1103 |
LH103,113,RZH102,112..4D..06S HONG KONG SPEC,GRAY,TRIM1# |
1 | ||
| 79013-26052B1 |
LH102,103,112,113,172,RZH102,103,112,113..06S..GEN W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26042B1 |
LH102,103,112,113,172,RZH102,103,112,113..06S..GEN SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79107A - LEG SUB-ASSY, NO.1 SEAT, REAR | ||||
| 79107-26090 |
LH102,103,112,113,172,RZH102,103,112,113..06S |
1 | ||
| 79120A - CUSHION ASSY, NO.1 SEAT | ||||
| 79120-95N5003 |
LH103,113,RZH102,112..4D..06S HONG KONG SPEC,GRAY,TRIM1# |
1 | ||
| 79120-95N2903 |
RZH102,112..LHD..06S GRAY,TRIM1# |
1 | ||
| 79120-26250B8 |
LH102,112,RZH102,112..LHD..06S BLUISH GRAY,TRIM1# |
1 | ||
| 79120-95N4703 |
LH102,103,112,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 79120-26250B9 |
LH102,112,RZH102,112..LHD..06S BLUISH GRAY,TRIM1# |
1 | ||
| 79120-26231B6 |
LH102,103,112,113,172,RZH102,103,112,113..06S..GEN W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79120-26371B2 |
LH102,103,112,113,172,RZH102,103,112,113..06S..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79135 - PAD, NO.1 SEAT CUSHION | ||||
| 79135-95J03 |
RZH102..06S..4F;RZH102..LHD..5F;LH102,103,112,113,RZH112..06S |
1 | ||
| 79135-26011 |
LH102,103,112,113,172,RZH102,103,112,113..06S |
1 | ||
| 79140A - BACK ASSY, NO.1 SEAT | ||||
| 79140-95N4303 |
LH102,103,112,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 79140-95N2303 |
LH103,113,RZH102,112..4D..06S HONG KONG SPEC,GRAY,TRIM1# |
1 | ||
| 79140-95N2303 |
RZH102,112..LHD..06S GRAY,TRIM1# |
1 | ||
| 79140-26230B8 |
LH102,112,RZH102,112..LHD..06S BLUISH GRAY,TRIM1# |
1 | ||
| 79140-26230B9 |
RZH112..GL;LH102,112,RZH102..LHD..06S BLUISH GRAY,TRIM1# |
1 | ||
| 79140-26201B6 |
LH102,103,112,113,172,RZH102,103,112,113..06S..GEN W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79140-26341B2 |
LH102,103,112,113,172,RZH102,103,112,113..06S..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79160 - SPRING ASSY, NO.1 SEAT CUSHION | ||||
| 79160-95J55B1 |
LH103,113,RZH102,112..4D..06S GRAY,TRIM1# |
1 | ||
| 79160-95J45 |
LH102,112,RZH102,112,113..LHD..06S |
1 | ||
| 79160-95J44 |
RZH102..4D..06S;LH102,103,112,113,RZH112..RHD..06S |
1 | ||
| 79160-26160 |
LH102,103,112,113,172,RZH102,103,112,113..06S |
1 | ||
| 79175 - PAD, NO.1 SEAT BACK | ||||
| 79175-95J02 |
LH102,103,112,113,RZH102,112..4D..06S |
1 | ||
| 79175-95J26 |
LH112,RZH102,112,113..LHD..06S |
1 | ||
| 79175-95J26 |
LH103,113,RZH102,112..4D..06S HONG KONG SPEC |
1 | ||
| 79175-26021 |
LH102,112,RZH102,112,113..LHD..06S |
1 | ||
| 79175-95J26 |
LH102,112,RZH102,112,113..LHD..06S |
1 | ||
| 79180 - SPRING ASSY, NO.1 SEAT BACK | ||||
| 79180-95J20 |
LH103,113,RZH102,112..4D..06S HONG KONG SPEC |
1 | ||
| 79180-95J21 |
RZH102..4D..06S;LH102,103,112,113,RZH112..RHD..06S |
1 | ||
| 79180-95J20 |
LH102,112,RZH102,112,113..LHD..06S |
1 | ||
| 79180-95J20 |
LH112,RZH102,112,113..LHD..06S |
1 | ||
| 79103-26150 |
LH102,103,112,113,172,RZH102,103,112,113..06S |
1 | ||
| 79189 - STOPPER, NO.1 SEAT LEG | ||||
| 71334-95J01 |
LH102,103,112,113,RZH102,112..4D..06S L=40 |
2 | ||
| 71334-95703 |
RZH112..EFI;LH112,RZH112..5D;LH102,103,113,RZH102,103,113..06S L=25 |
2 | ||
| 71334-95703 |
LH113,RZH112..06S..(DSL,EFI);LH102,112,RZH102,112,113..LHD..06S L=25 |
2 | ||
| 79189-95J00 |
LH103,104,105,113,114,115,125,RZH10#,11#,125..SG |
2 | ||
| 71334-26050 |
LH102,103,112,113,172,RZH102,103,112,113..06S |
2 | ||
| 79199 - HOLDER, NO.1 SEAT LEG STOPPER | ||||
| 79199-95J00 |
LH103,104,105,113,114,115,125,RZH10#,11#,125..SG L=38 |
2 | ||
| 79199-95J00 |
RZH112..EFI;LH112,RZH112..5D;LH10#,113,114,115,125,RZH10#,113,114,115,125..SG..STD L=38 |
2 | ||
| 79199-95J01 |
LH102,103,112,113,RZH102,112..4D..06S L=23 |
2 | ||
| 79199-95J00 |
RZH113..06S..CBR;LH10#,11#,125,166,172,176,184,RZH10#,112,114,115,125..06S,12S,14S,15S |
2 | ||
| 79199-95J00 |
RZH104..STD;RZH112..EFI;LH112,RZH112,114..LHD..SG..GEN;LH10#,113,114,115,125,RZH102,103,105,113,115..(SMRF,SRF)..(06S,12S,15S)..(CBR,DSL) L=38 |
2 | ||
| 79199-95J00 |
RZH112,113..5D..06S;RZH113,114..08S,15S;LH174,RZH102..SG..STD;LH10#,11#,125,16#,172,176,184,RZH103,104,105,115,125..(06S,10S,12S,14S,15S)..(GL,STD) |
2 | ||
| Common parts | ||||
| 90119-10229 | ||||
| 90119-10409 | ||||
| 90119-10412 | ||||
| 90119-11029 | ||||
| 90164-50020 | ||||
| 90167-40044 | ||||
| 90249-08106 | ||||
| 90507-26009 | ||||
| 90523-06017 | ||||
| 90950-01913 | ||||
| 91612-B1020 | ||||
| 91616-61025 | ||||
ILLUST NO. 2 OF 4(8908- )06S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-10116 | ||||
| 90119-10185 | ||||
| 90167-40044 | ||||
| 90202-08056 | ||||
| 90249-08204 | ||||
| 90468-18071 | ||||
| 90523-06017 | ||||
| 90950-01510 | ||||
| 91616-61025 | ||||
| 91651-60816 | ||||
| 93315-16016 | ||||
| 93530-44016 | ||||
| 94541-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
