RZH102L-RGMGS (1998)

Toyota Hiace Van,Commuter

Production Aug 1998 - Aug 2004
Engine 1RZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

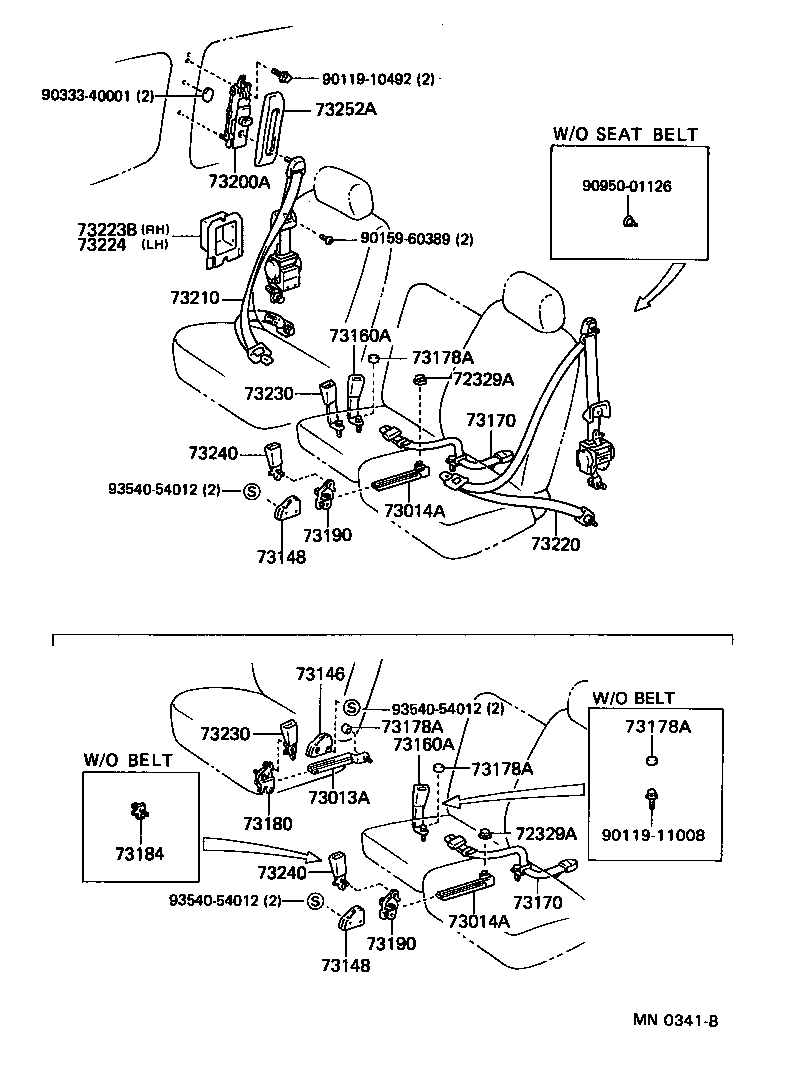

ILLUST NO. 1 OF 2(8908- )LHD

Click highlighted areas on diagram

diagram 72329A 72329A 73013A 73014A 73014A 73146 73148 73148 73160A 73160A 73170 73170 73178A 73178A 73178A 73180 73190 73190 73210 73220 73223B 73224 73230 73230 73240 73240 9010511036 9010511036 9011911008 9015960389 9033340001 9095001126 9354054012 9354054012 9354054012
Part # Description Qty Price
72329A - COVER, SEAT ADJUSTER BOLT
72329-87001

RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD

 1
72329A - COVER, SEAT ADJUSTER BOLT
72329-87001

RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD

 1
73013A - PLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH
73013-95J0103

RZH103..GL;RZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..GEN

GRAY,TRIM1#

 1
73014A - PLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH
73014-95J0003

LH102,104,112,114,RZH102,104,112,114..LHD

GRAY,TRIM1#

 1
73014A - PLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH
73014-95J0003

LH102,104,112,114,RZH102,104,112,114..LHD

GRAY,TRIM1#

 1
73146 - COVER, FRONT SEAT BELT INNER ANCHOR BRACKET, RH
73146-95J00B1

RZH114..15S;RZH112..RHD..03S;RZH115..STD..CIS;LH103,112,172,RZH113..RHD;RZH115..(10S,15S)..(GL,SGL);LH174,RZH102,115..(10S,12S,15S)..(CIS,GEN)..(CBR,DSL);LH104,105,113,114,115,125,154,16#,176,184,RZH103,104,105,125,135,155..(03S,06S,09S,11S,12S,14S,15S)..(ARL,CIS,GEN)

SHADOW GRAY,TRIM1#

 1
73148 - COVER, FRONT SEAT BELT INNER ANCHOR BRACKET, LH
73148-95J0003

LH102,104,112,114,RZH102,104,112,114..LHD

GRAY,TRIM1#

 1
73148 - COVER, FRONT SEAT BELT INNER ANCHOR BRACKET, LH
73148-95J0003

LH102,104,112,114,RZH102,104,112,114..LHD

GRAY,TRIM1#

 1
73160A - SEAT BELT ASSY, FRONT CENTER, RH
73160-26100B0

LH102,104,105,11#,166,176,RZH10#,11#..LHD

BLUISH GRAY,TRIM1#

 1
73160A - SEAT BELT ASSY, FRONT CENTER, RH
73160-26100B0

LH102,104,105,11#,166,176,RZH10#,11#..LHD

BLUISH GRAY,TRIM1#

 1
73170 - BELT ASSY, FRONT CENTER, LH
73170-95J1603

RZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..GEN

GRAY,TRIM1#

 1
73170-26120B0

LH102,104,105,11#,166,176,RZH10#,11#..LHD

BLUISH GRAY,TRIM1#

 1
73170-26120B1

LH114,174..LHD..15S;LH102,104,105,112,113,115,164,166,172,176,RZH10#,11#,155..LHD..(03S,06S,09S,10S,12S,15S)..(GL,STD)

BLUISH GRAY,TRIM1#

 1
73170 - BELT ASSY, FRONT CENTER, LH
73170-95J1603

RZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..GEN

GRAY,TRIM1#

 1
73170-26120B0

LH102,104,105,11#,166,176,RZH10#,11#..LHD

BLUISH GRAY,TRIM1#

 1
73170-26120B1

LH114,174..LHD..15S;LH102,104,105,112,113,115,164,166,172,176,RZH10#,11#,155..LHD..(03S,06S,09S,10S,12S,15S)..(GL,STD)

BLUISH GRAY,TRIM1#

 1
73178A - CAP, SEAT BELT ANCHOR COVER
73178-95J00

LH125..ARL;LH10#,11#,RZH10#,11#,125

 2
73178-95J00

RZH102..RHD;RZH115..GEN..CBR;RZH113..4D..STD..EFI;RZH105,115..STD..CIS;LH172..RHD..SRF..4D..STD..GEN;LH172,174,184,RZH102,103,105..(03S,09S,10S,12S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH103,104,112,114,125,135,153..(03S,06S,12S,14S,15S)..(ARL,CIS,GEN)

 1
73178-95J00

LH172,RZH105..RHD;RZH112,115..LHD..(06S,10S,12S);RZH112,115..(03S,15S)..GEN..CBR;LH172,RZH102,155..LHD..4D..(03S,10S,11S);LH102,103,104,11#,125,154,162,174,184,RZH103,104,113,114,125,135,153..ARL,GEN

 1
73178A - CAP, SEAT BELT ANCHOR COVER
73178-95J00

LH125..ARL;LH10#,11#,RZH10#,11#,125

 2
73178-95J00

RZH102..RHD;RZH115..GEN..CBR;RZH113..4D..STD..EFI;RZH105,115..STD..CIS;LH172..RHD..SRF..4D..STD..GEN;LH172,174,184,RZH102,103,105..(03S,09S,10S,12S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH103,104,112,114,125,135,153..(03S,06S,12S,14S,15S)..(ARL,CIS,GEN)

 1
73178-95J00

LH172,RZH105..RHD;RZH112,115..LHD..(06S,10S,12S);RZH112,115..(03S,15S)..GEN..CBR;LH172,RZH102,155..LHD..4D..(03S,10S,11S);LH102,103,104,11#,125,154,162,174,184,RZH103,104,113,114,125,135,153..ARL,GEN

 1
73178A - CAP, SEAT BELT ANCHOR COVER
73178-95J00

LH125..ARL;LH10#,11#,RZH10#,11#,125

 2
73178-95J00

RZH102..RHD;RZH115..GEN..CBR;RZH113..4D..STD..EFI;RZH105,115..STD..CIS;LH172..RHD..SRF..4D..STD..GEN;LH172,174,184,RZH102,103,105..(03S,09S,10S,12S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH103,104,112,114,125,135,153..(03S,06S,12S,14S,15S)..(ARL,CIS,GEN)

 1
73178-95J00

LH172,RZH105..RHD;RZH112,115..LHD..(06S,10S,12S);RZH112,115..(03S,15S)..GEN..CBR;LH172,RZH102,155..LHD..4D..(03S,10S,11S);LH102,103,104,11#,125,154,162,174,184,RZH103,104,113,114,125,135,153..ARL,GEN

 1
73180 - BRACKET ASSY, SEAT BELT INNER ANCHOR, RH
73011-12040

RZH114..15S;RZH112..RHD..03S;RZH115..STD..CIS;LH112,172,RZH113..RHD;RZH115..(10S,15S)..(GL,SGL);LH154,174,RZH102,115..(10S,11S,12S,15S)..(CIS,GEN)..(CBR,DSL);LH103,104,105,113,114,115,125,16#,176,184,RZH103,104,105,125,135,15#..(03S,06S,09S,11S,12S,14S,15S)..(ARL,CIS,GEN)

 1
73190 - BRACKET ASSY, SEAT BELT INNER ANCHOR, LH
73012-12040

RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD

 1
73190 - BRACKET ASSY, SEAT BELT INNER ANCHOR, LH
73012-12040

RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-95J2903

RZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN

W(*ELR),GRAY,TRIM1#

 1
73210-26400B0

LH174,RZH102,103,114,115..09S,10S,12S

BLUISH GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-95J2903

RZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN

W(*ELR),GRAY,TRIM1#

 1
73220-26300B0

LH172..06S;LH10#,11#,166,174,176,RZH10#,11#..(GL,STD)..(CIS,GCC,GEN)

MARK W:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM1#

 1
73223B - COVER, FRONT SEAT BELT RETRACTOR, RH
73223-95J01

LH125..ARL;LH10#,11#,RZH10#,11#,125

 1
73224 - COVER, FRONT SEAT BELT RETRACTOR, LH
73224-95J00

LH125..ARL;LH10#,11#,RZH10#,11#,125

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-95J1703

LH102,104,112,114,RZH102,104,112,114..LHD

GRAY,TRIM1#

 1
73230-26130B0

LH113..CIS;LH112,113,RZH102,112,113..RHD;RZH102,114,115..(10S,15S)..(CIS,GEN);LH103,104,105,114,115,125,166,17#,184,RZH103,104,105,125,135,153..ARL,CIS,GEN

W(PASSENGER SEAT=ADJUSTER TYPE),BLUISH GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-95J1703

LH102,104,112,114,RZH102,104,112,114..LHD

GRAY,TRIM1#

 1
73230-26130B0

LH113..CIS;LH112,113,RZH102,112,113..RHD;RZH102,114,115..(10S,15S)..(CIS,GEN);LH103,104,105,114,115,125,166,17#,184,RZH103,104,105,125,135,153..ARL,CIS,GEN

W(PASSENGER SEAT=ADJUSTER TYPE),BLUISH GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-95J3103

RZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..GEN

TYPE B:REFER TO ILLUSTRATION,GRAY,TRIM1#

 1
73240-95J2603

LH102,104,112,114,RZH102,104,112,114..LHD

GRAY,TRIM1#

 1
73240-26140B0

LH102,104,105,11#,166,174,176,RZH10#,11#..LHD..(CIS,GEN)

BLUISH GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-95J3103

RZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..GEN

TYPE B:REFER TO ILLUSTRATION,GRAY,TRIM1#

 1
73240-95J2603

LH102,104,112,114,RZH102,104,112,114..LHD

GRAY,TRIM1#

 1
73240-26140B0

LH102,104,105,11#,166,174,176,RZH10#,11#..LHD..(CIS,GEN)

BLUISH GRAY,TRIM1#

 1
Common parts
90105-11036
90119-11008
90159-60389
90333-40001
90950-01126
93540-54012

ILLUST NO. 1 OF 2(8908- )LHD

Click highlighted areas on diagram

diagram 72329A 72329A 73013A 73014A 73014A 73146 73148 73148 73160A 73160A 73170 73170 73178A 73178A 73178A 73178A 73180 73184 73190 73190 73200A 73210 73220 73223B 73224 73230 73230 73240 73240 73252A 9011910492 9011911008 9015960389 9033340001 9095001126 9354054012 9354054012 9354054012
Part # Description Qty Price
Common parts
90119-10492
90119-11008
90159-60389
90333-40001
90950-01126
93540-54012
