Toyota Hiace van,commuter RZH102 ROOF HEADLINING & SILENCER PAD

Manufacturers Home
Toyota
EU
HIACE VAN,COMMUTER
RZH102L-RGMGS (1998)
6452 - ROOF HEADLINING & SILENCER PAD

RZH102L-RGMGS (1998)

Toyota Hiace Van,Commuter

Production Aug 1998 - Aug 2004

Engine 1RZ

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

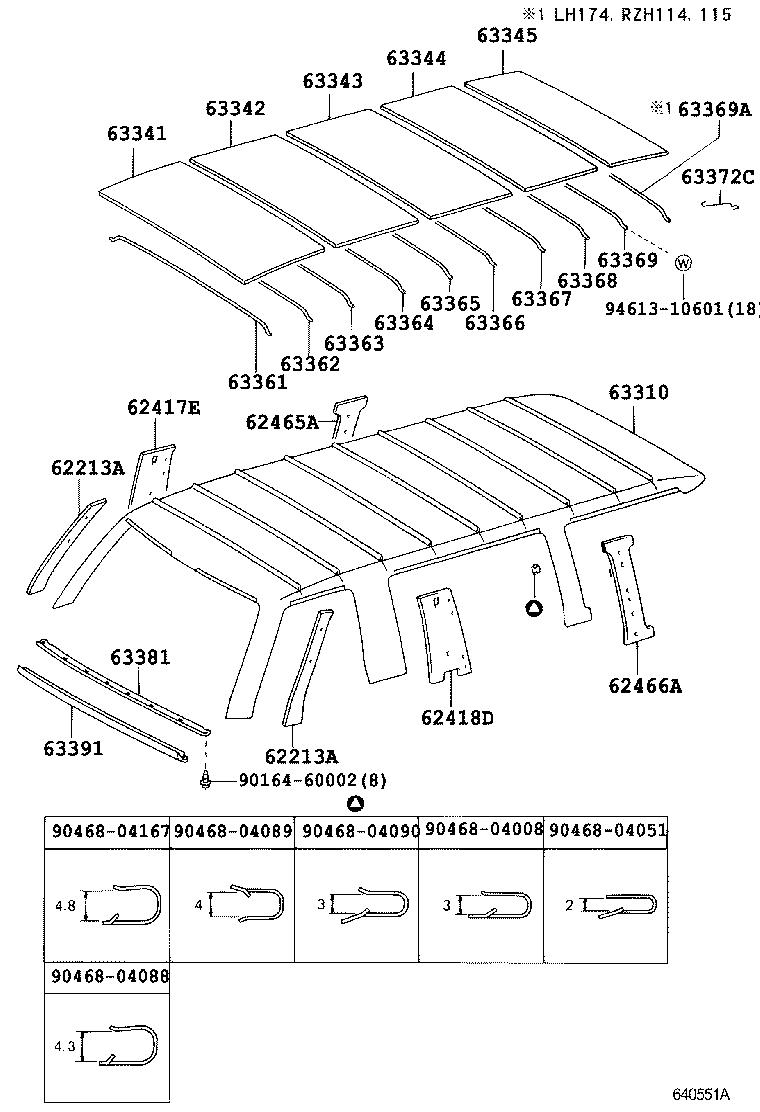

(8908- )GL,SGL ; (8908- )GCC..EFI ; (8908-)LH162..4FC..GEN ; (8908- )L

Click highlighted areas on diagram

LH104..GEN(PHILIPPINES SPEC)

Part #	Description	Period	Qty
62213A - PAD, FRONT PILLAR GARNISH
62213-95J01	LH102,174,RZH102,103,114,115..(05S,09S,10S,12S)..(CBR,DSL)	08/1989 - 07/1999	2
62213A - PAD, FRONT PILLAR GARNISH
62213-95J01	LH102,174,RZH102,103,114,115..(05S,09S,10S,12S)..(CBR,DSL)	08/1989 - 07/1999	2
62417E - PAD, CENTER PILLAR GARNISH, NO.1
62417-95J02	LH102,174,RZH102,103,114,115,135..(05S,09S,10S,12S)..(GL,SGL)	08/1989 - 07/1999	1
62418D - PAD, CENTER PILLAR GARNISH, NO.2
62418-95J02	LH102,174,RZH102,103,114,115,135..(05S,09S,10S,12S)..(GL,SGL)	08/1989 - 07/1999	1
62465A - PAD, QUARTER LOCK PILLAR, RH
62465-26010	LH174,RZH102,103..GL	08/1998 - 07/1999	1
62466A - PAD, QUARTER LOCK PILLAR, LH
62466-26010	LH174,RZH102,103..GL	08/1998 - 07/1999	1
63310 - HEADLINING ASSY, ROOF
63310-26700B0	RZH102,103..GL LT. BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
63310-26701B1	RZH102,103..GL LT. BLUISH GRAY,TRIM1#	07/1999 - 08/2004	1
63344 - PAD, ROOF SILENCER, NO.4
63343-26020	RZH102,103..GL	07/1999 - 08/2004	1
63345 - PAD, ROOF SILENCER, NO.5
63343-26020	RZH102,103..GL	07/1999 - 08/2004	1
63361 - SUPPORT, ROOF HEADLINING, NO.1
63361-95J03	RZH102..GL	07/1999 - 08/2004	1
63362 - SUPPORT, ROOF HEADLINING, NO.2
63361-95J03	LH102,174,RZH102,103,114,115..(05S,09S,10S,12S)..(CBR,DSL)	08/1989 - 07/1999	1
63363 - SUPPORT, ROOF HEADLINING, NO.3
63361-95J03	LH102,174,RZH102,103,114,115..(05S,09S,10S,12S)..(CBR,DSL)	08/1989 - 07/1999	1
63364 - SUPPORT, ROOF HEADLINING, NO.4
63361-95J03	LH102,174,RZH102,103,114,115..(05S,09S,10S,12S)..(CBR,DSL)	08/1989 - 07/1999	1
63365 - SUPPORT, ROOF HEADLINING, NO.5
63361-95J03	LH102,174,RZH102,103,114,115..(05S,09S,10S,12S)..(CBR,DSL)	08/1989 - 07/1999	1
63366 - SUPPORT, ROOF HEADLINING, NO.6
63361-95J03	LH102,174,RZH102,103,114,115..(05S,09S,10S,12S)..(CBR,DSL)	08/1989 - 07/1999	1
63367 - SUPPORT, ROOF HEADLINING, NO.7
63361-95J03	LH102,174,RZH102,103,114,115..(05S,09S,10S,12S)..(CBR,DSL)	08/1989 - 07/1999	1
63368 - SUPPORT, ROOF HEADLINING, NO.8
63361-95J03	LH102,174,RZH102,103,114,115..(05S,09S,10S,12S)..(CBR,DSL)	08/1989 - 07/1999	1
63369 - SUPPORT, ROOF HEADLINING, NO.9
63361-95J03	LH102,174,RZH102,103,114,115..(05S,09S,10S,12S)..(CBR,DSL)	08/1989 - 07/1999	1
63372C - HOOK, ROOF HEADLINING SUPPORT
63372-95J02	LH102,RZH102,103..GL,SGL	08/1989 - 07/1999	2
63372-95J02	RZH102,103..GL	07/1999 - 08/2004	2
Common parts
90164-60002
90468-04008
90468-04051
90468-04088
90468-04089
90468-04090
90468-04167
94613-10601

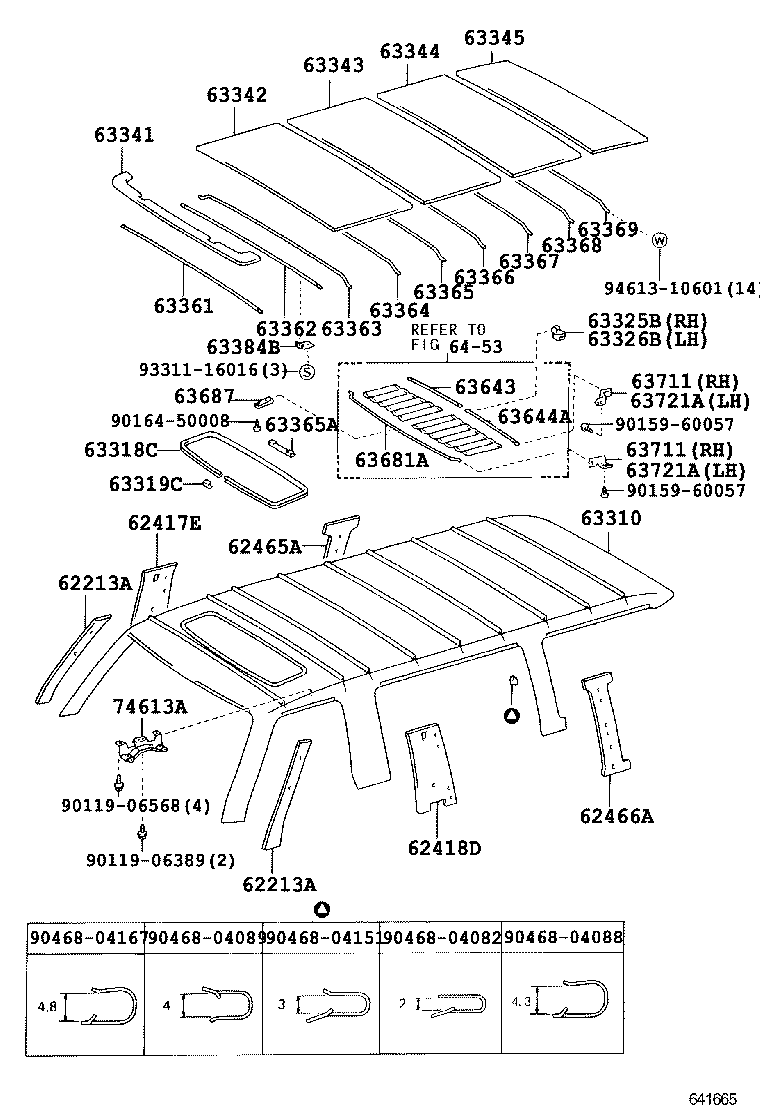

(8908- )GL

Click highlighted areas on diagram

W(MOON ROOF)

Part #	Description	Period	Qty
62213A - PAD, FRONT PILLAR GARNISH
62213-95J01	LH102,174,RZH102,103,114,115..(05S,09S,10S,12S)..(CBR,DSL)	08/1989 - 07/1999	2
62213A - PAD, FRONT PILLAR GARNISH
62213-95J01	LH102,174,RZH102,103,114,115..(05S,09S,10S,12S)..(CBR,DSL)	08/1989 - 07/1999	2
62417E - PAD, CENTER PILLAR GARNISH, NO.1
62417-95J02	LH102,174,RZH102,103,114,115,135..(05S,09S,10S,12S)..(GL,SGL)	08/1989 - 07/1999	1
62418D - PAD, CENTER PILLAR GARNISH, NO.2
62418-95J02	LH102,174,RZH102,103,114,115,135..(05S,09S,10S,12S)..(GL,SGL)	08/1989 - 07/1999	1
62465A - PAD, QUARTER LOCK PILLAR, RH
62465-26010	LH174,RZH102,103..GL	08/1998 - 07/1999	1
62466A - PAD, QUARTER LOCK PILLAR, LH
62466-26010	LH174,RZH102,103..GL	08/1998 - 07/1999	1
63310 - HEADLINING ASSY, ROOF
63310-26700B0	RZH102,103..GL LT. BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
63310-26701B1	RZH102,103..GL LT. BLUISH GRAY,TRIM1#	07/1999 - 08/2004	1
63344 - PAD, ROOF SILENCER, NO.4
63343-26020	RZH102,103..GL	07/1999 - 08/2004	1
63345 - PAD, ROOF SILENCER, NO.5
63343-26020	RZH102,103..GL	07/1999 - 08/2004	1
63361 - SUPPORT, ROOF HEADLINING, NO.1
63361-95J03	RZH102..GL	07/1999 - 08/2004	1
63362 - SUPPORT, ROOF HEADLINING, NO.2
63361-95J03	LH102,174,RZH102,103,114,115..(05S,09S,10S,12S)..(CBR,DSL)	08/1989 - 07/1999	1
63363 - SUPPORT, ROOF HEADLINING, NO.3
63361-95J03	LH102,174,RZH102,103,114,115..(05S,09S,10S,12S)..(CBR,DSL)	08/1989 - 07/1999	1
63364 - SUPPORT, ROOF HEADLINING, NO.4
63361-95J03	LH102,174,RZH102,103,114,115..(05S,09S,10S,12S)..(CBR,DSL)	08/1989 - 07/1999	1
63365 - SUPPORT, ROOF HEADLINING, NO.5
63361-95J03	LH102,174,RZH102,103,114,115..(05S,09S,10S,12S)..(CBR,DSL)	08/1989 - 07/1999	1
63366 - SUPPORT, ROOF HEADLINING, NO.6
63361-95J03	LH102,174,RZH102,103,114,115..(05S,09S,10S,12S)..(CBR,DSL)	08/1989 - 07/1999	1
63367 - SUPPORT, ROOF HEADLINING, NO.7
63361-95J03	LH102,174,RZH102,103,114,115..(05S,09S,10S,12S)..(CBR,DSL)	08/1989 - 07/1999	1
63368 - SUPPORT, ROOF HEADLINING, NO.8
63361-95J03	LH102,174,RZH102,103,114,115..(05S,09S,10S,12S)..(CBR,DSL)	08/1989 - 07/1999	1
63369 - SUPPORT, ROOF HEADLINING, NO.9
63361-95J03	LH102,174,RZH102,103,114,115..(05S,09S,10S,12S)..(CBR,DSL)	08/1989 - 07/1999	1
Common parts
90119-06389
90119-06568
90159-60057
90164-50008
90468-04082
90468-04088
90468-04089
90468-04151
90468-04167
93311-16016
94613-10601
Linked diagrams
6453

(8908- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
67771-16080
