RZH102L-RGMGS (1998)
Toyota Hiace Van,Commuter

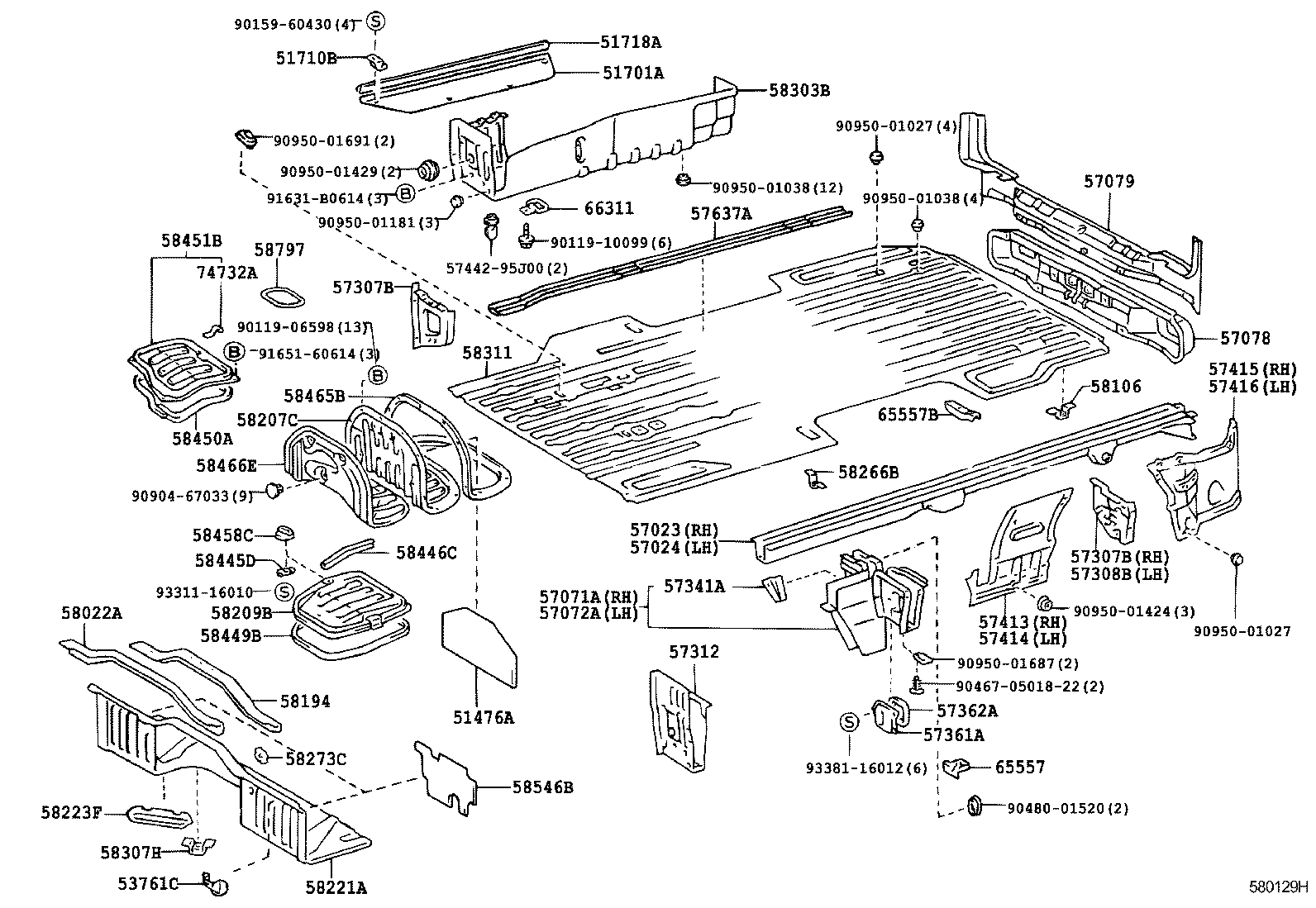

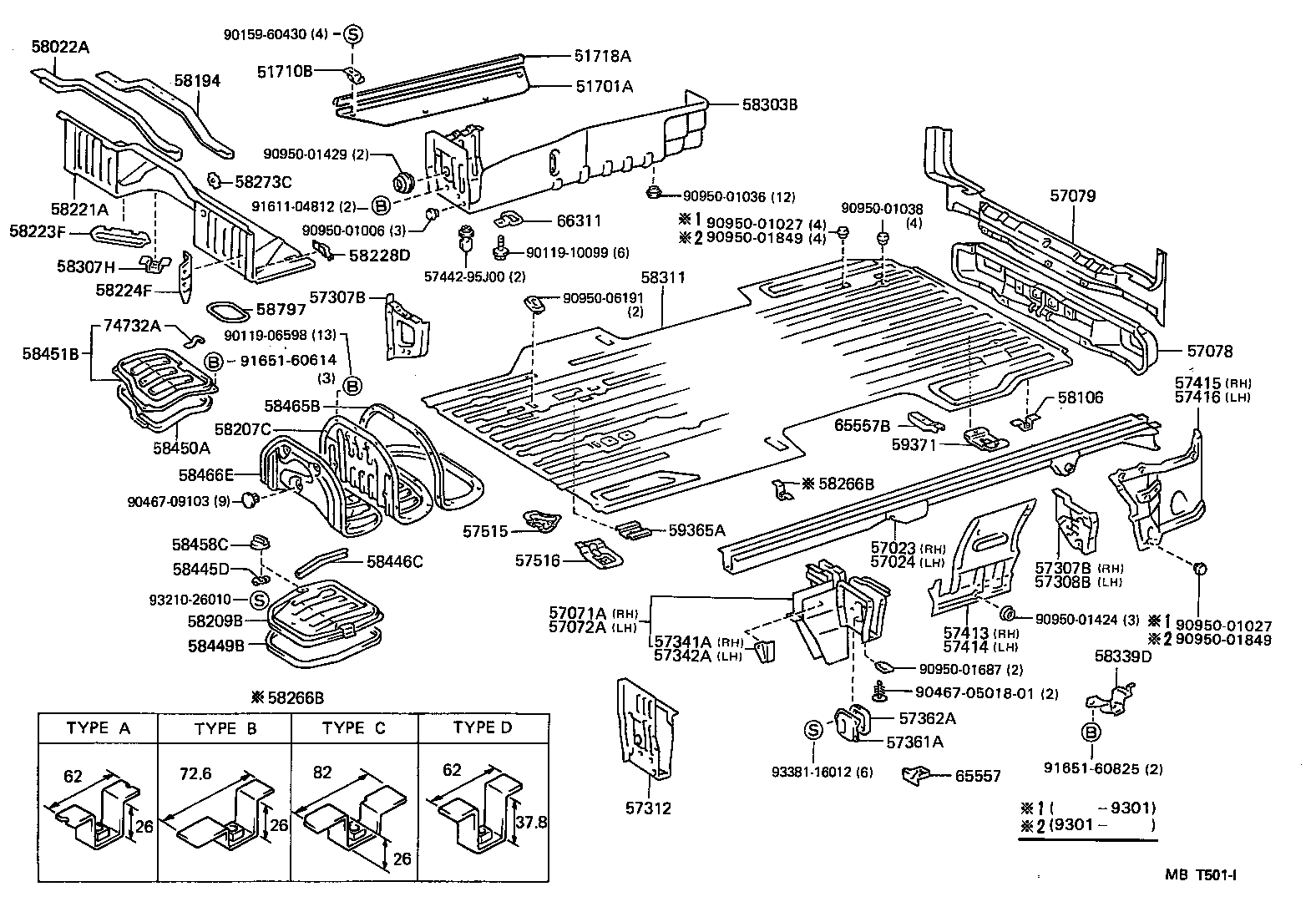

ILLUST NO. 2 OF 3(8908- )LH102,112,113,172,174,RZH102,103,112,113,115..LHD..4D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51710B - CLAMP, SIDE DOOR STEP OPENING | ||||
| 90462-16027 |
LH102,103,112,113,RZH102,112,113..4D..(GL,STD)..(CIS,GCC,GEN) |
4 | ||
| 57023 - MEMBER SUB-ASSY, REAR SIDE, RH | ||||
| 57023-95N37 |
RZH102..5D..03S;RZH102..LHD..06S;LH102,104,RZH102,104..4D SEVERE USAGE PACKAGE |
1 | ||
| 57023-26270 |
RZH102..GL |
1 | ||
| 57024 - MEMBER SUB-ASSY, REAR SIDE, LH | ||||
| 57024-95N22 |
RZH102..5D..03S;RZH102..LHD..06S;LH102,104,RZH102,104..4D SEVERE USAGE PACKAGE |
1 | ||
| 57024-26410 |
RZH102..GL |
1 | ||
| 57071A - HANGER SUB-ASSY, REAR SPRING, FRONT, RH | ||||
| 57071-95J46 |
RZH105..CIS;RZH103..5D..EFI;LH103,RZH102..5D;RZH103..GEN..CBR;LH102,104,105,RZH102,104,105..LHD..4D..(CBR,DSL) |
1 | ||
| 57071-95J46 |
LH103..5D;RZH104,105..LHD;LH102,104,105,162,164,RZH102,103..CIS,GEN |
1 | ||
| 57071-26110 |
RZH105..GL;LH10#,162,RZH102,103,104..GEN |
1 | ||
| 57072A - HANGER SUB-ASSY, REAR SPRING, FRONT, LH | ||||
| 57072-26070 |
LH102,104,105,164,RZH10#..LHD..4D |
1 | ||
| 57078 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER | ||||
| 57069-95J05 |
LH102,103,112,113,RZH102,103,112,113 W(STEP TYPE REAR BUMPER) |
1 | ||
| 57069-95J11 |
RZH102..4F;RZH102..LHD..5F;LH10#,112,113,114,RZH104,112,114..GEN SEVERE USAGE PACKAGE |
1 | ||
| 57069-26010 |
RZH115..GL;LH174,RZH102,114..SRF..GL;LH105,113,115,166,176,RZH105,115..CIS |
1 | ||
| 57069-26010 |
RZH115..GL,SGL;RZH113..LHD..06S..GEN;LH105,113,115,166,176,RZH105,115..STD..CIS;LH174,RZH102,103,112,114..SG..(03S,09S,10S,12S) |
1 | ||
| 57079 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER | ||||
| 57068-95J07 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 57068-95J08 |
LH102,103,112,113,RZH102,103,112,113 W(STEP TYPE REAR BUMPER) |
1 | ||
| 57068-95J07 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 57307B - OUTRIGGER SUB-ASSY, NO.4 RH | ||||
| 57317-95J06 |
LH172..RHD;RZH115..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,184,RZH102,103,104,112,113,114,125,135,153..4D..(03S,06S,10S,12S,14S,15S) REAR |
1 | ||
| 57317-95J06 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 REAR |
1 | ||
| 57317-95J08 |
RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#..4D FRONT |
1 | ||
| 57317-95J06 |
RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#..4D REAR |
1 | ||
| 57317-95J08 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..4D FRONT |
1 | ||
| 57307B - OUTRIGGER SUB-ASSY, NO.4 RH | ||||
| 57317-95J06 |
LH172..RHD;RZH115..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,184,RZH102,103,104,112,113,114,125,135,153..4D..(03S,06S,10S,12S,14S,15S) REAR |
1 | ||
| 57317-95J06 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 REAR |
1 | ||
| 57317-95J08 |
RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#..4D FRONT |
1 | ||
| 57317-95J06 |
RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#..4D REAR |
1 | ||
| 57317-95J08 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..4D FRONT |
1 | ||
| 57308B - OUTRIGGER SUB-ASSY, NO.4 LH | ||||
| 57308-95J11 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 57308-95J11 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 57312 - OUTRIGGER, NO.1 LH | ||||
| 57302-95J05 |
LH102,104,105,11#,166,174,176,RZH10#,11#..LHD..4D |
1 | ||
| 57341A - GUSSET, OUTRIGGER, NO.2 RH | ||||
| 57341-95J08 |
LH103..5D;RZH103..06S;RZH115..STD..CIS;RZH105,113..LHD..STD..EFI;LH174,RZH102..03S,06S,10S;LH102,104,105,11#,166,176,RZH103,104,105,112,114,115..LHD..(CIS,GEN)..(CBR,DSL) |
1 | ||
| 57361A - COVER, NO.2 OUTERIGGER HOLE | ||||
| 57093-95J01 |
LH102,104,112,114,RZH102,104,112,114..LHD |
1 | ||
| 57362A - PACKING, NO.2 OUTRIGGER HOLE COVER | ||||
| 57362-95J01 |
RZH102..LHD;RZH112..06S;RZH112..5D..03S;RZH112..RHD..03S;LH10#,11#,RZH10#,113,114..RHD..4D |
2 | ||
| 57362-95J01 |
RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#..4D |
1 | ||
| 57413 - RAIL, FLOOR SIDE, CENTER RH | ||||
| 57413-95J84 |
RZH102,103..GL |
1 | ||
| 57414 - RAIL, FLOOR SIDE, CENTER LH | ||||
| 57414-26230 |
RZH102..GL W(ON TRIM REAR HEATER) |
1 | ||
| 57414-26260 |
RZH102,103..GL |
1 | ||
| 57414-26230 |
RZH102..GL W(ON TRIM REAR HEATER) |
1 | ||
| 57415 - RAIL, FLOOR SIDE, REAR RH | ||||
| 57047-26130 |
LH174,RZH102,103..GL |
1 | ||
| 57416 - RAIL, FLOOR SIDE, REAR LH | ||||
| 57416-95J24 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..GL,STD |
1 | ||
| 57048-26090 |
LH174,RZH102,103..GL |
1 | ||
| 58022A - REINFORCEMENT SUB-ASSY, HEADER PANEL | ||||
| 58022-95J06 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58106 - BRACKET SUB-ASSY, BRAKE TUBE CONNECTOR, NO.2 | ||||
| 58106-95A00 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
3 | ||
| 58106-95A00 |
RZH102..GL |
3 | ||
| 58194 - RETAINER, ENGINE COVER HINGE | ||||
| 58194-95J03 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58207C - COVER SUB-ASSY, TRANSMISSION SERVICE HOLE | ||||
| 58207-95J10 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,155 |
1 | ||
| 58207-95J10 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58209B - COVER SUB-ASSY, BATTERY SERVICE HOLE | ||||
| 58209-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58209-95J01 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 58223F - REINFORCEMENT, HEADER PANEL, NO.2 | ||||
| 58223-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..4D |
1 | ||
| 58266B - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58266-95J01 |
RZH102..GL |
1 | ||
| 58273C - REINFORCEMENT, BELT ANCHOR TO CENTER FLOOR | ||||
| 58273-95J00 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58307H - BRACKET SUB-ASSY, BRAKE TUBE CONN, NO.1 | ||||
| 58307-95701 |
RZH153;LH112,RZH112..LHD..03S;LH102,104,105,113,166,174,176,RZH105,113,115..LHD;LH114,115,125,184,RZH102,103,104,112,113,114,125,135..4D..SG |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-26710 |
RZH102..GL |
1 | ||
| 58311-26710 |
RZH102..GL |
1 | ||
| 58311-26310 |
RZH102 |
1 | ||
| 58445D - LOCK, BATTERY SERVICE HOLE COVER | ||||
| 58445-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58445-95J01 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 58446C - PROTECTOR, BATTERY | ||||
| 58446-95J02 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 58446-95J02 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58449B - PACKING, BATTERY SERVICE HOLE COVER | ||||
| 58449-95J00 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58449-95J00 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 58450A - PACKING, BATTERY SERVICE HOLE COVER | ||||
| 58449-95J00 |
LH10#,11#,125,RZH10#,11#,125..SG |
1 | ||
| 58449-95J00 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 58451B - COVER, AIR CLEANER SERVICE HOLE | ||||
| 58405-95J01 |
RZH105,115..STD..CIS;RZH102,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH103,104,112,114,125,135,153..03S,06S,12S,14S,15S |
1 | ||
| 58405-95J01 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#..CBR,DSL,EFI |
1 | ||
| 58458C - KNOB, BATTERY SERVICE HOLE COVER | ||||
| 58458-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58458-95J01 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 58465B - PACKING, TRANSMISSION SERVICE HOLE COVER | ||||
| 58465-95J05 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58465-95J05 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 58466E - SILENCER, TRANSMISSION SERVICE HOLE COVER, NO.1 | ||||
| 58327-95J08 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58327-95J08 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,155 |
1 | ||
| 66311 - HOOK, ROPE | ||||
| 66311-95J00 |
LH102,103,112,113,RZH102,103,112,113..SG BLACK |
4 | ||
| Common parts | ||||
| 57442-95J00 | ||||
| 90119-06598 | ||||
| 90119-10099 | ||||
| 90159-60430 | ||||
| 90467-0501822 | ||||
| 90480-01520 | ||||
| 90904-67033 | ||||
| 90950-01027 | ||||
| 90950-01038 | ||||
| 90950-01181 | ||||
| 90950-01424 | ||||
| 90950-01429 | ||||
| 90950-01687 | ||||
| 90950-01691 | ||||
| 91631-B0614 | ||||
| 91651-60614 | ||||
| 93311-16010 | ||||
| 93381-16012 | ||||

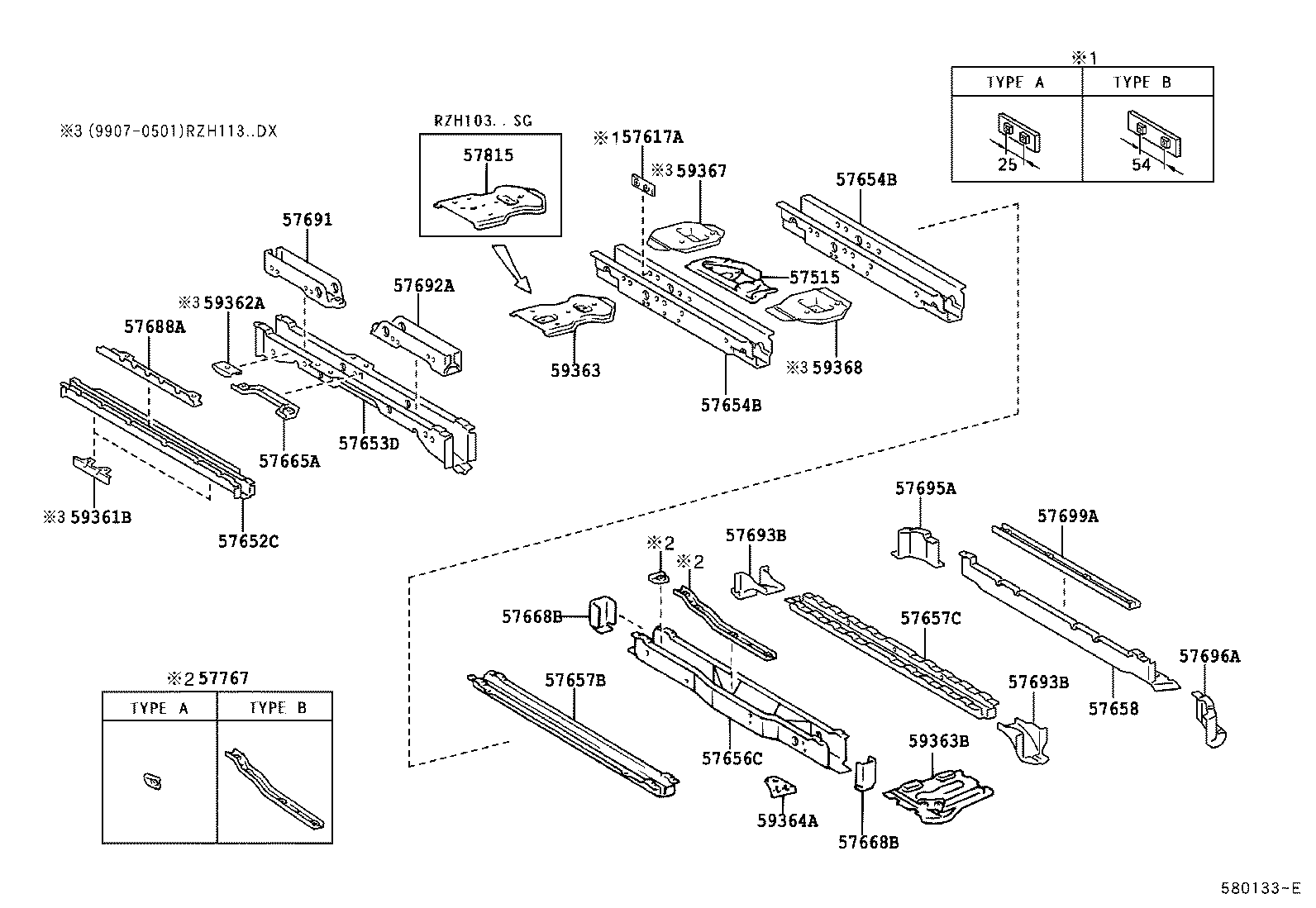

ILLUST NO. 3 OF 3(8908- )LH102,103,112,113,RZH102,103,112,113,135,153
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57617A - RETAINER, EXHAUST PIPE BRACKET | ||||
| 57617-95J10 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 57617-95J09 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 57617-95J10 |
RZH105,115..STD..CIS;RZH102,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH103,104,112,114,125..03S,06S,12S,14S,15S TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 57617-95J09 |
RZH112..5D;LH174,RZH112..03S,10S,15S;LH10#,11#,125,154,16#,172,176,184,RZH10#,113,114,115,125,155 TYPE A:REFER ILLUST. |
1 | ||
| 57617-95J10 |
RZH112..5D;LH174,RZH112..03S,10S,15S;LH10#,11#,125,16#,172,176,184,RZH10#,113,114,115,125 TYPE B:REFER ILLUST. |
1 | ||
| 57652C - MEMBER, REAR FLOOR CROSS, NO.1 | ||||
| 57652-95J04 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 57652-95J04 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,155 |
1 | ||
| 57653D - MEMBER, REAR FLOOR CROSS, NO.2 | ||||
| 57653-95J05 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 57653-26110 |
LH172..RHD;RZH115..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH10#,11#,125,184,RZH102,103,104,112,113,114,125,135,153..03S,06S,10S,12S,14S,15S |
1 | ||
| 57653-26110 |
RZH112..5D;LH174,RZH112..03S,10S,15S;LH10#,11#,125,154,162,164,172,184,RZH10#,113,114,115,125,135,155 |
1 | ||
| 57654B - MEMBER, REAR FLOOR CROSS, NO.3 | ||||
| 57654-95J06 |
LH172..03S..GL;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH174,RZH102..03S,06S,09S,10S;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,166,176,RZH104,112,114..03S,06S,09S,12S,15S |
1 | ||
| 57654-95J06 |
RZH112..5D;LH174,RZH112..03S,10S,15S;LH10#,11#,16#,172,176,RZH10#,113,114,115 |
1 | ||
| 57654B - MEMBER, REAR FLOOR CROSS, NO.3 | ||||
| 57654-95J06 |
LH172..03S..GL;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH174,RZH102..03S,06S,09S,10S;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,166,176,RZH104,112,114..03S,06S,09S,12S,15S |
1 | ||
| 57654-95J06 |
RZH112..5D;LH174,RZH112..03S,10S,15S;LH10#,11#,16#,172,176,RZH10#,113,114,115 |
1 | ||
| 57656C - MEMBER, REAR FLOOR CROOS, NO.5 | ||||
| 57656-95J04 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 57656-95J04 |
RZH112..5D;RZH112..03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125 |
1 | ||
| 57657C - CROSSMEMBER, REAR FLOOR, NO.6 | ||||
| 57657-95J05 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 57657-95J05 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 57658 - MEMBER, REAR FLOOR CROSS, NO.7 | ||||
| 57658-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 57658-95J01 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 57665A - REINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.2 | ||||
| 57665-26020 |
RZH112..5D;LH174,RZH112..03S,10S,15S;LH10#,11#,125,154,16#,172,176,184,RZH10#,113,114,115,125,135,155 |
1 | ||
| 57668B - REINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.5 | ||||
| 57668-95J02 |
RZH113..STD..GEN;RZH105,115..STD..CIS;LH174,RZH103..06S,10S;LH10#,11#,166,176,RZH10#,112,114,115..(CIS,GEN)..(CBR,DSL) |
2 | ||
| 57668-95J02 |
RZH112..5D;LH172,174..HRF;LH172..RHD..5D;RZH112,113..4D..03S..GEN;LH162,RZH103,113..SG..(GL,STD)..GEN;LH172,174,RZH105..LHD..4D..(CIS,GEN);LH10#,11#,164,166,176,RZH102,104,114,115..CIS,GEN |
2 | ||
| 57668B - REINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.5 | ||||
| 57668-95J02 |
RZH113..STD..GEN;RZH105,115..STD..CIS;LH174,RZH103..06S,10S;LH10#,11#,166,176,RZH10#,112,114,115..(CIS,GEN)..(CBR,DSL) |
2 | ||
| 57668-95J02 |
RZH112..5D;LH172,174..HRF;LH172..RHD..5D;RZH112,113..4D..03S..GEN;LH162,RZH103,113..SG..(GL,STD)..GEN;LH172,174,RZH105..LHD..4D..(CIS,GEN);LH10#,11#,164,166,176,RZH102,104,114,115..CIS,GEN |
2 | ||
| 57688A - REINFORCEMENT, REAR FLOOR CROSSMEMBER | ||||
| 57688-95J02 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,155 |
1 | ||
| 57688-95J02 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 57691 - BRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER RH | ||||
| 57691-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 57691-95J01 |
RZH112..5D;LH174,RZH112..03S,10S,15S;LH10#,11#,125,154,162,164,172,184,RZH10#,113,114,115,125,135,155 |
1 | ||
| 57692A - BRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER LH | ||||
| 57692-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 57692-95J01 |
RZH112..5D;LH174,RZH112..03S,10S,15S;LH10#,11#,125,154,162,164,172,184,RZH10#,113,114,115,125,135,155 |
1 | ||
| 57693B - BRACE, REAR FLOOR NO.6 CROSSMEMBER | ||||
| 57693-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
2 | ||
| 57693-95J01 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
2 | ||
| 57693B - BRACE, REAR FLOOR NO.6 CROSSMEMBER | ||||
| 57693-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
2 | ||
| 57693-95J01 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
2 | ||
| 57695A - EXTENSION, REAR FLOOR CROSSMEMBER REAR SIDE, RH | ||||
| 57695-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 57695-95J01 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 57696A - EXTENSION, REAR FLOOR CROSSMEMBER REAR SIDE, LH | ||||
| 57696-95J00 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 57696-95J00 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 57699A - RETAINER, FUEL TANK SET BAND | ||||
| 57699-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 57699-95J01 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 57767 - RETAINER, FUEL TANK BAND | ||||
| 57767-95J02 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 TYPE A:REFER TO ILLUSTRATION |
3 | ||
| 57767-95J03 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 57767-95J02 |
RZH112..5D;RZH112..03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125 TYPE A:REFER ILLUST. |
1 | ||
| 57767-95J03 |
RZH112..5D;RZH112..03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125 TYPE B:REFER ILLUST. |
1 | ||
| 59363 - RETAINER, REAR SEAT, NO.1 C | ||||
| 59363-95J05 |
RZH102,103..GL |
2 | ||
| 59363-95J05 |
RZH102,103..DX,GL |
2 | ||
(8908- )LHD..4D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 57442-95J00 | ||||
| 90119-06598 | ||||
| 90119-10099 | ||||
| 90159-60430 | ||||
| 90467-0501801 | ||||
| 90467-09103 | ||||
| 90950-01006 | ||||
| 90950-01027 | ||||
| 90950-01036 | ||||
| 90950-01038 | ||||
| 90950-01424 | ||||
| 90950-01429 | ||||
| 90950-01687 | ||||
| 90950-01849 | ||||
| 90950-06191 | ||||
| 91611-04812 | ||||
| 91651-60614 | ||||
| 91651-60825 | ||||
| 93210-26010 | ||||
| 93381-16012 | ||||
(8908- )LH10#,11#,RZH10#,112,113,119
| Part # | Description | Qty | Price |
|---|
Part Price Details
Loading price information...
Part Number:
Price:
