RZH102L-RGMGS (1998)
Toyota Hiace Van,Commuter
(8908- )2L,3L,5L#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 8401 | ||||

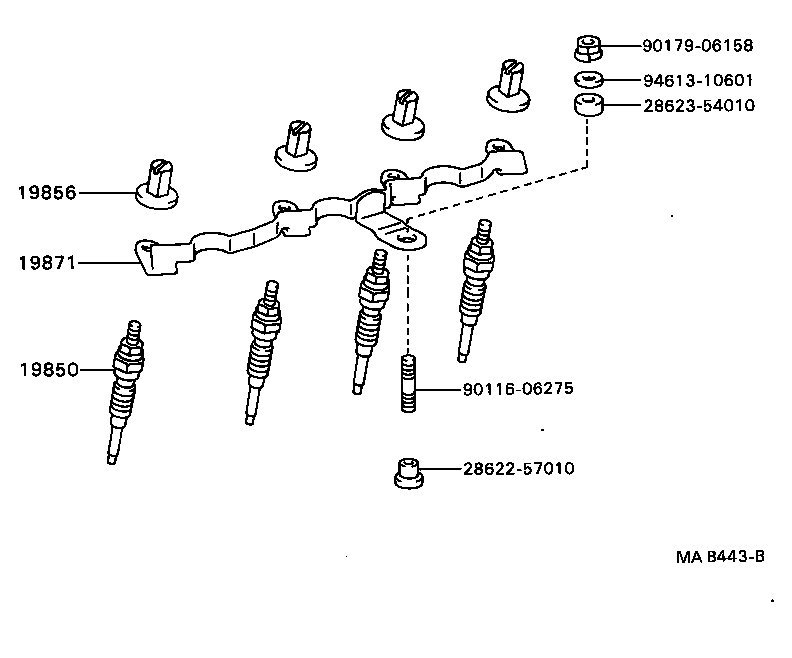

(8908- )2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 28622-57010 | ||||
| 28623-54010 | ||||
| 90116-06275 | ||||
| 90179-06158 | ||||
| 94613-10601 | ||||
(8908- )1RZ,2RZE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100P - PLUG, SPARK | ||||
| 90919-01064 |
1RZ..RZH114..GL;1RZ..RZH112..LHD..03S;1RZ..RZH112,114..SRF..SG..STD;1RZ,2RZ..RZH10#,115..(03S,09S,10S,12S,15S)..GEN W16EXR-U |
4 | ||
| 90919-01102 |
1RZ..RZH114..GL;1RZ..RZH112..LHD..03S;1RZ..RZH112,114..SRF..SG..STD;1RZ,2RZ..RZH10#,115..(03S,09S,10S,12S,15S)..GEN BPR5EY |
4 | ||
| 90919-01064 |
1RZ..RZH104,114..GL;1RZ..RZH102..03S,10S;1RZ..RZH112..SG..03S W16EXR-U |
4 | ||
| 90919-01059 |
1RZ..RZH102..GL;1RZ..RZH112..4D..06S W16EX-U |
4 | ||
| 90919-01102 |
1RZ..RZH104,114..GL;1RZ..RZH102..03S,10S;1RZ..RZH112..SG..03S BPR5EY |
4 | ||
| 90919-01059 |
2RZ..RZH115..STD;1RZ..RZH114..15S..GEN;1RZ,2RZ..RZH10#,112,113,125..ARL,GCC,GEN W16EX-U |
4 | ||
| 19100P - PLUG, SPARK | ||||
| 90919-01064 |
1RZ..RZH114..GL;1RZ..RZH112..LHD..03S;1RZ..RZH112,114..SRF..SG..STD;1RZ,2RZ..RZH10#,115..(03S,09S,10S,12S,15S)..GEN W16EXR-U |
4 | ||
| 90919-01102 |
1RZ..RZH114..GL;1RZ..RZH112..LHD..03S;1RZ..RZH112,114..SRF..SG..STD;1RZ,2RZ..RZH10#,115..(03S,09S,10S,12S,15S)..GEN BPR5EY |
4 | ||
| 90919-01064 |
1RZ..RZH104,114..GL;1RZ..RZH102..03S,10S;1RZ..RZH112..SG..03S W16EXR-U |
4 | ||
| 90919-01059 |
1RZ..RZH102..GL;1RZ..RZH112..4D..06S W16EX-U |
4 | ||
| 90919-01102 |
1RZ..RZH104,114..GL;1RZ..RZH102..03S,10S;1RZ..RZH112..SG..03S BPR5EY |
4 | ||
| 90919-01059 |
2RZ..RZH115..STD;1RZ..RZH114..15S..GEN;1RZ,2RZ..RZH10#,112,113,125..ARL,GCC,GEN W16EX-U |
4 | ||
| 19532 - HOLDER, RESISTIVE CODE, NO.2 | ||||
| 19532-46010 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15# |
2 | ||
| 19532 - HOLDER, RESISTIVE CODE, NO.2 | ||||
| 19532-46010 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15# |
2 | ||
| 19539 - HOLDER, RESISTIVE CODE, NO.4 | ||||
| 19539-74020 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15# |
2 | ||
| 19539 - HOLDER, RESISTIVE CODE, NO.4 | ||||
| 19539-74020 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15# |
2 | ||
| 19901 - CORD SET, COIL & SPARK, W/RESISTIVE | ||||
| 90919-21475 |
1RZ..RZH102..4D;1RZ..RZH104,112,114;1RZ..RZH102..5D..03S;1RZ..RZH102..LHD..06S |
1 | ||
| 90919-22371 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15# |
1 | ||
| 19901 - CORD SET, COIL & SPARK, W/RESISTIVE | ||||
| 90919-21475 |
1RZ..RZH102..4D;1RZ..RZH104,112,114;1RZ..RZH102..5D..03S;1RZ..RZH102..LHD..06S |
1 | ||
| 90919-22371 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15# |
1 | ||
| 19901B - CORD, SPARK PLUG RESISTIVE, NO.1 | ||||
| 90919-15022 |
1RZ..RZH102..4D;1RZ..RZH104,112,114;1RZ..RZH102..5D..03S;1RZ..RZH102..LHD..06S |
1 | ||
| 90919-15412 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15# |
1 | ||
| 19901B - CORD, SPARK PLUG RESISTIVE, NO.1 | ||||
| 90919-15022 |
1RZ..RZH102..4D;1RZ..RZH104,112,114;1RZ..RZH102..5D..03S;1RZ..RZH102..LHD..06S |
1 | ||
| 90919-15412 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15# |
1 | ||
| 19901C - CORD, SPARK PLUG RESISTIVE, NO.2 | ||||
| 90919-15413 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15# |
1 | ||
| 90919-15023 |
1RZ..RZH102..4D;1RZ..RZH104,112,114;1RZ..RZH102..5D..03S;1RZ..RZH102..LHD..06S |
1 | ||
| 19901C - CORD, SPARK PLUG RESISTIVE, NO.2 | ||||
| 90919-15413 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15# |
1 | ||
| 90919-15023 |
1RZ..RZH102..4D;1RZ..RZH104,112,114;1RZ..RZH102..5D..03S;1RZ..RZH102..LHD..06S |
1 | ||
| 19901D - CORD, SPARK PLUG RESISTIVE, NO.3 | ||||
| 90919-15024 |
1RZ..RZH102..4D;1RZ..RZH104,112,114;1RZ..RZH102..5D..03S;1RZ..RZH102..LHD..06S |
1 | ||
| 90919-15414 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15# |
1 | ||
| 19901D - CORD, SPARK PLUG RESISTIVE, NO.3 | ||||
| 90919-15024 |
1RZ..RZH102..4D;1RZ..RZH104,112,114;1RZ..RZH102..5D..03S;1RZ..RZH102..LHD..06S |
1 | ||
| 90919-15414 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15# |
1 | ||
| 19901E - CORD, SPARK PLUG RESISTIVE, NO.4 | ||||
| 90919-15025 |
1RZ..RZH102..4D;1RZ..RZH104,112,114;1RZ..RZH102..5D..03S;1RZ..RZH102..LHD..06S |
1 | ||
| 90919-15415 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15# |
1 | ||
| 19901E - CORD, SPARK PLUG RESISTIVE, NO.4 | ||||
| 90919-15025 |
1RZ..RZH102..4D;1RZ..RZH104,112,114;1RZ..RZH102..5D..03S;1RZ..RZH102..LHD..06S |
1 | ||
| 90919-15415 |
1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15# |
1 | ||
| Common parts | ||||
| 90464-00061 | ||||
| 90464-00144 | ||||
| 90464-00208 | ||||
| 90464-00536 | ||||
| 90464-00542 | ||||
| 90464-00555 | ||||
| 90464-00556 | ||||
| 90464-00681 | ||||
