LH66LV-MRJHW (1986)

Toyota Hiace Van,Commuter

Production Aug 1986 - Aug 1987
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )

Click highlighted areas on diagram

diagram 1149371010 1717572010 8712428030 8712428030 8712428030 8712428030 8712428030 8712428030 8712428030 8712428030 8712428030 8712428030 8712428030 8712428030 8712495J02 87205 87208 87208 87208 87208 87240 87240 87245A 87245A 87245B 87245B 87245C 87245E 87245E 87246A 87246A 87246E 87246E 87248A 87248B 87249F 87251 87263 8726895702 9017908123 9017908123 9017908146 9161160835 9165140616 9165140814 9165140814 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-30230

LH5#,6#,7#

 1
87208 - PIPE SUB-ASSY, HEATER WATER
87208-95J21

YH56,66..M1

W/RR HEATER

 1
87208-95J25

LH56,66..M1

W/RR HEATER

 1
87208-95J24

LH56,66

 1
87208-95J20

YH56,66

 1
87208 - PIPE SUB-ASSY, HEATER WATER
87208-95J21

YH56,66..M1

W/RR HEATER

 1
87208-95J25

LH56,66..M1

W/RR HEATER

 1
87208-95J24

LH56,66

 1
87208-95J20

YH56,66

 1
87208 - PIPE SUB-ASSY, HEATER WATER
87208-95J21

YH56,66..M1

W/RR HEATER

 1
87208-95J25

LH56,66..M1

W/RR HEATER

 1
87208-95J24

LH56,66

 1
87208-95J20

YH56,66

 1
87208 - PIPE SUB-ASSY, HEATER WATER
87208-95J21

YH56,66..M1

W/RR HEATER

 1
87208-95J25

LH56,66..M1

W/RR HEATER

 1
87208-95J24

LH56,66

 1
87208-95J20

YH56,66

 1
87240 - VALVE ASSY, HEATER WATER
87240-95J03

LH5#,6#,YH50,51,56,60,61,66..LHD

 1
87240 - VALVE ASSY, HEATER WATER
87240-95J03

LH5#,6#,YH50,51,56,60,61,66..LHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95J32

LH56,66

 1
87245-95J33

YH56,66

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95J32

LH56,66

 1
87245-95J33

YH56,66

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30300

LH56,66

*H,L=280

 1
99556-30600

YH56,66

*H,L=540

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30300

LH56,66

*H,L=280

 1
99556-30600

YH56,66

*H,L=540

 1
87245C - HOSE, HEATER WATER ,INLET C
99556-30300

YH56,66

*H,L=280

 1
87245E - HOSE, HEATER WATER, INLET E
87245-95J04

LH5#,6#,7#,YH5#,6#,7#

 1
87245E - HOSE, HEATER WATER, INLET E
87245-95J04

LH5#,6#,7#,YH5#,6#,7#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-95J30

LH56,66,YH56,66

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-95J30

LH56,66,YH56,66

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-95J34

YH56,66

 1
87245-95J31

LH56,66

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-95J34

YH56,66

 1
87245-95J31

LH56,66

 1
87248A - PIPE, HEATER WATER INLET, A
87208-28010

YH5#,6#,7#

 1
87248-95J14

LH5#,6#,7#

 1
87248B - PIPE, HEATER WATER INLET, B
87248-95J20

LH6#..M1

 1
87248-14090

YH56,66

 1
87249F - PIPE, HEATER WATER OUTLET, F
87208-28020

YH5#,6#,71

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30200

LH5#,6#,7#

 1
87263 - BRACKET, HEATER WATER PIPE, NO.1
87263-28010

YH5#,6#,71

 1
Common parts
11493-71010
17175-72010
87124-28030
87124-95J02
87268-95702
90179-08123
90179-08146
91611-60835
91651-40616
91651-40814
91651-40816
96112-10250

(8612- )YH56,66

Click highlighted areas on diagram

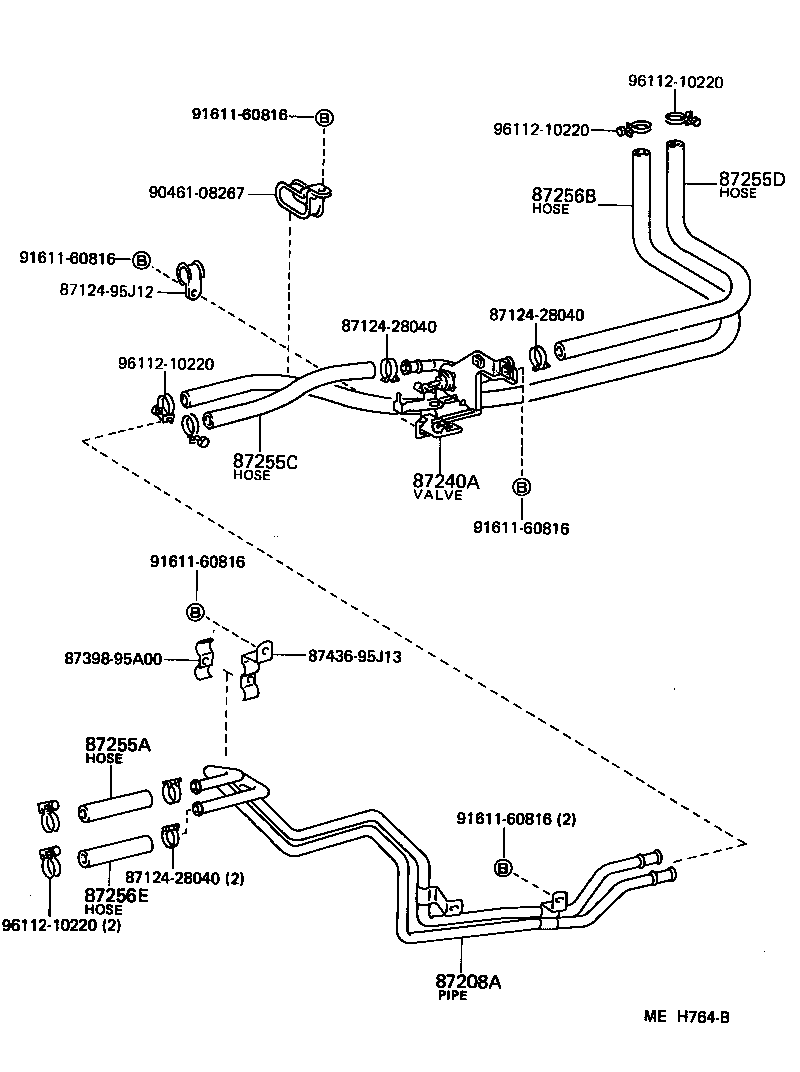

diagram 8712428040 8712428040 8712428040 8712428040 8712495J12 87208A 87240A 87255A 87255C 87255D 87256B 87256E 8739895J01 9046108267 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9611210220 9611210220 9611210220 9611210220 9611210220
Part # Description Qty Price
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-95J27

LH66..M1

 1
87240A - VALVE ASSY, REAR HEATER WATER
87240-95J01

LH56,66,YH56,66..M1

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99556-20200

LH66,YH66..M1

*H,L=130

 1
87255C - HOSE, REAR HEATER WATER INLET, C
87245-95J35

LH56,66,YH56,66..M1

 1
87255D - HOSE, REAR HEATER WATER INLET, D
99556-20490

LH56,66,YH56,66..M1

*H,L=380

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
99556-21000

LH56,66,YH56,66..M1

*H,L=920

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
99556-20200

LH66..M1

*H,L=130

 1
99552-20200

LH6#..M1

*H,L=130

 1
Common parts
87124-28040
87124-95J12
87398-95J01
90461-08267
91611-60816
96112-10220

(8608- )LH56,66

Click highlighted areas on diagram

diagram 8712428040 8712428040 8712428040 8712495J12 87208A 87240A 87255A 87255C 87255D 87256B 87256E 8739895A00 8743695J13 9046108267 9161160816 9161160816 9161160816 9161160816 9161160816 9611210220 9611210220 9611210220 9611210220
Part # Description Qty Price
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-95J27

LH66..M1

 1
87240A - VALVE ASSY, REAR HEATER WATER
87240-95J01

LH56,66,YH56,66..M1

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99556-20200

LH66,YH66..M1

*H,L=130

 1
87255C - HOSE, REAR HEATER WATER INLET, C
87245-95J35

LH56,66,YH56,66..M1

 1
87255D - HOSE, REAR HEATER WATER INLET, D
99556-20490

LH56,66,YH56,66..M1

*H,L=380

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
99556-21000

LH56,66,YH56,66..M1

*H,L=920

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
99556-20200

LH66..M1

*H,L=130

 1
99552-20200

LH6#..M1

*H,L=130

 1
Common parts
87124-28040
87124-95J12
87398-95A00
87436-95J13
90461-08267
91611-60816
96112-10220
