LH66LV-MRJHW (1986)

Toyota Hiace Van,Commuter

Production Aug 1986 - Aug 1987
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )LH56,66,YH56,66

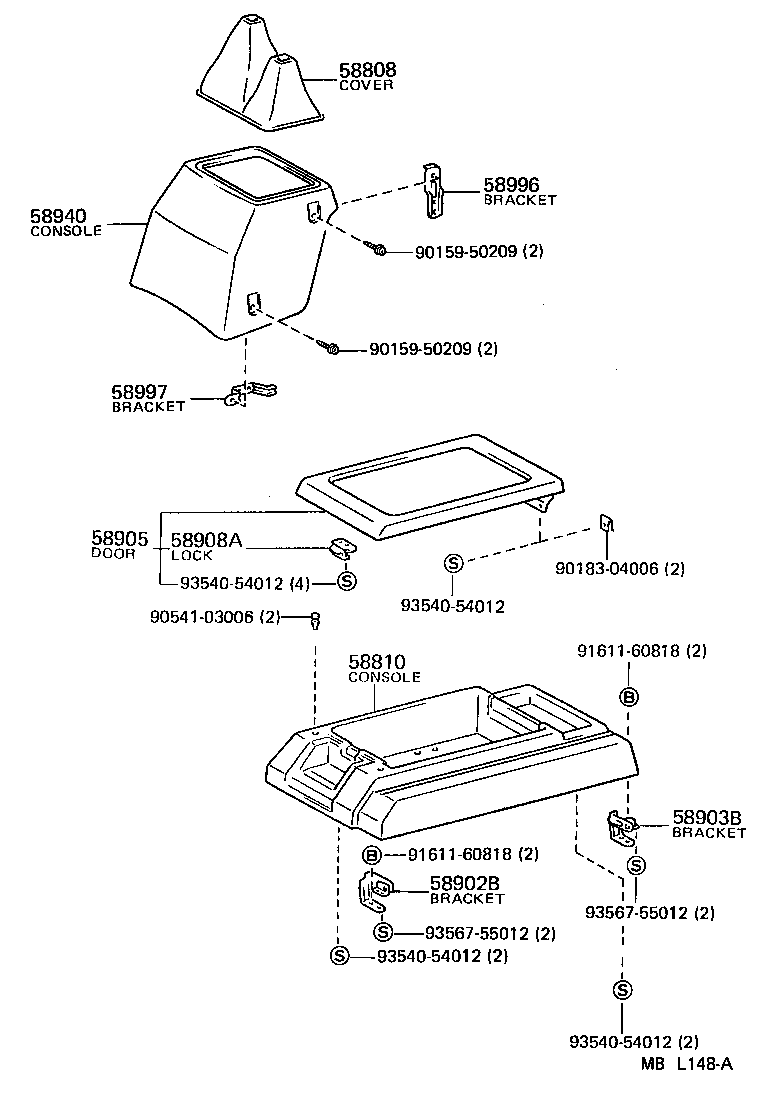

Click highlighted areas on diagram

diagram 58808 58810 58902B 58903B 58905 58908A 58940 58996 58997 9015950209 9015950209 9018304006 9054103006 9161160818 9161160818 9354054012 9354054012 9354054012 9354054012 9356755012 9356755012
Part # Description Qty Price
58808 - COVER SUB-ASSY, SHIFTING HOLE
58840-95J02

LH56,66,YH56,66

 1
58810 - CONSOLE ASSY
58811-95J0016

LH56,66,YH56,66

BROWN,BROWN

 1
58902B - BRACKET SUB-ASSY, CONSOLE BOX HINGE, NO.1
58902-95J01

LH56,66,YH56,66

 1
58903B - BRACKET SUB-ASSY, CONSOLE BOX HINGE, NO.2
58903-95J01

LH56,66,YH56,66

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-95J0016

LH56,66,YH56,66

BROWN,BROWN

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-12010

LH56,66,YH56,66

 1
58940 - CONSOLE ASSY, REAR
58911-95J0004

LH56,66,YH56,66

BLUE,BLUE

 1
58996 - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-95J01

LH56,66,YH56,66

 2
58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3
58997-95J01

LH56,66,YH56,66

 1
Common parts
90159-50209
90183-04006
90541-03006
91611-60818
93540-54012
93567-55012
