LH66LV-MRJHW (1986)

Toyota Hiace Van,Commuter

Production Aug 1986 - Aug 1987
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608-8708)LH56,66,YH56,66

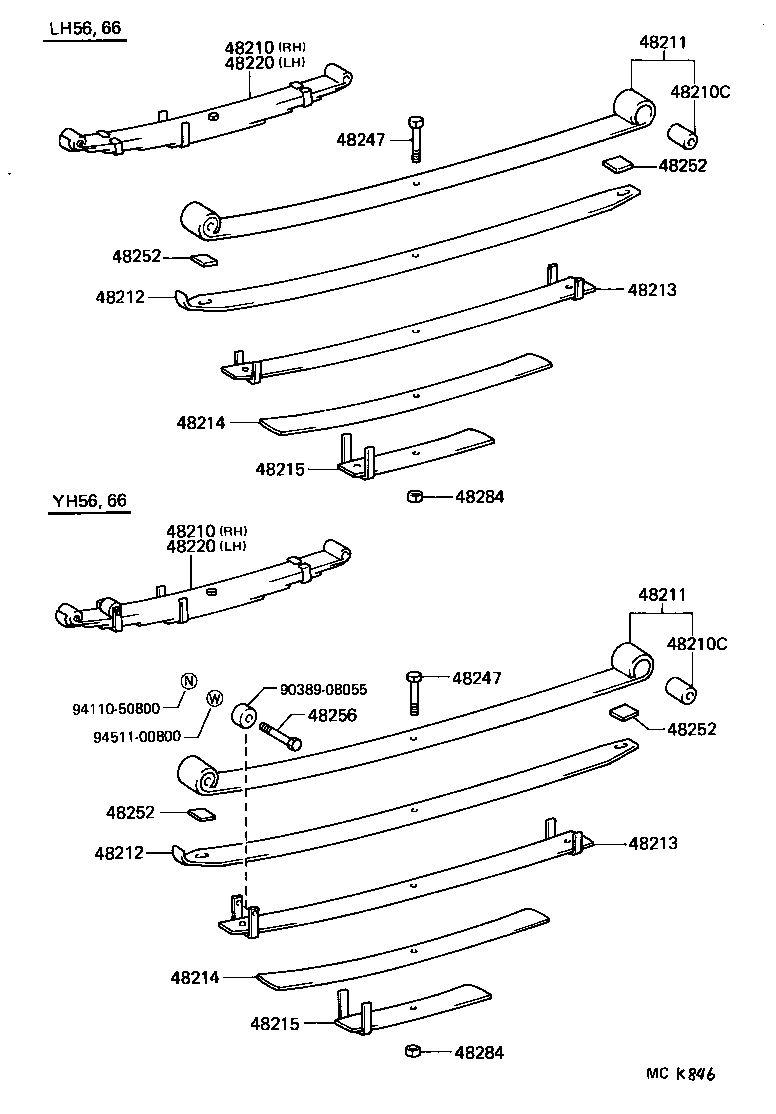

Click highlighted areas on diagram

diagram 48210 48210 48210C 48210C 48211 48211 48212 48212 48213 48213 48214 48214 48215 48215 48220 48220 48247 48247 48252 48252 48252 48252 48256 48284 48284 9038908055 9411050800 9451100800
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-26320

LH6#,YH50,6#..M1

 1
48210-26470

LH66,YH66..M1

 1
48210 - SPRING ASSY, REAR RH
48210-26320

LH6#,YH50,6#..M1

 1
48210-26470

LH66,YH66..M1

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-14007

LH5#,6#,7#,YH5#,6#,7#

 4
48210C - BUSH(FOR REAR SPRING LEAF)
90389-14007

LH5#,6#,7#,YH5#,6#,7#

 4
48211 - LEAF, REAR SPRING, NO.1
48201-26310

LH6#,YH50,6#..M1

 2
48201-26470

LH66,YH66..M1

 2
48211 - LEAF, REAR SPRING, NO.1
48201-26310

LH6#,YH50,6#..M1

 2
48201-26470

LH66,YH66..M1

 2
48212 - LEAF, REAR SPRING, NO.2
48202-26320

LH6#,YH50,6#..M1

 2
48212-26470

LH66,YH66..M1

 2
48212 - LEAF, REAR SPRING, NO.2
48202-26320

LH6#,YH50,6#..M1

 2
48212-26470

LH66,YH66..M1

 2
48213 - LEAF, REAR SPRING, NO.3
48202-26470

LH66,YH66..M1

 2
48213 - LEAF, REAR SPRING, NO.3
48202-26470

LH66,YH66..M1

 2
48214 - LEAF, REAR SPRING, NO.4
48214-26470

LH66,YH66..M1

 2
48214 - LEAF, REAR SPRING, NO.4
48214-26470

LH66,YH66..M1

 2
48215 - LEAF, REAR SPRING, NO.5
48203-26470

LH66,YH66..M1

 2
48215 - LEAF, REAR SPRING, NO.5
48203-26470

LH66,YH66..M1

 2
48220 - SPRING ASSY, REAR LH
48210-26470

LH66,YH66..M1

 1
48210-26320

LH6#,YH50,6#..M1

 1
48220 - SPRING ASSY, REAR LH
48210-26470

LH66,YH66..M1

 1
48210-26320

LH6#,YH50,6#..M1

 1
48247 - BOLT, REAR SPRING, CENTER
48247-26280

LH56,66,YH56,66

 1
48247-26310

LH6#,YH50,6#..M1

 2
48247 - BOLT, REAR SPRING, CENTER
48247-26280

LH56,66,YH56,66

 1
48247-26310

LH6#,YH50,6#..M1

 2
48252 - SILENCER, REAR SPRING
48252-26070

LH5#,6#,7#,YH5#,6#,7#

 8
48252 - SILENCER, REAR SPRING
48252-26070

LH5#,6#,7#,YH5#,6#,7#

 8
48252 - SILENCER, REAR SPRING
48252-26070

LH5#,6#,7#,YH5#,6#,7#

 8
48252 - SILENCER, REAR SPRING
48252-26070

LH5#,6#,7#,YH5#,6#,7#

 8
48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET)
48256-26450

LH56,66,YH56,66

 1
48284 - NUT, REAR SPRING CENTER BOLT
48299-28010

LH5#,6#,7#,YH5#,6#,7#

 2
48284 - NUT, REAR SPRING CENTER BOLT
48299-28010

LH5#,6#,7#,YH5#,6#,7#

 2
Common parts
90389-08055
94110-50800
94511-00800
