LH66LV-MRJHW (1986)

Toyota Hiace Van,Commuter

Production Aug 1986 - Aug 1987
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608-8708)LH56,66,YH56,66

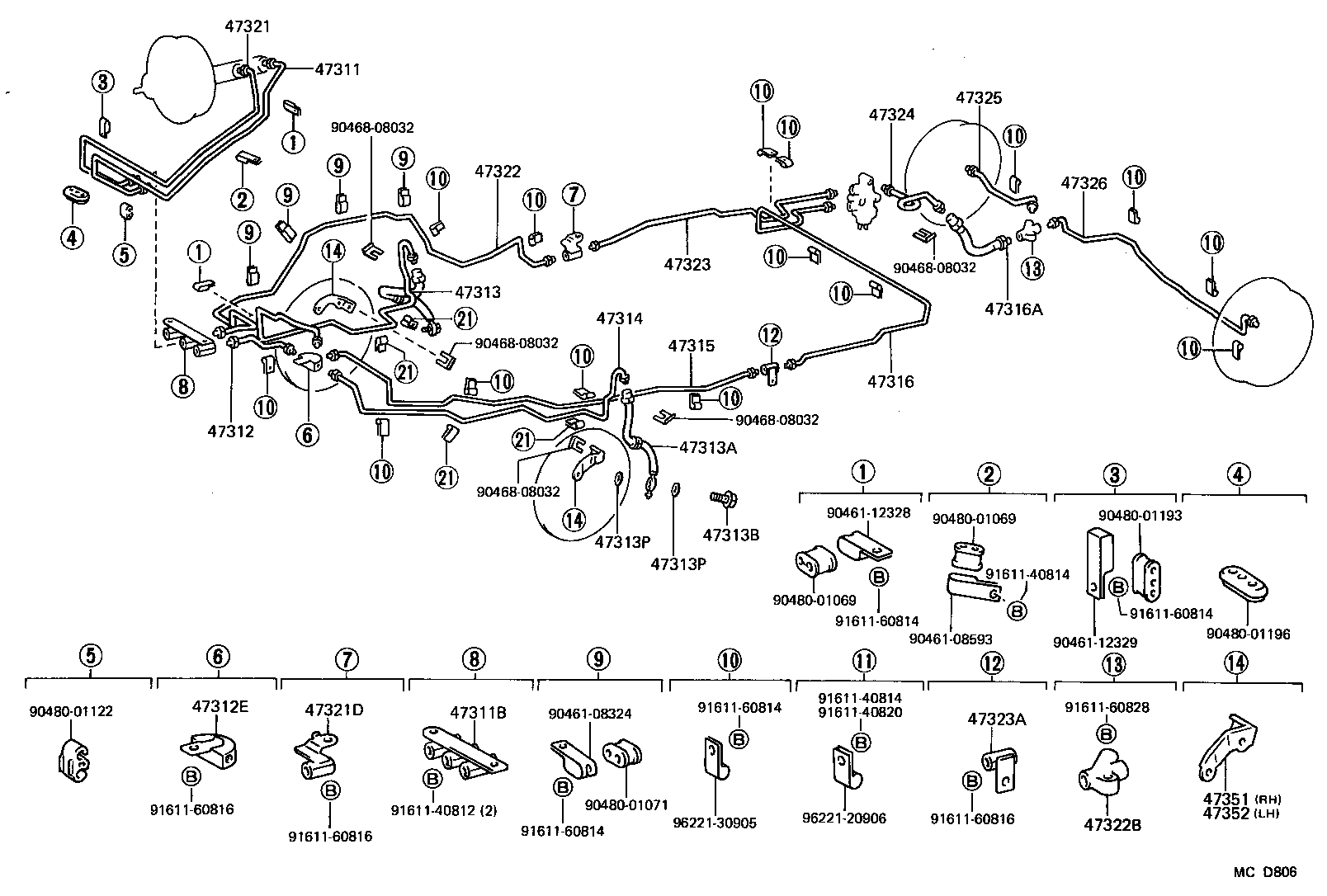

Click highlighted areas on diagram

diagram 47311 47311B 47312 47312E 47313 47313A 47313B 47313P 47313P 47314 47315 47316 47316A 47321 47321D 47322 47322B 47323 47323A 47324 47325 47326 47351 47352 9046108324 9046108593 9046112328 9046112329 9046808032 9046808032 9046808032 9046808032 9046808032 9048001069 9048001069 9048001071 9048001122 9048001193 9048001196 9161140812 9161140814 9161140814 9161140820 9161160814 9161160814 9161160814 9161160814 9161160816 9161160816 9161160816 9161160828 9622120906 9622130905
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-26220

LH6#,YH50,6#..M1

 1
47311-26290

LH56,66,YH56,66

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10105

LH5#,6#,7#,YH5#,6#,7#..MTM

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-26230

LH56,66,YH56,66

 1
47312-26170

LH5#,6#,7#,YH5#,6#,71

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90414-10012

YH51..4FC,4H,5F,5H;LH5#,6#,7#,YH50,6#,71..ARL,EUR,SA;YH51..4HC..(03S,06S,09S)..(EUR,SA)

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-26090

LH5#,6#,7#,YH5#,6#,71

 1
47313-26120

LH56,66,YH56,66

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02436

LH5#,6#,7#,YH5#,6#,71

 2
90947-02534

YH56,66

 2
90947-02502

LH56,66

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

LH56,66,YH56,66

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

LH56,66,YH56,66

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

LH56,66,YH56,66

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-26080

LH5#,6#,7#,YH5#,6#,71

 1
47314-26120

LH56,66,YH56,66

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-26070

YH51..MTM;YH51..4HC..(EUR,SA);LH5#,6#,7#,YH50,6#,71..ARL,EUR,SA

 1
47315-26100

LH56,66,YH56,66

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-26100

LH6#,YH6#..ARL,EUR,SA

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02535

YH56,66

 1
96940-33505

LH56,66

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-26130

LH6#,YH50,6#..M1

 1
47321-26200

LH56,66,YH56,66

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10103

LH5#,6#,7#,YH5#,6#,7#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-26150

LH56,66,YH56,66

 1
47322-26090

LH5#,6#,7#,YH5#,6#,71

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10147

LH5#,6#,7#,YH5#,6#,7#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-26210

LH6#,YH6#

W/LSPV

 1
47323A - WAY, NO.3(FOR REAR BRAKE TUBE)
90412-10006

YH51..4FC,4H,5F,5H;LH5#,6#,7#,YH50,6#,71..ARL,EUR,SA;YH51..4HC..(03S,06S,09S)..(EUR,SA)

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-26100

LH5#,6#,7#,YH5#,6#,71

W/LSPV

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-26220

LH56,66,YH56,66

 1
47325-26150

LH6#,YH50,6#..M1

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-26210

LH56,66,YH56,66

 1
47326-26130

LH6#,YH50,6#..M1

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-26060

LH5#,6#,7#,YH5#,6#,71

FR DISC BRAKE

 1
47351-26090

LH56,66,YH56,66

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-26060

LH5#,6#,7#,YH5#,6#,71

FR DISC BRAKE

 1
47352-26090

LH56,66,YH56,66

 1
Common parts
90461-08324
90461-08593
90461-12328
90461-12329
90468-08032
90480-01069
90480-01071
90480-01122
90480-01193
90480-01196
91611-40812
91611-40814
91611-40820
91611-60814
91611-60816
91611-60828
96221-20906
96221-30905
