LH66LV-MRJHW (1986)

Toyota Hiace Van,Commuter

Production Aug 1986 - Aug 1987
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )LH56,66

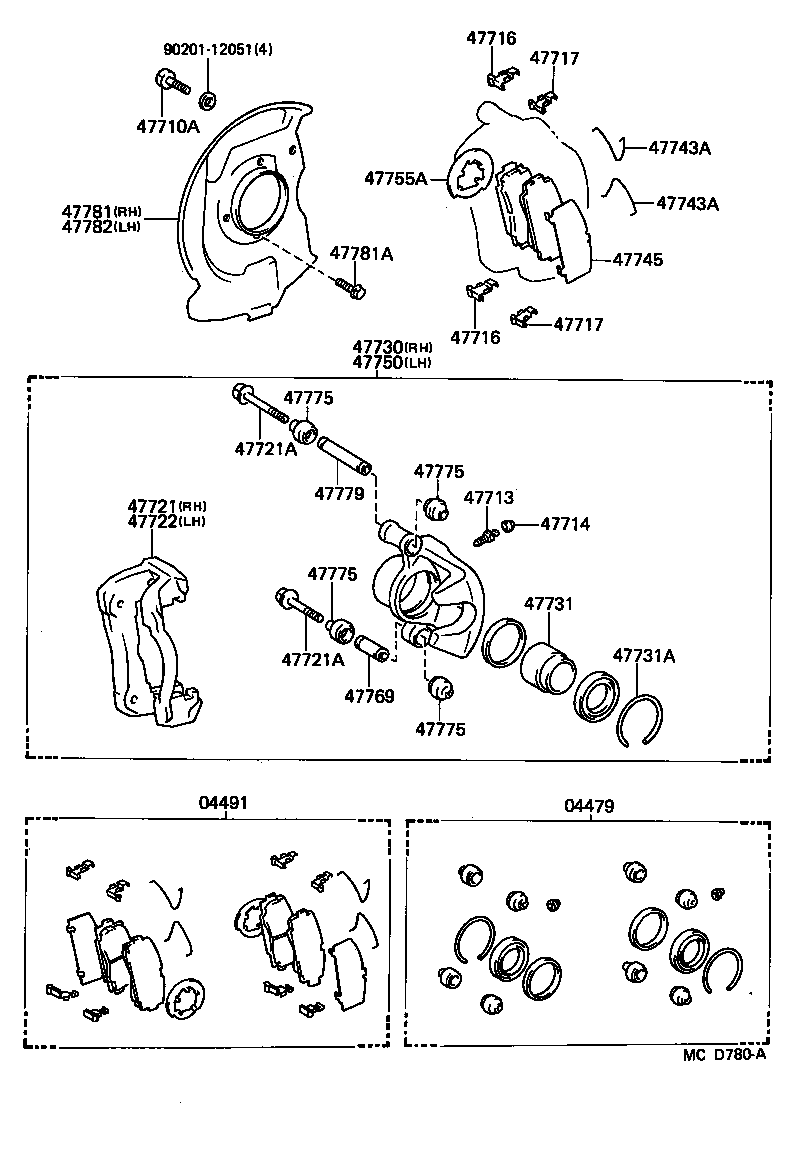

Click highlighted areas on diagram

diagram 04479 04491 47710A 47713 47714 47716 47716 47717 47717 47721 47721A 47721A 47722 47730 47731 47731A 47743A 47743A 47745 47750 47755A 47769 47775 47775 47775 47775 47779 47781 47781A 47782 9020112051
Part # Description Qty Price
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-26030

LH56,66,YH56,66

 1
04491 - PAD KIT, DISC BRAKE, FRONT
04491-26040

LH5#,6#,YH5#,6#..EUR,SA

 1
04491-26110

LH56,66,YH56,66

 1
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90101-12149

LH56,66,YH56,66

*12-1.25P-41X20

 4
90101-12030

LH5#,6#,7#,YH5#,6#,71

*12-1.25PX31-20

 4
47713 - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-12010

LH5#,6#,7#,YH5#,6#,7#

 2
47714 - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

LH5#,6#,7#,YH5#,6#,7#

 2
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-26030

LH56,66,YH56,66

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-26030

LH56,66,YH56,66

 4
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-26030

LH56,66,YH56,66

 4
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-26030

LH56,66,YH56,66

 4
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-26070

LH56,66,YH56,66

 1
47721-26040

LH5#,6#,7#,YH5#,6#,71

 1
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90119-10249

LH5#,6#,7#,YH5#,6#,7#

*10-1.25PX95.5-30,*10-1.25PX93-25

 2
90119-10014

LH5#,6#,7#,YH5#,6#,7#

*10-1.25PX65.5-30,*10-1.25PX63-25

 2
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90119-10249

LH5#,6#,7#,YH5#,6#,7#

*10-1.25PX95.5-30,*10-1.25PX93-25

 2
90119-10014

LH5#,6#,7#,YH5#,6#,7#

*10-1.25PX65.5-30,*10-1.25PX63-25

 2
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47721-26070

LH56,66,YH56,66

 1
47721-26040

LH5#,6#,7#,YH5#,6#,71

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-26040

LH5#,6#,7#,YH5#,6#,71

 1
47730-26100

LH56,66,YH56,66

 1
47731 - PISTON, FRONT DISC BRAKE
47731-25010

LH56,66,YH56,66

 2
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-76001

LH56,66,YH56,66

 2
47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
47743-26030

LH56,66,YH56,66

 2
47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
47743-26030

LH56,66,YH56,66

 2
47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)
47745-26030

LH56,66,YH56,66

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-26040

LH5#,6#,7#,YH5#,6#,71

 1
47750-26100

LH56,66,YH56,66

 1
47755A - INSULATOR, DISC BRAKE HEAT
47755-25010

LH56,66,YH56,66

 2
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-40010

LH5#,6#,7#,YH5#,6#,7#

 2
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-26010

LH56,66,YH56,66

 8
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-26010

LH56,66,YH56,66

 8
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-26010

LH56,66,YH56,66

 8
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-26010

LH56,66,YH56,66

 8
47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)
47779-40010

LH5#,6#,7#,YH5#,6#,7#

 2
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-26050

LH56,66,YH56,66

 1
47781-26030

LH5#,6#,7#,YH5#,6#,71

 1
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
91611-60814

LH56,66,YH56,66

 4
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-26050

LH56,66,YH56,66

 1
47782-26030

LH5#,6#,7#,YH5#,6#,71

 1
Common parts
90201-12051
