LH66LV-MRJHW (1986)

Toyota Hiace Van,Commuter

Production Aug 1986 - Aug 1987
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212-8708)LH5#,6#,7#

Click highlighted areas on diagram

diagram 44704 44704 44729 44729 44730 44730 44730A 44730A 44730D 44730D 44730F 44761 44764 44764 44771 44771 44771A 44771A 44771A 44773 44773 44773A 44773A 44773B 44774 44774C 44774C 9046110221 9046110221 9046110221 9094901092 9161140814 9161140814 9161140814 9161140814 9161140814
Part # Description Qty Price
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-26030

LH5#,6#..LHD

 1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-26030

LH5#,6#..LHD

 1
44729 - GASKET, VACUUM TUBE
44729-26020

LH5#,6#,7#,YH5#,6#,7#

 1
44729 - GASKET, VACUUM TUBE
44729-26020

LH5#,6#,7#,YH5#,6#,7#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-24020

YH56,66

 1
44730-60040

LH5#,6#,7#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-24020

YH56,66

 1
44730-60040

LH5#,6#,7#

 1
44730A - HOSE, VACUUM, NO.1
44774-26120

YH56,66

 1
44774-26050

LH60,YH50,6#..M1

 1
95441-09190

LH5#,6#,7#

 1
44730A - HOSE, VACUUM, NO.1
44774-26120

YH56,66

 1
44774-26050

LH60,YH50,6#..M1

 1
95441-09190

LH5#,6#,7#

 1
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16141

LH5#,6#,7#,YH5#,6#,71

 2
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16141

LH5#,6#,7#,YH5#,6#,71

 2
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51031

YH5#,6#,7#

 1
90405-09104

LH56,66

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-26140

LH56,66,YH56,66

 1
44764 - TUBE, BOOSTER VACUUM
44764-26060

LH5#,6#,YH50,51,56,60,61,66..LHD

 1
44764 - TUBE, BOOSTER VACUUM
44764-26060

LH5#,6#,YH50,51,56,60,61,66..LHD

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-26020

YH50,51,56,60,61,66..LHD

 1
44774-26050

LH6#..M1

 1
44774-26120

LH56,66

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-26020

YH50,51,56,60,61,66..LHD

 1
44774-26050

LH6#..M1

 1
44774-26120

LH56,66

 1
44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE)
90467-16141

LH5#,6#,7#,YH5#,6#,71

 2
90467-16004

YH56,66

 1
44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE)
90467-16141

LH5#,6#,7#,YH5#,6#,71

 2
90467-16004

YH56,66

 1
44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE)
90467-16141

LH5#,6#,7#,YH5#,6#,71

 2
90467-16004

YH56,66

 1
44773 - HOSE, VACUUM, NO.2
44773-26060

YH56,66

 1
44772-26030

LH5#,6#..LHD

 1
44773 - HOSE, VACUUM, NO.2
44773-26060

YH56,66

 1
44772-26030

LH5#,6#..LHD

 1
44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2)
90467-16141

LH5#,6#,7#,YH5#,6#,71

 1
44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2)
90467-16141

LH5#,6#,7#,YH5#,6#,71

 1
44773B - CLIP, NO.2(FOR VACUUM HOSE, NO.2)
90467-16141

LH5#,6#,7#,YH5#,6#,71

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-26140

LH56,66

 1
44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16141

LH5#,6#,7#

 2
44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16141

LH5#,6#,7#

 2
Common parts
90461-10221
90949-01092
91611-40814

(8608-8708)LH56,66,YH56,66

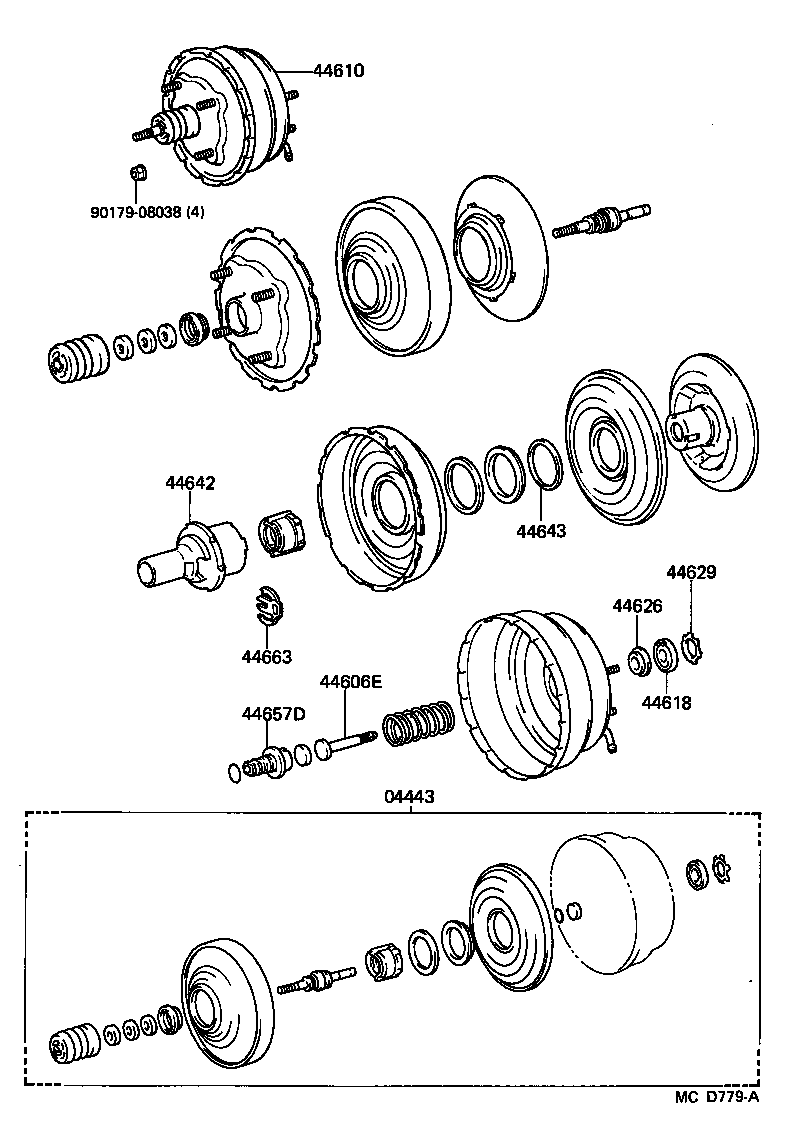

Click highlighted areas on diagram

diagram 04443 44606E 44610 44618 44626 44629 44642 44643 44657D 44663 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-26150

YH50,6#..M1

 1
04443-26340

YH56,66

 1
04443-26330

LH56,66

 1
44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON
44606-20800

LH56,66,YH56,66

 1
44610 - BOOSTER ASSY, BRAKE
44610-26220

LH6#..M1

 1
44610-26200

YH50,6#..M1

 1
44610-26350

LH56,66

 1
44610-26360

YH56,66

 1
44618 - SEAL, BOOSTER BODY
44621-14030

LH56,66,YH56,66

 1
44626 - RETAINER, BOOSTER ROD CUP
44626-60010

LH56,66,YH56,66

 1
44629 - RING, CIRCULAR INTERNAL
44628-60010

LH56,66,YH56,66

 1
44642 - PISTON, BRAKE BOOSTER
44642-20800

LH56,66,YH56,66

 1
44643 - RETAINER, DIAPHRAGM
44643-20800

LH56,66,YH56,66

 1
44657D - CASE, REACTION DISC
44657-20800

LH56,66,YH56,66

 1
44663 - KEY, VALVE STOPPER
44635-20800

LH56,66,YH56,66

 1
Common parts
90179-08038
