LH66LV-MRJHW (1986)

Toyota Hiace Van,Commuter

Production Aug 1986 - Aug 1987
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608-8708)LH56,66,YH56,66

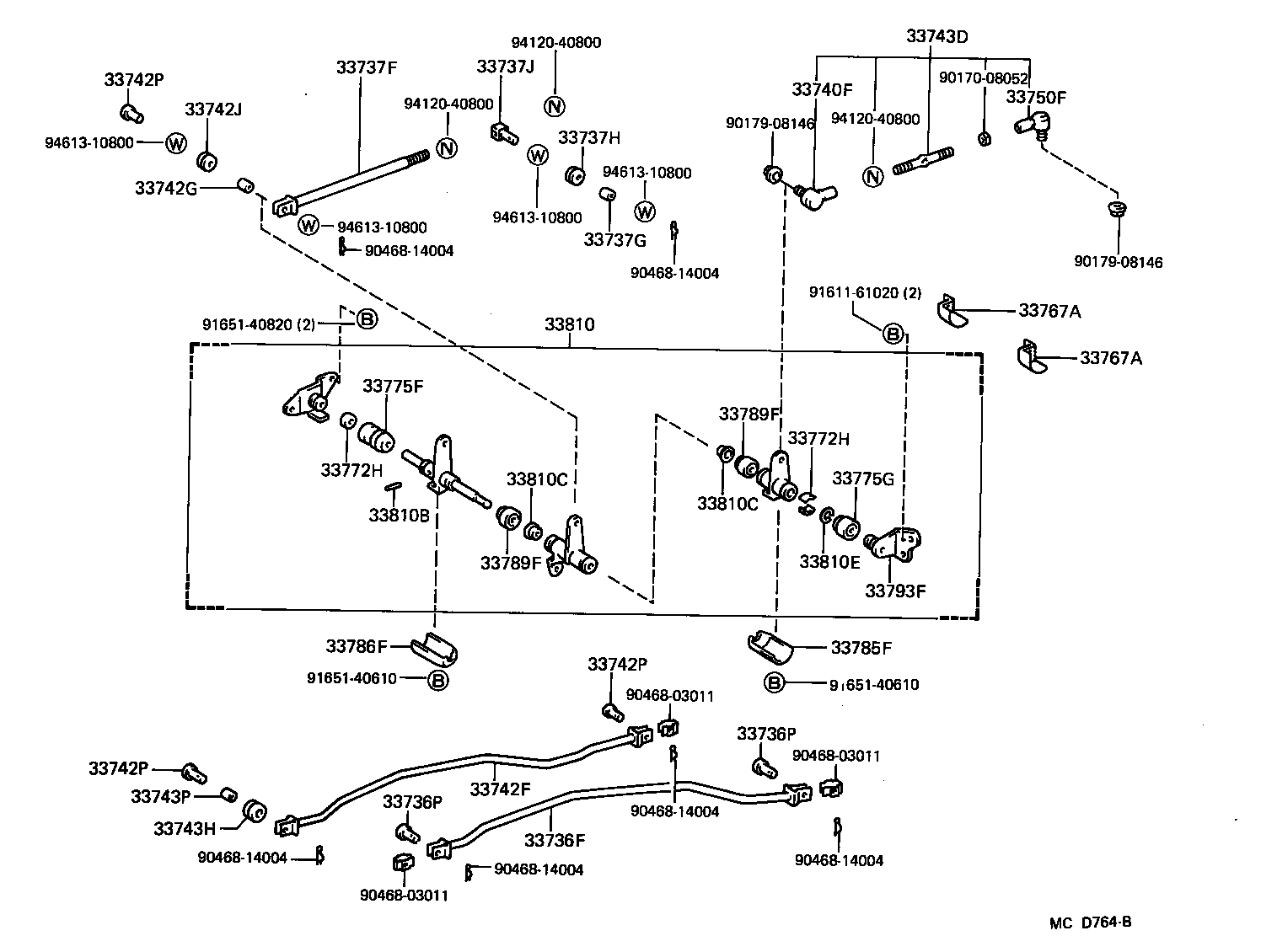

Click highlighted areas on diagram

diagram 33736F 33736P 33736P 33737F 33737G 33737H 33737J 33740F 33742F 33742G 33742J 33742P 33742P 33742P 33743D 33743H 33743P 33750F 33767A 33767A 33772H 33772H 33775F 33775G 33785F 33786F 33789F 33789F 33793F 33810 33810B 33810C 33810C 33810E 9017008052 9017908146 9017908146 9046803011 9046803011 9046803011 9046814004 9046814004 9046814004 9046814004 9046814004 9046814004 9161161020 9165140610 9165140610 9165140820 9412040800 9412040800 9412040800 9461310800 9461310800 9461310800 9461310800
Part # Description Qty Price
33736F - ROD, GEAR SELECTING, NO.2(FOR FLOOR SHIFT)
33736-26180

LH56,66,YH56,66

 1
33737F - ROD, GEAR SELECTING, NO.3 (FOR FLOOR SHIFT)
33737-26090

LH56,66,YH56,66

 1
33737J - SWIVEL (FOR GEAR SELECTING ROD NO.3)
33723-10020

LH56,66,YH56,66

 1
33742F - ROD, GEAR SHIFTING, NO.2(FOR FLOOR SHIFT)
33742-26170

LH56,66,YH56,66

 1
33743D - ROD, GEAR SHIFTING, NO.3 (FOR FLOOR SHIFT)
33743-26120

LH56,66,YH56,66

 1
33767A - INSULATOR, CONNECTING ROD HEAT (FOR FLOOR SHIFT)
33767-25010

LH56,66

 1
33767-26010

YH56,66

 1
33767A - INSULATOR, CONNECTING ROD HEAT (FOR FLOOR SHIFT)
33767-25010

LH56,66

 1
33767-26010

YH56,66

 1
33772H - BUSH, CROSS SHAFT SUPPORT, NO.2 (FOR FLOOR SHIFT)
33772-20010

LH56,66,YH56,66

INNER

 2
33772-36010

LH56,66,YH56,66

OUTER

 1
33772H - BUSH, CROSS SHAFT SUPPORT, NO.2 (FOR FLOOR SHIFT)
33772-20010

LH56,66,YH56,66

INNER

 2
33772-36010

LH56,66,YH56,66

OUTER

 1
33775G - COVER, CROSS SHAFT DUST, NO.2 (FOR FLOOR SHIFT)
33775-35030

LH56,66,YH56,66

OUTER

 1
33775-20020

LH56,66,YH56,66

INNER

 1
33785F - INSULATOR, CROSS SHAFT LEVER HEAT, NO.1 (FOR FLOOR SHIF
33785-26040

LH56,66

 1
33786F - INSULATOR, CROSS SHAFT LEVER HEAT, NO.2 (FOR FLOOR SHIF
33786-26020

LH56,66

 1
33789F - COVER, CROSS SHAFT DUST, NO.1(FOR FLOOR SHIFT)
33789-36030

LH56,66,YH56,66

 2
33789F - COVER, CROSS SHAFT DUST, NO.1(FOR FLOOR SHIFT)
33789-36030

LH56,66,YH56,66

 2
33793F - BRACKET, CROSS SHAFT, NO.2(FOR FLOOR SHIFT)
33793-26040

LH56,66,YH56,66

 1
33810 - SHAFT ASSY, CROSS, NO.2
33810-26020

LH56,66,YH56,66

 1
33810B - PIN, GROOVED (FOR CROSS SHAFT)
90256-08001

LH56,66,YH56,66

 1
33810C - BUSH (FOR CROSS SHAFT)
90386-15110

LH56,66,YH56,66

 2
33810C - BUSH (FOR CROSS SHAFT)
90386-15110

LH56,66,YH56,66

 2
33810E - RING, SNAP (FOR CROSS SHAFT)
96151-01600

LH56,66,YH56,66

 1
Common parts
90170-08052
90179-08146
90468-03011
90468-14004
91611-61020
91651-40610
91651-40820
94120-40800
94613-10800
