LH66LV-MRBFW (1986)

Toyota Hiace Van,Commuter

Production Aug 1986 - Aug 1987
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )LH56,66,YH56,66

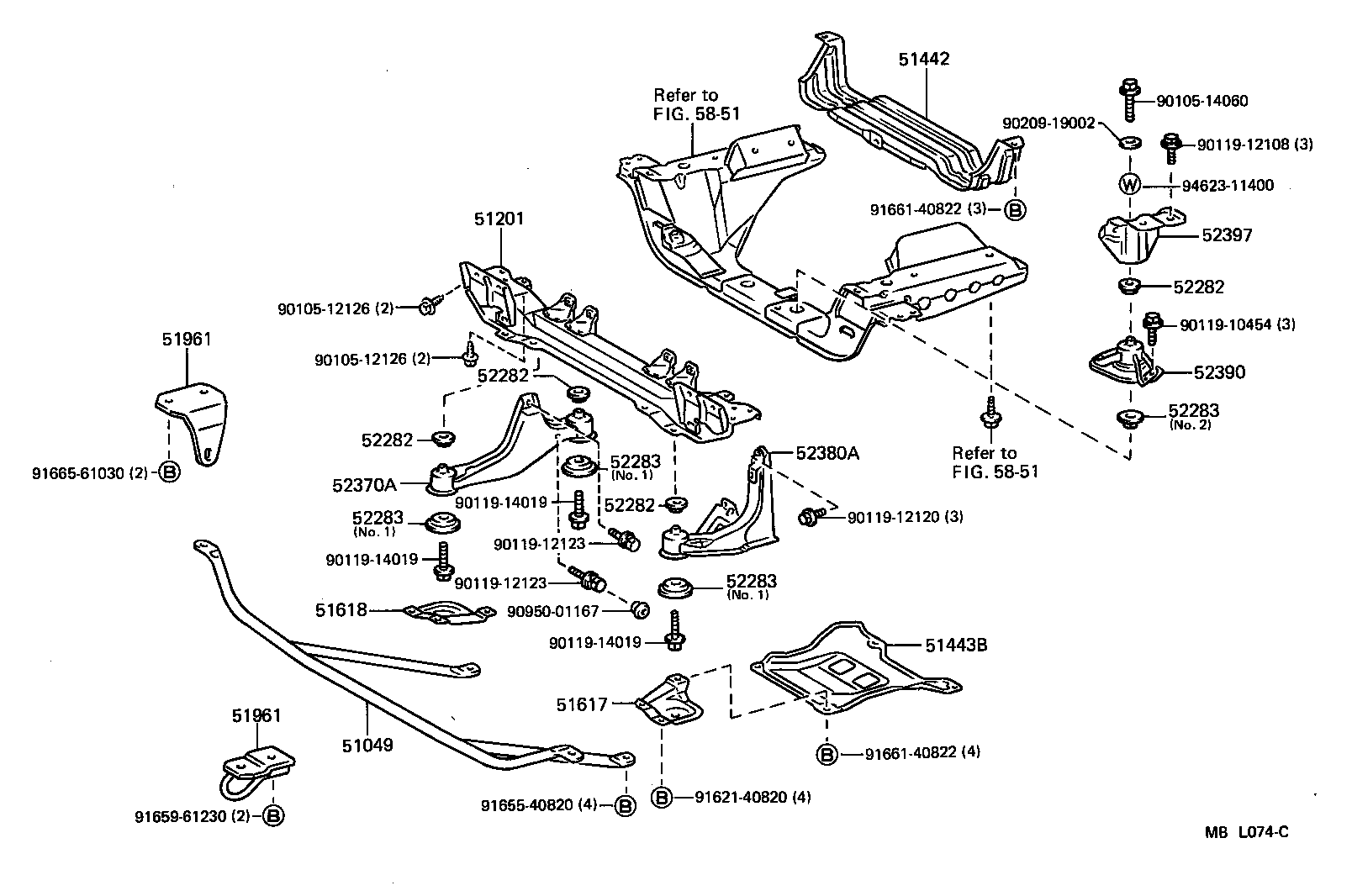

Click highlighted areas on diagram

diagram 51049 51201 51442 51443B 51617 51618 51961 51961 52282 52282 52282 52282 52283 52283 52283 52283 52370A 52380A 52390 52397 5851 5851 9010512126 9010512126 9010514060 9011910454 9011912108 9011912120 9011912123 9011912123 9011914019 9011914019 9011914019 9020919002 9095001167 9162140820 9165540820 9165961230 9166140822 9166140822 9166561030 9462311400
Part # Description Qty Price
51049 - BAR SUB-ASSY, UNDER GUARD, FRONT
51040-95J00

LH56,66,YH56,66

 1
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51203-95J03

LH56,66,YH56,66

 1
51442 - COVER, ENGINE UNDER, NO.2
51442-95J01

LH56,66

 1
51443B - COVER, ENGINE UNDER, NO.3
51443-95J02

LH56,66

 1
51617 - GUARD, FRONT DIFFERENTIAL SUPPORT, RH
51617-95J00

LH56,66,YH56,66

 1
51618 - GUARD, FRONT DIFFERENTIAL SUPPORT, LH
51618-95J00

LH56,66,YH56,66

 1
51961 - HOOK, NO.1
51961-26110

LH56,66,YH56,66

LH

 1
51970-95J00

LH56,66,YH56,66

RH

 1
51961 - HOOK, NO.1
51961-26110

LH56,66,YH56,66

LH

 1
51970-95J00

LH56,66,YH56,66

RH

 1
52282 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER
52282-95J00

LH56,66,YH56,66

 1
52282 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER
52282-95J00

LH56,66,YH56,66

 1
52282 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER
52282-95J00

LH56,66,YH56,66

 1
52282 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER
52282-95J00

LH56,66,YH56,66

 1
52283 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER
52283-95J01

LH56,66,YH56,66

NO.2

 1
52283-95J00

LH56,66,YH56,66

NO.1

 1
52283 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER
52283-95J01

LH56,66,YH56,66

NO.2

 1
52283-95J00

LH56,66,YH56,66

NO.1

 1
52283 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER
52283-95J01

LH56,66,YH56,66

NO.2

 1
52283-95J00

LH56,66,YH56,66

NO.1

 1
52283 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER
52283-95J01

LH56,66,YH56,66

NO.2

 1
52283-95J00

LH56,66,YH56,66

NO.1

 1
52370A - SUPPORT ASSY, FRONT DIFFERENTIAL, FRONT RH
52370-95J01

LH56,66,YH56,66

 1
52380A - SUPPORT ASSY, FRONT DIFFERENTIAL, FRONT LH
52380-95J00

LH56,66,YH56,66

 1
52390 - SUPPORT ASSY, FRONT DIFFERENTIAL, REAR
52390-95J00

LH56,66,YH56,66

 1
52397 - BRACKET, FRONT DIFFERENTIAL REAR SUPPORT
52397-95J00

LH56,66,YH56,66

 1
Common parts
90105-12126
90105-14060
90119-10454
90119-12108
90119-12120
90119-12123
90119-14019
90209-19002
90950-01167
91621-40820
91655-40820
91659-61230
91661-40822
91665-61030
94623-11400
Linked diagrams
5851
