LH61LV-QRJHW (1987)
Toyota Hiace Van,Commuter
(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-95J01 |
LH5#,6#,YH5#,6# |
1 | ||
| 71011-95J02 |
YH51..U;LH61..V4D..R;YH51..V5D..5H;YH61..V4D..4HC;YH61..V5D..4HC..R;LH5#,YH56,66..V4D..(R,U) W(RECLINING) |
1 | ||
| 71011-95J02 |
LH6#,YH6#..J W(RECLINING) |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-95J05 |
LH5#,6#,YH5#,6#..LHD |
1 | ||
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71150-95J04 |
LH5#,YH5#..U;LH61..V4D..R;YH61..V4D..4HC W(HEADREST) |
1 | ||
| 71150-95J03 |
LH5#,6#,YH5#,6#..LHD |
1 | ||
| 71150-95J04 |
LH6#,YH61..J W(HEADREST) |
1 | ||
| 71150-95J04 |
LH5#,YH56..U;LH61..V4D..R;YH61..V4D..4HC W(HEADREST) |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71160-95J02 |
LH61..V4D..R;YH61..V4D..4HC;LH5#,YH56..V4D..(R,U) W(HEADREST) |
1 | ||
| 71160-95J06 |
LH5#,6#,YH5#,6#..LHD |
1 | ||
| 71160-95J02 |
LH6#,YH61..J W(HEADREST) |
1 | ||
| 71031S - COVER SUB-ASSY, CENTER SEAT CUSHION | ||||
| 71097-95J0506 |
LH61..J;YH51..R;LH51,61..V5D..5H;YH51,61..V5D..4H;YH61..V4D..5H..(J,R) BELGIUM SPEC & W(HEADREST) & W(RECLINING),BROWN,TRIM4# |
1 | ||
| 71032-95J1416 |
LH61,YH51,61..J W(FABRIC),BROWN,TRIM4# |
1 | ||
| 71032-95J1416 |
LH61..R;LH51,YH51..R,U;YH61..V4D..4HC;YH61..V4D..5H..R W(FABRIC),BROWN,TRIM4# |
1 | ||
| 71097-95J0506 |
LH61..J;YH51..R;LH51,61..V5D..5H;YH51,61..LHD..4H;YH61..V4D..5H..(J,R) BELGIUM SPEC & W(HEADREST) & W(RECLINING),BROWN,TRIM4# |
1 | ||
| 71032-95J1816 |
LH61..J;YH51..R;LH51,61..V5D..5H;YH51,61..V5D..4H;YH61..V4D..5H..(J,R) BELGIUM SPEC & W(FABRIC) & W(HEADREST) & W(RECLINING),BROWN,TRIM4# |
1 | ||
| 71032-95J1816 |
LH51..R;LH61..J;LH61..V5D..5H;YH51,61..V5D..4H;LH51..LHD..VSP..5H;YH61..V4D..5H..(J,R);YH51..V4D..5H..(03S,R) BELGIUM SPEC & W(FABRIC) & W(HEADREST) & W(RECLINING),BROWN,TRIM4# |
1 | ||
| 71097-95J0506 |
LH61..J;LH51,YH51..R;LH61..V5D..5H;YH51,61..LHD..4H;LH51..LHD..VSP..5H;YH61..V4D..5H..(J,R) BELGIUM SPEC & W(HEADREST) & W(RECLINING),BROWN,TRIM4# |
1 | ||
| 71097-95J0306 |
LH51,61,YH51,61..LHD..V BROWN,TRIM4# |
1 | ||
| 71035S - COVER, FRONT SEAT BACK, CENTER | ||||
| 71035-95J2316 |
YH51..U;YH61..V5D..R;YH51..V5D..5H;YH61..V4D..4HC;LH51,61..V4D..(R,U);LH51,61,YH51,61..RHD W(FABRIC),BROWN,TRIM4# |
1 | ||
| 71035-95J2316 |
LH61,YH61..J W(FABRIC),BROWN,TRIM4# |
1 | ||
| 71095-95J0306 |
LH51,61,YH51,61..V BROWN,TRIM4# |
1 | ||
| 71035-95J2316 |
YH51..U;YH61..V5D..R;YH61..V4D..4HC;LH51,61..V4D..(R,U);LH51,61,YH51,61..RHD W(FABRIC),BROWN,TRIM4# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-95J4316 |
YH61..V5D..R;YH51..V5D..5H;YH61..V4D..4HC;YH61..V4D..5H..R;LH5#,61,YH5#,66..R,U W(FABRIC),BROWN,TRIM4# |
1 | ||
| 71071-95J4416 |
LH6#,YH6#..J W(FABRIC & RECLINING SEAT),BROWN,TRIM4# |
1 | ||
| 71071-95J4416 |
YH51..U;LH61..V4D..R;YH61..V5D..R;YH51..V5D..5H;YH61..V4D..4HC;LH5#,YH56,66..V4D..(R,U) W(FABRIC & RECLINING SEAT),BROWN,TRIM4# |
1 | ||
| 71071-95J4316 |
YH61..J,U;LH6#,YH51,66..J W(FABRIC),BROWN,TRIM4# |
1 | ||
| 71071-95J4316 |
YH61..V5D..R;YH61..V4D..4HC;YH61..V4D..5H..R;LH5#,61,YH5#,66..R,U W(FABRIC),BROWN,TRIM4# |
1 | ||
| 71071-95J6906 |
YH51..U;YH61..15S;YH51..V5D..5H;YH61..V4D..4HC;YH61..V5D..4HC..R;LH5#,61,YH56,66..V4D..(R,U) W(RECLINING),BROWN,TRIM4# |
1 | ||
| 71071-95J6806 |
LH5#,6#,YH5#,6#..LHD BROWN,TRIM4# |
1 | ||
| 71071-95J6906 |
LH6#,YH6#..J W(RECLINING),BROWN,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-95J5116 |
YH51..U;YH61..V5D..R;YH51..V5D..5H;YH61..V4D..4HC;LH5#,61,YH56,66..V4D..(R,U) W(FABRIC),BROWN,TRIM4# |
1 | ||
| 71072-95J5116 |
LH6#,YH6#..J W(FABRIC),BROWN,TRIM4# |
1 | ||
| 71072-95J7506 |
LH5#,6#,YH5#,6#..LHD BROWN,TRIM4# |
1 | ||
| 71072-95J5116 |
LH5#,YH51..U;YH61..V5D..R;YH61..V4D..4HC;LH61,YH56,66..V4D..(R,U) W(FABRIC),BROWN,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-95N2006 |
YH61..15S;YH51..V5D..5H;YH61..V4D..4HC;YH61..V5D..4HC..R;LH61,YH56,66..V4D..R W(HEADREST),BROWN,TRIM4# |
1 | ||
| 71073-95J7216 |
YH61..V5D..R;YH51..V5D..5H;YH61..V4D..4HC;LH61,YH56,66..V4D..R W(FABRIC & HEADREST),BROWN,TRIM4# |
1 | ||
| 71073-95J7016 |
LH61..R;LH61..4HC;LH5#,66,YH5#,6#..LHD..(02S,03S,R) W(FABRIC),BROWN,TRIM4# |
1 | ||
| 71073-95J8116 |
LH5#,6#,YH5#,6#..J,U W(FABRIC),BROWN,TRIM4# |
1 | ||
| 71073-95J82 |
LH6#,YH6#..J W(FABRIC & HEADREST) |
1 | ||
| 71073-95N1906 |
LH5#,6#,YH5#,6#..LHD..(02S,03S,15S,R) BROWN,TRIM4# |
1 | ||
| 71073-95J7216 |
YH61..V5D..R;YH61..V4D..4HC;LH61,YH56,66..V4D..R W(FABRIC & HEADREST),BROWN,TRIM4# |
1 | ||
| 71073-95N2206 |
LH6#,YH6#..J W(HEADREST),BROWN,TRIM4# |
1 | ||
| 71073-95N2306 |
LH5#,6#,YH5#,6#..J,U BROWN,TRIM4# |
1 | ||
| 71073-95N2006 |
YH61..15S;YH61..V4D..4HC;YH61..V5D..4HC..R;LH61,YH56,66..V4D..R W(HEADREST),BROWN,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-95N0016 |
YH61..V5D..R;YH51..V5D..5H;YH61..V4D..4HC;LH61,YH56,66..V4D..R W(FABRIC & HEADREST),BROWN,TRIM4# |
1 | ||
| 71074-95N3606 |
YH61..15S;YH51..V5D..5H;YH61..V4D..4HC;YH61..V5D..4HC..R;LH61,YH56,66..V4D..R W(HEADREST),BROWN,TRIM4# |
1 | ||
| 71074-95N0816 |
LH5#,6#,YH5#,6#..J,U W(FABRIC),BROWN,TRIM4# |
1 | ||
| 71074-95J8916 |
LH61..R;LH61..4HC;LH5#,66,YH5#,6#..LHD..(02S,03S,R) W(FABRIC),BROWN,TRIM4# |
1 | ||
| 71074-95N0916 |
LH6#,YH6#..J W(FABRIC & HEADREST),BROWN,TRIM4# |
1 | ||
| 71074-95N0016 |
YH61..V5D..R;YH61..V4D..4HC;LH61,YH56,66..V4D..R W(FABRIC & HEADREST),BROWN,TRIM4# |
1 | ||
| 71074-95N3506 |
LH5#,6#,YH5#,6#..LHD..(02S,03S,15S,R) BROWN,TRIM4# |
1 | ||
| 71074-95N3806 |
LH61,YH61..J W(HEADREST),BROWN,TRIM4# |
1 | ||
| 71074-95N3606 |
YH61..15S;YH61..V4D..4HC;YH61..V5D..4HC..R;LH61,YH56,66..V4D..R W(HEADREST),BROWN,TRIM4# |
1 | ||
| 71074-95N3906 |
LH5#,6#,YH5#,6#..J,U BROWN,TRIM4# |
1 | ||
| 71181 - SUPPORT, FRONT SEAT BACK, RH | ||||
| 71181-95J0006 |
LH5#,6#,YH5#,6#..LHD BROWN,TRIM4# |
1 | ||
| 71301S - FRAME SUB-ASSY, CENTER SEAT CUSHION | ||||
| 71302-95J04 |
LH51..R;LH61..J;LH61..V5D..5H;YH51,61..V5D..4H;LH51..LHD..VSP..5H;YH61..V4D..5H..(J,R);YH51..V4D..5H..(03S,R) BELGIUM SPEC & W(FABRIC) & W(HEADREST) & W(RECLINING) |
1 | ||
| 71302-95J04 |
LH61..J;YH51..R;LH51,61..V5D..5H;YH51,61..V5D..4H;YH61..V4D..5H..(J,R) BELGIUM SPEC & W(FABRIC) & W(HEADREST) & W(RECLINING) |
1 | ||
| 71302-95J03 |
LH51,61,YH51,61..LHD..V |
1 | ||
| 71305S - FRAME SUB-ASSY, CENTER SEAT BACK | ||||
| 72320-95J0406 |
LH61..J;YH51..R;LH51,61..V5D..5H;YH51,61..V5D..4H;YH61..V4D..5H..(J,R) BELGIUM SPEC & W(FABRIC) & W(HEADREST & RECLINING),BROWN,TRIM4# |
1 | ||
| 72320-95J0306 |
LH51,61,YH51,61..LHD..V BROWN,TRIM4# |
1 | ||
| 72320-95J0306 |
YH61..J,U;LH61,YH51..J W(HEADREST),BROWN,TRIM4# |
3 | ||
| 72320-95J0406 |
LH61..J;LH51,YH51..R;LH61..V5D..5H;YH51,61..V5D..4H;LH51..LHD..VSP..5H;YH61..V4D..5H..(J,R) BELGIUM SPEC & W(FABRIC) & W(HEADREST & RECLINING),BROWN,TRIM4# |
1 | ||
| 71310S - CUSHION ASSY, FRONT SEAT, CENTER | ||||
| 71310-95J2606 |
LH61..J;YH51..R;LH51,61..V5D..5H;YH51,61..V5D..4H;YH61..V4D..5H..(J,R) BELGIUM SPEC & W(HEADREST & RECLINING),BROWN,TRIM4# |
1 | ||
| 71310-95J2606 |
LH61..J;YH51..R;LH51,61..V5D..5H;YH51,61..LHD..4H;YH61..V4D..5H..(J,R) BELGIUM SPEC & W(HEADREST & RECLINING),BROWN,TRIM4# |
1 | ||
| 71320-95J1516 |
LH61..J;YH51..R;LH51,61..V5D..5H;YH51,61..V5D..4H;YH61..V4D..5H..(J,R) BELGIUM SPEC & W(HEADREST & RECLINING & FABRIC),BROWN,TRIM4# |
1 | ||
| 71320-95J1116 |
LH61,YH51,61..J W(FABRIC),BROWN,TRIM4# |
1 | ||
| 71310-95J2406 |
LH51,61,YH51,61..LHD..V BROWN,TRIM4# |
1 | ||
| 71320-95J1116 |
LH61..R;LH51,YH51..R,U;YH61..V4D..4HC;YH61..V4D..5H..R W(FABRIC),BROWN,TRIM4# |
1 | ||
| 71320-95J1516 |
LH51..R;LH61..J;LH61..V5D..5H;YH51,61..V5D..4H;LH51..LHD..VSP..5H;YH61..V4D..5H..(J,R);YH51..V4D..5H..(03S,R) BELGIUM SPEC & W(FABRIC & HEADREST & RECLINING),BROWN,TRIM4# |
1 | ||
| 71310-95J2606 |
LH61..J;LH51,YH51..R;LH61..V5D..5H;YH51,61..LHD..4H;LH51..LHD..VSP..5H;YH61..V4D..5H..(J,R) BELGIUM SPEC & W(HEADREST & RECLINING),BROWN,TRIM4# |
1 | ||
| 71318 - PAD, CENTER SEAT CUSHION | ||||
| 71318-95J06 |
LH61..J;YH51..R;LH51,61..V5D..5H;YH51,61..V5D..4H;YH61..V4D..5H..(J,R) BELGIUM SPEC & W(FABRIC & HEADREST & RECLINING) |
1 | ||
| 71318-95J06 |
LH61..J;LH51,YH51..R;LH61..V5D..5H;YH51,61..V5D..4H;LH51..LHD..VSP..5H;YH61..V4D..5H..(J,R) BELGIUM SPEC & W(FABRIC & HEADREST & RECLINING) |
1 | ||
| 71318-95J04 |
LH51,61,YH51,61..V |
1 | ||
| 71350S - BACK ASSY, FRONT SEAT, CENTER | ||||
| 71360-95J1516 |
LH61..J;YH51..R;LH51,61..V5D..5H;YH51,61..V5D..4H;YH61..V4D..5H..(J,R) BELGIUM SPEC & W(FABRIC & HEADREST & RECLINING),BROWN,TRIM4# |
1 | ||
| 71350-95J2706 |
LH61..J;YH51..R;LH51,61..V5D..5H;YH51,61..V5D..4H;YH61..V4D..5H..(J,R) BELGIUM SPEC & W(HEADREST & RECLINING),BROWN,TRIM4# |
1 | ||
| 71350-95J2506 |
LH51,61,YH51,61..LHD..V BROWN,TRIM4# |
1 | ||
| 71350-95J2706 |
LH61..J;YH51..R;LH51,61..V5D..5H;YH51,61..LHD..4H;YH61..V4D..5H..(J,R) BELGIUM SPEC & W(HEADREST & RECLINING),BROWN,TRIM4# |
1 | ||
| 71360-95J1116 |
YH61..V5D..R;YH51..V5D..5H;YH61..V4D..4HC;YH61..V4D..5H..R;LH51,61,YH51..R,U W(FABRIC),BROWN,TRIM4# |
1 | ||
| 71360-95J1516 |
LH51..R;LH61..J;LH61..V5D..5H;YH51,61..V5D..4H;LH51..LHD..VSP..5H;YH61..V4D..5H..(J,R);YH51..V4D..5H..(03S,R) BELGIUM SPEC & W(FABRIC & HEADREST & RECLINING),BROWN,TRIM4# |
1 | ||
| 71360-95J1116 |
YH61..V5D..R;YH61..V4D..4HC;YH61..V4D..5H..R;LH51,61,YH51..R,U W(FABRIC),BROWN,TRIM4# |
1 | ||
| 71350-95J2706 |
LH61..J;LH51,YH51..R;LH61..V5D..5H;YH51,61..LHD..4H;LH51..LHD..VSP..5H;YH61..V4D..5H..(J,R) BELGIUM SPEC & W(HEADREST & RECLINING),BROWN,TRIM4# |
1 | ||
| 71360-95J1116 |
YH61..J,U;LH61,YH51..J W(FABRIC),BROWN,TRIM4# |
1 | ||
| 71358 - PAD, CENTER SEAT BACK | ||||
| 71358-95J02 |
LH51,61,YH51,61..V |
1 | ||
| 71363 - BRACKET, FRONT SEAT SET, NO.3 | ||||
| 71363-95J00 |
LH5#,6#,YH5#,6#..LHD |
1 | ||
| 71366 - BRACKET, FRONT SEAT SET, NO.6 | ||||
| 71366-95J01 |
LH5#,6#,YH5#,6#..LHD |
1 | ||
| 71391 - COVER, CENTER SEAT CUSHION BRACKET, RH | ||||
| 71391-95J0206 |
LH51,61,YH51,61..V BROWN,TRIM4# |
1 | ||
| 71392 - COVER, CENTER SEAT CUSHION BRACKET, LH | ||||
| 71392-95J0206 |
LH51,61,YH51,61..V BROWN,TRIM4# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-95J4616 |
YH61..V5D..R;YH51..V5D..5H;YH61..V4D..4HC;YH61..V4D..5H..R;LH5#,61,YH5#,66..R,U W(FABRIC),BROWN,TRIM4# |
1 | ||
| 71410-95J4616 |
YH61..J,U;LH6#,YH51,66..J W(FABRIC),BROWN,TRIM4# |
1 | ||
| 71410-95J4716 |
YH51..U;LH61..V4D..R;YH61..V5D..R;YH51..V5D..5H;YH61..V4D..4HC;LH5#,YH56,66..V4D..(R,U) W(FABRIC & RECLINING),BROWN,TRIM4# |
1 | ||
| 71410-95J4716 |
LH6#,YH6#..J W(FABRIC & RECLINING),BROWN,TRIM4# |
1 | ||
| 71410-95J6906 |
LH5#,6#,YH5#,6#..LHD BROWN,TRIM4# |
1 | ||
| 71410-95J7006 |
LH6#,YH6#..J W(RECLINING),BROWN,TRIM4# |
1 | ||
| 71410-95J4616 |
YH61..V5D..R;YH61..V4D..4HC;YH61..V4D..5H..R;LH5#,61,YH5#,66..R,U W(FABRIC),BROWN,TRIM4# |
1 | ||
| 71410-95J7006 |
YH51..U;YH61..15S;YH51..V5D..5H;YH61..V4D..4HC;YH61..V5D..4HC..R;LH5#,61,YH56,66..V4D..(R,U) W(RECLINING),BROWN,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-95J5416 |
YH51..U;YH61..V5D..R;YH51..V5D..5H;YH61..V4D..4HC;LH5#,61,YH56,66..V4D..(R,U) W(FABRIC),BROWN,TRIM4# |
1 | ||
| 71420-95J5416 |
LH6#,YH6#..J W(FABRIC),BROWN,TRIM4# |
1 | ||
| 71420-95J7606 |
LH5#,6#,YH5#,6#..LHD BROWN,TRIM4# |
1 | ||
| 71420-95J5416 |
LH5#,YH51..U;YH61..V5D..R;YH61..V4D..4HC;LH61,YH56,66..V4D..(R,U) W(FABRIC),BROWN,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71401-95J6616 |
YH61..V5D..R;YH51..V5D..5H;YH61..V4D..4HC;LH61,YH56,66..V4D..R W(FABRIC & HEADREST),BROWN,TRIM4# |
1 | ||
| 71401-95N1506 |
YH61..15S;YH51..V5D..5H;YH61..V4D..4HC;YH61..V5D..4HC..R;LH61,YH56,66..V4D..R W(HEADREST),BROWN,TRIM4# |
1 | ||
| 71401-95J6416 |
LH61..R;LH61..4HC;LH5#,66,YH5#,6#..LHD..(02S,03S,R) W(FABRIC),BROWN,TRIM4# |
1 | ||
| 71401-95J7616 |
LH5#,6#,YH5#,6#..J,U W(FABRIC),BROWN,TRIM4# |
1 | ||
| 71401-95J7716 |
LH6#,YH6#..J W(FABRIC & HEADREST),BROWN,TRIM4# |
1 | ||
| 71401-95N1706 |
LH6#,YH6#..J W(HEADREST),BROWN,TRIM4# |
1 | ||
| 71401-95N1406 |
LH5#,6#,YH5#,6#..LHD..(02S,03S,15S,R) BROWN,TRIM4# |
1 | ||
| 71401-95J6616 |
YH61..V5D..R;YH61..V4D..4HC;LH61,YH56,66..V4D..R W(FABRIC & HEADREST),BROWN,TRIM4# |
1 | ||
| 71401-95N1506 |
YH61..15S;YH61..V4D..4HC;YH61..V5D..4HC..R;LH61,YH56,66..V4D..R W(HEADREST),BROWN,TRIM4# |
1 | ||
| 71401-95N1806 |
LH5#,6#,YH5#,6#..J,U BROWN,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71402-95N2006 |
YH61..15S;YH51..V5D..5H;YH61..V4D..4HC;YH61..V5D..4HC..R;LH61,YH56,66..V4D..R W(HEADREST),BROWN,TRIM4# |
1 | ||
| 71402-95J7416 |
YH61..V5D..R;YH51..V5D..5H;YH61..V4D..4HC;LH61,YH56,66..V4D..R W(FABRIC & HEADREST),BROWN,TRIM4# |
1 | ||
| 71402-95J8216 |
LH5#,6#,YH5#,6#..J,U W(FABRIC),BROWN,TRIM4# |
1 | ||
| 71402-95J7316 |
LH61..R;LH61..4HC;LH5#,66,YH5#,6#..LHD..(02S,03S,R) W(FABRIC),BROWN,TRIM4# |
1 | ||
| 71402-95J8316 |
LH6#,YH6#..J W(FABRIC & HEADREST),BROWN,TRIM4# |
1 | ||
| 71402-95N2306 |
LH5#,6#,YH5#,6#..J,U BROWN,TRIM4# |
1 | ||
| 71402-95N2006 |
YH61..15S;YH61..V4D..4HC;YH61..V5D..4HC..R;LH61,YH56,66..V4D..R W(HEADREST),BROWN,TRIM4# |
1 | ||
| 71402-95N1906 |
LH5#,6#,YH5#,6#..LHD..(02S,03S,15S,R) BROWN,TRIM4# |
1 | ||
| 71402-95N2206 |
LH6#,YH6#..J W(HEADREST),BROWN,TRIM4# |
1 | ||
| 71402-95J7416 |
YH61..V5D..R;YH61..V4D..4HC;LH61,YH56,66..V4D..R W(FABRIC & HEADREST),BROWN,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-95J02 |
LH5#,6#,YH5#,6#..LHD |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-95J00 |
LH5#,6#,YH5#,6#..LHD |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-95J04 |
LH5#,YH51..U;LH61..V4D..R;YH56,61..V4D..(4HC,5F) W(HEADREST) |
1 | ||
| 71551-95J04 |
LH6#,YH61..J W(HEADREST) |
1 | ||
| 71551-95J07 |
LH5#,6#,YH5#,6#..LHD |
1 | ||
| 71551-95J04 |
LH61..V4D..R;YH61..V4D..4HC;LH5#,YH56..V4D..(R,U) W(HEADREST) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-95J02 |
LH5#,YH5#..U;LH61..V4D..R;YH61..V4D..4HC;YH61..V5D..4HC..R W(HEADREST) |
1 | ||
| 71551-95J02 |
LH6#,YH61..J W(HEADREST) |
1 | ||
| 71551-95J02 |
LH5#,YH56..U;LH61..V4D..R;YH61..V4D..4HC;YH61..V5D..4HC..R W(HEADREST) |
1 | ||
| 71551-95J06 |
LH5#,6#,YH5#,6#..LHD |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-95J0016 |
LH5#,YH51..U;LH61..V4D..R;YH56,61..V4D..(4HC,5F) BROWN,TRIM4# |
1 | ||
| 71811-95J0016 |
LH6#,YH61..J BROWN,TRIM4# |
1 | ||
| 71811-95J0016 |
LH61..V4D..R;YH61..V4D..4HC;LH5#,YH56..V4D..(R,U) BROWN,TRIM4# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
LH51,61,YH51,61..V |
17 | ||
| 90468-18071 |
LH51,61,YH51,61..V |
8 | ||
| 90468-18071 |
LH51,61,YH51,61;LH56,66,YH56,66..02S,R |
62 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
LH51,61,YH51,61..V |
17 | ||
| 90468-18071 |
LH51,61,YH51,61..V |
8 | ||
| 90468-18071 |
LH51,61,YH51,61;LH56,66,YH56,66..02S,R |
62 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
LH51,61,YH51,61..V |
17 | ||
| 90468-18071 |
LH51,61,YH51,61..V |
8 | ||
| 90468-18071 |
LH51,61,YH51,61;LH56,66,YH56,66..02S,R |
62 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
LH51,61,YH51,61..V |
17 | ||
| 90468-18071 |
LH51,61,YH51,61..V |
8 | ||
| 90468-18071 |
LH51,61,YH51,61;LH56,66,YH56,66..02S,R |
62 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
LH51,61,YH51,61..V |
17 | ||
| 90468-18071 |
LH51,61,YH51,61..V |
8 | ||
| 90468-18071 |
LH51,61,YH51,61;LH56,66,YH56,66..02S,R |
62 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
LH51,61,YH51,61..V |
17 | ||
| 90468-18071 |
LH51,61,YH51,61..V |
8 | ||
| 90468-18071 |
LH51,61,YH51,61;LH56,66,YH56,66..02S,R |
62 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-95J0016 |
LH56,66,YH56,66;LH51,61,YH51,61..LHD..(03S,15S,R) BROWN,TRIM4# |
1 | ||
| 71812-95J0016 |
LH61,YH61..J BROWN,TRIM4# |
1 | ||
| 71815A - COVER, FRONT SEAT CUSHION HINGE, RH | ||||
| 71815-95J0016 |
LH5#,6#,YH5#,6# BROWN,TRIM4# |
1 | ||
| 71816A - COVER, FRONT SEAT CUSHION HINGE, LH | ||||
| 71816-95J0016 |
LH5#,6#,YH5#,6#..LHD BROWN,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-95J0206 |
LH6#,YH61..J BROWN,TRIM4# |
2 | ||
| 71910-95J0206 |
LH5#,YH5#..U;LH61..V4D..R;YH61..V4D..4HC;LH61,YH51,61..RHD BROWN,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71990-3002016 |
YH51..U;LH61..V4D..R;YH61..V4D..4HC;LH61,YH51,61..RHD;LH5#,YH56..V4D..(R,U) W(LOCK),W(HEADREST),BROWN,TRIM4# |
2 | ||
| 71956-3002016 |
YH51..U;LH61..V4D..R;YH61..V4D..4HC;LH61,YH51,61..RHD;LH5#,YH56..V4D..(R,U) W/O(LOCK),W(HEADREST),BROWN,TRIM4# |
2 | ||
| 71956-3002016 |
LH6#,YH61..J W/O(LOCK),BROWN,TRIM4# |
2 | ||
| 71990-3002016 |
LH6#,YH61..J W(LOCK),BROWN,TRIM4# |
2 | ||
| 71990-3002016 |
LH61..V4D..R;YH61..V4D..4HC;LH61,YH51,61..RHD;LH5#,YH56..V4D..(R,U) W(LOCK),W(HEADREST),BROWN,TRIM4# |
2 | ||
| 71956-3002016 |
LH61..V4D..R;YH61..V4D..4HC;LH61,YH51,61..RHD;LH5#,YH56..V4D..(R,U) W/O(LOCK),W(HEADREST),BROWN,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71990-3002016 |
YH51..U;LH61..V4D..R;YH61..V4D..4HC;LH61,YH51,61..RHD;LH5#,YH56..V4D..(R,U) W(LOCK),W(HEADREST),BROWN,TRIM4# |
2 | ||
| 71956-3002016 |
YH51..U;LH61..V4D..R;YH61..V4D..4HC;LH61,YH51,61..RHD;LH5#,YH56..V4D..(R,U) W/O(LOCK),W(HEADREST),BROWN,TRIM4# |
2 | ||
| 71956-3002016 |
LH6#,YH61..J W/O(LOCK),BROWN,TRIM4# |
2 | ||
| 71990-3002016 |
LH6#,YH61..J W(LOCK),BROWN,TRIM4# |
2 | ||
| 71990-3002016 |
LH61..V4D..R;YH61..V4D..4HC;LH61,YH51,61..RHD;LH5#,YH56..V4D..(R,U) W(LOCK),W(HEADREST),BROWN,TRIM4# |
2 | ||
| 71956-3002016 |
LH61..V4D..R;YH61..V4D..4HC;LH61,YH51,61..RHD;LH5#,YH56..V4D..(R,U) W/O(LOCK),W(HEADREST),BROWN,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71990-3002016 |
YH51..U;LH61..V4D..R;YH61..V4D..4HC;LH61,YH51,61..RHD;LH5#,YH56..V4D..(R,U) W(LOCK),W(HEADREST),BROWN,TRIM4# |
2 | ||
| 71956-3002016 |
YH51..U;LH61..V4D..R;YH61..V4D..4HC;LH61,YH51,61..RHD;LH5#,YH56..V4D..(R,U) W/O(LOCK),W(HEADREST),BROWN,TRIM4# |
2 | ||
| 71956-3002016 |
LH6#,YH61..J W/O(LOCK),BROWN,TRIM4# |
2 | ||
| 71990-3002016 |
LH6#,YH61..J W(LOCK),BROWN,TRIM4# |
2 | ||
| 71990-3002016 |
LH61..V4D..R;YH61..V4D..4HC;LH61,YH51,61..RHD;LH5#,YH56..V4D..(R,U) W(LOCK),W(HEADREST),BROWN,TRIM4# |
2 | ||
| 71956-3002016 |
LH61..V4D..R;YH61..V4D..4HC;LH61,YH51,61..RHD;LH5#,YH56..V4D..(R,U) W/O(LOCK),W(HEADREST),BROWN,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71990-3002016 |
YH51..U;LH61..V4D..R;YH61..V4D..4HC;LH61,YH51,61..RHD;LH5#,YH56..V4D..(R,U) W(LOCK),W(HEADREST),BROWN,TRIM4# |
2 | ||
| 71956-3002016 |
YH51..U;LH61..V4D..R;YH61..V4D..4HC;LH61,YH51,61..RHD;LH5#,YH56..V4D..(R,U) W/O(LOCK),W(HEADREST),BROWN,TRIM4# |
2 | ||
| 71956-3002016 |
LH6#,YH61..J W/O(LOCK),BROWN,TRIM4# |
2 | ||
| 71990-3002016 |
LH6#,YH61..J W(LOCK),BROWN,TRIM4# |
2 | ||
| 71990-3002016 |
LH61..V4D..R;YH61..V4D..4HC;LH61,YH51,61..RHD;LH5#,YH56..V4D..(R,U) W(LOCK),W(HEADREST),BROWN,TRIM4# |
2 | ||
| 71956-3002016 |
LH61..V4D..R;YH61..V4D..4HC;LH61,YH51,61..RHD;LH5#,YH56..V4D..(R,U) W/O(LOCK),W(HEADREST),BROWN,TRIM4# |
2 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-95J02 |
LH61..V4D..R;YH61..V4D..4HC;LH5#,YH56..V4D..(R,U) |
1 | ||
| 72110-95J02 |
LH5#,YH51..U;LH61..V4D..R;YH56,61..V4D..(4HC,5F) |
1 | ||
| 72110-95J02 |
LH6#,YH61..J |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-95J01 |
LH5#,6#,YH5#,6#..LHD |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-95J01 |
LH5#,YH51..U;LH61..V4D..R;YH56,61..V4D..(4HC,5F) |
1 | ||
| 72130-95J01 |
LH61..V4D..R;YH61..V4D..4HC;LH5#,YH56..V4D..(R,U) |
1 | ||
| 72130-95J01 |
LH6#,YH61..J |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-95J01 |
LH5#,6#,YH5#,6#..LHD |
1 | ||
| 72510D - ADJUSTER ASSY, RECLINING SEAT, OUTER RH | ||||
| 72510-95J0206 |
LH6#,YH61..J BROWN,TRIM4# |
1 | ||
| 72510-95J0206 |
LH61..V4D..R;YH61..V4D..4HC;LH5#,YH56..V4D..(R,U) BROWN,TRIM4# |
1 | ||
| 72520D - ADJUSTER ASSY, RECLINING SEAT, OUTER LH | ||||
| 72520-95J0316 |
LH5#,6#,YH5#,6#..LHD BROWN,TRIM4# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-95J0016 |
LH5#,6#,YH5#,6#..J,U BROWN,TRIM4# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-95J0016 |
LH5#,6#,YH5#,6#..J,U BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-08086 | ||||
| 90119-10116 | ||||
| 90168-40043 | ||||
| 90179-10073 | ||||
| 90386-12018 | ||||
| 90523-08001 | ||||
| 91611-60818 | ||||
| 91611-61020 | ||||
| 91655-61020 | ||||
| 94180-41000 | ||||
| Linked diagrams | ||||
| 8513 | ||||

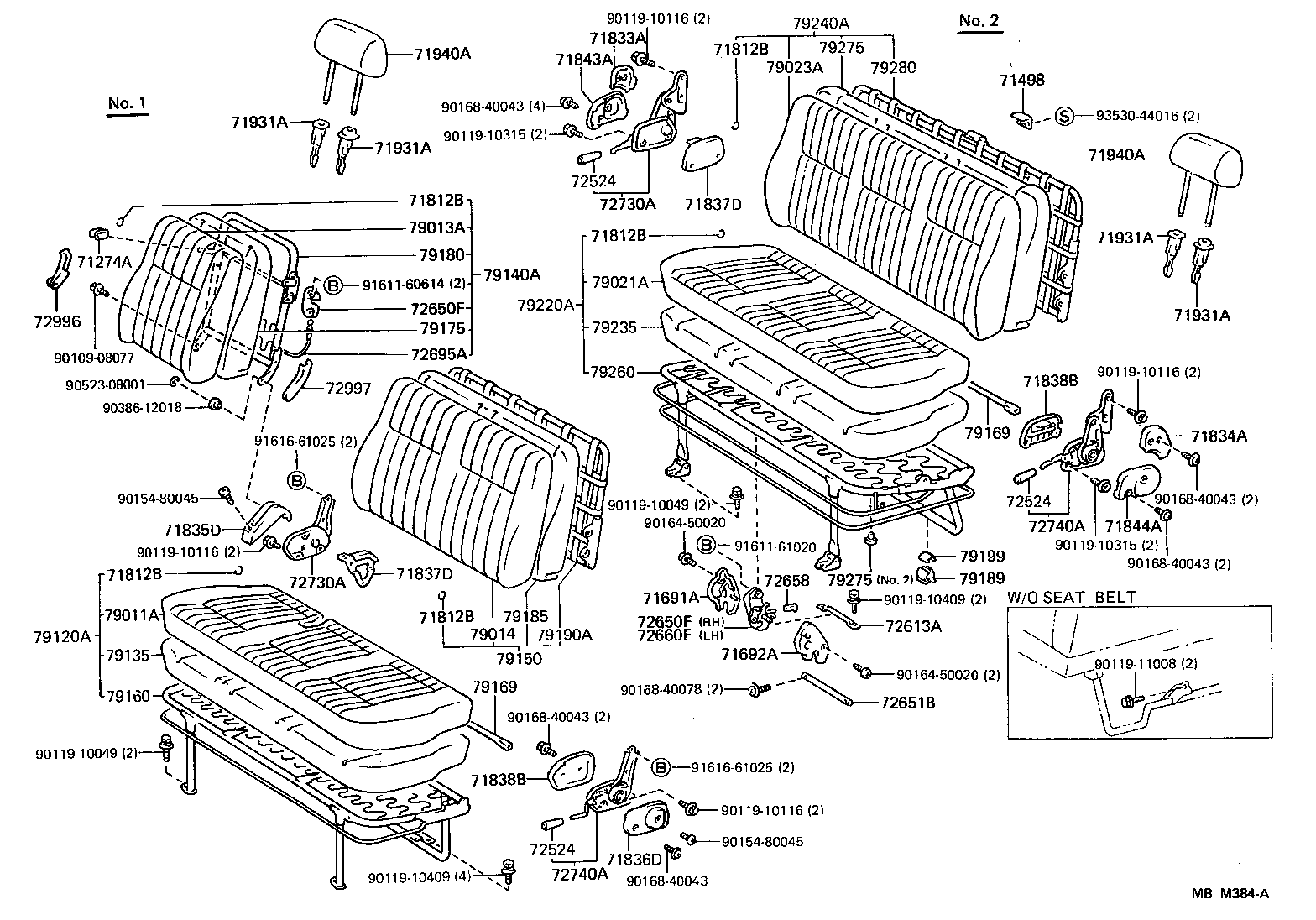

(8708- )R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71617 - PROTECTOR, REAR SEAT BACK | ||||
| 71617-95A0306 |
LH51,61,YH51,61..R BROWN,TRIM4# |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
LH5#,6#,YH5#,6#..J,U |
27 | ||
| 90468-18071 |
LH51,61,YH5#,6#..R |
9 | ||
| 90468-18071 |
LH5#,6#,YH5#,6#..J,U |
40 | ||
| 90468-18071 |
LH5#,6#,YH5#,6#..J,R,U |
11 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
LH5#,6#,YH5#,6#..J,U |
27 | ||
| 90468-18071 |
LH51,61,YH5#,6#..R |
9 | ||
| 90468-18071 |
LH5#,6#,YH5#,6#..J,U |
40 | ||
| 90468-18071 |
LH5#,6#,YH5#,6#..J,R,U |
11 | ||
| 72630A - LOCK ASSY, REAR NO.1 SEAT | ||||
| 72630-95J00 |
LH51,61,YH5#,6#..R |
1 | ||
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79011-95J5016 |
YH61..J,U;LH6#,YH51,66..J W(FABRIC),BROWN,TRIM4# |
1 | ||
| 79011-95J8506 |
LH5#,6#,YH5#,6#..J,U BROWN,TRIM4# |
1 | ||
| 79011-95J7006 |
LH51,61,YH51,61..R BROWN,TRIM4# |
1 | ||
| 79013A - COVER SUB-ASSY, NO.1 SEAT BACK | ||||
| 79013-95J7806 |
LH5#,6#,YH5#,6#..J,U BROWN,TRIM4# |
1 | ||
| 79013-95J7906 |
YH51..J;LH6#,YH6#..J,U W(HEADREST),BROWN,TRIM4# |
1 | ||
| 79013-95J2706 |
LH51,61,YH5#,6#..R BROWN,TRIM4# |
1 | ||
| 79013-95J7906 |
YH61..J,U;LH6#,YH51,66..J W(HEADREST),BROWN,TRIM4# |
1 | ||
| 79013-95J5316 |
YH61..J,U;LH6#,YH51,66..J W(FABRIC),BROWN,TRIM4# |
1 | ||
| 79120A - CUSHION ASSY, NO.1 SEAT | ||||
| 79120-95J3706 |
LH51,61,YH51,61..R BROWN,TRIM4# |
1 | ||
| 79120-95J5116 |
YH61..J,U;LH6#,YH51,66..J W(FABRIC),BROWN,TRIM4# |
1 | ||
| 79120-95N0406 |
LH5#,6#,YH5#,6#..J,U BROWN,TRIM4# |
1 | ||
| 79135 - PAD, NO.1 SEAT CUSHION | ||||
| 79135-95J03 |
LH51,61,YH5#,6#..R |
1 | ||
| 79135-95J06 |
LH5#,6#,YH5#,6#..J,U |
1 | ||
| 79140A - BACK ASSY, NO.1 SEAT | ||||
| 79140-95N0406 |
YH51..J;LH6#,YH6#..J,U W(HEADREST),BROWN,TRIM4# |
1 | ||
| 79140-95N0306 |
LH5#,6#,YH5#,6#..J,U BROWN,TRIM4# |
1 | ||
| 79140-95J5816 |
YH61..J,U;LH6#,YH51,66..J W(FABRIC & HEADREST),BROWN,TRIM4# |
1 | ||
| 79140-95N0406 |
YH61..J,U;LH6#,YH51,66..J W(HEADREST),BROWN,TRIM4# |
1 | ||
| 79140-95J3306 |
LH51,61,YH51,61..R BROWN,TRIM4# |
1 | ||
| 79160 - SPRING ASSY, NO.1 SEAT CUSHION | ||||
| 79160-95J15 |
LH51,61,YH51,61..R |
1 | ||
| 79160-95J17 |
LH5#,6#,YH5#,6#..J,U |
1 | ||
| 79169 - ROD, REAR SEAT HINGE CONNECTOR | ||||
| 79169-95J04 |
LH5#,6#,YH5#,6#..J,U NO.1 |
1 | ||
| 79169-95J05 |
LH5#,6#,YH5#,6#..J,U NO.2 |
1 | ||
| 79175 - PAD, NO.1 SEAT BACK | ||||
| 79175-95J10 |
LH5#,6#,YH5#,6#..J,U NO.1 |
1 | ||
| 79175-95J02 |
LH51,61,YH5#,6#..R |
1 | ||
| 79175-95J10 |
YH61..J,U;LH6#,YH51,66..J |
1 | ||
| 79180 - SPRING ASSY, NO.1 SEAT BACK | ||||
| 79180-95J03 |
LH51,61,YH5#,6#..R |
1 | ||
| 79180-95J08 |
LH5#,6#,YH5#,6#..J,U |
1 | ||
| 79180-95J10 |
YH61..J,U;LH6#,YH51,66..J W(HEADREST) |
1 | ||
| 79189 - STOPPER, NO.1 SEAT LEG | ||||
| 79189-95J00 |
LH5#,6#,YH5#,6#..J,R,U |
2 | ||
| 79199 - HOLDER, NO.1 SEAT LEG STOPPER | ||||
| 79199-95J00 |
LH5#,6#,YH5#,6#..J,R,U |
2 | ||
| 79670 - HINGE ASSY, NO.1 SEAT, RH | ||||
| 79670-95J0506 |
LH51,61,YH51,61..R BROWN,TRIM4# |
1 | ||
| 79680 - HINGE ASSY, NO.1 SEAT, LH | ||||
| 79680-95J0506 |
LH51,61,YH51,61..R BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-10049 | ||||
| 90446-28284 | ||||
| 90468-03018 | ||||
| 91616-61025 | ||||
| 91651-60816 | ||||
| 93530-44016 | ||||
| 93560-15020 | ||||
| Linked diagrams | ||||
| 5852 | ||||
(8708- )J,U
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71274A - KNOB, REAR SEAT HINGE | ||||
| 71274-95J0016 |
LH5#,6#,YH5#,6#..J,U BROWN,TRIM4# |
1 | ||
| 71498 - PROTECTOR, REAR SEAT BACK | ||||
| 71498-9570306 |
LH5#,6#,YH5#,6#..J,U BROWN,TRIM4# |
1 | ||
| 71691A - COVER, REAR NO.3 SEAT LOCK, RH | ||||
| 71691-95J0006 |
LH5#,6#,YH5#,6#..J,U BROWN,TRIM4#,OUTER |
1 | ||
| 71691-9570316 |
LH5#,6#,YH5#,6#..J,U BROWN,TRIM4#,INNER |
1 | ||
| 71692A - COVER, REAR NO.3 SEAT LOCK, LH | ||||
| 71692-95J0006 |
LH5#,6#,YH5#,6#..J,U BROWN,TRIM4#,OUTER |
1 | ||
| 71692-9570216 |
LH5#,6#,YH5#,6#..J,U BROWN,TRIM4#,INNER |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
LH5#,6#,YH5#,6#..J,U |
40 | ||
| 90468-18071 |
LH5#,6#,YH5#,6#..J,U |
27 | ||
| 90468-18071 |
LH51,61,YH5#,6#..R |
9 | ||
| 90468-18071 |
LH5#,6#,YH5#,6#..J,R,U |
11 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
LH5#,6#,YH5#,6#..J,U |
40 | ||
| 90468-18071 |
LH5#,6#,YH5#,6#..J,U |
27 | ||
| 90468-18071 |
LH51,61,YH5#,6#..R |
9 | ||
| 90468-18071 |
LH5#,6#,YH5#,6#..J,R,U |
11 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
LH5#,6#,YH5#,6#..J,U |
40 | ||
| 90468-18071 |
LH5#,6#,YH5#,6#..J,U |
27 | ||
| 90468-18071 |
LH51,61,YH5#,6#..R |
9 | ||
| 90468-18071 |
LH5#,6#,YH5#,6#..J,R,U |
11 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
LH5#,6#,YH5#,6#..J,U |
40 | ||
| 90468-18071 |
LH5#,6#,YH5#,6#..J,U |
27 | ||
| 90468-18071 |
LH51,61,YH5#,6#..R |
9 | ||
| 90468-18071 |
LH5#,6#,YH5#,6#..J,R,U |
11 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
LH5#,6#,YH5#,6#..J,U |
40 | ||
| 90468-18071 |
LH5#,6#,YH5#,6#..J,U |
27 | ||
| 90468-18071 |
LH51,61,YH5#,6#..R |
9 | ||
| 90468-18071 |
LH5#,6#,YH5#,6#..J,R,U |
11 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-9570206 |
LH5#,6#,YH5#,6#..J,U BROWN,NO.3,BROWN,TRIM4# |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-9570106 |
LH5#,6#,YH5#,6#..J,U BROWN,TRIM4# |
1 | ||
| 71835D - COVER, REAR SEAT RECLINING, LOWER RH | ||||
| 71835-95J0306 |
LH5#,6#,YH5#,6#..J,U BROWN,TRIM4# |
1 | ||
| 71836D - COVER, REAR SEAT RECLINING, LOWER LH | ||||
| 71836-95J0016 |
LH5#,6#,YH5#,6#..J,U BROWN,TRIM4# |
1 | ||
| 71837D - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71837-95J01 |
LH5#,6#,YH5#,6#..J,U NO.1 |
1 | ||
| 72708-95J0016 |
LH5#,6#,YH5#,6#..J,U BROWN,TRIM4#,NO.2 |
1 | ||
| 71837D - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71837-95J01 |
LH5#,6#,YH5#,6#..J,U NO.1 |
1 | ||
| 72708-95J0016 |
LH5#,6#,YH5#,6#..J,U BROWN,TRIM4#,NO.2 |
1 | ||
| 71838B - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71838-95J0016 |
LH5#,6#,YH5#,6#..J,U BROWN,TRIM4#,NO.1 |
1 | ||
| 72709-95J0016 |
LH5#,6#,YH5#,6#..J,U BROWN,TRIM4#,NO.2 |
1 | ||
| 71838B - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71838-95J0016 |
LH5#,6#,YH5#,6#..J,U BROWN,TRIM4#,NO.1 |
1 | ||
| 72709-95J0016 |
LH5#,6#,YH5#,6#..J,U BROWN,TRIM4#,NO.2 |
1 | ||
| 71843A - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-9570006 |
LH5#,6#,YH5#,6#..J,U BROWN,TRIM4# |
1 | ||
| 71844A - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-9570006 |
LH5#,6#,YH5#,6#..J,U BROWN,TRIM4# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-3002016 |
YH51..J;LH6#,YH6#..J,U W/O(LOCK),W(HEADREST),BROWN,TRIM4# |
4 | ||
| 71990-3002016 |
YH51..J;LH6#,YH6#..J,U W(LOCK),W(HEADREST) & W/O(FRONT SEAT BELT),BROWN,TRIM4# |
4 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-3002016 |
YH51..J;LH6#,YH6#..J,U W/O(LOCK),W(HEADREST),BROWN,TRIM4# |
4 | ||
| 71990-3002016 |
YH51..J;LH6#,YH6#..J,U W(LOCK),W(HEADREST) & W/O(FRONT SEAT BELT),BROWN,TRIM4# |
4 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-3002016 |
YH51..J;LH6#,YH6#..J,U W/O(LOCK),W(HEADREST),BROWN,TRIM4# |
4 | ||
| 71990-3002016 |
YH51..J;LH6#,YH6#..J,U W(LOCK),W(HEADREST) & W/O(FRONT SEAT BELT),BROWN,TRIM4# |
4 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-3002016 |
YH51..J;LH6#,YH6#..J,U W/O(LOCK),W(HEADREST),BROWN,TRIM4# |
4 | ||
| 71990-3002016 |
YH51..J;LH6#,YH6#..J,U W(LOCK),W(HEADREST) & W/O(FRONT SEAT BELT),BROWN,TRIM4# |
4 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-95J1406 |
YH51..J;LH6#,YH6#..J,U W(HEADREST),BROWN,TRIM4# |
4 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-95J1406 |
YH51..J;LH6#,YH6#..J,U W(HEADREST),BROWN,TRIM4# |
4 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-95J0016 |
LH5#,6#,YH5#,6#..J,U BROWN,TRIM4# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-95J0016 |
LH5#,6#,YH5#,6#..J,U BROWN,TRIM4# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-95J0016 |
LH5#,6#,YH5#,6#..J,U BROWN,TRIM4# |
1 | ||
| 72613A - STRIKER, FRONT SEAT LOCK | ||||
| 72613-95J00 |
LH5#,6#,YH5#,6#..J,U |
2 | ||
| 72650F - LOCK ASSY, REAR SEAT, RH | ||||
| 72650-95J02 |
LH5#,6#,YH5#,6#..J,U NO.1 |
1 | ||
| 72650-95J03 |
LH5#,6#,YH5#,6#..J,U NO.2 |
1 | ||
| 72650F - LOCK ASSY, REAR SEAT, RH | ||||
| 72650-95J02 |
LH5#,6#,YH5#,6#..J,U NO.1 |
1 | ||
| 72650-95J03 |
LH5#,6#,YH5#,6#..J,U NO.2 |
1 | ||
| 72651B - ROD, REAR SEAT LOCK | ||||
| 72651-95J00 |
LH5#,6#,YH5#,6#..J,U |
1 | ||
| 72658 - KNOB, REAR SEAT HANDLE | ||||
| 72658-9570106 |
LH5#,6#,YH5#,6#..J,U BROWN,TRIM4# |
2 | ||
| 72660F - LOCK ASSY, REAR SEAT, LH | ||||
| 72660-95J02 |
LH5#,6#,YH5#,6#..J,U |
1 | ||
| 72695A - CABLE, REAR SEAT LOCK CONTROL | ||||
| 72695-95J02 |
LH5#,6#,YH5#,6#..J,U |
1 | ||
| 72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH | ||||
| 72730-95J03 |
LH5#,6#,YH5#,6#..J,U NO.1 |
1 | ||
| 72730-95J0506 |
LH5#,6#,YH5#,6#..J,U BROWN,TRIM4#,NO.2 |
1 | ||
| 72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH | ||||
| 72730-95J03 |
LH5#,6#,YH5#,6#..J,U NO.1 |
1 | ||
| 72730-95J0506 |
LH5#,6#,YH5#,6#..J,U BROWN,TRIM4#,NO.2 |
1 | ||
| 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH | ||||
| 72740-95J0306 |
LH5#,6#,YH5#,6#..J,U BROWN,TRIM4#,NO.1 |
1 | ||
| 72740-95J0806 |
LH5#,6#,YH5#,6#..J,U BROWN,TRIM4#,NO.2 |
1 | ||
| 72740-95J0606 |
YH61..J,U;LH6#,YH51,66..J W(HEADREST),BROWN,TRIM4#,NO.1 |
1 | ||
| 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH | ||||
| 72740-95J0306 |
LH5#,6#,YH5#,6#..J,U BROWN,TRIM4#,NO.1 |
1 | ||
| 72740-95J0806 |
LH5#,6#,YH5#,6#..J,U BROWN,TRIM4#,NO.2 |
1 | ||
| 72740-95J0606 |
YH61..J,U;LH6#,YH51,66..J W(HEADREST),BROWN,TRIM4#,NO.1 |
1 | ||
| 72996 - COVER, REAR SEAT BACK, RH | ||||
| 72996-95J0006 |
LH5#,6#,YH5#,6#..J,U BROWN,TRIM4# |
1 | ||
| 72997 - COVER, REAR SEAT BACK, LH | ||||
| 72997-95J0006 |
LH5#,6#,YH5#,6#..J,U BROWN,TRIM4# |
1 | ||
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79011-95J5016 |
YH61..J,U;LH6#,YH51,66..J W(FABRIC),BROWN,TRIM4# |
1 | ||
| 79011-95J8506 |
LH5#,6#,YH5#,6#..J,U BROWN,TRIM4# |
1 | ||
| 79011-95J7006 |
LH51,61,YH51,61..R BROWN,TRIM4# |
1 | ||
| 79013A - COVER SUB-ASSY, NO.1 SEAT BACK | ||||
| 79013-95J7806 |
LH5#,6#,YH5#,6#..J,U BROWN,TRIM4# |
1 | ||
| 79013-95J7906 |
YH51..J;LH6#,YH6#..J,U W(HEADREST),BROWN,TRIM4# |
1 | ||
| 79013-95J2706 |
LH51,61,YH5#,6#..R BROWN,TRIM4# |
1 | ||
| 79013-95J7906 |
YH61..J,U;LH6#,YH51,66..J W(HEADREST),BROWN,TRIM4# |
1 | ||
| 79013-95J5316 |
YH61..J,U;LH6#,YH51,66..J W(FABRIC),BROWN,TRIM4# |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79014-95J0906 |
LH61..J;LH5#,66,YH5#,6#..J,U W(HEADREST),BROWN,TRIM4# |
1 | ||
| 79014-95J0906 |
LH5#,6#,YH5#,6#..J,U W(HEADREST),BROWN,TRIM4# |
1 | ||
| 79014-95J0616 |
YH61..J,U;LH6#,YH51,66..J W(FABRIC & HEADREST),BROWN,TRIM4# |
1 | ||
| 79014-95J0406 |
LH5#,6#,YH5#,6#..J,U BROWN,TRIM4# |
1 | ||
| 79021A - COVER SUB-ASSY, NO.2 SEAT CUSHION | ||||
| 79031-95J3806 |
LH5#,6#,YH5#,6#..J,U BROWN,TRIM4# |
1 | ||
| 79031-95J2316 |
YH51..J;LH6#,YH6#..J,U W(FABRIC),BROWN,TRIM4# |
1 | ||
| 79023A - COVER SUB-ASSY, NO.2 SEAT BACK | ||||
| 79033-95J2116 |
YH51..J;LH6#,YH6#..J,U W(FABRIC),BROWN,TRIM4# |
1 | ||
| 79033-95J3606 |
YH51..J;LH6#,YH6#..J,U W(HEADREST),BROWN,TRIM4# |
1 | ||
| 79033-95J3506 |
LH5#,6#,YH5#,6#..J,U BROWN,TRIM4# |
1 | ||
| 79120A - CUSHION ASSY, NO.1 SEAT | ||||
| 79120-95J3706 |
LH51,61,YH51,61..R BROWN,TRIM4# |
1 | ||
| 79120-95J5116 |
YH61..J,U;LH6#,YH51,66..J W(FABRIC),BROWN,TRIM4# |
1 | ||
| 79120-95N0406 |
LH5#,6#,YH5#,6#..J,U BROWN,TRIM4# |
1 | ||
| 79135 - PAD, NO.1 SEAT CUSHION | ||||
| 79135-95J03 |
LH51,61,YH5#,6#..R |
1 | ||
| 79135-95J06 |
LH5#,6#,YH5#,6#..J,U |
1 | ||
| 79140A - BACK ASSY, NO.1 SEAT | ||||
| 79140-95N0406 |
YH51..J;LH6#,YH6#..J,U W(HEADREST),BROWN,TRIM4# |
1 | ||
| 79140-95N0306 |
LH5#,6#,YH5#,6#..J,U BROWN,TRIM4# |
1 | ||
| 79140-95J5816 |
YH61..J,U;LH6#,YH51,66..J W(FABRIC & HEADREST),BROWN,TRIM4# |
1 | ||
| 79140-95N0406 |
YH61..J,U;LH6#,YH51,66..J W(HEADREST),BROWN,TRIM4# |
1 | ||
| 79140-95J3306 |
LH51,61,YH51,61..R BROWN,TRIM4# |
1 | ||
| 79150 - BACK ASSY, NO.1 SEAT, LH | ||||
| 79150-95J0406 |
LH5#,6#,YH5#,6#..J,U BROWN,TRIM4# |
1 | ||
| 79150-95J0616 |
YH61..J,U;LH6#,YH51,66..J W(FABRIC),BROWN,TRIM4# |
1 | ||
| 79150-95J0906 |
YH51..J;LH6#,YH6#..J,U W(HEADREST),BROWN,TRIM4# |
1 | ||
| 79150-95J0906 |
YH61..J,U;LH6#,YH51,66..J W(HEADREST),BROWN,TRIM4# |
1 | ||
| 79160 - SPRING ASSY, NO.1 SEAT CUSHION | ||||
| 79160-95J15 |
LH51,61,YH51,61..R |
1 | ||
| 79160-95J17 |
LH5#,6#,YH5#,6#..J,U |
1 | ||
| 79169 - ROD, REAR SEAT HINGE CONNECTOR | ||||
| 79169-95J04 |
LH5#,6#,YH5#,6#..J,U NO.1 |
1 | ||
| 79169-95J05 |
LH5#,6#,YH5#,6#..J,U NO.2 |
1 | ||
| 79169 - ROD, REAR SEAT HINGE CONNECTOR | ||||
| 79169-95J04 |
LH5#,6#,YH5#,6#..J,U NO.1 |
1 | ||
| 79169-95J05 |
LH5#,6#,YH5#,6#..J,U NO.2 |
1 | ||
| 79175 - PAD, NO.1 SEAT BACK | ||||
| 79175-95J10 |
LH5#,6#,YH5#,6#..J,U NO.1 |
1 | ||
| 79175-95J02 |
LH51,61,YH5#,6#..R |
1 | ||
| 79175-95J10 |
YH61..J,U;LH6#,YH51,66..J |
1 | ||
| 79180 - SPRING ASSY, NO.1 SEAT BACK | ||||
| 79180-95J03 |
LH51,61,YH5#,6#..R |
1 | ||
| 79180-95J08 |
LH5#,6#,YH5#,6#..J,U |
1 | ||
| 79180-95J10 |
YH61..J,U;LH6#,YH51,66..J W(HEADREST) |
1 | ||
| 79185 - PAD, NO.1 SEAT BACK, LH | ||||
| 79185-95J01 |
LH5#,6#,YH5#,6#..J,U |
1 | ||
| 79189 - STOPPER, NO.1 SEAT LEG | ||||
| 79189-95J00 |
LH5#,6#,YH5#,6#..J,R,U |
2 | ||
| 79190A - SPRING ASSY, NO.1 SEAT BACK, LH | ||||
| 79190-95J03 |
YH61..J,U;LH6#,YH51,66..J W(HEADREST) |
1 | ||
| 79190-95J00 |
LH5#,6#,YH5#,6#..J,U |
1 | ||
| 79199 - HOLDER, NO.1 SEAT LEG STOPPER | ||||
| 79199-95J00 |
LH5#,6#,YH5#,6#..J,R,U |
2 | ||
| 79220A - CUSHION ASSY, NO.2 SEAT | ||||
| 79320-95J4806 |
LH5#,6#,YH5#,6#..J,U BROWN,TRIM4# |
1 | ||
| 79320-95J2316 |
YH51..J;LH6#,YH6#..J,U W(HEADREST),BROWN,TRIM4# |
1 | ||
| 79235 - PAD, NO.2 SEAT CUSHION | ||||
| 79335-95J05 |
LH5#,6#,YH5#,6#..J,U |
1 | ||
| 79240A - BACK ASSY, NO.2 SEAT | ||||
| 79340-95J3906 |
LH5#,6#,YH5#,6#..J,U BROWN,TRIM4# |
1 | ||
| 79340-95J4006 |
YH51..J;LH6#,YH6#..J,U W(HEADREST),BROWN,TRIM4# |
1 | ||
| 79340-95J2516 |
YH51..J;LH6#,YH6#..J,U W(FABRIC),BROWN,TRIM4# |
1 | ||
| 79260 - SPRING ASSY, NO.2 SEAT CUSHION | ||||
| 79360-95J07 |
LH5#,6#,YH5#,6#..J,U |
1 | ||
| 79275 - PAD, NO.2 SEAT BACK | ||||
| 79175-95J13 |
YH51..J;LH6#,YH6#..J,U W/O(FRONT SEAT BELT) |
2 | ||
| 79375-95J06 |
LH5#,6#,YH5#,6#..J,U NO.1 |
1 | ||
| 79175-95J13 |
LH5#,6#,YH5#,6#..J,U N0.2(55 X 30) |
2 | ||
| 79175-95J13 |
YH51..J;LH6#,YH6#..J,U NO.2(55X30) |
2 | ||
| 79275 - PAD, NO.2 SEAT BACK | ||||
| 79175-95J13 |
YH51..J;LH6#,YH6#..J,U W/O(FRONT SEAT BELT) |
2 | ||
| 79375-95J06 |
LH5#,6#,YH5#,6#..J,U NO.1 |
1 | ||
| 79175-95J13 |
LH5#,6#,YH5#,6#..J,U N0.2(55 X 30) |
2 | ||
| 79175-95J13 |
YH51..J;LH6#,YH6#..J,U NO.2(55X30) |
2 | ||
| 79280 - SPRING ASSY, NO.2 SEAT BACK | ||||
| 79380-95J11 |
LH5#,6#,YH5#,6#..J,U |
1 | ||
| 79380-95J12 |
YH51..J;LH6#,YH6#..J,U W(HEADREST) |
1 | ||
| Common parts | ||||
| 90109-08077 | ||||
| 90119-10049 | ||||
| 90119-10116 | ||||
| 90119-10315 | ||||
| 90119-10409 | ||||
| 90119-11008 | ||||
| 90154-80045 | ||||
| 90164-50020 | ||||
| 90168-40043 | ||||
| 90168-40078 | ||||
| 90386-12018 | ||||
| 90523-08001 | ||||
| 91611-60614 | ||||
| 91611-61020 | ||||
| 91616-61025 | ||||
| 93530-44016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
