LH61LV-QRJHW (1987)

Toyota Hiace Van,Commuter

Production Aug 1987 - Aug 1989
Engine 2L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )LH51,61,YH51,61

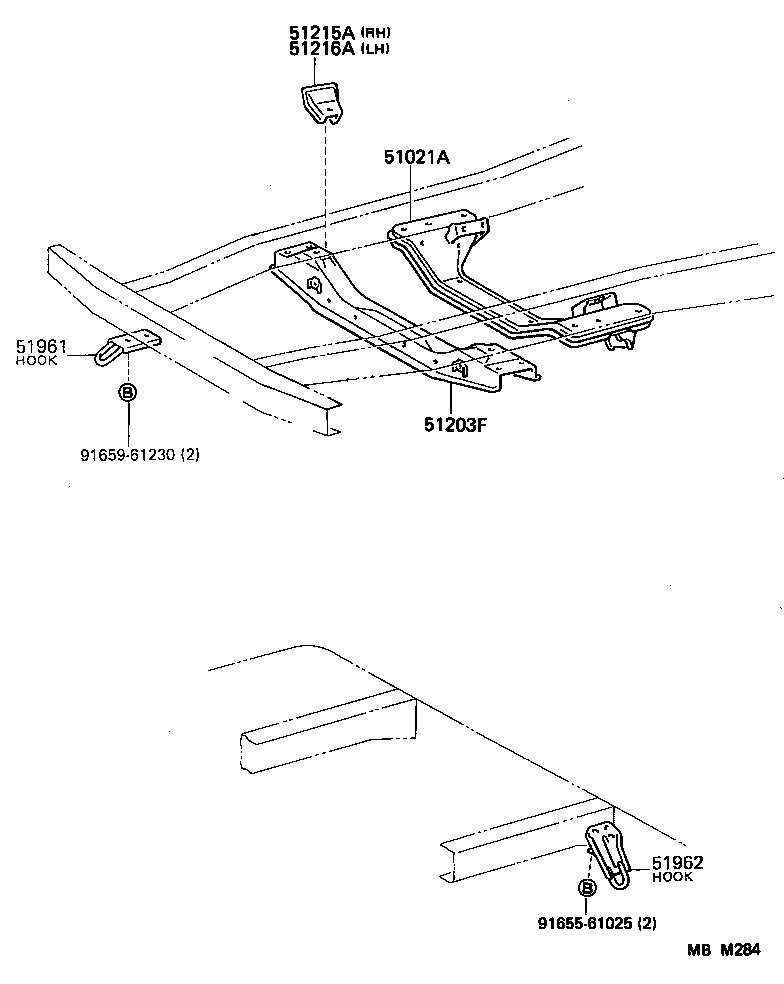

Click highlighted areas on diagram

diagram 51021A 51203F 51215A 51216A 51961 51962 9165561025 9165961230
Part # Description Qty Price
51021A - MEMBER SUB-ASSY, ENGINE FRONT SUPPORT
51021-95J05

LH51,61

 1
51021-95J04

YH51,61

 1
51203F - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51203-95J01

LH51,61,YH51,61

 1
51215A - REINFORCEMENT, FRONT SUSPENSION MEMBER, RH
51215-95J00

LH51,61,YH51,61

 1
51216A - REINFORCEMENT, FRONT SUSPENSION MEMBER, LH
51216-95J00

LH51,61,YH51,61

 1
51961 - HOOK, NO.1
51961-26110

LH5#,6#,YH5#,6#

 1
Common parts
91655-61025
91659-61230
