LH61LV-QRJHW (1987)
Toyota Hiace Van,Commuter
ILLUST NO. 1 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-26061 |
LH51,61,YH51,61 |
1 | ||
| 48037 - SPACER SUB-ASSY, REAR SPRING | ||||
| 48037-26050 |
LH61,YH51,61..J |
2 | ||
| 48037-26030 |
LH66,YH66;LH5#,61,YH5#,61..02S,03S,15S,R,U |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-26090 |
LH5#,6#,YH5#,6# |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14027 |
LH51,61,YH51,61..03S,15S,R,U L=160 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-26080 |
LH5#,6#,YH5#,6# |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18008 |
LH51,61,YH51,61 |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18008 |
LH51,61,YH51,61 |
4 | ||
| 48341 - BUMPER, REAR SPRING | ||||
| 48341-26010 |
LH51,61,YH51,61 |
2 | ||
| 48371 - RETAINER, REAR SPRING PAD | ||||
| 48371-26050 |
LH51,61,YH51,61..03S,15S,R,U |
2 | ||
| 48371-26060 |
LH61,YH51,61..J |
2 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-26030 |
LH66,YH66;LH5#,61,YH5#,61..02S,03S,15S,R,U |
2 | ||
| 48372-26040 |
LH61,YH51,61..J |
2 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-26030 |
LH66,YH66;LH5#,61,YH5#,61..02S,03S,15S,R,U |
2 | ||
| 48372-26040 |
LH61,YH51,61..J |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80044 |
LH51,61,YH51,61..03S,15S,R,U |
1 | ||
| 48531-80043 |
LH61,YH51,61..J |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16009 |
LH5#,6#,YH5#,6# UPR |
2 | ||
| 90385-19006 |
LH5#,6#,YH5#,6# LWR |
2 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16009 |
LH5#,6#,YH5#,6# UPR |
2 | ||
| 90385-19006 |
LH5#,6#,YH5#,6# LWR |
2 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03012 |
LH5#,6#,YH5#,6# |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
LH5#,6#,YH5#,6# |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03015 |
LH5#,6#,YH5#,6# |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03011 |
LH5#,6#,YH5#,6# |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80044 |
LH51,61,YH51,61..03S,15S,R,U |
1 | ||
| 48531-80043 |
LH61,YH51,61..J |
1 | ||
| Common parts | ||||
| 90101-14021 | ||||
| 90105-14020 | ||||
| 90170-14012 | ||||
| 91611-40820 | ||||
| 91611-41020 | ||||
| 94184-01400 | ||||
| 94512-01400 | ||||
| 94621-11400 | ||||

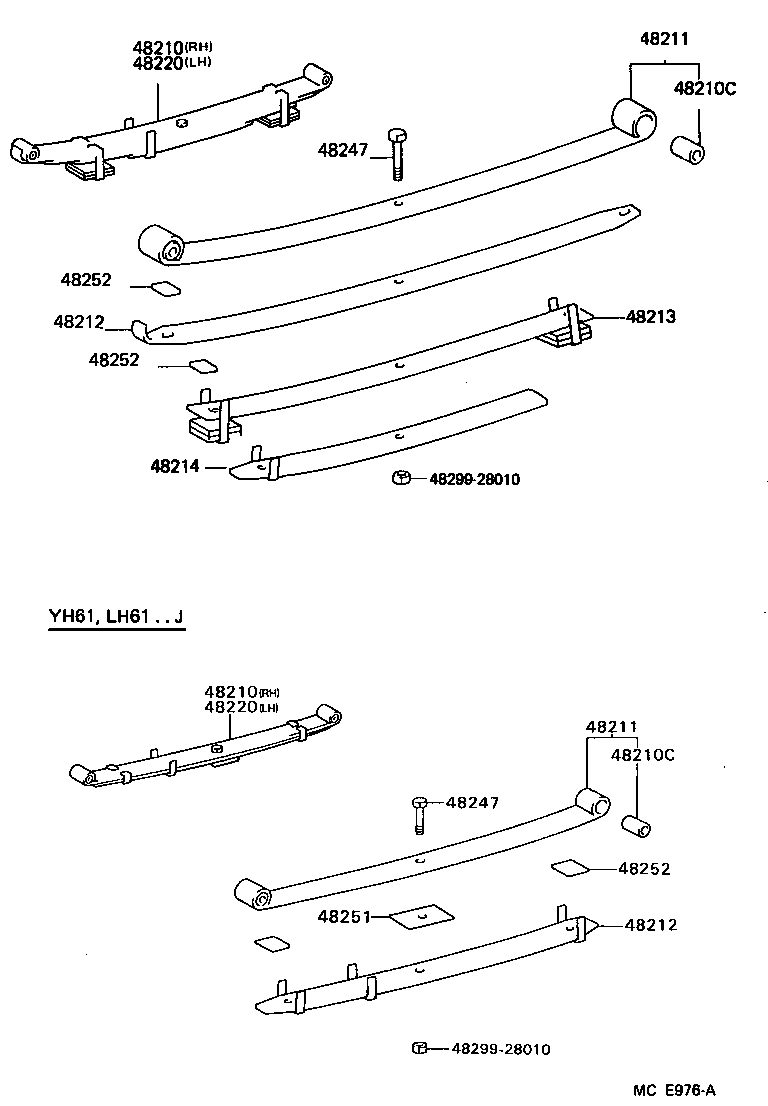

ILLUST NO. 2 OF 3(8708- )LH61,YH61
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-26320 |
LH61,YH51,61..J |
1 | ||
| 48210-26260 |
LH61,YH61..03S,15S,R,U |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-26320 |
LH61,YH51,61..J |
1 | ||
| 48210-26260 |
LH61,YH61..03S,15S,R,U |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-14007 |
LH51,61,YH51,61 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-14007 |
LH51,61,YH51,61 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-26250 |
LH51,61,YH51,61..03S,15S,R,U |
2 | ||
| 48201-26310 |
LH61,YH51,61..J |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-26250 |
LH51,61,YH51,61..03S,15S,R,U |
2 | ||
| 48201-26310 |
LH61,YH51,61..J |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-26320 |
LH61,YH51,61..J |
2 | ||
| 48212-26250 |
LH51,61,YH51,61..03S,15S,R,U |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-26320 |
LH61,YH51,61..J |
2 | ||
| 48212-26250 |
LH51,61,YH51,61..03S,15S,R,U |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-26260 |
LH61,YH61..03S,15S,R,U |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48203-26250 |
LH51,61,YH51,61..03S,15S,R,U |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-26320 |
LH61,YH51,61..J |
1 | ||
| 48210-26260 |
LH61,YH61..03S,15S,R,U |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-26320 |
LH61,YH51,61..J |
1 | ||
| 48210-26260 |
LH61,YH61..03S,15S,R,U |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-26260 |
LH51,61,YH51,61..03S,15S,R,U |
2 | ||
| 48247-26310 |
LH61,YH51,61..J |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-26260 |
LH51,61,YH51,61..03S,15S,R,U |
2 | ||
| 48247-26310 |
LH61,YH51,61..J |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48251-28030 |
LH61,YH51,61..J |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LH56,66,YH56,66;LH61,YH51,61..J |
4 | ||
| 48252-26070 |
LH51,61,YH51,61..03S,15S,R,U |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LH56,66,YH56,66;LH61,YH51,61..J |
4 | ||
| 48252-26070 |
LH51,61,YH51,61..03S,15S,R,U |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LH56,66,YH56,66;LH61,YH51,61..J |
4 | ||
| 48252-26070 |
LH51,61,YH51,61..03S,15S,R,U |
8 | ||
| Common parts | ||||
| 48299-28010 | ||||

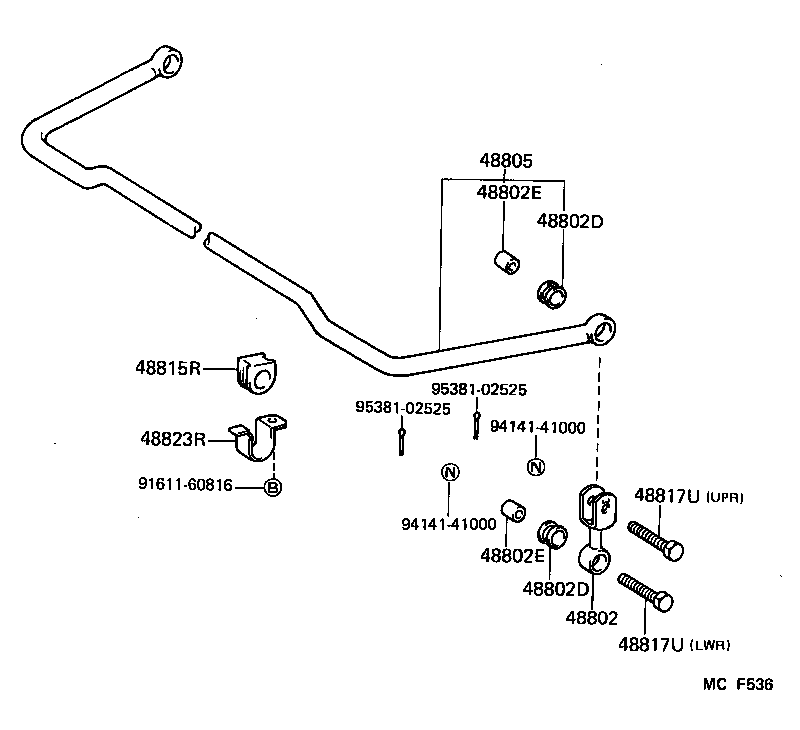

ILLUST NO. 3 OF 3(8708- )LH61,YH51..J
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48802 - LINK SUB-ASSY, STABILIZER | ||||
| 48802-26030 |
LH61,YH51,61..J RH |
1 | ||
| 48803-26010 |
LH61,YH51,61..J LH |
1 | ||
| 48802D - BUSH, STABILIZER LINK | ||||
| 90385-11021 |
LH61,YH51,61..J |
4 | ||
| 48802D - BUSH, STABILIZER LINK | ||||
| 90385-11021 |
LH61,YH51,61..J |
4 | ||
| 48802E - SPACER(FOR REAR STABILIZER BAR) | ||||
| 90560-10275 |
LH61,YH51,61..J |
4 | ||
| 48802E - SPACER(FOR REAR STABILIZER BAR) | ||||
| 90560-10275 |
LH61,YH51,61..J |
4 | ||
| 48805 - BAR SUB-ASSY, REAR STABILIZER | ||||
| 48805-26030 |
LH61,YH51,61..J |
1 | ||
| 48815R - BUSH, STABILIZER(FOR REAR) | ||||
| 48815-26040 |
LH61,YH51,61..J |
2 | ||
| 48817U - BOLT(FOR REAR STABILIZER) | ||||
| 90102-10015 |
LH61,YH51,61..J UPR |
2 | ||
| 90102-10001 |
LH61,YH51,61..J LWR |
2 | ||
| 48817U - BOLT(FOR REAR STABILIZER) | ||||
| 90102-10015 |
LH61,YH51,61..J UPR |
2 | ||
| 90102-10001 |
LH61,YH51,61..J LWR |
2 | ||
| 48823R - COVER, STABILIZER LINK(FOR REAR) | ||||
| 48823-26030 |
LH61,YH51,61..J |
2 | ||
| Common parts | ||||
| 91611-60816 | ||||
| 94141-41000 | ||||
| 95381-02525 | ||||
