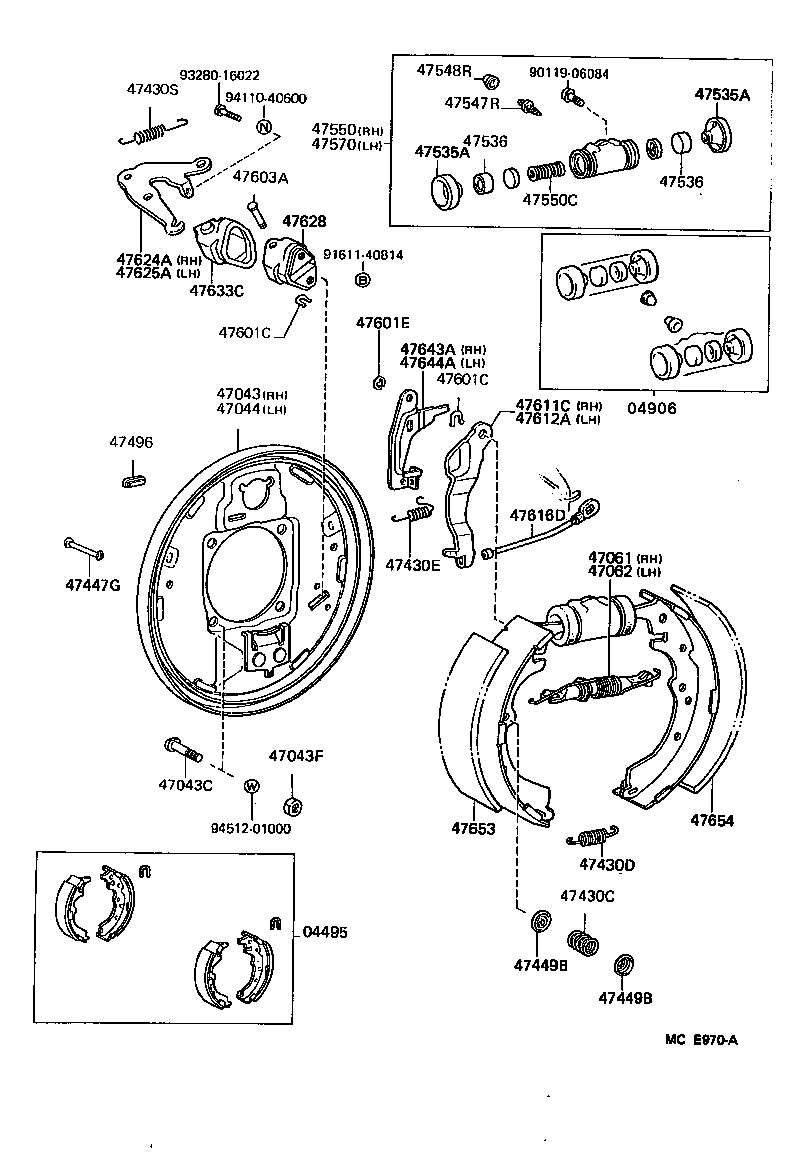

LH61LV-QRJHW (1987)
Toyota Hiace Van,Commuter
(8708- )LH51,61,YH51,61
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-26040 |
LH51,61,YH51,61 |
1 | ||
| 04495-26110 |
LH51,61,YH51,61..03S,J,R |
1 | ||
| 04495-26111 |
LH51,61,YH51,61..03S,J,R |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-30060 |
LH51,61,YH51,61 |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-26040 |
LH51,61,YH51,61 |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90114-10002 |
LH5#,6#,YH5#,6# *10-1.25PX37-18.5 |
8 | ||
| 90114-10002 |
LH61,YH51,61..J;YH5#,6#..4HC,5F *10-1.25PX37-18.5 |
8 | ||
| 90114-10002 |
LH5#,6#,YH5#,6# *10-1.25PX37-18.5 |
8 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90179-10041 |
LH5#,6#,YH5#,6# |
8 | ||
| 90179-10041 |
LH5#,6#,YH5#,6# |
8 | ||
| 90179-10041 |
LH61,YH51,61..J;YH5#,6#..4HC,5F |
8 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-26040 |
LH51,61,YH51,61 |
1 | ||
| 47061 - STRUT SET, PARKING BRAKE SHOE, RH | ||||
| 47061-35020 |
LH51,61,YH51,61 |
1 | ||
| 47062 - STRUT SET, PARKING BRAKE SHOE, LH | ||||
| 47062-35020 |
LH51,61,YH51,61 |
1 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20756 |
LH51,61,YH51,61 |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-20005 |
LH51,61,YH51,61 |
2 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-12015 |
LH51,61,YH51,61 |
2 | ||
| 47430S - SPRING, TENSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90506-18004 |
LH51,61,YH51,61 |
2 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-30020 |
LH5#,6#,YH5#,6# |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
LH5#,6#,YH5#,6# |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
LH5#,6#,YH5#,6# |
8 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-20011 |
LH5#,6#,YH5#,6# |
2 | ||
| 47535A - BOOT, REAR WHEEL CYLINDER | ||||
| 47535-30100 |
LH51,61,YH51,61 |
4 | ||
| 47535A - BOOT, REAR WHEEL CYLINDER | ||||
| 47535-30100 |
LH51,61,YH51,61 |
4 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47051-30030 |
LH51,61,YH51,61 |
4 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47051-30030 |
LH51,61,YH51,61 |
4 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-20030 |
LH51,61,YH51,61 |
4 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
LH51,6#,YH51,6#;LH56,YH56..02S,R |
4 | ||
| 31478-30010 |
LH51,61,YH51,61 |
4 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-30100 |
LH51,61,YH51,61 |
1 | ||
| 47550-30100 |
LH51,61,YH51,61..03S,J,R |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 47509-35020 |
LH51,61,YH51,61 |
4 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47550-30100 |
LH51,61,YH51,61 |
1 | ||
| 47550-30100 |
LH51,61,YH51,61..03S,J,R |
1 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-06013 |
LH5#,6#,YH5#,6# T=1.2 |
2 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-06013 |
LH5#,6#,YH5#,6# T=1.2 |
2 | ||
| 47601E - RING, E(FOR REAR BRAKE) | ||||
| 96160-00500 |
LH51,61,YH51,61 |
2 | ||
| 47603A - PIN, W/HOLE(FOR REAR BRAKE) | ||||
| 90249-08075 |
LH51,61,YH51,61 |
2 | ||
| 47611C - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47611-35020 |
LH51,61,YH51,61 RH |
1 | ||
| 47611-35020 |
LH51,61,YH51,61..03S,J,R RH |
1 | ||
| 47612A - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47612-35020 |
LH51,61,YH51,61 |
1 | ||
| 47616D - WIRE, PARKING BRAKE | ||||
| 47616-26020 |
LH51,61,YH51,61 |
2 | ||
| 47624A - CRANK, PARKING BRAKE BELL, RH | ||||
| 47624-26020 |
LH51,61,YH51,61 |
1 | ||
| 47625A - CRANK, PARKING BRAKE BELL, LH | ||||
| 47625-26020 |
LH51,61,YH51,61 |
1 | ||
| 47628 - BRACKET, REAR BRAKE BELLCRANK | ||||
| 47628-26010 |
LH51,61,YH51,61 |
2 | ||
| 47633C - BOOT, REAR BRAKE BELLCRANK, RH | ||||
| 47633-26010 |
LH51,61,YH51,61 |
2 | ||
| 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH | ||||
| 47643-35020 |
LH51,61,YH51,61 RH |
1 | ||
| 47643-35020 |
LH51,61,YH51,61..03S,J,R RH |
1 | ||
| 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH | ||||
| 47644-35020 |
LH51,61,YH51,61 LH |
1 | ||
| 47644-35020 |
LH51,61,YH51,61..03S,J,R LH |
1 | ||
| 47653 - LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER) | ||||
| 47655-30070 |
LH51,61,YH51,61 |
2 | ||
| 47655-28040 |
LH51,61,YH51,61..03S,J,R |
2 | ||
| 47654 - LINING, REAR BRAKE SHOE(FOR REAR OR LOWER) | ||||
| 47655-30070 |
LH51,61,YH51,61 |
2 | ||
| 47655-28040 |
LH51,61,YH51,61..03S,J,R |
2 | ||
| Common parts | ||||
| 90119-06084 | ||||
| 91611-40814 | ||||
| 93280-16022 | ||||
| 94110-40600 | ||||
| 94512-01000 | ||||
