LH61LV-QRJHW (1987)
Toyota Hiace Van,Commuter
Production
Aug 1987
-
Aug 1989
Engine
2L
Transmission
5H MTM
Displacement
2500cc
Power
168 HP (125 kW)

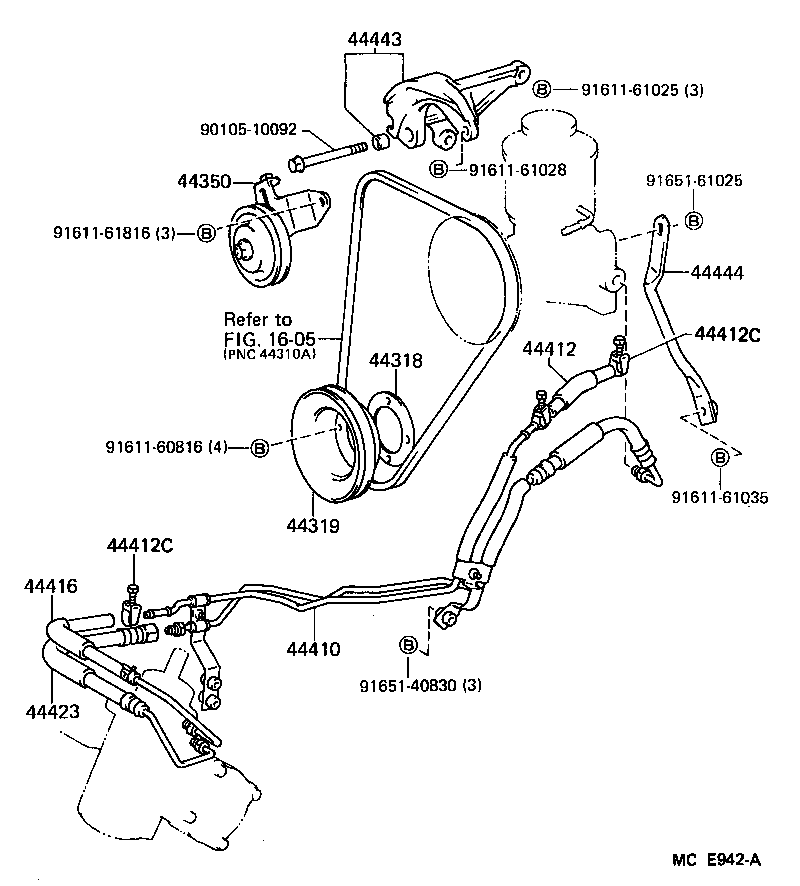

(8708- )YH51,61..LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44318 - SPACER, VANE PUMP DRIVE PULLEY | ||||
| 44318-28012 |
YH51,61 |
1 | ||
| 44319 - PULLEY, VANE PUMP DRIVE | ||||
| 44319-30030 |
LH51,61 |
1 | ||
| 44319-28013 |
YH51,61 |
1 | ||
| 44350 - PULLEY ASSY, POWER STEERING IDLE | ||||
| 44350-28011 |
YH51,61 |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-26130 |
YH51,61..LHD |
1 | ||
| 44410-26110 |
LH51,61..LHD |
1 | ||
| 44412 - HOSE, RETURN | ||||
| 44412-26010 |
YH51,61 |
1 | ||
| 90445-18079 |
LH51,61 |
1 | ||
| 44412C - CLAMP(FOR RETURN HOSE) | ||||
| 90460-01001 |
LH51,61,YH51,61..LHD |
3 | ||
| 44412C - CLAMP(FOR RETURN HOSE) | ||||
| 90460-01001 |
LH51,61,YH51,61..LHD |
3 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-26020 |
LH51,61,YH51,61..LHD |
1 | ||
| 44423 - TUBE, OIL PUMP TO GEAR BOX | ||||
| 44423-26030 |
LH51,61,YH51,61..LHD |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-26010 |
LH51,61 |
1 | ||
| 44443-28021 |
YH51,61 |
1 | ||
| 44444 - STAY, PUMP, REAR | ||||
| 44444-27010 |
YH51,61 |
1 | ||
| Common parts | ||||
| 90105-10092 | ||||
| 91611-60816 | ||||
| 91611-61025 | ||||
| 91611-61028 | ||||
| 91611-61035 | ||||
| 91611-61816 | ||||
| 91651-40830 | ||||
| 91651-61025 | ||||
| Linked diagrams | ||||
| 1605 | ||||
(8708- )LH51,61..LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44319 - PULLEY, VANE PUMP DRIVE | ||||
| 44319-28013 |
YH51,61 |
1 | ||
| 44319-30030 |
LH51,61 |
1 | ||
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-12010 |
LH51,61 |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-26011 |
LH51,61 |
1 | ||
| 44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE) | ||||
| 90460-26001 |
LH51,61 |
2 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-26130 |
YH51,61..LHD |
1 | ||
| 44410-26110 |
LH51,61..LHD |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-26011 |
LH51,61 |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16005 |
LH51,61 |
1 | ||
| 44412 - HOSE, RETURN | ||||
| 44412-26010 |
YH51,61 |
1 | ||
| 90445-18079 |
LH51,61 |
1 | ||
| 44412C - CLAMP(FOR RETURN HOSE) | ||||
| 90460-01001 |
LH51,61,YH51,61..LHD |
3 | ||
| 44412C - CLAMP(FOR RETURN HOSE) | ||||
| 90460-01001 |
LH51,61,YH51,61..LHD |
3 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-26020 |
LH51,61,YH51,61..LHD |
1 | ||
| 44423 - TUBE, OIL PUMP TO GEAR BOX | ||||
| 44423-26030 |
LH51,61,YH51,61..LHD |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-26010 |
LH51,61 |
1 | ||
| 44443-28021 |
YH51,61 |
1 | ||
| 44446 - STRUT, ADJUSTING | ||||
| 44446-26010 |
LH51,61 |
1 | ||
| Common parts | ||||
| 90105-10042 | ||||
| 90105-10152 | ||||
| 90105-12011 | ||||
| 90119-10049 | ||||
| 91611-60814 | ||||
| 91611-61025 | ||||
| 91651-40830 | ||||
| Linked diagrams | ||||
| 1605 | ||||
