LH60LV-QRJHW (1982)

Toyota Hiace Van,Commuter

Production Dec 1982 - Jan 1984
Engine L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212-8508)M1 ; (8508- )LH61,YH51,53,61..J

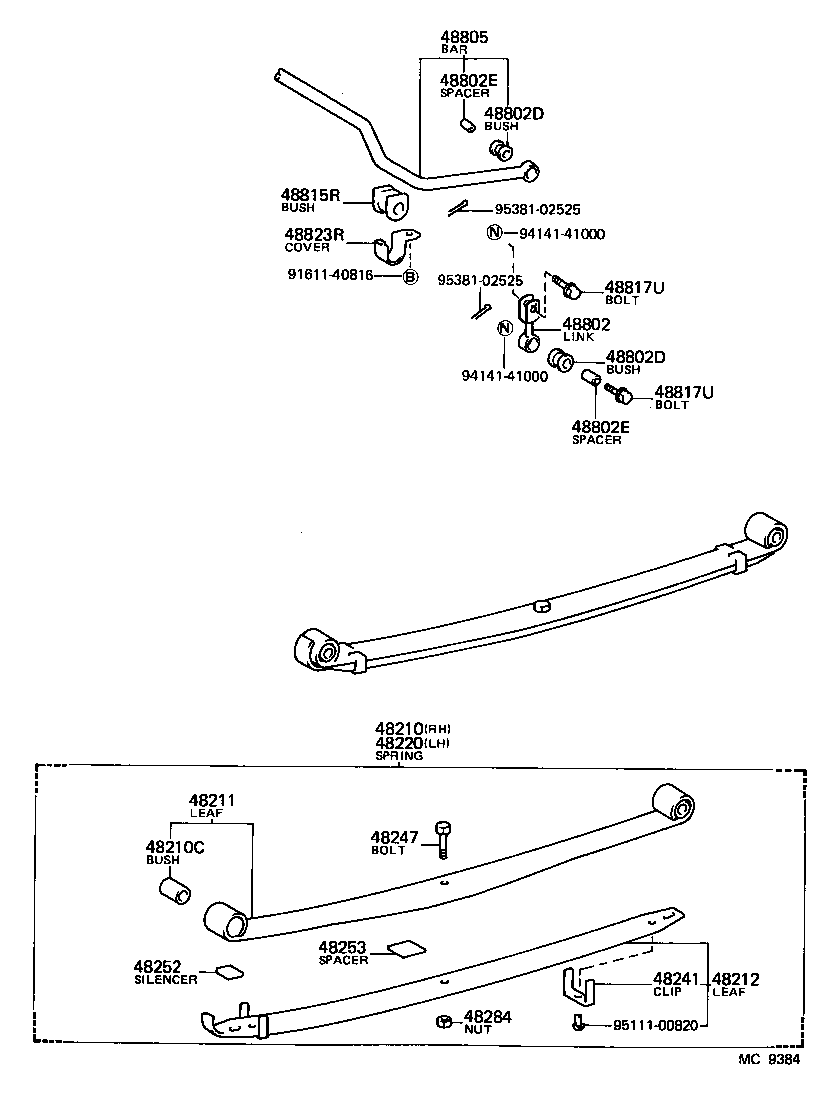

Click highlighted areas on diagram

diagram 48210 48210C 48211 48212 48220 48241 48247 48252 48253 48284 48802 48802D 48802D 48802E 48802E 48805 48815R 48817U 48817U 48823R 9161140816 9414141000 9414141000 9511100820 9538102525 9538102525
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-26320

LH6#,YH50,6#..M1

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-14007

LH5#,6#,7#,YH5#,6#,7#

 4
48211 - LEAF, REAR SPRING, NO.1
48201-26310

LH6#,YH50,6#..M1

 2
48212 - LEAF, REAR SPRING, NO.2
48202-26320

LH6#,YH50,6#..M1

 2
48220 - SPRING ASSY, REAR LH
48210-26320

LH6#,YH50,6#..M1

 1
48241 - CLIP, REAR SPRING, NO.1
48241-27150

LH6#,YH50,6#..M1

 4
48247 - BOLT, REAR SPRING, CENTER
48247-26310

LH6#,YH50,6#..M1

 2
48252 - SILENCER, REAR SPRING
48252-26070

LH5#,6#,7#,YH5#,6#,7#

 8
48253 - SPACER, REAR SPRING, NO.1
48251-28030

LH6#,YH50,6#..M1

 2
48284 - NUT, REAR SPRING CENTER BOLT
48299-28010

LH5#,6#,7#,YH5#,6#,7#

 2
48802 - LINK SUB-ASSY, STABILIZER
48803-26010

LH6#,YH50,6#..M1

LH

 1
48802-26030

LH6#,YH50,6#..M1

RH

 1
48802D - BUSH, STABILIZER LINK
90385-11021

LH6#,YH50,6#..M1

 4
48802D - BUSH, STABILIZER LINK
90385-11021

LH6#,YH50,6#..M1

 4
48802E - SPACER(FOR REAR STABILIZER BAR)
90560-10275

LH6#,YH50,6#..M1

 4
48802E - SPACER(FOR REAR STABILIZER BAR)
90560-10275

LH6#,YH50,6#..M1

 4
48805 - BAR SUB-ASSY, REAR STABILIZER
48805-26030

LH6#,YH50,6#..M1

 1
48815R - BUSH, STABILIZER(FOR REAR)
48815-26040

LH6#,YH50,6#..M1

 2
48817U - BOLT(FOR REAR STABILIZER)
90102-10001

LH6#,YH50,6#..M1

LWR

 2
90102-10015

LH6#,YH50,6#..M1

UPR

 2
48817U - BOLT(FOR REAR STABILIZER)
90102-10001

LH6#,YH50,6#..M1

LWR

 2
90102-10015

LH6#,YH50,6#..M1

UPR

 2
48823R - COVER, STABILIZER LINK(FOR REAR)
48823-26030

LH6#,YH50,6#..M1

 2
Common parts
91611-40816
94141-41000
95111-00820
95381-02525

(8212-8508)YH50..N1 ; (8212-8508)YH50..ARL,GEN ;(8212-8508)YH50..12S..EUR ; (8212-

Click highlighted areas on diagram

diagram 48210 48210 48210C 48210C 48211 48211 48212 48212 48213 48213 48214 48214 48215 48220 48220 48241 48241 48242 48242 48247 48247 48252 48252 48252 48284 48284 9511100820 9511100822 9511100920 9511100920
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-26320

LH6#,YH50,6#..M1

 1
48210-26320

LH6#,YH50,6#..M1

 1
48210 - SPRING ASSY, REAR RH
48210-26320

LH6#,YH50,6#..M1

 1
48210-26320

LH6#,YH50,6#..M1

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-14007

LH5#,6#,7#,YH5#,6#,7#

 4
90389-14007

LH5#,6#,7#,YH5#,6#,7#

 4
48210C - BUSH(FOR REAR SPRING LEAF)
90389-14007

LH5#,6#,7#,YH5#,6#,7#

 4
90389-14007

LH5#,6#,7#,YH5#,6#,7#

 4
48211 - LEAF, REAR SPRING, NO.1
48201-26310

LH6#,YH50,6#..M1

 2
48201-26310

LH6#,YH50,6#..M1

 2
48211 - LEAF, REAR SPRING, NO.1
48201-26310

LH6#,YH50,6#..M1

 2
48201-26310

LH6#,YH50,6#..M1

 2
48212 - LEAF, REAR SPRING, NO.2
48202-26320

LH6#,YH50,6#..M1

 2
48202-26320

LH6#,YH50,6#..M1

 2
48212 - LEAF, REAR SPRING, NO.2
48202-26320

LH6#,YH50,6#..M1

 2
48202-26320

LH6#,YH50,6#..M1

 2
48220 - SPRING ASSY, REAR LH
48210-26320

LH6#,YH50,6#..M1

 1
48210-26320

LH6#,YH50,6#..M1

 1
48220 - SPRING ASSY, REAR LH
48210-26320

LH6#,YH50,6#..M1

 1
48210-26320

LH6#,YH50,6#..M1

 1
48241 - CLIP, REAR SPRING, NO.1
48241-27150

LH6#,YH50,6#..M1

 4
48241-27150

LH6#,YH50,6#..M1

 4
48241 - CLIP, REAR SPRING, NO.1
48241-27150

LH6#,YH50,6#..M1

 4
48241-27150

LH6#,YH50,6#..M1

 4
48247 - BOLT, REAR SPRING, CENTER
48247-26310

LH6#,YH50,6#..M1

 2
48247-26310

LH6#,YH50,6#..M1

 2
48247 - BOLT, REAR SPRING, CENTER
48247-26310

LH6#,YH50,6#..M1

 2
48247-26310

LH6#,YH50,6#..M1

 2
48252 - SILENCER, REAR SPRING
48252-26070

LH5#,6#,7#,YH5#,6#,7#

 8
48252-26070

LH5#,6#,7#,YH5#,6#,7#

 8
48252 - SILENCER, REAR SPRING
48252-26070

LH5#,6#,7#,YH5#,6#,7#

 8
48252-26070

LH5#,6#,7#,YH5#,6#,7#

 8
48252 - SILENCER, REAR SPRING
48252-26070

LH5#,6#,7#,YH5#,6#,7#

 8
48252-26070

LH5#,6#,7#,YH5#,6#,7#

 8
48284 - NUT, REAR SPRING CENTER BOLT
48299-28010

LH5#,6#,7#,YH5#,6#,7#

 2
48299-28010

LH5#,6#,7#,YH5#,6#,7#

 2
48284 - NUT, REAR SPRING CENTER BOLT
48299-28010

LH5#,6#,7#,YH5#,6#,7#

 2
48299-28010

LH5#,6#,7#,YH5#,6#,7#

 2
Common parts
95111-00820
95111-00822
95111-00920

(8212-8508)YH60..N1 ; (8212-8508)YH61..4H,4HC ;(8212-8508)YH61..5H..N1 ; (8212-850

Click highlighted areas on diagram

diagram 48210 48210 48210C 48210C 48211 48211 48212 48212 48213 48213 48214 48214 48215 48220 48220 48241 48241 48242 48242 48247 48247 48252 48252 48252 48253A 48253A 48284 48284 9511100920 9511100922 9511101044 9511101044
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-26320

LH6#,YH50,6#..M1

 1
48210-26320

LH6#,YH50,6#..M1

 1
48210 - SPRING ASSY, REAR RH
48210-26320

LH6#,YH50,6#..M1

 1
48210-26320

LH6#,YH50,6#..M1

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-14007

LH5#,6#,7#,YH5#,6#,7#

 4
90389-14007

LH5#,6#,7#,YH5#,6#,7#

 4
48210C - BUSH(FOR REAR SPRING LEAF)
90389-14007

LH5#,6#,7#,YH5#,6#,7#

 4
90389-14007

LH5#,6#,7#,YH5#,6#,7#

 4
48211 - LEAF, REAR SPRING, NO.1
48201-26310

LH6#,YH50,6#..M1

 2
48201-26310

LH6#,YH50,6#..M1

 2
48211 - LEAF, REAR SPRING, NO.1
48201-26310

LH6#,YH50,6#..M1

 2
48201-26310

LH6#,YH50,6#..M1

 2
48212 - LEAF, REAR SPRING, NO.2
48202-26320

LH6#,YH50,6#..M1

 2
48202-26320

LH6#,YH50,6#..M1

 2
48212 - LEAF, REAR SPRING, NO.2
48202-26320

LH6#,YH50,6#..M1

 2
48202-26320

LH6#,YH50,6#..M1

 2
48220 - SPRING ASSY, REAR LH
48210-26320

LH6#,YH50,6#..M1

 1
48210-26320

LH6#,YH50,6#..M1

 1
48220 - SPRING ASSY, REAR LH
48210-26320

LH6#,YH50,6#..M1

 1
48210-26320

LH6#,YH50,6#..M1

 1
48241 - CLIP, REAR SPRING, NO.1
48241-27150

LH6#,YH50,6#..M1

 4
48241-27150

LH6#,YH50,6#..M1

 4
48241 - CLIP, REAR SPRING, NO.1
48241-27150

LH6#,YH50,6#..M1

 4
48241-27150

LH6#,YH50,6#..M1

 4
48247 - BOLT, REAR SPRING, CENTER
48247-26310

LH6#,YH50,6#..M1

 2
48247-26310

LH6#,YH50,6#..M1

 2
48247 - BOLT, REAR SPRING, CENTER
48247-26310

LH6#,YH50,6#..M1

 2
48247-26310

LH6#,YH50,6#..M1

 2
48252 - SILENCER, REAR SPRING
48252-26070

LH5#,6#,7#,YH5#,6#,7#

 8
48252-26070

LH5#,6#,7#,YH5#,6#,7#

 8
48252 - SILENCER, REAR SPRING
48252-26070

LH5#,6#,7#,YH5#,6#,7#

 8
48252-26070

LH5#,6#,7#,YH5#,6#,7#

 8
48252 - SILENCER, REAR SPRING
48252-26070

LH5#,6#,7#,YH5#,6#,7#

 8
48252-26070

LH5#,6#,7#,YH5#,6#,7#

 8
48284 - NUT, REAR SPRING CENTER BOLT
48299-28010

LH5#,6#,7#,YH5#,6#,7#

 2
48299-28010

LH5#,6#,7#,YH5#,6#,7#

 2
48284 - NUT, REAR SPRING CENTER BOLT
48299-28010

LH5#,6#,7#,YH5#,6#,7#

 2
48299-28010

LH5#,6#,7#,YH5#,6#,7#

 2
Common parts
95111-00920
95111-00922
95111-01044

(8212- )

Click highlighted areas on diagram

diagram 04483 48046 48046A 48047 48210A 48210A 48341 48345 48371 48372 48372 48373 48530 48530A 48530A 48530B 48530C 48530D 48530E 48540 9010114021 9010514020 9010514020 9017014012 9161140820 9161140830 9161141020 9161141020 9418401400 9418401400 9451201400 9462111400 9462111400 9462111400
Part # Description Qty Price
04483 - SHACKLE KIT, REAR SPRING
04483-26060

LH5#,6#,7#,YH5#,6#,71

 2
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-26050

LH50,60,70,YH5#,6#,71

 1
48046A - BOLT, U(FOR REAR SPRING)
90118-14201

LH6#,YH50,6#..M1

 4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48047-26050

LH50,60,70,YH5#,6#,71

 1
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18008

LH50,51,60,61,7#,YH50,51,53,60,61,63,7#

 4
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18008

LH50,51,60,61,7#,YH50,51,53,60,61,63,7#

 4
48341 - BUMPER, REAR SPRING
48341-26010

LH5#,6#,7#,YH5#,6#,71

 2
48371 - RETAINER, REAR SPRING PAD
48371-26060

LH6#,YH50,6#..M1

 2
48372 - PAD, REAR SPRING
48372-26040

LH6#,YH50,6#..M1

 4
48372 - PAD, REAR SPRING
48372-26040

LH6#,YH50,6#..M1

 4
48373 - SPACER, REAR SPRING
48037-26050

LH6#,YH50,6#..M1

 2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80024

LH60,YH50,60..M1

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16004

LH50,60,70,YH50,6#,71

 4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16004

LH50,60,70,YH50,6#,71

 4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03012

LH5#,6#,7#,YH5#,6#,7#

 2
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03004

LH5#,6#,7#,YH5#,6#,7#

 2
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03012

LH50,60,70,YH5#,6#,71

 2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03004

LH50,60,70,YH5#,6#,71

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-80024

LH60,YH50,60..M1

 1
Common parts
90101-14021
90105-14020
90170-14012
91611-40820
91611-40830
91611-41020
94184-01400
94512-01400
94621-11400
