LH56LV-MRUW (1987)
Toyota Hiace Van,Commuter
Production
Aug 1987
-
Aug 1988
Engine
2L
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 2(8708- )LH56,66,YH56,66
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON | ||||
| 44606-20800 |
LH56,66,YH56,66 |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-26350 |
LH56,66 |
1 | ||
| 44621V - SEAL, BOOSTER BODY | ||||
| 44621-14030 |
LH56,66,YH56,66 |
1 | ||
| 44626A - RETAINER, BOOSTER BODY SEAL | ||||
| 44626-60010 |
LH56,66,YH56,66 |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-60010 |
LH56,66,YH56,66 |
1 | ||
| 44635B - KEY, VALVE STOPPER | ||||
| 44635-20800 |
LH56,66,YH56,66 |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-20800 |
LH56,66,YH56,66 |
1 | ||
| 44643 - RETAINER, DIAPHRAGM | ||||
| 44643-20800 |
LH56,66,YH56,66 |
1 | ||
| 44657D - CASE, REACTION DISC | ||||
| 44657-20800 |
LH56,66,YH56,66 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||

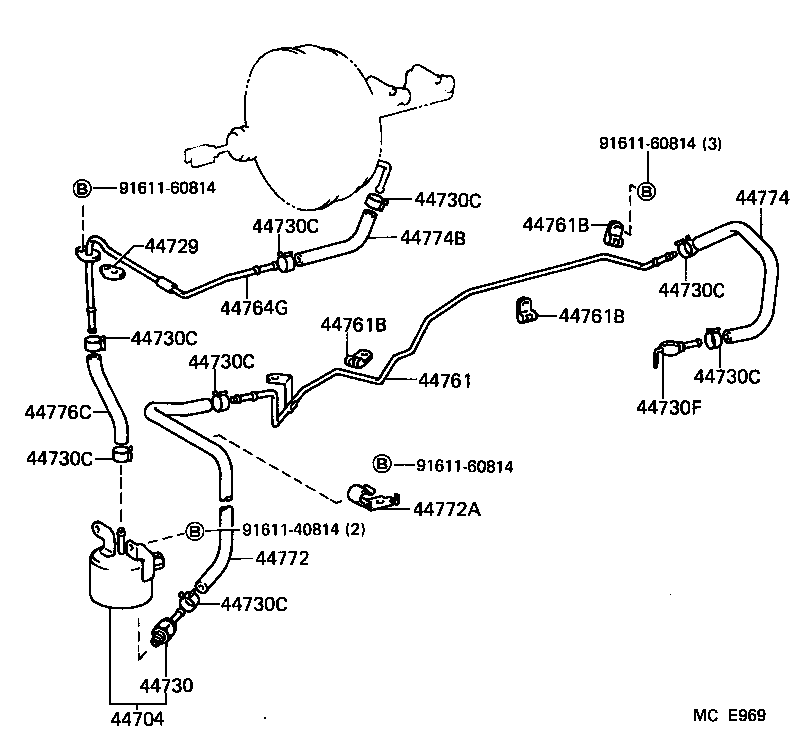

ILLUST NO. 2 OF 2(8708- )LH56,66
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-26030 |
LH5#,6#..LHD |
1 | ||
| 44729 - GASKET, VACUUM TUBE | ||||
| 44729-26020 |
LH5#,6#,YH5#,6# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
LH5#,6# |
1 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
LH5#,6#,YH51,61 |
8 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
LH5#,6#,YH51,61 |
8 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
LH5#,6#,YH51,61 |
8 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
LH5#,6#,YH51,61 |
8 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
LH5#,6#,YH51,61 |
8 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
LH5#,6#,YH51,61 |
8 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
LH5#,6#,YH51,61 |
8 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
LH5#,6#,YH51,61 |
8 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51031 |
YH5#,6# |
1 | ||
| 90405-09104 |
LH56,66 |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-26140 |
LH56,66,YH56,66 |
1 | ||
| 44761B - CLAMP, CONNEECTOR TUBE | ||||
| 90461-10221 |
LH56,66,YH56,66 |
3 | ||
| 44761B - CLAMP, CONNEECTOR TUBE | ||||
| 90461-10221 |
LH56,66,YH56,66 |
3 | ||
| 44761B - CLAMP, CONNEECTOR TUBE | ||||
| 90461-10221 |
LH56,66,YH56,66 |
3 | ||
| 44764G - TUBE, CONNECTOR TO BRAKE BOOSTER | ||||
| 44764-26060 |
LH5#,6#,YH5#,6#..LHD |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-26030 |
LH5#,6#..LHD |
1 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 90949-01092 |
LH5#,6#..LHD |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-26120 |
YH5#,6# |
1 | ||
| 44774-26140 |
LH56,66 |
1 | ||
| 44774B - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-26120 |
YH5#,6# |
1 | ||
| 44776C - HOSE, VACUUM RESERVOIR TO CONNECTOR | ||||
| 95441-09190 |
LH5#,6# |
1 | ||
| Common parts | ||||
| 91611-40814 | ||||
| 91611-60814 | ||||
