LH176L-BRMRSX (1998)
Toyota Hiace Van,Commuter
ILLUST NO. 2 OF 3(9808- )GCC ; (0008- )RZH155..GEN ; (0108-)LH172..5F..ARL ; (0108- )LH
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-05277 | ||||
| 90119-08699 | ||||

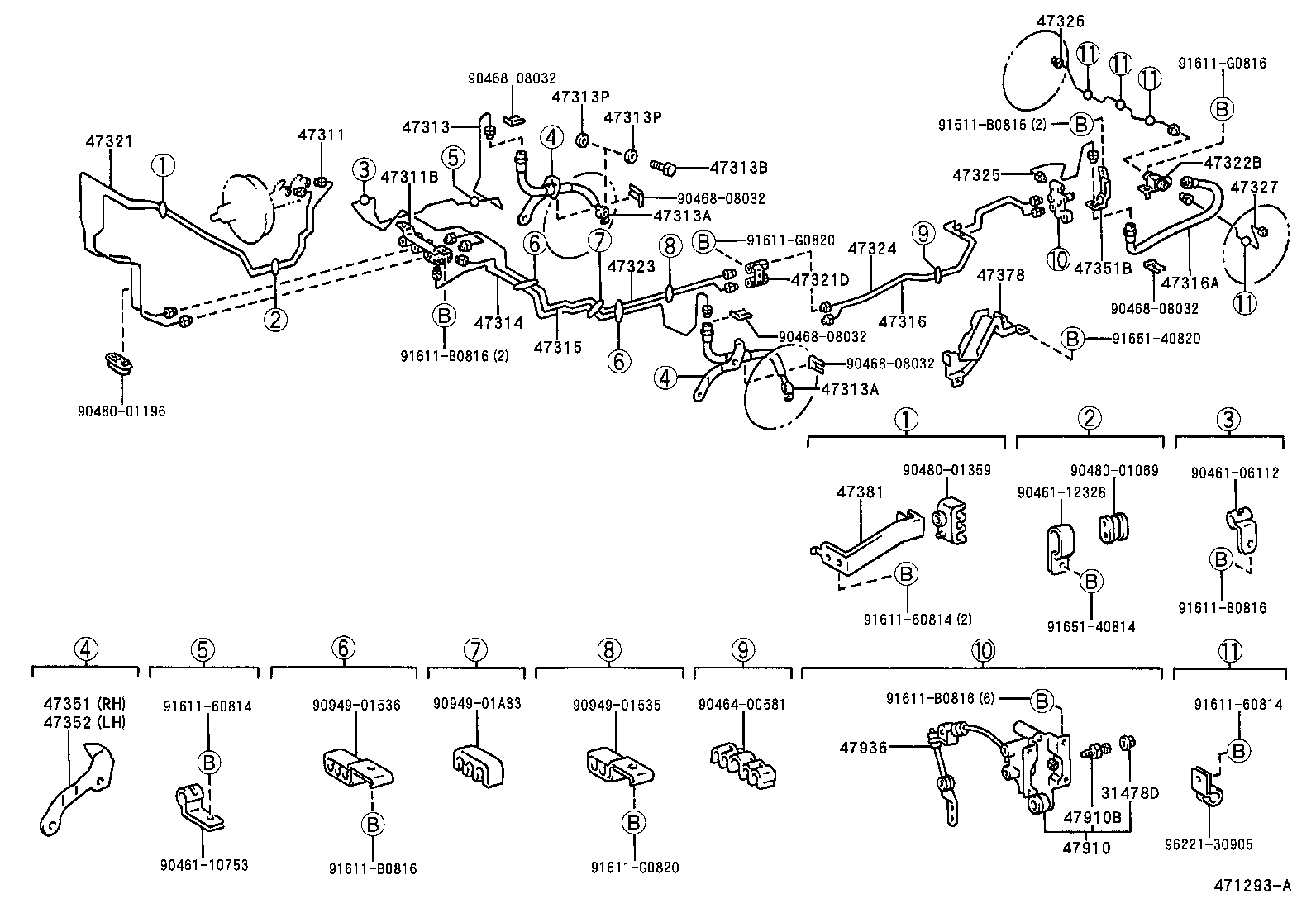

ILLUST NO. 1 OF 3(9808- )LH166,176
W/O(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31478D - CAP, BLEEDER PLUG(FOR LSPV) | ||||
| 31478-30010 |
RZH112..5D;RZH112..03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125 |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-26460 |
LH102,104,105,11#,166,174,176..LHD |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90414-10022 |
LH166,17#,184;LH103,113,125,RZH103,113,114,125..4FC |
1 | ||
| 90414-10022 |
LH154,16#,17#,184;LH103,113,125,RZH103,113,125..4FC |
1 | ||
| 90414-10019 |
RZH112..5D;RZH112..03S;LH10#,11#,125,RZH10#,113,114,115,125,135,15#..5F |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-26161 |
LH166,176 |
1 | ||
| 47313-26161 |
LH166,176 |
1 | ||
| 47313-26141 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,162,164,172,174,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02829 |
LH166,176 |
2 | ||
| 90947-02C03 |
LH166,176 |
2 | ||
| 90947-02C04 |
LH172..HRF;RZH112..LHD;LH172..03S..GL;RZH112..RHD..SP;LH172..5D..03S..GEN;LH172,RZH115..LHD..4D..(03S,12S);LH172,RZH115..(ARL,CIS,GCC)..(DSL,EFI);LH172,174,RZH115..(06S,10S,15S)..(CBR,DEFI,DSL);LH10#,11#,125,154,162,164,184,RZH10#,113,114,125,135,15# W(195/70R15C TIRE),RH |
1 | ||
| 90947-02C05 |
LH172..HRF;RZH112..LHD;LH172..03S..GL;RZH112..RHD..SP;LH172..5D..03S..GEN;LH172,RZH115..LHD..4D..(03S,12S);LH172,RZH115..(ARL,CIS,GCC)..(DSL,EFI);LH172,174,RZH115..(06S,10S,15S)..(CBR,DEFI,DSL);LH10#,11#,125,154,162,164,184,RZH10#,113,114,125,135,15# W(195/70R15C TIRE),LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02829 |
LH166,176 |
2 | ||
| 90947-02C03 |
LH166,176 |
2 | ||
| 90947-02C04 |
LH172..HRF;RZH112..LHD;LH172..03S..GL;RZH112..RHD..SP;LH172..5D..03S..GEN;LH172,RZH115..LHD..4D..(03S,12S);LH172,RZH115..(ARL,CIS,GCC)..(DSL,EFI);LH172,174,RZH115..(06S,10S,15S)..(CBR,DEFI,DSL);LH10#,11#,125,154,162,164,184,RZH10#,113,114,125,135,15# W(195/70R15C TIRE),RH |
1 | ||
| 90947-02C05 |
LH172..HRF;RZH112..LHD;LH172..03S..GL;RZH112..RHD..SP;LH172..5D..03S..GEN;LH172,RZH115..LHD..4D..(03S,12S);LH172,RZH115..(ARL,CIS,GCC)..(DSL,EFI);LH172,174,RZH115..(06S,10S,15S)..(CBR,DEFI,DSL);LH10#,11#,125,154,162,164,184,RZH10#,113,114,125,135,15# W(195/70R15C TIRE),LH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
2 | ||
| 90401-10015 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
4 | ||
| 90430-10074 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
4 | ||
| 90430-10074 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-26210 |
LH166,176 |
1 | ||
| 47314-26190 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,162,164,172,174,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 47314-26210 |
LH166,176 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-26150 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-26150 |
LH11#,17#,RZH11# |
1 | ||
| 47316-26150 |
RZH112..5D;RZH112..03S;LH11#,17#,RZH113,114,115 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-33107 |
LH166,176 |
1 | ||
| 96940-33105 |
LH166,176 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-26370 |
LH102,104,105,11#,166,174,176..LHD |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10166 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 90412-10166 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10243 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125..03S,06S,09S,12S,14S,15S |
1 | ||
| 90413-10243 |
RZH112..5D;RZH112..03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-26340 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-26180 |
LH11#,17#,RZH11# |
1 | ||
| 47324-26180 |
RZH112..5D;RZH112..03S;LH11#,17#,RZH113,114,115 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-26350 |
LH166,176 |
1 | ||
| 47325-26350 |
RZH112..5D;RZH112..03S;LH10#,11#,16#,17#,184,RZH10#,113,114,115..CIS,GCC,GEN |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-26310 |
LH166,176 |
1 | ||
| 47326-26310 |
LH166,176 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-26160 |
LH166,176 |
1 | ||
| 47327-26160 |
LH166,176 |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-26160 |
LH166,176 |
1 | ||
| 47351-26160 |
LH166,176 |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-26171 |
LH166,176 |
1 | ||
| 47351-26171 |
RZH112..5D;RZH112..03S;LH10#,11#,16#,17#,184,RZH10#,113,114,115..CIS,GCC,GEN |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-26150 |
LH166,176 |
1 | ||
| 47352-26150 |
LH166,176 |
1 | ||
| 47378 - PROTECTOR, BRAKE TUBE | ||||
| 47378-26021 |
LH166,176,RZH153 AMBULANCE |
1 | ||
| 47378-26020 |
LH103..4FC;RZH103..ARL;LH103..03S..GEN;LH102,104,105,11#,166,174,176,RZH105,11#..LHD;LH125,184,RZH102,104,125,135,153..03S,06S,12S,14S,15S AMBULANCE |
1 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-26010 |
RZH105,115..STD..CIS;LH174,RZH113..LHD..(03S,06S,10S);LH102,104,105,11#,166,176,RZH10#,112,114,115..LHD..(CBR,DSL) |
1 | ||
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-26270 |
LH166,176 |
1 | ||
| 47910-26270 |
LH166,176 |
1 | ||
| 47910B - PLUG, BLEEDER | ||||
| 47547-27020 |
LH166,176 |
1 | ||
| 47547-27020 |
LH166,176 |
1 | ||
| 47936 - SHACKLE, LOAD SENSING SPRING, NO.2 | ||||
| 47936-26020 |
RZH115..CBR;RZH105,115..STD..CIS;RZH113..4D..STD..(ARL,GEN);RZH102,105,112,113..SRF..CBR;LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH103,104,114,125..03S,06S,12S,14S,15S |
1 | ||
| 47936-26020 |
RZH112..5D;RZH112..03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125 |
1 | ||
| Common parts | ||||
| 90461-06112 | ||||
| 90461-10753 | ||||
| 90461-12328 | ||||
| 90464-00581 | ||||
| 90468-08032 | ||||
| 90480-01069 | ||||
| 90480-01196 | ||||
| 90480-01359 | ||||
| 90949-01535 | ||||
| 90949-01536 | ||||
| 90949-01A33 | ||||
| 91611-60814 | ||||
| 91611-B0816 | ||||
| 91611-G0816 | ||||
| 91611-G0820 | ||||
| 91651-40814 | ||||
| 91651-40820 | ||||
| 96221-30905 | ||||
