LH176L-BRMRSX (1998)
Toyota Hiace Van,Commuter

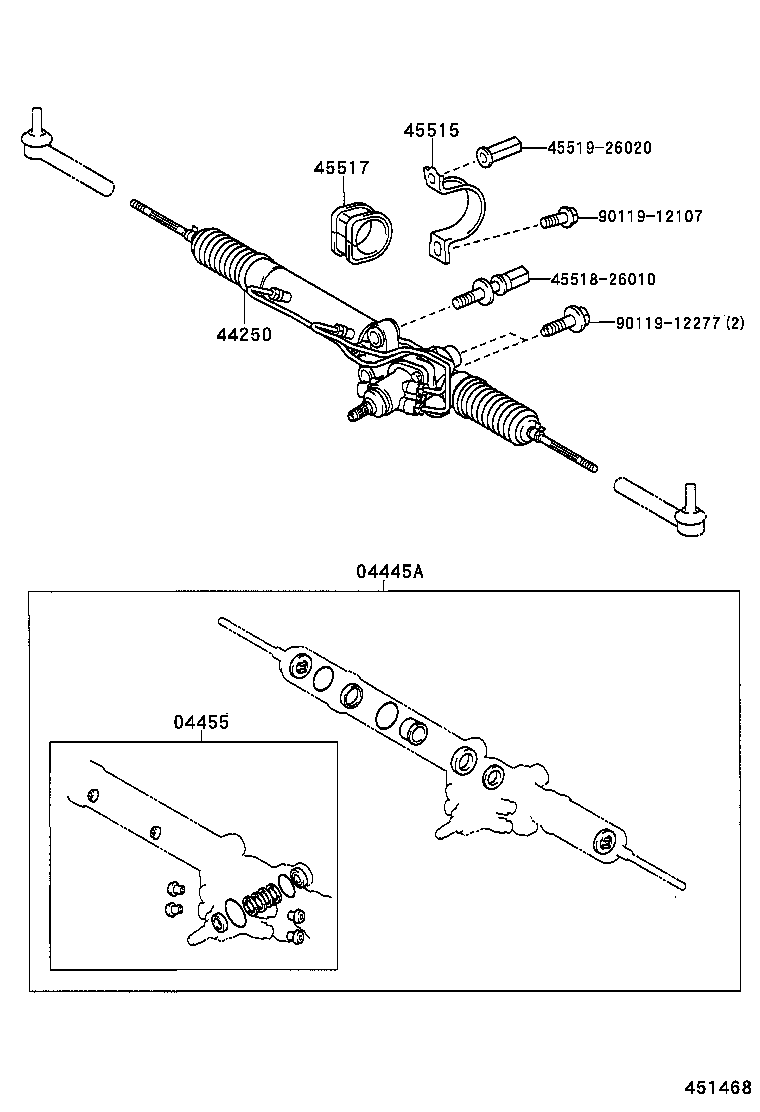

ILLUST NO. 2 OF 4(9808- )LH166,176
POWER STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-26070 |
LH166,176,RZH135,153 |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-26040 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 04455-26030 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-26093 |
LH166,176 |
1 | ||
| 44250-26093 |
LH166,176 |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-26030 |
LH166,176 |
1 | ||
| 45515-26030 |
LH166,176 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-26060 |
LH166,176 |
1 | ||
| 45517-26060 |
LH166,176 |
1 | ||
| Common parts | ||||
| 45518-26010 | ||||
| 45519-26020 | ||||
| 90119-12107 | ||||
| 90119-12277 | ||||

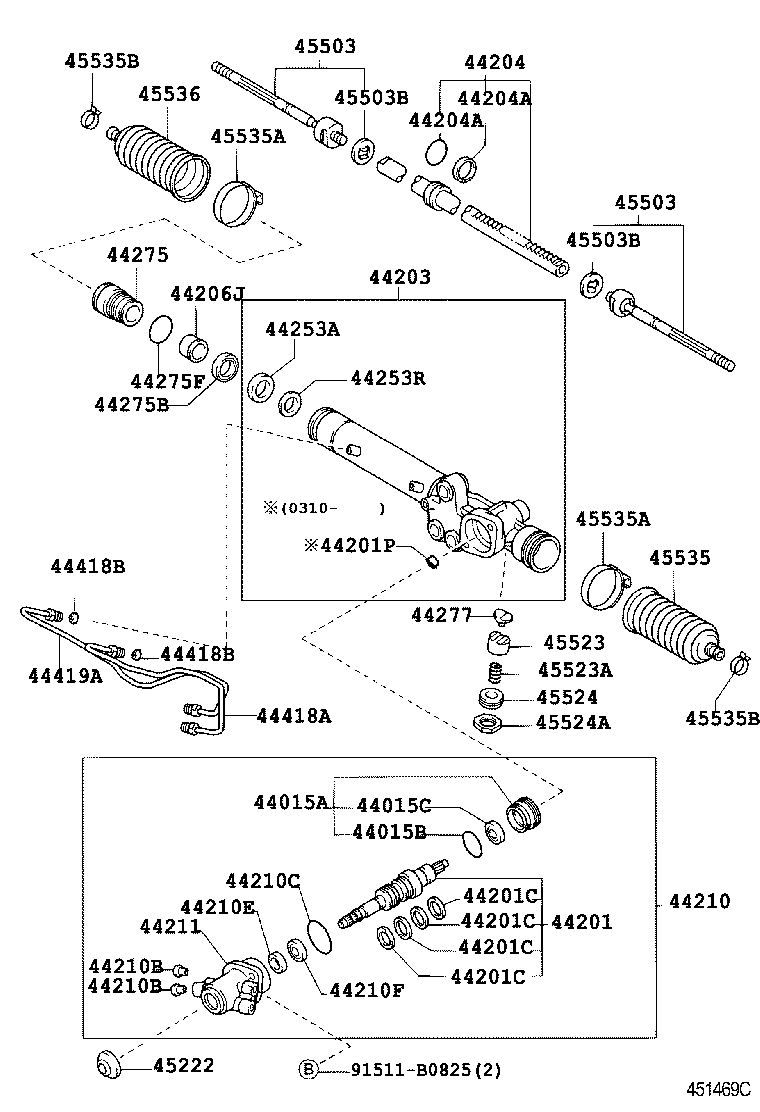

ILLUST NO. 3 OF 4(9808- )LH166,176
POWER STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44015A - NUT SUB-ASSY, BEARING GUIDE | ||||
| 44015-22020 |
LH162..GEN;RZH103..5F..STD;RZH104..LHD..STD;LH174,RZH115,155..(GL,STD)..CIS;LH102,104,16#,176,RZH102,105..4D..(03S,10S,12S,15S)..5F..(ARL,CIS,GEN) |
1 | ||
| 44015-22020 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 44015B - RING, O(FOR BEARING GUIDE NUT) | ||||
| 90301-43002 |
LH162..GEN;RZH103..5F..STD;RZH104..LHD..STD;LH174,RZH115,155..(GL,STD)..CIS;LH102,104,16#,176,RZH102,105..4D..(03S,10S,12S,15S)..5F..(ARL,CIS,GEN) |
1 | ||
| 90301-43002 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 44015C - SEAL, OIL(FOR BEARING GUIDE NUT) | ||||
| 90310-25004 |
LH162..GEN;RZH103..5F..STD;RZH104..LHD..STD;LH174,RZH115,155..(GL,STD)..CIS;LH102,104,16#,176,RZH102,105..4D..(03S,10S,12S,15S)..5F..(ARL,CIS,GEN) |
1 | ||
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-26022 |
LH102,104,105,11#,166,17#,RZH10#,11#..LHD |
1 | ||
| 44201-26023 |
RZH104..LHD..STD;LH174,RZH115,155..(GL,STD)..CIS;LH102,104,164,166,176,RZH102,105..LHD..4D..(03S,10S,12S,15S)..(CIS,GEN) |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
4 | ||
| 90562-33007 |
LH162..GEN;RZH103..5F..STD;RZH104..LHD..STD;LH174,RZH115,155..(GL,STD)..CIS;LH102,104,16#,176,RZH102,105..4D..(03S,10S,12S,15S)..5F..(ARL,CIS,GEN) |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
4 | ||
| 90562-33007 |
LH162..GEN;RZH103..5F..STD;RZH104..LHD..STD;LH174,RZH115,155..(GL,STD)..CIS;LH102,104,16#,176,RZH102,105..4D..(03S,10S,12S,15S)..5F..(ARL,CIS,GEN) |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
4 | ||
| 90562-33007 |
LH162..GEN;RZH103..5F..STD;RZH104..LHD..STD;LH174,RZH115,155..(GL,STD)..CIS;LH102,104,16#,176,RZH102,105..4D..(03S,10S,12S,15S)..5F..(ARL,CIS,GEN) |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
4 | ||
| 90562-33007 |
LH162..GEN;RZH103..5F..STD;RZH104..LHD..STD;LH174,RZH115,155..(GL,STD)..CIS;LH102,104,16#,176,RZH102,105..4D..(03S,10S,12S,15S)..5F..(ARL,CIS,GEN) |
4 | ||
| 44201P - BEARING(FOR POWER STEERING CONTROL VALVE LOWER) | ||||
| 90364-13003 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 44203 - HOUSING SUB-ASSY, POWER STEERING RACK | ||||
| 44203-26082 |
LH166,176 |
1 | ||
| 44203-26082 |
LH166,176 |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-26062 |
LH166,176 |
1 | ||
| 44204-26062 |
LH166,176 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-45001 |
LH166,176 OUTER |
1 | ||
| 90301-41007 |
LH166,176 INNER |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-45001 |
LH166,176 OUTER |
1 | ||
| 90301-41007 |
LH166,176 INNER |
1 | ||
| 44206J - BUSH(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90386-30001 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 90386-30001 |
LH162..GEN;RZH103..5F..STD;RZH104..LHD..STD;LH174,RZH115,155..(GL,STD)..CIS;LH102,104,16#,176,RZH102,105..4D..(03S,10S,12S,15S)..5F..(ARL,CIS,GEN) |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-26022 |
RZH104..LHD..STD;LH174,RZH115,155..(GL,STD)..CIS;LH102,104,164,166,176,RZH102,105..LHD..4D..(03S,10S,12S,15S)..(CIS,GEN) |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-06005 |
LH162..GEN;RZH103..5F..STD;RZH104..LHD..STD;LH174,RZH115,155..(GL,STD)..CIS;LH102,104,16#,176,RZH102,105..4D..(03S,10S,12S,15S)..5F..(ARL,CIS,GEN) |
2 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-06005 |
LH162..GEN;RZH103..5F..STD;RZH104..LHD..STD;LH174,RZH115,155..(GL,STD)..CIS;LH102,104,16#,176,RZH102,105..4D..(03S,10S,12S,15S)..5F..(ARL,CIS,GEN) |
2 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-51001 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 90301-51001 |
LH162..GEN;RZH103..5F..STD;RZH104..LHD..STD;LH174,RZH115,155..(GL,STD)..CIS;LH102,104,16#,176,RZH102,105..4D..(03S,10S,12S,15S)..5F..(ARL,CIS,GEN) |
1 | ||
| 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19002 |
LH162..GEN;RZH103..5F..STD;RZH104..LHD..STD;LH174,RZH115,155..(GL,STD)..CIS;LH102,104,16#,176,RZH102,105..4D..(03S,10S,12S,15S)..5F..(ARL,CIS,GEN) |
1 | ||
| 90311-19002 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 44210F - BEARING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90363-19003 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 90363-19003 |
LH162..GEN;RZH103..5F..STD;RZH104..LHD..STD;LH174,RZH115,155..(GL,STD)..CIS;LH102,104,16#,176,RZH102,105..4D..(03S,10S,12S,15S)..5F..(ARL,CIS,GEN) |
1 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44211-26110 |
RZH104..LHD..STD;LH174,RZH115,155..(GL,STD)..CIS;LH102,104,164,166,176,RZH102,105..LHD..4D..(03S,10S,12S,15S)..(CIS,GEN) |
1 | ||
| 44211-28050 |
LH102,104,105,11#,166,17#,RZH10#,11#..LHD |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90310-30012 |
LH166,176 |
1 | ||
| 44253R - SPACER(FOR POWER STEERING RACK HOUSING) | ||||
| 90560-30011 |
LH166,176 |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-26060 |
LH166,176 |
1 | ||
| 44275-26060 |
LH166,176 |
1 | ||
| 44275B - SEAL, OIL(FOR CYLINDER END STOPPER) | ||||
| 90310-30012 |
LH166,176 |
1 | ||
| 44275F - RING, O(FOR CYLINDER END STOPPER) | ||||
| 90301-43007 |
LH166,176 |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-28010 |
LH162..GEN;RZH103..5F..STD;RZH104..LHD..STD;LH174,RZH115,155..(GL,STD)..CIS;LH102,104,16#,176,RZH102,105..4D..(03S,10S,12S,15S)..5F..(ARL,CIS,GEN) |
1 | ||
| 44277-28010 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-26071 |
LH166,176 |
1 | ||
| 44418-26071 |
LH166,176 |
1 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04002 |
LH162..GEN;RZH103..5F..STD;RZH104..LHD..STD;LH174,RZH115,155..(GL,STD)..CIS;LH102,104,16#,176,RZH102,105..4D..(03S,10S,12S,15S)..5F..(ARL,CIS,GEN) |
2 | ||
| 90410-04002 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
2 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04002 |
LH162..GEN;RZH103..5F..STD;RZH104..LHD..STD;LH174,RZH115,155..(GL,STD)..CIS;LH102,104,16#,176,RZH102,105..4D..(03S,10S,12S,15S)..5F..(ARL,CIS,GEN) |
2 | ||
| 90410-04002 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
2 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-26121 |
LH166,176 |
1 | ||
| 44419-26121 |
LH166,176 |
1 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-32010 |
LH172..03S..GL;LH172..GL..DEFI;RZH104..LHD..STD;RZH115..GEN..EFI;RZH115..STD..(CIS,GCC);LH172,RZH103,112,113..DX,STD;LH162,RZH114..(03S,06S,12S)..GEN;LH112,162,174,RZH114..4D..5F..STD;LH102,104,114,154,164,166,176,184,RZH102,105,125,135,15#..4D..(03S,10S,11S,12S,14S,15S)..(ARL,CIS,GEN) W(POWER STEERING) |
1 | ||
| 45222-32010 |
RZH102;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,112,114,125,135,153..03S,06S,09S,12S,14S,15S W(POWER STEERING) |
1 | ||
| 45222-51010 |
RZH103..5F;LH174,RZH115,155..CIS;LH10#,16#,176,RZH102,104,105 |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29575 |
LH166,176 |
2 | ||
| 45503-29575 |
LH166,176 |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29575 |
LH166,176 |
2 | ||
| 45503-29575 |
LH166,176 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14005 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S OD=41 |
2 | ||
| 90214-14005 |
LH162..GEN;RZH103..5F..STD;RZH104..LHD..STD;LH174,RZH115,155..(GL,STD)..CIS;LH102,104,16#,176,RZH102,105..4D..(03S,10S,12S,15S)..5F..(ARL,CIS,GEN) OD=41 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14005 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S OD=41 |
2 | ||
| 90214-14005 |
LH162..GEN;RZH103..5F..STD;RZH104..LHD..STD;LH174,RZH115,155..(GL,STD)..CIS;LH102,104,16#,176,RZH102,105..4D..(03S,10S,12S,15S)..5F..(ARL,CIS,GEN) OD=41 |
2 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-28010 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 45523-28010 |
LH162..GEN;RZH103..5F..STD;RZH104..LHD..STD;LH174,RZH115,155..(GL,STD)..CIS;LH102,104,16#,176,RZH102,105..4D..(03S,10S,12S,15S)..5F..(ARL,CIS,GEN) |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-23024 |
LH172..03S..GL;LH172..GL..DEFI;RZH104..LHD..STD;RZH115..GEN..EFI;RZH115..STD..(CIS,GCC);LH172,RZH103,112,113..DX,STD;LH162,RZH114..(03S,06S,12S)..GEN;LH112,162,174,RZH114..4D..5F..STD;LH102,104,114,154,164,166,176,184,RZH102,105,125,135,15#..4D..(03S,10S,11S,12S,14S,15S)..(ARL,CIS,GEN) W(POWER STEERING) |
1 | ||
| 90501-29044 |
RZH103..5F;LH174,RZH115,155..CIS;LH10#,16#,176,RZH102,104,105 W(POWER STEERING) |
1 | ||
| 90501-23024 |
RZH102;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,112,114,125,135,153..03S,06S,09S,12S,14S,15S W(POWER STEERING) |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-20040 |
LH166,176,RZH135,153 |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-36002 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S W(POWER STEERING) |
1 | ||
| 90179-36002 |
LH162..GEN;RZH103..5F..STD;RZH104..LHD..STD;LH174,RZH115,155..(GL,STD)..CIS;LH102,104,16#,176,RZH102,105..4D..(03S,10S,12S,15S)..5F..(ARL,CIS,GEN) W(POWER STEERING) |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90460-55016 |
LH162..GEN;RZH103..5F..STD;RZH104..LHD..STD;LH174,RZH115,155..(GL,STD)..CIS;LH102,104,16#,176,RZH102,105..4D..(03S,10S,12S,15S)..5F..(ARL,CIS,GEN) |
2 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90460-55016 |
LH162..GEN;RZH103..5F..STD;RZH104..LHD..STD;LH174,RZH115,155..(GL,STD)..CIS;LH102,104,16#,176,RZH102,105..4D..(03S,10S,12S,15S)..5F..(ARL,CIS,GEN) |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19021 |
LH162..GEN;RZH103..5F..STD;RZH104..LHD..STD;LH174,RZH115,155..(GL,STD)..CIS;LH102,104,16#,176,RZH102,105..4D..(03S,10S,12S,15S)..5F..(ARL,CIS,GEN) |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19021 |
LH162..GEN;RZH103..5F..STD;RZH104..LHD..STD;LH174,RZH115,155..(GL,STD)..CIS;LH102,104,16#,176,RZH102,105..4D..(03S,10S,12S,15S)..5F..(ARL,CIS,GEN) |
2 | ||
| Common parts | ||||
| 91511-B0825 | ||||
ILLUST NO. 1 OF 4(9907- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44200 - LINK ASSY, POWER STEERING | ||||
| 44200-26113 |
LH166,176 |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-26093 |
LH166,176 |
1 | ||
| 44250-26093 |
LH166,176 |
1 | ||
