LH176L-BRMRSX (1998)

Toyota Hiace Van,Commuter

Production Aug 1998 - Aug 2004
Engine 5L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9808- )LH166,176

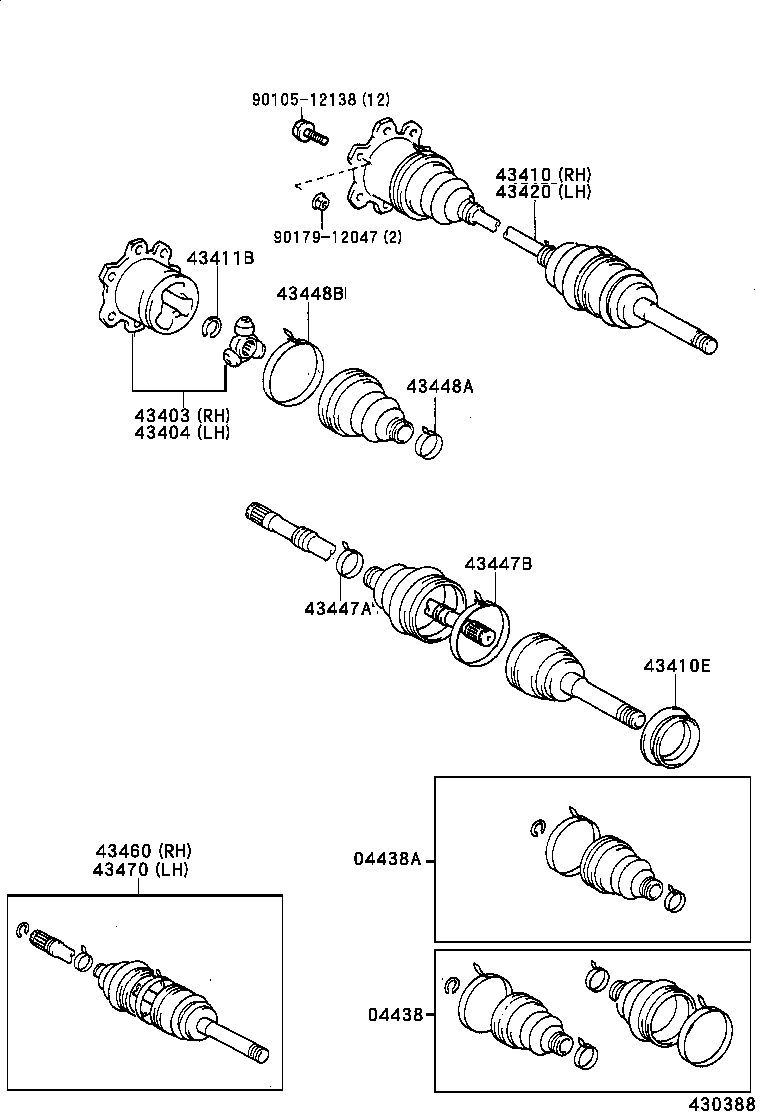

Click highlighted areas on diagram

diagram 04438 04438A 43403 43404 43410 43410E 43411B 43420 43447A 43447B 43448A 43448B 43460 43470 9010512138 9017912047
Part # Description Qty Price
04438 - BOOT KIT, FRONT DRIVE SHAFT
04438-35022

LH166,176

 2
04438-35022

LH166,176

 2
04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT
04438-35012

LH166,176

 2
04438-35012

LH166,176

 2
43403 - JOINT SET, FRONT AXLE INBOARD, RH
43403-35020

LH166,176

 1
43403-35020

LH166,176

 1
43404 - JOINT SET, FRONT AXLE INBOARD, LH
43403-35020

LH166,176

 1
43403-35020

LH166,176

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43430-26050

LH166,176

 1
43430-26050

LH166,176

 1
43430-26022

LH166,176

 1
43410E - COVER, DUST (FOR FRONT DRIVE SHAFT)
90304-76003

LH166,176

 2
90304-76005

LH166,176

 2
90304-76003

LH166,176

 2
43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)
90520-29028

LH166,176

 2
90520-29028

LH166,176

 2
43420 - SHAFT ASSY, FRONT DRIVE, LH
43430-26050

LH166,176

 1
43430-26022

LH166,176

 1
43430-26050

LH166,176

 1
43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
90949-01221

LH166,176

 2
90949-01221

LH166,176

 2
43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
90949-01135

LH166,176

 2
90949-01135

LH166,176

 2
43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
90949-01221

LH166,176

 2
90949-01221

LH166,176

 2
43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
90949-01222

LH166,176

 2
90949-01222

LH166,176

 2
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43460-29365

LH166,176

 1
43460-29475

LH166,176

 1
43460-29365

LH166,176

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43460-29365

LH166,176

 1
43460-29475

LH166,176

 1
43460-29365

LH166,176

 1
Common parts
90105-12138
90179-12047
