LH176L-BRMRSX (1998)

Toyota Hiace Van,Commuter

Production Aug 1998 - Aug 2004
Engine 5L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

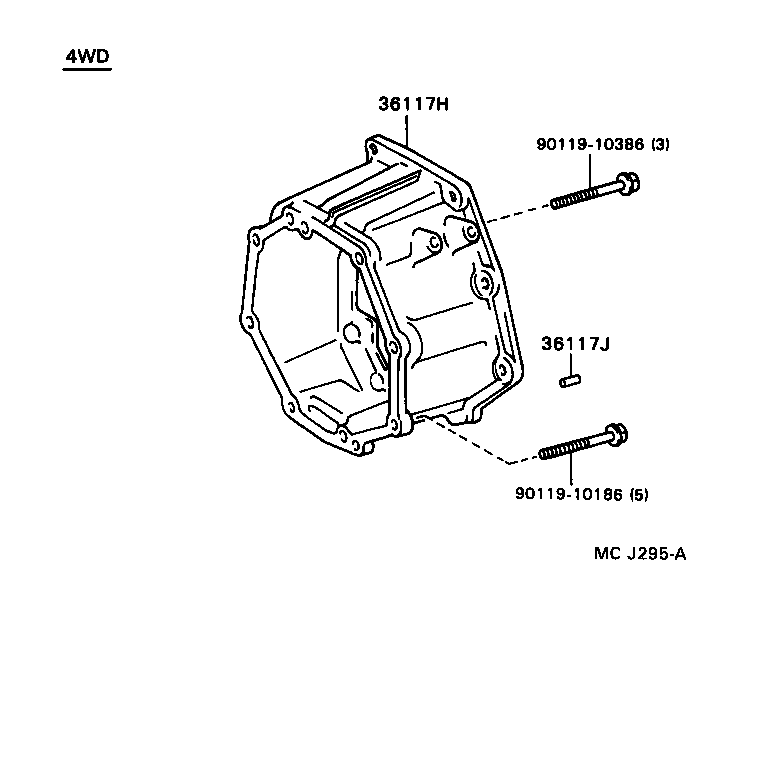

ILLUST NO. 1 OF 2(9808- )LH166,176

Click highlighted areas on diagram

G52

diagram 36117H 36117J 9011910186 9011910386
Part # Description Qty Price
36117H - ADAPTER SUB-ASSY, TRANSFER
36107-28010

LH166,176

 1
36107-28010

LH166,176

 1
36117J - PIN, STRAIGHT
90250-10214

LH166,176

 2
90250-10214

LH166,176

 2
Common parts
90119-10186
90119-10386
