Toyota Hiace van,commuter LH176 CLUTCH HOUSING & TRANSMISSION CASE (MTM)

Part #	Description	Period	Qty
31111 - HOUSING, CLUTCH
31111-26040	LH174..GL;LH172..RHD;LH10#,11#,125,166,176,184..5F TOYOTA:REFER TO ILLUSTRATION	08/1989 - 08/2000	1
31111-26032	RZH115;RZH114,125..(14S,15S)..5F;RZH10#,112,113,135,15#..(SMRF,SRF)..5F	07/1999 - 12/2999	1
31111-26040	LH172..HRF;LH172..LHD..4D;LH172..03S..GL;LH172..5D..03S..GEN;LH172..5F..(ARL,GCC);LH172,174..06S,10S,15S;LH10#,11#,125,154,16#,176,184..5F TOYOTA:REFER TO ILLUSTRATION	07/1999 - 12/2999	1
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18006	RZH114..15S;LH10#,11#,125,154,16#,17#,184,RZH10#,112,113,115,125,135,15#..5F	07/1999 - 12/2999	1
90341-18006	RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F)	08/1989 - 12/2999	1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008	RZH114..15S;LH10#,11#,125,154,16#,17#,184,RZH10#,112,113,115,125,135,15#..5F	07/1999 - 12/2999	1
90430-18008	RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F)	08/1989 - 12/2999	1
33101J - PLUG, BREATHER
90930-03085	RZH114..15S;LH10#,11#,125,154,16#,17#,184,RZH10#,112,113,115,125,135,15#..5F	07/1999 - 12/2999	1
90930-03085	RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F)	08/1989 - 12/2999	1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18032	LH172..HRF;RZH112..LHD;LH172..03S..GL;LH172..LHD..4D;RZH112..RHD..SP;LH172..5D..03S..GEN;LH172..5F..(ARL,GCC);LH172,174,RZH114..06S,10S,15S;LH10#,11#,125,154,16#,176,184,RZH10#,113,115,125,135,15#..5F TYPE C:REFER TO ILLUSTRATION	07/1999 - 12/2999	1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008	RZH114..15S;LH10#,11#,125,154,16#,17#,184,RZH10#,112,113,115,125,135,15#..5F	07/1999 - 12/2999	1
90430-18008	RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F)	08/1989 - 12/2999	1
33111 - CASE, MANUAL TRANSMISSION
33101-35060	LH172..HRF;RZH112..LHD;LH172..03S..GL;LH172..LHD..4D;RZH112..RHD..SP;LH172..5D..03S..GEN;LH172..5F..(ARL,GCC);LH172,174,RZH114..06S,10S,15S;LH10#,11#,125,154,16#,176,184,RZH10#,113,115,125,135,15#..5F TOYOTA:REFER TO ILLUSTRATION	07/1999 - 12/2999	1
33111C - PLUG(FOR TRANSMISSION CASE)
90331-14004	RZH114..15S;LH10#,11#,125,154,16#,17#,184,RZH10#,112,113,115,125,135,15#..5F OD=14	07/1999 - 12/2999	4
90331-14004	RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) OD=14	08/1989 - 12/2999	4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002	RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) L=16,OD=12	08/1989 - 12/2999	4
90250-12002	RZH114..15S;LH10#,11#,125,154,16#,17#,184,RZH10#,112,113,115,125,135,15#..5F L=16,OD=12	07/1999 - 12/2999	4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002	RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) L=16,OD=12	08/1989 - 12/2999	4
90250-12002	RZH114..15S;LH10#,11#,125,154,16#,17#,184,RZH10#,112,113,115,125,135,15#..5F L=16,OD=12	07/1999 - 12/2999	4
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-11001	RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) L=11,OD=11	08/1989 - 12/2999	2
90253-15001	RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) L=14,OD=15	08/1989 - 12/2999	2
90253-11001	LH172..HRF;RZH114..15S;LH172..LHD..4D;LH172..03S..GL;RZH112..RHD..SP;LH112,RZH112..LHD;LH172,174..SRF..SG;LH172..5D..03S..GEN;LH172..5F..(ARL,GCC);LH10#,113,114,115,125,154,16#,176,184,RZH10#,113,115,125,135,15#..5F L=11,OD=11	07/1999 - 12/2999	2
90253-15001	RZH114..15S;LH10#,11#,125,154,16#,17#,184,RZH10#,112,113,115,125,135,15#..5F L=14,OD=15	07/1999 - 12/2999	2
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-11001	RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) L=11,OD=11	08/1989 - 12/2999	2
90253-15001	RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) L=14,OD=15	08/1989 - 12/2999	2
90253-11001	LH172..HRF;RZH114..15S;LH172..LHD..4D;LH172..03S..GL;RZH112..RHD..SP;LH112,RZH112..LHD;LH172,174..SRF..SG;LH172..5D..03S..GEN;LH172..5F..(ARL,GCC);LH10#,113,114,115,125,154,16#,176,184,RZH10#,113,115,125,135,15#..5F L=11,OD=11	07/1999 - 12/2999	2
90253-15001	RZH114..15S;LH10#,11#,125,154,16#,17#,184,RZH10#,112,113,115,125,135,15#..5F L=14,OD=15	07/1999 - 12/2999	2
33119 - PLATE, STIFFENER, LH(MTM)
33119-26021	RZH112..5D;RZH112..03S;RZH10#,113,114,115,125,135,15#..5F	07/1999 - 12/2999	1
33119-25060	LH166,176	09/2003 - 12/2999	1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-26020	RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172..RHD..SRF..4D..STD..GEN;LH172,174,184..(03S,10S,15S)..GL;RZH113..4D..(03S,06S,09S)..5F..EFI;LH10#,11#,125,166,176,RZH102,104,112,114,125,135,153..4F,5F TOYOTA:REFER TO ILLUSTRATION	08/1989 - 08/2001	1
33131-26020	LH172..HRF;RZH112..LHD;LH172..03S..GL;LH172..LHD..4D;RZH112..RHD..SP;LH172..5D..03S..GEN;LH172..5F..(ARL,GCC);LH172,174,RZH114..06S,10S,15S;LH10#,11#,125,154,16#,176,184,RZH10#,113,115,125,135,15#..5F TOYOTA:REFER TO ILLUSTRATION	07/1999 - 12/2999	1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-30014	LH172..HRF;RZH112..SRF;LH172..03S..GL;LH172..5D..03S..GEN;LH172..5F..(ARL,GCC);LH172,174..06S,10S,15S;LH114,172,RZH114..LHD..4D..(03S,10S,15S);LH10#,112,113,115,125,154,16#,176,184,RZH10#,113,115,125,135,15#..5F	07/1999 - 12/2999	1
33132 - GASKET, FRONT BEARING RETAINER(MTM)
33132-28010	RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F)	08/1989 - 12/2999	1
33132-28010	LH172..HRF;RZH112..SRF;LH172..LHD..4D;LH172..03S..GL;LH172..5D..03S..GEN;LH172..5F..(ARL,GCC);LH172,174,RZH114..06S,10S,15S;LH10#,11#,125,154,16#,176,184,RZH10#,113,115,125,135,15#..5F	07/1999 - 12/2999	1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-35030	RZH114..15S;LH10#,11#,125,154,16#,17#,184,RZH10#,112,113,115,125,135,15#..5F	07/1999 - 12/2999	1
33151-35030	RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F)	08/1989 - 12/2999	1
33449B - MAGNET, TRANSMISSION
33449-26010	RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F)	08/1989 - 12/2999	1
33449-26010	RZH114..15S;LH10#,11#,125,154,16#,17#,184,RZH10#,112,113,115,125,135,15#..5F	07/1999 - 12/2999	1
Common parts
90119-08332
90149-80002
91612-61040
91612-61045
91619-61250
91619-G1255
91651-61032
94130-61000
94130-61200

LH176L-BRMRSX (1998)

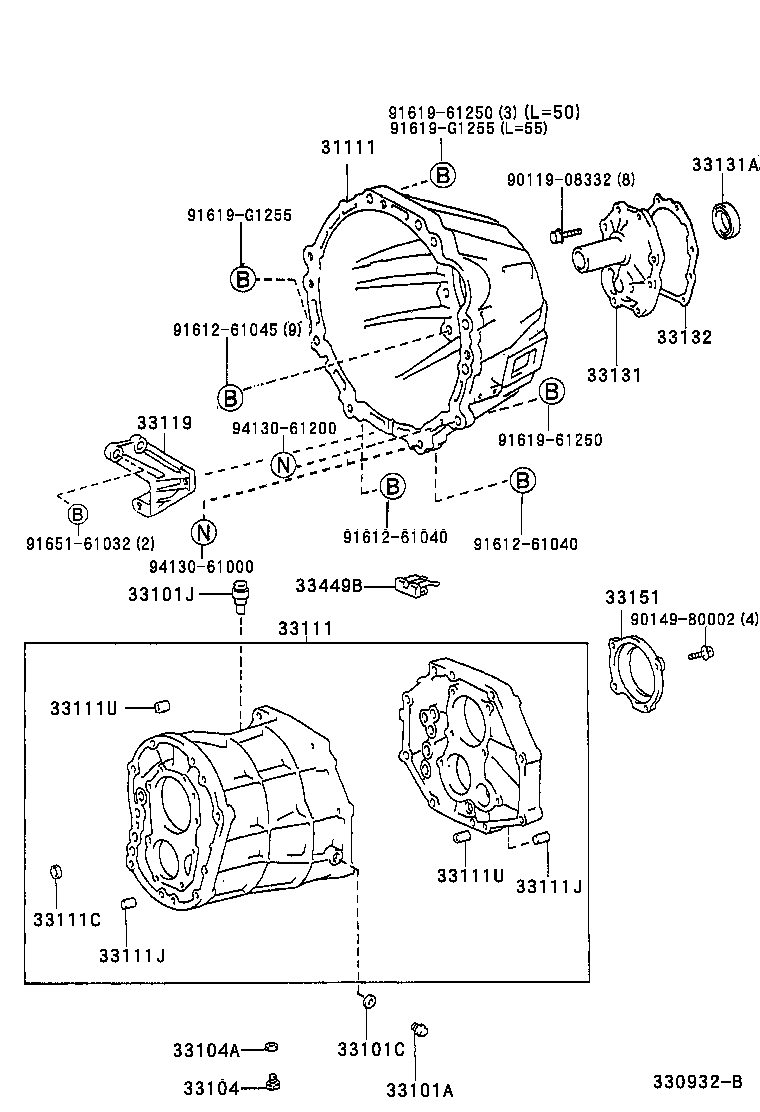

ILLUST NO. 1 OF 2(9808- )LH166,176
