LH176L-BRMRSX (1998)
Toyota Hiace Van,Commuter

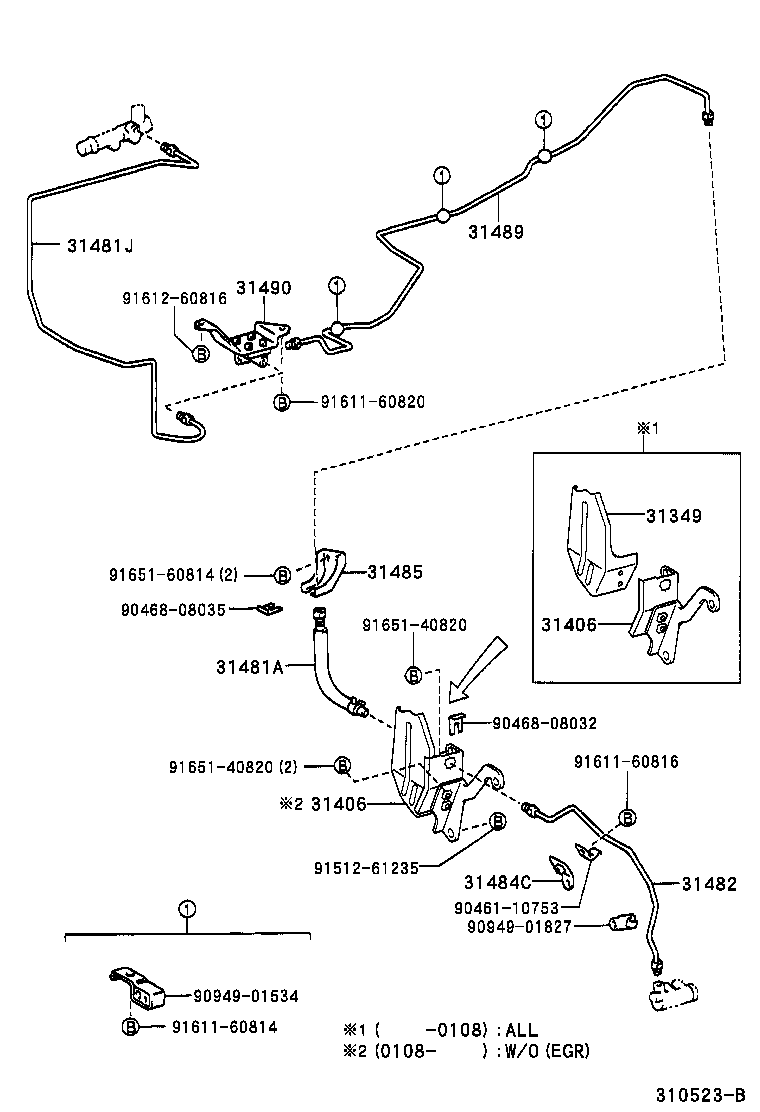

ILLUST NO. 2 OF 2(9808- )LH154,16#,17#,184..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31349 - INSULATOR, CLUTCH CABLE HEAT | ||||
| 31349-26042 |
LH114..RHD;LH174..CIS;LH174..10S,12S;LH112,162..5D..06S..5F;LH10#,113,115,125,164,166,176..5F |
1 | ||
| 31406 - BRACKET SUB-ASSY, FLEXIBLE HOSE | ||||
| 31406-26053 |
LH114..RHD;LH174..CIS;LH174..10S,12S;LH112,162..5D..06S..5F;LH10#,113,115,125,164,166,176..5F |
1 | ||
| 31406 - BRACKET SUB-ASSY, FLEXIBLE HOSE | ||||
| 31406-26053 |
LH114..RHD;LH174..CIS;LH174..10S,12S;LH112,162..5D..06S..5F;LH10#,113,115,125,164,166,176..5F |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 90931-01139 |
LH114..RHD;LH174..CIS;LH174..10S,12S;LH112,162..5D..06S..5F;LH10#,113,115,125,164,166,176..5F |
1 | ||
| 31481J - TUBE, CLUTCH MASTER CYLINDER TO 2 WAY | ||||
| 31481-26280 |
LH166,174,176 |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-26171 |
LH114..RHD;LH174..CIS;LH174..10S,12S;LH112,162..5D..06S..5F;LH10#,113,115,125,164,166,176..5F |
1 | ||
| 31484C - BRACKET, CLUTCH TUBE, NO.1 | ||||
| 31484-26190 |
LH112..5D;LH174..CIS;LH174..10S,12S;LH172..06S..GL..DSL;LH10#,113,115,125,16#,176..5F;LH114,172..RHD..SRF..4D..(03S,15S)..STD..GEN |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31485-26081 |
LH114..RHD;LH174..CIS;LH174..10S,12S;LH112,162..5D..06S..5F;LH10#,113,115,125,164,166,176..5F |
1 | ||
| 31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE | ||||
| 31489-26240 |
LH166,174,176 |
1 | ||
| 31489-26240 |
LH174..CIS;LH174..10S,12S;LH16#,176..SG..5F |
1 | ||
| 31490 - ACCUMULATOR ASSY, CLUTCH | ||||
| 31490-26021 |
LH174..CIS;LH16#,176..5F |
1 | ||
| 31490-26021 |
LH166,17#,184 |
1 | ||
| Common parts | ||||
| 90461-10753 | ||||
| 90468-08032 | ||||
| 90468-08035 | ||||
| 90949-01534 | ||||
| 90949-01827 | ||||
| 91512-61235 | ||||
| 91611-60814 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91612-60816 | ||||
| 91651-40820 | ||||
| 91651-60814 | ||||

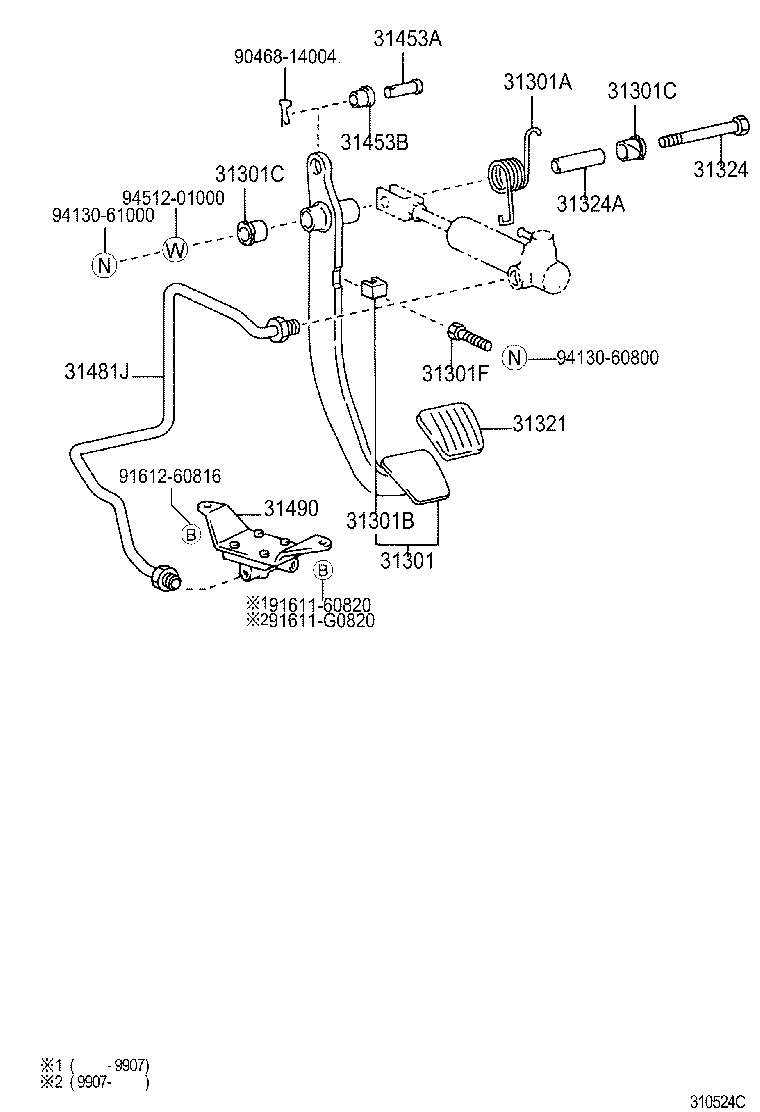

ILLUST NO. 1 OF 2(9808- )LH16#,174,176..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-26110 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90508-32034 |
LH174..CIS;LH174,RZH115..(10S,12S)..GEN;RZH115..(SGL,STD)..(CIS,GEN);LH172,RZH114..SG..GL..(CBR,DSL);LH172..RHD..SRF..4D..03S..STD..GEN;LH114,RZH112,114..RHD..SG..(03S,15S);LH10#,113,115,125,16#,176,RZH10#..5F;LH112,RZH113,155..LHD..(06S,11S)..(CIS,GEN) |
1 | ||
| 90508-32034 |
RZH102;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,112,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 47131-10010 |
RZH102;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,112,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
1 | ||
| 47131-10010 |
LH174..CIS;LH174,RZH115..(10S,12S)..GEN;RZH115..(SGL,STD)..(CIS,GEN);LH172,RZH114..SG..GL..(CBR,DSL);LH172..RHD..SRF..4D..03S..STD..GEN;LH114,RZH112,114..RHD..SG..(03S,15S);LH10#,113,115,125,16#,176,RZH10#..5F;LH112,RZH113,155..LHD..(06S,11S)..(CIS,GEN) |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
RZH102;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,112,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
2 | ||
| 90386-13007 |
LH174..CIS;LH174,RZH115..(10S,12S)..GEN;RZH115..(SGL,STD)..(CIS,GEN);LH172,RZH114..SG..GL..(CBR,DSL);LH172..RHD..SRF..4D..03S..STD..GEN;LH114,RZH112,114..RHD..SG..(03S,15S);LH10#,113,115,125,16#,176,RZH10#..5F;LH112,RZH113,155..LHD..(06S,11S)..(CIS,GEN) |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
RZH102;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,112,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
2 | ||
| 90386-13007 |
LH174..CIS;LH174,RZH115..(10S,12S)..GEN;RZH115..(SGL,STD)..(CIS,GEN);LH172,RZH114..SG..GL..(CBR,DSL);LH172..RHD..SRF..4D..03S..STD..GEN;LH114,RZH112,114..RHD..SG..(03S,15S);LH10#,113,115,125,16#,176,RZH10#..5F;LH112,RZH113,155..LHD..(06S,11S)..(CIS,GEN) |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-08052 |
RZH102;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,112,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
1 | ||
| 90101-08052 |
LH174..CIS;LH174,RZH115..(10S,12S)..GEN;RZH115..(SGL,STD)..(CIS,GEN);LH172,RZH114..SG..GL..(CBR,DSL);LH172..RHD..SRF..4D..03S..STD..GEN;LH114,RZH112,114..RHD..SG..(03S,15S);LH10#,113,115,125,16#,176,RZH10#..5F;LH112,RZH113,155..LHD..(06S,11S)..(CIS,GEN) |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14020 |
RZH102;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,112,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
1 | ||
| 31321-14020 |
LH174..CIS;LH174,RZH115..(10S,12S)..GEN;RZH115..(SGL,STD)..(CIS,GEN);LH172,RZH114..SG..GL..(CBR,DSL);LH172..RHD..SRF..4D..03S..STD..GEN;LH114,RZH112,114..RHD..SG..(03S,15S);LH10#,113,115,125,16#,176,RZH10#..5F;LH112,RZH113,155..LHD..(06S,11S)..(CIS,GEN) |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 91112-61070 |
LH174..CIS;LH174,RZH115..(10S,12S)..GEN;RZH115..(SGL,STD)..(CIS,GEN);LH172,RZH114..SG..GL..(CBR,DSL);LH172..RHD..SRF..4D..03S..STD..GEN;LH114,RZH112,114..RHD..SG..(03S,15S);LH10#,113,115,125,16#,176,RZH10#..5F;LH112,RZH113,155..LHD..(06S,11S)..(CIS,GEN) |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10004 |
RZH102;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,112,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
1 | ||
| 90387-10004 |
LH174..CIS;LH174,RZH115..(10S,12S)..GEN;RZH115..(SGL,STD)..(CIS,GEN);LH172,RZH114..SG..GL..(CBR,DSL);LH172..RHD..SRF..4D..03S..STD..GEN;LH114,RZH112,114..RHD..SG..(03S,15S);LH10#,113,115,125,16#,176,RZH10#..5F;LH112,RZH113,155..LHD..(06S,11S)..(CIS,GEN) |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
RZH102;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,112,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) L=23.5 |
1 | ||
| 90240-08006 |
LH174..CIS;LH174,RZH115..(10S,12S)..GEN;RZH115..(SGL,STD)..(CIS,GEN);LH172,RZH114..SG..GL..(CBR,DSL);LH172..RHD..SRF..4D..03S..STD..GEN;LH114,RZH112,114..RHD..SG..(03S,15S);LH10#,113,115,125,16#,176,RZH10#..5F;LH112,RZH113,155..LHD..(06S,11S)..(CIS,GEN) L=23.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
RZH102;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,112,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
1 | ||
| 90386-08002 |
LH174..CIS;LH174,RZH115..(10S,12S)..GEN;RZH115..(SGL,STD)..(CIS,GEN);LH172,RZH114..SG..GL..(CBR,DSL);LH172..RHD..SRF..4D..03S..STD..GEN;LH114,RZH112,114..RHD..SG..(03S,15S);LH10#,113,115,125,16#,176,RZH10#..5F;LH112,RZH113,155..LHD..(06S,11S)..(CIS,GEN) |
1 | ||
| 31481J - TUBE, CLUTCH MASTER CYLINDER TO 2 WAY | ||||
| 31481-26280 |
LH166,174,176 |
1 | ||
| 31490 - ACCUMULATOR ASSY, CLUTCH | ||||
| 31490-26021 |
LH174..CIS;LH16#,176..5F |
1 | ||
| 31490-26021 |
LH166,17#,184 |
1 | ||
| Common parts | ||||
| 90468-14004 | ||||
| 91611-60820 | ||||
| 91611-G0820 | ||||
| 91612-60816 | ||||
| 94130-60800 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||
