LH174L-BFMGS (1998)

Toyota Hiace Van,Commuter

Production Aug 1998 - Aug 2000
Engine 5L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9808- )5L..LH162,172,174,184..03S,06S,10S,14S,15S

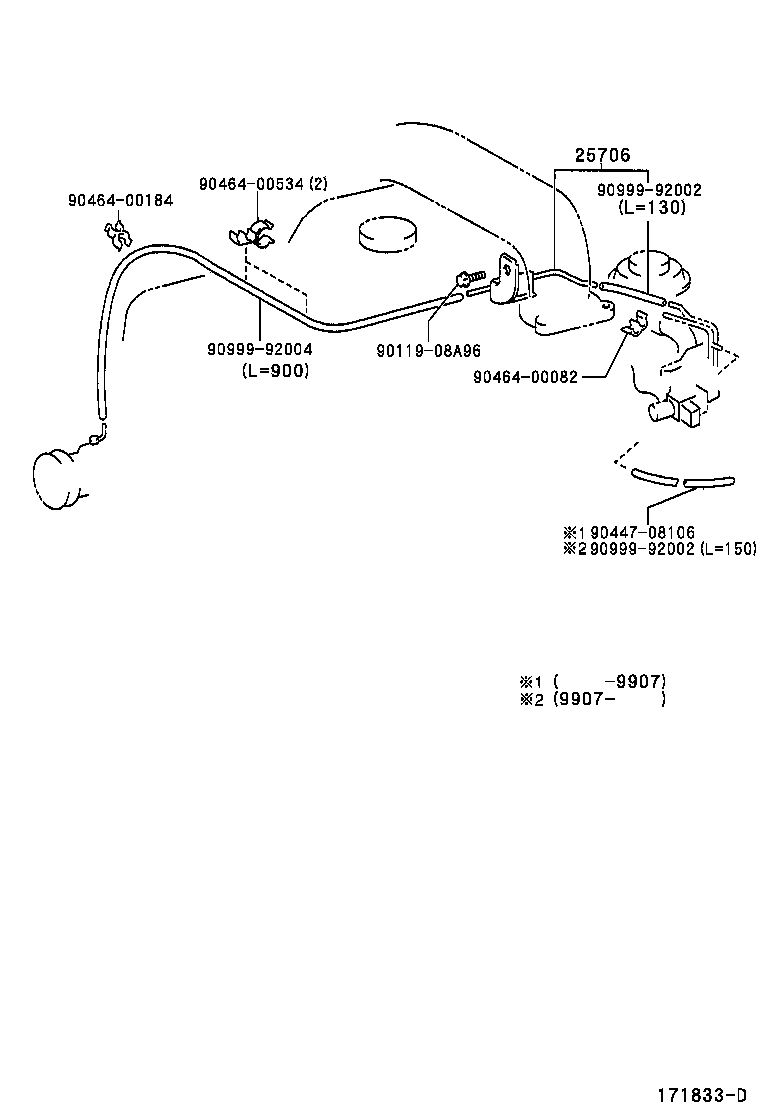

Click highlighted areas on diagram

W/O(AIR CONDITIONER) & W(EGR)

diagram 25706 9011908A96 9044708106 9046400082 9046400184 9046400534 9099992002 9099992002 9099992004
Part # Description Qty Price
Common parts
90119-08A96
90447-08106
90464-00082
90464-00184
90464-00534
90999-92002
90999-92004

(9907- )5L..LH162,172,174,184..03S,06S,10S,14S,15S..5F

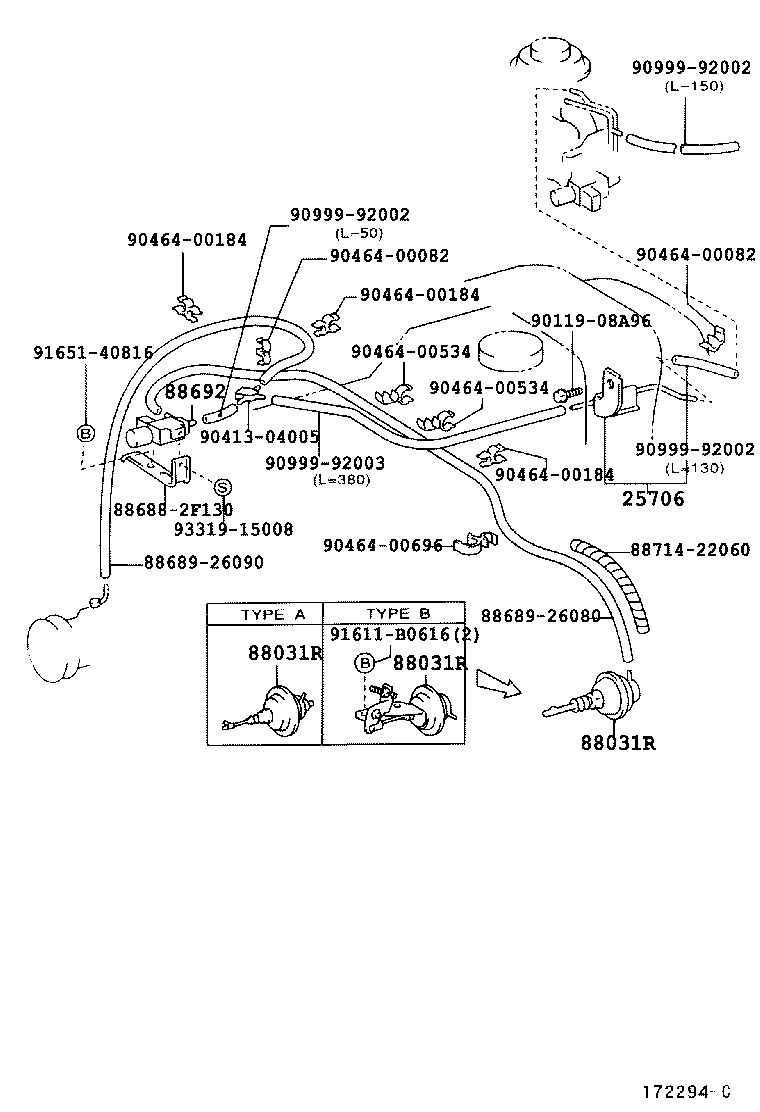

Click highlighted areas on diagram

W(AIR CONDITIONER) & W(EGR)

diagram 25706 88031R 88031R 88031R 886882F130 8868926080 8868926090 88692 8871422060 9011908A96 9041304005 9046400082 9046400082 9046400184 9046400184 9046400184 9046400534 9046400534 9046400696 9099992002 9099992002 9099992002 9099992003 91611B0616 9165140816 9331915008
Part # Description Qty Price
88031R - ACTUATOR SET, IDLE-UP
88031-26020

LH113,115..CIS;LH172..LHD..4D;LH172..06S..GL..DSL;LH174..SRF..(CIS,GEN);LH162,172..RHD..SRF..03S..STD..GEN;LH105,112,154,164,166,176..LHD..SG

TYPE A:REFER TO ILLUSTRATION

 1
88031R - ACTUATOR SET, IDLE-UP
88031-26020

LH113,115..CIS;LH172..LHD..4D;LH172..06S..GL..DSL;LH174..SRF..(CIS,GEN);LH162,172..RHD..SRF..03S..STD..GEN;LH105,112,154,164,166,176..LHD..SG

TYPE A:REFER TO ILLUSTRATION

 1
88031R - ACTUATOR SET, IDLE-UP
88031-26020

LH113,115..CIS;LH172..LHD..4D;LH172..06S..GL..DSL;LH174..SRF..(CIS,GEN);LH162,172..RHD..SRF..03S..STD..GEN;LH105,112,154,164,166,176..LHD..SG

TYPE A:REFER TO ILLUSTRATION

 1
88692 - VALVE, MAGNET(FOR IDLE UP DEVICE)
88691-26010

LH103,113,115..CIS,GCC,GEN;LH102,105,112,174..LHD..(06S,10S,12S)

 1
Common parts
88688-2F130
88689-26080
88689-26090
88714-22060
90119-08A96
90413-04005
90464-00082
90464-00184
90464-00534
90464-00696
90999-92002
90999-92003
91611-B0616
91651-40816
93319-15008

(9907- )2L,3L,5L..LH10#,11#,154,16#,17#

Click highlighted areas on diagram

W(AIR CONDITIONER) & W/0(EGR)

diagram 88031R 88031R 88031R 886882F130 8868926080 88692 8871422060 9046400082 9046400184 9046400184 9046400184 9046400184 9046400696 9099992004 91611B0616 9165140816 9331915008
Part # Description Qty Price
88031R - ACTUATOR SET, IDLE-UP
88031-26020

LH113,115..CIS;LH172..LHD..4D;LH172..06S..GL..DSL;LH174..SRF..(CIS,GEN);LH162,172..RHD..SRF..03S..STD..GEN;LH105,112,154,164,166,176..LHD..SG

TYPE A:REFER TO ILLUSTRATION

 1
88031R - ACTUATOR SET, IDLE-UP
88031-26020

LH113,115..CIS;LH172..LHD..4D;LH172..06S..GL..DSL;LH174..SRF..(CIS,GEN);LH162,172..RHD..SRF..03S..STD..GEN;LH105,112,154,164,166,176..LHD..SG

TYPE A:REFER TO ILLUSTRATION

 1
88031R - ACTUATOR SET, IDLE-UP
88031-26020

LH113,115..CIS;LH172..LHD..4D;LH172..06S..GL..DSL;LH174..SRF..(CIS,GEN);LH162,172..RHD..SRF..03S..STD..GEN;LH105,112,154,164,166,176..LHD..SG

TYPE A:REFER TO ILLUSTRATION

 1
88692 - VALVE, MAGNET(FOR IDLE UP DEVICE)
88691-26010

LH103,113,115..CIS,GCC,GEN;LH102,105,112,174..LHD..(06S,10S,12S)

 1
Common parts
88688-2F130
88689-26080
88714-22060
90464-00082
90464-00184
90464-00696
90999-92004
91611-B0616
91651-40816
93319-15008
